Fully welded vehicle trailer hitch is strong and durable. Draw-Tite's Tested Tough guarantee ensures that this hitch exceeds industry standards. The combination of an e-coat base and a powder coat finish provides excellent rust protection. Lowest Prices for the best trailer hitch from Draw-Tite. Draw-Tite Max-Frame Trailer Hitch Receiver - Custom Fit - Class III - 2" part number 75578 can be ordered online at etrailer.com or call 800-298-8924 for expert service.
$151.95
Select Your Vehicle

View Cart


Trailer Hitch > Custom Fit Hitch > Class III > 7500 lbs WD GTW > 750 lbs WD TW > 2 Inch Hitch > Visible Cross Tube > 500 lbs TW > 5000 lbs GTW > Draw-Tite

Draw-Tite Max-Frame Trailer Hitch Receiver - Custom Fit - Class III - 2"

Draw-Tite Trailer Hitch

(13 reviews)


Code:   75578

Retail:$247.46

Price:$151.95


Custom Fit Product

Shipping Special

Shipping Weight: 35 pounds

Quantity:






Draw-Tite Trailer Hitch - 75578

Fully welded vehicle trailer hitch is strong and durable. Draw-Tite's Tested Tough guarantee ensures that this hitch exceeds industry standards. The combination of an e-coat base and a powder coat finish provides excellent rust protection.


Features:

  • Custom-fit trailer hitch lets you tow a trailer or carry a bike rack or cargo carrier with your vehicle
  • Computer-aided, fully welded steel construction ensures strength and durability
  • Tested Tough - safety and reliability criteria exceed industry standards
  • Easy, bolt-on installation - no welding required
    • Complete hardware kit and installation instructions included
  • Lifetime technical support from the experts at etrailer.com
  • Black powder coat finish covers e-coat base for superior rust protection
  • Integrated mounting point lets you attach a bracket for a 4-way or 7-way plug (sold separately)
  • Stylish, round-tube design
  • Ball mount, pin and clip sold separately


Specs:

  • Receiver opening: 2" x 2"
  • Rating: Class III
    • Maximum gross trailer weight: 5,000 lbs
      • Maximum GTW when used with weight distribution: 7,500 lbs
    • Maximum tongue weight: 500 lbs
      • Maximum TW when used with weight distribution: 750 lbs
  • Limited lifetime warranty


Draw-Tite Tested Tough

Draw-Tite Tested Tough

Draw-Tite's Tested Tough program provides testing standards far superior to those outlined by the Society of Automotive Engineers (SAE), the go-to source for engineering professionals.



Each Draw-Tite trailer hitch receiver undergoes extensive fatigue testing and static testing with the ball mount that is either supplied or recommended for use with that particular hitch, thus ensuring results that are applicable to real life use. Fatigue testing is also conducted on hitches rated for use with weight-distribution systems.


In addition, Draw-Tite performs static testing on a simulated automobile, as opposed to the rigid fixture used for SAE testing, resulting in a more true-to-life scenario.


etrailer.com Technical Support

At etrailer.com we're committed to the products we sell, and to our customers. Our experienced and knowledgeable staff are available via both phone and email to address your questions and concerns for the lifetime of your hitch. The technicians at etrailer perform hitch installations on a daily basis, making them a valuable resource for do-it-yourselfers. The one-on-one, personal service you'll receive comes straight from an expert in the towing and automotive field. We've installed it, we've wired it and we've towed with it, so whatever your question, we can answer it.



75578 Draw-Tite Class 3 Trailer Hitch Receiver - Max-Frame

87450 Hidden Hitch Class 3 Trailer Hitch Receiver



75578 Installation InstructionsInstallation Details 75578 Installation instructions

This Product Fits The Following Vehicles

2008 - 2012 Jeep Liberty All Models




Video of Draw-Tite Max-Frame Trailer Hitch Receiver - Custom Fit - Class III - 2"


Videos are provided As a guide only. Refer To manufacturer
installation instructions And specs For complete information.

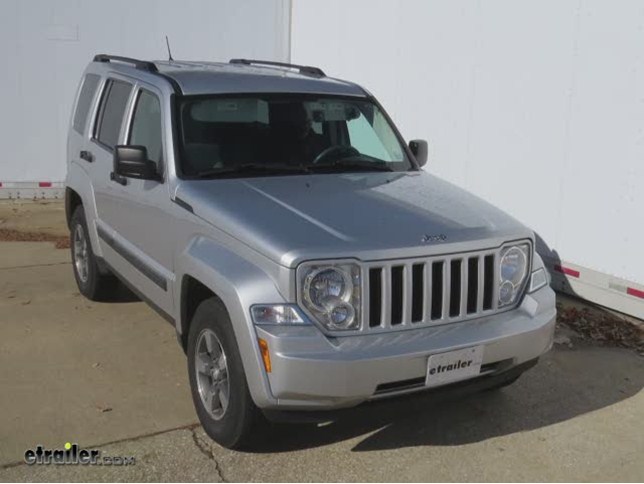

Video Transcript for Trailer Hitch Installation - 2008 Jeep Liberty

Today on our 2008 Jeep Liberty, we'll be installing the Draw-Tite Hitch, part number 75578. This is what a hitch will look like once it is installed. Next we'll go ahead and give you a couple of measurements to assist your selecting accessories for your new hitch. The center of the hitch pin hole is even with the outermost edge of the bumper. The top of the receiver tube openingto the ground is 19-1/2 inches. This will assist your selecting accessories such asa ball mount, bike rack, or carrier. Now we'll go ahead with the installation.

We'll first go ahead and point out our attachment points. We'll have a total of 6 attachment points: 3 on each side. These attachment points are weld nuts built into the frame by the manufacturer. To begin our install we'll first need to clean out any exposed weld nuts, because over time the weld nuts will build up with rust, dust, dirt, and debris. To clean them out we'll use some spray lubricant and a half inch nylon tube brush, part number 814092. Once we've thoroughly cleaned the weld nut out, we can then take one of the new fasteners and thread it into the weld nut to make sure it will go nice and easily. Now that we've got our first weld nut cleaned out we'll go ahead and repeat the same process for the other 4: one here on the driver's side and 3 on the passenger side.

Next, we'll need to remove the manufacturer's bolt from the support arm on the driver's side. We'll set the bolt aside as it will not be reinstalled. We'll be using the new 12 millimeter bolt and half inch conical tooth washer, teeth of the washer facing the hitch. Now that we're ready to put the hitch in place, it's a good idea to get an extra set of hands to help you hold the hitch while you install the fasteners. We'll install each one finger tight until we have them all in place.

Once we have them all in place we'll then go ahead and tighten it down and torque to specifications as indicated in the instructions. And now with our hitch secured and torqued to specifications, we're ready to hit the road. And that does it for the install of our Draw-Tite Hitch, part number 75578 on our 2008 Jeep Liberty. .


Customer Reviews

Draw-Tite Max-Frame Trailer Hitch Receiver - Custom Fit - Class III - 2" - 75578

Average Customer Rating:  5.0 out of 5 stars   (13 Customer Reviews)


Fully welded vehicle trailer hitch is strong and durable. Draw-Tite's Tested Tough guarantee ensures that this hitch exceeds industry standards. The combination of an e-coat base and a powder coat finish provides excellent rust protection.


- 75578

by: William Blake06/03/2012

2008 Jeep Liberty


2008 Jeep liberty, Received product fast, Fit in just the way the video shows, An impact driver should be used but I don't have one. I used hand tools (Breaker bar and socket) I suggest to use a better cleaner than WD40 (That's what I had) Took 2 hrs to clean and chase the threads and 10 Minutes to install. I also bought the wiring (118554), but it was raining and that's another day. Video looks like it covers the bases. 42569



- 75578

by: Grant K.09/01/2010

Jeep Liberty


GREAT BUY Overall great buy. One issue with install on a Jeep Liberty you have to remove a factory bolt inorder to install the hitch. The problem is this one bolt is lock sold in there. I had to bring the truck to a service station to have them remove the bolt so I could install the hitch. Other than that the hitch is great. 3409



- 75578

by: Tim G05/16/2014

Jeep Liberty


Installed very easily on my Jeep Liberty. No trouble at all. Looks great. 130980



- 75578

by: Gary Elkins12/26/2012


The folks at etrailer are very frendly, helpfull and knowlegable about their products. The instructions that come with the hitch and wire harness made the install very simple and were easy to follow. Ive never seen faster shipping, made me wonder if the warehouse was around the corner. I was very satisfied with the entire transaction from order to install and would do it again. Thanks Gary 61950



- 75578

by: Rick08/02/2011


The timely manner which our hitch was delivered was tremendous. The service and action that was taken on my order was like none other I've ever received. The directions and installation was a breeze and done in no time. I would definitely recommend etrailer for your needs. 20852



- 75578

by: Right on Time!11/25/2013


Great deal on a great hitch! I ordered a hitch to install on my wife's car right before we moved. I showed up right on time as promised. The helpful installation tutorial was great too! No problems, 30 minutes later it was ready to haul a trailer. Thanks again! 108513



- 75578

by: Laurie01/14/2015


No more then finished ordering hitch and received a phone call it what being shipped. The Road Runner must be working at e-trailer. 168963



- 75578

by: Robert C11/29/2012


I ordered the trailor hitch from Etrailer on Monday and just received it today. Talk about great service 60263



- 75578

by: Bob B.02/16/2015


very good quality. easy order and fast free delivery.. Instructions and online video made it easy. 174986



- 75578

by: Ray P04/05/2013


looks like it came from the factory...well designed, built, finished. 74391



- 75578

by: Fred H.12/17/2007


Received 17 Dec.Ordered 28 Nov Exactly as advertised on website. 534



- 75578

by: Ron R.09/15/2012


Was easy to install. Great quality. 54766



- 75578

by: ROBERT09/10/2015


MADE STRONG. FIT PERFECTLY. 224735

13
13


Ask the Experts about this Draw-Tite Trailer Hitch
Do you have a question about this Trailer Hitch?


  • Differences Between Curt # 13245 and Hidden Hitch # 87450 Class III Hitches for 2012 Jeep Liberty
  • The two trailer hitch receivers for your 2012 Jeep Liberty that you referenced, Curt # 13245 and Draw-Tite # 75578, offer identical performance ratings and features. Both are Class III-rated 2-inch receivers with a tongue weight capacity (the downward force on the hitch) of 500-lbs and a maximum gross trailer weight rating of 5000-lbs. Both hitch's towing capacities increase equally when used with a weight distribution system and both are round tube designs that bolt on with included...
    view full answer...

  • Trailer Hitch Recommendation for a 2011 Jeep Liberty
  • You may not believe this but even the Class II trailer hitches for a 2011 Jeep Liberty have the face of the receiver extend beyond the rear bumper of the vehicle. Since this is the case, I would go ahead with a Class III. If you are going to have bruised shins, might as well be from a hitch with a higher capacity and more accessory options. For a Class III hitch I recommend the Draw-Tite Trailer Hitch, # 75578. I have included a link to the installation instructions. In the upper left...
    view full answer...

  • Wiring and Hitch Recommendation for a 2012 Jeep Liberty
  • Both of the products you referenced are confirmed to fit your 2012 Jeep Liberty. The Curt T-Connector Vehicle Wiring Harness # C56183 will fit and would be the correct harness for your vehicle. I attached an install video and instructions for this product for you to check out. The Draw-Tite Hitch # 75578 that you referenced is also the correct hitch and I attached an install video for this product also. To complete your towing setup you may also be interested in a etrailer Ball Mount...
    view full answer...

  • Installation of the Draw-Tite Hitch 75578 on a 2012 Jeep Liberty Sport
  • Good news, I can help you figure out how the Draw-Tite Hitch # 75578 will mount on your 2012 Jeep Liberty Sport. You are correct, if the hitch has to protrude then the more economically priced Curt hitch # 13245 will be a good solution for your Liberty. I've attached some image of the Draw-Tite Hitch mounted on the 2012 Jeep Liberty for you to take a look at. The hitch does stick out from underneath the vehicle quite a bit, unlike the one on your Grand Cherokee. While it isn't very...
    view full answer...

  • Trailer Hitch, Wiring, and Brake Controller Recommendations for a 2008 Jeep Liberty
  • If installed correctly the Tow Ready T-One Wiring Harness for the 2008 Liberty by Jeep, part # 118554, you should not have to worry about damaging the electronics. This converter only uses the vehicles signal inputs as switches, and the actual power output to the trailer comes directly from the vehicle battery. The converter is designed to only draw 5 mili-amps and is designed to protect your vehicles sensitive circuitry. I've included installation directions in a link below. We offer...
    view full answer...

  • Installation of Draw-Tite Trailer Hitch # 75578 On A 2009 Jeep Liberty
  • On your 2009 Jeep Liberty, the Draw-Tite Trailer Hitch # 75578 is a compatible fit and will extend past the rear fascia of your vehicle as shown in the graphic I have provided. The measurement from the center of the hitch pin hold to the outer edge of the bumper is approximately 2-1/2 inches. Regarding the trimming of your bumper, there is no trimming necessary while installing this hitch on your vehicle. I have provided links to the installation instructions for this product as well...
    view full answer...

  • Will the Rage Trailer Hitch Mount Motorcycle Carrier Fit a 2008 Jeep Liberty
  • There are a couple of things to consider to determine if the Rage motorcycle carrier, # MX600, will work on your 2008 Jeep Liberty. First the Liberty needs to have a Class III trailer hitch with a 2 inch receiver. If it does not, you can add one using # 75578. I have included a link to the instructions and a link to a video showing installation for you. This hitch has a tongue weight capacity of 500 pounds. This means that the combined weight of the motorcycle and carrier (the carrier...
    view full answer...

  • Bike Rack Recommendations For 2 Bikes For a 2008 Jeep Liberty
  • We have everything that you will need to add a bike rack to your 2008 Jeep Liberty. The first decision that you will need to make is if you want a trunk mounted bike rack or a hitch mounted bike rack. A trunk mounted bike rack like the Thule Raceway 2 Bike Rack, # TH9001PRO, will attach to your vehicle using 4 retractable cables that attach to the top and bottom edges of your rear hatch and it has rubber pads that sit on your rear hatch to support the rack. I have also attached a link...
    view full answer...

  • Class III Draw-Tite Trailer Hitch Recommendation for a 2005 Jeep Liberty
  • There is a similar trailer hitch that will fit your 2005 Jeep Liberty, but the Draw-Tite Trailer Hitch, # 75578, will only fit 2008 to 2011 Jeep Liberty models. The comparable trailer hitch from Draw-Tite for your 2005 model is # 75128. I have included a link to the installation instructions and a video showing a typical installation for you to view. If you plan on doing some towing, I recommend the etrailer Ball Mount Kit, # EBMK2EL. It includes a ball mount, interchangeable ball...
    view full answer...

  • Bolt Size Used to Install the Draw Tite Hitch part # 75578
  • It sounds like you have the correct installation hardware. I checked with Draw Tite and for the Hitch part # 75578 that you referenced the correct installation hardware is a quantity of (6) M12 X 1.75 X 40mm CL 10.9 bolts. I attached an install video for this hitch on a similar Liberty for you to check out.
    view full answer...
