Price: $94.38

Dexter Trailer Idler Axle Beam with EZ-Lube Spindles - 60" Long - 2,200 lbs

Item # T20BTR-EZ-6048

lowest price pledge

Retail:$124.45

Our Price: $94.38

Orders above $99 qualify for Free Shipping

Quantity:

In Stock
zoom in icon
zoom out icon
pop out icon replay 360 icon
horizontal rotate icon

Product Images

dexter axle trailer axles ez-lube spindles only
dexter axle trailer axles ez-lube spindles 60 inch long t20btr-ez-6048
dexter axle trailer axles spindles only 60 inch long t20btr-ez-6048
dexter axle trailer axles leaf spring suspension ez-lube spindles idler beam with - 60 inch long 2 200 lbs
dexter axle trailer axles leaf spring suspension ez-lube spindles
dexter axle trailer axles leaf spring suspension spindles only t20btr-ez-6048
dexter axle trailer axles leaf spring suspension 60 inch long

In Use/Installed

trailer axles dexter axle leaf spring suspension 60 inch long in use
trailer axles dexter axle ez-lube spindles 60 inch long t20btr-ez-6048
trailer axles dexter axle leaf spring suspension spindles only t20btr-ez-6048
trailer axles dexter axle leaf spring suspension ez-lube spindles idler beam with - 60 inch long 2 200 lbs
trailer axles dexter axle spindles only 60 inch long t20btr-ez-6048
trailer axles dexter axle ez-lube spindles 60 inch long t20btr-ez-6048
trailer axles dexter axle leaf spring suspension 60 inch long idler beam with ez-lube spindles - 2 200 lbs
trailer axles dexter axle ez-lube spindles only t20btr-ez-6048
trailer axles dexter axle leaf spring suspension ez-lube spindles in use
trailer axles dexter axle ez-lube spindles only t20btr-ez-6048
trailer axles dexter axle leaf spring suspension 60 inch long in use
trailer axles dexter axle ez-lube spindles only in use
trailer axles dexter axle leaf spring suspension spindles only idler beam with ez-lube - 60 inch long 2 200 lbs
trailer axles dexter axle ez-lube spindles only in use

  • 2200 lbs
  • 60 Inch Long
  • Leaf Spring Suspension
  • Dexter Axle
  • No Hubs
  • Spindles Only
  • 48 Inch
  • EZ-Lube Spindles
Trailer idler axle beam measures 60" from hub face to hub face (when hubs - sold separately - are mounted) and 48" from spring center to spring center. EZ-Lube spindles make it easy to lubricate bearings (sold separately). Lowest Prices for the best trailer axles from Dexter Axle. Dexter Trailer Idler Axle Beam with EZ-Lube Spindles - 60" Long - 2,200 lbs part number T20BTR-EZ-6048 can be ordered online at etrailer.com or call 800-298-8924 for expert service.



Dexter Axle Trailer Axles - T20BTR-EZ-6048

Trailer idler axle beam measures 60" from hub face to hub face (when hubs - sold separately - are mounted) and 48" from spring center to spring center. EZ-Lube spindles make it easy to lubricate bearings (sold separately).


Features:

  • Axle beam acts as part of your trailer's suspension system
    • Replace an axle on your trailer
    • Fabricate a suspension to fit your application
  • High-strength steel construction
  • Bend in axle creates zero camber angle for even road-to-tread contact across the width of your trailer's tires
    • Best for straight-line acceleration and steady, controlled towing
  • Underslung design - spring seats welded to underside of axle for mounting leaf springs (sold separately)
    • Low ride height makes it easier to load and unload your trailer
  • Straight, EZ-Lube spindles - no drop
    • Built-in grease zerk for simple lubrication
  • Spring seats and spindles are welded on
  • Limited 2-year warranty


Specs:

  • Weight capacity: 2,200 lbs
  • Hub-face-to-hub-face length: 60"
  • Spring-center-to-spring-center length: 48"
  • Tubing outer diameter: 1-3/4"
  • Spindle size: 1-1/16"


Axle Dimensions

Hub Face and Spring Center Measurements on Standard Trailer Axle

There are multiple ways to measure the length of an axle beam, but the hub-face-to-hub-face and spring-center-to-spring-center lengths are the most accurate. Hub face (A) refers to the length of the axle measured from the base of one wheel stud to the base of the wheel stud on the opposite side of the axle (when hubs are mounted on the beam).


The spring center (B) is the approximate width of your trailer. It is measured from the center of the spring seat on one side of the axle to the center of the seat on the other. This axle beam comes with the spring seats welded on.


If you are replacing your trailer's axle, you should be able to figure out which type you need by determining your trailer's capacity, the bolt pattern of your wheels, the brake type and the aforementioned lengths.


Dexter Axles

Dexter axles are made of high-strength steel and come with spindles and spring seats welded on. The spring seats are attached to the underside of the axle so that the leaf springs (sold separately) can mount beneath the axle. The result of this underslung design is a trailer that rides a bit lower for quick and easy loading and unloading.


Each axle is manufactured to create a certain camber angle. This ensures that the angle of the wheels is correct for your towing needs. Because the primary concern when towing is maintaining controlled, in-line movement, each axle is made so that your trailer's tires will run along the pavement evenly, with contact across the width of the tread. The result is excellent straight-line acceleration for steady, in-line tracking. You might notice the bend near the center of the axle; this is what ensures the proper camber angle. Having the center ride a bit higher and the sides of the axle bent lower allows the axle to give just enough to compensate for the load.



T20BTR-6048-EZ Dexter Replacement Axle Beam - Easy Lube - 60" Hub Face - 48" Spring Center - 2,200 lbs







Economy - This item

Dexter Trailer Idler Axle Beam with EZ-Lube Spindles - 60" Long - 2,200 lbs


Dexter Trailer Idler Axle Beam with EZ-Lube Spindles - 60" Long - 2,200 lbs
Dexter Axle Trailer Axles

4 reviews

Code: T20BTR-EZ-6048

In Stock

Retail:$124.45

Our Price: $94.38


  • Trailer Axles
  • Leaf Spring Suspension
  • EZ-Lube Spindles
  • No Hubs
  • 2200 lbs
  • Spindles Only
  • 48 Inch
  • 60 Inch Long
  • Dexter Axle


Trailer idler axle beam measures 60" from hub face to hub face (when hubs - sold separately - are mounted) and 48" from spring center to spring center. EZ-Lube spindles make it easy to lubricate bearings (sold separately).

more information →
Compare Similar Products
Economy
Price: $99.59
$5.21 More

Dexter Trailer Axle Beam with Standard Spindles - 60" Long - 2,000 lbs


Dexter Trailer Axle Beam with Standard Spindles - 60" Long - 2,000 lbs
Dexter Axle Trailer Axles

3 reviews

Code: T20BTR-6048

In Stock

Retail:$110.59

Our Price: $99.59


  • Standard Spindles
  • 2000 lbs


Trailer axle beam measures 60" from hub face to hub face (when hubs - sold separately - are mounted) and 48" from spring center to spring center.

more information →
Value
Price: $168.06
$73.68 More

Dexter Trailer Idler Axle w/ Idler Hubs - EZ-Lube - 4 on 4 Bolt Pattern - 60" Long - 2,200 lbs


Dexter Trailer Idler Axle w/ Idler Hubs - EZ-Lube - 4 on 4 Bolt Pattern - 60" Long - 2,200 lbs
Dexter Trailer Axles

12 reviews

Code: 20440I-EZ-60

In Stock

Retail:$210.06

Our Price: $168.06


  • Idler Hubs
  • 4 on 4


Straight trailer axle measures 60" from hub face to hub face and 48" from spring center to spring center. Includes idler hubs - with bearings, races, and seals - for 8" to 12" wheels. EZ-Lube spindles for simple lubrication.

more information →
Premium
Price: $327.16
$232.78 More

Dexter Trailer Axle w/ Electric Brakes - EZ-Lube - 5 on 4-1/2 Bolt Pattern - 89" - 3,500 lbs


Dexter Trailer Axle w/ Electric Brakes - EZ-Lube - 5 on 4-1/2 Bolt Pattern - 89" - 3,500 lbs
Dexter Trailer Axles

22 reviews

Code: 35545E-ST-EZ-89

In Stock

Retail:$350.73

Our Price: $327.16


  • Electric Brakes
  • 3500 lbs
  • 5 on 4-1/2
  • 74 Inch
  • 89 Inch Long


Trailer axle measures 89" from hub face to hub face and 74" from spring center to spring center. Includes electric brake assemblies, hubs, drums, bearings, races, seals, and mounting hardware. EZ-Lube spindles for simple lubrication.

more information →

Related Products



Customers compare T20BTR-EZ-6048 to these similar products





Customers Who Purchased This Trailer Axles Also Bought...

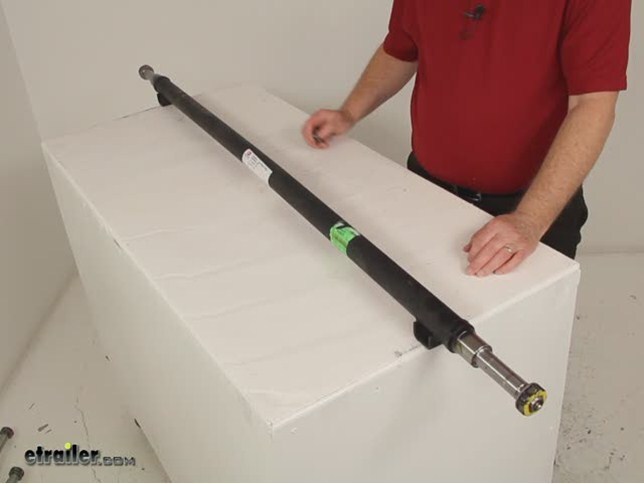

Video of Dexter Trailer Idler Axle Beam with EZ-Lube Spindles - 60" Long - 2,200 lbs


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Dexter Trailer Axles T20BTR-EZ-6048 Review

Today we're going to review part number T20BTR-EZ-6048. This is the Dexter Idler Trailer Axle with the straight EZ-Lube Spindles. This is 60" in length and a 2,200 lb weight capacity. Now, this axle beam will act as part of your trailer suspension system. You can use it to replace an axle on your trailer or to fabricate a suspension to fit your application. When we ship it, it is shipped with the spindle nut, a D-washer, and the nut retainer on each end.

And actually, when we do ship these, we don't ship them just bare like this. We actually put grease over them to protect the machine finish on each end and then we have a very sturdy corrugated tube that would slip over and then it's taped into place to also help protect the spindle on the end. Now, this is a idler axle, which basically means there are no brake mounting flanges on it, so it is designed to used idler hubs. It is made of a high-strength steel. It has the straight EZ-Lube spindles. There is no drop, they're just straight.

And the EZ-Lube spindles, they do have the grease zerk fitting, which is right in the very end here. This allows you to install a grease gun onto the end and pump your grease in after your hub's been put on, so it's very simple. It saves you time. Instead of having to take your whole hub off and then grease the bearings and then put them all back together, this you can just have your hub and bearings all installed, pump the grease right in here. It goes through, there's a little hole right here where it will come out and it'll fill that cavity with the grease.

Very simple lubrication. Now also, on this axle, which all axles you'll notice will have a bend, a slight bend, in the center of the axle. Basically, the reason they're manufactured that way is that will create a certain camber angle for your tires and wheels. Having the center ride a bit higher and then the sides of the axle bit lower allows that axle to give just enough to compensate when the load is put on your trailer. So, once the trailer is loaded down, this axle will give so the axle would be even all the way across. Then this will give you the correct angle of the wheels for your towing needs and allows your trailer tires to run along the pavement evenly, with contact across the full width of the tread.

So, this will give you a result is an excellent straight line acceleration for steady in-line tracking. Now, on this axle, you'll notice the spring seats are on the underside. This is called a underslung design axle. They're welded to the underside of the axle for mounting your lee springs to. The lee springs we do sell separately. The reason they're on the underside, it'll give you a low ride height, which makes it easier to load and unload your trailer. Now, the spring seats and the spindle themselves are welded onto the axle. Now, also, when you measure an axle, there's multiple ways to measure the length of an axle beam, but the 2 most accurate are going to be the hub-face to hub-face, and the spring-center to spring-center lengths. Basically, the hub-face to hub-face would be once you have your idler hub installed on here and one on the other end, you would take from the base of one wheel stud on your hub to the base of the wheel stud on the opposite side of the axle. So basically, if you did that on this axle, the hub-face to hub-face is going to be 60", which is basically the length of the axle. Now, the spring-center to spring-center is basically the approximate width of your trailer and it's measured from the center of the spring seat on this side to the center of the spring seat on the other side. So again, if we put the ruler on this, center to center's going to be right at 48" for the spring seat to spring seat measurement. So basically, if you're replacing your trailer's axle you should be able to figure out which type you need by using these measurements, Use your trailer's capacity, the bolt pattern of the wheels you're going to be using and the brake type if any brakes are going to be used. Now, the weight capacity on this axle is 2,200 lbs. Again, I mentioned the hub-face to hub-face length is 60". The spring-center to spring-center length is 48". The outer diameter of the tubing, right here, of the axle is 1 3/4" and the diameter of the spindle itself is 1 1/16". But that should do it for the review on part number T20BTR-EZ-6048, the Dexter Idler Trailer Axle with the straight EZ-Lube Spindles. .


Customer Reviews

Dexter Trailer Idler Axle Beam with EZ-Lube Spindles - 60" Long - 2,200 lbs - T20BTR-EZ-6048

Average Customer Rating:  5.0 out of 5 stars   (4 Customer Reviews)

Trailer idler axle beam measures 60" from hub face to hub face (when hubs - sold separately - are mounted) and 48" from spring center to spring center. EZ-Lube spindles make it easy to lubricate bearings (sold separately).

- T20BTR-EZ-6048

by: Rich C.10/07/2016


I rarely write reviews or respond to requests to review purchases but in this case I feel I must. The items I purchased to repair my very old and nearly defunct boat trailer were just exactly what was needed. Not only did everything fit perfectly but the price was unbeatable!! I would definitely purchase here again. Thank you for great quality products at a very reasonable price. 304382



- T20BTR-EZ-6048

by: Paul M09/16/2014


Dexter Axle is a direct drop in replacement for a bent one. Arrived quickly and had protectors on the ends. Old hubs fit nicely but order at least inside bearing seals it is important for the ez lube to work well they not leak. and you'll need to remove them to repack the inside bearings anyways. 151202



- T20BTR-EZ-6048

by: John04/02/2015


What a great product, packaging was simple yet effective. It's a great deal, can't wait to order for etrailer again. They fixed a problem I had with order (100% my fault) and made it easy to get the right part. I love these guys! 182441



- T20BTR-EZ-6048

by: Marty C.11/04/2016


Axle fit perfect and solved my tire wear problem. The price was terrific. 313950


4
4

Ask the Experts about this Dexter Axle Trailer Axles
Do you have a question about this Trailer Axle?


  • Replacement Trailer Axle for a Carry On 5x8 Foot Utility Trailer
  • We may not have a straight axle solution but we do have axle-less options. I have included a link to them for you. The great thing about these systems is that they have the suspension built in, sort of like a torsion axle. And ground clearance is improved because there is no axle hanging down. We carry the most common sizes of straight axles in the lower capacities but axles can literally be any size so its tough to carry them all. If none of the straight axles we have will fit and you...
    view full answer...

  • Recommendation on a 2,000 Lbs EZ Lube Axle Configuration for a Trailer
  • I have a solution for you for a trailer axle that will give you the EZ Lube spindle feature. Instead of the traditional tube axle, I recommend you look at on of the Timbren Axle-Less Suspension Systems, like # A20RS545. The Axle-Less system will mount to trailers frame and this system can be used in a tandem axles setup is desired. Timbren does not recommend using this system in a triple axle configuration. The Timbren system will allow you to install an independent suspension system...
    view full answer...

  • Can the Dexter Trailer Axles # T20BTR-EZ-6048 have the Spring Seats Moved to Top of Axle
  • We don't sell the Dexter Trailer Axles # T20BTR-EZ-6048 with the spring seat on top of the axle so that it could be installed overslung. But, what you can do is get the # TRSS175 and then have a qualified welder install this spring seat on the top of the axle so that you could install it in the configuration you need to.
    view full answer...

  • Can Electric Brakes Be Added to Dexter 2,200lb Capacity Idler Axle
  • Brake mounting flanges like part # 4-34 could be welded to the axle you referenced. The spindles are compatible with the L44649 wheel bearings. If you needed a hub with a 4 on 4 bolt pattern, use the # 8-173-16UC3-EZ hub drum and the # 23-47 and # 23-48 brake assemblies. You'd also need 4 nuts # 6-17 and # 5-8 lock washers per brake assembly. If you needed a 5 on 4-1/2 bolt pattern, go with the # 8-257-5UC3-EZ hub drum along with the brake assemblies and hardware mentioned above.
    view full answer...

  • Parts Needed to Install 2,000 Pound Round Axle Under Leaf Springs
  • In order to mount the round 2,000 pound axle under your trailer's leaf springs, we will need to piece together an over-under kit for the 1-3/4 inch outer diameter of the axle. The Dexter Trailer Springs Over-Under Conversion Kits that you referenced are made for axles with a 2-3/8 inch round axle # K71-384-00 or 3 inch round axle # K71-385-00. The Dexter 2,200 pound straight axles have a 1-3/4 inch outer diameter. I have attached a link to all of the 2,000 pound axles we offer. To mount...
    view full answer...

  • Converting a Mobile Home Axle to 5 on 4.5 Pattern
  • I have a possible solution for you but, mobile home axles are typically very difficult to change over because the manufacturer uses odd sized parts to assemble them. Once they go bad its more trouble than its worth to replace specific items, especially the spindles. It is difficult to find replacement parts for a mobile home axle because they were designed for one time use only. Unfortunately, there isn't a kit for something like this. I recommend getting a new standard trailer axle...
    view full answer...

  • Can E-Z Lube Hubs be Installed on Trailer Axle Without E-Z Lube Fittings
  • E-Z Lube hubs like # 84550UC1-EZ that you referenced are intended for use on axles that are equipped with E-Z Lube spindles. They feature removable plugs that pop out to provide access to the grease zerk fitting in the end of the spindle. Adding an E-Z Lube hub to a regular axle will not provide the E-Z Lube functionality but if the bearing set is the same as your original hubs then they may be used as substitutes but without the E-Z Lube feature. The idler hubs you referenced use bearings...
    view full answer...

  • Overall Length of the Dexter Axle # T20BTR-EZ-6048
  • I went out into our warehouse and measured the outside to outside length of a # T20BTR-EZ-6048 we had in stock and found that distance to be 65-3/4 inches. I measured from the end of the zerk fittings that are on the outsides of the axles.
    view full answer...

  • Dimensions of the Spindle of the Trailer Axle part # T20BTR-EZ-6048
  • The Axle part # T20BTR-EZ-6048 that you referenced has the BTR spindles on them which have the following dimensions: 1.00 inch for the threaded portion 1.06 for the inner bearing surface 1.06 for the outer bearing surface 1.50 for the seal inner diameter surface
    view full answer...
