Curt Class III Ball Mount with 2" Ball - 2" Drop - 7,500 lbs

Curt Class III Ball Mount with 2" Ball - 2" Drop - 7,500 lbs

Item # C45036

lowest price pledge

Retail:$72.39

Our Price: $23.74

You Save: 67%
Ball Mounts

Orders above $99 qualify for Free Shipping

Shipping Weight: 9 lbs

Quantity:
In Stock, Ships Today
C45036 - Class III,7500 lbs GTW Curt Ball Mounts
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.
Please enter a valid email address.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

pop out icon replay 360 icon
horizontal rotate icon

Product Images

In Use/Installed

Customer Photos


  • Fixed Ball Mount
  • Fits 2 Inch Hitch
  • Class III
  • 7500 lbs GTW
  • Drop - 2 Inch
  • Rise - None
  • Curt
  • One Ball
  • Steel Shank
  • Steel Ball
Towing starter kit includes 7-1/2" long, powder coated ball mount; 2" diameter, chrome-plated, pre-torqued hitch ball; and pin and clip. Slides into 2" square trailer hitches. Call 800-298-8924 to order Curt ball mounts part number C45036 or order online at etrailer.com. Free expert support on all Curt products. Guaranteed Lowest Price and Fastest Shipping for Curt Class III Ball Mount with 2" Ball - 2" Drop - 7,500 lbs. Ball Mounts reviews from real customers.


  • All Info
  • Reviews (585)
  • Q & A (172)
  • Videos (2)
  • Photos
  • Used (1)
  • Why etrailer?

Curt Ball Mounts - C45036

Towing starter kit includes 7-1/2" long, powder coated ball mount; 2" diameter, chrome-plated, pre-torqued hitch ball; and pin and clip. Slides into 2" square trailer hitches.


Features:

  • Starter kit has everything you need to tow, minus the hitch
  • Ball mount provides drop or rise to fit your application
  • Hitch ball comes torqued to factory specifications
    • Chrome plating resists corrosion
  • Black powder coat finish on ball mount for superior rust protection
  • Pin and clip included - hitch lock sold separately
  • Made in the USA


Specs:

  • Application: 2" x 2" trailer hitch receiver
  • Gross towing weight: 7,500 lbs
  • Tongue weight: 750 lbs
  • Ball mount length: 7-1/2" from center of hitch pin hole to center of ball hole
  • Drop: 2" from top of inside of hitch opening
  • Ball size: 2"
    • Shank diameter: 1"
  • Warranty:
    • Limited lifetime for ball mount
    • 1-Year limited for ball


45036 Curt Loaded Ball Mount - Quick-Loading 2" Square Ball Mount with 2" Chrome Hitch Ball - 2" Drop







Video of Curt Class III Ball Mount with 2" Ball - 2" Drop - 7,500 lbs


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Curt Class III Ball Mount Review

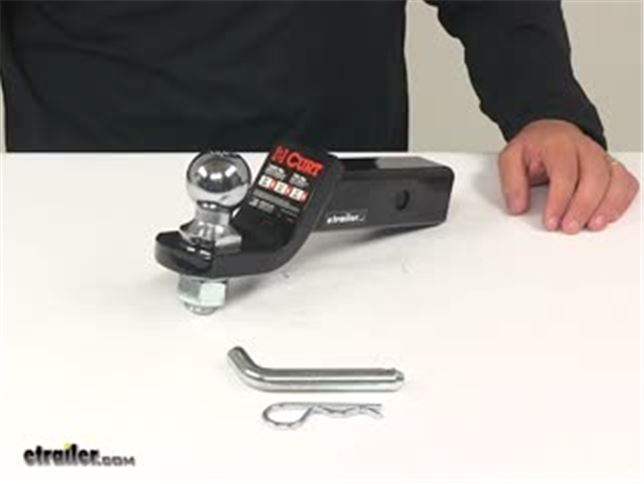

Today we'll be having a look at the Curt Class III Ball Mount with 2-inch ball and 2-inch drop. Weight it up to 7,500 pounds. Its part number is C45036. One nice thing about this kit is once you have your hitch on your vehicle and your wiring on your vehicle, you're still missing one critical component in order to tow your trailer. You're missing the connection between your vehicle and the trailer. This ball mount takes care of the rest of the package there for you. You got your ball here, which makes a physical connection to the trailer coupler and the mount here which lies into your hitch and is secured by this pin and clip.

And all, the pin and clip, the ball mount and the ball are all included in one convenient package. This ball mount has a 7,500 pound gross trailer weight rating. A 750 pound max tongue weight rating. Comes with a standard 2-inch ball here. That is chrome-plated so it'll be rust resistant.

Our ball mount itself has a nice gloss black powder coat finish so it'll give us many years of rust resistance as well. inaudible 00:01:02 2-inch drop once again, or three quarter inch rise if we flip it over and change the orientation of our ball. This ball is already torqued back from the factory so we don't need to worry about tightening it down or installing it, it's already ready to go. If you need to change out your ball to a different size, like a two and five sixteens, or an inch and seven eights, all you need to do is purchase another ball that has a one inch diameter shank, needs to install a one inch diameter hole of our ball mount itself. Next we'll give you some measurements here. The overall length of our ball mount here is about eleven and three quarters inches.

We're looking at about seven and a half inches from the center of the five eights diameter hitch pin hole to the center of our two inch ball right here. This ball mount has your standard two inch drop, which goes from the top of the two inch opening here to the bottom here where the ball rests against. If you want to take off the ball, flip over here and put the ball around by taking off the nut and the washer, change the direction of it. inaudible 00:02:03 go from the top of the 2 inch receiver frame here, to the top here, it'll give you a three quarter of an inch rise. Now that we've been gone over some features, we'll show how to install it. Take the ball mount, we'll slide it in here, making sure the ball is facing up.

We'll take our five eights diameter hitch pin hole and align it up with the hitch pin hole in our receiver. We'll take our included pin and clip apply it through and secure the clip. Now our ball amount is secure and our hitch are ready to tow your trailer. With our ball mount installed inaudible 00:02:50 to the trailer here, all you can do is low our trailer down into the ball mount and we can hook up the rest of the way with our safety chains and electrical connections and we can go on the road on a journey. That complete our look at the Curt Class III Ball Mount with 2-inch ball and 2-inch drop. Weight it up to 7,500 pounds. Part number C45036.
