Universal Installation Kit for Trailer Brake Controller - 7-Way RV and 4-Way Flat - 10 Gauge Wires

Universal Installation Kit for Trailer Brake Controller - 7-Way RV and 4-Way Flat - 10 Gauge Wires

Item # ETBC7
Retail:$148.86
Our Price: $133.29
You Save: $15.57
Accessories and Parts
Shipping Weight: 4 lbs
Add to cart
In Stock
zoom in icon
slider vertical icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

In Use/Installed

Customer Photos

Need help with installation?
Locate installers near me
If your vehicle already has a 4-way flat, this kit includes everything you need to install an electric trailer brake controller and 7-way connector. If there's not an existing 4-way flat on your vehicle, you can purchase one separately. 1-800-940-8924 to order etrailer accessories and parts part number ETBC7 or order online at etrailer.com. Free expert support on all etrailer products. Great prices and Fastest Shipping for Universal Installation Kit for Trailer Brake Controller - 7-Way RV and 4-Way Flat - 10 Gauge Wires. Accessories and Parts reviews from real customers.
  • All Info
  • Reviews (2857)
  • Q & A (0)
  • Photos

etrailer Accessories and Parts - ETBC7

  • Trailer Brake Controller
  • Installation Kits
  • etrailer

If your vehicle already has a 4-way flat, this kit includes everything you need to install an electric trailer brake controller and 7-way connector. If there's not an existing 4-way flat on your vehicle, you can purchase one separately.


Features:

  • Kit includes wiring and accessories required for installation of a trailer brake controller (sold separately) in your vehicle
    • Designed for use on a vehicle with an existing 4-way flat trailer connector
  • 25' Long, 10-gauge duplex wire is wrapped in an abrasion-resistant cover
    • Connect one wire to the blue wire on the brake controller
    • Connect one wire to the positive post on the vehicle's battery via the included 40-amp circuit breaker
  • Pre-wired 7- and 4-way trailer connector mounts easily at rear of vehicle with included bracket
    • Plugs into existing 4-way trailer connector on vehicle
  • Heavy-duty circuit breakers - (1) 20 amp, (1) 30 amp, and (1) 40 amp
  • Circuit tester helps you find the stoplight switch wire above the brake pedal
  • Also includes hardware for installation:
    • Ring terminals for battery and breaker hookup
    • Quick-splice wiring connectors
    • Self-tapping screws
    • Zip-ties
    • Wire loom for a professionally installed appearance


Note:

  • No existing 4-pole connector: If your vehicle does not already have a 4-pole flat trailer connector installed, the etrailer application guide can be used to find the easy-to-install connector made specifically for your vehicle.
  • Extra-long vehicles: If you drive a crew cab, extended cab with long bed, cargo van, minivan, or extended-length SUV, 10' of extra wire (10-2-1, sold separately) will make installation much easier.

7-Way and 4-Way Trailer Connector

57672 Connector Diagram



Wiring Diagram for Trailer Brake Controller Installation

Wiring diagram of brake controller installation

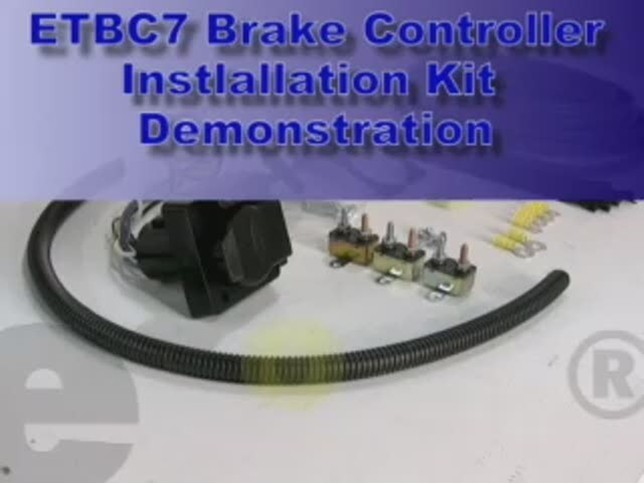

ETBC7 Universal Installation Kit for Electric Trailer Brake Control - 7-Way Blade and 4-Pole Flat - 10 Gauge Wires

Installation Details ETBC7 Installation instructions



Customer Satisfaction Score:


Customer Reviews

Universal Installation Kit for Trailer Brake Controller - 7-Way RV and 4-Way Flat - 10 Gauge Wires - ETBC7

Average Customer Rating:  4.8 out of 5 stars   (2857 Customer Reviews)

If your vehicle already has a 4-way flat, this kit includes everything you need to install an electric trailer brake controller and 7-way connector. If there's not an existing 4-way flat on your vehicle, you can purchase one separately.

by:

Kate M. my salesperson, had a most professional interaction with me being certain of my and my vehicle's needs. In addition, she walked me through the complete installation process. This I completed, wiring the 7-way and the Curt Discovery Controller making no errors along the way. On the first test, every terminal on the 7-way tested as it should. When we came home with the RV from the dealer, all the lights and the brakes worked flawlessly. Many thanks!!



by:

Very easy to install! I put off installing this stealth hitch for a month dreading taking off the body panel... Just to find out it was extremely easy. The whole process took me four hours, would have been done sooner if I didn't unnecessarily take off a small battery cable that prevent the car from starting. The part of the makes me happy is the added safety from the superior strength in steel and the protruding ball to help protect from getting rear ended!



by:

Have a 2021 Durango SXT. Bought the Universal Installation Kit for Trailer Brake Controller - 7-Way RV and 4-Way Flat - 10 Gauge Wires, Tekonsha POD Trailer Brake Controller - 1 to 2 Axles - Time Delayed, and Replacement Brake Control Plug-In Harness for Tekonsha and Draw-Tite Brake Controller 12" Long. 7 wire was easy to install but break controller a little harder do to the vehicle I have. Previously bought tow hitch and 4 way wire trailer plug from etrailer. Very happy with all.



by:

It fits and works though required a modification, I think mine might have just been a bad part out the factory.

The install wasn't too bad but I spent way too long trying to figure out why my left turn signal was showing as tail lights and my tail lights were showing as my left turn signal. Turns out the wiring was wrong on the 4 pole connector (picture attached). I wasn't sure which end was wrong (the 4-pole adapter, or this adapter) so I cut and swapped two of the wires on the 4 pole adapter to make it work correctly. Definitely an issue with the manufacturing process, but the dealership wanted $2,700 to add a receiver and 7 way. Buying all the parts (and a new brake controller) from here was only around $700.

For anyone curious about this model Jeep. The main battery is under the drivers seat, it makes this install super easy because you don't have to bring anything through the firewall. I brought my wires through the small vent behind the plastic rear-quarter panel (big piece of plastic that wraps around the back) on the drivers side, then just under the carpet up to the battery. Once there I removed the rest of the grey layer from the wires, cut the black wire, and continued with the white wire and rest of the black wire to under the dash (for brake controller power and to send the signal all the way to the back).



by:

Very nice item, very easy to install all the connectors were good quality and precrimped on the wire ends, the only thing the little plastic tab that locks the plug into the receptacle snapped off quite easily now I have to wire tie it to secure it but other than that very nice product includes everything you need for a nice clean install.



by:

This is exactly what I needed to install the Tekonsha P3 controller in my 2000 Silverado. The 25' wire was installed from the engine bay to the trailer connector per the included instructions. It's been working perfect for over a year now.



by:

I've had this trailer hitch on my 2013 Outback for a year now and love it! I tow a popup tent trailer and this hitch works excellently. It was a solid half day installation but my Dad and I were able to knock it out no problem! I love the discreet look of this since I'm not often towing the trailer. I couldn't recommend enough! Way better than the bulkier, less tasteful versions available.



by:

I installed the kit on my 2007 Toyota FJ Cruiser, which was already equipped with the factory 4 wire connector, and it was pretty straight forward. Of course, it's universal kit so there are lots of variables between vehicles, bur that being said, it fit mine just fine. The only thing I did differently is tapped the brake light circuit at the master cylinder with the included Scotch Lock rather than at the brake pedal since my vehicle has a manual transmission and the clutch pedal made it all but impossible to access the circuit there. Overall, the hardware seems to be of good quality and the instructions were fairly easy to follow. I must say the included 4-wire connector extension isn't very secure in the connector bracket, but a little RTV should fix that. I will be towing a lightweight A-frame trailer and I'm sure this is just what I need.



by:

I have a 2018 BMW X2 that did not come with a factory tow package. I had an etrailer hitch and 4 way plug installed last year and has been perfect since. I just recently purchased a camper and needed to have a Brake controller & Brake controller 7 way deluxe kit installed. My mechanic installed them with the detailed instructions that the units came with without any issues. The Tekonsha P3 is extremely user friendly and is working flawlessly. A bit overkill for my car being I can only tow max 3500 pounds, and my camper is 1 axel. this unit is rated up to 3 axles. I look at it like this way, when I trade in my BMW I will take my P3 with me. etrailer is amazing with the support & products they provide and I highly recommend them to anyone who asks me.

Teresa

12/24/2021

My Meghan said this was very easy to install, works great no complaints whatsoever.



by:

I bought a van that didn’t have the hitch or wiring for trailering. I used this kit to make the proper connections work. Plenty of wire included, good instructions, and quality parts. I also used heat shrink tubing on the connections to firm them up and give them some weather protection. I had an existing bracket on my hitch that worked w the new 7 pin connector. Just had to drill mounting holes. The new connection also comes w a flat 4 type so no adapter needed.



by:

product was excellent and COMPLETE. everything you need with very DETAILED directions. i also ordered the prodigy P2 to complete my install. both were excellent and very recommended. only modification was on the actual plastic cover on bumper, i cut away minimal pieces with razor knife for perfect fit. you can look at all the pics to check out install. I took advantage of the reverse light wire and put LED light bar on back of trailer.

i made one email to e trailer for exact numbers for my make and model. the response was pretty impressive. Full detail with pictures and product numbers all set up so all i had to do was press order and pay for it. This is how american companies are supposed to be ran......I LOVE IT!!!!

Matt

3/5/2015

Your products are awesome. Ive had zero issues with it and 5 of my friends purchased and installed the same set up in there trucks. Thanks again for the great products and excellent support.



by:

Class iii Draw Tite trailer hitch:

This
part was quick and easy to order and I received it sooner than expected. My mechanic said the installation was easily accomplished and looks great on my car. I would not hesitate to order from etrailer again!

Griff M.

6/21/2023

All my etrailer parts and accessories appear to be well made and have worked as intended.



by:

The holes were drilled in the wrong direction. I paid to have it installed and then realized the holes were wrong. etrailer gave me a very hard time about returning it, even after I sent them pictures as proof.

Use your local U-haul location to purchase and install your new hitch.



by:

1 year review. I installed this product on my 2017 Toyota Highlander. As a person inexperienced with vehicle electrical systems, I found the installation challenging but achievable. I appreciated the advice and videos from etrailer.com. I liked the final fit and finish on my vehicle when using manufacturer hitch and bumper kit.

After 1 year of usage, I have found 4 specific opportunities for improvement.

1. Water accumulation in the plug cover flap. After rain, I flip the flap up and water spills out of the crevice in the flap. There is also a small amount of water in the plug itself, but unclear if there is rain entering the socket or if this is from spillage when the flap is opened. This needs to be sealed to protect the plug!

2. Poor quality top mounting nuts and bolts. I overtightened one of the top bolts and it sheered off. I replaced it with zinc plated hardware. In my picture you can see after 1 year of use the included bolt on the left is corroded and the hardware store bolt looks new.

3. Poor quality front mounting screws. You can see the 4 rusting screws in the picture. These are designed to be exposed to weather, so I was surprised to find rust forming after the first few weeks.

4. Poor quality attachment point for the flat connector. The 4 way slips onto the side of the 7 way mount and is held on by rubber friction. It never stays in place and is always dangling.

One other suggestion is to offer a kit made for the newer wireless brake controllers. It could have less wire, fewer connectors, and cost less.

Because of the above problems I will have to replace the 7 way plug soon. Therefore I gave the product only 2 stars and would not recommend purchasing it.



by:

Thing works as it should. Install on a Ford Excursion requires dropping fuel tank and the factory bolts that hold the OEM hitch are tough to get out. But worth the effort.



by:

This kit would be great if they gave you stainless Screws for the plug. They rusted after like a month. The quality of the connectors is not super high quality feeling either. I love that everything is in one kit and it had both plugs. Installation wasn’t too bad of you know what your doing. I ran the wires in the car instead of zip tying them under the car to protect them better. It seems strange to me there is no cover to go over the circuit breakers and the posts carry 12v exposed.



by:

Converting the 4 way to seven way was straight forward, but the 4 way would not lock in place., either the rubber was to small or the metal bracket to big. It would just fallout a car wash would just rip it off. I had to make bracket to lock it in place. Quality problem



by:

Trailer Brake controller came with everything I needed. I did get a different crimp on wire splice connector. Smaller size and more secure attachment. Also the etrailer video is very helpful for installing the controller. You should make a video for RAV4 Prime, very different with battery in back, and no easy way to run wires forward to brake controller.



by:

Clear instructions. Kit had everything I needed. I did have to drill a hole in the firewall to attach wires to the brake controller, (sealed hole with silicon). Easy install.

Theodore B.

6/13/2023

Good

Etrailer Expert

Mike L.

9/6/2023

@TheodoreB Good deal, glad the # ETBC7 kit is working well for you.


by:

Used this Kit on my 2017 JKU with aftermarket steel bumpers. Wired up to the Redarc Tow-Pro Elite Nreak Controller. Worked Great!



by:

This is just what I was looking for. I am going to install trailer brakes on my 1989 suburban. I still need to purchase the brake controller. But this will take care of the wiring from the front to the back. This kit appears to be well built. I really like it ! I have another suburban, So I will be purchasing this kit again.



by:

Does not appear to accept the Bargman 7-way connector on our 2021 Casita trailer. My installer did an excellent job, and everything under the car is sealed and tied up nicely. So now I'm facing having to cut off the existing Bargman and replace with an after market connector. Truly a disappointment. In reality my own fault for thinking *anything* is truly *universal*. I should have tested the fit before handing the kit to the installer.

Etrailer Expert

Jenny N.

4/15/2023

The Bargman connector should be a fit. How is it not fitting? If it seems to be loose or too small, you can use electrical tape and wrap it around the connector to make it thicker.



by:

Probably the nicest most complete kit I've come across (minus the brake controller).
Instructions are detailed enough if your a novice to properly install.

I was a professional mechanic for a time and I highly recommend this kit.

Pick up some extra Zip ties and a good set of crimpers and your good to go. The standard kit was the perfect amount of wire for a 02 tundra, extended cab, 6' bed.



by:

There was nothing wrong with the kit, simply unnecessary. I came across some information that gave me a part number for a wiring harness that replaced an existing one at the back of the truck and worked perfectly with the Redarc tow-pro elite trailer brake controller.



by:

Very straightforward install on our Jeep JKU. Plenty of wire and everything you need for the job. Only dropped it down to 4 stars for 2 reasons: First the provided screws to attach the bracket to the chassis are garbage. Both snapped off in the holes and had to be drilled out adding quite a lot of time and swearing to an otherwise easy job. Secondly the bracket attachment for the 4 pin plug is laughably bad. It is so loose that I am sure it will spend most of its life dangling after it falls off.

Scott

3/2/2022

Be careful how close the wiring is to the muffler in the rear. Don ask how I discovered this...


25
2857
Show More Reviews

See what our Experts say about this etrailer Accessories and Parts

  • Where Do the Wires on the Universal Install Kit for Trailer Brake Controllers Get Installed?
    If you have a vehicle specific wiring harness for a brake controller then that would indicate that you have a factory tow package and subsequently would already have a 7-way at the back of your vehicle. The universal 7-way connector # ETBC7 is meant to be used on vehicle's that don't have an existing 7-way and need to add one. However if you were adding a 7-way then you'd need to route the blue wire to the output on your brake controller, and run the yellow wire to the reverse light circuit. If...
    view full answer...
    Image 1 for
  • Wiring a 2021 Subaru Outback to Use a Wireless Brake Controller
    To get both of the 2021 Subaru Outbacks pulling the Safari Condo F1743, you would need to purchase two of the # ETBC7L kits. They would piggy back off of the existing 4 pin connections already on the vehicles, so you are already partially there. The # ETBC7L would allow you to utilize the Tekonsha Prodigy RF controller, or add on a hardwire kit at a later date if needed. There have been a few connectivity issues, but generally with larger vehicles and or motorhomes. One of the big pluses...
    view full answer...
  • Can Power for Curt C51180 Echo Brake Controller Be Obtained from Trailer Mounted Battery
    For the most reliable and safe connection possible, Curt recommends obtaining the power for the controller directly from the vehicle battery and running the circuit through a 40 amp breaker like what's provided with the # ETBC7L. This way, you can both power the controller and provide a maintenance charge for the trailer mounted battery. You're certainly welcome to install it however you wish but for liability reasons, I couldn't recommend installing it in any other manner than what the...
    view full answer...
  • How To Tow a Trailer with 7-Way and Brakes Using a 2015 Ford Explorer With 4-Way
    In order to allow a 2015 Ford Explorer to be able to tow a trailer with brakes you will need to install a 4 to 7-way adapter. For this, the Universal Brake Controller Install Kit part # ETBC7L is what I recommend. This kit is almost completely plug-n-play, you will have to plug the two 4-way ends in together, ground the white wire, and then you will have to run a power wire up to the battery with a circuit breaker in-between but that is all. The kit will work just fine with your wireless...
    view full answer...
  • Connection a Brake Controller to the Brake Switch Wire on a 2006 Kia Sedona
    You do not remove the wires off of the brake switch to install a brake controller. You will use a quick splice connector, included with the # ETBC7 kit. A quick splice work by placing the signal wire (in this case the proper brake switch wire) in one track inside the quick splice and then the wire you are splicing into (in this case the red brake controller wire) in the other track. Then you crimp it down with pliers to complete the connection. In the video on the 2008 Sedona our installer...
    view full answer...
  • Wiring a 2008 Toyota Tundra for a brake controller
    You mention a 7-round plug and I just want to verify there are six flat pins in a circular pattern with a round pin in the center. You can use the Brake Controller 7 and 4-way Installation Kit - 10 Gauge (part ETBC7). There are videos on the product page that go over how to install it. The installations are for different vehicles, but are similar to your vehicle. I spoke with our technical advisor about your fuse block, labeled trailer brake. To make sure it is the slot to use, you will...
    view full answer...
  • The White Ground Wire Has to be Attached to the Vehicle Frame for Installation Kit # ETBC7 to Work
    Grounding the white wire is an important part of any electrical wiring. Without a proper ground the circuit is not complete. If the circuit is not complete then no current is moving through the system. Without any current there is nothing powering the harness. Find a nice clean and corrosion free spot on the vehicle frame to attach the ground. Make sure to check the grounds on the connectors and the trailer grounds as well. This should take care of the problem and your handyman status will...
    view full answer...
  • Install Video for ETBC7 on 2015 Toyota Sienna
    I attached the install video link for the # ETBC7 on a 2015 Toyota Sienna for you to check out. I just checked and it played for me so it should work for you.
    view full answer...
  • Brake Controller Ground and Sharing Power Wire for an ETBC7 Hardwire Installation
    Brake controllers require a fairly substantial ground which can be achieved by connecting the controller ground to the negative battery terminal. In some situations a chassis ground is fine but if you are running wires through the firewall anyway might as well go for the best ground location available. If you are installing a powered 4-Way wiring harness first it is permissible to have one 12 volt power wire for both it and the 12 volt wire on the ETBC7's 7-Way adapter. A 4-way by itself...
    view full answer...
  • Installing The Universal Installation Kit For Brake Controller # ETBC7 To Brake Switch
    In your 1994 Chevy Astro, if you look at the brake pedal and follow the bar up, you will find a switch. You can put a circuit tester on either side of the switch and test it. When on the hot side, there will be signal when the pedal is not pressed and the switch is not engaged. When you test the other wire, it should have no power when the pedal isn't engaged but should read hot when the pedal is pressed...this is what we call the cold side of the switch and is what you want to splice...
    view full answer...
  • How to Wire a Brake Controller When Using ETBC7
    Not to confusing at all. There are a lot of wires to keep straight, but once you do it, you will be surprised at how easy it was. I will go through a quick run down of how to wire up the ETBC7, then how to wire up the Brake Controller. I will also include a link to some wiring diagrams so you can see what does what. First, the ETBC7 wires up as follows. The 4-Way flat connector just connects to the existing 4-Way on the vehicle. The white is a ground connection, the black is a power...
    view full answer...
  • Parts Needed to Install Brake Controller in 2018 Toyota Highlander with 4-Way Wiring
    You are on the right track to being able to tow the trailer you mentioned with your 2018 Toyota Highlander. Since you already have a hitch and a 4-way installed the next thing you need is the # ETBC7 that you mentioned. This kit comes everything you need to convert the 4-way to a 7-way and wire up the brake controller. Basically the 4-way you have plugs into the 4-way of the included adapter to provide the taillight functions and the connections you make for the 7-way adapter then are what...
    view full answer...
  • Mounting Hole Dimensions of Bracket that Comes with ETBC7
    I have attached a photo of the bracket with the dimensions noted that comes with the # ETBC7 kit. It uses the industry standard dimensions for 7-way mounting brackets.
    view full answer...
    Image 1 for
  • How Do I Wire the Blue Wire From My Brake Controller On my Motorhomes 7-way
    Yes, you will only need to run one blue wire from your brake controller to the 7-way connector on the back of your motorhome, this wire is what takes the signal from your brake controller to your tow dolly to tell your dolly how much braking power should be applied. I attached a link below that you might find helpful when you are wiring up your connector, I also attached a picture to the right that shows how you should wire the 7-way connector on your motorhome.
    view full answer...
    Image 1 for
  • What Is Needed To Activate The Brakes On A Trailer
    Your trailer's brakes should have a blue power wire running to them from the junction box on the tongue or just after the tongue on the trailer frame. There's a possibility that it could be a different color but this this wire will need to be 10 gauge and is how power is sent to the brakes in order to activate them. This wire should be bundled with the blue wire on your 7-way connector running from the junction box. If you already have trailer brakes and a breakaway switch installed the...
    view full answer...
  • How to Determine the Amperage Ratings of Breakers Included with ETBC7 Kit
    On the side of the breakers there is the amperage information listed. It will say Pollak and then in the bottom right portion of that surface it will say the amperage rating.
    view full answer...
  • Kit Needed to Install Brake Controller in a 2000 Toyota Tundra with 4-Way
    To install the brake controller you have on your 2000 Toyota Tundra will only require the part # ETBC7 that you referenced. This comes with everything needed to install the controller and adapt the 4-way to a 7-way. I attached an install video that shows the # ETBC7 being installed on a similar 2002 Tundra as yours for you to check out as well.
    view full answer...
  • Does The 2011 Ford Ranger have Brake Controller Port Underneath Dash
    None of the 2011 Ford Ranger models came equipped with a factory brake controller port located under the dash. To install a brake controller on your 2011 Ford Ranger Canadian Spec, you would need to use the Brake Controller 7 and 4 way Installation Kit, part # ETBC7. I have linked a video installation of a brake controller being installed on a 2006 Ford Ranger, which also uses the Brake Controller 7 and 4 way Installation Kit, part # ETBC7. Also linked are FAQ articles on brake controllers...
    view full answer...
  • Brake Controller 7 & 4 Way Installation Kit Fuse Slot Number 5 2009 Honda Odyssey
    It is a 7.5 amp fuse which goes into the fuse box in the side kick panel. I will include a link to the web page with the instructions, and the installation video for your reference below.
    view full answer...
  • Is Back Of 7-Way in Brake Controller Install Kit ETBC7 Weatherproof
    I understand your concern about the back of the 7-way connector of the part # ETBC7 but we have sold an incredible amount of these and in my 7 years here I have yet to hear of anyone with an issue related to the back of the 7-way connector. So I agree that it does look vulnerable to the weather, but if it was an issue it would have came up by now.
    view full answer...
  • Recommend for Routing Wire Through Firewall of a 2014 Nissan Murano for Brake Controller Install
    Sounds like there is something on the other side of the grommet that is preventing you from going all the way through it. You basically have three options at this point. You can either try to find a different grommet to use on the firewall (there may not be one), you can try to find a grommet in the floor board of your vehicle and use that one instead, or you can find an accessible location on both the cab and under-hood side of your firewall and drill your own hole to use. I had a similar...
    view full answer...
  • Power Wire Routing Recommendations for a 2007 Subaru Forester for an # ETBC7 Kit
    The best way to run wires under a vehicle is to route the wires away from any areas that could pinch or melt the wires. Typically running the wires through the frame rails or attaching them to an existing wiring harness is the best method. Or you could run the wire through the interior of your vehicle. This is my preference since it keeps the wires more protected. You will need to either drill holes in the floor of your vehicle or find existing holes that will be covered with rubber grommets....
    view full answer...
  • Yellow Side Marker Lights Will Not Light Up on Trailer Towed by a 2006 Dodge Ram 1500
    You will need to check to see where the marker lights are wired on the trailer. Trace the wiring to see which pin the wiring goes to on the trailer connector. Then you can use our wiring FAQ article which I have linked for you to determine which circuit they are attached to on the trailer side connector. To come on with the running lights, they will need to be connected to the pin directly next to the covered ground pin on the 4-Way. If that is how they are wired, it could be that the...
    view full answer...
  • Testing Power to a Proportional Brake Controller
    Because proportional brake controllers send power to trailer brakes that is proportional to the braking force applied to the vehicle, the brake pedal can only be tested while the vehicle is moving. The brake controller will send the brakes somewhere between 0V and 3V of power when still, and the manual control will work fine when still. Before connecting the blue wire, try taking a drive while a helper tests the power output on the blue wire when braking.
    view full answer...
