  1. Trailer Hitch Ball Mount
  2. Draw-Tite
  3. Fits 1-1/4 Inch Hitch
  4. Fixed Ball Mount
  5. Drop - 3 Inch
  6. Rise - 2 Inch
Draw-Tite Drawbar for 1-1/4" Hitch - 2-1/8" Rise, 2-3/4" Drop - 6-5/8" Long - 2K

Draw-Tite Drawbar for 1-1/4" Hitch - 2-1/8" Rise, 2-3/4" Drop - 6-5/8" Long - 2K

Item # 3593
lowest price pledge
Retail:$48.40
Our Price: $38.16
You Save: 21%
Trailer Hitch Ball Mount
Orders above $99 qualify for Free Shipping
Shipping Weight: 5 lbs
Quantity:
In Stock

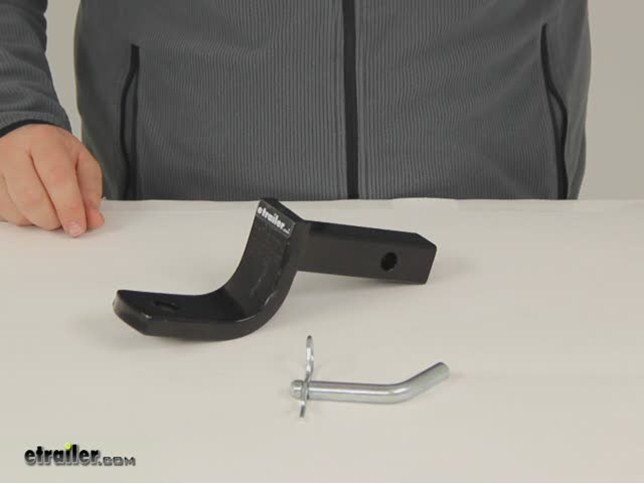

Draw-Tite Fixed Ball Mount - 3593
zoom in icon
slider vertical icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

In Use/Installed

Customer Photos

Need help with installation?
Locate installers near me
Sturdy steel ball mount with solid shank measures 6-5/8" from center of hitch pin hole to center of ball hole. Drawbar is Class I and Class II compatible. Powder coat finish over a-coat base provides excellent rust protection. Lowest Prices for the best trailer hitch ball mount from Draw-Tite. Draw-Tite Drawbar for 1-1/4" Hitch - 2-1/8" Rise, 2-3/4" Drop - 6-5/8" Long - 2K part number 3593 can be ordered online at etrailer.com or call 1-800-940-8924 for expert service.
  • All Info
  • Reviews (1714)
  • Q & A (0)
  • Photos
  • Why etrailer?

Draw-Tite Trailer Hitch Ball Mount - 3593

  • Fits 1-1/4 Inch Hitch
  • Fixed Ball Mount
  • Drop - 3 Inch
  • Rise - 2 Inch
  • No Ball
  • Class I
  • 2000 lbs GTW
  • Draw-Tite
  • Steel Shank - Gloss Black
  • 3/4 Inch Ball Hole Diameter

Sturdy steel ball mount with solid shank measures 6-5/8" from center of hitch pin hole to center of ball hole. Drawbar is Class I and Class II compatible. Powder coat finish over a-coat base provides excellent rust protection.


Features:

  • Ball mount lets you hook up your trailer to your tow vehicle
    • Shank slides into your vehicle's hitch receiver
    • Ball platform provides mounting point for hitch ball (sold separately)
  • Both drop and rise positions available to ensure level towing
  • Sturdy steel construction with a solid shank
  • Black powder coat finish covers a-coat base for superior rust protection
  • Hitch pin and clip included - hitch lock sold separately


Specs:

  • Application: 1-1/4" x 1-1/4" trailer hitch receivers
    • Class I and Class II compatible
  • Gross towing weight: 2,000 lbs
  • Tongue weight: 200 lbs
  • Length: 6-5/8" From center of hitch pin hole to center of ball hole
  • Rise: 2-1/8" from top of inside of hitch opening
  • Drop: 2-3/4" from top of inside of hitch opening
  • Ball hole diameter: 3/4"
  • Pin hole diameter: 1/2"
  • Limited lifetime warranty


3593_3

How to Measure Drop on Standard Ball Mount

3593 Draw-Tite Ball Mount 2-1/8" Rise or 2-3/4" Drop - 2,000 lbs

Replaces 6803




California residents: click here



Customer Reviews

Draw-Tite Drawbar for 1-1/4" Hitch - 2-1/8" Rise, 2-3/4" Drop - 6-5/8" Long - 2K - 3593

Average Customer Rating:  4.8 out of 5 stars   (1714 Customer Reviews)

Sturdy steel ball mount with solid shank measures 6-5/8" from center of hitch pin hole to center of ball hole. Drawbar is Class I and Class II compatible. Powder coat finish over a-coat base provides excellent rust protection.

by:

If it was not for etrailer, I would not have the hitch installed in a expedient manner. [towing company] could not come through with a installation or a hitch. Very grateful etrailer and my hitch in stock



by:

This part came with the trailer hitch I purchased.

It was very easy to transfer the ball from my 2" hitch and voila I am now ready to haul my trailer.


Comments
am extremely satisfied with the products I purchased. I use theTow Hitch almost daily for my bicycle rack and a trailer I have to tow. The installation was a quick and easy. I have recommended your website to about 20-25 people over the past year. Hopefully you received some business from my recommendations. Thanks for following up. Not all companies take the time.
Jim F - 07/01/2015


by:

The product is great quality and perfect fit. I just dont like that the pin hits the rings on the hitch because it is loose enough to move around while driving. Other than that this is great.



by:

Exactly as described, fit perfect. Seen here with ball and receiver.



by:

I was completely satisfied and very impressed thoughout my first experience with etrailer.com. The website provided exactly the educational material I need to correctly order the products. My order was unexpectedly upgraded for faster shipment, at no cost. The only glitch was the pin and clip were missing. After calling customer service they gave me several options. I bought the pin locally and etrailer.com promptly credit my account for my cost. I'm glad I found etrailer.com and heartily recommend them!



by:

Not very happy with getting a used or returned ball mount from etrailer.com, should not have any rust or dents when I buy a new one. Sending a mail to customer service for a RA#, hopefully they will correct this problem. The wiring harness I order was the other item I ordered and it was in good shape. My experience with them has been up to this point excellent.



by:

I've only technically used it once but drove with it for over 5,000 miles so I'd say that says something! I used it with my Prius to help tow a nine foot Uhaul trailer with my motorcycle and a bunch of other stuff from my apartment from Tennessee to Massachusetts. Quality product!



by:

The [online] video of the install made the installation straight forward and simple. The products are as expected.



by:

it's solid and well built - install was straightforward.



by:

I bought this hitch a year ago,put it on my Mitsubishi marage I pull 14' alumun boats with it works great love it,and it was easy to in stall



by:

I will be replacing the hitch pin with one that has a hole for the cotter pin.



by:

Very well built fits the hitch I purchased I will be using it often to pull my trailer with my 12' jon boat to go fishing.



by:

Package arrived on time, in less than 2 hours from when it was delivered to being completely done, wiring and all.This was the first time I have done this, not a big challenge!



by:

I needed a hitch receiver for a 2016 kia soul i am using for the time being to pull a small trailer and for my bike rack. My 15 year old son helped me install it no problem and it works great. Saved me a bunch of money!



by:

I'm impressed! You promised my order would be here on Friday. It arrived a day early! Watching the video about installing the hitch said installation time was 40 minutes. I had it installed in exactly 40 minutes. That included the time it took me to search for the tool that I just had in my hand 30 seconds ago. Came inside and watched the video on installing the wiring harness then installed it without a hitch (pun intended)... The whole job took exactly 2 hours. I rarely have a job go that smoothly! Again, I'm impressed. Thank you so much!



by:

The best way to order the drawbar is to get it from the same source as the hitch of the car. Some drawbars are the right size but may have the wrong safety pin diameter!



by:

Delivered in factory condition. Exactly as described.



by:

A year later and it is still working great. Install was easy.



by:

Easy install



by:

Good quality. Galvanized pain is pretty rusty after one year thiugh.



by:

Works great on the Corolla



by:

Good Product. I am a guy that likes a challenge although this wasen't much of one.. easy instructions, straight forward application and tools this was a fun project. my best advice would be if you're putting together a project of sorts make sure you speak to a rep before you order, that way all the parts you order work well together..



by:

I am happy with all of the items I have ordered from etrailer.com. Moreover, I am extremely happy and impressed with the service. Not only was everyone at etrailer responsive but even better- they proactively reached out to me to confirm my satisfaction and even asked me if I wanted to change my order after noting that two parts I ordered would not fit together well. In this era of online ordering they have set the bar so that I wish the would branch out so I could order more from them.



by:

Product is as expected and appears well made.



by:

Sending you a pic of my lights I got from you and the hitch with the full wiring system. All works great. Thank you so much. Now it's time to go riding!!


25
1714
Show More Reviews

Ask the Experts about this Draw-Tite Trailer Hitch Ball Mount



  • Install 3593 draw bar in the up or down position on a 2005 Honda Element
    The orientation your Class I Drawbar, part 3593 will depend on the height of the trailer coupler. With the trailer level, measure from the coupler down to the ground. This is the approximate height you'll need the trailer ball to be. You'll want to install the drawbar so that the trailer ball is as close to this height as possible. Due to the fairly low bumper height of the Element, you'll probably need to install it in the 'up' position.
    view full answer...
  • Why Can't Class II Accessories Be Used with Class I Trailer Hitch Receiver
    Both Class I and Class II trailer hitches have the same 1-1/4 inch receiever opening, however a Class II hitch will have higher towing and tongue weight capacities. The primary issue with using a Class II accessory in a Class I hitch is that many Class I hitch receivers actually have a built-in tab/stopper inside the receiver that physically prevent a Class II accessory from fitting. Trailer hitch manufacturers do this in order to keep a Class I hitch from being overloaded, since a Class...
    view full answer...
  • How to Pick Out the Correct Ball Mount for 2015 Honda Civic
    The best way to determine which amount of rise or drop you need from a ball mount (in order to keep your hitched trailer level for the best handling) is to measure as outlined in the linked article. Since the same wheel size could have more than one tire size on it that does not give you the best method for choosing a ball mount. For the Class I hitch on your 2015 Honda Civic you can refer to the linked page to see all ball mounts.
    view full answer...
  • Are Ball Mounts Sold Separately from Trailer Hitches
    Sounds like you are looking for a ball mount. We carry quite a few of them actually. But when you buy one you want to go with one that allows the trailer to be towed as level as possible. I attached an FAQ that details how to pick out the correct ball mount. Picking out the correct ball mount will allow your trailer to sit as level as possible. Basically you will first measure the height from the ground to the top of the receiver opening on the hitch while on level ground. Next, you will...
    view full answer...
  • How to Pick Out the Correct Ball Mount
    I attached an FAQ that details how to pick out the correct ball mount. Picking out the correct ball mount will allow your trailer to sit as level as possible. Basically you will first measure the height from the ground to the top of the receiver opening on the hitch while on level ground. Next, you will measure the coupler height from the ground to the bottom of the trailer coupler when the trailer is on level ground. Next, you will need to compute the difference. If the hitch height is...
    view full answer...
  • Is There a Standard Required Clearance for Ball Mount to Vehicle Bumper
    There really isn't a specific range for what you are asking about. You basically want the trailer to be able to move as you turn without interfering with the vehicle bumper. Normally that's not an issue and what people end up more concerned with is the correct rise drop. Having the hitch opening recessed 3 inches is pretty standard for towing applications. Ball mounts typically stick out around 9 inches or so which gives the trailer plenty of clearance to pivot around.
    view full answer...
  • Dimensions of the Shank of the Draw-Tite Drawbar for 1-1/4" Hitch # 3593
    The shank of the Draw-Tite Drawbar for 1-1/4" Hitch # 3593 measures 1-1/4 inches tall by 1-1/4 inches wide.
    view full answer...
    Image 1 for
  • Compatibility of Draw-Tite Class I Trailer Hitch w/ 2016 Honda Accord Touring Model w/ Dual Exhaust
    The Draw-Tite Class I trailer hitch, part # 24899 is indeed compatible with your 2016 Honda Accord Touring model with dual exhaust. Minor modifications will be necessary to install the hitch. In some cases, the access hole in the frame member might need to be enlarged slightly to allow the installation hardware to be fished through the frame. The heat shields are temporarily removed, then reattached, the shield might need to be bent or trimmed to clear the fasteners. If the vehicle has...
    view full answer...
  • My Draw Bar Will Not Fit All the Way Inside My Draw-Tite Hitch 24812 on my Pontiac Vibe
    The stop inside the hitch is not to force customers to purchase certain brand products, but to ensure that a Class II draw bar is not inserted into a Class I hitch. The Draw-Tite hitch you have, part # 24812, is a Class I hitch so if the welded stop inside is preventing the draw bar from going all the way in, you have a Class II drawbar. The recommended draw bar for this particular hitch is part # 3593. This draw bar will fit your hitch and will be at the proper height for trailers that...
    view full answer...
  • Trailer is not Level When Towing with Recommended Drawbar
    The instructions (see link below) state that the drawbar must be used in the rise position only, for your Pontiac Vibe. Drawbar 3593 has a rise of 2-1/8 inches, and only the drawbar recommended for a Class I hitch should be used. The manufacturer tests for crash safety on Class I and Class II hitches and their recommendation should be followed. If your drawbar is in the correct position and the trailer is still not level you may need to haul that particular trailer with another vehicle....
    view full answer...
  • The Correct Drawbar for a 2003 Volkswagen Jetta with a Class I Hitch
    For your 2003 VW Jetta, the drawbar, # 36051, will not work because Class II accessories are designed with a feature that keeps them from being used in a lower class hitch. So you will need to use the Sportframe Drawbar, # 3593, instead. I pulled all the recommended hitches for your vehicle and this is the drawbar that is recommended as the proper fit for those hitches. There is not, necessarily, a recommended length. The limiting factor is the gross trailer weight and tongue weight capacity....
    view full answer...
  • What Draw Bar Fits Draw-Tite Class I Hitch Part # 24812
    The Draw-Tite Class I hitch you were looking at, part # 24812 uses a 1-1/4 inch receiver. A class I hitch usually has a stop welded into the receiver tube or a detent punched into it to prevent a class II accessory from being used. If the draw bars you have were intended to be used in a class I hitch, they will work. Keep in mind, Draw-Tite recommends only using the part # 3593 draw bar. If the draw bars that you have measure any longer than 1-1/2 inches from the center of the pin hole...
    view full answer...
  • What is the Correct 1-7/8 Inch Diameter Ball for Draw-Tite Ball Mount # 3593
    We have many different 1-7/8 inch diameter balls. The recommended 1-7/8 inch ball for ball mount # 3593 is # 19256. Any ball that has a 3/4 inch diameter shank will fit.
    view full answer...
  • Ball Mount and 2 Inch Ball for Class I Trailer Hitch on a 2008 Honda Civic Hybrid
    Since your 2008 Honda Civic already has the hitch you just need the ball mount and a compatible 2 inch ball. The recommended ball mount is # 3593. And for a 2 inch ball you can use # 19258. There would be no adapter needed you just need the right ball mount and ball for the hitch!
    view full answer...
  • Distance from Center of Hitch Pin Hole to Tab in Shank on Draw-Tite Class I Trailer Hitch # 24907
    Draw-Tite is actually going to stop including that tab on Class I hitches like # 24907. But on the ones that still have it the distance from the center of the pin hole to the tab is 1-7/8 inches so your ball mount will not fit. The recommended ball mount for this hitch is # 3593 and it includes a pin and clip. I have linked a video review of it for you.
    view full answer...
  • Replacement End Caps For Thule Rectangular Roof Rack load Bars
    The replacement end caps you need for your Thule rectangular load bars is part # 853-3593. This comes with 1 cap and will fit well on your Thule roof rack.
    view full answer...
  • Why Won't My 1-1/4 inch Ball Mount Slide Into a Class I Hitch
    It sounds like you have a Class I hitch and are trying to use a Class II drawbar with it. Class I hitches are designed to do exactly what you are trying to do, prevent the use of a Class II accessory by not letting the holes line up. This is to prevent overloading the hitch. I attached an FAQ on hitch classifications for you to check out also. The correct ball mount to use with your Draw Tite Hitch part # 24915 would be the Sportframe Draw Bar part # 3593.
    view full answer...
  • Towing a Trailer that Fits a 2 Inch Hitch Ball with ATV that has a 1-1/4 Inch Trailer Hitch Receiver
    Unfortunately, we do not have any hitch expanders from a 1-1/4 inch hitch receiver to a 2 inch receiver that are able to be used for towing. Although, I'm a little confused. Your ATV has a 1-1/4 inch receiver and the trailer fits a 2 inch hitch ball. With this being the case you can use a Class I ball mount like # 3593 with a 2 inch hitch ball like # 19258 to tow the trailer with your ATV.
    view full answer...
  • What are the Dimensions of the Thule Replacement End Cap # 853-3593
    I borrowed a replacement Thule end cap, # 853-3593, from our demo studio to measure it. Overall it is 1.13 inches long by 1.4 inches wide, and 15/16 inches tall. The internal depth is 0.90 inches. I have included a picture showing where these measurements are taken.
    view full answer...
    Image 1 for
  • Is Drawbar Required for Draw-Tite Sportframe Trailer Hitch on 2017 Toyota Prius
    The Draw-Tite Class I Sport Frame Receiver Hitch # 24966 referenced in your question is confirmed to fit your 2017 Toyota Prius. A drawbar like the Draw-Tite # 3593, which is also referred to as a ball mount, is used for holding a hitch ball that is needed for towing. This is not a required component for the trailer hitch, and it can be obtained separately if one is needed. If you intend to use the Draw-Tite Trailer Hitch for non-trailer loads such as bike racks and cargo carriers, a...
    view full answer...
  • Ball Mount that Fits 1-1/4 inch Hitch with 2 inch Hitch Ball
    We offer ball mounts that fit 1-1/4 inch hitches that are compatible with 2 inch hitch balls. For example we have the # 3593 which fits that hitch size and then for a 2 inch hitch ball we have the # 19258.
    view full answer...
  • Should Ball Mount of Draw Tite Hitch part # 24913 be In Rise or Drop Position
    The ball mount that comes with the Draw Tite hitch part # 24913 for your 2004 Toyota Corolla must be used in the rise position only. The hitch sits so close to the ground that if the ball mount was in the drop position the trailer's nose would be sitting way too far down to be level. The ball mount replacement would be the part # 3593.
    view full answer...
  • Recommend Ball Mount For Towing Light Trailer With 2014 Prius V With Draw-Tite Hitch 24967
    We have not had a chance to install the Class I Draw-Tite Sportframe Trailer Hitch Receiver part # 24967 but we were able to install the Draw-Tite on a 2016. The ground clearance with the hitch installed on the 2016 was 12-1/4" which will most likely be the same on your 2014 Prius V give or take if there is a tire size variance. Please keep in mind the Class I hitch is only capable of towing 200 lbs tongue weight. You will need a ball mount with at least a 1-3/4" rise if you install the...
    view full answer...
  • How Does The Peterson Great White LED Trailer Light 359-3 Get Mounted?
    The Peterson Great White LED Trailer Interior Cove Light - 1000 Lumens - 18" Long - 12V/24V # 359-3 you were looking at has tabs on each end of the light for screwing them vertically or horizontally to the walls or ceiling of your 16' Cargo trailer. The hardware is not included so you will need to source the screws from a local hardware store. There is not a way to link them if they are not bright enough with the exception of running both of them directly to the battery in the trailer...
    view full answer...
