We think the waterproof seal and potting on this tail light makes it perfect for boat trailers or any light-duty trailer that may be exposed to water - which is all of them. It displays every signal you need: stop, tail, turn, brake, and more.
Features:
Specs:
California residents: click here
Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.

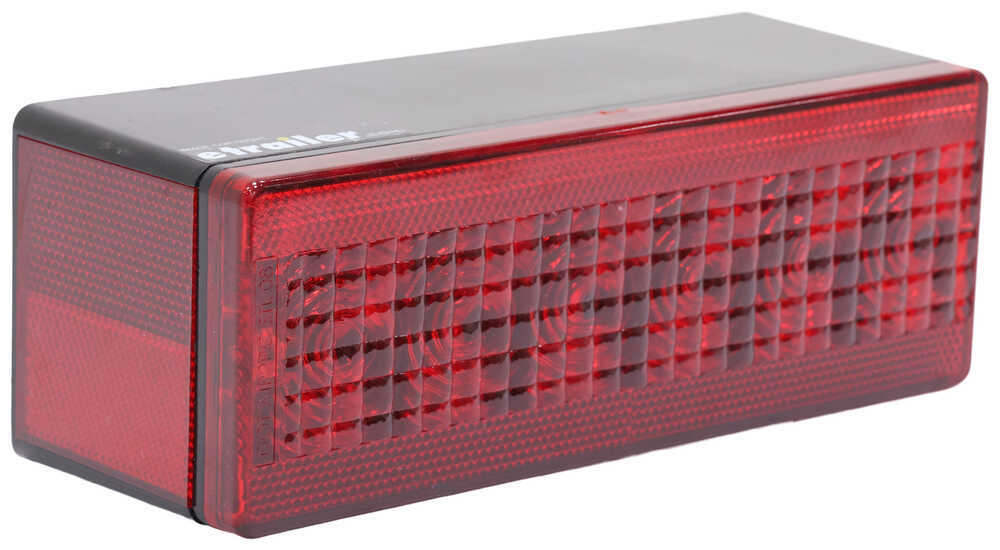

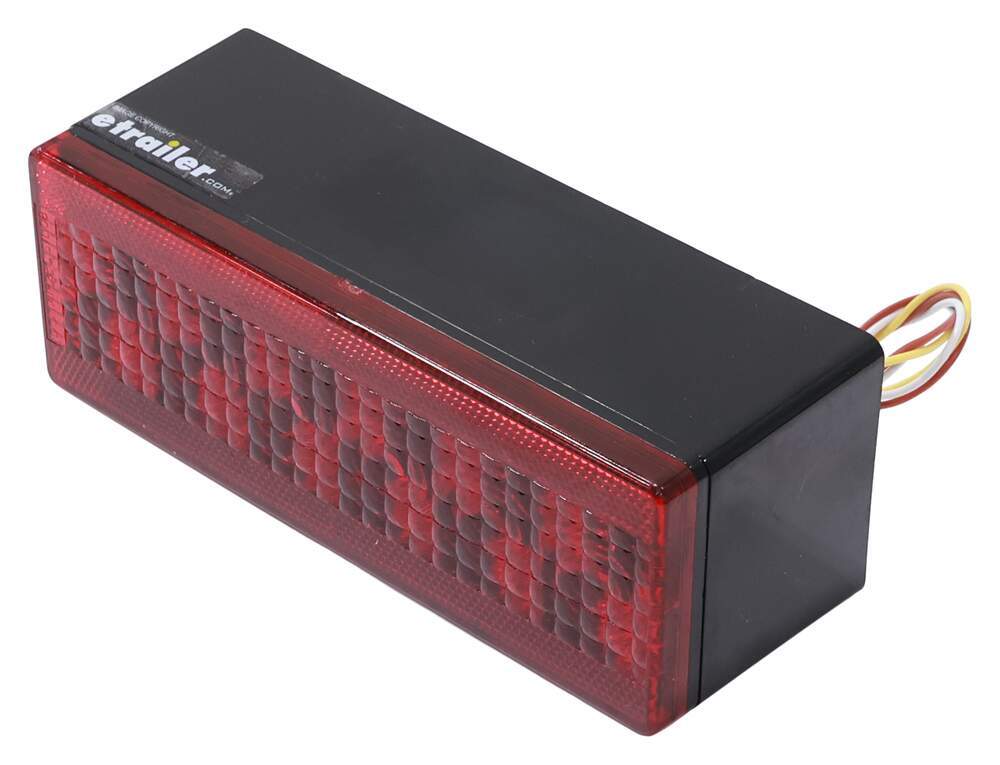

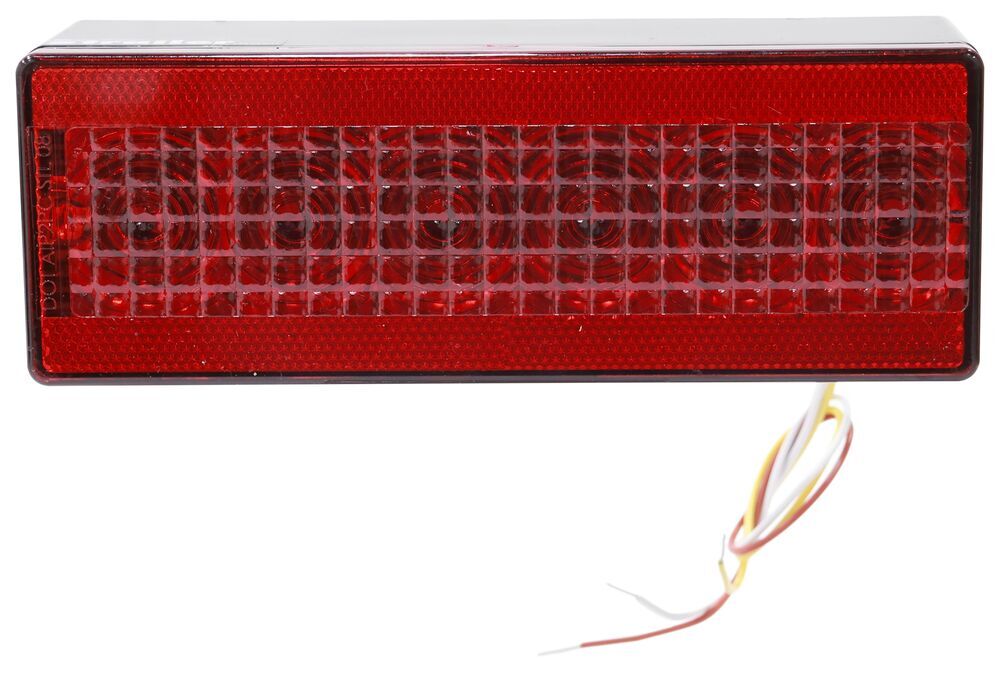

Hi everyone. Steven here with etrailer.com. Let's take a look together at our technique T80 LED Trailer Light Combo. It's an eight function driver's side submersible, rectangular red light. That's right folks, LED taillight's gonna give you eight functions. Again, this is the driver or left side if you need the passenger or right hand side, that would be a different part number and I'll put that on the screen for you the way you have it.
Now this is truly submersible. As you can see, I've kind of got it wired up today. You can see the license plate light under there, and I'll show you that with the lights off here in a second. Eight inches across, two and seven eighths tall, two and seven eighths deep from the side. And again, on that side you got that side reflector obviously for safety.

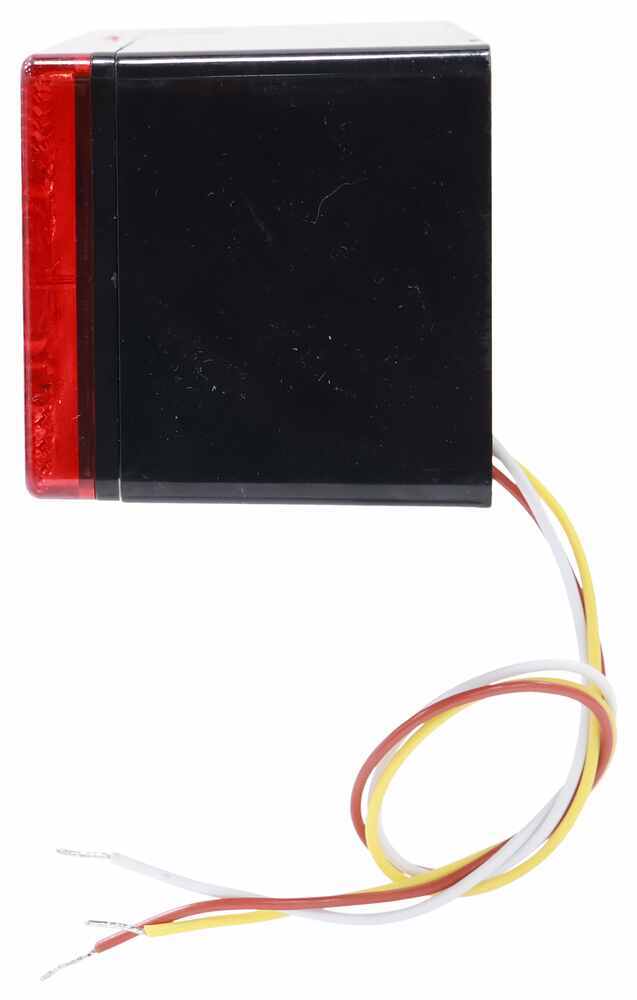

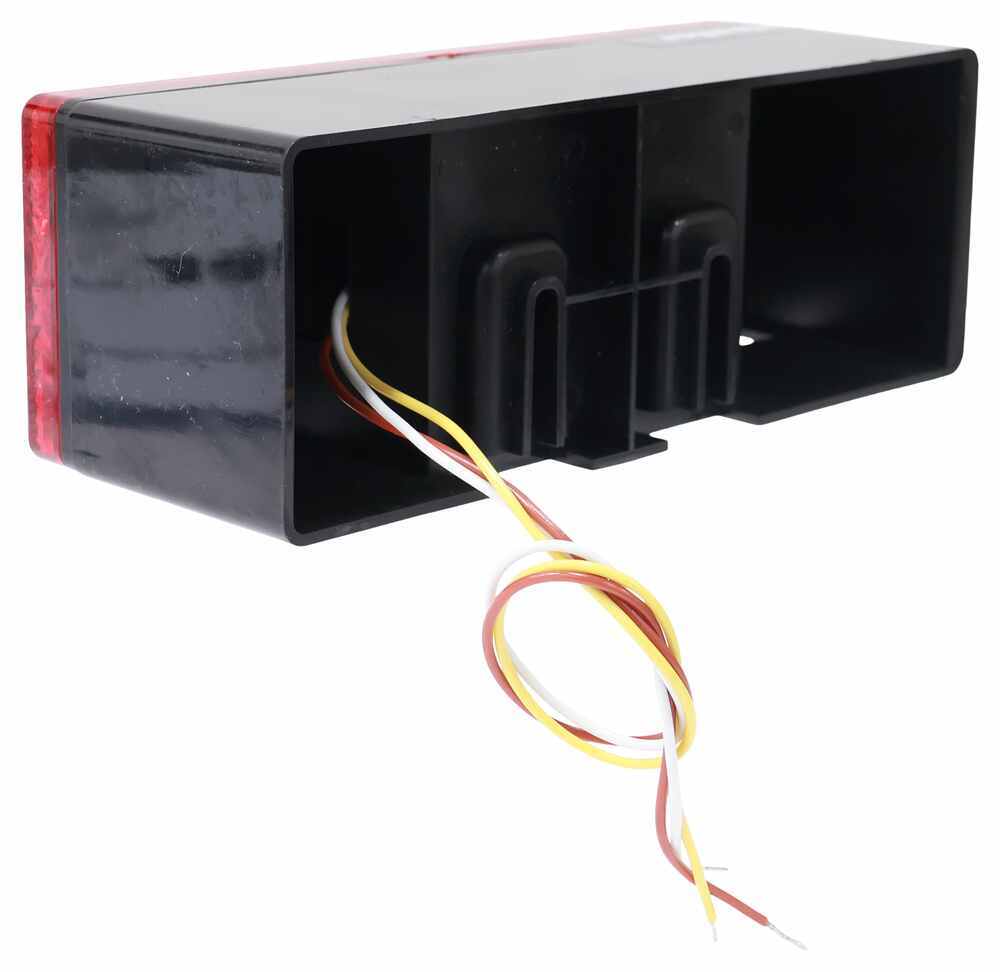

And on the backside, you have the mounts where it would slide over the bolts and mount. No bolts or anything are included. That's all sold separately if you need it. It does require two quarter inch by 20 carriage bolts. And the wire on the back is a nine inch pigtail.

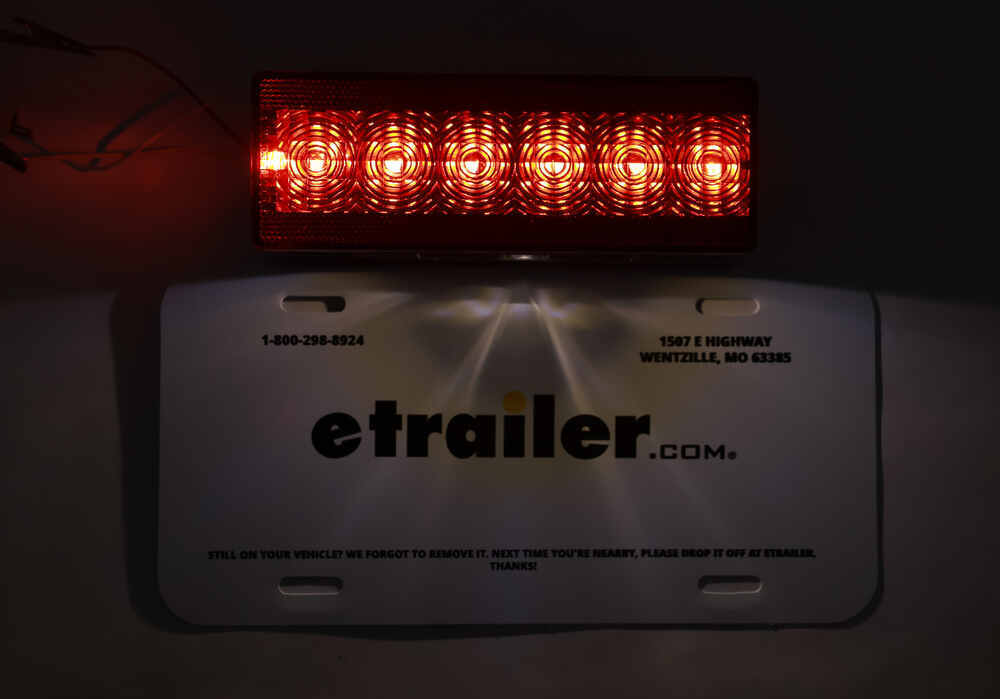

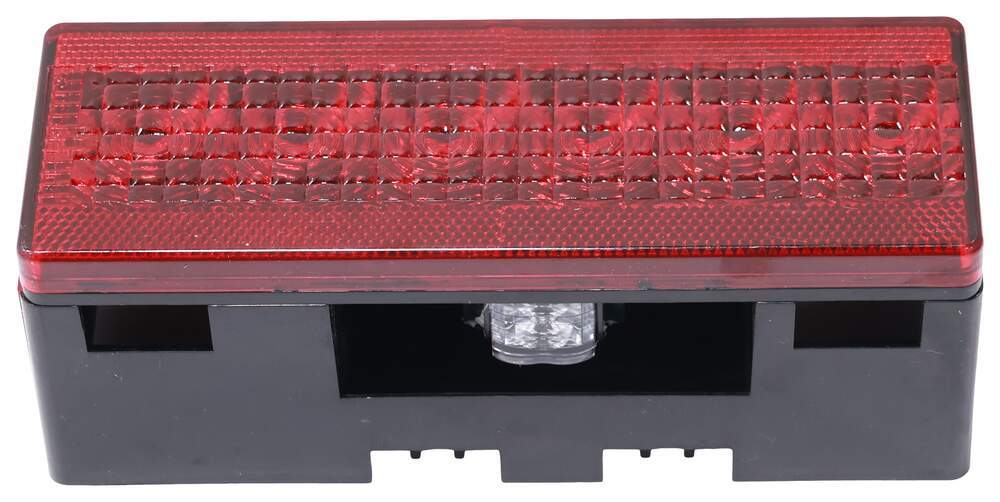

I'm gonna go ahead and shut off the overhead lights right now so you can kind of see this in the dark. And like I said, you can see that license plate light. Very nice, bright. It's gonna do what it needs to and light up the license plate. And again, this does have eight functions.
I'm only gonna be able to, at this time, kind of mimic them if you will, as far as like your blinker and then your running lights versus your brake lights, hazards, obviously, those kind of things. So again, I'm just crossing wires back here to kind of show you more or less the brightness, so bear with me on the rest of those functions. But you have stop tail turn, clearance, side marker, side reflector, rear reflector, and license plate all together. So again, folks, a nice little option for you. IP68 rated. It's been sonic welded as far as the case. And now that I've got it unplugged and turned off, I can show you those nine inch length of wire. And again, that license plate light in the back housing. So again, all sealed up, submersible. This is the technique T80 LED Trailer Taillight eight function driver's side. I'm Steven. Thanks for watching.
Info for this part was:
At etrailer.com we provide the best information available about the products we sell. We take the quality of our information seriously so that you can get the right part the first time. Let us know if anything is missing or if you have any questions.
