Miro-Flex LED Clearance or Side Marker Light w/ Reflector - Submersible - 9 Diodes - Red Lens

Miro-Flex LED Clearance or Side Marker Light w/ Reflector - Submersible - 9 Diodes - Red Lens

Item # MCL50RB

lowest price pledge

Retail:$13.46

Our Price: $12.05

You Save: 10%
Trailer Lights

Orders above $99 qualify for Free Shipping

Shipping Weight: 0.07 lbs

Quantity:
In Stock
MCL50RB - LED Light Optronics Clearance Lights
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.
Please enter a valid email address.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

pop out icon replay 360 icon
horizontal rotate icon

Product Images

In Use/Installed


  • Clearance Lights
  • Round
  • LED Light
  • Red
  • Recessed Mount
  • 2 Inch Diameter
  • Submersible Lights
  • Optronics
2" Diameter round. Waterproof, LED trailer light serves as either a side marker light or clearance light. Miro-flex reflector increases light output. Recessed mount with grommet (sold separately). Accepts standard 2-prong plug. P2 rated. Lowest Prices for the best trailer lights from Optronics. Miro-Flex LED Clearance or Side Marker Light w/ Reflector - Submersible - 9 Diodes - Red Lens part number MCL50RB can be ordered online at etrailer.com or call 800-298-8924 for expert service.


  • All Info
  • Reviews (916)
  • Q & A (8)
  • Videos (2)
  • Photos
  • Why etrailer?

Optronics Trailer Lights - MCL50RB

2" Diameter round. Waterproof, LED trailer light serves as either a side marker light or clearance light. Miro-flex reflector increases light output. Recessed mount with grommet (sold separately). Accepts standard 2-prong plug. P2 rated.


Features:

  • LED trailer light functions as a clearance light or side marker light when properly mounted
  • Miro-flex faceted reflector provides increased light output with a contemporary appearance
  • LEDs make great replacements for incandescent lights
    • Last 50 times longer
    • More efficient - provide brighter light with less power output
    • No bulbs to replace - no brittle filaments
  • Durable ABS housing and acrylic lens
  • Red lens over white LEDs
  • Compatible with 12V DC systems
  • Recessed mount with grommet (A54GB sold separately)
  • Accepts industry standard 2-prong plug
  • DOT compliant
  • P2 rated


Specs:

  • Dimensions: 2" diameter x 13/16" thick
  • Diodes: 9
  • Power draw at 12.8V: 0.047 amps
  • Lifetime warranty on LEDs


Optronics MCL50 Series Miro-Flex Red LED Marker Clearance Light Dimensions

Sonically Sealed, Waterproof Trailer Light

The waterproof construction of this light makes it ideal for use on trailers that may be submerged, like a boat trailer. The housing and lens are sonically sealed together to create a single unit, which means that water will not get into the light and damage the diodes or circuit board.


P2-Rated Lights

Diagram of light spread for P2 rated light

A P2-rated light produces a 45-degree angle of light to either side of its centerline for a total of 90 degrees of coverage. This beam pattern can be seen straight on, but it cannot be seen clearly from the side. So this type of light can be used as either a side marker light or a clearance light, but it cannot function as both. If you need both functions, then you must install 2 separate lights on your trailer - one as a front or rear clearance light and one as a side marker light.



MCL50RB Optronics Miro-Flex LED Clearance or Side Marker Trailer Light w/ Reflector - Submersible - 9 Diodes - Round - Red Lens - P2 Rated

Alternate part number: MCL-50RB






California residents: click here

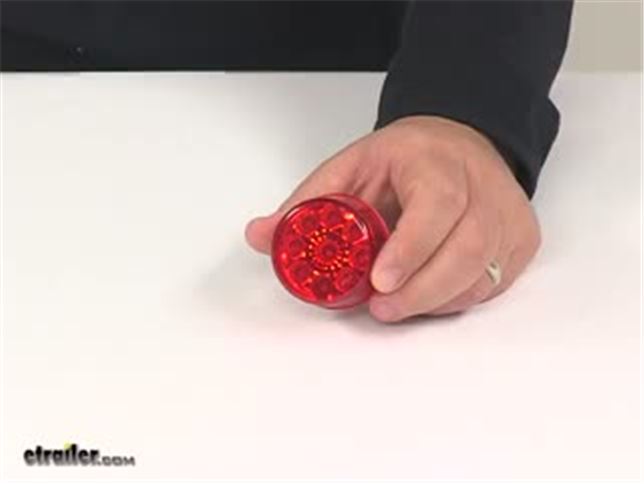

Video of Miro-Flex LED Clearance or Side Marker Light w/ Reflector - Submersible - 9 Diodes - Red Lens


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Optronics Round LED Trailer Side Marker and Clearance Light Installation

Speaker: Today on this trailer we're going to install Part No. MCL50RB from Optronics. First thing we do, is go ahead an remove the existing light. We'll spray it down with some lubricant and then pry it out around the edge. Once we have the light loosened up we'll go ahead and pry out the electrical connector and then we'll go ahead and spray it and ground it down with a little more lubricant. We'll go ahead an take our new electrical connector and plug in to the back of the light. We'll go ahead and push it down into place. Make sure it's a tight fit and then work the light back into place. Now we'll go ahead and apply some power. We have our new LED light along with an incandescent for comparison. Our install of our new light is complete. There you have it for Part No. MCL50RB.

.


Customer Reviews

Miro-Flex LED Clearance or Side Marker Light w/ Reflector - Submersible - 9 Diodes - Red Lens - MCL50RB

Average Customer Rating:  4.9 out of 5 stars   (916 Customer Reviews)

2" Diameter round. Waterproof, LED trailer light serves as either a side marker light or clearance light. Miro-flex reflector increases light output. Recessed mount with grommet (sold separately). Accepts standard 2-prong plug. P2 rated.

- MCL50RB
by:

Perfect fit for my boat trailer 693474



- MCL50RB
by:

Just what I ordered and was a perfect f it. 691273



- MCL50RB
by:

The order was lost in the mail or delivered to the wrong address. These guys got right on it to get our order to us. They followed up to make sure the re-send came through. Great job. Thanks!! 682345



- MCL50RB
by:

There are alot of lights out there and I looked for the best quality. Alot are cheaper but I looked for the best one. thanks Just because it is imported the quality does not have to suffer 680292



- MCL50RB
by:

Exactly as described. Well made. 653404



- MCL50RB
by:

this is it 628997



- MCL50RB
by:

nice product 604224



- MCL50RB
by:

Great product for the price. 601751



- MCL50RB
by:

All around good experience! Person I dealt with was very knowledgeable about their products and order was received as expected. 556740



- MCL50RB
by:

Products works great after use for a year and I have found other parts from this vendor that work well and last a long time. 553850



- MCL50RB
by:

I just installed 5 of these on my car trailer, replacing older incandescent lights. These are so much brighter! Great fit, easy to install. I haven’t had a chance to get them wet yet, but I’m sure they will hold up. 542872



- MCL50RB
by:

Exactly what was ordered and shipped fa st. 524862



- MCL50RB
by:

Nice and brite No burned out leds 1 year later 522902



- MCL50RB
by:

Product was as described. I chose this product because of its ease of use and brightness when on. I consider the light upgrade a safety feature for my trailer. No more “ filament flickering” from rough road. 508508



- MCL50RB
by:

I put these puppies on my 2006 Blizzard snowmobile trailer, very bright and the 2 in grommets work great. Use some WD40 on the grommet so much easier to get in. 497337



- MCL50RB
by:

very speedy service and excellent parts 484704



- MCL50RB
by:

FAST service. product arrived in good condition Thanks. 477906



- MCL50RB
by:

Just what I needed. Received very quickly & great communication. 465693



- MCL50RB
by:

I bought a set last year form another distributor and were to be watertight. The ones I bought from etrailer states waterproof and they are going on a boat trailer. We will see how well they work once I launch the boat and see if any water penetrated the inside of the light. 423798



- MCL50RB
by:

Replaced old side marker lights on trailer really makes a difference in looks and bright light. 402870



- MCL50RB
by:

Great product and even greater service from etrailer! 399358



- MCL50RB
by:

A very nice light its bright and easy to install. Working with etrailer.com also has been great. 349527


Comments

After a year the lights are still looking and working great.

Don J - 03/07/2018

35557

- MCL50RB
by:

Excellent product with easy to follow i nstructions. 349474



- MCL50RB
by:

Small bright and very functional 344350



- MCL50RB
by:

Great product! 337805



- MCL50RB
by:

My trailer is loaded with Optronics lighting, there waterproof and bright and easy to mount with the installation rings, best on the market! 323734



- MCL50RB
by:

Not only a Great Product but Great service from etrailer as well. I am always happy and satisfied with every order received from them! 281977



- MCL50RB
by:

exact replacement for gooseneck trailer. thank you 264652



- MCL50RB
by:

nice looking product to dress up my 10 year old equipment trailer, these helped make it look more modern and the led lights rarely don't work. 254969



- MCL50RB
by:

Received all the parts on time and they worked as described. Easy and no fuss. 199454



- MCL50RB
by:

I ordered a 2" LED clearance light for my 5th wheel because I could not find a suitable replacement locally. The service was excellent and the product better quality than the original. etrailer.com will be the first place I go in the future! 195150



- MCL50RB
by:

I rated "good" only because of my application. I had 6 of these on back of my 1 ton flatbed 3 high and 3 low and for what I needed they where too bright. Working around the truck at night was blinding. They certainly would make a trailer visible. I went with the 4 Diode and they were PERFECT.. 189191



- MCL50RB
by:

Nice LED! ETrailer is great! 178140



- MCL50RB
by:

Outstanding! I didn't use the product for it's intended purpose, but rather as a "third eye" stop light for my Jeep. Works perfect! Just what I wanted. I'm very glad I stepped up and purchased the pigtail and grommet. Without these two extra items, my project would have failed. 155888



- MCL50RB
by:

Nice little light. Well made. Exactly as advertised, and bright. 154235



- MCL50RB
by:

I wanted to replace all the lights on my trailer to LED, found what I wanted and price and quick shipping made the purchase great. 142257



- MCL50RB
by:

These lights work great. Much brighter than the stock incandescent lights that I replaced. 125081



- MCL50RB
by:

Light is nice - Wasn't aware it was going to arrive WITHOUT the plug. Guess the project is on hold and I will be paying shipping costs again. Website should state this. 107971



- MCL50RB
by:

Worked as expected. Not only brighter than the original incandescent lights but the Optronics Miro-Flex product looks great even when not lit. 79713



- MCL50RB
by:

I will be using thiese products on a trailer I am refurbishing to pull behind my trike. The only drawback I have noticed is that I wish the black grommets came with a touch a chrome, to dress up the application. 71011


Comments

Hello Ken - we do have a 2 round chrome trim ring for the grommet mount lights. The part is A55CB, and they would look great being pulled behind your trike!

Dustin S from - 10/16/2014

7264

Thanks for chiming in Ken. I have provided a link to the # A55CB
Chrome Trim Cover for 2" Grommet Mounted Lights
$2.12
below for reference.

-- Rachael H - 10/20/2014


- MCL50RB
by:

Excellent products,best lights out there. thank you 62201



- MCL50RB
by:

This little light is very bright and makes a great clearance light. Not like any incandesent light, when one element goes out, the rest of them still burn. 44661



- MCL50RB
by:

Overall good light, but it's about 1/2 inch thicker than a standard side marker and therefore sticks out from the rubber housing further. 29742



- STL23RB
by:

Review from a similar Optronics Miro-Flex in Trailer Lights


Nice and bright. Easy retro fit on our [email protected] trailer. 269011



- MCL48AB
by:

Review from a similar Optronics Miro-Flex in Trailer Lights


I have purchased 4 of these from of you. None of these have been installed as of present. Other that quick delivery I have no comment on this item. Thanks, Dennis 587776



- MCL50AB
by:

Review from a similar Optronics Miro-Flex in Trailer Lights


This looks great I like nice looking and great service 191022



- STL22RCB
by:

Review from a similar Optronics Miro-Flex in Trailer Lights


Exactly as promised. Haven't put on the trailer yet, but I have no concerns. Very happy! 273800



- TLL28RK
by:

Review from a similar Optronics Miro-Flex in Trailer Lights


Excellent product. Working very well after one year of rough service. . 568206



- STL35AB
by:

Review from a similar Optronics Miro-Flex in Trailer Lights


These lights are of very good quality and are really bright. I use them on an early 70's Bronco for the front turn signals. Day or night, they are distinct and unique and best of all, . Definitely visibly on during the night AND the day (this can be seen in the photo taken on a Snow day, bright, while half way out of my garage). Great price for a great product 112392


Comments

The LED lights are great. Im very satisfied with them. They have held up well and work like a charm with a distinct look to them as well.

Gary R - 01/13/2015

8579

- TLL28RK
by:

Review from a similar Optronics Miro-Flex in Trailer Lights


These are perfect for my hard used-utility trailer. I haul a huge amount of firewood, gravel, top soil, lawn mowers, and rocks and the old tail light bulbs were constantly burning out. The new LED lights were super- easy to install, fit perfectly, and are much brighter than the old. I wish I would have installed these lights years ago. Highly recommended! 569978


50
957
Show More Reviews

Ask the Experts about this Optronics Trailer Lights

Do you have a question about this Trailer Light?


  • Polarity of Optronics Sealed Micro-Flex LED Trailer Side Marker # MCL50RB
  • The Optronics Sealed Micro-Flex LED Trailer Side Marker # MCL50RB referenced in your question does have polarity, but the PL-10 Plug # A46PB that you also have is designed so that it can only be plugged in one way. This is essentially how you will know which way to plug the harness into the light. Since LEDs use diodes, if you were to somehow connect the harness backwards, the light simply would not work and you would just need to turn it around and plug it back in. On the harness itself,...
    view full answer...

  • Replacement 2-1/2 Inch Round Marker Light on Triton Trailers Elite WCII Personal Watercraft Trailer
  • I do not have a cross reference chart for Truck-Lite trailer lights, but we have several 2-1/2 inch round clearance lights that may work for you. I have attached a link that will take you to all of our 2 inch and 2-1/2 inch round trailer lights for you to check out. I have also linked a few LED and incandescent 2-1/2 inch round clearance lights for you to checkout below. The biggest difference between many of these lights is the depth of the lens. Most of the lights are either 11/16...
    view full answer...

  • Recommended Red Clearance Light to Match Amber Clearance Light
  • I believe you are looking for the Sealed, Miro-Flex, 2" Round, LED Trailer Side Marker, Clearance or ID Light, 9 Diode - Red # MCL50RB to go along with the Sealed, Miro-Flex, 2" Round, LED Trailer Side Marker, Clearance or ID Light, 9 Diode - Amber # MCL50AB for your trailer. You will also want the Right Angle 2-Wire Pigtail for Optronics Trailer Lights - 2-Prong PL-10 Plug - 6" Lead # A46PB and the 2" Round Grommet - Flush Mount - Open Back # A54GB for this installation. Let me...
    view full answer...

  • Recommended Miro-Flex Clearance Lights With Clear Lens For Trailer
  • We do offer Miro-Flex lights with clear lens for your trailer, but none of the Miro-Flex lights we carry are round with clear lens. The lights I recommend with a clear lens are part # MCL-50CRK and part # MCL-50CAK. These lights have 3 LED diodes and come with the plug and grommet needed to install. For a round 2 inch Miro-Flex light, we offer the amber light, part # MCL50AB and the red light, part # MCL50RB. To mount these lights you would need the rubber grommet, part # a54gb,...
    view full answer...

  • Availability of LED Amber and Red Clearance, Tail Lights, and Side Marker Trailer Lights
  • The STL42RB does come in amber. It is # STL42AB. Use wiring harness # A45PB with it. For 2 inch diameter amber lights you can use # MCL50AB with # A49PB and # A54GB. For 2 inch diameter red lights you can use # MCL50RB with # A49PB and # A54GB. For amber teardrop lights, you may be able to use # CBL22AB. We also have a teardrop shape kit that you would use on the roof of a truck, # CB-15AK, but it is not LED. For red teardrop lights we also do not have an LED option but we do...
    view full answer...

  • Will the Miro-Flex, 2 Inch Round, LED Trailer Light, # MCL50RB, Fit an Enclosed Snowmobile Trailer
  • If adding the Optronics light, # MCL50RB, you will need about 2 inches of space behind your existing light for it to fit. The reason is the Optronics light is deeper including the pigtail mounting surface and the pigtail, # A86PB. If you have at least 2 inches of clearance, then this light will fit in your existing 2 inch diameter hole with grommet # A54GB. Light # MCL55RB is not quite as deep at 1 inch overall, so that is another option for you.
    view full answer...

  • Will 2 Inch Diameter Lamps Fit into Circular Cut Outs in Sides of Rola # 59502 Cargo Carrier
  • The grommets for 2-1/2 inch lamps are a bit too big to fit into a 2-1/2 inch rough opening. The # A56GB grommet for instance, is meant to mount in a 2-3/4 inch rough opening. If you could enlarge the opening to 2-3/4 inches in diameter, then a 2-1/2 inch lamp like # MCL50RB would fit. If you decided to go this route, you'd tie the power for the lamps into the running lamp circuit. A # A46PB pigtail would be needed for each lamp. Honestly, using reflective conspicuity tape like part...
    view full answer...

  • Type of Lubricant Used to Remove Trailer Light from Grommet
  • Typically, our installers are using WD-40, or something similar, when they reference using lubricant.
    view full answer...
