Roadmaster StowMaster Tow Bar - Car Mount - 2" Ball - 6,000 lbs

Roadmaster StowMaster Tow Bar - Car Mount - 2" Ball - 6,000 lbs

Item # RM-501
lowest price pledge
Retail:$603.47
Our Price: $511.30
You Save: $92.17
Tow Bars
This item qualifies for Free Shipping
Shipping Weight: 57 lbs
Quantity:
In Stock, Ships Today
RM-501 - 6000 lbs Roadmaster Coupler Style
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

In Use/Installed

Customer Photos

Tow bar with 2" ball coupler has stainless steel, telescoping arms that automatically lock into place. Large hookup radius allows you to connect without perfectly lining up your vehicle. Quick-disconnects make it easy to attach to base plates. Lowest Prices for the best tow bars from Roadmaster. Roadmaster StowMaster Tow Bar - Car Mount - 2" Ball - 6,000 lbs part number RM-501 can be ordered online at etrailer.com or call 800-298-8924 for expert service.
  • All Info
  • Reviews (36)
  • Q & A (278)
  • Videos (4)
  • Photos
  • Why etrailer?

Roadmaster Tow Bars - RM-501

  • Coupler Style
  • Telescoping
  • Roadmaster
  • Roadmaster - Crossbar Style
  • 6000 lbs
  • Standard
  • Stores on Car
  • Steel

Tow bar with 2" ball coupler has stainless steel, telescoping arms that automatically lock into place. Large hookup radius allows you to connect without perfectly lining up your vehicle. Quick-disconnects make it easy to attach to base plates.


Features:

  • Tow bar lets you tow your vehicle safely and securely behind your motorhome
  • Large hookup radius makes connecting a breeze at any angle, even if your vehicle isn't perfectly lined up with your RV
  • Quick-disconnect system lets you quickly and easily mount the tow bar on your towed car
    • Quick-disconnect brackets on tow bar match up with brackets on base plates and are held in place with sturdy pins
  • Self-aligning design - just hook up and drive RV forward
    • Arms extend into rigid, tow-ready position and automatically lock in place
  • Extra-long telescoping arms allow for better maneuverability and easier towing
    • Stainless steel construction of inner arms allows for smooth operation
    • Safety straps inside each arm provide extra security in case the latches malfunction
  • Full-length crossbar with angle iron brace provides maximum strength and support
  • Strong, corrosion-resistant tow bar is built to last
    • FEA testing guarantees a strong finished product
    • Self-lubricated nylon bushings eliminate friction between the inner and outer arms for a longer-lasting, better-functioning system
    • Welded steel plugs seal the ends of the tow bar to guard internal components
    • High-tech powder coat finish provides additional durability
  • Simple, secure storage alongside vehicle
    • Just fold up the tow bar and secure it using the collar under the coupler
  • Made in the USA


Specs:

  • Compatibility: works with most Roadmaster EZ, EZ2, EZ4, XL, and Classic vehicle-specific base plates
    • Will not work with MX, MS, or EZ5 base plates
  • Ball diameter: 2"
  • Arm length (as measured from center of hitch ball to center of quick-disconnect bar):
    • Extended: 53-1/2"
    • Retracted: 43"
  • Weight capacity: 6,000 lbs
  • Limited lifetime warranty


Necessities for Flat Towing

For the RVFor the Towed CarTo Link the Towed Car and RV
HitchBase platesTow bar
Wiring plugBraking systemSafety cables
Wiring kit/diodesWiring adapter cord

Quick, Easy Hookup

This Roadmaster tow bar has a large hookup radius to ensure simple, secure hookup. What this means is that, even if your towed car is not perfectly aligned with your RV, you will still be able to make the necessary connections. To achieve this, the StowMaster has stainless steel, telescopic inner arms that adjust independently. In addition, 1 of these arms is able to pivot in and out, changing the spread. So, if your car is angled a bit behind your RV, you'll still be able to hook up by bringing the arms closer together and staggering the length so that 1 arm is longer than the other, allowing it to reach the more distant base plate.


The fact that the arms are extra-long also allows for a better turning radius. By putting more distance between your motorhome and your towed car, your entire setup will become easier to maneuver so that your towed car will track behind your motorhome without running the risk of hitting your RV during turns.


Autowlok

The Autowlok mechanism features a spring-loaded pin that locks the telescoping arms into place for towing. Once the tow bar is connected to both your RV and to the base plates on your towed vehicle, simply drive the RV forward until the tow bar arms fully extend, at which point they will automatically lock into place.


Once you've reached your destination and you're ready to unhook your vehicle, press the release button to disengage the spring-loaded pin. The arms will be able to telescope again, making it easier to disconnect. However, if you're on uneven terrain, or if your towed vehicle is not perfectly aligned behind your RV, chances are you'll experience tow bar binding. This is the result of tension that can build up in the telescoping arm, and it can make it difficult to disconnect your vehicle. Using a release tool (RM-066 - sold separately) will give you the leverage necessary to disconnect.


The internal self-lubricating nylon bushings help to absorb road shock and reduce wear and tear on the tow bar by eliminating friction between the inner and outer arms as they telescope in and out. Inside each arm, a built-in safety strap provides extra peace of mind by ensuring that the inner and outer arms won't separate in the event of a latch failure.


Quick-Disconnects

Quick-Disconnect

Standard on most Roadmaster tow bars, quick-disconnects make it a snap to attach the tow bar to your vehicle. Other methods require you to maneuver each tow bar arm individually and perfectly line up tabs on the arms with tabs on your base plates. Roadmaster's unique design lets you connect and disconnect the tow bar quickly and easily, all by yourself.


The quick-disconnect brackets come in separate pieces. The pieces that are positioned on the ends of each tow bar arm interlock with matching brackets that attach to your Roadmaster base plates. Sandwiched between the tow bar arms is a sturdy crossbar that essentially turns the arms into a single structure. This crossbar allows you to lower the tow bar as a single piece onto the quick-disconnect brackets on your towed car so that you don't have to connect each arm separately. When lowering the tow bar onto the brackets, make sure that the tab on each bracket lines up with the hole in the matching bracket. Then just insert the linch pins through the holes in the tabs on top to secure the brackets together. To remove the tow bar, simply remove the pins and lift the tow bar off of the brackets. These convenient brackets also make it simple to mount any number of Roadmaster accessories, from basic safety cables to the Guardian rock shield.


Superior Testing Ensures Excellent Quality

FEA test

This StowMaster tow bar has been subjected to rigorous physical and computerized testing to ensure that it meets Roadmaster's exceptionally high standards. Throughout the design process, Finite Elemental Analysis (FEA) is done. Each of these tests display a 3-dimensional image of the tow bar while it is put under thousands of pounds of pressure. Areas of stress in the tow bar can then be located and studied so that those areas can be strengthened. This process is repeated until any weak spots, particularly those found in load-bearing components, are completely removed. The result is a durable, strong, and safe product.


Simple Storage

FOLDED STOWMASTER

The StowMaster can easily be folded up and stored on the front of your towed vehicle when not in use. After disconnecting the tow bar from your RV, push the arms of the tow bar together so that they are side by side and fold them up towards the vehicle. There is a collar under the coupler that fits over a vertical post on the crossbar. This secures the tow bar in the stored position on the front of your car.


Guide to Flat Towing

Flat towing your vehicle is much more convenient than using a trailer or a tow dolly. These other options take up much more storage space, leaving you less room both at home and at the campsite. In addition, securing your vehicle to a trailer or tow dolly can be a hassle and more time consuming than hooking up with a tow bar.


There are 5 basic components needed when flat towing a vehicle: a tow bar, a base plate kit, a safety cable set, tow bar wiring, and a supplemental braking system.


FlatTowing Components

The tow bar links your towed car to your motorhome. It attaches to the custom-fit base plates that install on the frame of your towed car. Safety cables ensure that your towed car does not separate from your motorhome in the event that your tow bar becomes detached. Tow bar wiring allows your towed vehicle's signal lights to sync up with your motorhome's tail lights, which is required by law in most states. Finally, the supplemental braking system - also required in most states - brakes your towed car when the brakes in your motorhome are activated, preventing wear on the motorhome and decreasing braking distance for your entire setup.



501 Road Master Stow Master Coupler-Style Tow Bar for 2" Hitch Ball

Installation Details RM-501 Installation instructions

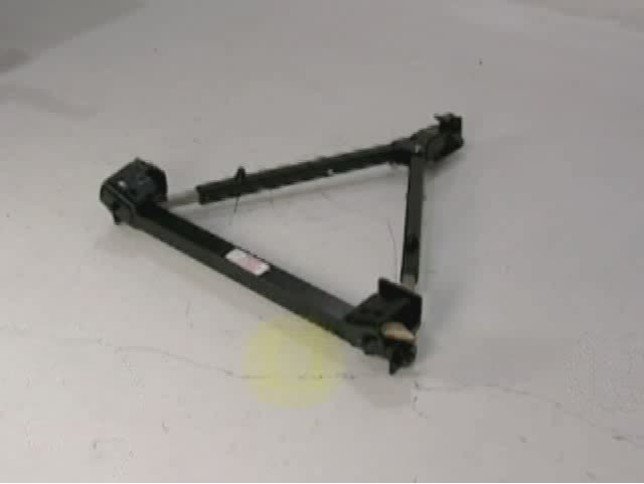

Video of Roadmaster StowMaster Tow Bar - Car Mount - 2" Ball - 6,000 lbs

Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Roadmaster StowMaster Tow Bar Review

Today we're gonna be taking a look at the Roadmaster StowMaster Tow Bar RM-501. Here's what our tow bar's gonna look like once we have it installed and all hooked up. This is gonna serve as the attachment point between our motorhome and our towed vehicle. It's gonna be a coupler style tow bar, which means it's gonna hook directly up to a two inch ball. Just keep in mind, you do need a ball mount and you made need to find an appropriate rise or drop to match up so we can have a nice level towing setup.The arms on our tow bar are gonna have a self-aligning design to them, and what that means is they're gonna extend out and retract so it makes it a lot easier hooking up, even if we're not directly behind the motorhome. Once the arms are fully extended, they're gonna lock into a rigid towing position, and if you look on top here, we're gonna have this button.

That's gonna release the arms and let them telescope in and out again. And that's gonna make it a lot easier unhooking, so we can move the arms and uncouple as needed. The inner arms are gonna be made of stainless steel so they're gonna resist rust and corrosion and be a lot easier to slide in and out. On each arm, we're gonna have these nylon bushings. It's gonna make sure that the arms slide in and out easily and keeps out the dirt, grime, and debris.Both the arms are gonna attach to this slide bar here that's gonna allow the arms to come together, and then also I have this angle iron piece for added strength.

Both arms are gonna attach to this slide bar, so they can easily move into the stored position and then also I have this angle iron bracket for added strength. The arms are gonna measure out to 53.5 inches long in the extended position and that's gonna be measured from the center of the disconnect to the center of the ball. In the collapsed position, our arms are gonna be 43 inches long. Our tow bar is gonna be compatible with most Roadmaster base plates. However, it's not gonna be compatible with the MS, MX, or EZ5 base plates.Whenever we're not towing, unhooking is gonna be easy.

You can come to the coupler, unlatch it, and then we'll bring the arm up and make sure we unlock both of them, bring our couplers straight up. We're gonna slide the arm over and then right behind the coupler on the arm, there's gonna be this small rectangle. We'll rotate it over and put the post right inside that channel. Then we can secure it with the clip right here on that post. And then we have the option of storing it on the front of our towed vehicle just like this or we can remove it completely, and to remove it completely, we're gonna have two pins on the top.

We'll simply just pull the pin out on each side, then we can lift the entire tow bar off and store it somewhere safe. And putting the tow bar back on is gonna be just as easy. It's gonna slide right into the quick disconnect and then we can put our pins back in place.Our StowMaster is gonna have a weight capacity of 6000 pounds, but you always wanna double check your vehicle's weight as well as the hitch on your motorhome and the ball mount that you're gonna be using. Our StowMaster is a tried and true design. It's been used a lot, but compared to other tow bars with the coupler style, our StowMaster is gonna have those extendable arms. They're gonna make it a lot easier to unhook and hook up. Also, we're gonna have the option to store it on the front of our vehicle, as well as the quick disconnect, which makes it easy to install and remove.Daryll wrote in a year later saying he loves this tow bar. By himself, he can hook up to his motorhome and be ready to hit the road in 10 minutes. That'll finish up your look at the Roadmaster StowMaster Tow Bar, part number RM-501.


Customer Reviews

Roadmaster StowMaster Tow Bar - Car Mount - 2" Ball - 6,000 lbs - RM-501

Average Customer Rating:  4.8 out of 5 stars   (36 Customer Reviews)

Tow bar with 2" ball coupler has stainless steel, telescoping arms that automatically lock into place. Large hookup radius allows you to connect without perfectly lining up your vehicle. Quick-disconnects make it easy to attach to base plates.

- RM-501
by:

Great product. 543202



- RM-501
by:

Have no problem with the hitch after we finally received the correct item. As you bring up the etrailer website, you are prompted with a MY VEHICLE before you start your order. We did this and ordered a base plate and tow bar around $900 total. After we received our order, we made an appointment to have our base plate installed. The shop told us our base plate was not for our car. We have a Ford Focus and received a plate for a Jeep Wrangler. We called etrailer as we had a trip planned and really needed this equipment. We were told by Tamara G that we ordered the Jeep Wrangler. Furious as we knew we did not because you would have to have went thru entering the year, make, and model in order to do this and there is a big difference between a Jeep and Ford Focus. We had to pay overnight shipping of $170 plus purchase a new base plate. I received the advice from an etrailer representative that said the next time we order for us to give them a call and make sure we ordered the correct item. We had this base plate installed, $280 and then we come home to hook up to our tow bar. It would not hook up. I called back to ask what etrailer would recommend now.....they said there was 2 base plates for our Focus and we was sent the wrong one (for the 2nd time). No reason to overnight it as we were leaving for our trip however, etrailer said they couldn't do that anyway. We just had to rent a car. Come home to find finally the correct part. I understand mistakes for we are all only human, but it is very frustrating to hear that you ordered a part for a vehicle you know you didn't. There is too many steps to go thru to order a part. We had to pay $31 to even send back the Wrangler base plate. We just ordered a 5th wheel with no trouble but this experience has been one for the books and very costly. 404389



- RM-501
by:

This product is well made and well engineered. It performs the functions of allowing a reasonable amount of flexibility in coupler/ball alignment, locking into place, smooth vehicle towing and securing into the "stowed" position. Because of my bumper mounted winch, I needed to make some adaptations to the mounting system which the RM-501 accommodated very well. I am very pleased with this purchase. I will send a couple of installed pictures by seperate email. 488750



- RM-501
by:

Absolutely love my Roadmaster tow bar from etrailer.com. Easy to hook up and easy to unhook, a great edition to our camping gear!!! Thanks etrailer.com great price and great service!! 749846



- RM-501
by:

It was a tough installation, but we got it installed. The tow bar works well. It takes some strength to attach to a the ball on my RV. 737347



- RM-501
by:

Appears to be a high quality product, that came with good instructions, and all the parts for installation on the base plate already installed on my Honda Fit. This will allow me to flat tow the car behind my class A motor home. 672677



- RM-501
by:

Works great for towing your vehicle behind other you powered units. 671776



- RM-501
by:

Product is easy to install and works great. Can now hookup or unhook tow vehicle from coach or any other tow vehicle in under 10 minutes. 629352



- RM-501
by:

I bought the RM baseplate for my jeep because they may an adaptor for the Duncan tow bar. I got the Duncan on craigslist and it looked great. But I didn't know that I needed a DUNCAN quick release kit. It wasn't on it. The RM quick release only attaches the RM Duncan adaptor to the baseplate. So learn from my mistake don't buy a used Duncan unless you are sure you have all the parts. I out $200 for very nice looking hardly used but worthless Duncan tow bar plus the return shipping for the RM 038 and RM 021. The only solution to this was to buy the RM-501 tow bar which is what I should have done in the first place. It is very well made and easy to stow or remove. How much are they getting for scrap metal these days. 590594



- RM-501
by:

This tow bar works great, really quick & easy to connect, but it would have been nice if their system would have not allowed me to purchase a tow bar that was incompatible with the connection hardware that I originally bought at the same time... 582630



- RM-501
by:

We use this product to tow our Ford Fusion behind our motor home. Fairly easy to install and everything works as it should 493478




- RM-501
by:

It’s nice the way it closes and can be stored in front of your vehicle until you need it 446700



- RM-501
by:

Works great, easy to hook up and stow. A little heavy, but knew that going in. Would purchase again. 445437



- RM-501
by:

Love this towbar. By myself, I can hook up to my motorhome and be ready to hit the road in 10 minutes . 430876



- RM-501
by:

Excellent product that was easy to install with good instructions. 417074



- RM-501
by:

We ordered three separate items from etrailer, all were received as promised. We ordered the StowMaster 5000 by Roadmaster because we had one before but sold it with the vehicle when we purchased our new Jeep for towing behind our motorhome.. They are easily used by seniors and like that they are foldable for cruising. 406943



- RM-501
by:

Well packaged and nice quality 378784



- RM-501
by:

Bought this from Etrailer with all the supporting hardware needed to flat tow my Durango. The quality is excellent (stainless steel, very strong), the install was pretty easy. Only issues I had were because of the are of my vehicle. Towing with it and hooking up is simple. It takes only a minute to go from stowed to hooked up. Etrailer.com was easy to deal with, helpful, and shipping was very fast. This is my second order with them, both have been flawless. Their pricing also proved to be the lowest. 343180



- RM-501
by:

This is a premium quality item. Very well made from heavy materials. I'm still installing the baseplate so I haven't use the tow bar yet but as soon as I took it out of the box, there is no question it's a quality product. I'll review again after my first tow. There was a slight problem with my delivery in that I didn't receive the "vehicle side" hardware. I contacted etrailer.com and they are sending it out immediately. Really good customer service! 335320



- RM-501
by:

Very easy to install and use. Very fast shipping. Don't forget to order safety cables along with the tow bar. 332442


Comments
All of the products have been very useful and performed perfectly.
John M - 01/14/2018

32973

- RM-501
by:

I was very pleased with the products I ordered from you. I was also extremely pleased with the professionalism, informative, friendly and helpful young lady that took my order. Her name is Katie. Everyone else I dealt with was also very good and knowledgeable. My order was, Tow Bar, Base Plate, Rear Trailer Hitch, Light Bulb, Wiring Kit and other accessories. Everything fit perfectly. Thanks for all of your help. 316853



- RM-501
by:

Perfect match for my vehicle. Installation was relatively simple. All products fell together like a child's puzzle. Highly recommend. 319495



- RM-501
by:

excellent product. most affordable and does the job perfectly. 286334



- RM-501
by:

Good towbar. Easy to hook up and works well. I would recommend it to anyone. 272738


Comments
It still rocks!
Paul S - 01/10/2018

32860
30
43
Show More Reviews

Ask the Experts about this Roadmaster Tow Bars

  • Can a Roadmaster StowMaster Tow Bar Be Used On a 2020 Jeep Gladiator with Demco or Blue Ox Plates
    I do have an option for you but there are no adapters available for the Roadmaster StowMaster Tow Bar part # RM-501 because this is a tow vehicle mounted tow bar and said adapters will only work with motorhome mounted tow bars. Therefore, your only option will be to sell your Roadmaster StowMaster Tow Bar and then obtain one that is specially made for either the Demco Tabless Base Plate Kit part # DM9519336 for Overland, Sport, Sport S models and part # DM9519339 for Rubicon models or the...
    view full answer...
  • Replacement Parts for Roadmaster StowMaster Tow Bar
    For replacement parts on your Roadmaster StowMaster Tow Bar # RM-501 we have # RM-910003-20 for the complete kit and # RM-910012-00 for the support bar. Use # RM-222 for the vehicle side quick disconnects if you need them as well.
    view full answer...
  • Can the StowMaster be Used with an EZ5 Base Plate Kit on a 2018 Ford Fiesta
    The reason that the StowMaster # RM-501 is not compatible with EZ5 base plate kits like part # RM-524438-5 for your 2018 Ford Fiesta is because the quick-disconnect is permanently attached to the tow bar. I spoke with my contact at Roadmaster who said that the only tow bars that are compatible with the EZ5 kits are the ones that mount inside the hitch receiver like the Falcon 2 # RM-520. If you already have the StowMaster and you need a base plate kit for your Fiesta then you can...
    view full answer...
  • Parts Needed to Flat Tow a 2016 Smart fortwo with a Roadmaster StowMaster Tow Bar
    If you already have the StowMaster Tow Bar # RM-501 then you will need the Roadmaster EZ4 Base Plate Kit # RM-52300-4 to flat tow your 2016 Smart fortwo. This base plate kit will not fit electric models. You also need safety cables like part # RM-643 for flat towing. A complete flat towing setup includes a base plate kit, tow bar, safety cables, vehicle tow bar wiring, a supplemental braking system, and possibly a high-low adapter. For wiring I recommend the Flexo-Coil Wiring Kit # RM-15267....
    view full answer...
  • Can a 2015 Dodge Dart 2.0 Be Flat Towed?
    A 2015 Dodge Dart 2.0L Automatic is not towable without a trailer. It cannot be towed using a tow dolly either. The good news is if you get the manual transmission instead of the automatic it will be flat towable behind a RV. If you go that route, I recommend the following parts: Roadmaster EZ2 Base Plate Kit - Removable Arms # RM-52294-1 Roadmaster Falcon 2 Tow Bar - 6,000 lbs # RM-520 Coiled Safety Cables # RM-643 Roadmaster Diode 7-Wire to 6-Wire Flexo-Coil Wiring Kit # RM-15267 (Note:Some...
    view full answer...
  • Base Plates Needed to Tow a 2018 Chevrolet Colorado with a StowMaster Tow Bar
    I am guessing that you meant you have a 2018 Chevrolet Colorado ZR2 as opposed to XR2. To tow your ZR2 with your StowMaster Tow Bar # RM-501 you will simply need the Base Plate Kit # RM-523182-4. I have attached an installation video for you to check out as well. For a complete flat towing setup you will need a base plate kit, tow bar, safety cables, vehicle tow bar wiring, a supplemental braking system, and possibly a high-low adapter. If you do not have all of these components just...
    view full answer...
  • Base Plate and Tow Bar Recommendation for 1996 Suzuki X-90
    For your 1996 Suzuki X-90 I recommend the Roadmaster XL Base Plate Kit # 118-16. Unlike the Blue Ox base plate kit that is also confirmed to fit your vehicle, this particular kit features removable drawbars that allow for a clean look when you aren't towing. All of the mounting hardware is included for a simple installation that doesn't require any welding. I have attached the written instructions that you can check out as well. Then for a compatible tow bar I recommend the Roadmaster...
    view full answer...
  • Parts Needed to Use RoadMaster StowMaster Tow Bar # RM-501 on 2009 Honda CR-V
    Your Roadmaster StowMaster Tow Bar # RM-501 can be used with your 2009 Honda CR-V by addition of compatible base plates on the Honda. We offer the Roadmaster XL Base Plate Kit, part # RM-521559-4, which features no-welding installation using included hardware, and removable arms to allow your CR-V to retain most of its normal appearance when not being flat towed. These base plates are compatible with all Roadmaster tow bars. Flat towing requires a number of components besides the tow...
    view full answer...
  • Can 2010 Jeep Wrangler Be Flat Towed with Roadmaster Stowmaster Tow Bar
    If you wanted to use the Roadmaster Stowmaster Tow Bar part # RM-501 to flat tow your 2010 Jeep Wrangler you certainly could. It would be just a matter of installing the correct base plate kit on your vehicle. For that you would want the Roadmaster EZ4 base plate kit part # RM-521448-4 which is a confirmed fit. For safety cables you can use # RM-643. The coiled design helps keep the cables off of the ground. For lighting you can use the diode kit, # RM-15267, and not have to worry...
    view full answer...
  • Rebuild Kit Recommendation for Roadmaster 500 Stowmaster
    For your older model Roadmaster Stowmaster the correct rebuild kit is the part # RM-910003-10. This comes with all new replacements for the components of your tow bar that tend to wear over time. The price is available at the attached product link.
    view full answer...
  • MOPAR Wiring Harness Required to Flat Tow 2018 Jeep Cherokee Trailhawk
    The front wheel wobble issue with the Cherokee Trailhawk is fairly well known at this point and it is referenced in the owner's manual, on page 354 of the online edition. That page of the manual does warn owners to be certain to use the "proper MOPAR wiring kit to power the steering system during recreational towing". Without this part the steering system can be damaged. The part number is 68321424AB and it can only be obtained through Jeep. It is designed to keep the electric steering...
    view full answer...
  • Parts Needed to Flat Tow a 2014 Chevy Spark
    For a base plate kit confirmed to fit your 2014 Chevy Spark that would also work with the tow bar part # RM-501 that you referenced you would want the part # 523174-1. This base plate has been confirmed to work with all Roadmaster tow bars. In addition to the base plates and tow bar, you will also need safety cables, lighting, and supplemental braking to flat tow your vehicle. For safety cables you can use # RM-643. The coiled design helps keep the cables off of the ground. For...
    view full answer...
  • Compatibility of Coupler Style Tow Bar on 2014 Ford Focus Titanium
    The Roadmaster StowMaster Tow Bar - Car Mount - 2" Ball - 6,000 lbs # RM-501 will work perfectly with your 2014 Ford Focus Titanium when you use the Roadmaster Crossbar-Style Base Plate Kit # RM-524430-4. The base plates will require trimming your vehicle fascia. I've attached a photo to assist. An alternative is to use the Blue Ox Base Plate Kit - Removable Arms # BX2633 with the Blue Ox Acclaim Tow Bar - A-Frame - Car Mount - 5,000 lbs # BX4330 for a similar style. I've attached...
    view full answer...
  • Does the Steering Wheel of a Vehicle Being Flat Towed Need to Be Unlocked
    You want the steering wheel to be unlocked on a vehicle being flat-towed. Otherwise the front wheels of the towed vehicle would scrub around corners. Unlocking the front wheels allows the towed vehicle to turn and follow the tow vehicle as it is being towed.
    view full answer...
  • Connecting Stowmaster Tow Bar # RM-501 to Steel Bumper on Jeep Wrangler
    Tow bars from RoadMaster and Blue Ox, such as the RoadMaster StowMaster # RM-501, are designed to mate directly to base plates from the same manufacturer. Base plates usually mount to the vehicle frame. There are adapters available to use a tow bar from one company with base plates from another, but this arrangement costs more and increases the complexity and the amount of play in the set-up. Also, not every possible parts combination is covered by the available adapters. Jeep Wranglers...
    view full answer...
  • Parts Needed to Flat Tow a 2012 Chevrolet Sonic
    Before you begin flat towing your new 2012 Chevrolet Sonic, you will want to verify a few things first. If your vehicle has a 1.4 Liter engine and an automatic transmission, then it cannot be flat towed and must be towed using a tow dolly, like part # RM-2000-1. If it has a 1.4L engine and a manual transmission, or has a 1.8L engine and is automatic or manual, then you can flat tow your vehicle. The items that you will need to flat tow your vehicle are a tow bar, base plate kit, wiring...
    view full answer...
  • Compatibility of StowMaster Tow Bar RM-501 with Roadmaster Base Plates 435-3
    The base plate fits we have for your 1997 Ford Ranger are shown on the linked page and these include the Roadmaster kit # 435-3. These base plates are compatible with the StowMaster Tow Bar # RM-501. You may care to refer to the linked article that covers the essentials of flat towing.
    view full answer...
  • Does the Roadmaster StowMaster # RM-501 Tow Bar Fit Specific Vehicles
    What you have in your picture is a very old StowMaster Tow Bar # RM-501 which is still attached to some base plates. I reached out to my contact at Roadmaster who said the serial number from the StowMaster indicates that it is rated for 5,000 lbs but there really isn't a way to determine what the base plate kit fits. If you let me know what vehicle the base plate kit was used on I can possibly give you some part numbers that you can compare to what you have but if you remove the StowMaster...
    view full answer...
  • Parts Needed to Flat Tow a 2008 Toyota Corolla
    First you need a base plate kit like the Roadmaster XL part # 1165-1 which is a confirmed fit. This will work well with the StowMaster part # RM-501 which is an economic option that still is a great tow bar. For safety cables you can use # RM-643. The coiled design helps keep the cables off of the ground. For lighting you can use the diode kit, # RM-15267, and not have to worry about cutting into the taillight housing. This will splice into your taillight wiring to allow your tow...
    view full answer...
  • Flat Towing Parts Needed for Towing a 2003 Suzuki Grand Vitara with a Roadmaster Stowmaster
    The RoadMaster StowMaster # RM-501 that you referenced is designed to attach to Roadmaster EZ, XL and Standard base plate kits. If you have one of those base plate kits on your 2003 Suzuki Grand Vitara then you would be good to go. If not you would need one, I would recommend the Roadmaster XL Base Plate kit part # 1011-3. For safety cables you can use # RM-643. The coiled design helps keep the cables off of the ground. For lighting you can use the bulb and socket kit, # RM-155, and...
    view full answer...
  • Should Steering Wheel be Unlocked on 2000 Toyota RAV4 When Flat Towing With StowMaster Tow Bar
    I took a look at the owner's manual for a 2000 Toyota RAV4, and when you are using the Roadmaster StowMaster Tow Bar # RM-501 to tow the vehicle, your steering wheel should be unlocked. The manual states on page 181, "The steering lock mechanism is not strong enough to hold the front wheels straight." I highly recommend contacting your local Toyota dealer for the exact procedure required to flat tow this vehicle as the owner's manual does not outright state what the procedure should be.
    view full answer...
  • Parts Needed to Flat Tow a 2016 Ford F-150 with Roadmaster Stowmaster Tow Bar
    The Roadmaster Stowmaster tow bar part # RM-501 has a 6k weight capacity so it would work to tow your 2016 Ford F-150 as the weights I looked up for it are between 4 and 5.2k. For a base plate kit you would need to go with a new one since a kit from a Chevy truck would not fit. You would have to use the XL kit part # RM-524431-5 as that is what's compatible with your truck and the tow bar. If you were in need of safety cables you would then also need the part # RM-643 which are coiled. For...
    view full answer...
  • Repair Kit for Locking Pin On Stowmaster Tow Bar
    To repair the locking pin on your Stowmaster tow bar I recommend the Repair Kit, part # RM-910003-10. This kit includes 2 pins, 2 springs, 2 new buttons, 2 new bushings, and instructions, which is enough to repair the locking pin on each side.
    view full answer...
  • Roadmaster Tow Bar Recommendation for a 2007 Jeep Wrangler
    Either of the tow bars you mentioned would work well for flat towing your 2007 Jeep Wrangler that appears to have a Roadmaster base plate kit installed on it. I would recommend the Stowmaster part # RM-501 as it has telescoping arms that will make attaching to your Jeep much easier than the Tracker part # RM-020.
    view full answer...
  • How Much Does the Roadmaster StowMaster Tow Bar Weigh?
    The Roadmaster StowMaster Tow Bar - Car Mount - 2" Ball - 6,000 lbs # RM-501 weighs 57 lbs. That is including the hardware and plates that connect to your base plates, so it will be closer to 50 lbs when you disconnect it.
    view full answer...
  • Will RoadMaster StowMaster Tow Bar - 6,000 lbs, #RM-501, Fit on 1999 Jeep Wrangler with Flat Bumper
    The RoadMaster StowMaster Car-Mounted Tow Bar - 6,000 lbs, # RM-501, is a very good application on your 1999 Jeep Wrangler with the flat U-channel bumper being towed by a GMC 2500 HD. It does not include any safety cables or base plate brackets. You will need to purchase the Roadmaster XL Base Plate Kit, # 1420-1, which attaches to the tow vehicle frame. These brackets then allow the tow bar to attach to the tow vehicle. I also have safety cables available for the tow bar. You can...
    view full answer...
  • Parts Needed to Flat Tow a 2004 Jeep Grand Cherokee Behind a 2007 GMC Sierra 2500
    In order to flat tow a vehicle, the very first thing you are going to want to do is consult the owners manual in the recreational towing section to determine the correct towing procedure. If you find that the vehicle can be flat towed then you will need 5 items. First you will need base plates on the vehicle being towed or the Toad. The base plates provide the proper safe and secure attachment point for the tow bar. You can use base plates # 1425-1. I have included a link to a video...
    view full answer...
  • Recommended Flat Towing Set-up For 2002 Subaru Forester
    For your 2002 Subaru Forester, I recommend starting with the Roadmaster XL Base Plate Kit - Removable Arms, # 909-9. You may want the RoadMaster Black Receiver Inserts for XL and MXBrackets # RM-200-5, for when you don't have the tow bar installed. For a tow bar, I recommend the Roadmaster StowMaster Tow Bar - Car Mount - 2" Ball - 6,000 lbs, # RM-501. I also suggest the Roadmaster 64" Single Hook, Straight Safety Cables - 8,000 lbs, # RM-645. For your tow bar lighting, I recommend...
    view full answer...
  • Roadmaster Stowmaster 5000 Serial Number Year Identification
    I spoke to my contact at Roadmaster and while she had a hard time finding your specific serial number in their system she was confident that your tow bar was made in 2010.
    view full answer...

Do you have a question about this Tow Bar?




  • Why etrailer.com?

    At etrailer.com we guarantee:
  • Highest quality tow bars for the best price.

    Our Lowest Price Pledge ensures you will never overpay for the parts you need.
  • Real product know-how.

    We make sure that the products we sell are what we say they are, and that they work the way they are supposed to work. Get real advice from a real person who has the knowledge and expertise needed to solve your problem.
  • Most detailed, accurate tow bar information available.

    Because we take providing accurate product information seriously, we take our own detailed product photos, demo videos and installation videos, as well as verify measurements, instructions, and vehicle fit information.
  • Installations, made easy.

    We love helping people and have the most highly-trained customer service, hands-on experience, step by step videos and installation instructions.
  • Fast shipping.

    Your order is automatically routed to get out of our warehouse and to your door as quickly as possible. Receive free shipping on orders over $99.
  • Personalized service for life.

    We provide one-on-one, personalized service from the ordering process through the life of your product.
  • Trusted since 1946.

    We've been serving customers since our parts store first opened in 1946 and continue to be recognized by our customers, our vendors and third parties for exceptional service.
  • Returns Policy

    Need to return an item? No problem. Please read our Returns Policy for more information.

Info for this part was:

Installed by:
Joe V
Installed by:
Cole B
Expert Research:
Mike L
Expert Research:
Robert G
Expert Research:
Michael H
Expert Research:
Jeff D
Expert Research:
Reno H
Expert Research:
Jameson C
Expert Research:
John H
Expert Research:
Adam R
Expert Research:
Jeffrey L
Video Edited:
Andrew K
Video Edited:
Jacob T
Video Edited:
Chris R
Updated by:
Lindsey S
Updated by:
Laura H
Updated by:
Shelly K
Updated by:
Sarah W
Updated by:
Amanda M
Updated by:
Hannah L
Updated by:
Mike S
Updated by:
Isabelle B
Video by:
Joshua S
Video by:
Jonathan Y
Test Fit:
Robert C

At etrailer.com we provide the best information available about the products we sell. We take the quality of our information seriously so that you can get the right part the first time. Let us know if anything is missing or if you have any questions.


Product Experts Available Now!

Call 800-298-8924
