Go Power RV Solar Panels
- Portable Solar Kit
- 100 Watts
- Go Power
- Gel
- AGM
- Flooded Lead Acid
- Lithium - liFePO4
- Rigid Panels
- 5.1 - 10 amps
- 1 Panel
- 47-5/8L x 21-1/8W Inch

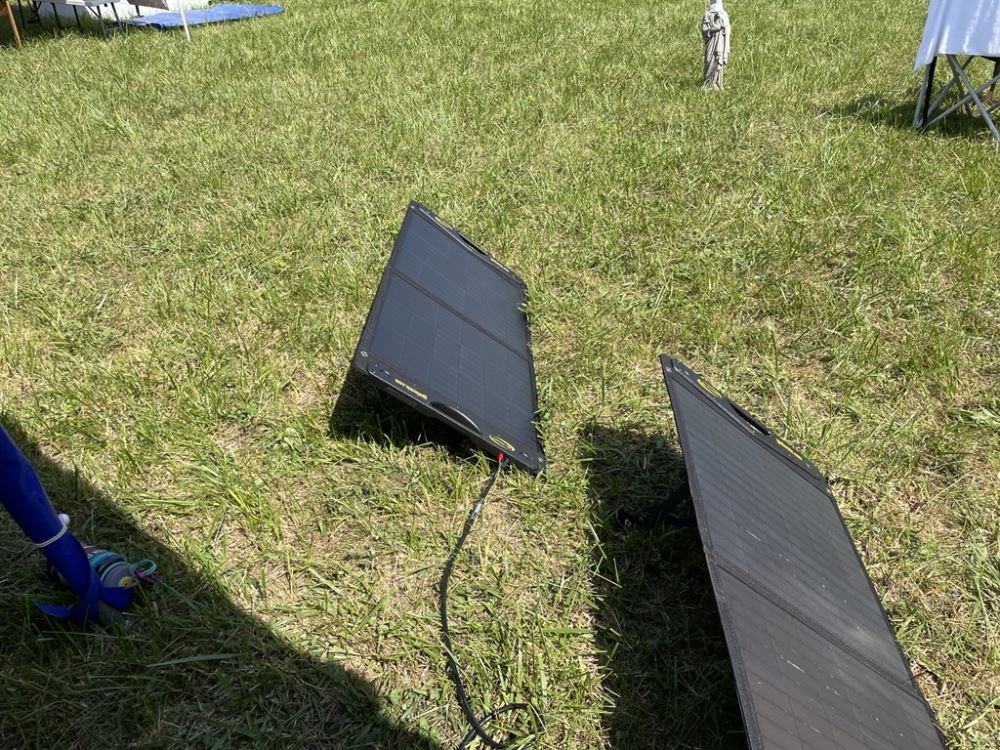

This lightweight, portable solar charging system lets you place the solar panel where you need it for maximum sunlight. The foldable 100-watt panel provides DC power to charge your RV batteries. Includes adapters to suit your battery connection.
Features:
- Lightweight, portable solar system provides an off-grid charging solution
- Park in the shade and place the solar panel in the sun for maximum charge
- 100-Watt monocrystalline solar panel uses sunlight to charge your RV batteries
- Unfolds to reveal folding legs for support - secures shut with integrated magnets
- Made from impact-resistant materials
- 30-Amp PWM solar controller adjusts solar panel output for a quick, consistent charge
- Automatic multistage smart charging system helps extend battery life
- Digital display monitors amperage, voltage, and battery capacity
- 2 built-in USB ports provide outlets to charge small electronic devices
- Canvas carrying case for easy storage and transport
- Kit includes single solar panel, solar controller, battery clamps, ring terminals, quick-connectors, SAE solar plug, XLR-style solar plug, and carrying case
- DuraLite solar panel expansion (sold separately) increases power output
- Anderson-style extension cable (sold separately) lets you place panel further away
Specs:
- Applications: 12V battery systems
- Solar panel rated power: 100 watts
- Amperage:
- Solar panel output: 5.06 amps
- Solar controller maximum input current: 30 amps
- Cable length: 12'
- Dimensions:
- Open: 21-1/8" long x 47-5/8" wide x 1" deep
- Closed: 21-1/8" long x 23-13/16" wide x 1-13/16" deep
- Weight: 10.7 lbs
- 2-Year warranty
![duralite portable solar panel]()
The Go Power DuraLite portable solar system provides an easy way to charge your RV batteries with clean, renewable power. Using the 100-watt foldable solar panel, this system collects solar energy to create DC power that passes through a solar charge controller into your batteries. The kit includes several adapters to suit your charging application. Also, it comes in a canvas carrying case for convenient transport and storage.
If you occasionally dry camp with your RV, this kit is a perfect solution for charging batteries while you're away from shore power. And since the system is lightweight and flexible, you can choose where to place the panel and charge other batteries using solar power as well. It's also a great complement to rooftop RV solar panels, providing an extra boost of charge when you need it.
High-Efficiency, Monocrystalline Solar Panel
The charging process starts with the solar panel, which unfolds and uses adjustable legs for support. When solar energy interacts with the silicon cells in the panel, it generates a flow of DC electrical current that charges your RV's batteries. Each of the monocrystalline cells is made from a single crystal of silicon, so the electrons that create the current have more space to move, making this panel more efficient than one with polycrystalline cells. And in optimal sunlight conditions, the panel produces 100 watts per hour. Additionally, there are 2 built-in USB ports on the handles of the panel to charge your cell phone or tablet.
Smart Solar Controller Charges and Protects Battery Bank
![duralite solar controller]()
The solar controller prevents harmful overcharging by adjusting the power generated by the solar panel before it reaches your batteries. It uses pulse width modulation technology to regulate the output through pulses that provide a consistent charge. Typically, this type of technology is a good fit for smaller systems with lower voltages.
Using a multistage charging system, the controller automatically switches voltages while the battery bank charges. This accelerates the charge, but also helps extend battery life by adjusting the voltage during the different modes. The controller is compatible with multiple battery types and includes preset charging profiles for sealed/gel, AGM, flooded/wet cell, and lithium batteries.
Charging Modes
- Bulk: This mode charges at the full rated load for a quicker recharge time. As the name suggests, this is where the bulk of the charging happens. It typically charges the battery to at least 80% capacity.
- Absorption: This mode provides controlled voltage to ensure a full charge. Once the battery reaches between 80% to 90% capacity, the absorption state will kick in and start charging at a regulated voltage. In each charging profile, this mode is set to last for 30 minutes after the bulk charge is completed.
- Float: Once the battery reaches full charge, this mode maintains a lower voltage to compensate for self-discharge. This reduces battery stress and minimizes gassing and water loss.
- Equalization: On flooded/wet cell batteries, this mode activates to prevent stratification and sulfate buildup during extended float cycles. These two issues can damage a battery by causing the accumulation of acid at the bottom of the battery and hardened sulfate crystals on the battery plates. This mode is especially helpful when your battery is going unused during storage.
The backlit, digital display acts as an information center for your solar panel output. It shows the charging current, battery voltage, and battery state of charge. It also allows you to input your battery type and choose a charging profile.
Lastly, the controller includes several built-in safety features to help protect your equipment. The charging process will shut down if the controller starts to overheat and when an overcurrent is detected. Also, if the battery or solar panel is wired incorrectly, it activates a reverse polarity alarm.
Easy-to-Use Adapters for Battery Connection
![xlr style plug]()
![sae solar plug]()
![battery clamps]()
![battery terminals]()
![7-pin]()
This kit includes several adapters to suit different applications. It comes with XLR-style and SAE solar plugs, which work with RVs that are pre-wired for solar, including Zamp solar ports. For traditional battery connections, it has battery clamps and battery terminals. Additionally, a 7-pin trailer adapter (sold separately) provides another connection to your 5th wheel or camper. Each adapter has an Anderson connector which plugs into the portable solar panel.
![zamp solar port]()
This is an example of a typical SAE solar port.
Available Accessories
![expansion panel upgrades your system]()
The DuraLite 100-watt expansion panel lets you expand your solar setup to collect more sunlight and charge your batteries faster. This kit can handle up to 300 watts, which means you can connect 2 additional panels.
![portable solar panel extension cable]()
If you need more distance between your battery connection and the panel, the extension cable (sold separately) provides 30' of additional length.
GP-DURALITE-100 Go Power DuraLite Portable Solar Kit - RV Solar Charging - 30-Amp Digital Regulator/Controller - 100 Watt Solar Panel
Item # GP66FR
