Andersen Trailer Hitch Lock and Adjustment Pin Lock Set - EZ Hitch and EZ HD Ball Mounts - Stainless

Andersen Trailer Hitch Lock and Adjustment Pin Lock Set - EZ Hitch and EZ HD Ball Mounts - Stainless

Item # AM3493
lowest price pledge
Our Price: $43.75
You Save: 32%
Trailer Hitch Lock
Orders above $99 qualify for Free Shipping
Shipping Weight: 1.6 lbs
In Stock
Andersen Standard Pin Lock - AM3493
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

In Use/Installed

Customer Photos

For use with EZ and EZ HD adjustable ball mount systems for 2-1/2" and oversize 2" receiver hitches, set includes a hitch receiver lock to secure shank to receiver and a locking adjustment pin to secure ball housing to shank. Stainless. Lowest Prices for the best trailer hitch lock from Andersen. Andersen Trailer Hitch Lock and Adjustment Pin Lock Set - EZ Hitch and EZ HD Ball Mounts - Stainless part number AM3493 can be ordered online at etrailer.com or call 800-298-8924 for expert service.
  • All Info
  • Reviews (35)
  • Q & A (20)
  • Videos (2)
  • Photos
  • Used (1)
  • Why etrailer?

Andersen Trailer Hitch Lock - AM3493

  • Fits 2 Inch Hitch
  • Fits 2-1/2 Inch Hitch
  • Standard Pin Lock
  • Andersen
  • Keyed Unique
  • 3-5/16 Inch Span
  • Stainless Steel
  • Flush Pin

For use with EZ and EZ HD adjustable ball mount systems for 2-1/2" and oversize 2" receiver hitches, set includes a hitch receiver lock to secure shank to receiver and a locking adjustment pin to secure ball housing to shank. Stainless.


  • 2 Anti-theft, keyed locks keep your adjustable ball mount securely attached to your tow vehicle
  • Heavy-duty triple ball bearing mechanism ensures a solid, secure attachment
  • Stainless steel, aluminum, zinc alloy, and steel composition is 99.99% rust-free
    • Steel parts are coated to resist corrosion
  • 2 keys (included) are keyed alike
  • 1-Year limited warranty


  • Application: EZ and EZ Heavy Duty adjustable ball mount systems (AM3290, AM3295, AM3296, AM3297, and AM3298 - sold separately)
  • Hitch receiver lock designed for 2" x 2", oversize 2" x 2", and 2-1/2" x 2-1/2" trailer hitches
  • Capacity: 30,000 lbs
  • Adjustment locking pin dimensions (3443)
    • Pin diameter: 3/4"
    • Overall length: 1-7/8"
  • Hitch receiver lock dimensions (3429)
    • Pin diameter: 5/8"
    • Inside width: 3-5/16"
    • Overall length: 6-1/2"

AM3493 Composition of Materials

Only 2 parts of the Andersen trailer hitch lock for EZ hitch and EZ HD adjustable ball mounts are made of a coated steel, so the locks are 99.99% rust-free.

3493 Andersen Keyed Locking Pin, Combo Set for 2", Oversized 2" Hitches from the OEM, and 2-1/2" Trailer Receiver Hitches - Stainless Steel

Video of Andersen Trailer Hitch Lock and Adjustment Pin Lock Set - EZ Hitch and EZ HD Ball Mounts - Stainless

Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.

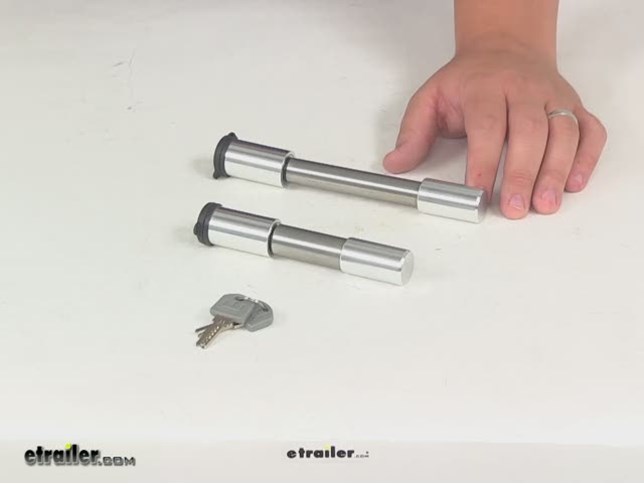

Video Transcript for Andersen Hitch Locks - Standard Pin Lock - AM3493 Review

Today we're going to be taking a look at the Anderson trailer hitch lock and adjustment pin lock set. It's going to include two anti-theft keyed locks. These are going to keep your adjustable ball mount securely attached to your towed vehicle. Now, on the internal portions of the actual lock that goes on the end of the pins, inside we're going to have a triple ball bearing mechanism. This is going to ensure a solid, secure attachment. Another new thing I want to show you is it's got like a snap-lock design, so you'll actually be able to hear it lock into place.

Push down, and it clicks into position, letting you know that it's securely locked, so you don't have to deal with any false locks. Now, when it comes to the construction of each one, they're pretty much identical. They're just different sizes. They're going to contain stainless steel, aluminum, zinc alloy, and steel construction. Everything on the unit's going to be rust-resistant as well as corrosion resistant. On the exposed steel parts, they use a nice coating that's specifically designed to help resist rust and corrosion.

This product's going to come with two keys. These keys are keyed alike so either key will work on either pin and lock set. These are going to be designed for easy and easy heavy-duty adjustable ball mount systems, part numbers AM3290, 3295, 3296, 3297, and 3298. Those systems are sold separately. Taking a look at each one individually, we're going to start here with the receiver lock. This is designed for two-inch by two-inch hitches.

It'll also fit over-sized two-inch by two-inch and two and a half inch by two and a half trailer hitch receivers. This is going to go through the pin holes of your hitch and the ball mount, and that's going to lock it to your vehicle. The usable pin length we have, measuring from this portion here to this portion here, that's going to give us a usable length of about three and five-eighths of an inch. The diameter of the receiver lock, that's going to measure five-eighths of an inch, and then the overall length, measuring from edge to edge, that's going to give us a measurement of about seven and one-eighth of an inch. Now we'll take a look at the adjustment locking pin. This is going to give us a diameter of three-quarters of an inch.

The usable pin length, that's going to give us a measurement of about one and seven-eighths of an inch, and then the overall length, that's going to give us a measurement of about five and three-eighths of an inch. Really nice design. Again, this one's going to lock the mount to the receiver tube of the hitch, and this one's going to lock the actual ball platform in position on the mount. These are going to have a capacity of 30,000 pounds, and again, they're built for strength and durability. They're going to last a long time. They're almost completely rust and corrosion resistant. I think they give it a 99.99% rating at resistance toward rust and corrosion, so that's about as high as you can get, and as close to you can get to being 100% rust and corrosion-proof. That's going to do it for our review of the Anderson trailer hitch lock and adjustment pin lock set.

Customer Reviews

Andersen Trailer Hitch Lock and Adjustment Pin Lock Set - EZ Hitch and EZ HD Ball Mounts - Stainless - AM3493

Average Customer Rating:  4.7 out of 5 stars   (35 Customer Reviews)

For use with EZ and EZ HD adjustable ball mount systems for 2-1/2" and oversize 2" receiver hitches, set includes a hitch receiver lock to secure shank to receiver and a locking adjustment pin to secure ball housing to shank. Stainless.

- AM3493

Excellent all stainless construction. Locking and unlocking a breeze. Great product. 738432

- AM3493

Just installed, but was as described. 414829

Still One of the Best. Also might add those desiring a 5th Wheel Anderson Hands Down THE VERY BEST. Used about a year after using all the rest, Nothing Compares
A D - 08/04/2018


- AM3493

They work fine but after just one year, (not counting the winter I took the off the vehicle) they are already rusting and corroded. I hoping they will last one more year. 524096

- AM3493

Perfect! Fits the 2013 factory Tundra hitch PERFECTLY. Same key system, locks ball mount to sleeve, sleeve to receiver. I had been looking for this type of hitch/key lock for some time and was very happy with all the help E-Trailer and Jena provided in getting me one of their newest items of their inventory. I'll keeping back. 176420

- AM3493

Strong, durable and easy to lock/unlock. 521902

- AM3493

The product is good, exactly as expected. etrailer ordering and processing service is also very good ... thank you. I wish they could avoid CA sales tax like last time I ordered. Shipping was a bit slow ... UPS takes their time. 677057

- AM3493

Very well made product. Arrived very quickly. Had to send this one back because I ordered the wrong model, but I'm sure the correct one will be equally nice that is still en-route. 414426

- AM3493

also bought these for my work trucks, work awesome 782003

- AM3493

First of all, etrailer has been my supplier of truck and trailer parts for years and a pleasurer to do business with, great service... The hitch locks where as advertised, the hitch was perfect! 750210

- AM3493

Great product with fast shipping. 728213

- AM3493

Works well, should just be included with hitch. This pins work great for anti-theft, keys fit well and stay with the lock until back in place. Rubber caps are a bit loose, so I wouldn't bet on them sticking around forever. 711603

- AM3493

The nice thing about this lock is the longer bar which was a better fit on my Toyota Sequoia hitch. 636120

- AM3493

Nice lock would buy again. Thank you et railer. 582163

- AM3493

No Rust on this lock after 1 year & the cylinder still operates smoothly...Great buy! 554854

- AM3493

Just got them yesterday and they look very well made. 500020

- AM3493

Works as advertised, heavy gauge steel construction, pull 10k regularly no issues whatsoever 497079

- AM3493

Works great, easy to use on adjustable hitch 493071

- AM3493

Cannot get unlocked anymore. So corroded it doesn’t operate 470939

- AM3493

I really like these locks. They have held up to quite a bit of abuse, especially considering one is used in a front hitch and sees all kinds of weather and road debris. The only issue I've had is the locks themselves get a little stiff (like any lock would), so a quick squirt of lubricant every now and then keeps them working smooth. 448356

- AM3493

I ordered a pin lock set and a part was missing. Called there 800 number and they email me a shipping label to return the bad part. They shipped out my new one the same day. Very good service. 412159

- AM3493

These are great. They are well made and have been working well. 405044

- AM3493

I love these locks. Always easy to lock and unlock. I like the fact you can't remove the key until it's properly locked. 394252

- AM3493

The latch feature is much better than other brands 391325

- AM3493

I ordered The lock set for the EZ hitch and it was just as described and fit perfect. Fast delivery and easy check out. 390358

- AM3493

Fast shipping fit like it is supposed to 336426

Show More Reviews

Ask the Experts about this Andersen Trailer Hitch Lock

  • Recommended Hitch Lock for 3 Inch Factory Trailer Hitch on Ford Truck
    For the factory 3 inch trailer hitch on your 2018 Ford truck I recommend taking a look at the Draw-Tite Trailer HItch Lock # BD580412. This is the longest hitch lock we have available and it is designed to fit 3 inch hitches like what you have. It features a usable length of 3-7/8 inches. I do recommend measuring the outside width of your hitch receiver just to make sure this will be long enough. This lock features a heavy duty steel construction and a nickel finish to help resist corrosion....
    view full answer...
  • What Locking Pin Can Be Used on the Andersen EZ Hitch and EZ HD Ball Mounts
    I have a solution for you. Andersen has the Trailer Hitch Lock # AM3493 that is designed to be used with the Andersen EZ Heavy Duty Adjustable Hitch, #EZ Heavy Duty Adjustable Hitch. The Andersen hitch lock pin is made of stainless steel with aluminum caps and has a breaking capacity of 30,000 lbs. This lock is designed for 2 x 2, 2 x 2 oversized and 2-1/2 x 2-1/2 inch trailer hitches.
    view full answer...
  • Hitch Pin Lock for Trailer Hitch Made in USA
    For a standard hitch pin lock made in the USA we have the Deadbolt part # BD580405 that will work great. For a for a combination hitch lock and lock for Andersen ball mounts like the part # AM3493 that you referenced we do not have this application made in the USA. I attached a review video for this hitch lock for more info for you to check out as well.
    view full answer...
  • Will Andersen Trailer Hitch Lock Set AM3493 Fit Hitch of 2017 Ram 2500
    Yes, the Andersen Trailer Hitch Lock and Adjustment Pin Lock Set # AM3493 that you referenced would work just fine in the hitch of a 2017 Ram 2500. It includes a standard diameter 5/8 inch hitch pin with a very wide span of 3-5/16 inch. So if you have a 2 inch or 2-1/2 inch hitch this would work well with it.
    view full answer...
  • Locking Pin For EZ Hitch Adjustable Steel Ball Mount
    The replacement locking pin to replace the pin and clip for # AM3290, is Andersen Trailer Hitch Lock and Adjustment Pin Lock Set # AM3493. This set is made for the specifications of the EZ Hitch Steel Ball Mounts and 2" x 2", oversized 2" x 2", and 2-1/2" x 2-1/2" trailer hitches.
    view full answer...
  • Can the Andersen Trailer Hitch and Adjustment Pin Lock Set Be Used on a Weight Distribution System
    According to Andersen, they do not recommend using any pins to attach the ball housing to the weight distribution system's shank which includes the Andersen Trailer Hitch Lock and Adjustment Pin Lock Set part # AM3493. They recommend that you use the nuts and bolts included with the kit. You could use the longer pin on the hitch pin hole but not the shorter pin on the adjustment hole.
    view full answer...
  • Hitch Pin Lock with 5/8 inch Diameter and 3-1/2 inch Span
    We have a pin lock that's sold individually that has the 3-1/2 inch span you need with the same diameter as the # AM3493 but the included lock of this is 5/8 inch which is the standard hitch pin size. So for that we have the # WS05 which has a 3-1/2 inch span and a 5/8 inch diameter. For the larger hitch sizes like 2 inch and up (including 3 inch) the diameter hitch pin used is 5/8 inch.
    view full answer...
  • Towing Capacity of EcoHitch Trailer Hitch Receiver on 2017 Subaru WRX STI Limited
    The EcoHitch Invisi Trailer Hitch Receiver - Custom Fit - Class III - 2" # 306-X7257 is a great fit for your 2017 Subaru WRX STI Limited. It is rated for towing up to 3,500 lbs but Subaru does not recommend towing with your vehicle according to the owner's manual. Many customers have chosen to tow small trailers anyway and we have not heard of issues but it would be at your own risk. If you decide to tow your 16 foot jon boat with this vehicle, you will need the Curt T-Connector Vehicle...
    view full answer...
  • Is There a Locking Ball Mount Rated for Over 10,000 lbs?
    The only B&W Tow & Stow ball mounts we offer that have a towing capacity over 10,000 lbs and fit in a 2" hitch use a pintle hook, like # BWTS10055. There are adjustable ball mounts from other manufacturers that fit in a 2" hitch and can give you the capacity you need. The MaxxTow Adjustable 2-Ball Mount # MT70380 is one of those options as it has a 12,000 lb capacity with the 2-5/16" ball and offers a maximum rise of 7-7/8" or maximum drop of 6-1/4". Should you need more rise or...
    view full answer...
  • Will The Tow Ready J-Pin Stabilization Pin Part # 63201 Rust?
    I have a stainless steel locking anti-rattle hitch pin for you but we do not have a Tow Ready J-Pin Stabilization Pin in a stainless steel finish. The Tow Ready J-Pin Stabilization Pin and Barrel Lockset for 2" Trailer Hitches part # 63201 is made of steel with a brushed finish. A brushed steel finish will still provide you with rust protection however, if your main concern is rust prevention, I recommend a stainless steel finish. For this, I suggest the Stainless Steel Locking, Anti-Rattle...
    view full answer...
  • Parts List To Tow A Trailer With Electric Brakes With 2020 Honda Odyssey
    To tow a trailer with electric brakes on the 2020 Honda Odyssey you will need a hitch, wiring, brake controller, lock, ball mount and ball. I have attached my recommendations below. Draw-Tite Max-Frame Trailer Hitch part # 76170 is a concealed cross tube design for a clean OEM look. Tekonsha 4-Way flat wiring part # 118781 7-Way RV Upgrade Kit for Trailer Brake Controller part # ETBC7L Curt Echo Wireless Trailer Brake Controller part # C51180 EZ Hitch Adjustable Ball Mount part...
    view full answer...
  • Stainless Steel Locking Hitch Pin that Has 3 Inch Usable Span
    We have hitch lock # BD580400 which is chrome plated steel, not stainless, but has a span of 3-1/4 inches. And then we have lock set # AM3493 which is stainless steel, aluminum, zinc alloy, and steel for nearly 100 percent rust free corrosion resistance. The larger lock has a span of 3-5/16 inches. The shorter one only 1-7/8 inches.
    view full answer...
  • Recommended Trailer Hitch Receiver for 2004 Toyota Tacoma Along With Wiring and Ball Mount
    For your 2004 Toyota Tacoma, I recommend the Curt Trailer Hitch Receiver - Custom Fit - Class III - 2" # 13013. This trailer hitch is rated for 500 lbs tongue weight or 600 lbs when used with weight distribution system. It is a custom fit bolt on installation and comes with all the hardware needed to install. It has a black powder coat finish over a protective base coat for excellent rust prevention. It is a sturdy square tube design that is 100% made in the USA. For your trailer...
    view full answer...
  • Recommended Trailer Hitch Receiver For 2002 Dodge Dakota Quad Cab
    For your 2002 Dodge Dakota Quad Cab, I recommend the Draw-Tite Max-Frame Trailer Hitch Receiver Class III - 2", # 75038. This hitch has a rating of 500 lbs tongue weight with is the amount of weight you can apply to the hitch itself and a towing weight of 5000 lbs. I've attached an article on determining tongue weight. Because you have used a bumper pull to this point, you will need to get a ballmount, pin and clip. I recommend the EZ Adjustable Ball Mount with Combo Ball - 8" Drop...
    view full answer...
  • Locking Hitch Pins Needed for a B&W Tow & Stow
    The Rapid Hitch Trailer Locking Hitch Pins come in 2 sets. One, part # AM3492, has two hitch pins that have a 3-5/16" span while the other, part # AM3493, has a longer pin with the 3-5/16" span and a shorter pin with a 1-7/8" span. The longer pins have a 5/8" diameter and the shorter pin has a 3/4" diameter. The longer pins work great for a B&W Tow & Stow like part # BWTS10048B. The best option to get exactly what you need would be to order both of the Anderson hitch lock kits. You could...
    view full answer...
  • Availability of Adjustable Andersen Two Ball Mount and Lock Set
    We carry the lock set part number # AM3493. We also carry the EZ Ball Mount Set part # AM3298 which I believe is the ball mount you are looking for. It has the same rise/drop and capacity for the part number 3299.
    view full answer...
  • Recommended Ball Mount for 2016 Toyota Tacoma TRD Off Road 4x4
    I did some research on the Toyota OEM ball mount PT228-35161 and it has a 2-3/4 Drop or 1-1/2 inch rise and is rated for 10,000 lbs. We do not have an exact substitute for that ball mount, but a good alternative with some options is the etrailer.com Ball Mount Kit for 2" Hitches - 7,500 lbs # 989900. For a fixed mount ball mount I recommend measuring for level towing with your trailer. I've attached an article to assist. Another option is the etrailer.com Ball Mount Kit for 2" Hitches...
    view full answer...
  • Locking Pin Recommendation for the EZ Hitch Adjustable, Steel Ball Mount AM3296
    As long as the pin diameter matches up on your Adjustable Ball Mount part # AM3296 with the part # C23556 the locks being a bit too long would not matter. Normally we would recommend the part # AM3493, but if the Curt fits it would work as well.
    view full answer...
  • Is The Detail K2 Mighty Multi Utility Trailer Compatible With A 2005 GMC Sierra 1500 Extended Cab?
    The Detail K2 Mighty Multi A-Frame Utility Trailer - 7-1/2' Long - 1,640 lbs # K2MMT5X7 will easily be towed by your 2005 GMC Sierra 1500. Your truck has a towing capacity of between 6000 and 7700 lbs and the total gross vehicle weight rating of this trailer is 2090 lbs. This trailer is an easy to assemble trailer that has everything you need including a certificate of origin so you can get it titled at your local DMV. This trailer has front and rear tailgates and removable side panels. If...
    view full answer...
  • Can Lower Part of the MaxxTow Ball Mount # MT70068 be Purchased for Different Hitch Ball Size
    The MaxxTow Adjustable-Height Ball Mount # MT70068 is sold as a whole unit so the base part isn't available separately so you would need to purchase 2 of these if you are needing to use 2 different size hitch balls, or you could use an interchanging hitch ball like part # 903B. We actually have another solution with the EZ Adjustable Ball Mount with Combo Ball # AM3297 which has an 8" drop/rise and comes with 1-7/8" and 2" hitch balls. Simply flip the ball assembly upside down to swap...
    view full answer...
