Dexstar Steel Mini Mod Trailer Wheel - 13" x 4-1/2" Rim - 5 on 4-1/2 - Black

Dexstar Steel Mini Mod Trailer Wheel - 13" x 4-1/2" Rim - 5 on 4-1/2 - Black

Item # AM20245
lowest price pledge
Our Price: $44.53
Trailer Tires and Wheels
Orders above $99 qualify for Free Shipping
Shipping Weight: 13 lbs
Quantity:
In Stock
AM20245 - 5 on 4-1/2 Inch Dexstar Wheel Only
zoom in icon
slider vertical icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

Customer Photos

Videos

This 13" x 4-1/2" steel trailer wheel has a 5 on 4-1/2 bolt pattern and a 3.19" pilot diameter. Rust resistant black powder coat finish. Lowest Prices for the best trailer tires and wheels from Dexstar. Dexstar Steel Mini Mod Trailer Wheel - 13" x 4-1/2" Rim - 5 on 4-1/2 - Black part number AM20245 can be ordered online at etrailer.com or call 800-298-1624 for expert service.
  • All Info
  • Reviews (990)
  • Q & A (4)
  • Videos (1)
  • Photos
  • Why etrailer?

Dexstar Trailer Tires and Wheels - AM20245

  • Wheel Only
  • 13 Inch
  • 5 on 4-1/2 Inch
  • Steel Wheels - Powder Coat
  • Dexstar

This 13" x 4-1/2" steel trailer wheel has a 5 on 4-1/2 bolt pattern and a 3.19" pilot diameter. Rust resistant black powder coat finish.


Features:

  • Steel wheel with modular design is sturdy and corrosion resistant
  • 2-Step finishing process includes e-coat primer and black powder coat finish
  • Wheel meets DOT standards
  • Made in the USA


Specs:

  • Rim dimensions: 13" diameter x 4-1/2" wide
  • Bolt pattern: 5 on 4-1/2"
  • Wheel bolt size: 1/2"-20
  • Capacity: 1,725 lbs
  • Offset: 0
  • Pilot diameter: 3.19"
  • 2-Year limited warranty


Determining the Bolt Pattern

The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.

Bolt Pattern - Odd

To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: "5 on 4-1/2" means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)

Bolt Pattern - Even

On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: "8 on 6-1/2" means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)

Bolt Pattern - Side

Measuring the distance from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.

  • If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
  • If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
  • If D = 3", then the bolt pattern is 5 on 5"
  • If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"


20245DX Dexstar 13x4.5 Steel Modular Rim - 5 on 4.5 - Black

Replaces Americana 20245DX





Video of Dexstar Steel Mini Mod Trailer Wheel - 13" x 4-1/2" Rim - 5 on 4-1/2 - Black

Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Dexstar Tires and Wheels - Wheel Only - AM20245 Review

Today we're going to review part number AM20245. This is the Dexstar 13 x 4.5" steel Mini Mod trailer wheel with the 5 on 4.5" bolt pattern and black in color. Now, this steel wheel is the modular design and by modular design it has the round holes all the way around. It's very sturdy, corrosion resistant. They do use a two step finishing process on this which includes an e-coat primer on the front and the back and then a black powder coat finish over that. This wheel does meet the Department of Transportation specifications. A few specs on this.

The rim dimension is 13" in diameter and the width is 4.5" wide. Now on the rim dimensions, if you want to measure that, what you need to remember is that you're going to be measuring where the tire beads would seat on this wheel. When the tire is mounted on here, the beads of the tires will seat right in here. When you measure the width, it's inside to inside where the bead seats and on the diameter it's the same way. You'll measure inside to inside. If we put a ruler on the diameter, inside to inside you can see its 13" diameter.

The width, again, inside to inside is right at 4.5". The bolt pattern on this is a five lug 4.5" bolt pattern. If you want to measure the bolt pattern on a wheel that has an odd number of lugs, in this case, five, just pick any hole. Let's pick this one. Then you'll measure from the center of this hole to the outside edge of the hole that you go to. Either on of these holes you can measure to, let's measure from this one to this one.

If I put it down here and just remember that your starting hole that you start with goes from the center to the outer edge of the hole that you go to. I'm just going to go center to outer edge. You can see it's 4.5", so five lug 4.5 inch bolt pattern. The wheel lug size this uses is a 0.5" x 20. The weight capacity on this wheel is going to be 1,725 pounds.

The pilot hole diameter, which is the large hole here in the center of the wheel, goes over the hub on your trailer . The diameter of that's going to be right at 3.19 inches. That should do it for the review on part number AM20245. This is the Dexstar 13" x 4.5" steel Mini Mod trailer wheel. Five on 4.5" bolt pattern and black in color. .


Customer Reviews

Dexstar Steel Mini Mod Trailer Wheel - 13" x 4-1/2" Rim - 5 on 4-1/2 - Black - AM20245

Average Customer Rating:  4.8 out of 5 stars   (989 Customer Reviews)

This 13" x 4-1/2" steel trailer wheel has a 5 on 4-1/2 bolt pattern and a 3.19" pilot diameter. Rust resistant black powder coat finish.

- AM20245
by:

Super satisfied, Fast shipping so I could camp that weekend!



- AM20245
by:

Nice durable finish, good quality wheel. Got what I paid for.



- AM20245
by:

Rims arrived quickly, decent rims for the price considering free shipping. Have not run them yet so 4 stars.



- AM20245
by:

I have not installed the tires and rims yet. I’m sure they will be excellent, as it was dealing with the staff at ETRAILER My original order was on backorder. When the combined tire and rim didn’t appear to ever arrive, the staff at ETRAILER solved my problem. They shipped me the rim and tire separately and arrive in five days. They met my dateline to allow me to go on my motorcycle trip. I could not be more pleased. Outstanding customer service. Will send picture at later date, once installed.



- AM20245
by:

I wanted to take a second and say etrailer is a great company. I originally bought 3 wheels for my trailer and 2 were damaged upon arrival. ETrailer sent me 2 new wheels without hesitation. I would refer anyone to etrailer for there trailer and boating needs.



- AM20245
by:

I was looking for black trailer wheels for my off road trailer project and these are perfect and look beautiful.



- AM20245
by:

Great looking wheels, I was going to repaint a pair I currently had but these look better and were priced very competitively with other places. The lightning fast shipping only made the process that much faster. I'll buy again if the need arises.



- AM20245
by:

Paint has held up good, no issues at all with these wheels



- AM20245
by:

rims were used on a pto driven generator old ones were rusted bad the new ones fit like the old ones no problems will probably out last the generator or me Benny



- AM20245
by:

All good works as advertised! Thank You



- AM20245
by:

Great price. Very smooth finish on wheels. Perfect fit. Very fast shipping.



- AM20245
by:

Excellent quality and very reasonable p rice!



- AM20245
by:

Product looks good so far just received them have not put tires on yet



- AM20245
by:

great communication skills & delivery faster than expeceted



- AM20245
by:

Wheels look great! Quick delivery!



- AM20245
by:

NICE PRODUCT AND A GOOD PRICE.



- AM20253
by:

Review from a similar Mini Mod in Trailer Tires and Wheels


I bought these wheels for my 16’ camper trailer and they look great. They were well packed with plenty of paper for cushioning and they arrived without any chips or damage. I have yet to install them but I’m sure they’ll be fine. They did not come with stems but I’m sure my tire place will install them. Good value, so far.


Comments
These wheels were just what the doctor ordered for my 16’ Scamp. Perfect fit and no troubles so far.
Darren - 05/19/2021


- AM20538DX
by:

Review from a similar Mini Mod in Trailer Tires and Wheels


Great product for a great price . I bought 4 for my old bent rims and with some new tires as well that look great . but overall I’m satisfied shopping from etrailer for my trailers needs. And extremely fast shipping usually arrives to me the next day if ordered in time



- AM20757
by:

Review from a similar Mini Mod in Trailer Tires and Wheels


These fit my 67 Airstream with torsion axles, upgrading from 15 to 16 inch wheels. Powder coating is very good. Tires have basically been sitting while camper is being overhauled; have not lost air pressure. Apparently very good quality wheels. Checked for runout by spinning and watching, not super precision test, but saw no runout spinning by hand.



- AM20757
by:

Review from a similar Mini Mod in Trailer Tires and Wheels


Very high quality steel wheel (made in USA) made it affordably possible to replace the inferior quality, unsafe gravity cast Chinese wheels and crappy OEM tires on our Hyperlite XLR. Upon purchase of the XLR, we immediately bought a set of five so that we could run the Michelin RIB tire at 80psi. No "China Bomb" blow-outs, no problems. Everyone should do this for safety and piece of mind. These wheels should be industry standard!


Comments
One year later we are still enjoying the quality and piece of mind these wheels have delivered Along with the Michelin tires, we have yet to have any failures at all. 3500 mile trip to Fort Worth and back...no problems. The Dexstar wheels not only are performing perfectly, they still have a factory-fresh appearance due to in my opinion quality construction and quality finishing. They still look new! These wheels are the best and they allow us to use the best tires. Very pleased with the Dexstar wheel.
Bill R - 06/04/2018



- AM20242
by:

Review from a similar Mini Mod in Trailer Tires and Wheels


These wheels would have received 5 stars based only on the product. My only complaint was the shipping time. From when I put them in the cart to as soon as I submitted the order changed to 4 days later. A week to box and ship in stock items is an excessive delay for the customer.



- AM20436
by:

Review from a similar Mini Mod in Trailer Tires and Wheels


Thanks for checking back with me , as you can see the 1998 trailer where is desperately in need of new tires,rims & fenders very please with the service receive parts in a reasonable manner time replaced also the original factory hubs with new true ride electric brakes, had one half-inch chrome wheel lug nut not fit on the stud check back with sale was great to work with them replaced with new one very pleased with the results received within two days also learning by experience using Grease tightening down chrome nuts on this way it did not cause rust to appear on the Chrome edge. Replaced many parts on my other trailers please with the etrailer products thanks again.



- AM20436
by:

Review from a similar Mini Mod in Trailer Tires and Wheels


Matches the 2 wheels on trailer already and fits fine. Waiting for the tire company to mount the tires today or tomorrow. Then I will have 2 new tires and a spare. Really can't imagine driving hundreds of miles and having no spare.



- AM20757
by:

Review from a similar Mini Mod in Trailer Tires and Wheels


I ordered wheels and valve stems. The items were perfect for my application and etrailer.com had the best price and included free shipping!



- AM20551
by:

Review from a similar Mini Mod in Trailer Tires and Wheels

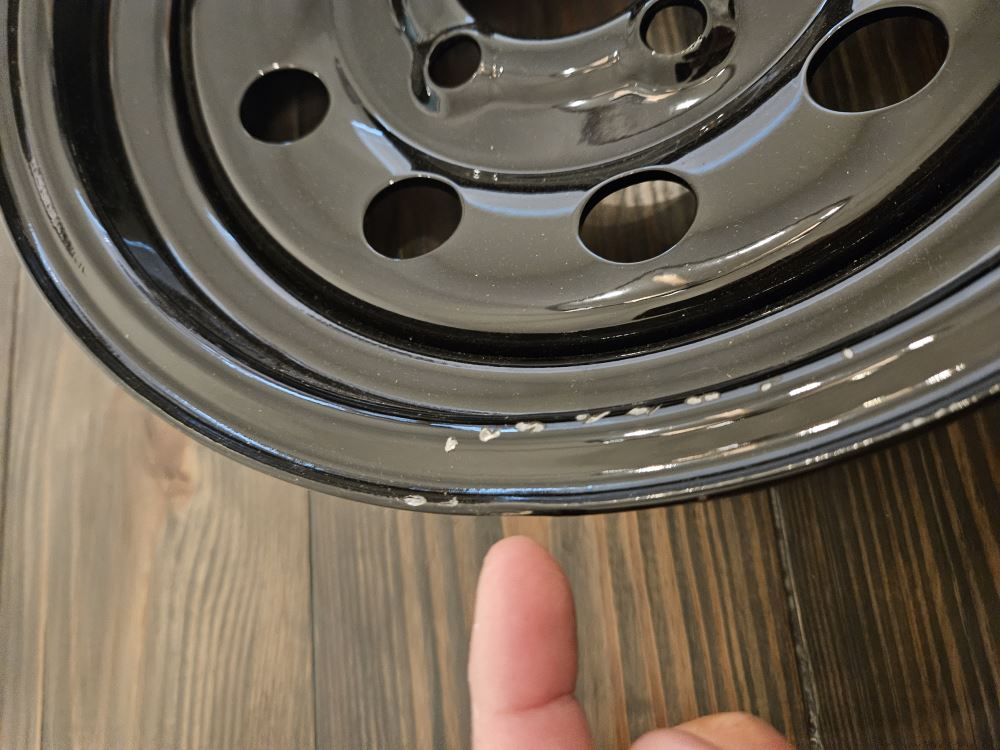

Other than a few blemishes on wheels, and some chipped powder coating, the wheels work great and look good!


Comments
Better than imagined. Still very firm!
Mark W - 09/16/2020

Comments
Still looking good! Must keep chips touched up, or rust will form quickly! Great Product!
Mark W - 09/16/2020

33
1016
Show More Reviews

Ask the Experts about this Dexstar Trailer Tires and Wheels

  • Will Pilot Hole Diameter Larger Than Current Tires Fit If Bolt Pattern And Wheel Diameter Match?
    The Dexstar Steel Mini Mod Trailer Wheel - 13" x 4-1/2" Rim - 5 on 4-1/2 - Black # AM20245 has a pilot hole diameter of 3.19 inches. That is not an issue with your trailer that has a 2-7/8 inch pilot on the current wheels with everything else the same. ST trailer wheels and tires are not hub centric where the pilot hole size difference would be an issue. They are lug-centric meaning that the wheel is actually centered for balance based on the lugs that hold the bolt pattern tight. It...
    view full answer...
  • Recommended Black 13" Trailer Wheels with 5 Bolt Pattern
    We currently offer a few different black wheel options with 13" diameter and 5 on 4-1/2" bolt pattern, the Dexstar Conventional Steel Wheel part # AM20214 and Dexstar Steel Mini Mod Trailer Wheel part # AM20245. The finish however is powder coat. I like the Dexstar Conventional because it can be used with the Americana Baby Moon Trailer Wheel Center Cap part # AM90086.
    view full answer...
  • Determining Correct Hub To Replace Hubs With Uncommon 4 on 4-1/2" Bolt Pattern
    I have a hub replacement option for you, but the 4 on 4-1/2" bolt pattern is pretty uncommon. We do not currently carry any wheels with this bolt pattern and I was unable to find any online. The easiest option is going to be to replace the hubs with ones that use a more common bolt pattern like 4 on 4" or 5 on 4-1/2". To determine the correct replacement hubs you will need to determine which bearings your current hub uses. To do this you will need to remove of your current hubs and...
    view full answer...
    Image 1 for
  • Replacement 13 Inch Wheel That Will Handle Tires That Require 65psi
    If you've got a 5 on 4-1/2" bolt pattern, the Dexstar Trailer Wheel # AM20245 , which have a 1730-lbs capacity and will be able to handle the 65-psi required for these tires. If you've got a different bolt pattern, just let me know what you've got and I can find you a wheel that will work for you trailer and new tires.
