Price: $4.53

Trailer Stop, Turn and Tail Light, 6-Function, Right Hand

Item # ST8RB

lowest price pledge

Retail:$5.50

Our Price: $4.53

Orders above $99 qualify for Free Shipping

Quantity:

In Stock
zoom in icon
zoom out icon
pop out icon replay 360 icon
horizontal rotate icon

Product Images

spin image icon
optronics trailer lights non-submersible 5l x 5w inch stop turn and tail light 6-function right hand
optronics trailer lights stop/turn/tail side marker reflector rear non-submersible st8rb
optronics trailer lights tail non-submersible stop turn and light 6-function right hand

In Use/Installed

trailer lights optronics stop/turn/tail side marker reflector rear 5l x 5w inch st8rb
trailer lights optronics tail stop/turn/tail side marker reflector rear in use
trailer lights optronics tail 5l x 5w inch in use
trailer lights optronics non-submersible 5l x 5w inch st8rb
trailer lights optronics tail stop/turn/tail side marker reflector rear stop turn and light 6-function right hand
trailer lights optronics tail 5l x 5w inch stop turn and light 6-function right hand

Customer Photos

optronics trailer lights tail non-submersible st8rb
optronics trailer lights tail non-submersible stop turn and light 6-function right hand
optronics trailer lights tail non-submersible st8rb

  • Tail Lights
  • Square
  • Incandescent Light
  • Red
  • Surface Mount
  • 5L x 5W Inch
  • Non-Submersible Lights
  • Optronics
  • Stop/Turn/Tail
  • Side Marker
  • Side Reflector
  • Rear Reflector
5-17/64" L x 4-9/16" W x 2-7/8" D; Corrosion resistant; replaceable lenses and bulbs; shockproof socket; 2-stud mount on 2" centers; quick connect wiring; 2-bulb incandescent Lowest Prices for the best trailer lights from Optronics. Trailer Stop, Turn and Tail Light, 6-Function, Right Hand part number ST8RB can be ordered online at etrailer.com or call 800-298-8924 for expert service.



Optronics Trailer Lights - ST8RB

5-17/64" L x 4-9/16" W x 2-7/8" D; Corrosion resistant; replaceable lenses and bulbs; shockproof socket; 2-stud mount on 2" centers; quick connect wiring; 2-bulb incandescent


Features:

  • Red, square trailer light serves 6 functions for trailers less than 80" wide
    • Stop, Turn, Tail, Rear Reflex, Side Marker, and Side Reflex
  • Corrosion resistant
  • Replaceable lens and bulb
  • Quick connect wiring: simply insert stripped wire into holes for a secure connection
  • Shockproof socket guarantees long bulb life
  • Stud mounts on right side of trailer with two studs on 2" centers
  • Light grounds through mounting studs
  • Dimensions: 5-17/64" L x 4-9/16" W x 2-7/8" D
    • Mounting stud length: approximately 3/4"
  • 3-Year warranty


This is a multifunction stop, turn, and tail light. This versatile light serves six functions: stop, turn, tail, rear reflex, side marker, and side reflex. The main red light measures 4-9/16" square x 2-7/8" deep; the attached red marker light makes the total length 5-17/64". The molded plastic housing and durable lens provide all-weather protection against corrosion. The light features a screw-down, replaceable lens and easy-to-replace bulbs. The light socket is shockproof, guaranteeing long bulb life. The light is a universal mount with two studs on 2" centers. The light is grounded through the mounting studs.

Manufacturer Cross Reference
Light will work as an exact replacement for:
Uni Bond # TL4400
Wesbar # 3060
Graote # 52302
Peterson # 440


Manufacturer Specifications

Universal stud-mount stop, turn and tail lights for trailers under 80" wide. The 6-functions are: stop, turn, tail, rear reflex, side marker, and side reflex. Grounds through mounting studs. Mounts on 2" centers. Features screw-on, replaceable lens and easy to change replaceable bulb. Shockproof socket guarantees long bulb life. All-weather, molded plastic housing and durable lens protect against corrosion.

dimensions of light

ST-8RB Universal Tail Lights for Trailers Under 80" Wide by Optronics, Inc. - Trailer Stop, Turn, Tail Light, 6-Function, Right Hand







Economy - This item

Trailer Stop, Turn and Tail Light, 6-Function, Right Hand


Trailer Stop, Turn and Tail Light, 6-Function, Right Hand
Optronics Trailer Lights

256 reviews

Code: ST8RB

In Stock

Retail:$5.50

Our Price: $4.53


  • Trailer Lights
  • Tail Lights
  • Stop/Turn/Tail
  • Side Marker
  • Side Reflector
  • Rear Reflector
  • Square
  • Surface Mount
  • Non-Submersible Lights
  • Incandescent Light
  • 5L x 5W Inch
  • Red
  • Optronics


5-17/64" L x 4-9/16" W x 2-7/8" D; Corrosion resistant; replaceable lenses and bulbs; shockproof socket; 2-stud mount on 2" centers; quick connect wiring; 2-bulb incandescent

more information →
Compare Similar Products
Economy
Price: $6.34
$1.81 More

Submersible, Trailer Stop, Turn and Tail Light, 6-Function, Right Hand


Submersible, Trailer Stop, Turn and Tail Light, 6-Function, Right Hand
Optronics Trailer Lights

45 reviews

Code: ST6RB

In Stock

Retail:$7.50

Our Price: $6.34




    5-17/64" L x 4-9/16" W x 2-7/8" D; Weather-tight seal w/gasket; corrosion resistant; replaceable lenses and bulbs; shockproof socket; 2-stud mount on 2" centers; 2-wire; 2-bulb incandescent

    more information →
    Value
    Price: $23.57
    $19.04 More

    Standard Trailer Light Kit with 25' Wire Harness


    Standard Trailer Light Kit with 25' Wire Harness
    Optronics Trailer Lights

    220 reviews

    Code: TL29BK

    In Stock

    Our Price: $23.57


    • License Plate
    • Kit
    • 5L x 4-1/2W Inch
    • Red and Amber


    Trailer kit with 2 stud mount tail lights; 2 stud mount amber clearance lights; license plate bracket; wire harness w/4-pole connector

    more information →
    Premium
    Price: $62.01
    $57.48 More

    Miro-Flex LED Trailer Tail Lights - Submersible - 38 Diodes - Square - Red - Driver and Passenger


    Miro-Flex LED Trailer Tail Lights - Submersible - 38 Diodes - Square - Red - Driver and Passenger
    Optronics Trailer Lights

    646 reviews

    Code: TLL28RK

    In Stock

    Our Price: $62.01


    • License Plate
    • LED Light


    5-1/4" x 5" Square. Waterproof trailer lights act as brake, tail, turn, side marker, side reflex reflector, and rear reflex reflector. Driver's-side light includes license plate illuminator. Mounts on surface of trailer. 3-Wire pigtail.

    more information →

    Related Products



    Customers compare ST8RB to these similar products





    Customers Who Purchased This Trailer Lights Also Bought...



    Replacement parts available for this product







    Video of Trailer Stop, Turn and Tail Light, 6-Function, Right Hand


    Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.

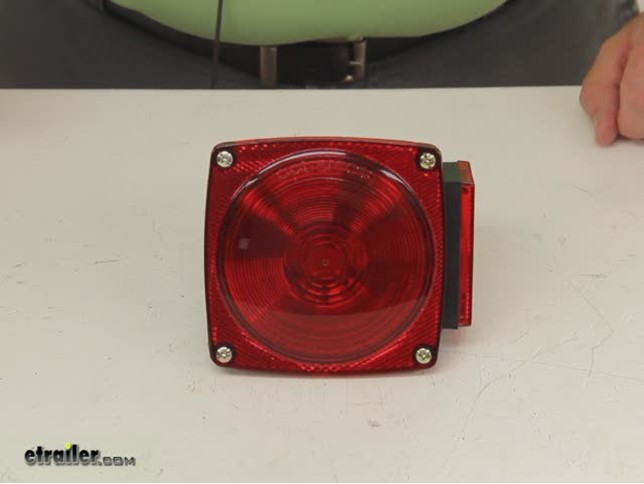

    Video Transcript for Optronics Trailer Lights ST8RB Review

    Today we are going to review part number ST8RB. This is the Optronics trailer stop, turn and taillight. This is a six function light for the right hand side of the trailer. This multifunction stop, turn and taillight. This will serve six functions for trailer that are less than 80 inches wide of the stop, turn, the tail, a rear reflex, a side marker and a side reflex. This is corrosion resistant lights.

    The molded plastic housing and durable lens will provide all-weather protection against corrosion. The light features a screw down replaceable lens and easy to place incandescent bulbs. The part number for the bulb that is using this is 1157. The light socket is shock proof so it guarantees long bulb life. The light is a universal mount with two studs on the back and these stud are on a two-inch center and this light is grounded through the mounting studs so when this is installed your grounding point would be the studs.

    A few dimensions on the slide. The overall length from side marker to edge will be 5-17/64. The depth will be 2-7/8 and then on the light itself will be 4-9/16 by 4-9/16. And this uses on the back, it will use the quick connect wiring and what you would do there is basically just strip your wire and insert it into the hole and it will hold in there and then to release it theres a little hole right under it. You just push like a paper clip in there and you can remove the wire.

    So I have a power supply here. Im going to try to give you an idea of the brightness of here and it is marked on the back, the color and the function of that. So I put in the brown for the taillights. So if I use the white and ground it to the stud, that will give you the taillight brightness and then I a green wire which will be for our stop and turn. I push that in and again I ground it.

    Then this will give you the brightness of the stop and turn. Then what Im going to go ahead and do is turn off the overhead lights and then I will show you the brightness. This will be the taillight, and that will be the stop and turn and that should do it for part number ST8RB.
