Roadmaster FuseMaster Fuse Bypass - 13" - 20-Amp Mini-Fuse

Item # RM76511

lowest price pledge

Retail:$79.56

Our Price: $66.95

Orders above $99 qualify for Free Shipping

Quantity:

In Stock
zoom in icon
zoom out icon
pop out icon replay 360 icon
horizontal rotate icon

Product Images

roadmaster tow bar wiring bypasses vehicle fuse bypass fusemaster - 13 inch 20-amp mini-fuse
roadmaster tow bar wiring bypasses vehicle engine compartment
roadmaster tow bar wiring bypasses vehicle engine compartment
roadmaster tow bar wiring bypasses vehicle custom fusemaster fuse bypass - 13 inch 20-amp mini-fuse
roadmaster tow bar wiring fuse bypass custom rm76511
roadmaster tow bar wiring bypasses vehicle custom rm76511
roadmaster tow bar wiring custom engine compartment rm76511
roadmaster tow bar wiring fuse bypass engine compartment rm76511
roadmaster tow bar wiring bypasses vehicle engine compartment fusemaster fuse bypass - 13 inch 20-amp mini-fuse
roadmaster tow bar wiring fuse bypass custom

In Use/Installed

2014 honda cr-v tow bar wiring roadmaster fuse bypass custom rm76511
2014 honda cr-v tow bar wiring roadmaster bypasses vehicle custom rm76511
2014 honda cr-v tow bar wiring roadmaster fuse bypass custom in use
2014 honda cr-v tow bar wiring roadmaster bypasses vehicle engine compartment in use
2014 honda cr-v tow bar wiring roadmaster bypasses vehicle custom fusemaster fuse bypass - 13 inch 20-amp mini-fuse

Customer Photos

roadmaster tow bar wiring bypasses vehicle custom rm76511
roadmaster tow bar wiring bypasses vehicle custom rm76511
roadmaster tow bar wiring bypasses vehicle custom fusemaster fuse bypass - 13 inch 20-amp mini-fuse
roadmaster tow bar wiring bypasses vehicle custom rm76511
roadmaster tow bar wiring bypasses vehicle custom fusemaster fuse bypass - 13 inch 20-amp mini-fuse

Videos


  • Fuse Bypass
  • Bypasses Vehicle Wiring
  • Roadmaster
  • Custom
  • Engine Compartment
  • Mini Fuse
Take some of the hassle out of towing your car with this fuse bypass system. FuseMaster replaces your vehicle's mini-fuse and lets you prep for towing by simply flipping a switch. Integrated holder keeps fuse secure and functional. Lowest Prices for the best tow bar wiring from Roadmaster. Roadmaster FuseMaster Fuse Bypass - 13" - 20-Amp Mini-Fuse part number RM76511 can be ordered online at etrailer.com or call 800-298-8924 for expert service.



Roadmaster Tow Bar Wiring - RM76511

Take some of the hassle out of towing your car with this fuse bypass system. FuseMaster replaces your vehicle's mini-fuse and lets you prep for towing by simply flipping a switch. Integrated holder keeps fuse secure and functional.


Features:

  • Bypasses towed car's mini-fuse so you can tow your vehicle without draining its battery
    • Provides a simple alternative to removing a fuse every time you tow
    • Stores fuse so that you won't lose it
  • Installs quickly, easily and permanently
    • Remove fuse from car's fuse box and install FuseMaster in its place
    • Put fuse into FuseMaster fuse holder
    • Mount bypass switch near fuse box
  • Maintains functionality of mini-fuse when switched on
    • Flip switch to "drive" position and drive like normal
  • Overrides mini-fuse when switched off
    • Flip switch to "tow" position and you're good to tow
  • Made in the USA


Specs:

  • Application: ATM mini-fuse not exceeding 20 amps
  • Harness length: 13"


Note: This FuseMaster bypass is not designed to hold an ATM micro fuse. If your vehicle has a micro fuse, you will need to use an ATM mini fuse of the same amperage (not included) to install in the FuseMaster.


Some cars can only be towed if you get under the hood and pull a fuse. If you don't remove this fuse prior to towing, there's a good chance that your battery will be drained by the time you reach your destination.


Roadmaster's FuseMaster makes it easy to prep your vehicle for towing. Simply remove the fuse indicated in your car's manual and replace it with the bypass. The system will hold the removed fuse and maintain its functionality. So once the initial installation is complete, you don't have to remove or replace your fuse again.


Whenever you need to drive your car, just make sure the switch on the bypass is flipped into the "drive" position. When on, the fuse will be active and your vehicle will function normally. Then, when it comes time to tow, switch the FuseMaster to "tow." This will render the fuse inactive so that you can flat tow your car without its battery being drained.


Installation

The preferred location for mounting the FuseMaster switch is the access panel inside your vehicle that leads to your fuse box. This switch must be mounted on a plastic surface that is no thicker than 1/4". Do not mount the switch on a metal surface.


Roadmaster FuseMaster Switch

Included with the FuseMaster are 2 stickers: "Drive" and "Tow." Once the switch is installed, you can place the stickers on the access panel - one on each side of the toggle - to remind you which way the switch must go for each application. Place the "Drive" sticker on the side of the toggle that has the white dot. (To drive, the switch must be flipped so that the side with the white dot is depressed.) The "Tow" sticker can then be placed on the opposite side.




76511 Road Master Fuse Master Fuse Bypass for Towed Cars - Long

Replaces 76510



RM76511 Installation InstructionsInstallation Details RM76511 Installation instructions

This Product Fits The Following Vehicles

2007 - 2009 Saturn Aura

2012 - 2015 Chevrolet Captiva Sport

2007 - 2011 Honda CR-V

2011 - 2013 Chevrolet Cruze

2010 - 2017 Chevrolet Equinox

2009 - 2013 Honda Fit

2007 - 2008 Pontiac G6

2006 - 2011 Chevrolet HHR

2006 - 2007 Chevrolet Malibu

2008 - 2008 Chevrolet Malibu Classic

2012 - 2017 Chevrolet Sonic

2010 - 2017 GMC Terrain

1996 - 2009 Acura TL

2003 - 2003 Chevrolet Tracker

2008 - 2010 Saturn Vue

2009 - 2009 Pontiac G6 Convertible

2006 - 2010 Chevrolet Cobalt Coupe

2009 - 2009 Pontiac G6 excluding Convertible

2008 - 2012 Chevrolet Malibu excluding LTZ

2008 - 2012 Chevrolet Malibu LTZ

2006 - 2010 Chevrolet Cobalt Sedan

2010 - 2010 Pontiac G6 Sedan



Video of Roadmaster FuseMaster Fuse Bypass - 13" - 20-Amp Mini-Fuse


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Roadmaster FuseMaster Fuse Bypass Review

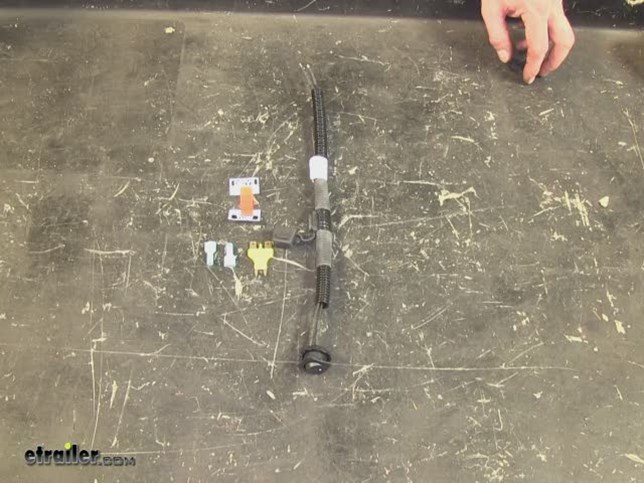

All right, today we're going to show you the Roadmaster FuseMaster fuse bypass, part number RM76511. With this part number this is what you get. This is the actual switch itself right here. It has overall length of 14 inches. It has a fuse holder right here. It does not come with the fuse where this end goes into.

You pull out the fuse and that goes here. If you have a mini fuse, you will have to supply the type of ATM fuse that sits in here. This is rated up to 20 amps. Where it goes into your fuse box you get this really handy adapter which will plug into your fuse box and you've got these leads that you're going to place these ends with and slide them onto here. It makes it a lot easier to plug this into your fuse box. Also optional, it has a couple of labels for drive and tow, so you know which way you want to have it switched or when you're driving your vehicle down the road that's tow mode or the white dot depressed.

When you want to be towing behind your RV, that would be tow mode. To install this on your dash board or wherever you do install this, it's going to require a 3/4 inch hole. Then to clamp it in place it has this nut that you thread on. The reason behind this is that some vehicles require a fuse be pulled whilst being towed behind the RV. Basically this lessens the battery drain on the vehicle.

With that that'll finish it for the Roadmaster FuseMaster fuse bypass, part number RM76511.
