Roadmaster Hy-Power Diodes

Diodes permit electrical current to flow in only one direction - from the motorhome to the car - preventing electrical feedback and the damage it can cause to the towed car's electrical components.

Features:

  • Qty: (2) Diodes
  • Reduces wiring hassles
  • Trouble free operation
  • Includes detailed wiring instructions
  • Maximum load is 85 amps per diode

Note: 4 Diodes are required for most applications (1 left turn/brake, 1 right turn/brake, 2 for tail lights - each side).


792 Roadmaster Hy-Power Diodes

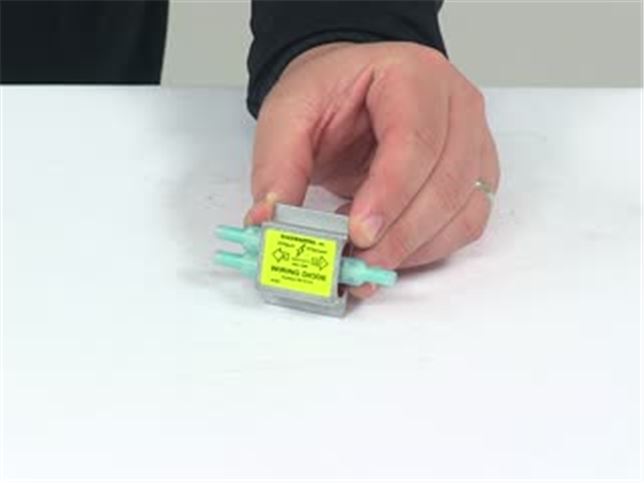

Video of Roadmaster Hy-Power Diodes (Qty 2)


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Roadmaster Tow Bar Wiring RM-792 Review

Speaker 1: Today we're taking a look at the ROADMASTER Hy-Power diode. Now, this will allow motor homes or RVs to power the lights on the tow vehicle without power feedback. The diodes allow electrical current to flow in one direction. So, that'd be from the motor home to the vehicle or to the car. This prevents any electrical feedback and the damage it may cause to the electrical components.This is available in a variety of quantities, so you can get a one pack, a two pack, three pack, or four pack. All options are available at etrailer.com.

For a one pack, use part number RM-790, for a two pack, use part number RM-792, for a three pack, use part number RM-793 and for a four pack, part number RM-794.The spade connectors allow for easy, trouble free, wiring connections. Also, on the back of the packaging, it has detailed wiring instructions, so that's really going to be helpful. So, when you get these, please do not discard the packaging because it has the nice wiring instructions on the back side.The aluminum heat sync helps prevent over heating. The self stick pad on the back allows for easy and secure mounting. Maximum load is 85 amps per diode and please note that four diodes are required for most applications, one for the left turn and break, one for the right turn and break and then two for the tail lights, one per side.That's going to do it for today's look at the ROADMASTER Hy-Power diode..
