Spindle 1.25" RD x 4" STUB

Redline Trailer Spindles - R104BT8

Features:

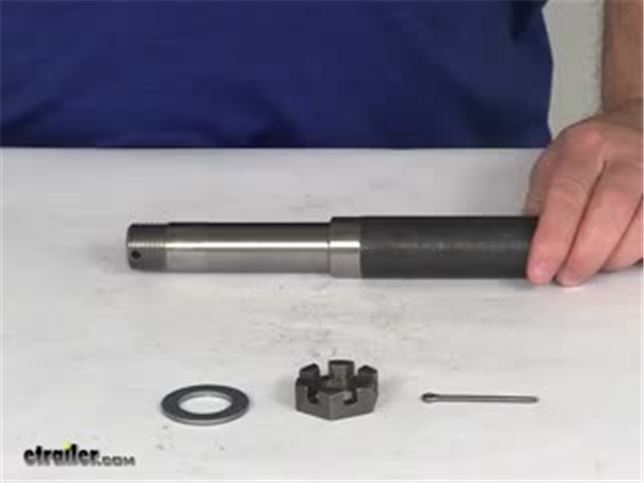

• Includes washer, castle nut and pin

Part No.	Capacity	A	B	C	D	E	F	Round/Square
R104BT8	1000 lb	1.25	1.24	0.99	0.99	1.00	4.00	Round

163200 Redline Spindle

Customers Who Purchased This Trailer Spindles Also Bought...

Ask the Experts about this Redline Trailer Spindles

• How to Remove a Hub from a Ram Line Jet Boat Trailer with Damaged Bearings.

• Unfortunately, it sounds as if when your bearings went out you were towing the trailer and the inside of the bearing that contacts the spindle, bearing cup, got hot and galled itself to the spindle on the trailer. This happens many times when bearings fail and can require replacement of the whole axle in the most extreme cases. I would try to remove the bearing cup by prying with a pry bar or screw driver and lubricating the spindle. If that doesn't work more aggressive techniques. If any of
  view full answer...


• Trailer Hub Spindle Recommendation for use with a # 34822UC1 Trailer Hub

• The Spindle 1.25 inch RD x 4 inch STUB, part # R104BT8, that you referenced we be the correct spindle for your trailer hub # 34822UC1.
  view full answer...


• Assembly Order for Bearings, Races, and Seals for Trailer Hub # 34822BX

• The order of assembly is as follows (from the inside out). First, put the inner race in the back side of the hub, followed by the inner bearing, and then the seal. Insert the hub onto the spindle. Then, insert the outer race, followed by the outer bearing, then the washer, nut, and pin. The grease cap goes on last. It looks like you are putting the race in the wrong place. I have included a link to a video that will show you the process. Also, all the parts you have listed are compatible. It
  view full answer...


• Which 5 Bolt Hub Assembly is Recommended for Use with the Redline Spindle # R104BT8

• On the Redline Spindle, part # R104BT8, the hub assembly you would need is an idler hub assembly. An idler hub assembly does not have an integrated brake drum. It will also depend on what size wheel and tire you will be using. If you need an idler hub assembly with a 5 bolt pattern you can use the Dexter hub # 34822545BX. This is a idler hub assembly with a 5 on 4-1/2 inch bolt pattern that will work on 2000lb axles. It will only work with 8 inch to 10 inch wheels. If you need an idler h
  view full answer...


• Distance From Side wall to Spindle End with Tire/Wheel # AM30020, Hub # 3482254BX, Spindle BT8

• I went out to the warehouse and pulled all of the parts: Kenda 4.80/4.00-8 Bias Trailer Tire and Wheel, # AM30020. Trailer Hub, # 34822545BX And Spindle, # R104BT8-38 I assembled all of the parts and measured from the inside side wall of the tire to the end of the spindle. It measured 4-3/16 inches.
  view full answer...


• What Is Overall Length and Measurements of Spindle # R104BT8

• I contacted our representative at Redline about the Spindle # R104BT8. He informed me that the overall length measures 8-3/4 inches. Section A measured 4 inches long. Section B and C together, measured approximately 5/8 inches or .625 inches. Section D measured approximately 3-1/4 inches or 3.25 inches. You will want to use a dial caliper to get the most accurate measurement of your spindle. The Spindle # R104BT8 will fit hubs with 1 inch bearings. The new spindle must be installed with pr
  view full answer...
