See what our Experts say about this Lippert Trailer Suspension Parts

• Greasable Shackle Bolt that is 3-1/2 inch Long and 9/16 inch Diameter
  The Replacement Wet Shoulder Bolt # LC126238 is exactly what you are looking for. It's the correct length and diameter as well as has the zerk fitting needed to grease it.
  view full answer...
• Replacement Wet Bolts and Bushings for Equa-Flex Trailer Suspension
  Based on the 12,400-lb base weight of your 2016 Reflections 357BHS you should have the Equa-Flex Cushioned Equalizer # LC279688 which works with 6K to 8K axles. The wet bolt to use is part # LC126238; you will need 7 for each side of the trailer, so 14 in total. For Never Fail bushings use kit # LC279685, or for nylon bushings use # 721590.
  view full answer...

• Wet Bolt Kit for Use with MORryde CRE3000 Kit
  MORryde has wet bolt kits for use with the CRE3000 kits like with the part # MR46ZR which has shackles that are 2-1/4 inches long and part # MR76ZR which comes with shackles that are 3-1/8 inches. These kits also come with bushings, shackles, and nuts.
  view full answer...
• Replacement Grease Zerk For Lippert Equa-Flex Wet Bolt Kits
  Yes, the Grease Zerk # LC44XV for your Lippert Tandem Axle Equa-Flex AP Kit # LC64FR can be replaced as it is removable. Do note that this grease zerk is specific to Lippert as it has a special tapered thread that is not commonly used by other manufacturers. We also have replacement Wet Bolts # LC126238 and # LC126197 if the bolt is damaged or the threads are broken off inside the bolt.
  view full answer...
• Parts Needed for Suspension Upgrade for 2018 Heartland North Trail 25LRSS Wide Stance
  As long as the Equa-Flex Cushioned Equalizers # LC314336 have similar dimensions to your current equalizers then you can use it with 2 of the Dexter Heavy Duty Suspension Upgrade Kit # K71-358-00 like what you mentioned. For the sake of consistency though I do recommend using the Step Wet Bolt # 34007-187-00 with the Flange Nut # 006-092-01 as opposed to the Wet Shoulder Bolt # LC126238. The suspension upgrade kit has enough wet bolts for the shackle straps and the front/rear hangers so...
  view full answer...

• Replacement Wet Bolts For Lippert Shackle Kit On Road Armor Suspension.
  We have the Bolt # LC126197 which is the bolt used for the shackle links. We also have the Bolt # LC126238 which connects the leaf springs to the hangers. The 7/16"-20 Flange Nut # LC122103 will fit both of these bolts. These are the parts for the Kit # LC52SV to mount the Road Armor # LC696740 equalizers.
  view full answer...
• Recommended Replacement Wet Bolts For 5th Wheel Suspension System
  I do have wet bolts that will match the ones needed for your MORryde SRE 3000 suspension system, but they technically will not be MORryde brand. If this is not an issue, you will need the Replacement Wet Shoulder Bolt # LC126238 and # LC126197. The # LC126238 will measure 2-5/16" long and will be the pivot bolts, and the # LC126197 will measure 3-3/8" long and is designed for the extra spacing with the heavier duty shackles on the springs. This will get you all squared away.
  view full answer...
• Troubleshooting A Wet Bolt That Won't Take Grease
  It sounds like there might just be a clog in either the Zerk fitting or line of the wet bolt preventing grease to pass through. Aside from removing it and trying to clean it out replacement would be the only other option. Depending on the length of your bolt you can use part # LC126238 or # LC126197 for replacement. With wet bolts you'll always want to use bronze bushings as the grease will eat away the never fail/nylon bushings.
  view full answer...
• Replacement Wet Bolt For a MORryde Suspension Upgrade Kit with 2.25" shackles
  There are two different sized wet bolts used for the MORryde Suspension Upgrade Kits with 2.25" shackles. (1) of the wet bolts is 9/16" Diameter x 3-3/8" long and (1) of the wet bolts is 9/16" Diameter x 2-7/8" long. If you are needing the 9/16" Diameter x 2-7/8" long then you can use the Replacement Wet Shoulder Bolt # LC126238. If you are needing the 9/16" Diameter x 3-3/8" long then you can use the Replacement Wet Shoulder Bolt # LC126197.
  view full answer...
• Difference Between Replacement Wet Shoulder Bolts for Equa-Flex Suspension Kit
  The only difference between the two replacement bolts is the size. Replacement Wet Shoulder Bolt # LC126197 measures 9/16" x 3-3/8" while Replacement Wet Shoulder Bolt # LC126238 measures 9/16" x 3-1/4". These replacement bolts work with Equa-Flex Cushioned Equalizers # LC279687, # LC279688 and # LC314336.
  view full answer...
• Is Lippert Wet Bolt 126238 Available For Grand Design Reflection
  Thank you for all of that information and we do indeed have the exact wet bolt you are looking for, which is the following part: - Replacement Wet Shoulder Bolt # LC126238
  view full answer...
• Is There a Wet Bolt With 7/16 - 20 Thread and Zinc Finish
  We do have exactly what you are looking for, which is a wet bolt with a 7/16 - 20 thread with a zinc finish, made by Lippert. There are two of these, with both having a 9/16" hex head, and the only difference being the lengths: - 3-1/4" Long: Replacement Wet Shoulder Bolt # LC126238 - 3-3/8" Long: Replacement Wet Shoulder Bolt # LC126197 Then for a locknut the correct part is the Fastenal Lock Nut # 1137306. I have added links below to video reviews of these parts for you to check out...
  view full answer...
• Wet Bolt that Can be Used with Dexter EZ Flex and Correct Track Lift Kit
  It's perfectly fine to use the included bolts of the Correct Track Kit part # RR23QX with the bronze bushings of the leaf springs you have now. For a longer wet bolt in the length you are wanting you'd want the Replacement Wet Shoulder Bolt part # LC126238 which has a usable length of 2-1/4 inches. LMX red grease like the part # L11390 would be the heaviest duty grease that would last the longest and provide best lubrication.
  view full answer...

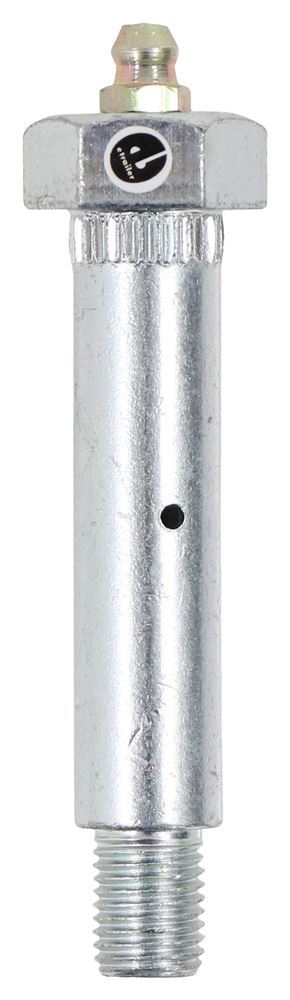

• Dimensions of the Replacement Wet Shoulder Bolt for Equa-Flex Tandem Axle Suspensions LC126238
  The Replacement Wet Shoulder Bolt for Equa-Flex Tandem Axle Suspensions part # LC126238 is 9/16" diameter at the shoulder and 7/16" at the threads. The overall length from the top of the head to the bottom of the bolt is 3-1/4" and the threaded section is right at around 1/2" long. The bolt is constructed of zinc plated steel. I don't have any weight capacities for you unfortunately but most eye bolts are not rated for this either. I have attached a video for you which shows some of...
  view full answer...
• Thread of Equa-Flex Replacement Wet Shoulder Bolt
  The Replacement Wet Shoulder Bolt - Equa-Flex Tandem Axle Suspension - 9/16" x 2-5/16" # LC126238 has a 7/16"-20 fine thread.
  view full answer...
• Replacement Hanger Bolt For Toy Hauler Using Equa-Flex Suspension Equalizers
  The strongest Hanger Bolt # LC94UD we have is a grade 5 bolt. We do also have the Wet Bolt # LC126238 if your system was upgraded to these type bolts. These are not grade 5 as they have the hollow core for the grease to pass through. These are still capable of working on systems with up to 8,000lb axles. We do have the Nut # 006-092-01 which will fit either of these hanger bolts.
  view full answer...
• Can Suspension Wet Bolts Be Used with Both Nylon and Bronze Bushings
  You are correct that wet suspension bolts like # LC126238 are usually used along with bronze bushings for the longest possible service life but using them with nylon bushings is permissible. If standard bolts like # 166081 were to be replaced with wet bolts it would be fine to continue using the existing nylon bushings (for convenience) but in an all new installation bronze bushings would be preferred.
  view full answer...
• Determining The Correct Equa-Flex Equalizers For 2011 R-Vision Trail-Sport TS27QBSS
  I would be happy to help you find the correct Equa-Flex equalizers for your 2011 R-Vision Trail-Sport TS27QBSS but you will need to measure your current equalizers as we do not have a breakdown of the specific components used on a trailer. The Equa-Flex Cushioned Equalizers - Double Eye Springs - Tandem Axle - 3K to 6K # LC279687 you were looking at are 5-1/2 wide measured center to center of the horizontal mounting holes as shown in the included diagram. If this matches your current equalizers...
  view full answer...

• Cushioned Equalizer Recommendation for Cougar 22MLSWE
  The Lippert Equa Flex kit part # LC279687 is going to be your best choice for a cushioned equalizer upgrade for your Cougar 22MLSWE. It is the exact same dimensions as what you have now so it will fit perfectly as a replacement and will do an excellent job making the ride quality of your RV much smoother. The feedback we've gotten from our customers who have tried it has been overwhelming positive as well. Then for a wet bolt kit that was designed for this kit we have the part # LC64FR...
  view full answer...

• Wet Shoulder Bolt For 2008 Forest River Wildcat 5TH Wheel Using Correct Track Trailer Lift Kit
  The Replacement Wet Shoulder Bolt # LC126197 is 3-3/8" long to account for the width of the Correct Track Trailer Alignment and Lift Kit # LC87120. A typical Wet Shoulder Bolt # LC126238 is only going to be 2-7/8" in overall length.
  view full answer...
• Replacement Wet Bolts for 2020 Jayco Northpoint 5th Wheel With CRE-3000 Equalizers
  For replacement wet bolts you can use the # LC126238 which is 2-5/16" long or # LC126197 which is 3-3/8" long. I'm not sure which broke off so I would match them to the length of the broken bolts. The length is the usable length of the bolt. This is measured from the base of where the bolt head would have been to the start of the bolt threads. If you don't already have upgraded shackle straps with your wet bolts, you may also want to consider the MORryde Suspension Upgrade Kit for Tandem...
  view full answer...

Do you have a question about this Trailer Suspension Part?
