Electric Trailer Brake Kit - Dacromet - 12" - Left and Right Hand Assemblies - 5.2K to 7K

Electric Trailer Brake Kit - Dacromet - 12" - Left and Right Hand Assemblies - 5.2K to 7K

Item # AKEBRK-7-D
Our Price: $173.76
Trailer Brakes
This item qualifies for Free Shipping
Shipping Weight: 30 lbs
In Stock
zoom in icon
slider vertical icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

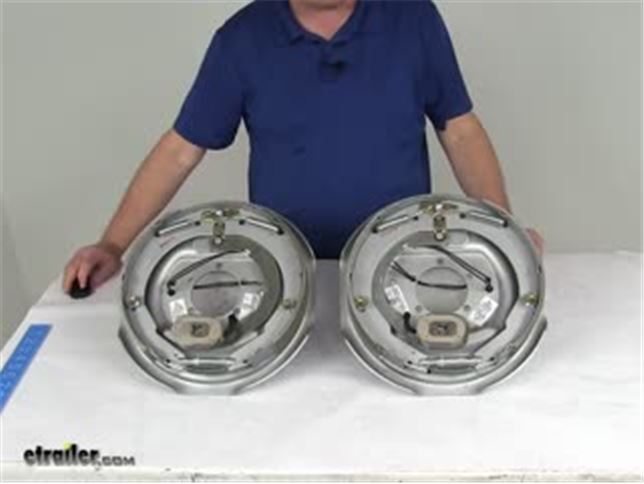

In Use/Installed

Customer Photos

Need help with installation?
Locate installers near me
Driver's-side and passenger's-side electric brakes are 12" x 2". Durable friction material provides improved braking and longevity. Dacromet-coated backing plates are corrosion resistant. Fit 14-1/2" to 16-1/2" wheels. Great Prices for the best trailer brakes from etrailer. Electric Trailer Brake Kit - Dacromet - 12" - Left and Right Hand Assemblies - 5.2K to 7K part number AKEBRK-7-D can be ordered online at or call 1-800-940-8924 for expert service.
  • All Info
  • Reviews (80)
  • Q & A (0)
  • Photos
  • Why etrailer?

etrailer by AxleTek Trailer Brakes - AKEBRK-7-D

  • Electric Drum Brakes
  • 5200 lbs Axle
  • 6000 lbs Axle
  • 7000 lbs Axle
  • 12 x 2 Inch Drum
  • 14-1/2 Inch Wheel
  • 15 Inch Wheel
  • 16 Inch Wheel
  • Boat Trailer
  • Snowmobile Trailer
  • Manual Adjust
  • etrailer

Driver's-side and passenger's-side electric brakes are 12" x 2". Durable friction material provides improved braking and longevity. Dacromet-coated backing plates are corrosion resistant. Fit 14-1/2" to 16-1/2" wheels.


  • Electric brakes are easier to install and offer more user control than hydraulic brakes
    • Require only an electric brake controller (sold separately) - no actuator or hydraulic lines necessary
  • Automotive-grade friction material is molded to brake shoes
    • Pads are fully bonded - not riveted - to shoes for long life and more braking torque
    • Less chance of cracking and crumbling that can lead to mechanical lockup, thanks to tapered edge and circular grinding
  • Periodic manual adjustment required
    • Fine-tooth brake adjustment gears allow for a more precise setting
  • Dacromet coating on backing plates offers superior corrosion resistance
  • Adjuster plugs (included) cover access holes to keep dirt and grime out of the assemblies and off of the shoes
  • Left-hand (driver's-side) brake assembly and right-hand (passenger's-side) brake assembly included
    • Mounting bolts and hardware (BRKH12) sold separately
  • QAI and CSA certified


  • Application: most standard hub-and-drum assemblies, including Dexter and Lippert (LCI)
  • Dimensions: 12" diameter x 2" wide
  • Mounting flange bolt pattern: 5 bolt
  • Wheel size: 14-1/2", 15", 16" and 16-1/2"
  • Axle rating: 5,200 lbs, 6,000 lbs, and 7,000 lbs
  • Limited 1-year warranty

Manual-Adjust Brakes

With repeated use of these brake assemblies, the brake shoes may move out of alignment, causing less efficient braking performance. To keep the brake shoes aligned and the brake assemblies performing correctly, you should perform routine maintenance.

These brake assemblies should be adjusted after installation and then as needed for the life of the brakes. To adjust the brakes, use a brake adjustment screw tool (sold separately) to turn the adjustment gear on the inside of the assemblies. Continue to turn the gear until the drum surrounding the brake catches on the brake pads enough so that the hub can no longer be turned easily by hand. Then reverse the gear by about 10 clicks. A properly adjusted brake should drag slightly on the brake drum.

Thoroughly Tested for Safety

These brake assemblies meet the requirements for certification by the Canadian Standards Association (CSA). The CSA creates standards, which when complied with ensure a safe and quality product. These brake assemblies underwent extensive testing to measure stopping distances when braking. These brakes have also been tested by QAI for braking performance in a complete automotive setup and under real-world conditions to provide the most realistic scenario for the everyday driver.

Automotive-Grade Friction Material

Each shoe on these brake assemblies is lined with automotive-grade friction material for improved stopping performance and longevity. The friction material is fully bonded onto the surface of the brake shoe. This lining is custom-molded for a perfect fit. The edges are tapered to ensure long-lasting performance. This taper, along with the circular grinding that the lining undergoes, helps to prevent cracking and crumbling. This durability helps to prevent mechanical lockup, which can occur when brake shoes are excessively worn or broken.

The friction material is also SAE-N certified, which means that it is an environmentally safe product that complies with California and Washington regulations regarding the composition of brake pads. As a result, this material not only provides high-performance braking that can endure the test of time, but it is also environmentally friendly and safe for use throughout the United States and Canada.

B12E-81 AxleTek 12" x 2" LH Electric Brake Assembly - Drivers Side - 5.2K, 6.0K, 7.0K Axles - Dacromet Coat

B12E-82 AxleTek 12" x 2" RH Electric Brake Assembly - Passengers Side - 5.2K, 6.0K, 7.0K Axles - Dacromet Coat

Customer Satisfaction Score:

Customer Reviews

Electric Trailer Brake Kit - Dacromet - 12" - Left and Right Hand Assemblies - 5.2K to 7K - AKEBRK-7-D

Average Customer Rating:  4.6 out of 5 stars   (80 Customer Reviews)

Driver's-side and passenger's-side electric brakes are 12" x 2". Durable friction material provides improved braking and longevity. Dacromet-coated backing plates are corrosion resistant. Fit 14-1/2" to 16-1/2" wheels.


I needed to upgrade my boat trailer from free-wheeling spindles to electric brakes because my new tow vehicle has a 5,000 pound tow rating only if the trailer has brakes. The brakes will be immersed only in fresh water but I chose the brake kit with Dacromet coating just to assure maximum protection from rust and corrosion. After removing the original spindles and cleaning the old grease from the axle I installed the new brake assemblies. They fit perfectly and seem to be of solid construction. Without the self adjusting mechanism it keeps these brakes assemblies very simple and making a manual adjustment periodically is no problem. I am pleased with the quality of this product.

These brake assemblies are working perfectly. After one year there is no rust or corrosion. Brake shoe wear is nominal. They require adjustment every 200 miles or so two round trips to the lake in order to maintain smooth operation.
David S - 02/19/2022


The electric trailer brake assemblies appear to be well made and fit perfectly. Delivery was great and actually arrived a day earlier than expected, which helped me a lot. I was concerned about the packaging with the heavy items only wrapped in paper and loose in a large box. Fortunately, there did not appear to be any damage or missing parts. So far I am very happy with the brakes and hope the last a long time.


Parts fit perfect, seemed to be good quality working just fine for over a year now.


Got product quick and when they said it would be delivered. Called ot find out which side was left and right. Call was answered quickly and was got my answer.


Put these on both axels on my equipment trailer and they work perfectly after 1 year.


One backing plate brake assembly. had the adjuster laying in the box. There was no packing between the 4 backing plate assembleys. I am very dissapointed with the quality of your packaging. I will not buy again from etrailer!


I was very pleased with the expert and friendly guidance that I received when purchasing the trailer brakes and suspension components. The staff was thorough in ensuring I had the correct components for the weight and use of my trailer.


Received my brakes and box was torn. Box was flimsy and not made to hold 4 sets of brakes. Need to work on better shipping methods. I hope they work


After replacing the trailer brake (OEM) with these brakes I can tell a difference when braking. I'm now getting shorter braking distances with them and I feel safer using them. Thanks


I actually wanted the self adjusting brakes but they weren’t in stock. Needed them quickly so I got these since they were in stock. Shipping was very fast but one brake came missing the adjusting star nut. Thankfully, I was able to use one off one of the old brakes. Installation was easy as I’ve done this before on another RV. I will continue to shop here. Customer service is great and very helpful!


The packaging was awful some dents and scrathes from poor packaging i hope they still work


Excellent pieces, Have had zero issues with 4 of them on my tandem axle boat trailer and they work the way they should. huge upgrade from the quirky surge brakes they replace.

Still working Great even with freshwater dunking.
Brad L - 07/29/2020


Great quality and fair price

No Issues. All good
Jon - 04/17/2022


Amazing fast and great price


Replaced all the brakes on my horse trailer. product works fine with no problems. My only complaint is that when assembled no lubricant was applied to the points on the backing plate where the brake shoes rest. This required removing the brake shoes and remounting them before installing them.


I've used etrailer for many purchases over the years so nothing new there. Usually never have a problem with my orders, but this time there was an issue with backordered parts. I contacted etrailer via email and got a response very quickly from Tiffany J. She was so helpful with cancelling the backordered parts and then emailed back later telling me there were more items backordered but made suggestions to replace them with less expensive parts to get my order moving!! I thought that was super cool and helpful, saving me time and frustration. Shipped my order and got it a couple days later, well packaged and intact. Not to mention their prices and shipping is on par or better than other online retailers and others.Thank you etrailer and Tiffany J. for your help and great business ethics!


Brakes arrived fast. A mechanic friend of mine installed the brakes. Tested the brakes a few days later and they seemed to work fine. After one camping trip I traded for a new 5th wheel so don't know how they are performing for the new owners. BUT I was happy for the short time I used them. Thanks etrailer.


Parts arrived n a timely fashion and look to be correct for my application, (I have not installed them yet.

The packaging was completely torn up and looks to have been taped back up by UPS.
There was nothing inside the package with the backing plates to keep them from sliding around inside the box. there were slight scratches in the finish but nothing that would affect their performance.

I am only giving a 4 star rating due to the poor quality of packaging. If the product had been fragile I question as to whether it would have arrived undamaged...


Exactly what I needed. Required no modification for the Wells Cargo trailer I was working on.


Ordered my electric brake kit from etrailer and came in mail on time 3 days and I fit just like a glove great products and a great company I would recommend them to anyone thanks etrailer


Fit my 30-year old 5.2K Dexter axle perfectly.
to install and adjust.


I like speedy service, large selection. I especially like the pictures/diagrams with the dimensions of the product clearly shown, I am a long time repeat customer.


Great Product & Customer Service! This Has Been An Easy Process From Beginning To End. Product Arrived During Its Scheduled Delivery. Installation Was As Expected.


They seem like decent brakes They should have definitely been greased and lubricated where they needed to be. I was also expecting a little bit better packaging. When I received the brakes one of them fell apart during shipment and I had to put them back together. The cardboard paper didn't work so well. Other than that no big disappointment.


Easy to install. Great price. Speefy delivery.

Show More Reviews

See what our Experts say about this etrailer Trailer Brakes

  • Recommended 12 Electric Brake Assembly For Use on Boat Trailer
    Electric brakes aren't typically designed with use on a boat trailer in mind, for obvious reasons, but we have seen it done before. You can use something that is Dacromet coated like the Electric Trailer Brake Kit - Dacromet - 12" - Left and Right Hand Assemblies - 5.2K to 7K # AKEBRK-7-D, which are 12" brakes designed for trailers with 5200-7000-lbs axles. This is the only size of electric brakes with Dacromet coating that we have available; these would be the best suited for use on a...
    view full answer...
  • Is Electric Trailer Brake Kit with Dacromet Coating AKEBRK-7-D Good for Saltwater Use
    Electric Trailer Brake Kit # AKEBRK-7-D will be more suitable for saltwater applications that traditional brakes. This is because of the corrosion resistant properties of the dacromet coating. That puts them somewhere between stainless steel and galvanized steel. I recommend with these or any brakes you choose to rinse them off with fresh water once you are done for the day so as to prolong the life of the brakes and not run into the problem that you are having now.
    view full answer...
  • Left & Right 12" Electric Trailer Brake Assembly - Dacromet For 5,200 lb to 7,000 lb Axles
    The two parts individually are the Electric Trailer Brake Assembly - Dacromet - 12" - 5,200 lbs to 7,000 lbs - Right Hand # AKEBRK-7R-D & Left Hand # AKEBRK-7L-D. They come as a pair with the Electric Trailer Brake Kit - Dacromet - 12" - Left and Right Hand Assemblies # AKEBRK-7-D. The only other thing you'll need with these is the Mounting Bolts and Hardware for 12" Brake Assemblies # BRKH12.
    view full answer...
  • Replacement Electric Brakes for an AL-KO 6,000 lb Axle
    The Electric Trailer Brake Kit part # AKEBRK-7-D is exactly what you need to replace the 12" diameter x 2" wide electric brakes on your horse trailer with AL-KO 6,000 lb axles. However, the dacromet finish is only really needed for boat trailers so you can save some money by using the Electric Trailer Brake Kit part # AKEBRK-6.
    view full answer...
  • Recommended Brake Kit for 2007 Weekend Warrior Model 2805SL
    You do not identify what axle you have on your 2007 Weekend Warrior Model 2805SL but I suspect it will be a rating of 5,200 lbs. to 7,000 lbs. with brakes measuring 12" x 2"; please verify this before placing order. I recommend the Electric Trailer Brake Kit - 12" - Left and Right Hand Assemblies, # AKEBRK-6 as this fits most standard hub-and-drum assemblies for Dexter, Lippert (LCI), and AL-KO manufactured axles. Please note the linked help articles below that walk through the steps...
    view full answer...
  • Can I Use Electric Trailer Brakes on a Boat Trailer That Goes in Salt Water
    Electric trailer brakes like the ones found on the Trailer Axle w/ Electric Brakes - EZ-Lube - 5 on 4-1/2 Bolt Pattern - 89" - 3,500 lbs # e43SR can be used on boat trailers that go in both salt and fresh water, but there are a few things that you'd need to consider. First, obviously electricity and water don't mix; for that reason you'll want to make sure that you unplug your trailer connector any time you're launching or retrieving the boat. Second, if you're wanting to use electric...
    view full answer...
  • Are Trailer Brake Assemblies Side-Specific
    Brake assemblies are definitely side specific. If you put the wrong brake assembly on the wrong side of the trailer, the brakes won't work correctly, and could cause the trailer to jackknife. Brake Drums like the # AKHD-655-6-G-K you'd mentioned aren't side specific. For the # AKHD-655-6-G-K brake drums you'd asked about, for electric brakes I'd recommend the # AKEBRK-7-SA self adjusting brake assemblies. After 20 or 25 braking events (best done in a big parking lot) the brakes will be...
    view full answer...
  • Brake Kit and Hub/Drum Assembly Needed for 1994 Four Winns Single Axle Boat Trailer
    Since the spec sheet said 4,740 lbs per axle and you have 6 on 5-1/2" lug patterns I think it's safe to assume that brakes and hub/drums rated for a 5,200 lb axle would fit, but I would still try to double check on your end just to be sure. There should be an axle tag in the middle of your axle that says the exact weight rating. For a 5,200 lb axle you'll use the following: Electric Brakes - # AKEBRK-7-D Hydraulic Brakes - # AKFBBRK-7-D Hub and Drum Assembly - # AKHD-655-6-EZ-K (comes...
    view full answer...
  • Electric Brake Assembly Set Replacement for Trailer with Rockwell 5,200 lb Axle
    Rockwell axles use the standard brake assemblies for trailer axles so for a 5,200 lb axle the kit you'd want is the part # AKEBRK-7-D which is Dacromet coated to fight corrosion as well.
    view full answer...
  • Spindle, Brake, and Hub/Drum Assembly Recommendations for a 6,000 lb GVWR Ice Fishing House
    Thanks for reaching out! It sounds like you're wanting to make 1 drop-down axle system for your ice fishing house so you'll want to use the EZ Lube Spindle # R50342EZ which is rated for a 5,200 lb axle. This means if you're able to beef up the other parts of your suspension build to match a 5,200 lb weight rating that you'll only be relying on about 800 lbs for the tongue weight. Then for brakes I recommend the Electric Trailer Brake Kit # AKEBRK-7-D because running an electrical brake...
    view full answer...
  • Parts Needed to Convert from Surge Brakes to Electric Brakes on a Boat Trailer
    It's becoming more and more common to find electric brakes on boat trailers. It's a good idea to use brakes that have corrosion resistance and to unplug the trailer from your truck whenever launching or loading the boat to help prevent any shorts. I recommend the dacromet brake assemblies # AKEBRK-7-D. This includes both the left and right hand brakes and they're labeled to make the install easier. For the bolts and mounting hardware use # BRKH12 and you also may need the adjustment...
    view full answer...
  • What Axle Rating Should Axles On 2017 Jayco Jay Flight 32BDSW W/ 9000lb GVWR Have?
    On your 2017 Jayco Jay Flight 32BDSW with a GVWR rating of 9000lbs I would think it should come with axles rated 4400lbs or more each to accommodate the GVWR of the trailer. Trailer manufacturers sometimes uses axles that appear underrated, but keep in mind that tongue weight does not fall on the weight of the trailer. In your case the 850lb tongue weight mentioned is the dry tongue weight, not when it is loaded. Tongue weight is typically 10-15% of the trailer weight which should be...
    view full answer...
    Image 1 for
  • Converting From Surge to Electric Brakes on a Boat Trailer with 5,200 Lb Axle
    It sounds like you are trying to replace the surge brakes you have on your trailer now with a set of electric brakes. If that is the case then you will not have any issues with submerging the electric braking assemblies in water. The majority of newer boat trailers even come with electric braking assemblies from the factory. However, you will need to unplug the trailer connector before launching the boat. There won't be any issues with your factory trailer brake controller in regards to...
    view full answer...
  • Can 3500lb Axle W/ 89" Hub Face and 74" Spring Center Be Replaced W/ 5200lb Axle W/ Same Dimensions?
    Since the Dexter 3500lb axle on your single axle trailer has a hub face measurement of 89" and a spring center measurement of 74" the Dexter Trailer Axle Beam with E-Z Lube Spindles - 89" Long - 5,200 lbs will work as a direct replacement. You will not be able to reuse our hubs/brakes or U-bolts as this axle uses different bearings than your current axle, and is 3" in diameter where your current axle is 2-3/8" in diameter. For hub and drum assemblies you will need # 8-201-5UC3-EZ which...
    view full answer...
  • Can I Use the Timbren Axle Less Suspension System on a Boat Trailer
    Yes. The Timbren Heavy-Duty Axle-Less Trailer Suspension - 2" Lift Spindle - Standard Tires - 3,500 lbs # TASR35HDS07 has a nice powder coated finish on it, so it can be used on a boat trailer. Because this is a boat trailer I do recommend that your trailer has a cross-beam where the axle is being installed that can be used for structural support since you'll be removing the axle with this installation. This system does not come with hubs or brakes, so if you also need a hub with a #...
    view full answer...
  • Recommended Replacement Axles For Tandem Axle Boat Trailer
    As long as the frame itself can handle the additional weight, you would need to upgrade all of the other components under that weight capacity including the coupler. I recommend using the Timbren Axle-Less Suspension - Spindle Only - Regular Tires - 5200 lbs # ASR5200S01. This will allow your to simply remove the existing suspension and axles and add a cross beam or add a piece of 2x3 inch tubing between the axles in the integrated holes. With these spindles, you can use the Trailer...
    view full answer...
  • Replacement Brake Assemblies and Hubs for Dual Axle Boat Trailer
    I recommend the Electric Trailer Brake Kit # AKEBRK-7-D. The dacromet-coated backing plates are corrosion resistant which is ideal for a boat trailer. Both left and right hand sides are included with the kit. The Trailer Hub and Drum Assembly # AKHD-655-6-G-K has a galvanized finish to also prevent corrosion. It will include new bearings, races, grease seal, dust cap and lug nuts. The Outer Bearing # 15123 matches the one you already checked. It will use Inner Bearing # 25580 which as...
    view full answer...
    Image 1 for Image 2 for Image 3 for
  • Replacement Brakes and Hub and Drum Assemblies Needed for 2004 Fleetwood Camping Trailer
    There are some general fits for different axle weight ratings that I can share here, but since we don't have the specs on your trailer parts you will need to check the dimensions of your brakes as well as the bearings and seals used for your hubs to make sure you get the correct replacements. For Brakes 2,000 lb Axle - # AKEBRK-2 3,500 lb Axle - # AKEBRK-35-SA 5,200 lb Axle - # AKEBRK-7-D 7,000 lb Axle - # 23-464-465 Hub and Drums 2,000 lb Axle and 5 on 4-1/2" Bolt Pattern - # AKHD-545-2-EZ-1K 3,500...
    view full answer...
  • Recommended 5200-6000lb Axle For M105 Military Trailer Being Converted To Overland Trailer
    I have another option for you, but the only hub and drum assemblies available with the 6 on 5-1/2" bolt pattern are only rated for wheels up to 16-1/2" diameter and are not designed to work with 17" wheels. Starting with the axle for your M105 Military Trailer that you are doing an overland conversion on I recommend going with the Timbren Axle-Less Trailer Suspension System - 2" Lift Spindle w/ Brake Flange - 5,200 lbs # TASR5200S05 or the 4" lift version # TASR5200S03. Both of these...
    view full answer...
  • Availability Of Timbren Heavy-Duty Axle-Less Suspension 3500lb ASR35HDS01
    We sure do! You can visit the product page of the Timbren Heavy-Duty Axle-Less Trailer Suspension - Straight Spindle - Off-Road Tires - 3,500 lbs # ASR35HDS01 by clicking on the part number in this question. This Timbren Axle-Less Suspension is the Heavy-Duty version which means even though it has a 3500lb rating, it is made out of thicker metal than the standard version and uses 5200-7000lb hubs instead of 3500lb hubs. For hubs you can use Idler hub # 8-231-50UC1-EZ which has the 8...
    view full answer...
  • Recommended Electric Trailer Brakes For 6,000LB Boat Trailer Axle
    You can install electric brakes on a boat trailer but it is not recommended to use the electric brakes when they get submerged in the water. The Electric Trailer Brake Kit # AKEBRK-7-D has a Dacromet coating for superior corrosion resistance due to being submerged in water. If this is the route you choose you will need to ensure your hub is okay to use with electric brakes. Or we have the Galvanized Easy Grease Trailer Hub and Drum Assembly # AKHD-655-6-G-EZ-K. The best route would be...
    view full answer...
