Pro Series Round, Pipe-Mount Swivel Jack w/ Footplate - Topwind - 10" Lift - 5,000 lbs

Pro Series Round, Pipe-Mount Swivel Jack w/ Footplate - Topwind - 10" Lift - 5,000 lbs

Item # PS1401460303

lowest price pledge

Retail:$42.46

Our Price: $37.58

You Save: 11%
Trailer Jack

Orders above $99 qualify for Free Shipping

Shipping Weight: 11 lbs

Quantity:
Trailer Jack PS1401460303 - Swivel Jack - Pipe Mount - Pro Series
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.
Please enter a valid email address.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

pop out icon replay 360 icon
horizontal rotate icon

Product Images

Customer Photos


  • Side Frame Mount Jack
  • 5000 lbs
  • Topwind Jack
  • No Drop Leg
  • Swivel Jack - Pipe Mount
  • Weld-On
  • Pro Series
  • 10 Inch Lift
  • With Foot
Footplate, weld-on mount and pull pin are included with this round swivel jack. Ideal for agricultural and commercial uses. Jack has 11-3/16" retracted height and measures 4" from mounting bracket to top, excluding handle. Lowest Prices for the best trailer jack from Pro Series. Pro Series Round, Pipe-Mount Swivel Jack w/ Footplate - Topwind - 10" Lift - 5,000 lbs part number PS1401460303 can be ordered online at etrailer.com or call 800-298-8924 for expert service.


  • All Info
  • Reviews (61)
  • Q & A (12)
  • Videos (1)
  • Photos
  • Why etrailer?

Pro Series Trailer Jack - PS1401460303

Footplate, weld-on mount and pull pin are included with this round swivel jack. Ideal for agricultural and commercial uses. Jack has 11-3/16" retracted height and measures 4" from mounting bracket to top, excluding handle.


Features:

  • Utility jack is perfect for agricultural and commercial applications
  • Tubular swivel design lets you swing jack up for travel, down for use
    • Included pull pin holds jack in place
  • Topwind handle has smooth, ergonomic design for easy cranking
  • Outer tube has black paint finish
  • Inner tube is zinc plated
  • Weld-on pipe mount and standard footplate included


Specs:

  • Bracket height:
    • 11-3/16" Retracted
    • 21-3/16" Extended
  • Lift: 10"
  • Clearance: 4" from mounting bracket to top of jack
  • Inner tube diameter: 2"
  • Outer tube diameter: 2-1/4"
  • Lift capacity: 5,000 lbs
  • Limited 1-year warranty


1401460303 Pro Series Round Tubular Swivel Jack - Topwind - 10" Travel - 5,000 lbs

1401460317 Eclipse Round Tubular Swivel Jack, Topwind, 10" Travel, 5,000 lbs






California residents: click here

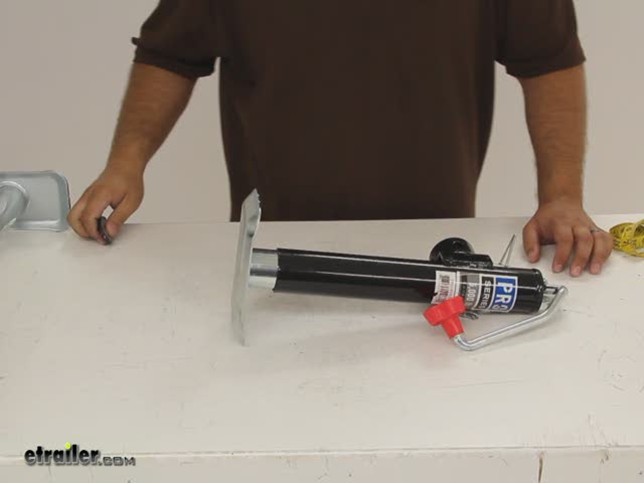

Video of Pro Series Round, Pipe-Mount Swivel Jack w/ Footplate - Topwind - 10" Lift - 5,000 lbs


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Pro Series Trailer Jack - Side Frame Mount Jack - PS1401460303 Review

Today were going to take a look at the Pro Series round pipe mount swivel jack part #: PS1400460303. Now Pro Series covers this jack with a limited one year warranty. It has a lift capacity of 5,000lbs and its built using 2 inch diameter tubing. Next we want to go over a couple of measurements with you. Well measure form the center of our pipe mount to the bottom of our footplate. We get about 11 inches fully retracted.

Now Ill take the same measurement on the same jack thats fully extended. The measurement here comes out to about 21 inches. The difference between the two, 10 inches, is known as the jacks travel or lift. The inner tube and the footplate thats welded to it are finished with a zinc plating and this is going to help prevent corrosion. The flat base also provides a nice stable surface for resting the nose of your trailer.

The outer tube is finished in a black paint. Its a top wind jack with a hand knob to make operation smooth and easy. On the back well see the mounting system. Youll take this inner piece of steel here and weld it to the frame of your trailer. The jack will sit on this tube and it can swivel on it.

When youre pulling your trailer down the highway you can pull the jack up flat so that it doesnt run the risk of making contact with the ground and damaging the jack. To use this feature you just have to remove the pin, turn the jack and reposition it and then reinsert the pin. And thats it for our quick look at the Pro Series round pipe round swivel jack part #: PS1401460303.
