Draw-Tite Max-Frame Trailer Hitch Receiver - Custom Fit - Class III - 2"

Draw-Tite Max-Frame Trailer Hitch Receiver - Custom Fit - Class III - 2"

Item # 75916
Retail:$320.73
Our Price: $190.04
Trailer Hitch

Will this fit?

To see if this custom-fit item will work for you please tell us what vehicle you'll use it with.

Add to cart
In Stock
zoom in icon
slider vertical icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

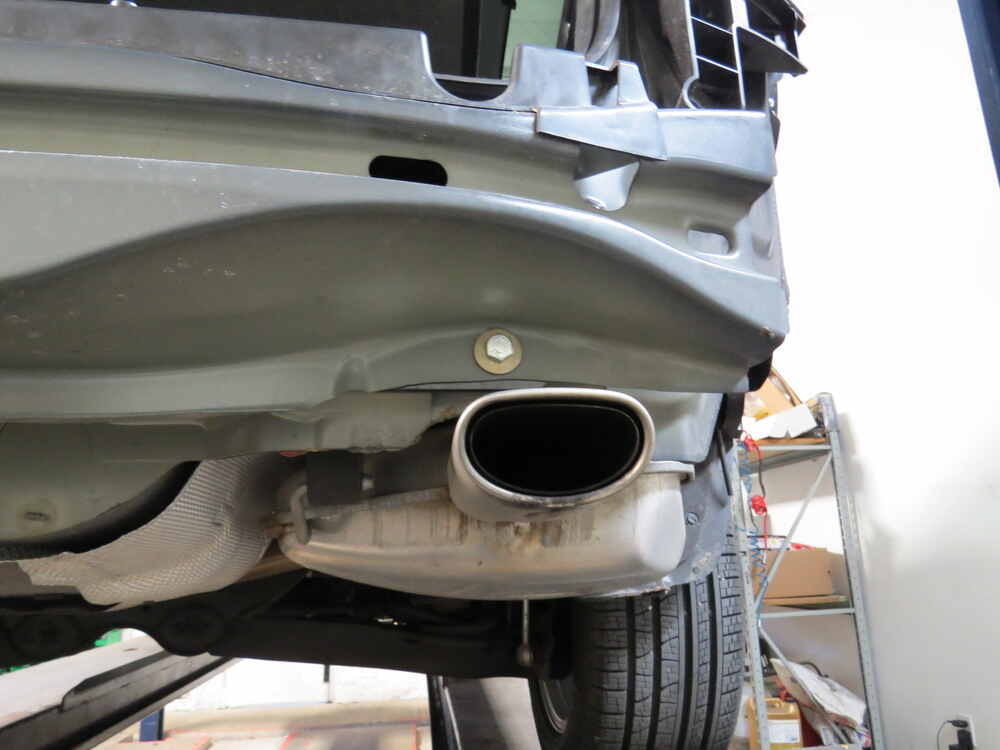

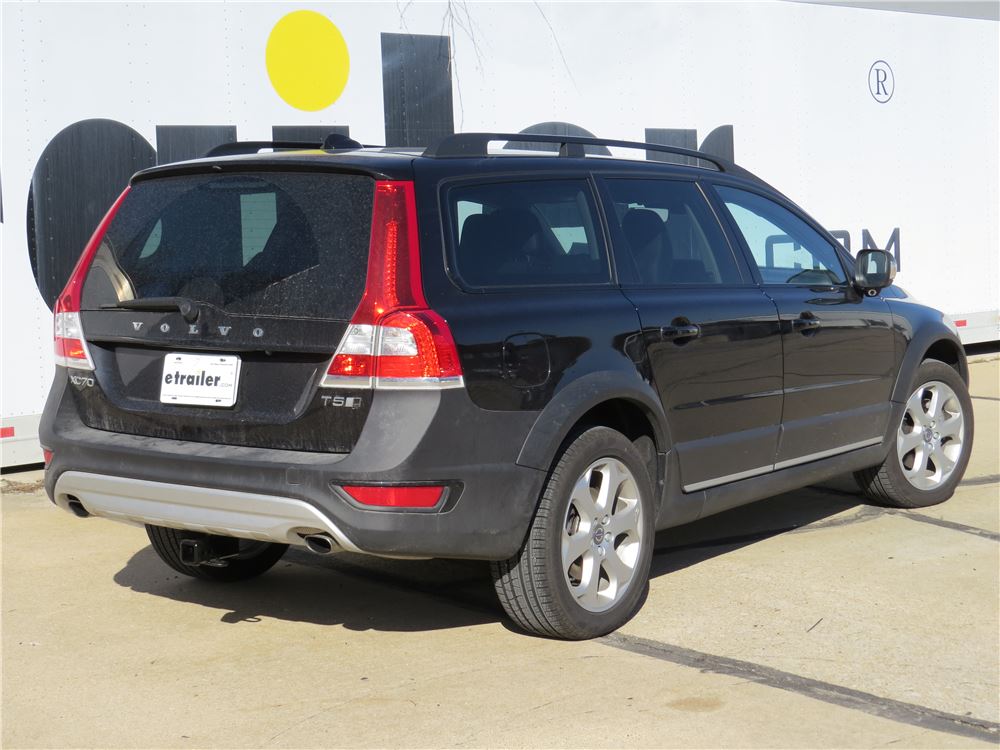

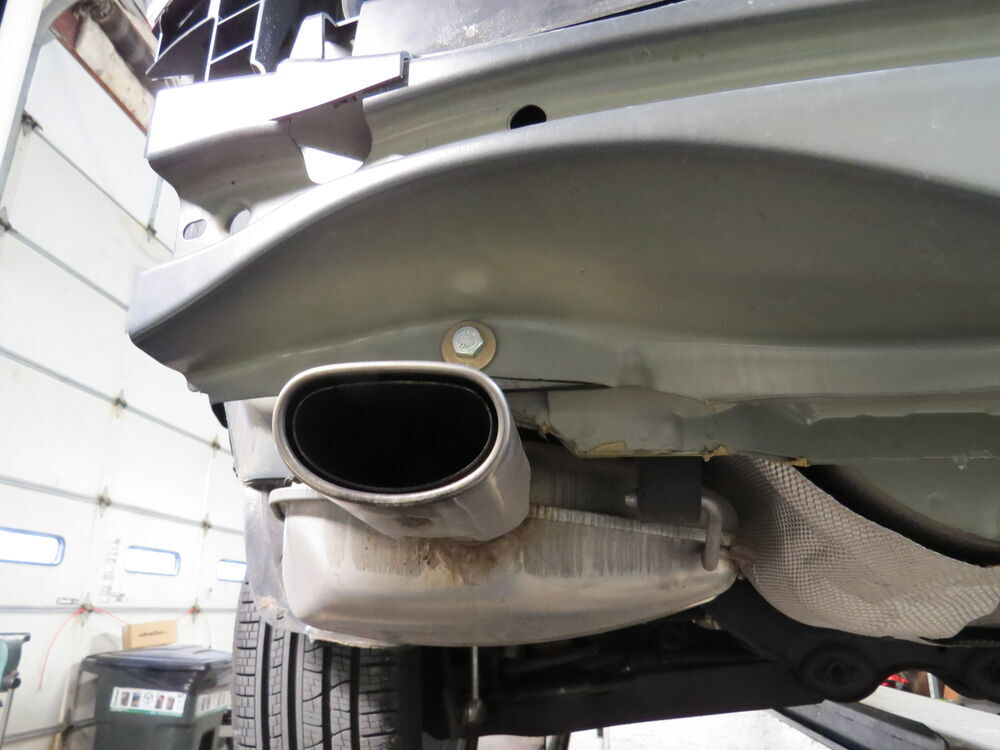

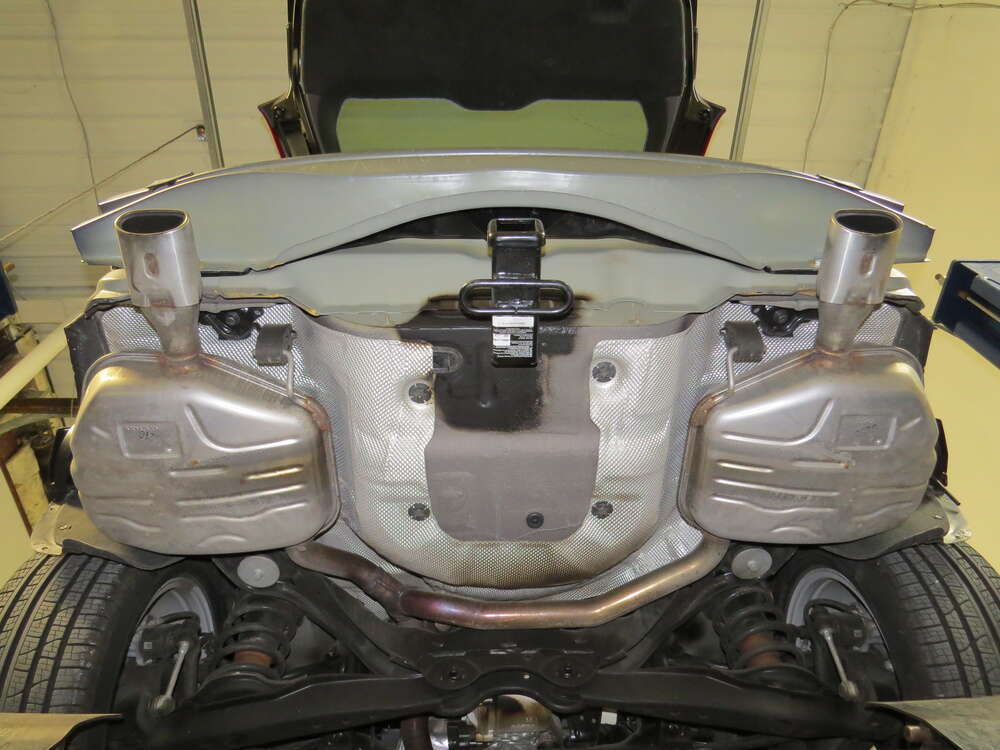

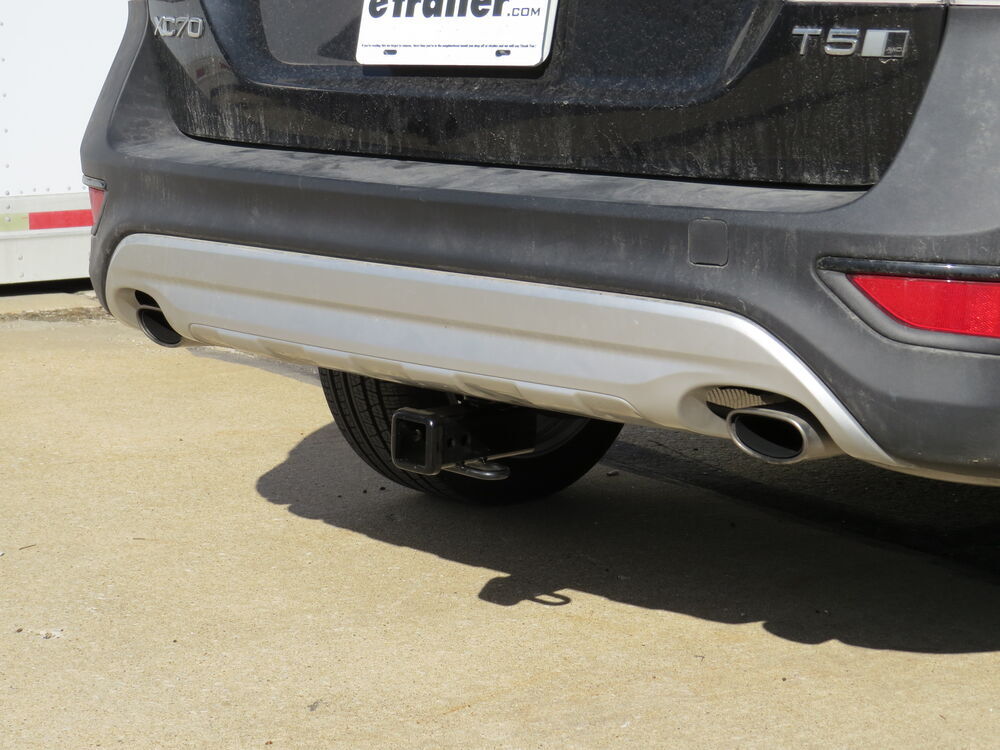

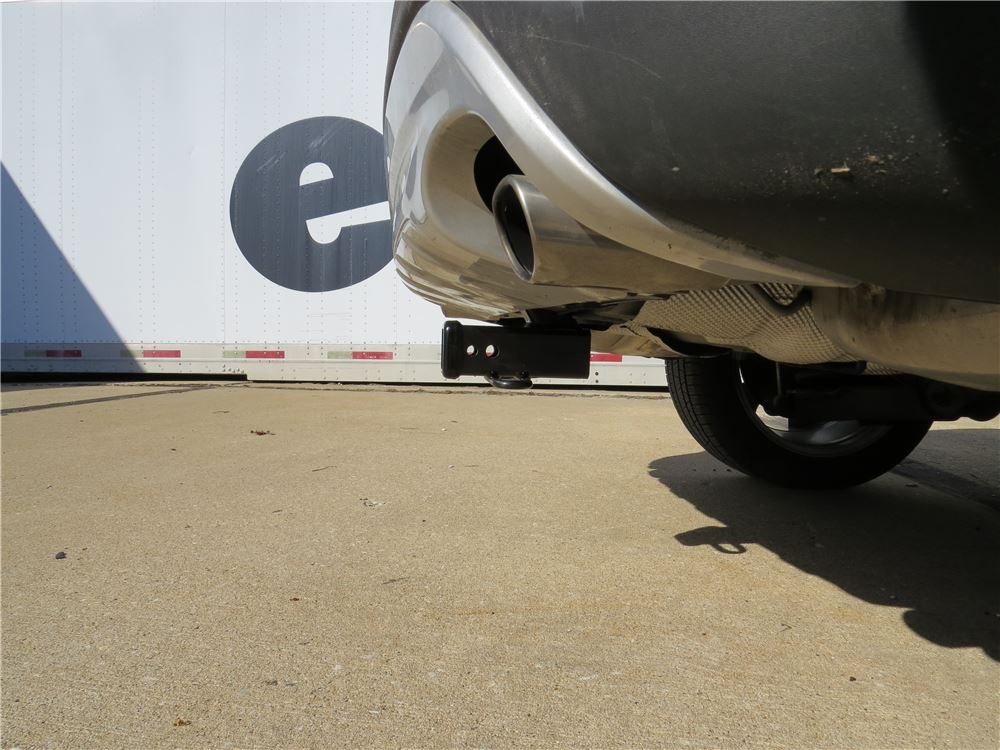

In Use/Installed

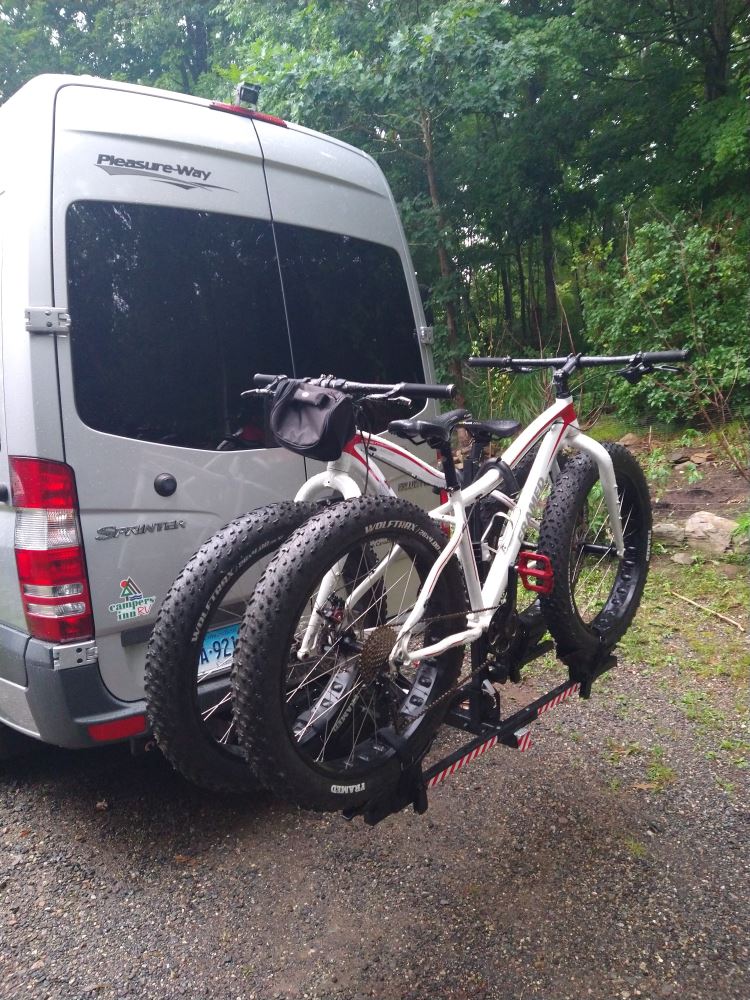

Customer Photos

Need help with installation?
Locate installers near me
Fully welded vehicle trailer hitch is strong and durable. Draw-Tite's Tested Tough guarantee ensures that this hitch exceeds industry standards. The combination of an e-coat base and a powder coat finish provides excellent rust protection. Great Prices for the best trailer hitch from Draw-Tite. Draw-Tite Max-Frame Trailer Hitch Receiver - Custom Fit - Class III - 2" part number 75916 can be ordered online at etrailer.com or call 1-800-940-8924 for expert service.
  • All Info
  • Reviews (155)
  • Q & A (0)
  • Photos

Draw-Tite Trailer Hitch - 75916

  • Class III
  • 2 Inch Hitch
  • 4000 lbs GTW
  • Concealed Cross Tube
  • Draw-Tite
  • 400 lbs TW
  • Custom Fit Hitch

Fully welded vehicle trailer hitch is strong and durable. Draw-Tite's Tested Tough guarantee ensures that this hitch exceeds industry standards. The combination of an e-coat base and a powder coat finish provides excellent rust protection.


Features:

  • Custom-fit trailer hitch lets you tow a trailer or carry a bike rack or cargo carrier with your vehicle
  • Computer-aided, fully welded steel construction ensures strength and durability
  • Tested Tough - safety and reliability criteria exceed industry standards
  • Easy, bolt-on installation - no welding required
    • Complete hardware kit and installation instructions included
  • Lifetime technical support from the experts at etrailer.com
  • Black powder coat finish covers e-coat base for superior rust protection
  • Sturdy, square-tube design
  • Ball mount, pin and clip sold separately


Specs:

  • Receiver opening: 2" x 2"
  • Rating: Class III
    • Maximum gross trailer weight: 4,000 lbs
    • Maximum tongue weight: 400 lbs
    • Not rated for use with weight-distribution systems
  • Limited lifetime warranty


Draw-Tite Tested Tough

Draw-Tite Tested Tough

Draw-Tite's Tested Tough program provides testing standards far superior to those outlined by the Society of Automotive Engineers (SAE), the go-to source for engineering professionals.



Each Draw-Tite trailer hitch receiver undergoes extensive fatigue testing and static testing with the ball mount that is either supplied or recommended for use with that particular hitch, thus ensuring results that are applicable to real life use. Fatigue testing is also conducted on hitches rated for use with weight-distribution systems.


In addition, Draw-Tite performs static testing on a simulated automobile, as opposed to the rigid fixture used for SAE testing, resulting in a more true-to-life scenario.


etrailer.com Technical Support

At etrailer.com we're committed to the products we sell, and to our customers. Our experienced and knowledgeable staff are available via both phone and email to address your questions and concerns for the lifetime of your hitch. The technicians at etrailer perform hitch installations on a daily basis, making them a valuable resource for do-it-yourselfers. The one-on-one, personal service you'll receive comes straight from an expert in the towing and automotive field. We've installed it, we've wired it and we've towed with it, so whatever your question, we can answer it.



75916 Draw-Tite Class 3 Trailer Hitch Receiver - Max-Frame

87674 Hidden Hitch Class 3 Trailer Hitch Receiver

Replaces 75645

Installation Details 75916 Installation instructions

This Product Fits The Following Vehicles



California residents: click here


Customer Satisfaction Score:


Customer Reviews

Draw-Tite Max-Frame Trailer Hitch Receiver - Custom Fit - Class III - 2" - 75916

Average Customer Rating:  4.8 out of 5 stars   (155 Customer Reviews)

Fully welded vehicle trailer hitch is strong and durable. Draw-Tite's Tested Tough guarantee ensures that this hitch exceeds industry standards. The combination of an e-coat base and a powder coat finish provides excellent rust protection.

by:

Very pleased with the purchase of the e trailer hitch, the instructions were right on, everything lined up and installed as I expected.



by:
2014 Volvo XC70

Went in fairly easy. I did it alone. The only part where two people might be needed is installation. The hitch is heavy, the bumper rail that fits over it is not. So you are trying to align the holes in both with the threaded holes, and it is bit tricky. The packing was very good for shipping. The insructions say to use the included washers and bolts only for installations with the raised areas, but I assessed the length of the bolts and chose to use them and the washers. In particular, the tow hook mount is thick, and at least in those two locations I would use the longer bolts regardless. My hitch has about a 1/8" offset from the tube with the receiver to the rest of the hitch - a manufacturing anomaly. Otherwise the fit and finish are perfect. One video shows prying the bumper cover end from the wheel trim, but mine was like the video where the advice is just pull straight out. I had no problem the bumper cover latches - just pull each side end straight out, and work your way along each tailight, pulling outward. I have parking sensora, so I used plastic sawhorses to support the cover while dealing with the connector. It is a bit stubborn. There is a 1/4" wide area with two ridges - which the the "tab" that you press in to release the latch. Take your time it will come apart. The threads of the mounting bolts are suprisingly finicky to get started, which would be another reason two people might make installation easier.



by:
2012 Volvo S60

Great customer service. Great follow up. However, this does not fit a 2012 Volvo S60, whatever eTrailer says. To get the back bumper panel on the car required significant “coaxing” of the bumper bar. The coaxing involved ratchet straps, mallets, a massive steel Indian club. All to say that without bending the impact bar a bit, the bumper panel did not fit.

I’d recommend getting anything other than this trailer hitch if you have a 2012 Volvo S60 as the effort to get it on was not worth it.



by:

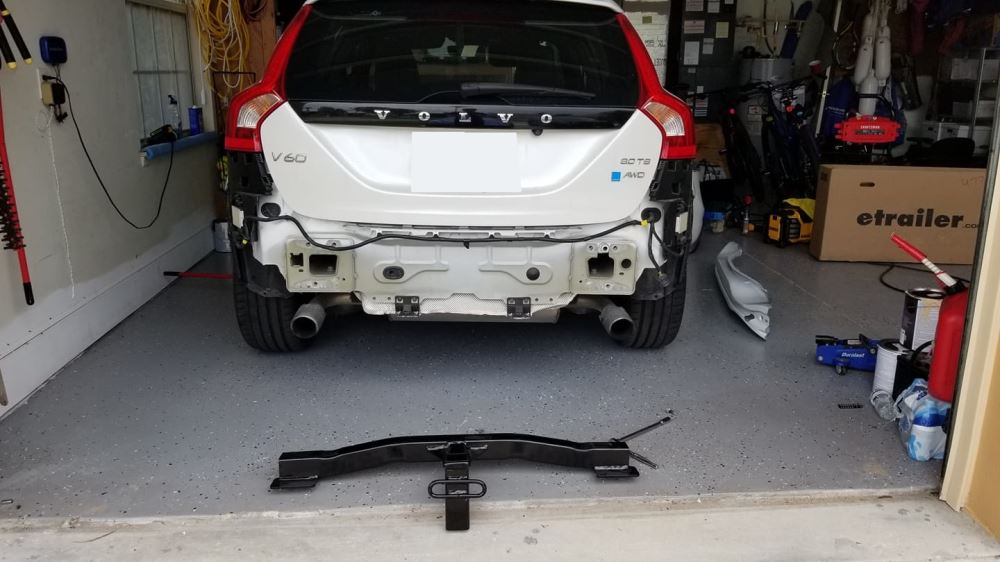

Bought this as a gift for my daughter's 2017 V60 Cross Country. Ordered it last week, here on Monday. Delivery was excellent!

The instructions were thorough. The paper work included the original manufacturing traveler with the QA control marks. Love this!

It helped that I backed the car up on a ramps. It involved less bending and more visibility to the underside of the rear of the vehicle. The clearance to remove the screws in the wheel well was tight. I put a photo of the 1/4" ratchet with the T-25 bit.

Putting in the spacers in the bumper/hitch stackup required some thought and balancing. I started with the bottom two bolts, finger-threaded. That left enough play in the upper four bolts to bring it together.

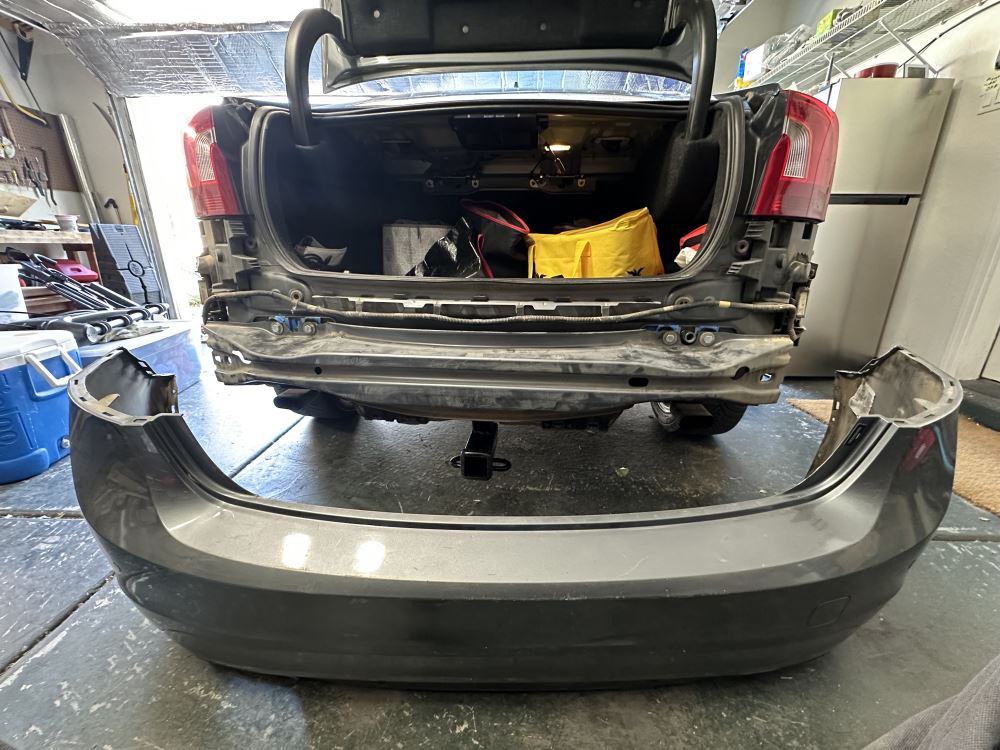

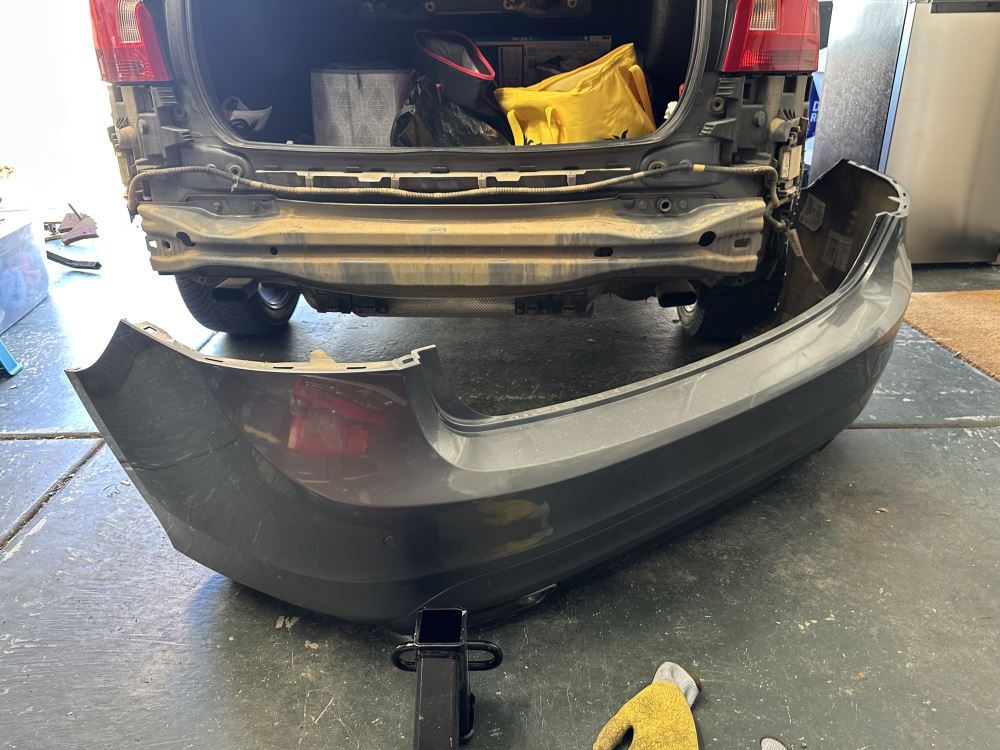

Cutting the bumper for hitch clearance caused me the most anxiety. It's my daughter's baby and I didn't want to mess this up. I used a rotary tool and a utility knife for trimming and it came out fine. I cut a little less than the instructions said at first, just because you can't put back what you cut away. In the end, the fit was perfect.

The total project took about three hours, including supper. I'm very happy with the product and the on-line help available to finish this job. Let's see what my daughter thinks tomorrow... (grin).

Steve

6/9/2021

After a year, still stout! My daughter loves it!



by:
2013 Volvo XC70

Installed on a 2013 Volvo XC70. Used the video installation video found on webpage of product to install the hitch as well as going over the instructions.

Product arrived undamaged in proper secure shipping box. Came with bolts washers and spacers. The spacers were not mentioned in the video install guide, the paper instructions explain them, but it would be more helpful if the install video addressed them. I figured out I did not need them on my model (I hope), after reading the instructions.

Removal of bumper: My bumper had lights/wiring connected. I could not for the life of me disconnect the wiring, so it just moved it to the side and set it up on supports to not cause tension on wiring that connects bumper lights. Was able to install hitch without issue.

Instructions were a little confusing on location to cut out of under bumper for hitch clearance. My cut was a little wide on one side, tried to show in picture looking up at hitch.

Having the correct tools will greatly help. I actually had to cut a portion of my torx screwdriver handle, so I could remove one of the torx screws holding on the wheel fender well. It was that or remove the tire. A small or angled torx screwdriver would be best.

Overall a easy install for a novice. Took me less than 3 hrs. Having a 2nd set of hands helps when it comes to lifting the hitch and bumper piece up and starting a couple bolts. I installed this by myself.



by:

Information in the online "catalog" provided complete info needed to make a decision. Hitch and accompanying wiring harness were received promptly, along with easy-to-follow instructions for installation. Entire installation - hitch and trailer light wiring - was completed in under 2 hours. No glitches. This is the 2nd time I have used etrailer.com. They have their program down pat, from timely acknowledgement of the order, to shipping, to quality products.



by:
2008 Volvo V70

Just picked up my 2008 Volvo V70 from my mechanic who installed the trailer hitch & it looks great! Everything is concealed except the receiver & I couldn't be happier with it! Even my mechanic was impressed with it! I purchased it along with a Thule bike rack so that I could take my bike with me on an upcoming trip. The ordering process was easy & I talked to a live person so that any questions I had were answered. The hitch, locking pin & bike rack arrived very quickly. Would highly recommend ordering from etrailer!



by:

The product came quickly and was packaged well to avoid damage. I was surprised how strong it was. Installation was pretty easy, I wouldn’t say a 10 in difficulty like the website. More like a 6. I was concerned it wouldn’t fit my car which is a special model called R Design, but it fit perfectly. The most difficult part was getting both sides of the bumper to align, the spacers push out the bumper pretty far so the cover is a very tight fit., think wife trying to fit into wedding dress 15 years later tight. The bottom I wasn’t able to put screws back in so I just used zip ties. I may take a grinder to trim Back the spacers a 1/4 inch to better fit without zip ties. I would very much recommend. It looks good and is well hidden. Installation hints: put tape on the rear fender to avoid scratching while putting bumper back on. Also do a search of online videos to see how to remove Bumper cover, that easily saved me 40 minutes.



by:
2016 Volvo XC70

I installed this today on a 2016 XC70. The video really spells it all out extremely well. I would add a couple of points to watch out for.
1) the 10mm nuts under the bumper fascia are plastic. Mine were finger tight. When you reattach them, use a wrench and not a power driver or you risk stripping and splitting the plastic.
2) I have parking sensors and corner marker lights in the bumper fascia. You’ll need to disconnect that as you remove the fascia. Have a helper hold up the fascia while you do this, or support the fascia on a box or something else.
3) I did the job solo, with the car on the ground. The step where you lift the hitch and the bumper onto the car and attach it is probably best done with a helper. However, I was able to support the hitch on a step stool at the correct height to attach the bolts into the car.

Next up, doing the wiring. I use this hitch to attach a Yakima 4-bike rack with the Lampost lighting device (this is no longer available from Yakima).



by:
2008 Volvo XC70

Installed on a 2008 Volvo XC70

This
really couldn't have been any more straight forward to install. I hit a snag with a stripped bolt in a hard to reach place (13mm bolt connecting to the tow hook assembly on the right side), but once I resolved that issue by moving some additional components out of the way, it was smooth sailing. You don't need any specialized tools, and I was able to do the job from start to finish with T20 and T25 torques bits, and 10mm and 13mm socket wrenches. Took about 1.5 hours by myself.

TIP: A floor jack makes an excellent set of extra hands for holding the hitch in place when bolting it in by yourself!

etrailers has a great set of installation videos [online] that were extremely easy to follow. I used this one for my 2008 Volvo xc70.



by:

I should have bought from etrailer sooner!! I’ve been reluctant to add a receiver hitch to my Volvo wagon due to aesthetics. I’ve always had one on my Ford trucks - but hey this is my kinda sporty grocery getter wagon. Well I’m getting older and would prefer a bike rack below shoulder level. That lead me to want a receiver hitch and my daughter’s fiancé used etrailer to find a hitch, so he sent me a link to the web site. Options, prices, videos were over the top and I ordered one on my first visit. It arrived today and I’m completely satisfied with design and workmanship. Here’s a photo of the install without the bumper cover reinstalled. Couldn’t have done it without the videos. Once the bumper cover is back on I won’t even notice the addition.



by:
2016 Volvo V60

The hitch was easy to install on our 2016 Volvo V60 and took about an hour and a half. A couple things that will help make the install easier. Have something to lay your bumper on. After you remove the screws and connectors at the top of bumper shroud be prepare to pull hard starting at the wheel wells and the cover should come free easily. When putting it back I suggest you start at the top near the car entry and work down to the wheel wells it willl be easier to get things aligned for the screws in the wheel well. Make sure you have all the right tools. We had to make a slight cut in both our muffler heat shield and shroud underneath the bumper where the hitch will hang. Not hard to cut just take your time and make sure the cuts are aligned. It saved us over $400-$500 doing ourselves and purchasing the hitch on etrailer.



by:
Ford Transit Connect

This is the fourth different hitch that I have purchased from etrailer.com, and once again... a smooth and easy installation.

From start to finish, etrailer.com does it right. The Draw-Tite hitch and all components were packaged safely and carefully. No damage in transit.

The instructions were thorough, and the online videos helped to clarify the details.

The finished project is quite satisfactory. This do-it-yourself kit looks like a professional, factory installation!



by:

I'd like to register a complaint. Typically, for car projects in the garage, I like to allocate an entire afternoon with just me, my tools, and plenty of pilsner beers to complete the task.
This install was so straightforward and easy, thanks to the instructions and online videos, that I completed the project in only 2.5 pilsners. This allowed me too much time to work on my wife's assigned projects for the rest of the afternoon.
But seriously... This a real-deal, top quality product. I've towed lots of stuff with it with no problems. And it's not obtrusive-looking on the car. Good stuff. Highly recommend!



by:
2016 Volvo V60

I installed this receiver hitch on a 2016 Volvo V60 Cross Country T5. I watched the instructional videos and made my installation take no time at all. I only reverted to the written instructions for the amount of torque required on the bolts. I was skeptical about cutting the trim to fit the hitch but I think it looks very professional and at the right heath for my bike carrier. Thank you.



by:
2016 Volvo V60

I think the estimate of 2 hours to install is a good one. In fact, most of the issues I had was while trying to get the body panels back on. One tip I would make is that you have a vinyl siding tool handy. I had one and it made it easier to pop the panels back on.
Regarding the hitch, it was a piece of cake. Instructions were clear (watched the video online first) and components are excellent. I am very pleased with the installation and finish. I think my friends and relatives are now lining up to have me help them.



by:

Hitch fit like a hand in a glove. Well finished, speedy delivery, with appropriate hardware which I didn't need. Video implied easy, straight forward bumper cover removal, but was the most difficult to execute, Volvo's to blame for that one.

Finished product is of sight except for the receiver.



by:
2009 Volvo XC70

Excellent product and fast delivery



by:
2016 Volvo XC70

I'm sure the design and build of this product are excellent. But the packaging and shipping leaves much to be desired. The hitch came rattling around a large box, breaking through the sides, crushing the other products inside, and chipping the paint

Jason

1/30/2023

The hitch and wiring from etrailer are holding up very well. I towed a 5 x 8 U-haul cargo trailer about a thousand miles with zero issues. The finish is holding up including in the spots where I touched up the factory paint job



by:

The hitch came quickly and fit perfectl y.



by:
Volvo XC70

Great hitch and super easy to install on Volvo XC70. Start to finish the install was a two hour job for one person...only one step requires two people. The install video was super informative and easy to follow.



by:
2015 Volvo S60

When I read it was a 10 of 10 for difficulty I was a bit worried. This install was a breeze. My 15 year old helped me and we were done in just over an hour. On the S60 we did not even need to cut the bumper cover. Cannot even tell it's installed unless you are looking for it.



by:
Volvo

Has worked well and no installation issues on my 2015 Volvo XC70



by:
2016 Volvo XC70

everything received was perfect and installation video was huge help! It took me just under two hours to complete install and I could not be happier! Thanks... You folks are the best!!!



by:
2015 Volvo XC70

As advertised, easy install. Nice to have 2 people for bumper removal and install to make sure you don't scratch any paint on the sides. Only issue I had was outer ring on 2" trailer hitch entry area was welded a little off center. Needed to file entry area to get hitch to insert. Have used the hitch several times. Would give a rating of 5 stars if I wouldn't have had the file issue.


25
156
Show More Reviews

See what our Experts say about this Draw-Tite Trailer Hitch

  • Recommended Class III Hitch and 4-Way Wiring Harness for 2015 Volvo XC70
    For your 2015 Volvo XC70 I would recommend the Curt # 13266 over the Draw-Tite # 75916. These trailer hitches have an almost identical design. Although the Draw-Tite has a higher towing capacity, it looks like both of the hitches exceed the towing capacity of your vehicle so you will be limited by your vehicle. I would double check the owner's manual to make sure. Both have a concealed cross tube, so you will only see the receiver tube at the back of the vehicle giving it a factory look....
    view full answer...
  • Trailer Hitch and Bike Rack Recommendation for a 2012 Volvo S60 T5
    The most popular bike rack we carry that has been confirmed to fit this vehicle is the Thule Camber 2 part # TH9058. We asked our demo and install guys to name their favorite, most easy-to-use bike racks and this one showed up in nearly everyone's top three. Check out the review video I attached for more info. For a hitch you would want the Draw Tite part # 75916 which attaches to the rear impact bar of the vehicle. I attached a diagram that shows this as well. If you plan on carrying...
    view full answer...
    Image 1 for

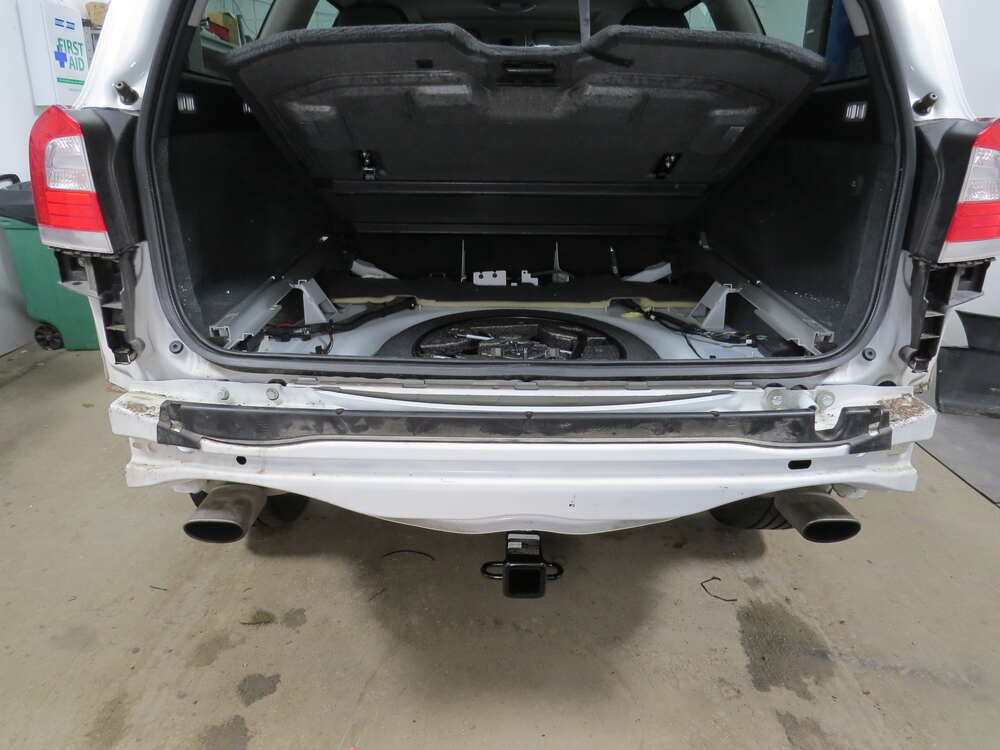

  • Does Impact Bar of 2015 Volvo V60 Need to be Removed to Install Draw Tite Hitch
    In the installation instructions for the Draw-Tite Max-Frame Trailer Hitch Receiver, part # 75916 the impact beam is removed in step 3. It is then re-installed in step 8, so you do not have to worry about the trailer hitch and the amount of damage that would occur with it removed. In the attached video for this hitch our installer does reinstall the bumper beam/impact bar. You do need to reinstall it. Check out the attached install video to see if any steps may have been skipped.
    view full answer...
  • Trailer Hitch Receiver and 4-Way Vehicle Wiring Harness For a 2017 Volvo V60 Cross Country
    Yes, the Draw-Tite Trailer Hitch Receiver # 75916 you found for the 2017 Volvo V60 will also fit your Cross Country model. Be sure to install the Vehicle Wiring Harness # C56287 when you install the receiver. The will provide you with a 4-way flat connector if you need to tow a small trailer as well as run Auxiliary Lights # C53201 with a hitch mounted accessory which impairs the view of your tail lights.
    view full answer...

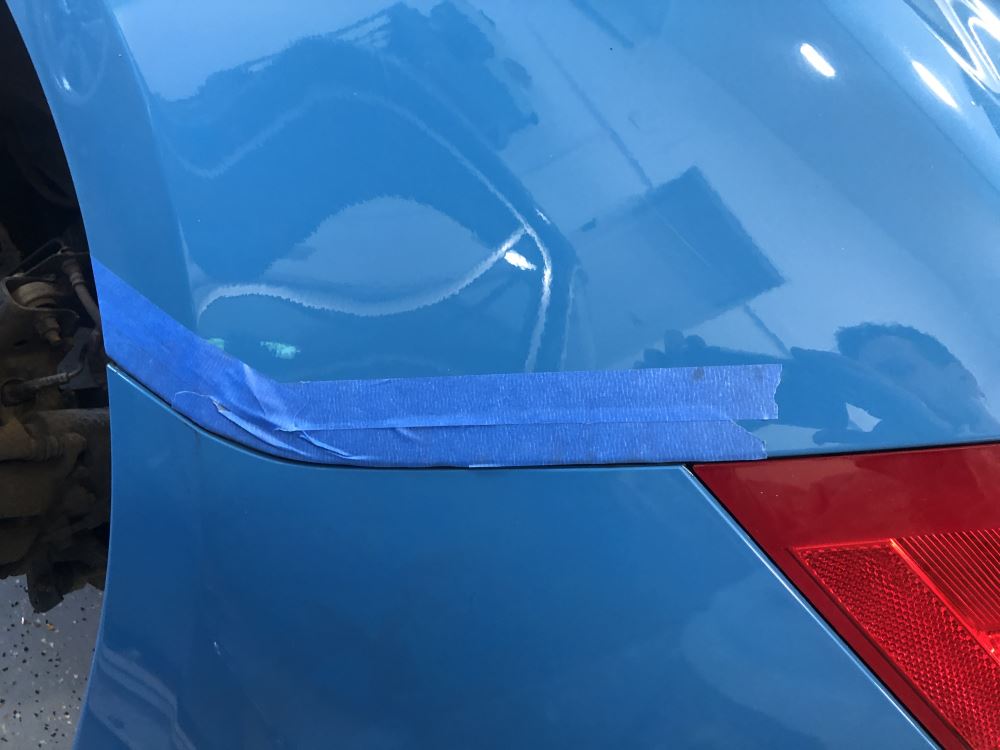

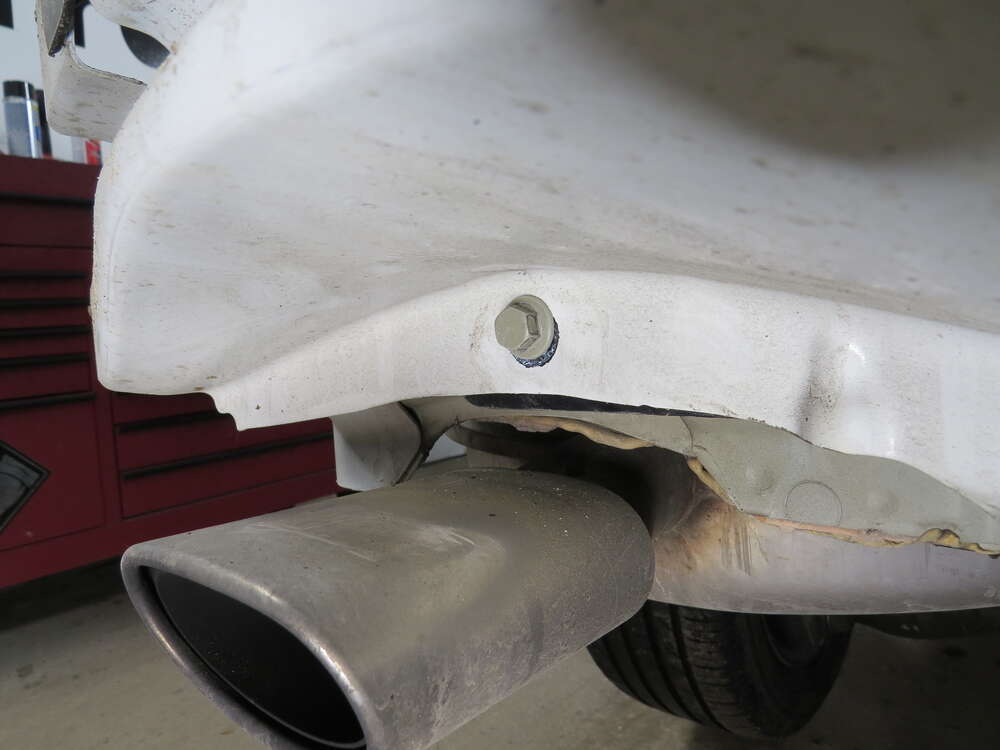

  • What Do the Raised End Panel Edges Look Like When Installing a Trailer Hitch on a 2009 Volvo V70
    I have attached a photo for you which shows a vehicle WITH the raised edges on the end panel and a vehicle WITHOUT the raised edges on the end panel. This end panel is attached to the vehicle's body, not the rear bumper fascia. If you take a look at the attached review video on the Draw-Tite Max-Frame Trailer Hitch Receiver part # 75916, at the 5:50 mark you can see a smooth end panel on a similar Volvo XC70 which is pretty much the same as your V70 when it comes to installing a trailer hitch.
    view full answer...
    Image 1 for
  • Trailer Hitch Receiver Height and Ground Clearance on 2012 Volvo XC70
    The Draw-Tite Max-Frame Trailer Hitch Receiver - Custom Fit - Class III - 2" # 75916 will give you a hitch height of 14-1/4 inches from the ground to the inside top of the receiver. That means you will have a ground clearance of 11-3/4 inches at the hitch. The Curt Trailer Hitch Receiver - Custom Fit - Class III - 2" # 13266 will be slightly shorter at 13-1/2 inches to the inside top of the receiver giving you 11 inches ground clearance at the hitch. If you will be towing with this hitch,...
    view full answer...
  • Determining Towing Weight Capacities of 2013 Volvo XC70 and 2019 Subaru Outback Wagon
    The Draw-Tite Hitch # 75916 is rated for 4,000 lbs towing/400 lbs tongue while your 2013 Volvo XC70 is rated for about 3,300 lbs towing/330 lbs tongue from what I could find online (you will want to verify this in your copy of the owner's manual). The Draw-Tite Hitch # 76227 is rated for 4,000 lbs towing/600 lbs tongue while your 2019 Subaru Outback Wagon 3.6L is rated for 2,700 lbs towing/200 lbs tongue. When determining the towing capacity of your trailer hitch/vehicle you will be limited...
    view full answer...
  • Will the Draw-Tite Max-Frame Trailer Hitch fit a 2015 Volvo V60 Cross Country
    Thanks for sending a picture! It certainly helps. Yes, the Draw-Tite Max-Frame trailer hitch receiver # 75916 will fit your 2015 Volvo V60 Cross Country. If you have a 2016 model, it hasn't been tested yet. In order to complete the installation, fascia trimming is required and underbody panel will need to be temporarily removed. Great thing is that no drilling is required. If you plan on towing, you will need trailer wiring # C56287 but if your model was built prior to the mid year update,...
    view full answer...
    Image 1 for
  • Will Draw-Tite Trailer Hitch Receiver Fit On a 2017 Volvo V60 Cross Country
    All of the trailer hitch receiver's we offer for your 2017 Volvo V60 will work on the Cross Country models. I recommend the Draw-Tite Max-Frame Trailer Hitch Receiver # 75916 due to its low-profile design that once installed only leaves the receiver showing.I included a picture of the Draw-Tite # 75916 installed on a customers Volvo V60 Cross Country for you. The Draw-Tite # 75916 also has a higher maximum tongue weight, and maximum trailer weight rating. Make sure to check your vehicle's...
    view full answer...
    Image 1 for
  • Trailer Hitch and Wiring Recommendation for 2008 Volvo XC70
    The best hitch for your 2008 Volvo XC70 is the Draw Tite part # 75916 which is mostly hidden and has the best towing capacities. I attached an install video for this for you to check out as well. Then for trailer wiring you'd want the part # 118774 which is the most reliable and the easiest to install. If you wanted to do some towing you might be interested in etrailer ball mount kit # 989900. It comes with 2 ball mounts; one with a 3/4 inch rise or 2 inch drop and one with a 2-3/4 inch...
    view full answer...
  • Recommended Trailer Hitch and Wiring for 2018 Volvo V60 R Design
    Starting with the trailer hitch I recommend the Draw-Tite Class III Max Frame Receiver Hitch # 75916, which is confirmed to fit the R Design edition of your 2018 Volvo V60, because it is the highest rated unit available for your vehicle. This will provide you with a 2 inch receiver opening, will use existing holes in the Volvo's frame for a no-drill installation, and features a clean hidden-crosstube design where only the receiver will be visible (see attached photo). I have attached...
    view full answer...
    Image 1 for
  • Trailer Hitch Fit for 2017 Volvo S60
    The Draw Tite hitch part # 75916 that you referenced is a confirmed fit for your 2017 Volvo S60 so it would be what we recommend. If you wanted to do some towing you might be interested in etrailer ball mount kit # 989900. It comes with 2 ball mounts; one with a 3/4 inch rise or 2 inch drop and one with a 2-3/4 inch rise or 4 inch drop. It also includes a 1-7/8 inch ball, 2 inch ball, hitch pin with clip, and a storage bag. If the ball mount kit does not include a ball mount with the...
    view full answer...
  • Will The Draw-Tite Trailer Hitch Receiver # 75916 Fit a 2017 Volvo S60 Cross Country?
    Jenny, I can confirm the Draw-Tite Max-Frame Trailer Hitch Receiver # 75916 will fit on your 2017 Volvo S60 Cross Country. While Matt did not get the receiver from us we do have several reviews verifying the fitment without any issues. I recommend installing the Curt T-Connector Vehicle Wiring Harness # C56224 when you install the receiver. This will give you the common 4-way flat connector used on most small trailers and with Auxiliary Lights # C53201.
    view full answer...
  • Will Manufacturer Warranty Be Void on 2018 Volvo S60 if a Trailer Hitch is Installed?
    When you install an aftermarket part like a trailer hitch receiver on your vehicle you are protected by the Magnuson–Moss Warranty Act. This act states, in part, that unless the installation and/or the part specifically caused a problem with your vehicle then the warranty cannot be voided. I recommend looking it up online. For your 2018 Volvo S60 I recommend the Draw Tite hitch part # 75916 because it has the highest capacities, has a 2 inch receiver compatible with more accessory options...
    view full answer...
    Image 1 for
  • Using Factory or Supplied Hardware to Install a Trailer Hitch on a 2014 Volvo XC70
    Yes, I read it the same way you do. If the end panel on your 2014 Volvo XC70 is flat then you will not use the washers, blocks, or hex bolts for installation. You will use the factory hardware.
    view full answer...
  • Will Kuat Sherpa 2.0 Bike Rack Fit 2011 Toyota Highlander And 2015 Volvo V60
    The Draw-Tite Max-Frame Trailer Hitch, part # 75916 is a great fit for your V60. This is a Class lll hitch and it has a 2-inch receiver opening. The Kuat Sherpa 2.0 2-Bike Platform Rack will work with both vehicles. This rack has a weight capacity of 40-lbs per bike and weighs just 32-lbs. The ratcheting hooks hold the bikes firmly by the wheel and not the frame. These do come in a variety of colors. for the Gray colored bike carrier you can order part # SH22G and for Black you can order...
    view full answer...
  • Why Does the Curt Trailer Hitch Require a Safety Strap and the Draw-Tite Does not on 2017 Volvo V60
    That is just a warranty requirement that Curt has decided to add for a lot of their Class I, Class II, and some Class III trailer hitch receivers which are rated for smaller towing capacities. Because of this, I tend to recommend the Draw-Tite hitches like part # 75916 for your 2017 Volvo V60 or the Curt hitches, like part # C12066 for your V60. For your V60, the Draw-Tite trailer hitch receiver is a Class III and has a higher weight capacity, 4,000 lbs, and tongue capacity, 400 lbs,...
    view full answer...

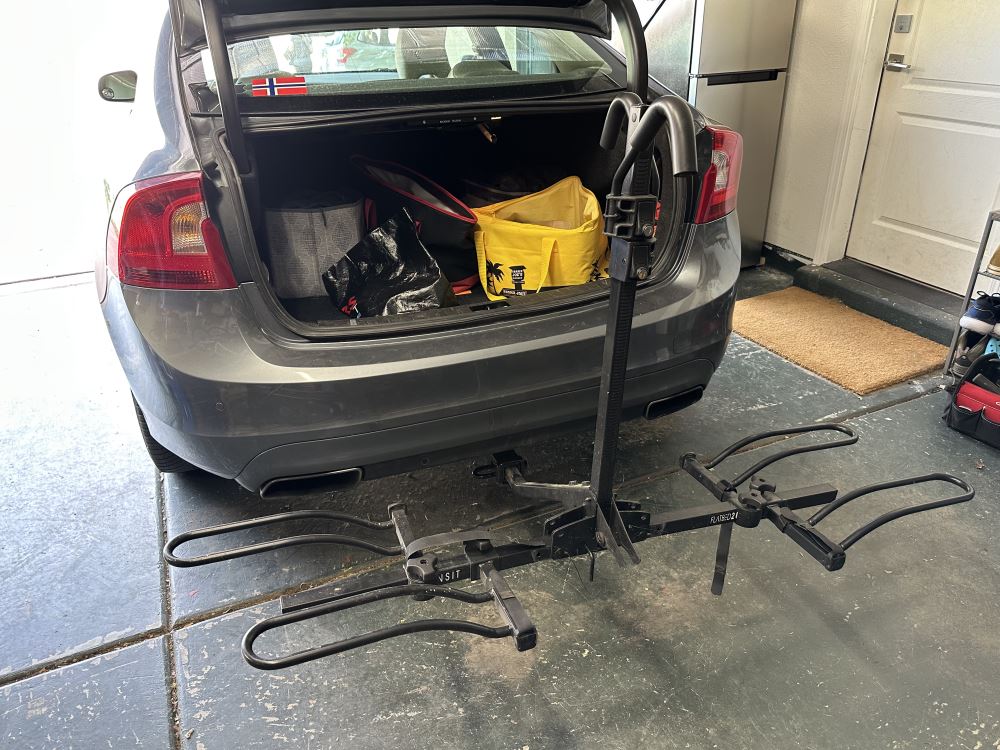

  • Hitch and Bike Rack Recommendation for 2014 Volvo S60
    For your 2014 Volvo S60 the Draw Tite hitch part # 75916 would work well for carrying a bike rack. It's the exact same hitch as the Hidden Hitch you referenced as they are made by the same company. This hitch has a 2 inch opening though so it will require rack to have the same size shank. Most likely the adapter you mentioned would not be available so it would be time for a new bike rack. The most popular bike rack we carry that has been confirmed to fit this vehicle is the Thule Camber...
    view full answer...
  • Hitch and Bike Rack Recommendation for 2016 Volvo V60
    The first thing you'd need to install a hitch bike rack on your 2016 Volvo V60 will be a hitch like the Draw Tite part # 75916 that fits your V60, has plenty of capacity, and is mostly hidden. Then for a bike rack I really like the Hollywood Racks Trail Rider part # HR200Z as it's very well made and stable, is easy to load, and costs less than similar bike racks that rival it's quality.
    view full answer...
  • 7-Way Trailer Wiring Harness Recommendation For A 2015 Volvo V60
    The Draw-Tite Max-Frame Trailer Hitch Receiver # 75916 is a confirmed fit for your 2015 Volvo V60 and will work great for you. For wiring there is not an aftermarket 7-way only to setup your V60 so the # 118265 will not work for example but there is another solution. You can start with installing a 4 way Vehicle Wiring Harness with 4-Pole Flat Trailer Connector # C56287 and use the Universal Installation Kit for Trailer Brake Controller part # ETBC7 to provide your 7-way too. If the...
    view full answer...
  • Recommended Locking J-Pin For Draw-Tite Trailer Hitch
    The J-Pin I recommend for your Draw-Tite Hitch, part # 75916 is part # 63201. The second hole on the hitch is designed for an anti-rattle pin like # 63201. This pin comes with the lock to secure it and prevent theft and a wrench to tighten the pin to reduce rattle. The j-Pins are no longer available for purchase. The second hole is not used for anyting else. I have attached a link to a demonstration video for this pin you can check out.
    view full answer...
  • Trailer Hitch Recommendation for a 2015 Volvo V60 Cross Country
    Yes, the Draw-Tite Max-Frame trailer hitch receiver # 75916 will fit your 2015 Volvo V60 Cross Country. In order to complete the installation, fascia trimming is required and underbody panel will need to be temporarily removed. Great thing is that no drilling is required. If you plan on towing, you will need trailer wiring # C56287 but if your model was built prior to the mid year update, you will need to contact your local Volvo dealership for wiring harness information. For a ball mount...
    view full answer...
  • Recommended Trailer Hitch and Towing Setup for a 2015 Volvo V60 Towing an 18 Foot Boat
    The hitch I recommend for your 2015 Volvo V60 is the Draw-Tite # 75916, because of its 400lb tongue weight and 4,000lbs towing weight. To be able to tow a trailer you will need to run lighting to the trailer from your vehicle, for that I recommend the 4-Way # C56287 wiring harness. This harness is compatible with mid to end of year models, if you happen to have a beginning to mid year model V60 you will want to contact your local dealer for the correct wiring harness. You will also need...
    view full answer...
  • Does a Higher Rated Trailer Hitch Receiver Increase the Towing Capacity of My Vehicle
    Unfortunately, you need to go by the lowest rated component which in most cases, including yours, is the vehicle. Hitch manufacturers often make their hitches rated higher than the vehicles they're designed to fit. Just like with the Draw-Tite # 75916 that fits yours 2015 Volvo XC70. Adding a higher rated hitch (Or anything else) doesn't increase the capacity because the vehicle is still only able to handle the weight it's rated for.
    view full answer...


< Previous




Info for this part was:

Employee Joe V
Test Fit:
Joe V
Employee Brent H
Test Fit:
Brent H
Employee Ryan G
Test Fit:
Ryan G
Employee Mike L
Expert Research:
Mike L
Employee Michael H
Expert Research:
Michael H
Employee Jameson C
Expert Research:
Jameson C
Employee Adam R
Expert Research:
Adam R
Employee Jeffrey L
Expert Research:
Jeffrey L
Employee Zack K
Video Edited:
Zack K
Employee Joshua S
Video Edited:
Joshua S
Employee Jacob T
Video Edited:
Jacob T
Employee Chris R
Video Edited:
Chris R
Employee Laura H
Written by:
Laura H
Employee Leah S
Updated by:
Leah S
Employee Wilson B
Updated by:
Wilson B
Employee Alexander C
Updated by:
Alexander C
Employee Amanda M
Updated by:
Amanda M
Employee Jenny M
Updated by:
Jenny M
Employee Isabelle B
Updated by:
Isabelle B

At etrailer.com we provide the best information available about the products we sell. We take the quality of our information seriously so that you can get the right part the first time.
