summer hauling headquarters

Price: $36.95

In Stock

Draw-Tite Ball Mount for 2" Hitches - 1" Rise, 2" Drop - 8-1/2" Long - 16K

Item # 40330

lowest price pledge

Retail:$52.03

Our Price: $36.95

Ball Mounts

Orders above $99 qualify for Free Shipping

Shipping Weight: 13 lbs

Estimated Delivery: Wednesday, August 22

Enter a zip code for a more accurate estimate.

Quantity:

In Stock
draw-tite ball mounts drop - 2 inch rise 1 class iv 16000 lbs gtw mount for hitches 8-1/2 long 16k
zoom in icon
zoom out icon
pop out icon replay 360 icon
horizontal rotate icon

Product Images

spin image icon
Draw-Tite Ball Mount for 2" Hitches - 1" Rise, 2" Drop - 8-1/2" Long - 16K No Ball 40330
Draw-Tite Ball Mounts - 40330
Ball Mounts 40330 - Fits 2 Inch Hitch - Draw-Tite
Draw-Tite Fixed Ball Mount - 40330
Draw-Tite Ball Mount for 2" Hitches - 1" Rise, 2" Drop - 8-1/2" Long - 16K Class IV,16000 lbs GTW 40330
Draw-Tite Ball Mounts - 40330

Customer Photos

Videos


  • Fixed Ball Mount
  • Fits 2 Inch Hitch
  • Class IV
  • 16000 lbs GTW
  • Drop - 2 Inch
  • Rise - 1 Inch
  • Draw-Tite
  • No Ball
  • Steel Shank
Sturdy steel ball mount with solid, 1-piece shank measures 8-1/2" from center of hitch pin hole to center of ball hole. Angle-cut shank slides easily into your hitch. Powder coat finish over a-coat base provides excellent rust protection. Call 800-298-8924 to order Draw-Tite ball mounts part number 40330 or order online at etrailer.com. Free expert support on all Draw-Tite products. Guaranteed Lowest Price and Fastest Shipping for Draw-Tite Ball Mount for 2" Hitches - 1" Rise, 2" Drop - 8-1/2" Long - 16K. Ball Mounts reviews from real customers.


  • All Info
  • Reviews (107)
  • Q & A (48)
  • Videos (1)
  • Photos
  • Why etrailer?

Draw-Tite Ball Mounts - 40330

Sturdy steel ball mount with solid, 1-piece shank measures 8-1/2" from center of hitch pin hole to center of ball hole. Angle-cut shank slides easily into your hitch. Powder coat finish over a-coat base provides excellent rust protection.


Features:

  • Ball mount lets you hook up your trailer to your tow vehicle
    • Shank slides into your vehicle's hitch receiver
    • Ball platform provides mounting point for hitch ball
  • Angle-cut end on shank allows for easy installation and removal
  • Both drop and rise positions available to ensure level towing
  • Solid, 1-piece forged steel construction
  • Black powder coat finish covers a-coat base for superior rust protection
  • Hitch pin and clip or hitch lock sold separately


Specs:

  • Application: 2" x 2" trailer hitch receivers
  • Gross towing weight: 16,000 lbs
  • Tongue weight: 2,400 lbs
  • Length: 8-1/2" from center of hitch pin hole to center of ball hole
  • Rise: 1" from top of inside of hitch opening
  • Drop: 2" from top of inside of hitch opening
  • Ball hole diameter: 1-1/4"
  • Ball platform dimensions: 1" thick x 3" wide
    • Requires ball shank that is at least 2-1/4" long
  • Pin hole diameter: 5/8"
  • Limited lifetime warranty


40330 Draw-Tite Solid Forged Ball Mount - 1" Rise - 2" Drop - 16,000 lbs

Reese 21330, Hidden Hitch 80142

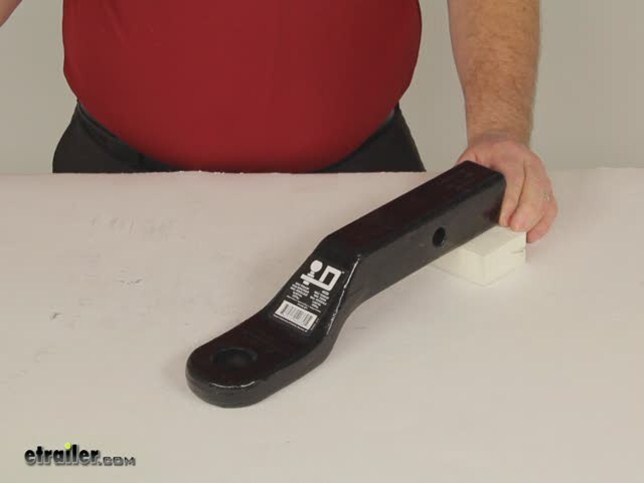

Video of Draw-Tite Ball Mount for 2" Hitches - 1" Rise, 2" Drop - 8-1/2" Long - 16K


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Draw-Tite Ball Mounts 40330 Review

Today we are reviewing part number 40330 from Draw Tite. This is a forged one piece ball mount with a one inch rise or a two inch drop. The towing capacity is 16,000 pounds and the towing rate capacity is up to 2,400 pounds. As you can see it has a drop of two inches from the top of the shank to the ball mount platform and it has a rise of one inch from the top of the shank to the ball mount platform. It measures from the center of the hitch pin-hole which is here to the center of the ball hole-which is here and that is eight and one half inches. The ball mount platform itself is one inch tall.

It has a double powder coat finish so it should resist corosion and rust very nicely. That's it for part number 40330 from Draw Tite-the forged ball mount with a one inch rise or a two inch drop rated at 16,000 pounds.


Customer Reviews

Draw-Tite Ball Mount for 2" Hitches - 1" Rise, 2" Drop - 8-1/2" Long - 16K - 40330

Average Customer Rating:  4.9 out of 5 stars   (107 Customer Reviews)

Sturdy steel ball mount with solid, 1-piece shank measures 8-1/2" from center of hitch pin hole to center of ball hole. Angle-cut shank slides easily into your hitch. Powder coat finish over a-coat base provides excellent rust protection.

- 40330

by:


I was at a farm meeting and university rep. was pointing out the dangers in hauling trailers without proper hitch assemblies.The local hardware chains do not have products made for heavy farm trailers.You guys do have all the equipment anyone needs for this type of hauling.Was happy to correct my light setup before something bad happened.Ignorance is not bliss. 63696


Comments

Very happy with the product and the confidence knowing the hitch is well engineered to handle any load I hook to it

Tim - 07/22/2014

5846

- 40330

by:


This item is really stout, and will give peace of mind when towing my 10,000 pound boat and trailer. 220492


Comments

I appreciate that you take the time to follow up on past reviews and commend you for your interest in doing so. I can report that I am still completely satisfied with the products and the service from etrailer.com.

Mike A - 08/23/2016

20525

- 40330

by:


Great product. Delivered quick no hassle. Would buy again. 222102


Comments

Still working great!

Brett - 08/31/2016

20706

- 40330

by:


I had a great experience ordering from you. Your organization kept me completely up to date with the order & shipping process and delivered the exact products I ordered. Attached is a photo of the 16,000 lbs capacity hitch and 30,000 lbs 2 5/16 ball you sold me in use. The boat and trailer total about 12,000 pounds. Thanks again. 39173



- 40330

by:


I needed a 2 inch drop for my tandem axle trailer to ride correctly but I could not find a ball mount locally to fit my application. An etrailer customer service team member pulled this item from their warehouse, took a couple measurements over the phone to assure me of a correct fit, and shipped it that afternoon. I pulled the trailer last weekend and this solid ball mount from Draw-Tite did the trick. If you have a question, just call 'em. Thanks etrailer! 232442



- 40330

by:


This thing is solid. Have not towed with it yet but since its rated at 16k lbs and my truck is only rated to 7k lbs its more than enough but I never like to run the limits on anything. There area lot more stresses that get put on these things when you have to panic brake for example. Only gave it 4 stars cause it is made in china. I really want American made but that's hard to find. 231169



- 40330

by:


Just received your Forged Ball Mount " rise, 16000 lb for pulling my Case 580-E backhoe. It is exactly what I was looking for and is a quality mount that will give me peace of mind when pulling any load. Your service was excellent and shipping was a day early. I shopped the web to see if I could get a better price, but you beat them all, plus you knew your product. Thanks John F. 55122



- 40330

by:


Hitch looks good. One issue that I think may be something to think about. The hitch that I ordered is rated @ 16,000. There is no where on the hitch that the weight is stamped. This could be problematic when I get inspected by the DOT and have to try and convenience them that the hitch is rated for the 14,000 # trailer that it is connected to. 10329



- 40330

by:


I've made about 5 purchases from etrailer over the past couple of years , and their prices have been excellent . No company which I have ever dealt with , matches their fast service. Etrailer puts most companies to shame , when it comes to speedy , friendly service. If they have what I want , they'll always have my business. 221199



- 40330

by:


I had no idea a regular old slide receiver ball mount wouldn't work for for my trailer. It turns out that my old reese ball mount from Wal-Mart was underrated and thus cracked within 2" of the ball. Thanks etrailer for making hitch grade easy to understand and potentially saving me and my family's life. 292874



- 40330

by:


Sold. Black. 16K. 1" rise 2" drop. Not sure what else to put, if you need something this heavy duty, then it works. If you only need a 6K hitch, it'll work for that too. 16K bumper pull is insane. My total truck and trailer is 13800, so better to have excess capacity than be near or over. 213900



- 40330

by:


Good product only thing I would change is top and bottom surface area where ball goes should be machined parallel to make a good surface to keep ball tight I machined mine before installing it. Im sure that it would have worked with out doing this but might of worked lose over time. 441912



- 40330

by:


This was my first time using etrailer. Everything arrived quickly and all parts were correct. All my equipment fit correctly and was true to the order i placed. I am very satisfied and will definatley be using etrailer again. Also the website is easy to navigate. Thanks. 39944



- 40330

by:


Awesome customer service! They upgraded my shipping for free so I got my hitch sooner than expected. This was the most affordable place I could find this either locally or on the internet. Will be using etrailer nextime I have any trailer needs at all. 396985



- 40330

by:


Exactly what I needed - a super heavy duty receiver ball holder! Arrived quickly and very well packaged. But I wouldn't expect less from e-Trailer - they are very good at providing an excellent product and great customer service. 231295



- 40330

by:


This hitch is heavy duty and the finish on it is very thick and durable. The load ratings on this hitch are great as well as the price so there is no reason for someone to overload and take a chance on other "light" hitches. 118408



- 40330

by:


The forged ball mount is exactly what I wanted, very heavy duty. I also bought a hitch ball and trailer hitch receiver lock. Thank you etrailer for great products at a great price and very fast shipping!!! 226948



- 40330

by:


This ball mount is not your typical square stock, it is a solid piece of steel and heavy! I am using it with a class 4 Curt hitch. It fits well into receiver and ball mount nicely without excessive play. 474890



- 40330

by:


Bought one of the same ball mounts for another vehicle. Didn't see a reason to change what was working. The only change I made was flipping it over and using it as a 1" rise instead of a 2" drop mount. 528065



- 40330

by:


I use this when pulling heavy fertilizer spreaders behind my truck. It is not unusual to have 8000lbs on a spreader. My Coop manager says it it sht heaviest hitch he has ever seen around here. 452308



- 40330

by:


This hitch mount is a beast! It's a little heavy but its solid metal and feels indestructible! I'm very happy with it and the peace of mind that it will not fail is great. Highly recommend it. 302104



- 40330

by:


Needed a stronger ball mount for pulling my stock trailer. This one is perfect. The original I had dropped too much as well. But, be careful, this is one heavy chunk of forged steel. 442170



- 40330

by:


Products were good quality. Ordered showed in stock was built in China and took 4 weeks for deliver. This is not what etrailers website indicated. Unhappy with customer service 434533



- 40330

by:


Product received earlier than expected and was exactly what I had ordered. Etrailer ordering and fulfillment process went perfectly, couldn't have asked for it to be easier. 172581



- 40330

by:


I recently purchased a larger boat (approx. 8,000 lb with trailer and gear) and needed a heavier duty ball mount. No complaints....the ball mount is solid and does its job. 141091



- 40330

by:


I was very pleased with the Forged Ball Mount, Ball and Pin. The shipping was very quick, and the quality and price of the product was great! I will order again! Thank-you 9421



- 40330

by:


This is a very serious and heavy duty tongue. I should have purchased the ball because the shaft size is larger than the 7500lb balls you'll find at the autoparts store. 135832



- 40330

by:


I bought this knowing it exceeds my trucks tow rating, but I wanted the extra peace of mind knowing I have double the protection. It is solid hitch that will outlast me. 57939



- 40330

by:


Ball mount, etc. I am very pleased with the ball mount, ball and hitch receiver lock. They are all very heavy duty, and I am sure they will give me years of service. 3873



- 40330

by:


This has to be the mother of all Ball Mounts! Very pleased with purchase and the excellent shipping. Will hook up with etrailer again when needed. Thanks Guys 80575



- 40330

by:


All of these items met or exceded my expectations. The service was excellant. My next order for similar items will certainly go to etrailer.com. Thanks, 72512



- 40330

by:


It is exactly what I needed for towing my new trailer. I have looked for it everywhere. I need the higher weight rating for my pressure washing trailer. 379384



- 40330

by:


Heavy duty to last a lifetime. Though I was under the impression that draw tight was mad in the USA. Unfortunately I will never buy one of these again. 107758



- 40330

by:


To be honest I just like the solid forged feel better than square tubing. I feel as though it will last longer and I can tow anything I want! :) 215183



- 40330

by:


The ball mount arrived without the Draw-Tite label attached to the product to determine specs. Otherwise, the product arrived in good shape. 110551



- 40330

by:


The quality on this forged ball mount looks as good as other brands out there. The only difference is that yours is cheaper! Thank you! 10269



- 40330

by:


super strong, solid bar which has now worn out at all. we had the tubing one and it only lasted a year but this is not showing any wear. 357555



- 40330

by:


Got this in today, man is it heavy duty. Looks great and will hold up for a long time to come. Thanks for the quick delivery. 221837



- 40330

by:


The forged trailer ball mount was heavy duty good. It is very solid and wont worry about any overload issues with this. Thanks 74575



- 40330

by:


Got what I wanted and the sales person was extremely helpful I would deal with this company without reservations. 179193



- 40330

by:


Solid chunk of metal, stamped with capacity for DOT. looks like it will outlast both the tow vehicle and trailer. 110737



- 40330

by:


Wow, solid (literally) ball hitch. After holding and handling it, I have the utmost confidence in this product. 130630



- 40330

by:


What a beast! Built like a tank and I can probably tow one with this bar. Solid construction. Very impressed 480244



- 40330

by:


Looks strong. Wish that the 16,000 lbs was stamped on the metal because that decal will wear off quickly. 25906



- 40330

by:


could not find anything local comparable. better pricing and better product than i could get local. 49134



- 40330

by:


A little heavier than expected, but very sturdy and should be the last hitch I will need to buy. 40200



- 40330

by:


Made a very nice gift to my brother's family with a new horse. And I supply the truck for now. 411200



- 40330

by:


I was concerned this wasn't going to be stout enough, but this thing is amazingly well built. 99896



- 40330

by:


Solid ball mount and stamped with GVW and tongue weight. Great service and quick delivery. 109776



- 40330

by:


Caught this item on sale for less than $30.00. Great price for a solid steel ball mount. 417148
