Trailer Lights > Tail Lights > Stop/Turn/Tail, License Plate, Rear Reflector > Non-Submersible Lights > 8-1/2L x 4-1/2W Inch > Incandescent Light > Red > Rectangle > Surface Mount > Optronics

Camping Travel Trailer Stop, Turn and Tail Light with License Plate Light and Bracket - White Base

Optronics Trailer Lights

(220 reviews)

Code:   RVST51


Shipping Special

Shipping Weight: 0.8 pounds


Optronics Trailer Lights - RVST51

Overall dimensions 8-5/8" L x 6-5/16" W x 2-1/16" D; Corrosion resistant; replaceable lens and bulb; surface mount on 7" centers; 3-wire; 1-bulb incandescent


  • Red, rectangular light functions as combination stop, turn, and tail light with license plate illuminator
  • Light is mounted on a white molded plastic bracket
  • Weather and corrosion resistant
  • Replaceable lens and bulb
  • Wiring design contains lead wires and a ground wire to mount to all surfaces
  • Bracket surface mounts on 7" centers or at the four corners with 7-1/8" centers
  • Overall dimensions: 8-5/8" L x 6-5/16" W x 2-1/16" D
    • Width without mounting bracket: 4-5/8"

Wiring Connections

  • White wire: Ground wire to trailer frame
  • Black wire: Tail light circuit
  • Green wire: Brake and turn signal circuit

Camping Travel Trailer Stop, Turn and Tail Light with License Plate Light on White Base

This is a multifunction stop, turn, and tail light with a license plate illuminator on a white bracket. This red light measures 8-5/8" long x 4-5/8" wide x 2-1/16" deep, while adding the mounting bracket makes the width 6-5/16". The molded plastic housing and durable lens provided all-weather protection against corrosion. The light features a replaceable, snap-on lens and easy-to-replace bulb. The white bracket mounts on 7" centers. The wiring design includes the lead wires for power and a ground wire for mounting to any surface.

Manufacturer Cross Reference
Light will work as an exact replacement for:
Wesbar # 3622
Peterson # 2534W

Manufacturer Specifications

Combination stop, turn and tail light with white base. Includes license plate illuminator, mounting bracket and ground wire. Features snap-on, replaceable lens and easy to change replaceable bulb. All-weather, molded plastic housing and durable lens protect against corrosion.

dimensions of light

RV-ST51 Optronics RV Stop, Turn and Tail Light with License Plate Illuminator

Video of Camping Travel Trailer Stop, Turn and Tail Light with License Plate Light and Bracket - White Base

Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

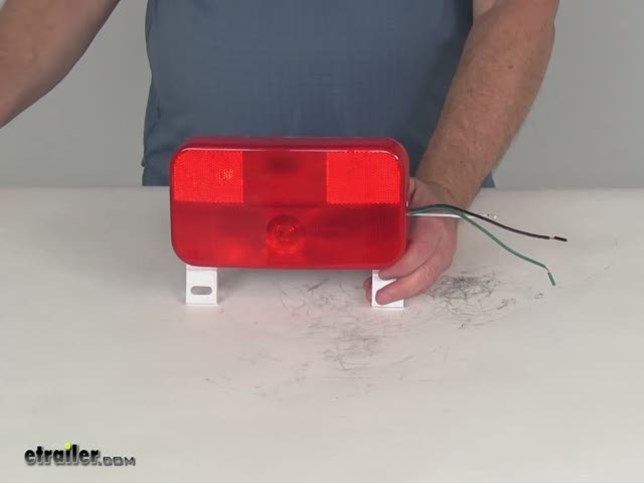

Video Demo Optronics Trailer Lights RVST51
Optronics Trailer Lights RVST51 Review

Video Transcript for Optronics Trailer Lights RVST51 Review

Today we are going to review Part Number RVST51. This is the Optronics Camping Travel Trailer Stop, Turn and Tail Light with a License Plate Bracket. This is a multi-function stop, turn and tail light with a license plate light on the bottom and mounting tables for the license plate. This is a molded plastic housing and a durable lens which will provide all-weather protection against corrosion. This light does feature a replaceable snap on lens and an easy to replace bulb. The Bulb Number would be a 2057.

On the mounting bracket, it does use these four holes which are 7 inches on center. Center to center is 7 inches and this way would be 3-1/8. The wiring is a 3-wire system which would be a white wire for ground, the black wire for the tail lights and the green wire for the stop and turn signal. This tail light is weather and corrosion resistant. The overall length is 8-5/8 inches.

The width of just the light is 4-5/8 inches and the depth on the light is 2-1/16. Also, the measurement from the top of the light down to the end of the bracket measures 6-5/16 inches. One last measurement; the distance from the license plate bracket is the normal standard measurement but these holes are basically 7 inches on center. Now what I am going to do is hook it up to a power supply so we will be able to show you the brightness of the light. Basically we will do white for the ground and do black for the tail light.

There is the brightness for tail light. Then we will hook up the stop and turn and this will show you the stop and turn. Now what I am going to do is turn off the overhead lights to show you this is the tail light and that would be the stop and turn. That should do it for Part Number RVST51.

Customer Reviews

Camping Travel Trailer Stop, Turn and Tail Light with License Plate Light and Bracket - White Base - RVST51

Average Customer Rating:  4.8 out of 5 stars   (220 Customer Reviews)

Overall dimensions 8-5/8" L x 6-5/16" W x 2-1/16" D; Corrosion resistant; replaceable lens and bulb; surface mount on 7" centers; 3-wire; 1-bulb incandescent

- RVST51

by: Bob K08/01/2013

Light fixture exactly as advertised and screws aligned with Existing holes. Would have liked new mounting screws And new wiring connectors included but did ok with materials I had at home. Re-caulked all around fixture including joint between Slant mount on trailer and the flat mount tail light fixture. 92710


Product worked fine on trailer during our 3 weekTrip out east. Very happy w ith lite and was easy to install.

Bob K - 01/30/2015


- RVST51

by: Mike H04/29/2013

What can I say... these lights are "replacements" and not the OEM lights, but they are higher quality and better looking than the originals. Etrailer shipped them right out... they were shipped out the day I ordered them and on my doorstep 2 days later. When I took the originals off, I noticed they were in place by rivets, and I was nervous about drilling them out of my ABS trailer. However, it was no problem at all, and I'm so glad I took on this project. I replaced 11 lights and both brake lights, and it has given my 1996 trailer a much needed facelift. The old lights were tired, and the bases were black. The new lights have white bases and they they are MUCH brighter and more vibrant. The lenses fit snug. Oh, and the price was incredible. Great transaction. 78422

- RVST51

by: Gary04/22/2013

easier to install then I thought it would be 77206


got it right the first time, easiest lights I ever put in. Matched right up and actually enjoyed doing the work. No shopping around, right product the first time. Would definitely buy from you again

GaryW. - 04/22/2014


- RVST51

by: Robert H.07/25/2014

Right product, right price. Easy install, perfect fit. I got both left snd right tail lights, including shipping for less than a single light at Camper's Inn. The only suggestion I can make is they should include some form of soft gasket material to prevent water from getting behind the and possibly entering the hole in the trailer where the wires come through. I used a general purpose weather stripping putty for this purpose but a form fitting gasket would be a nice improvement. etrailer.com, I'll be Baaack. 142946

- RVST51

by: K noble07/04/2013

Exactly like the ones on my 97 camper! Smooth install and freaky fast shipping! Etrailer is my go-to place for my trailering needs! 87726


Still bright and no fading on the lens. Camp on!

K n - 07/04/2014


- RVST51

by: LaDona04/22/2013

thank you so much, our replacement light was an exact match! quick and easy to switch out with the old one too. 77352


worked perfect. easy swap from the old light. Thank you

LaDona W - 04/23/2014


- RVST51

by: Karen R.07/02/2014

My husband broke the original tail light license plate bracket on our travel trailer when he hastily yanked the cover off this Spring and the license plate got caught up in it. I can't believe I was able to find this replacement part on your web site so easily -- exactly the same part as the original! Ordering was a breeze and the part arrived right on time. We successfully replaced this in just a few minutes, tested the brake lights and blinker, and it works like a charm! I'm thinking of buying a spare in case he breaks it again next year. I will definitely do more shopping on this site -- we are completely satisfied with our purchase. Thank you! 138662

- RVST51

by: Ray A.11/02/2012

good products good service good price good everything 58719


working good after one year,,! good pricing fast delivery..would buy from you again,,!

Ray - 05/03/2014


- RVST51

by: Jason S.06/13/2011

After working on the old lights on my camper numerous times just prior to leaving on a trip and while traveling, I decided it was time to replace all of the lights. I purchased two new tail/brake lights, and four new side markers. The total price including shipping was just over $28 (I should have done this a long time ago). The lights arrived within 3 days of being ordered, and I was able to install them fairly quickly. I am so happy that I now have all six lights working perfectly, and shouldn't have to worry about them for a long time 16915

- RVST51

by: Joseph F.09/20/2014

This is a replacement piece for my Palomino Pony pop up camper. The original worked, but the silly plastic lic. Plate holder cracked up from Sun exposure and wasn't secure anymore. This is of the same design, although not exactly the same lense. I bought the other side just so they'd match. Seem to be as good as the original. I didn't give it the best rating just because I don't think much of the original design. This will no doubt have the same problem in the future. Transaction was easy and parts were as ordered. 152274

- RVST51

by: Joel D.08/11/2012

This product is exactly as presented. I installed this product on my Flagstaff Pop-up camper and it worked perfectly. The mounting holes and wire colors were an axact patch to replace the original equipment. The price was about 50% of the originals and is a superior product in my opinion. I removed the cover lens and applied a coat of chrome metallic paint to the lamp mounting surface and this gave a reflective and produced a brighter glow. This is a small improvement to a near perfect product. 51354

- RVST51

by: Gunny04/26/2011

Very prompt service, excellent shipping and communication from the sales team. I ordered multiple items at once and the staff bundled them all in one shipment and had them shipped the same day I ordered. Each product was exactly what I needed and as research will show, they have the best prices on the web. Couple that with free shipping and it's impossible to not recommend this company to all. Thanks etrailer staff!! Semper Fidelis Gunnery Sergeant Scoggin United States Marine Corps 12373

- RVST51

by: Pete S.04/26/2013

I purchased these two lights as replacements for the unit on my pop-up Viking camper. Excellent product for the price. Delivery was much faster than I had expected. The only possible fault I can imagine is that the wiring leaves the body on the left side of the lamp assembly where, of course, my camper has the hole on the left. The wires are just (barely) long enough to be routed and enter my camper. One inch more would have been great. 78040

- RVST51

by: Tony K.06/07/2013

Perfect match for one of a pair on our camping trailer.. Excellent quality at a great price. Also excellent and rapid service from etrailer.com. Perfect match for one of a pair on our camping trailer at a great price. Excellent quality. Also excellent and very rapid service from etrailer.com. perfect match for one of a pair on our camping trailer 83729

- RVST51

by: cralls06/09/2014

Product showed up in a reasonable time frame and worked perfect. It wasn't the right size but that's because I was lazy and didn't take the time to go measure so that was my fault, not etrailer.com but I was able to just drill a couple holes where I needed them and mounted it anyway and it works great. Price was great as well, I'll definitely include etrailer.com in my list of places to shop and price check for my RV needs. 134791

- RVST51

by: Phil N.08/11/2014

This is my first time ordering from etrailer.com. I am extremely pleased. The item I purchased was generic (could have gotten oem at double the price from same vendor) and it fits and works perfect. Heck, I think it is more solid than the original one. Extremely fast and reasonably priced shipping. I highly recommend this vendor and I will return. Bottom line, extremely pleased, highly recommended! THANKS!! 145848

- RVST51

by: Tim06/24/2013

I have a 1999 coachman 5th wheel and somehow the tail light license plate holder became broke i did not think i would find the same one but i did and for a great price. Installed and working fine 85873

- RVST51

by: Paul J08/14/2014

I was searching for some replacement tail lights for my vintage 76' Scotty Sportsman, these turned out to be a perfect fit (size) They do feel alittle fragile especially the license plate posts, but they seem to be more than tough enough once installed. I will definitely be using E-Trailer again for future purchases. My next project is to replace the teardrop running lights on top. 146728

- RVST51

by: Mike C.12/15/2014

Received the light sooner then expected, Already installed; perfect replacement all holes lined up. Only had to cut wires on old light and installed plug-in connectors on new light and existing wire harness. Only wish the license plate brackets were steel instead of plastic. As always happier then a pig in mud with etrailer! Thanks for being there when I need anything!! 165530

- RVST51

by: Ralph L.08/26/2013

The license plate holder was exactly the right fit and replaced the original perfectly. Because it is new and my other lens is 14 years older the red color is brighter. I'll be ordering another replacement for the other side to make them match. I couldn't be more pleased with the whole process from etrailer - it was easy ordering and everything came in a timely manner! 96985

- RVST51

by: Matt G.05/10/2014

The new light arrived promptly, (about 3 days from order), and matched the original perfectly. The tag bracket is more robust than the original, which leads me to believe it will last even longer than the factory assembly. I would recommend this product as a replacement to anyone, but would also recommend etrailer.com for any other trailer accessory purchase. 129892

- RVST51

by: Dawn K12/27/2014

After we lost a lens on our OEM lights on our Rockwood Mini Lite, I bought a set of new lights, this item and the matching one for the other side. They are a bit larger than the OEM lamps. They were easy to install and fit well in the same space as the OEM. My husband said the camper wire colors didn't match up exactly but it was easy for him to figure out. 167062

- RVST51

by: Tom04/15/2013

There was a question on what size these tail lights really were that was listed on the website. I had called customer services, and verifed which was the correct size, customer services was courteous, and efficient. I was really please on the prices of these tail lights, and how fast I recieved them, not to mention how easily they were to replace on my RV. 75974

- RVST51

by: RMG03/16/2015

Installed two new taillights on my pop up camper after an incident broke one and was very pleased with the fit and look of these lights. Also the installation was very easy making the whole transaction very successful. I would do a picture but camper back in the garage because winter in western NY. is not quite over. 178560

- RVST51

by: Chuck B.08/12/2014

Exactly like the ones on my RV from the factory! So... Very easy to install! Good quality & fast delivery! Great Company to deal with! Seems like they are right on top of all my orders.... Will recomend to friends & will buy from them again for sure! Wish all Internet Businesses were this easy to deal with! 146227

- RVST51

by: Peter H.04/30/2014

The trailer lights were of very good quality, I like the sockets that the bulb goes into. They were an excellent price and was shipped to me super, super fast. I have ordered from here before and I am a Happy Customer. I can't install them yet as we are still winter here. Thank You. 128275

- RVST51

by: JimC05/10/2011

A good tail light for the money. I had installed regular trailer tail lights when my old ones failed and when I located these they looked like an exact match. Sure enough it was close enough so I'm back in business. Company had good follow up on the order and after the sale. 13204

- RVST51

by: John04/01/2013

Exact match to original. Installed it as soon as it arrived and functioning properly. All in all, this site will be my #1 resource for any trailer parts, and have already informed 2 other people about the site. Best customer service and e-mail follow-ups for my order. 73643

- RVST51

by: Michael B02/05/2014

SUPER bright brake light and good tail. License plate brackets kick out a little so you can still access once the light is installed and actually allows light to shine ON the plate... not on top. SSUUPPEERR fast shipping and you can't beat the price. Love etrailer.com. 115829

- RVST51

by: RUSS S09/14/2013

I bought 2 of these and installed them on my travel trailer because the lights I had got broken in a minor collision. these look better than the original ones. I am really pleased with them and would recommend them to anyone that needs replacement lights. RVST51 99951

- RVST51

by: Peter W.01/16/2015

The product has replaced original equipment on my 1996 trailer. Product matches the original perfectly and fit perfectly. Service from etrailer.com is excellent. Shipped promptly and arrived safely. Couldn't be more please with the product and the service. 170183

- RVST51

by: Anthony02/16/2013

Very reasonable. Great communication/emails all the way through transaction, from order to invoice to shipping info, to follow up. Product arrived very quickly, just as described in great condition. Will definitely use etrailer.com again. Why go anywhere else. 66554

- RVST51

by: robert anderson06/21/2012

on the license plate tail light the wires were put in the wrong order where the bulb fits into.When I turned on running lites the brake lite came on and when I hit brakes the running lite came on. I switched my wires around on that lite and it now works good. 45142


Just a quick note, the light is wired as follows: White = Ground, Black = Tail Light, Green = BrakeSignal Light.

Patrick B - 11/21/2012


- RVST51

by: Ian H.07/26/2014

I didn't have the scary fast shipping experience others have had, but this tail lamp was an exact replacement for my 2004 Palomino Pony 2100. I ordered this and the RVST50, the footprint was an exact match and the price was unbeatable. Highly recommended! 143046

- RVST51

by: Mike07/06/2011

Quick shipping. Light was just as described. If you are looking for a cheap replacement with no frills this is the tail light. Wired up in minutes without a problem. This was by far the best deal for functionality and price. I would buy again. 18752

- RVST51

by: Joyce H.05/22/2014

Great product!!! Just like the one that come on the fifth wheel.. Great price and exceptional service from etrailer.. I will recommend to my friends what a great company they are. Thank you for your friendliness and fast shipping services!!!! 131829

- RVST51

by: KEVIN01/10/2014


- RVST51

by: Steve D.04/05/2012

Exact replacement for the stock tail light on my Heartland Sundance. License plate tabs broke off original, probably due to continuous flexing caused by winter RV cover flapping in the wind. They should probably reinforce the tabs with metal. 36196

- RVST51

by: Sharon G09/15/2013

I am totally happy with the quality/price of the camper parts received and the easy and fast service provided. Absolutely a company I will use again. Thank you for making this process so easy to find my pop-up camper parts. 100011

- RVST51

by: Ray F.02/13/2015

This was just what I was looking for !! It matched the other one to a "T" and was delivered to my house on the date that the E-Mail said it would get here !! I would definitely do business with this company again !!!!!! 174688

- RVST51

by: Roy C04/29/2014

This item is an OEM replacement, the same item originally used. I could not be more pleased to have found it at etrailer.com. Installation was easy. I will look to etrailer first in the future for replacement items. 128074

- RVST51

by: Jim of G burg10/09/2014

This is an exact replacement for my broken light. Old light was taken to task when lifting cover off of trailer and it was caught in the license plate. Tugging on it was a disaster, broke both tabs for license. 155315

- RVST51

by: Kenneth03/09/2013

Tail Lights was almost like the lights I took off of our Jayco Camper easy install and very easy wiring,not to mention I could buy the tail light assem. cheaper than lens covers for the original ,,Great deal 69796

- RVST51

by: Jim C04/05/2013

An exact replacement for my original-easy to hook up and it works great. Got it from etrailer real quick, with great communication from order to delivery. The video demo on the website is a great touch! 74394

- RVST51

by: John S02/20/2014

A good product with one flaw. The weakness is in removing the plastic red cover. The two small plastics that hold in on are extremely fragile. There could be a better way of attaching and removing. 117007

- RVST51

by: Judith P08/29/2013

Perfect part for our trailer. My boyfriend had it installed in minutes. Was very surprised that the bulbs came with it. This is a big perc. Thank you very much. I recommend this site to everyone. 97561

- RVST51

by: Summer Camper09/01/2011

Simply stated, best price and receiving the part in 2 business days. I don't believe there is a better option anywhere!!! Very satisfied and will continue doing my trailer part shopping w/Etrailer. 23390

- RVST51

by: Robert P.06/17/2011

great product just like oem ones fit perfect ten minutes to install. Sent one wrong light and one correct one one phone call and had the correct one in a few days. great service will buy again. 17219

- RVST51

by: Jason W.09/04/2013

This was a direct replacement for my Flagstaff 206st pop up camper. Ordered on a Friday, and had them Tuesday (Monday holiday). Ordered both sides so there wouldn't be a color difference. 98306

- RVST51

by: Jeffrey Springfield06/22/2014

Good products, great prices, on time shipping. The installation video's were a nice compliment to my install process. Even troubleshooting minor electrical issues. Great job Etrailer!!! 136999

Show More Reviews

Ask the Experts about this Optronics Trailer Lights
Do you have a question about this Trailer Lights?

  • Differences Between Bargman # 30-92-003 and Optronics # RVST51 Camper Trailer Taillights
  • You're correct, other than the fact that the lamps come with bulbs that are slightly different (but interchangeable) and the # RVST51 is 1-3/4 inches taller, both lamps would install in the same manner. The running light filament of the 1157 bulb used by the Bargman # 30-92-003 lamp is just a few watts brighter. If you're replacing existing lamps on a camper, I'd choose the lamps that most closely match the size of the original lamps. The Optronics # RVST51 measures 8-5/8 wide x...
    view full answer...

  • How to Find a Replacement Lens for a 1990 Coleman Newport Pop Up Trailer Tail Light
  • To identify which taillight lens will match your housing you will need to look at the taillight itself and get a model number from it or look at the lens on the opposite side of the trailer to obtain a model number from it. The camper model really does not help much for the taillights. When ordering, remember that the left side may be different from the right side, as left usually has a clear bottom lens for license plate illumination. If you cannot find a lens and would like a whole...
    view full answer...

  • Replacement Lens for Camping Travel Trailer Stop, Turn and Tail Light # RVST51
  • For a replacement lens for tail light # RVST51, you will need to use # AST51B. You can see current pricing by clicking on the link to the lens I have provided.
    view full answer...

  • How to Wire the Left Rear Camper Tail Light # RVST51
  • When wiring the # RVST51 Tail light with license plate light, you should only have one wire going to the turn/stop signal connection and one wire going to the taillight connection on each side of the trailer. The Left side turn/stop wire on the trailer is yellow, Right side turn/stop wire is green, taillight wire is brown. On the left side you should connect the yellow wire from your trailer lighting to the green wire on the # RVST51 tail light, and connect the brown wire from the...
    view full answer...

  • Need Replacement Tail Light Lens for Reflect-O-Lite 310-350 on 1968 Serro Scotty Trailer
  • 1968 Serro Scotty trailers came in various sizes and models (the Gaucho in 13- and 15-foot versions; the Highlander and the Sportsman). Based on the photos I found, both round and rectangular light assemblies were used, but since you reference the Optronics rectangular trailer lights # RVST50 and # RVST51 I take it yours are this shape. I contacted Serro Scotty to try to locate either an exact replacement lens or details about the appropriate size replacement, but they were not able...
    view full answer...

  • Replacement Trailer Tail Light Lens with SAE-AIST OPTRONICS On it
  • The SAE-AIST indicates the rating of the lens and is not a part number. Lens # AST51B is a replacement for light # RVST51. This light measures 8-5/8 inches across, 4-5/8 inches tall. If these dimensions match your light then lens # AST51B is likely the correct replacement.
    view full answer...

  • How to Wire Replacement Trailer Tail Light # RVST51 on 2005 Aliner Camper with 4-Wire Hookup
  • My research of Aliner campers indicates their tail light assemblies appear to be flush-mount rectangular units roughly 4-inches tall x 8-inches wide. We offer a flush-mount light from Optronics, part # RVST50, that is similar to the bracket-mount unit you referenced, part # RVST51. Both lights have a 3-wire hookup, the same dimensions at 8-5/8 long x 4-5/8 wide x 2-1/16 deep, both are weather and corrosion resistant and both have replaceable bulbs and lenses. The wiring arrangement...
    view full answer...

  • How to Remove Optronics Tail Lamp Assembly Part # RVST51 From Coleman Santa Fe Pop-Up
  • To remove the lamp assembly, you would first remove the lens by gently prying at each side. Once the lens is removed, you should be able to easily access the 4 screws holding the lamp base to the camper. Take a look at the photo I edited for you.
    view full answer...

  • Replacement Tail and Marker Lights for 1983 Rockwood Pop-Up Camper
  • Thank you for providing detailed information about your Rockwood camper's tail and marker lights that need replacement. We do have one tail light that exactly matches your 8-5/8- x 4-5/8-inch dimensions, part # RVST51 from Optronics. This non-submersible surface-mount incandescent fixture has a 3-wire pigtail wiring scheme (white is ground; black is tail and green is stop/turn). The white bracket mounts on 7" centers. I was not able to find definitive information on the Stratolite...
    view full answer...

  • Recommendation for an LED Trailer Tail Light
  • There is a LED light system that will work for you, but the Camping Travel Trailer Stop, Turn and Tail Light, part # RVST51, does not come in a LED version. What I would recommend you get is the Miro-Flex, Waterproof, Rectangular, LED Trailer Stop/Turn/Tail Light, part # STL35RB. It is similar in shape and performs the same light functions. It does not have the license plate bracket that part # RVST51 does though. You will also need to cut a hole in the trailer to install the Grommet...
    view full answer...

  • Availability of a Replacement License Plate Mounting Bracket for Trailer Tail Light # RVST51
  • Since the license plate mounting tabs are part of the entire housing on light # RVST51, you will have to replace the entire light. The good news is this particular light is relatively inexpensive.
    view full answer...

  • Compatibility of Optronics Lamp Part # RVST51 with 1995 235G Viking Pop Up Camper
  • I do not have any information about which OEM lights came on that camper. We do, however provide a full drawing of the lamp itself on the product description that shows the dimensions of the lamp and the center to center distance between the plate mounting holes. I have also provided a photo of the lamp showing these dimensions. Simply measure the existing lamp to see if the Optronics Camping Travel Trailer Lamp shares the same dimensions.
    view full answer...

  • How Does Camping Travel Trailer Stop, Turn and Tail Light, # RVST51, Mount to the Trailer
  • To mount the Camping Travel Trailer Stop, Turn and Tail Light, # RVST51, you will need 4 screws for the mounting holes on the back of the light assembly. This light comes with a license plate bracket and light. The light for the other side of the trailer is Camping Travel Trailer Stop, Turn and Tail Light, # RVST50. If you can give me the serial/model number and manufacturer of your existing light assembly, I can find if there is an exact replacement.
    view full answer...

  • Troubleshooting Right Turn and Brake Light Not Working on 1979 Prowler Camper
  • Since you recently installed the Optronics Travel Trailer Lights, # RVST50 and # RVST51, I would first recommend checking the ground and wire connections from the light to the trailer. If the ground is not connected to a clean, bare metal surface or the wire connections are loose or pinched, then you could see issues. If the light connections look fine, then I would recommend starting at the vehicle side trailer connector and working back toward the trailer. Take a look at the trailer...
    view full answer...

  • Replacement Taillight Assemblies with SAE-AILRST-94 DOT Markings on Lenses
  • It sounds like you're needing a Bargman 92/94 series taillight. The DOT number you provided usually doesn't steer us to a replacement lamp, the actual part number of your lamps should be printed or stamped on the lamp housings themselves, not the lens. However, this particular one has come up enough that we had record of it. For the driver's side (assuming you need the license plate bracket), use part # 30-92-003 and part # 30-92-001 for the passenger side. If your existing lamps have...
    view full answer...

  • Replacement Lens for Reflect-O-Lite 501 Trailer Bathroom Light
  • It looks like Reflect-O-Lite is no longer around. I did find that there is a Bargman replacement, 34-17-511, but I cannot find it in their system. I did find someone selling one online via a Google search. Or if you want to replace it with something that won't burn through its lens you can use # ILL24CB. I have included a link to all of the interior light options we offer to the right.
    view full answer...

  • Need Replacement Tail Lights for a 1999 Jayco Eagle 12so
  • It is possible that the Optronics Camping Travel Trailer Tail Light, # RVST51, will work on your 1999 Jayco Eagle 12, but that will depend on the type of tail lights it currently has. Some of them also used a wrap-around style lights. The best way to find replacement lights is by using the part number of the current lights. Wesbar stamps the part numbers on the base of the light assemblies, so we can start there. Look at the base of both lights and look for a part number. Keep in mind,...
    view full answer...

  • What are the Dimensions of the Replacement Tail Light Lens # AST51B
  • Part # AST51B is a replacement lens for trailer light # RVST51. It measures 8-5/8 inches wide by 4-5/8 inches tall. The same light can use base # RV50BK and replacement bulb # A2057B.
    view full answer...

  • How to Determine If The Optronics Trailer Light, # RVST50, Will Fit A 2002 Coleman Fleetwood Utah
  • The Optronics Trailer Light, # RVST50, is an exact replacement for a Wesbar # 3621 and a Peterson # 2533W lights. I do not have a list that will tell me if this light will fit your Coleman trailer. You will need to look on the light you have now and see if there is a part number that might match the Wesbar or Peterson number. If you can give me the serial/model number and manufacturer of your existing light assembly, I can find if there is an exact replacement. The part I have...
    view full answer...

  • LED and Incandescent Trailer Tail Lights with License Plate Bracket
  • For an LED trailer tail light with license plate bracket we have # RVSTL61 and # 47-07-002. For incandescent we have the following: # RVST51 # 30-92-003 # RVST56 # 30-92-108 # 30-92-004 # 30-92-109 # RVST61 # 30-07-100
    view full answer...

  • Where to Find a Wiring Diagram for a Trailer that Has Current Running through the Frame and Siding
  • I bet it was pretty shocking to find out there's current running through the siding and frame of your trailer. Sorry for the bad pun :) You might be able to contact Jayco and see if they have a wiring diagram they could send you. Aside from that I would take the trailer to a trailer repair professional and see if they can track it down.
    view full answer...

  • How to Install License Plate on Opronics Stop, Turn and Taillight # RVST51
  • There is no one particular type of hardware that's intended for use. I'd remove the lens, which will allow you to access the hardware holding the lamp to the camper. You can remove the lamp from the camper, then attach the license plate to the tabs. You'd then re-install the whole thing back on the camper as one unit.
    view full answer...

  • What are the Wire Functions on Trailer Tail Light # RVST51
  • On trailer tail light # RVST51, the white wire is the ground, black is for tail lights, and green is for turn signal/brake lights. There is no reverse light in this tail light. There is a version with a backup light, # RVST56. Its functions are red for reverse light, green for tail light, black for turn signal and brake light, white for ground.
    view full answer...

  • Information Needed to Find Replacement Taillight Assemblies for 2002 Tent Trailer
  • So the lamps you're replacing look like the # RVST51, but the mounting holes are in a different location, is that correct? Finding the part numbers of the original lamps on your trailer would be the best bet. Any numbers on the lens of the lamp are DOT compliance numbers that wouldn't be helpful in matching to a replacement lamp, but many times on the interior of the lamp or on the rear of the lamp housing you can find a part number. If you could reply with that number or with a couple...
    view full answer...

  • What are the Differences Between Optronics # RVST51 and Bargman # 30-92-003 Tail Lights
  • The plastic brackets on the Optronics # RVST51 and Bargman # 30-92-003, # 30-92-108 turn and tail lights will be the same plastic grade. The red or white bracket will be the same molded plastic for either of the products. As I mentioned in the video the products are exactly the same in quality. The only difference is the brand name and cost difference. I have attached a couple videos as well as trailer lighting requirements for you.
    view full answer...

  • Testing Wiring on a 1965 Scotty Trailer to Determine Wire Functions for Tail Lights
  • Since manufacturers can use any wire colors they want for any function the only way to determine the functions of wires with any certainty is to test them. There are a couple of ways to test them. First you can connect the trailer to the tow vehicle and activate each light function. Then test the wires using a circuit tester, # 3808, to see which wire has power when a given function is activated. The other way is similar. You can use a separate 12 volt battery and power each wire...
    view full answer...

  • Will Optronics Camper Travel Trailer Light RVST51 Fit In Place of a Bargman 91 Series Light
  • The Bargman 91 series light, 34-91-002, which is now obsolete measured approximately 8-5/8 inches by 4-5/8 inches. Optronics light # RVST51 is also 8-5/8 inches by 4-5/8 inches (6-5/16 inches counting the license plate mounting bracket) so it should work well for you. I have linked a video review of this light for you.
    view full answer...

  • Replacement Rear Stop/Turn/Tail/License Plate Combo Cake Light for 1968 Pathfinder Travel Trailer
  • Thank you for providing the photo of the 7-inch combination Stop/Turn/Tail/License Plate Combo Cake Light from your 1968 Pathfinder travel trailer. I was able to find photos and some comments on trailer owner forums regarding your 1968 Pathfinder trailer, but not any specific information regarding the manufacturer of the original light fixtures. Given the age of this venerable old trailer it is quite possible that the original manufacturer of the cake light is no longer in existence....
    view full answer...

  • Differences Between Optronics # RVST51 and Bargman # 30-92-003 Trailer Taillight Assemblies
  • You're correct, other than the fact that the lamps come with bulbs that are slightly different (but interchangeable) and the # RVST51 is 1-3/4 inches taller, both lamps would install in the same manner. The running light filament of the 1157 bulb used by the Bargman # 30-92-003 lamp is just a few watts brighter. If you're replacing existing lamps on a camper, I'd choose the lamps that most closely match the size of the original lamps. The Optronics # RVST51 measures 8-5/8 wide x 6-5/16...
    view full answer...

  • Functions of the Wires for the Optronics Light part # RVST51
  • When installing the Optronics Trailer Light # RVST51 the white wire is the ground, the black wire is the tail light circuit, and the green wire is the stop/turn signal wire. Check out the review video I attached for this light as well.
    view full answer...

Info for this part was:

Expert Research:
Michael L

Expert Research:
Robert G

Expert Research:
Michael H

Expert Research:
Reno H

Expert Research:
Jameson C

Updated by:
Adele M

Expert Research:
Adam R

Updated by:
Laura H

At etrailer.com we provide the best information available about the products we sell. We take the quality of our information seriously so that you can get the right part the first time. Let us know if anything is missing or if you have any questions.

Stay Connected

Subscribe to email newsletter


privacy - we don't send unsolicited email

etrailer.com reviewsetrailer.com reviews

All images, layout and content copyright etrailer.com
