Trailer Lights > Tail Lights > Stop/Turn/Tail, Rear Reflector > Non-Submersible Lights > 8-1/2L x 4-1/2W Inch > Incandescent Light > Red > Rectangle > Surface Mount > Optronics

RV Tail Light - Stop, Tail, Turn - Rectangle - Red Lens - Passenger Side - White Base

Optronics Trailer Lights

(341 reviews)


Code:   RVST50

Price:$5.49


Shipping Special

Shipping Weight: 0.8 pounds

Quantity:






Optronics Trailer Lights - RVST50

8-5/8" x 4-5/8" Rectangle. Incandescent RV light serves 3 functions: brake, tail, and turn. Surface mount on 7" centers - hardware not included. 3-Wire pigtail. Red acrylic lens. White plastic base.


Features:

  • Rectangular RV tail light serves 3 functions
    • Stop light
    • Tail light
    • Turn signal light
  • White plastic base
  • Red acrylic lens snaps on and can be easily replaced
  • Replaceable incandescent bulb
  • Mounts on surface of trailer - hardware not included
  • 3-Wire pigtail
    • White wire for ground
    • Green wire for tail light
    • Black wire for stop/turn signal


Specs:

  • Configuration: passenger's side (right-hand side)
  • Dimensions: 8-5/8" long x 4-5/8" tall x 2-1/16" deep
  • Mounting hole dimensions (center to center): 7"
  • Bulb type: 2057
  • Power draw at 12.8 volts:
    • Stop light: 2.4 amps
    • Tail light: 0.4 amps
  • 3-Year warranty


dimensions of light

Trailer light is a direct replacement for:

  • Wesbar 3621
  • Peterson 2533W

Light with RV50BK bracket attached

Light with RV50BK bracket attached

RV light is pictured above with RV50BK wedge base attached. Base is sold separately.



RV-ST50 Optronics Combination Incandescent Camper Taillight - Right Side - Red Lens - White Base








Related Products



Customers compare RVST50 to these similar products





Customers Who Purchased This Trailer Lights Also Bought...



Replacement parts available for this product





Economy
$0.50 More

RV Tail Light - Stop, Tail, Turn, License Plate - Rectangle - Red Lens - Driver Side - White Base


RV Tail Light - Stop, Tail, Turn, License Plate - Rectangle - Red Lens - Driver Side - White Base
Optronics Trailer Lights

351 reviews

Code: RVST51


Price:$5.99


License Plate



8-5/8" x 4-5/8" Rectangle. Incandescent RV light serves 4 functions: brake, tail, turn, and license plate light. Surface mount on 7" centers - hardware not included. 3-Wire pigtail. Built-in license plate bracket. White plastic base.

more information →
Value
$7.50 More

Bargman Trailer Tail Light - Stop, Tail, Turn, and License - Incandescent - Red Lens


Bargman Trailer Tail Light - Stop, Tail, Turn, and License - Incandescent - Red Lens
Bargman Trailer Lights

206 reviews

Code: 30-92-003


Price:$12.99


License Plate

Bargman



8-9/16" Long x 4-9/16" wide x 2-1/8" thick rectangle. 92 Series trailer light serves 4 functions: Brake, tail, turn, and license plate light. Surface mount. 2-Wire design. Incandescent. Red lens.

more information →
Premium
$49.46 More

Bargman LED, Surface Mount, Double Tail Light - 84, 85 Series - Red - Black Base


Bargman LED, Surface Mount, Double Tail Light - 84, 85 Series - Red - Black Base
Bargman Trailer Lights

73 reviews

Code: 47-84-610


Retail:$66.91

Price:$54.95


LED Light

10-1/4L x 7-1/4W Inch

Bargman



10-1/4" Long x 7-1/4" wide x 1-7/8" thick; 84 and 85 Series; 2-light fixture; red combination brake, tail and turn light; long-lasting LEDs; black base; 2-wire design; surface mount.

more information →


Video of RV Tail Light - Stop, Tail, Turn - Rectangle - Red Lens - Passenger Side - White Base


Videos are provided As a guide only. Refer To manufacturer
installation instructions And specs For complete information.

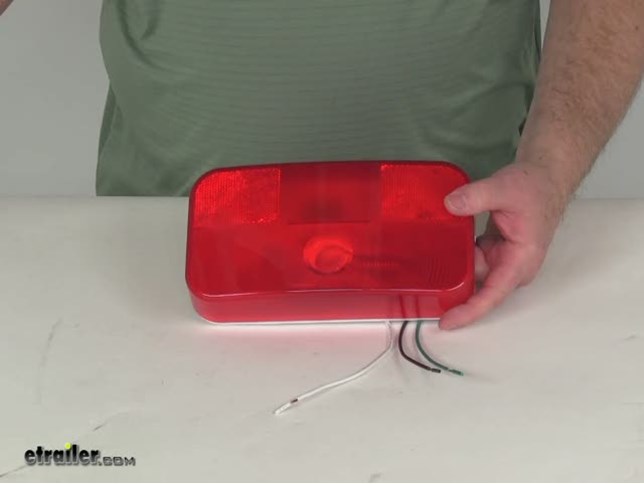

Video Transcript for Optronics Trailer Lights RVST50 Review

Today we are going to review Part Number RVST50. This is the Optronics Camping Travel Trailer Stop Turn and Tail Light. This is a multi-function stop turn and tail light on a white mounting bracket. This is a molded plastic housing with a durable lens which will provide all weather protection against corrosion. This light does feature a replaceable snap on lens and an easy to replace bulb. The Bulb Number would be a 2057.

The mounting surface or the mounting bracket on the back has four mounting holes, one in each corner and the distance between those holes is seven inches and this way would be 3 1/8 inches. It does have a three-wire design which is the one wide wire for the ground and then the two power lead wires for the tail lights and the other one is for the stop and turn signal. This tail light is weather and corrosion resistant. I am going to give you a few measurements on this light; the overall length of the light will be 8 5/8 inches. The width will be 4 5/8 and the depth of the light will be 2 1/16 inches.

Now, what Im going to do is hook up a power supply to the light to give you an idea of the brightness of the light. That would be the tail light. That would be the stop and turn brightness. Now what I am going to do is turn out the overhead light to give you an idea what the brightness of the light would be in the dark. So again, this is the brightness of the tail light and then when we apply the stop or the turn signal that would be the brightness there.

That should do it for Part Number RVST50.
