Price: $21.44

Draw-Tite Drawbar for 1-1/4" Hitches - 5/8" Rise, 1-1/4" Drop - 7" Long - 3.5K

Item # 36051

lowest price pledge

Retail:$30.05

Our Price: $21.44

Orders above $50 qualify for Free Shipping

Select Ground or 3 Day Shipping for delivery before Christmas

Quantity:

In Stock
zoom in icon
zoom out icon
pop out icon replay 360 icon
horizontal rotate icon

Product Images

spin image icon
draw-tite ball mounts fixed mount no drawbar for 1-1/4 inch hitches - 5/8 rise drop 7 long 3.5k
draw-tite ball mounts fixed mount drop - 1 inch rise 36051
draw-tite ball mounts no drop - 1 inch rise 36051
draw-tite ball mounts no drop - 1 inch rise
draw-tite ball mounts fixed mount class ii 3500 lbs gtw
draw-tite ball mounts no class ii 3500 lbs gtw 36051
draw-tite ball mounts drop - 1 inch rise class ii 3500 lbs gtw 36051
draw-tite ball mounts fixed mount class ii 3500 lbs gtw drawbar for 1-1/4 inch hitches - 5/8 rise drop 7 long 3.5k
draw-tite ball mounts fixed mount no

Videos


  • Fits 1-1/4 Inch Hitch
  • Fixed Ball Mount
  • Class II
  • 3500 lbs GTW
  • Drop - 1 Inch
  • Rise - 1 Inch
  • Draw-Tite
  • No Ball
  • Steel Shank
Sturdy steel ball mount with solid shank measures 7" from center of hitch pin hole to center of ball hole. Drawbar is Class II compatible only. Powder coat finish over a-coat base provides excellent rust protection. Call 800-298-8924 to order Draw-Tite ball mounts part number 36051 or order online at etrailer.com. Free expert support on all Draw-Tite products. Guaranteed Lowest Price and Fastest Shipping for Draw-Tite Drawbar for 1-1/4" Hitches - 5/8" Rise, 1-1/4" Drop - 7" Long - 3.5K. Ball Mounts reviews from real customers.



Draw-Tite Ball Mounts - 36051

Sturdy steel ball mount with solid shank measures 7" from center of hitch pin hole to center of ball hole. Drawbar is Class II compatible only. Powder coat finish over a-coat base provides excellent rust protection.


Features:

  • Ball mount lets you hook up your trailer to your tow vehicle
    • Shank slides into your vehicle's hitch receiver
    • Ball platform provides mounting point for hitch ball (sold separately)
  • Both drop and rise positions available to ensure level towing
  • Sturdy steel construction with solid shank
  • Black powder coat finish covers a-coat base for superior rust protection
  • Hitch pin and clip included - hitch lock sold separately


Specs:

  • Application: 1-1/4" x 1-1/4" trailer hitch receivers
    • Class II compatible only
  • Gross towing weight: 3,500 lbs
  • Tongue weight: 300 lbs
  • Length: 7" from center of hitch pin hole to center of ball hole
  • Rise: 5/8" from top of inside of hitch opening
  • Drop: 1-1/4" from top of inside of hitch opening
  • Ball hole diameter: 3/4"
  • Pin hole diameter: 1/2"
  • Limited lifetime warranty


36051 Draw-Tite Class II Ball Mount - 5/8" Rise or 1-1/4" Drop - 3,500 lbs

Replaces 90001







Value - This item

Draw-Tite Drawbar for 1-1/4" Hitches - 5/8" Rise, 1-1/4" Drop - 7" Long - 3.5K


Draw-Tite Drawbar for 1-1/4" Hitches - 5/8" Rise, 1-1/4" Drop - 7" Long - 3.5K
Draw-Tite Ball Mounts

46 reviews

Code: 36051

In Stock

Retail:$30.05

Our Price: $21.44


  • Ball Mounts
  • Fixed Ball Mount
  • No Ball
  • Steel Shank
  • Drop - 1 Inch
  • Rise - 1 Inch
  • Fits 1-1/4 Inch Hitch
  • Class II
  • 3500 lbs GTW
  • Draw-Tite


Sturdy steel ball mount with solid shank measures 7" from center of hitch pin hole to center of ball hole. Drawbar is Class II compatible only. Powder coat finish over a-coat base provides excellent rust protection.

more information →
Compare Similar Products
Economy
Price: $14.30
$7.14 Less

Curt Class II Drawbar - 3/8" Rise, 1" Drop - 7-13/16" Long - 3,500 lbs


Curt Class II Drawbar - 3/8" Rise, 1" Drop - 7-13/16" Long - 3,500 lbs
Curt Ball Mounts

13 reviews

Code: C45503

In Stock

Retail:$22.75

Our Price: $14.30


  • Curt


Corrosion-resistant ball mount is 7-13/16" long and fits 1-1/4" x 1-1/4" trailer hitch receivers.

more information →
Value
Price: $21.77
$0.33 More

Curt Class II Drawbar - 2-5/8" Rise, 3-1/4" Drop - 7-1/4" Long - 3,500 lbs


Curt Class II Drawbar - 2-5/8" Rise, 3-1/4" Drop - 7-1/4" Long - 3,500 lbs
Curt Ball Mounts

97 reviews

Code: C45521

In Stock

Retail:$28.15

Our Price: $21.77


  • Drop - 3 Inch
  • Rise - 2 Inch
  • Curt


Corrosion-resistant ball mount is 7-1/4" long and fits 1-1/4" x 1-1/4" trailer hitch receivers.

more information →
Premium
Price: $55.63
$34.19 More

etrailer.com Ball Mount Kit for 2" Hitches - 7,500 lbs


etrailer.com Ball Mount Kit for 2" Hitches - 7,500 lbs
etrailer Ball Mounts

356 reviews

Code: 989900

In Stock

Our Price: $55.63


  • Two Balls
  • Steel Ball
  • Drop - 2 Inch
  • Drop - 4 Inch
  • Rise - 3 Inch
  • Fits 2 Inch Hitch
  • Class III
  • 7500 lbs GTW
  • Ball Mount Kit
  • etrailer

Related Products



Customers compare 36051 to these similar products





Customers Who Purchased This Ball Mounts Also Bought...

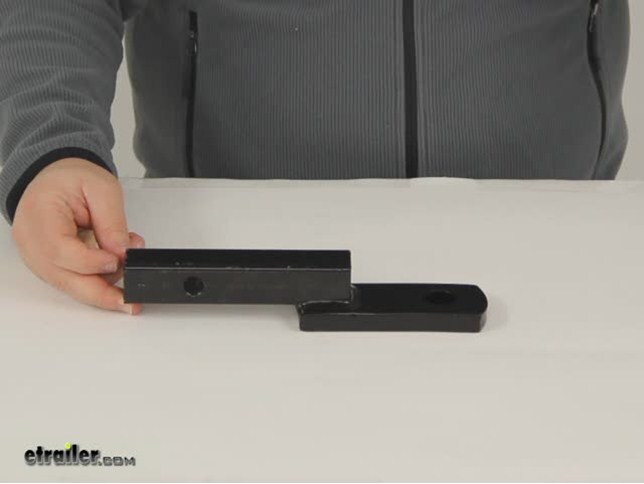

Video of Draw-Tite Drawbar for 1-1/4" Hitches - 5/8" Rise, 1-1/4" Drop - 7" Long - 3.5K


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Draw-Tite Ball Mounts 36051 Review

Today well be reviewing part number 36051. This is the Draw Tite Class II drawbar with a 5/8th inch rise or 1 and inch drop. Its rated at 3500 pounds with a gross trailer weight and up to 300 pounds when it comes to the maximum towing weight capacity. What you would do is you would slide the shank of your mount into the receiver tube of your hitch and line up your pin hole. Then you would secure it by using the included hitch pin and clip, so that product is included. This is going to use a ball with a inch shank diameter. We have about inches of diameter here at our hitch ball hole.

The overall length of our mount is about 10 and a half inches and the distance from the center of the hitch pin hole to the center of our ball hole measures 7 inches. From the hitch pin hole to the back of the mount, we have a measurement of about 1 and 7/8th of an inch. With this installed in the drop position, youre going to have a maximum drop of 1 and a quarter inch and then if you have this installed in the rise position, its going to give you a rise of 5/8th of an inch.Thats going to complete todays review of part number 36051. Thats the Draw Tite Class II drawbar, with a 5/8th inch rise or 1 and inch drop, rated at 3500 pounds. .
