Friction in brackets and in head works to prevent and correct trailer sway. Chainless brackets with automotive-style friction pads hold spring bars firmly in place to help keep trailer in line with your tow vehicle. Adjustable shank included. Lowest Prices for the best weight distribution from Reese. Reese Steadi-Flex Weight Distribution System w/ Sway Control - Trunnion - 6K GTW, 600 TW part number RP66558 can be ordered online at etrailer.com or call 800-298-8924 for expert service.



Reese Weight Distribution - RP66558

Friction in brackets and in head works to prevent and correct trailer sway. Chainless brackets with automotive-style friction pads hold spring bars firmly in place to help keep trailer in line with your tow vehicle. Adjustable shank included.


Features:

  • Evenly distributes weight over axles of tow vehicle and trailer for stability and control
    • Creates a more level ride for both tow vehicle and trailer
  • Integrated sway control limits side-to-side movement of trailer
    • Brackets keep spring bars in place for a rigid system that holds your trailer in line
      • No lift chains - eliminates unwanted movement of spring bars
      • Automotive-grade friction material lines brackets to help correct any sway that may occur due to winds, curvy roads, or sudden maneuvers
    • System head provides frictional resistance to limit movement of spring bars
  • Trunnion spring bars are hot rolled and tapered for superior strength and flexibility
    • Bars flex appropriately over uneven terrain for a controlled, even ride
  • Desired head tilt is achieved with traditional washer design
    • Add or remove washers from spacer rivet to tilt head up or down
  • No-drill, clamp-on brackets can adjust along the trailer frame to accommodate frame-mounted items such as gas tanks, toolboxes or generators
  • Included lift handle eases installation by reducing lifting required by trailer jack
  • Steel shank has corrosion-resistant powder coat
  • System includes head assembly, adjustable shank, trunnion spring bars, sway control brackets, lift handle, pin and clip, and all necessary hardware
    • Hitch ball sold separately - requires 1" diameter shank


Specs:

  • Tongue weight: 400 lbs - 600 lbs
  • Gross towing weight: 6,000 lbs
  • Fits: 2" x 2" trailer hitch receivers rated for use with weight distribution systems
  • Maximum trailer frame height: 6"
  • Sway control bracket positioning: 25" - 32" back from center of coupler
  • Shank length:
    • 7-3/4" From center of hitch pin hole to center of adjustment holes
    • 8-3/4" From center of hitch pin hole to front of shank
    • 6-3/4" From center of hitch pin hole to back of shank
    • 12" Overall
  • Total height adjustment along shank: 7-1/2"
    • Maximum rise: 7-5/8"
    • Maximum drop: 2-7/8"
    • Overall height: 8-3/4"
    • Holes are spaced 1-1/4" apart on center
  • Limited lifetime warranty


Included w/ SystemRequired - Sold SeparatelyOptional Add-Ons
  • Adjustable Shank
  • System Head
  • 2 Sway Control Brackets
  • 2 Spring Bars
  • Lift Bar
  • Hitch Pin and Clip
  • Necessary Installation Hardware
  • Hitch Ball w/ 1" Diameter Shank
n/a

Weight Distributing Hitch

Create a stable ride for your tow vehicle and trailer with a weight-distribution hitch. Adding spring bars to your towing system applies leverage, which transfers the load that is pushing down on the rear of your vehicle to all the axles on both your tow vehicle and your trailer, resulting in an even distribution of weight throughout. The result is a smooth, level ride, as well as the ability to tow the maximum capacity of your hitch.



Selecting a Weight-Distribution System

The tongue weight rating is the most important factor in determining which size weight-distribution system you should use. If the bars of the system you choose are rated too high for your setup, they will create a rigid ride, which can result in a bouncing trailer. If, on the other hand, the bars are not rated high enough, the system will be unable to properly distribute the weight, rendering it virtually useless.


To determine the proper weight rating for a weight-distribution system, you must first determine your trailer's tongue weight. Then add to that the weight of the cargo behind the rear axle of your tow vehicle. These two measurements make up the tongue weight rating for a weight-distribution system.


Integrated Dependent Sway Control

The Steadi-Flex weight distribution system works to stop trailer sway before it begins. This is achieved in 2 ways. First, the system head is designed to firmly hold the spring bars in place to provide tight resistance and help ensure that your trailer tracks behind your vehicle. Second, the spring bar brackets that mount on your trailer's frame produce friction with the bars whenever any side-to-side motion occurs. This keeps the bars from moving, also helping to hold your trailer in a straight line.


System Head with Steel-on-Steel Friction

System Head

The head of the Steadi-Flex system firmly holds the spring bars in place at the hitch point. This tight hold helps to keep the bars from moving, which in turn helps to ensure that the trailer is held firmly in place behind your vehicle. If any sway or side-to-side movement does occur, the spring bars will move only slightly inside of the system's head. This steel-on-steel contact produces frictional resistance to limit further side-to-side motion of the bars, limiting the motion of your trailer in the process. The Steadi-Flex head is wider than most weight distribution heads. This design allows for greater surface area for the spring bars to move against. This makes it easier to produce the friction that resists sway.


Sway Control Brackets with Automotive-Grade Friction Material

Friction Material Brackets

The spring bars attach to the trailer frame with fixed, sturdy steel brackets. They sit on top of the brackets instead of being suspended by chains like the bars that are on traditional weight distribution systems. Chain suspensions typically allow a good deal of side-to-side play in the system. Because the Steadi-Flex has brackets in place of chains, that unwanted movement of the spring bars is eliminated. This helps to keep your trailer in line behind your vehicle. In addition, these brackets create friction to limit any side-to-side movement that may occur. When each spring bar on the Steadi-Flex system moves within the bracket, it rubs along the surface of the bracket, creating friction. This resistance limits the movement of the spring bar, thus preventing further side-to-side movement of the trailer.


Most systems with sway control brackets use bare steel brackets to create friction with the steel bars. Steel-on-steel friction typically causes a much louder ride, and it can result in wear and tear on the brackets themselves. The Steadi-Flex brackets, on the other hand, are lined with automotive-grade friction material. This material is more abrasive than bare steel, which allows more friction to build up faster and easier. The long-lasting friction material also reduces the banging noise created by the bars hitting the inside of the steel brackets. This provides a quieter ride while towing.


Fast, Easy Installation

The Steadi-Flex system is easy to install and set up. On the trailer side, simply clamp the spring bar brackets around your trailer's frame. Then prepare your vehicle by sliding the included shank into your 2" x 2" hitch receiver, and bolt on the head. The system head can be easily adjusted to achieve the proper angle and optimum leverage for your specific setup. No drilling is required to install this weight distribution system.


Head Tilt Adjustment

The Steadi-Flex system uses the traditional washer-style adjustment method to achieve the perfect tilt. Controlling the head tilt helps you to fine-tune the leverage and maximize the amount of tension in the whole system. To adjust the tilt, simply slide washers onto the adjustment pin and insert the pin into the head assembly. To increase the angle, add a washer. To reduce the angle, remove a washer.


Tapered Spring Bars

Spring Bars

The spring bars of the Steadi-Flex system slide into the weight distribution head for quick, easy installation. With a tapered design and hot rolled steel construction, these bars offer superior flex to evenly distribute the weight between your tow vehicle and your trailer.


The bars easily pin into place inside the system head - no need to torque or re-torque any trunnion bolts to adjust the tension. With fewer parts to manage, installing and maintaining the Steadi-Flex is simple.


Adjustable, Clamp-On Brackets

Adjustable Brackets

The spring bar brackets simply clamp around your trailer's frame - no drilling required. These brackets are designed to be positioned 27" to 32" back from your coupler and they can fit a wide range of frame sizes and can even be used on a trailer with a bottom-mounted coupler.


While other brackets use relatively thin L-pins to secure the spring bars in place on the brackets, the Steadi-Flex system uses steel pieces that are almost as wide as the brackets themselves to secure the bars. These retention brackets easily pin into place once wrapped around the spring bars. As a result, you can have greater piece of mind knowing that the spring bars are secure and less likely to rattle around inside of the brackets.



66558 Reese Steady Flex Light Duty Weight Distribution System with Sway Control - 6,000 lbs GTW, 600 lbs TW



RP66558 Installation InstructionsInstallation Details RP66558 Installation instructions



Premium - This item

Reese Steadi-Flex Weight Distribution System w/ Sway Control - Trunnion - 6K GTW, 600 TW


Reese Steadi-Flex Weight Distribution System w/ Sway Control - Trunnion - 6K GTW, 600 TW
Reese Weight Distribution

4 reviews

Code: RP66558

In Stock

Retail:$838.28

Our Price: $483.54


  • Weight Distribution
  • WD With Sway Control
  • Reduces Sway
  • Light Duty
  • Includes Shank
  • Electric Brake Compatible
  • Surge Brake Compatible
  • Fits 2 Inch Hitch
  • Allows Backing Up
  • 400 lbs
  • 500 lbs
  • Reese


Friction in brackets and in head works to prevent and correct trailer sway. Chainless brackets with automotive-style friction pads hold spring bars firmly in place to help keep trailer in line with your tow vehicle. Adjustable shank included.

more information →
Compare Similar Products
Economy
Price: $263.10
$220.44 Less

Fastway e2 Weight Distribution w/ 2-Point Sway Control - Round - 10,000 lbs GTW, 1,000 lbs TW


Fastway e2 Weight Distribution w/ 2-Point Sway Control - Round - 10,000 lbs GTW, 1,000 lbs TW
Fastway Weight Distribution

134 reviews

Code: FA94-00-1000

In Stock

Retail:$407.00

Our Price: $263.10


  • Standard Duty
  • 800 lbs
  • 900 lbs
  • Fastway


Two points of steel-on-steel friction work to prevent and correct trailer sway in this weight distribution system. Sway control brackets help to ensure that your trailer stays in line with your tow vehicle. Adjustable shank included.

more information →
Value
Price: $329.15
$154.39 Less

Fastway e2 Weight Distribution w/ 2-Point Sway Control - Round - 6,000 lbs GTW, 600 lbs TW


Fastway e2 Weight Distribution w/ 2-Point Sway Control - Round - 6,000 lbs GTW, 600 lbs TW
Fastway Weight Distribution

134 reviews

Code: FA94-00-0600

In Stock

Retail:$397.00

Our Price: $329.15


  • Fastway


Two points of steel-on-steel friction work to prevent and correct trailer sway in this weight-distribution system. Sway-control brackets help to ensure that your trailer stays in line with your tow vehicle. Adjustable shank included.

more information →
Premium
Price: $548.95
$65.41 More

Reese Steadi-Flex Weight Distribution System w/ Sway Control - Trunnion - 14K GTW, 1.4K TW


Reese Steadi-Flex Weight Distribution System w/ Sway Control - Trunnion - 14K GTW, 1.4K TW
Reese Weight Distribution

34 reviews

Code: RP66561

In Stock

Retail:$952.67

Our Price: $548.95


  • Heavy Duty
  • 900 lbs
  • 1000 lbs
  • 1100 lbs
  • 1200 lbs
  • 1300 lbs


Friction in brackets and in head works to prevent and correct trailer sway. Chainless brackets with automotive-style friction pads hold spring bars firmly in place to help keep trailer in line with your tow vehicle. Adjustable shank included.

more information →

Related Products



Customers compare RP66558 to these similar products





Customers Who Purchased This Weight Distribution Also Bought...



Replacement parts available for this product

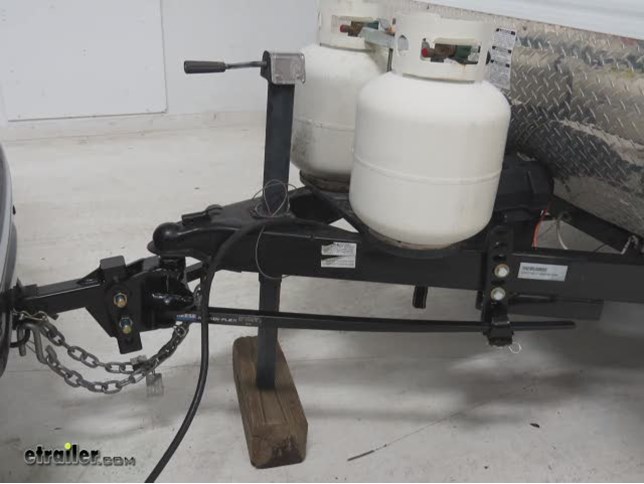

Video of Reese Steadi-Flex Weight Distribution System w/ Sway Control - Trunnion - 6K GTW, 600 TW


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Reese Light Duty Weight Distribution System Review

Today, we're going to be taking a look a the Reese Light Duty Distribution System with sway control. With a six thousand pound gross trailer weight, in a six hundred pound tongue weight, part number RP66558. It's also available in a four thousand pound gross trailer weight and a four hundred pound tongue weight, part number 66557. You've decided you need a weight distribution system. The Reese Light Duty Weight Distribution System is perfect for an SUV and a small travel trailer set up as you see here. The sway control is going to help reduce the movement caused by wind, curving roads or sudden maneuvers. As with all weight distribution systems, it going to evenly distribute weight over both the tow vehicle and the trailer's axles.

This is going to provide a safer, more stable ride with less tire wear, better braking and handling. The spring bar hangers have integrated friction pads to help prevent sway. The hangers themselves do not take up very much space, making it perfect for smaller size trailers. It's a no drill installation with all the hardware provided. The kit even comes with weight distribution shank that you hook up with your own hitch ball.Speaker 2: As you can see with our hook up crosstalk 00:01:04 here at the rear.

crosstalk 00:01:10 raised up about an inch.crosstalk 00:01:06 In hitch ball, those require one inch diameter shank. The spring bars will flex appropriately over uneven terrain for a more controlled ride. The whole thing is coated in a black powdered coat so it's going to be corrosion resistant and it's going to stand up to the elements. Now that we've gone over some features, I'll go ahead and show how we got it set up. First thing we'll want to do is take some measurements on our vehicle.

From the ground up to underneath our wheel well, we've got 36 inches. We'll want to write that down. In the front, we've got 34-1/2 inches. These are the measurements we want to get back to when we engage our weight distribution system. For comparison, we're going to hook up our trailer without weight distribution and take those same measurements. As you can see with our trailer hooked up without weight distribution, here at the rear, we're squatting about 2-1/2, 3 inches and here at the front, we're raised up about an inch.

You can see the problem that we're having. The front of our vehicle is tilting upward. We'll want to take note of those measurements that way we have something to compare it to when we get our weight distribution hooked up. Then, when we re-engage our weight distribution and get it hooked back up, we're within a 1/4 to a 1/2 inch of our stock measurement. That's where we want to be. Now, if the front wheel height is higher than previously measured, the head tilt angle must be increased. That's tilted downward. If the front wheel well height is substantially lower than originally measured, an inch or more, the head tilt angle must be reduced. That's tilted upward. The next thing you want to do is make sure your trailer is level. The easiest way to do that is to raise or lower your tongue jack so that you have the same measurement in the front and in the back. We've got it. Keep in mind when setting up your weight distribution system, you need to make sure that your trailer is fully loaded and ready to go. The next thing we'll do is take a coupler height measurement. the reason we're going to do this is it's going to help us determine the correct ball height. We've got 22. We'll need to take note of that. We've gone ahead and swapped out our old ball mount with our new weight distribution shank. We've previously adjusted our ball height. I'll go ahead and show you how we did that. First, we got close to the desired height by selecting a mounting location for our bolts. First, to help us set the tilt of our head, we installed several of the included washers as spacers. The number of washers you will use will vary depending on your set up. Then to get the approximate height of your ball, you'll want to install your shank in the rise or drop position and then choose the desired location to put in your bolts. With the approximate ball height set and loosely installed, lets go ahead and line up our coupler with the ball. Now, with our ball attached to our coupler and our trailer back to level we can bring in our spring bars to help us determine the location of our frame brackets. We'll bring it in. You'll need to grab the pin and the clip. We're going to insert it between the head there. Drop the pin in when it's lined up and put the clip in on the bottom. Here's where it gets tricky. You want to be sure that your brackets are between 25 and 32 inches from the center of your coupler and you want to make sure that there's nothing interfering like your propane tanks or your battery box. You also need to position them so that your spring bar extends at least 3 inches beyond the bracket. With our bracket location determined, we can go ahead and install it. We'll then install our L-bracket and leave it loosely installed. We can repeat that same process for the other side. With our bracket torqued down and our L-bracket loosely installed, we'll need to be sure that our spring bar is 4 inches from the bottom of our L-bracket. That's for the six hundred pound system which is what we have here. For the four hundred pound system, it needs to be 3 inches from the bottom of the L-bracket. Now, if for some reason that didn't work out, you'll need come back to the tilt of your head and add or subtract washers. If you run out of washers, you may need to adjust the height of your L-bracket. The next thing we need to do is lock in the tilt of our head by torquing it down to the manufacturer's specifications. Now, we're ready to take our included tool and put our spring bars into place on the L-bracket. To make it easier, we can raise our tongue jack. How the tool works is it goes underneath the spring bar and hooks into the L-bracket. You want to stand off to the side to avoid injury. Because we left our L-brackets loosely installed, they have adjusted to accommodate our spring bars. Now, we can install a tension bracket to keep our spring bar in place. With that in place, we can now torque down our L-bracket bolts. With everything installed, let's go ahead and lower our jack. Once you get to your destination, in order to disconnect, you want to raise your tongue jack all the way up and this is going to make it easier to safely remove your spring bars. We can go ahead and remove our tension bracket. Now, we can just remove the spring bar from the L-bracket. We'll just repeat the same process on the other side. With our spring bars disengaged, we can go ahead and take them off. Now, we can just lower it back down, uncouple it and we've got it. That's going to complete our look at the Reese Light Duty Weight Distribution System with sway control at six thousand pounds gross trailer weight and six hundred pounds tongue weight, part number RP66558.


Customer Reviews

Reese Steadi-Flex Weight Distribution System w/ Sway Control - Trunnion - 6K GTW, 600 TW - RP66558

Average Customer Rating:  4.8 out of 5 stars   (4 Customer Reviews)

Friction in brackets and in head works to prevent and correct trailer sway. Chainless brackets with automotive-style friction pads hold spring bars firmly in place to help keep trailer in line with your tow vehicle. Adjustable shank included.

- RP66558

by:


Working well for my Boat Trailer with surge brakes. I'm happy I went with this 600/6000 LBS version instead of maxing out the 400/4000 LBS version on my 380/3700 LBS rig. I'm now towing legal again since down-sizing my tow vehicle to a 2015 Ford Flex, AWD, V6 EcoBoost, Even with the factory tow package the Flex is only rated for 200/2000 without WDS, but 450/4500 with WDS. I did a couple trips to my local lake before WDS (30 mile round trip via 45 MPH roads) and the Flex felt safe for that distance/speed, but it had a lot more trailer jolt and was not quite as stable as my old GMC Envoy XL. The WDS has improved the towing stability and ride well beyond my expectations, and is now even better then towing was with buddy's full-size Pickup. I did have to use a Pole-Tongue Adapter (RP58393), and customize the adapter mounting to my trailer, but I can already tell this added hassle and expense will be well worth it for the long-haul trips I do a few times a year. 228117



- RP66558

by:


Hitch works great. Sometimes use it without sway bars (for short trips), but noticeably less sway and bobbing with sway bars attached. Used with Ram 1500 and Lance 1995 trailer. After a few trips, one of the friction pads cracked and separated. Etrailer was very helpful getting it replaced quickly. No problems in the subsequent trips. 240305



- RP66558

by:


Works great. I am able to tow a 3,500 lb travel trailer with a Jeep Wrangler Rubicon. Jeep sits level. No sway from wind or emergency lane changes. Works fine on mild off road trails. Hook up only takes about 8 minutes longer once the process is well known. 239998



- RP66558

by:


Great product, easy install. Fast shipping, thanks 378974


13
13

Ask the Experts about this Reese Weight Distribution
Do you have a question about this Weight Distribution?


  • Is the Weigh Safe Hitch Ball WSUN-3 Compatible With Reese Steadi-Flex WD Hitch RP66558
  • The Weigh Safe Hitch Ball with Built-In Scale # WSUN-3 is not compatible with a weight distribution/sway control system such as the Reese Steadi-Flex # RP66558. The ball portion alone does have the required 1-inch diameter shank. A better solution for keeping track of your trailer's actual loaded tongue weight is the free-standing Sherline tongue weight scale # 5780. This item offers both a broader range of measurement as well as finer gradations on the dial. This means better accuracy. The...
    view full answer...

  • Weight Distribution and Sway Control Recommendation For a Pole Tongue Snowmobile Trailer
  • The first factor that we will want to check is how much room is available on your pole tongue. To use weight distribution with a pole tongue, you will need a pole tongue adapter. Our best option is the Reese Pole-Tongue Adapter, # RP58393, because it requires the least amount of tongue space. This adapter must mount at least 29 inches back from the center of the ball coupler on your trailer. If you do not have 29 inches available, then there are no adapters available and at that point we...
    view full answer...

  • Recommended Weight Distribution System for 17 ft Casita Travel Trailer
  • The first step in choosing a weight distribution system is to conclusively determine the tongue weight of your camper once it is fully loaded and ready to tow. This includes full water and propane tanks plus any other gear you would typically travel with. The weight of anything carried in your truck bed behind the rear axle also needs to be considered as tongue weight. I have linked you to an article that describes how to determine your tongue weight. If by pitch, you mean violent side...
    view full answer...

  • Recommended Weight Distribution System for 2012 Toyota Highlander Towing Takena 1865 Travel Trailer
  • The first step in choosing the correct weight distribution system for your needs is to determine the fully loaded and ready to tow tongue weight (TW) of the travel trailer. The weight of anything stored behind the rear axle of your Highlander needs to added to your tongue weight figure. I will link you to an FAQ article that shows a few methods for determining your tongue weight. You will want your TW to fall as close as possible to middle of the effective range of the system you choose....
    view full answer...

  • Is a Weight Distribution Needed to Tow a 2015 Forest River Wolf Pup 16BHS by a 2013 Toyota 4Runner
  • When a trailer weighs more than 50 percent of the tow vehicle's weight, we recommend using a weight distribution system. Also, sway control is a good idea, especially when towing with a midsize SUV. To choose a weight distribution system you will need to go by the total tongue weight of the towing set up. This is calculated by taking the tongue weight of the trailer, when loaded and ready to tow, and adding to that the weight of anything loaded behind the rear axle of the tow vehicle. Keep...
    view full answer...

  • Weight Distribution/Sway Control for a Ford Expedition and Keystone Springdale 189FL Travel Trailer
  • The length of the trailer should not be an issue for you so I would not worry about that. Anytime the trailer weighs at least 50 percent of the towing vehicle when loaded and ready to tow using weight distribution is a good idea and the use of sway control will be beneficial as well. Big trucks passing or a cross wind on a highway can cause sway so it is better to be prepared for the inevitable rather than wishing you had sway control. There are a couple of weighs you can determine the...
    view full answer...

  • Which Reese Weight Distribution System for a 22 Foot Travel Trailer with a GVRW of 6060 Pounds
  • Given that the GVWR represents the maximum your trailer plus its contents can weigh, we can make a pretty good guesstimate of its tongue weight. You can confirm the tongue weight for yourself by using the information provided in the article I've linked for you. Be sure to include the weight of any cargo carried behind the rear axle of the tow vehicle as tongue weight. Given your 6060 lb GVWR, depending on how cargo is loaded, we can take a percentage of the gross trailer weight when...
    view full answer...

  • How to Determine Tongue Weight to Choose the Correct Weight Distribution System
  • There are a few ways to determine your trailer's tongue weight. I've attached a help article that goes through them. The best and most accurate way is to use a tongue weight scale, part # 5780. Another is to load your trailer as if you were going to tow it and weigh the entire trailer. Then estimate the tongue weight beteen 10 and 15 percent. You want to make sure you choose a system that is rated corrected because if it's too low it won't do its job, too high and it will make your...
    view full answer...

  • Comparing Fastway e2 and Reese Steadi-Flex Weight Distribution System For Safari Condo Alto Trailer
  • Both of the weight distribution systems you asked about are very nice systems. You will want to choose a system where your fully-loaded-ready-to-tow trailer tongue weight added to the weight of any cargo behind the rear axle of your towing vehicle is near the middle of the system range. In my research I found that the dry tongue weight of the larger Alto trailer is around 250-lbs. Food, clothing and any other cargo can add up fast so knowing what the total tongue weight is important. I...
    view full answer...

  • Recommended Weight Distribution System With Sway Control
  • It sounds like you are wanting to replace your system for a system with newer sway technology. I recommend the Reese Steadi-Flex Weight Distribution System w/ Sway Control, part # RP66558. This system controls sway with the brackets and the head. This is a chainless trunnion bar system that uses clamp-on brackets so no drilling is needed for installation. This system includes the trunnion bars, an adjustable shank, head assembly, sway control brackets, a lift handle, pin and clip, and...
    view full answer...

  • Reese Weight Distribution System That Doesnt Require Drilling Holes in Trailer Frame
  • Because of the amount of pressure it will be under, the Dual Cam Arm assembly must be bolted to the frame as outlined in the instructions. I can certainly understand your reluctance to drill holes in the frame of your brand new trailer. Have you considered going with a Reese Steadi-Flex system like part # RP66559? The frame brackets would fit around a trailer frame up to 6 inches tall. The weight distribution component would be as effective as the standard chain suspended model. The...
    view full answer...

  • Weight Distribution for a 2014 Ford Expedition and 6,500 to 9,200 Pound Jayco Travel Trailer
  • First be sure to stay under the gross towing capacity of the 2014 Ford Expedition which you have stated is 9,200 pounds. The trailer's max gross weight is higher than the capacity of the vehicle so just avoid loading the trailer to the maximum and you should be good there. To choose a weight distribution system you will need to go by the total tongue weight of the set up. This is calculated by taking the tongue weight of the trailer, when loaded and ready to tow, and adding to that the...
    view full answer...

  • Troubleshooting a Camper Trailer that Sways and Bounces above 60 MPH
  • What's going to help the most for the sway and bouncing you are experiencing is to have the trailer sitting as level as possible while it is being towed and having as much of the weight of the cargo in your trailer moved to the front of the trailer as possible. Check out the FAQ article I attached on picking out a ball mount for the amount of rise/drop that is needed. The best way to pick out a weight distribution system is to base it off of the loaded tongue weight of the setup when...
    view full answer...

  • Weight Distribution And Brake Controller Recommendation For 2010 Toyota Highlander
  • In order to find the best weight distribution system for you there are a couple of things you will need to determine. First you will need to know the gross trailer weight in its fully-loaded-ready-to-tow condition. The next thing you will need is the tongue weight. This is the tongue weight of your trailer when it is ready to go added to the weight of any cargo you place behind the rear axle of your 2010 Toyota Highlander. You want to select a system where your tongue weight falls near...
    view full answer...

  • Recommended Weight Distribution System for Prowler Lynx Trailer with 360 Pounds of Tongue Weight
  • If the 360 pounds of tongue weight is with the trailer loaded and ready to tow then I suggest the Reese Steadi-Flex # RP66558. It's rated from 400 to 600 pounds tongue weight and you'll fall right in the middle. The Steadi-Flex uses automotive style friction pads for sway control and doesn't use chains. You'll need a hitch ball with a 1 inch shank. Use # 63845 for a 2 inch ball or # 63847 for a 2-5/16 inch ball. If your trailer will be heavier when you're towing it and you need a...
    view full answer...

  • Recommended Weight Distribution/ Sway Control System for Towing 2016 Forest River Wolf Pup 16BHS
  • To choose a weight distribution system, you'll need to first determine the fully loaded and ready to tow tongue weight of your trailer. To that figure, add the weight of any gear stowed in the cargo area of the tow vehicle behind the rear axle. I've linked to an FAQ article that explains how to do this. These combined figures represent the Total Tongue Weight (TTW) of your set-up. The TTW of your trailer should fall as close as possible to the middle of the effective range of the weight...
    view full answer...

  • Keystone Passport 195RB Bike Rack Recommendation
  • I pulled up pictures of your Keystone Passport 195RB and have just the solution for you. The # CC-275 will attach to the a-frame of your trailer up near the coupler and then would allow you to carry a bike rack in the hitch opening. I attached a review video for this rack for you to check out as well. The most popular bike rack we carry that has been confirmed to fit this vehicle is the Thule Roadway 2 part # TH912XTR. We asked our demo and install guys to name their favorite, most easy-to-use...
    view full answer...

  • Does Curt Weight Distribution Come with a Pole Tongue Adapter
  • Weight distribution systems including # 17301 do not come with a pole tongue adapter but we do have them available separately. If you go with a chain hanging system like 17301 then you can use pole tongue adapter # RP3280. However the adapter is rated for 7,500 pounds gross trailer weight and 750 pounds tongue weight so you are limited to that. If you are talking about the shank that the head mounts to, yes, it is included. If you need more capacity you could go with adapter # RP58393...
    view full answer...

  • Weight Distribution for a 2010 Chevy Silverado Towing a 5,100 Pound Travel Trailer
  • That 350 pound tongue weight is likely the dry tongue weight. If the gross trailer weight is 5,100 pounds when loaded and ready to tow then the tongue weight would be 510 to 765 pounds (10 to 15 percent of he gross trailer weight). Then to that you would add the weight of anything carried in the bed behind the rear axle of the 2010 Chevy Silverado. The Fastway e2 system # FA94-00-0800 is rated for 400 to 800 pounds tongue weight so it covers the range above. You would also need ball...
    view full answer...

  • Recommended Weight Distribution/Sway Control for 2000 lb Scamp TT Towed By Jeep Wrangler Unlimited
  • If the tongue weight of your Scamp plus the weight of any cargo carried in the cargo area of your Jeep behind the rear axle is less than 400 lbs (which it should be), I'd recommend the Reese Steadi-Flex Weight Distribution Kit, part # 66557. This kit is compatible with smaller trailers with tongue weights up to 400 lbs. In addition to the weight distribution component, the integrated sway control system will greatly reduce trailer sway. The kit includes the weight distributing shank, but...
    view full answer...

  • Recommended Weight Distribution Hitch Set-Up for 4400 lb Trailer Towed by 2014 Ford Explorer
  • For best performance, before you choose a system you really should determine the exact fully loaded and ready to tow tongue weight of the trailer. To this figure, add the weight of any gear stowed behind the rear vehicle axle in the cargo area of your Explorer. Those two weights added together will equal the total tongue weight (TTW) of your trailer. This is the figure you use to choose a system. Ideally, the TTW of your set up will fall as close as possible to the middle of the effective...
    view full answer...

  • Comparing Curt # C17331 Short-Arm vs # 17301 Standard Length Spring Bar Weight Distribution Systems
  • The only difference between the Curt # C17331 and the # 17301 weight distribution systems is the length of the spring bars. The Short-Arm system is designed for trailers that have batteries or propane tanks on the trailer tongue, where there is a limited amount of space on the frame member. Either system is designed for trailers whose total tongue weight (trailer tongue weight plus weight of cargo in truck bed or SUV cargo area behind rear axle) doesn't exceed 800 lbs. A better performing...
    view full answer...

  • Weight Distribution for a 2015 Ford F-250 and 4,500 Pound Casita Travel Trailer
  • When calculating tongue weight for a weight distribution system you don't factor in the weight of the system itself but you do factor in the weight of anything carried behind the rear axle of your 2015 Ford F-150. This is because the weight distribution system would have to lift cargo behind the rear axle in the tow vehicle. Based on the weights you have specified in your question I recommend going with the 600 pound system, # RP66558. This system comes with a shank so you will just...
    view full answer...

  • Weight Distribution with Sway Control for Jayco Swift 154bh and 2003 GMC Yukon XL
  • Moving the suspension to the top of the axles will make the trailer more susceptible to sway. If you needed more height to tow the trailer level the best method is to use a ball mount with the right amount of drop. The same would go for weight distribution. To choose a weight distribution system you will need to go by the total tongue weight of the set up. This is calculated by taking the tongue weight of the trailer, when loaded and ready to tow, and adding to that the weight of anything...
    view full answer...

  • Recommended Weight Distribution Product for 2008 Suburban Pulling 5500 lb Travel Trailer
  • A suspension enhancement product is primarily intended to support the weight of any cargo carried in the bed of a truck or in the cargo area of an SUV like your Suburban. A weight distribution system would be a better option, as they are specifically designed to transfer a portion of the trailer tongue weight to the front vehicle axle, which will level the right height. The first step in choosing a weight distribution system is identifying the tongue weight of the trailer when it's...
    view full answer...

  • Choosing Weight Disribution System for Casita Travel Trailer Towed by 2008 Chevy Colorado
  • When you figure your tongue weight, you find the total of the actual tongue weight of the trailer fully loaded (as towed), and any weight carried behind the rear axle of the tow vehicle. If your tools are stowed in front of the rear axle, their weight would not be considered as tongue weight. From the excellent information that you provided, I recommend the Reese Steadi-Flex Weight Distribution System, item # RP66558. This is a great total system for weight distribution and sway control,...
    view full answer...

  • Recommended Reese Weight Distribution System Rated for 600 Pounds Tongue Weight
  • A weight distribution system rated for 600 pounds of tongue weight will be just find as long as the total tongue weight of your loaded and ready to tow trailer added to the amount of weight added behind your truck's rear axle isn't over the 600 pounds. If your tongue weight isn't over the 600 pounds I suggest the Reese Steadi-Flex # RP66558. The Steadi-Flex uses friction pads similar to automotive brake pads for sway control. This helps correct sway and is quieter than a steel on steel...
    view full answer...

  • Recommended Reese Weight Distribution System for 2001 Ford F-150 Towing Trailer with 7000 Pound GVWR
  • To determine the correct weight distribution for your setup you need to find your trailer's loaded and ready to tow tongue weight plus you'll need to add in the amount of weight stored in your 2001 Ford F-150's truck bed behind the rear axle. Your trailer's tongue weight should fall between 10 to 15 percent of the trailer when it's loaded and ready to tow. However, the best way to get your trailer's tongue weight is to weight it using a tongue weight scale, # 5780. Once you have...
    view full answer...

  • Weight Distribution for 2013 Toyota Higlander and Keystone Passport Express 195RB Travel Trailer
  • It sounds as if you've got a very good idea of what you're needing, good work! When you're determining the fully loaded and ready to tow tongue weight of your trailer, don't forget to include the weight of anything carried in the cargo area of your Highlander behind the rear axle (see linked article.) If you find that the fully loaded and ready to tow tongue weight of the trailer doesn't exceed 500 or 550 lbs, the Reese Steadi-Flex Weight Distribution System you referenced, part...
    view full answer...

  • Choosing Weight Distribution System for Trailer with 400-550 lb Tongue Weight
  • Using spring bars with a capacity that is much higher than your trailer tongue weight would lead to an excessively rough ride. Because the spring bars would be extremely stiff, the system would not be able to transfer much weight to the front vehicle axle, which is the whole purpose of the system. When you are determining which system to choose, you want to consider the fully loaded and ready to tow trailer tongue weight plus the weight of anything stowed behind the rear axle of the...
    view full answer...


Do you have a question about this Weight Distribution?




  • Why etrailer.com?

    At etrailer.com we guarantee:

  • Highest quality weight distribution for the best price.

    Our Lowest Price Pledge ensures you will never overpay for the parts you need.
  • Real product know-how.

    We make sure that the products we sell are what we say they are, and that they work the way they are supposed to work. Get real advice from a real person who has the knowledge and expertise needed to solve your problem.
  • Most detailed, accurate weight distribution information available.

    Because we take providing accurate product information seriously, we take our own detailed product photos, demo videos and installation videos, as well as verify measurements, instructions, and vehicle fit information.
  • Installations, made easy.

    We love helping people and have the most highly-trained customer service, hands-on experience, step by step videos and installation instructions.
  • Fast shipping.

    Your order is automatically routed to get out of our warehouse and to your door as quickly as possible. Receive free shipping on orders over $99.
  • Personalized service for life.

    We provide one-on-one, personalized service from the ordering process through the life of your product.
  • Trusted since 1946.

    We've been serving customers since our parts store first opened in 1946 and continue to be recognized by our customers, our vendors and third parties for exceptional service.
  • Returns Policy

    Satisfaction Guarantee
    Need to return an item? No problem. Please read our Returns Policy for more information.

Info for this part was:

Expert Research:
Michael L
Expert Research:
Michael H
Expert Research:
Jameson C
Video Edited:
Jacob T
Written by:
Laura H
Video Edited:
Dustin K
Photos by:
Amber A
Expert Research:
Jeffrey L
Photos by:
Sam P
Installed by:
Hayden R
Updated by:
Sarah W
Updated by:
Alexander C
Updated by:
Amanda M

At etrailer.com we provide the best information available about the products we sell. We take the quality of our information seriously so that you can get the right part the first time. Let us know if anything is missing or if you have any questions.




^
About Us
photos and videos
1,056,204

Original Photos & Videos

Produced to make sure you know what you are getting and you get exactly what you need.

installations
35,570

Installations Completed

To make sure products work and fit the way they are supposed to.

etrailer call center
2,476,511

Phone Calls & Emails Answered

1,125,924 phone calls and 1,350,587 emails to help find the right solution.

etrailer training
400+

Average Hours of Product Training

We get to know our products firsthand so experts can better help you.

etrailer service
71

Years of Quality Customer Service

Assisting our neighbors and customers, face to face at the counter.

etrailer experts
193,357

Pages of Expert Information

Created to make sure you have all the answers to your questions, from real experts.
