Item # RVIF32
Orders above $99 qualify for free shipping
Shipping Weight: 0.55 lbs
Ideal for pop-up campers, this double, white ceiling light is convenient and easy to use. The aero-style light has a replaceable bulb and lens and a corrosion-resistant, white housing. Includes a female socket port and a built-in on/off switch.
Video of RV Interior Light - Female Socket Port, On/Off Switch - Aero Style - Double - White
installation instructions And specs For complete information.

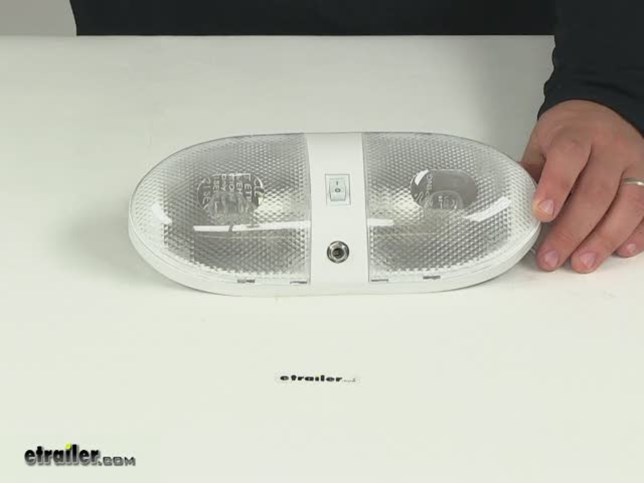

Today we're going to be taking a look at part number RVIF32. This is the optronics RV interior light with a female socket port. That's what this portion is right here. This is a double light arrow 00:00:11 style RV interior light. It's going to include the female socket port. This will accept the following part number: RVIM46.
This is the single arrow style portable RV light. It also accept part number RVFL51 as the combination interior light and fan. Again, those are sold separately. They can be found right here on our website. It's going to have the built in on and off toggle switch. The lenses on this unit are going to be easily replaceable as well as easily removed.
All you got to do is push them towards the end of the actual light. Then they just pop out from their holds. It's going to allow you to gain access to the incandescent bulb. That way you can change it as necessary. That bulb type is going to be 921. Now the housing on this, this is going to be all-weathered molded plastic corrosion resistant housing.
Again, the bulbs are going to be easy to change. Here on the backside it's going to feature a two wired design. You're going to have your black wires for power. Your white wires are going to be for ground. Two wires per bulb, or per light in unit.
This is CSA listed. It's a nice oval shape. When we take a look at the overall dimensions starting with the overall length, measuring from edge to edge. That's going to give us a measurement of about 10 3/8 of an inch. The overall width measuring from edge to edge. It's about 4 3/16 of an inch. Then the overall depth, or the thickness of the light itself, that's going to be about 1 3/4. Now the power drawl on this unit is at 12 volts. That's going to be 2.68 amps. It is a surface mount insulation. You can see the mount holes right back here. If we take a measurement of one side . Each side's identical. The separation that we have between these two holes, measuring center on center, it's going to be about 1 3/4. Between these two holes, that's about 2 3/4. Going this direction, center on center between the two holes, that's going to be about 2 9/16 of an inch. Let's go and hook this up to our actual power source that way we can see what it looks like with some power running to it. We'll also be able to turn off our overhead lights. I'm simply going to go and ground both white wires. Then I'm going to connect both of my power wires which again, are the black wires. This is what the light looks like turned on. It sends out plenty of light. Nice consistent signal. Then you're going to have the on and off toggle switch right there. Click activation. Again, it is an incandescent bulb system. Very simple to use and very simple to operate. That's going to do it for today's review. Part number RVIF32. This is the optronics RV interior light. .
