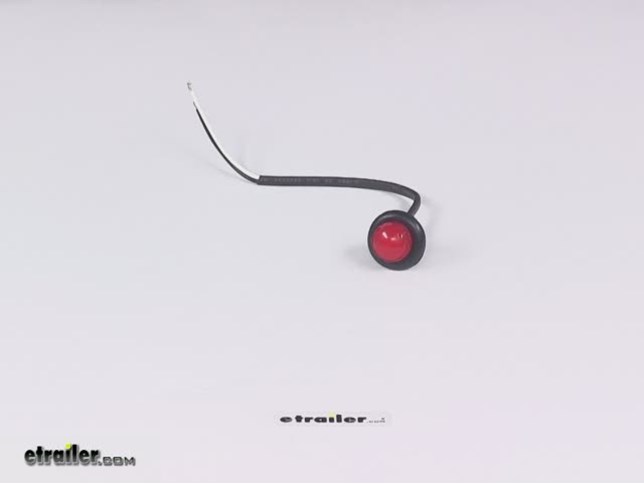

GloLight Uni-Lite LED Clearance and Side Marker Light - Submersible - 2 Diodes - Round - Red Lens

GloLight Uni-Lite LED Clearance and Side Marker Light - Submersible - 2 Diodes - Round - Red Lens

Item # MCL110RKB
lowest price pledge
Retail:$5.98
Our Price: $4.22
You Save: 29%
Trailer Lights
Orders above $99 qualify for Free Shipping
Shipping Weight: 0.03 lbs
Quantity:
In Stock
MCL110RKB - Recessed Mount Optronics Trailer Lights
zoom in icon
slider vertical icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

In Use/Installed

3/4" Round. Waterproof mini trailer light functions as both a clearance light and a side marker light when properly mounted. GloLight lens creates a smooth, bright circle of light. Recessed mount with included grommet. 2-Wire pigtail. PC rated. Lowest Prices for the best trailer lights from Optronics. GloLight Uni-Lite LED Clearance and Side Marker Light - Submersible - 2 Diodes - Round - Red Lens part number MCL110RKB can be ordered online at etrailer.com or call 800-298-8924 for expert service.
  • All Info
  • Reviews (757)
  • Q & A (0)
  • Videos (3)
  • Photos
  • Why etrailer?

Optronics Trailer Lights - MCL110RKB

  • Clearance Lights
  • Round
  • LED Light
  • Red
  • Recessed Mount
  • 1 Inch Diameter
  • Submersible Lights
  • Optronics
  • Rear Clearance
  • Side Marker

3/4" Round. Waterproof mini trailer light functions as both a clearance light and a side marker light when properly mounted. GloLight lens creates a smooth, bright circle of light. Recessed mount with included grommet. 2-Wire pigtail. PC rated.


Features:

  • Small, round trailer light functions as both a clearance light and a side marker light when properly mounted
  • GloLight Uni-Lites feature a smooth, bright circle of light
  • Sonically sealed, waterproof housing and lens unit is submersible
  • LEDs make great replacements for incandescent lights
    • Last 50 times longer
    • More efficient - provide brighter light with less power output
    • No bulbs to replace - no brittle filaments
  • Durable polycarbonate lens and housing
  • Red lens over white LEDs
  • Recessed mount with included black PVC grommet
    • Installation requires a 3/4" hole at desired location
  • 2-Wire pigtail - includes power lead and ground wire
  • DOT compliant
  • PC rated - can be mounted in any 360-degree position


Specs:

  • Dimensions: 3/4" diameter x 15/16" deep
  • Diodes: 2
  • Power draw at 12.8 volts: 0.052 amps
  • Lifetime warranty on LEDs


Optronics light dimensions

Sealed, Waterproof Trailer Light

The waterproof construction of this light makes it ideal for use on trailers that may be submerged, like a boat trailer. The circuit board is sealed, which means that water will not damage the diodes or circuit board.


Recessed-Mount Light

Recessed mount light

Recessed-mount trailer lights install underneath with included grommet. These lights will extend into the mounting surface and require that a hole be cut into your trailer.


PC-Rated Lights

Diagram of light spread for PC rated light

A PC-rated light produces a 90-degree angle of light to either side of its centerline for a total of 180 degrees of coverage. This beam pattern can be clearly seen when you are standing directly in front of the light, as well as when you are standing on either side of the light. When properly installed, this type of light can function as both a front clearance light and a side marker light or as a rear clearance light and a side marker light.



MCL110RKB Optronics Uni-Light Mini LED Side Marker/Clearance Trailer Taillight - PC Rated - Red
