Fulton Bolt-Thru Swivel Marine Jack - Bolt On - Sidewind - 12" Lift - 1,500 lbs

Fulton Bolt-Thru Swivel Marine Jack - Bolt On - Sidewind - 12" Lift - 1,500 lbs

Item # FXP15L

lowest price pledge

Retail:$141.64

Our Price: $98.41

You Save: 31%
Trailer Jack

Orders above $99 qualify for Free Shipping

Shipping Weight: 20 lbs

Quantity:
In Stock, Ships Today
Fulton Side Frame Mount Jack - FXP15L
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.
Please enter a valid email address.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

pop out icon replay 360 icon
horizontal rotate icon

Product Images

Customer Photos


  • Side Frame Mount Jack
  • 1500 lbs
  • Sidewind Jack
  • No Drop Leg
  • Swivel Jack - Pull Pin
  • Bolt-On
  • Fulton
  • 12 Inch Lift
  • With Wheel
With corrosion-resistant zinc plating, a durable, poly wheel base and 12-3/4" retracted height, this swivel jack is perfect for marine and other recreational applications. Measures 14-1/2" from mounting bracket to top of jack. Lowest Prices for the best trailer jack from Fulton. Fulton Bolt-Thru Swivel Marine Jack - Bolt On - Sidewind - 12" Lift - 1,500 lbs part number FXP15L can be ordered online at etrailer.com or call 800-298-8924 for expert service.


  • All Info
  • Reviews (29)
  • Q & A (35)
  • Videos (2)
  • Photos
  • Why etrailer?

Fulton Trailer Jack - FXP15L

With corrosion-resistant zinc plating, a durable, poly wheel base and 12-3/4" retracted height, this swivel jack is perfect for marine and other recreational applications. Measures 14-1/2" from mounting bracket to top of jack.


Features:

  • Ideal for marine and recreational use
  • Convenient, spring-loaded, plunger-pin swivel feature
    • Swing up to stow parallel to tongue for travel
    • Move back into upright position for use
  • Z-Max 600 zinc finish provides superior corrosion resistance
    • 600-Hour salt spray rating
  • Bolt-Thru mount provides minimum deflection and maximum support
    • 3-D Formed, heavy-gauge steel stampings
    • Proprietary bushing material
  • Heavy-gauge steel construction
  • Sidewind design
  • Thermoplastic wheel and mounting bracket included


Specs:

  • Application: 3" x 3", 3" x 4", or 3" x 5" trailer frames
  • Bracket height:
    • 12-3/4" Retracted
    • 24-3/4" Extended
  • Lift: 12"
  • Clearance: 14-1/2" from mounting bracket to top of jack
  • Inner tube diameter: 2"
  • Outer tube diameter: 2-1/4"
  • Pull pin diameter: 1/2"
  • Wheel diameter: 8"
  • Lift capacity: 1,500 lbs
  • Uses an 8 pitch acme screw
    • Takes 8 turns of the handle to raise or lower the jack an inch
  • Limited 5-year warranty


XP15L 0101 Fulton Marine and Recreational Bolt-Thru Swivel Jack, Sidewind, 12" Travel, 1,500 lbs






California residents: click here

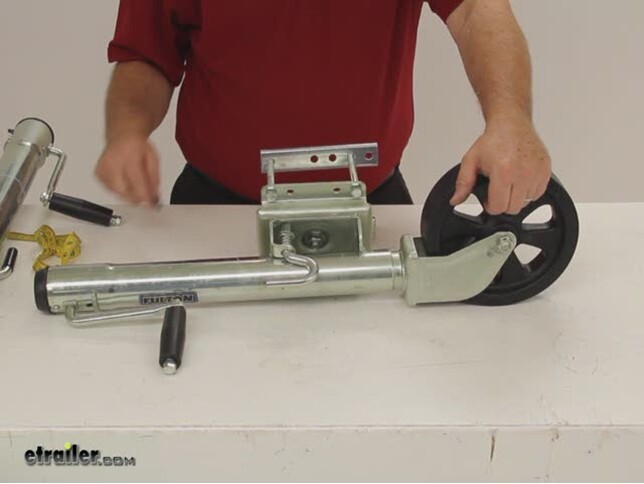

Video of Fulton Bolt-Thru Swivel Marine Jack - Bolt On - Sidewind - 12" Lift - 1,500 lbs


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Fulton Bolt-Thru Swivel Marine Jack Review

Today, we'll be taking a look at the Fulton Bolt-Thru Swivel Sidewind Marine Jack with a 12-inch lift, part number FXP15L. It's also available in a dual-wheel design, part number FXPD15L. This Fulton Swivel Marine Jack features a wheel, so it'll make your trailer easy to maneuver. Another great feature about this jack is it has the ability to swivel to the left or right. This is going to help save time when raising or lowering your trailer. Now, it is a marine jack, so it features a corrosion resistant zinc plating that is rated up to 600 hours of salt spray. The easy to use handle is going to help us achieve our 12 inches of travel and it is a sidewind, so we don't have to worry about any obstructions when winding it up. At its highest, it offers 24-3/4 of an inch lift to the bracket, and at its lowest 12-3/4 of an inch lift to the bracket. It's rated for a 1500-pound capacity.

The zerk fitting here on top is going to allow us to add grease to keep it lubricated. It's an 8-inch tall by 2-1/4-inch wide thermoplastic wheel that won't rust or corrode. It's an easy bolt-on installation. All the hardware is included. Now, that we've gone over the features, I'll go ahead and show you how to get it installed. Now, this jack is going to fit up to a 3-inch wide by 5-inch tall trailer frame, so when placing my jack I'm actually just going to be replacing it where my old jack was.

That's a good reference point. If not, you want to place it as close to your trailer tongue as possible, without any obstructions where you can still wind it up. We'll set it in place right here, and then we'll take our hardware and I'm going to run it through the top here, and then I'm going to do the same for the other side. Then, I'll take my mounting bracket or my mounting plate, and we want to install it with the single one facing up, so this direction here. With that in place, we can take the lock nuts and get them started on the back side. Now, for the bottom we're going to go with the closest hole possible, so with this one being the bottom one on our jack and the second one to the bottom on our mounting bracket. We'll just go through and then put the nut on the other side.

We'll repeat the same process for the other side. Then, we can go ahead and snug those up. Now, you don't want to tighten it up too much on top before you start tightening the bottom because you want the mounting portion of the jack here to be flush with the trailer both on top and on bottom. You don't want it to start twisting or get bent. Now with everything all tighten down evenly, we can go ahead and torque it down to manufacturer's specifications. One last thing I'd like to point out is you'll also want to make sure when mounting your jack that there are no obstructions in the way for the swivel.

As you can see here, we're all set. Now, let's try it out. That's going to complete our look at the Fulton Bolt-Thru Swivel Sidewind Marine Jack with a 12-inch lift, part number FXP15L.


Customer Reviews

Fulton Bolt-Thru Swivel Marine Jack - Bolt On - Sidewind - 12" Lift - 1,500 lbs - FXP15L

Average Customer Rating:  4.8 out of 5 stars   (29 Customer Reviews)

With corrosion-resistant zinc plating, a durable, poly wheel base and 12-3/4" retracted height, this swivel jack is perfect for marine and other recreational applications. Measures 14-1/2" from mounting bracket to top of jack.

- FXP15L
by:

Great product at a very good price and great service. Received an email with more product info and confirmation the product shipped, and the product arrived faster than expected. Thank you! 464250



- FXP15L
by:

Easy to install, looks and works great after 1 year. Wheel is a good size for making minor movements, as when hooking up. Jack handle comfortable to use. 269065



- FXP15L
by:

I purchased this jack to replace the Fulton 1000# rated jack on the trailer for my 22' boat. The 1000# jack was just a little to wobbly for comfort. This 1500# rated jack has a larger diameter cylinder and a bigger wheel and is much beefier in general. It was a direct replacement for my old jack and uses the same type of mounting bracket. Installation took me about an hour. The boat trailer is much more stable now when unhitched. The service at eTrailer is awesome and they really instill confidence as a retailer. I will continue to look at their site first when internet shopping for trailer and other needs. 146313



- FXP15L
by:

My old jack on my Ranger Bass Boat had seen it's better days, This one is much heaver duty than my old one. The old one was 1,000lbs, the new one is 1,500lbs I am glad i went with this one. I started to get one form BPS but it sucked, and was the same price as this one, it's smooth, and looks great. 88381


Comments

Still looks new and works like the day i purchased it. Best jack I have ever used and I have had several boats and trailers. Makes putting your trailer on and off the ball easy.

Joseph R - 07/08/2014

5429

- FXP15L
by:

Just mounted my new jack to my wood splitter. I had bent the one that came on it and this new one lined up & fit perfect. It seems really heavy and well made. I expect I will have many years of use out of it. The sales lady on the phone was really nice & got my jack out in the mail that evening. I received it within two days & no charge for shipping. Would definitely recommend this company 357709



- FXP15L
by:

One year out, works well. Easy to install. The plastic cap arrived cracked but they replaced it immediately. 658124



- FXP15L
by:

Works like a champ. 609800



- FXP15L
by:

Exactly what I wanted and expected. Thank you etrailer.com for the helpful videos and great customer service. 570759



- FXP15L
by:

Everything was what I expected from etrailer. Shipping was very fast too. 566681



- FXP15L
by:

Beautiful trailer jack. It was a breeze to install. It took me about 30 minutes. I recommend attaching the trailer to your tow vehicle to support the trailer while you remove the old jack and install the new one. That may be obvious to most people, but I used a separate hydraulic jack to lift and hold the trailer while I made the switch. The jack is installed on an EZ Loader boat trailer that carries an 18' North River fishing boat. The boat and trailer weigh in at around 3,000 lbs with fuel, gear, etc. I replaced a similar Fulton trailer jack rated at 1,000 lbs with a 10" lift that came with the trailer 17 years ago and is still working fine. My concern was the amount of manually pushing the trailer I now have to do with the smaller 6" wheel. I wanted a stronger jack with a bit more rise (new truck has a higher hitch ball) and with the larger wheel to make manually pushing a bit easier. The new trailer jack has a 2" tube that is stronger than the 1 1/2" tube on the jack I replaced. This Fulton FXP15L rated at 1,500 lbs and a 12" lift and 8" wheel is exactly what I needed. The MaxxTow MaxxHaul trailer dolly was also a breeze to assemble. I did have one challenge in that the provided M12x60 bolt that connects the wheel assembly to the pivot would not fit through the the 1/2" hole provided in the pivot bracket. I needed a 7/16" x 2 1/2" bolt to assemble the dolly without drilling out the provided holes. This required a trip to the hardware store to obtain and complete the assembly. The dolly is designed well and of high quality. I'm glad I got the pneumatic tires and the dolly has the flexibility to be used as a towing arm on with an ATV or lawn tractor. Purchasing from etrailer was a great resource to locate, review, and purchase the products I needed - lights, trailer dolly, trailer jack - shipping was fast (and free with my order). Order follow-up and customer service is excellent. Highly recommend checking eTrailer first before purchasing your trailer parts and accessories anywhere else. Excellent pricing, free and fast shipping - tough to beat that. 547424



- FXP15L
by:

The FXP15L was an excellent upgrade over an older 1,000 lb capacity jack for my 24 ft boat. It works effortlessly and was an easy installation. The older jack was becoming harder to crank despite plenty of grease. After reading other reviewers comments about how much better the 1,500 lb jack worked for them, I decided to try. I am glad I did and etrailer made it easy. 487333



- FXP15L
by:

I have made two separate purchases from etrailer.com at different times. In both cases the product arrived quicker than expected and was exactly what I ordered. Thus far I have been please with the products I received, in that they seem as good or better than I expected. On one of those purchases because there were so many selections to chose from and I was trouble identifying which products met my requirements, I called and asked for help. The sales person promptly prepared and sent me an email listing the specific product numbers of all of the products from which I could choose that met my requirements. 456154



- FXP15L
by:

This tongue jack has worked fine and seems to be of fine quality. 378858



- FXP15L
by:

As always, etrailer comes through! Excellent jack, good quality, perfect fit, in fact it's the only jack I found that fit my trailer. 1 year of use in saltwater at still looks new, I expect many more years of service from this jack. Fast shipping and a fair price, what else could you ask for? 378398



- FXP15L
by:

This makes my life so much easier as I don't have to ask my wife to help push my 18' Hewes fishing boat while I hit the jack wheel with my big rubber hammer to get the soft rubber wheel to turn on concrete garage floor. I bought the trailer and boat used and the jack on it is cheap. Don't try to save money on this type of equipment!!! The wheel turns so easy when guiding the boat myself. 372588



- FXP15L
by:

just works great 323048



- FXP15L
by:

The product is perfect for my trailer....gross weight boat and trailer about 3,500 lbs, and the big wheel, and low gear ratio jack makes every thing work perfect and effortlessly. Great improvement for my boat trailer! 322886



- FXP15L
by:

This was a direct replacement for the original. I'll remember with this one to flip it up before driving away. easy install works great. 322363



- FXP15L
by:

We needed a jack that could allow for the trailer to easily move and then quickly move out of the way when it came to moving it. This jack fits that bill. It has a large wheel that moves easily in whatever direction and it does not appear to get hung up in gravel. I would definitely recommend buying this. 256622


Comments

Still holds up great to our use and abuse!

Bill H - 06/03/2017

24561

- FXP15L
by:

Replaced the old jack with a new one, fit perfectly and works great. 247733



- FXP15L
by:

Product arrived as projected, assembled easily and attached to trailer in a jiffy. Great customer service. 223592



- FXP15L
by:

I bought this jack to replace one on my camping trailer that was too light. I installed it today in less than a half hour. Fit perfectly and is much heavier duty than the old one which is exactly what I was looking for. Etrailer had a great selection so getting just the right one was easy. Service was excellent and was delivered on time. Great company to deal with. 221950


Comments

Both products have worked out beautifully. Thanks for the follow up. E Trailer is a great company to deal with.

Chris B - 09/02/2016

20776

- FXP15L
by:

Heavy duty exact replacement. Great quality with all the necessary parts 218169



- FXP15L
by:

Fast and free shipping. Great product as promised. Very pleased with my order and will order here from now on. Will tell friends and family to use this site due to my great experience. 185026



- FXP15L
by:

item arrived quick. very easy to install. works as described. happy with purchase so far. 180436



- FXP15L
by:

This is the second Jack assembly that I have purchased for another trailer I recently purchased. These work great on larger trailers given the high capacity and is the only swing away jack that has a 12" lift. I use these on my military trailers to replace the old manual jacks and they have the height and weight capacity to do the job. The large wheel has held up well dragging over rocks and concrete over the years. Pricing and customer service has been good from etrailer! 179731



- FXP15L
by:

product met my expectation.shipping was extremely fast and overall was a great experience 169115



- FXP15L
by:

Quality exceeds the OEM (Pro). The gearing is only a little better but still somewhat stiff at the upper level. This may be indicative of the marine, bolt-on style. Had Bulldog made a bolt-on I would try it. 89378



- FXP15L
by:

Good quality. Have owned one for 10 years. Had to replace due to being rear ended in an accident, otherwise would probably lasted for another 10 years! 86527


29
29

Ask the Experts about this Fulton Trailer Jack
Do you have a question about this Trailer Jack?


  • Recommended Trailer Jack With 1,500 lb Capacity and Retracted Height of 12-3/4 Inches
  • The Fulton Snap-Ring Swivel Marine Jack with Fixed Length - 400 lbs # F1410050149 has a fixed height of 14-1/2 inches. We don't have a fixed height option for a 1,500 lb jack, so I recommend the Fulton Bolt-Thru Swivel Marine Jack - Bolt On # FXP15L which is shorter at the retracted height of 12-3/4 inches but also extends to 24-3/4 inches. I've attached a couple videos to assist.
    view full answer...

  • Fulton 1500-lb Bolt-Thru Pull-Pin Swivel Jack
  • Thank you for the photo of your Fulton jack. Your jack is a bolt-thru type pull-pin swivel jack. The 1500-lb-rated Fulton jack you can use in place of your existing one is part # FXP15L.
    view full answer...

  • Replacement Trailer Jack for a Shelby 1,500 Lb
  • I do have an option for you but unfortunately, we do not have a jack that has been confirmed to work with the bolt through mounting bracket used on the Shelby trailer jacks. Instead, I recommend taking a look at the Fulton Bolt-Thru Swivel Marine Jack part # FXP15L which has a 1,500 lb capacity, offers 12" of lift, and is coated with a zinc plating for protection. You will not need to do any welding or drilling in order to install this jack so long as the dimensions of your frame rail do...
    view full answer...

  • Mounting plate Dimensions for the Pro Series Jack # PSEJ10000101 to Mount on a LAK Sailplane Trailer
  • I went out to the warehouse and pulled one of the Pro Series Snap-Ring Swivel Jacks, # PSEJ10000101, to measure for you. I added dimensions to a photo I took of the mounting plate for you to use to see if the mounting pattern will match up to your mounting plate on your LAK sailplane trailer model T-5. The overall dimensions of the mounting plate are 6-3/8 inches by 5-1/2 inches, and the bolt hole pattern is 4-3/8 inches on center for the outer most holes, 3-3/8 inches on center for...
    view full answer...

  • Recommended Trailer Jack to Replace Shelby Model 5874A8
  • To replace the Shelby trailer jack on your boat trailer, I recommend looking at the Fulton Bolt-Thru Swivel Marine Jack # FXP15L. This is a great sidewind jack that will have the same 1,500 pound capacity as the Shelby 5874A8 you are replacing but with a greater lift of 12 inches. It has a Z-Max 600 zinc finish that will provide superior corrosion resistance and a 600-hour salt spray rating. This jack has a bracket height of 12-3/4 inches when retracted and 24-3/4 inches when extended....
    view full answer...

  • Do Trailer Jacks with Two Wheels Make it Easier to Maneuver a Jack on Concrete
  • Having 2 wheels will provide more surface area/contact with the ground. This could actually make it more difficult to maneuver compared to a single wheel. But two wheels are better than one when not on pavement. A single wheel tends to dig into dirt or gravel easier. A Fulton jack such as # FXPD15L is going to be the better jack compared to the MaxxTow line of jacks. I do recommend going with a Fulton. For a single wheel version use # FXP15L.
    view full answer...

  • Will the Replacement F2 Swivel Jack fit a Mastercraft Boat Trailer with Weld On Swing Up Jack Plate
  • To determine if the Fulton F2 Swing-Up Trailer Jack with Dual 7 inch Wheels, Sidewind -1,600 lbs - No Mounting Hardware, item # F1413100334, will bolt directly to the old bolt through mount, without cutting it off, you will need to measure the bolt pattern on your trailer. I went out to the warehouse and measured the bolt mounting pattern on the Fulton F2 Swing-Up Trailer Jack, item # F1413100334, and the bolt holes are 3-3/8 inches on center by 4-3/8 inches on center. If you determine...
    view full answer...

  • Replacement Jack For Shelby 5856A Boat Trailer With 12 Inch Travel And 1500 lb Capacity
  • For your Shelby 5856A boat trailer, I recommend the Fulton Bolt-Thru Swivel Marine Jack with Dual Wheels - Sidewind - 12" Lift - 1,500 lbs # FXPD15L. This jack has zinc plating for corrosion resistance and durable poly wheels. For the single wheel option, you can use the Fulton Bolt-Thru Swivel Marine Jack - Bolt On - Sidewind - 12" Lift - 1,500 lbs # FXP15L.
    view full answer...

  • Will Fulton Bolt-Thru Swivel Marine Jack Fit the Mount of a Fulton Magnum Series Jack
  • I recently learned that the Magnum series jacks could have a different bolt pattern than the new jacks. Because of this it is not likely a new one will fit on the welded on bracket of the old one. To be safe I recommend adding mounting bracket # P9012-00. The holes are 3 inches apart on center. The bolt is a 1/2 inch coarse threaded bolt that is 1-1/16 inches long. If all that matches what you have then you will not need the new weld-on bracket. If the mount is the same or if you...
    view full answer...

  • How To Determine the Correct Boat Trailer Jack Weight Capacity
  • A trailer jack onlys needs to be rated for the tongue weight (TW) of a trailer, not the entire gross trailer weight (GTW). With that being said, the tongue weight of a trailer is typically 10-15% of the gross trailer weight. Therefore your boat trailer will have to weigh more than 12,000 lbs without the boat in order for the weight capacity of the Fulton Bolt-Thru Swivel Marine Jack part # FXP15L to be exceeded. As long as your boat trailer does not weigh more than 12,000 lbs and the...
    view full answer...

  • The Best Bolt-On Swivel Trailer Jack for a Boat Trailer
  • Think of bolt-through as bolt-on without drilling any holes in the trailer frame. Bolt-around might be a better way to describe how the Fulton trailer jack # FXP15L attaches to the trailer frame. Snap ring jacks like # PSEJ10000101 as an example have a snap ring, see picture, that holds the jack to a mounting bracket. The Fulton jack is attached to the mounting bracket via a bolt in the center. For a marine swivel jack with a wheel a Fulton F2 jack, such as # F1413140334, would offer...
    view full answer...

  • Replacement Handle and Square Bushing for the Fulton 1500 lb Marine Jack XP15L
  • For the Fulton 1,500 lb trailer jack, # FXP15L, you will need the Replacement Sidewind Handle Kit, # F0933305S00. This kit includes the crank, pin and square bushing you referred to. If you also need a bevel gear kit, you will need the Fulton Bevel Gear Kit, # F0933306S00.
    view full answer...

  • Caster on Fulton Jack Doesn't Swivel Easily When Weight Is Applied
  • Boat jacks, including the Fulton jack you have, are typically constructed so that the inner tube of the jack and the yoke and caster are all one piece. Because of the way its constructed, the caster won't easily turn until the boat is rolling. Having corrosion or debris on the main screw of the jack can make this worse. You can try lubricating the jack, and see if this improves its operation. Fulton offers a jack with a 'live' caster, the XLT Swivel Jack, part # F141133 with a 1500 lb...
    view full answer...

  • Replacement Trailer Jack for Weld On Mount Shelby Jack Model Number 5874A8
  • Shelby jacks are no longer in production. If the welded mount had a bolt-thru design, then I recommend checking the pin hole dimensions for compatibility. The bolt hole centers are 3 inches apart on the Jack Mounting Bracket for Fulton Marine Jack # P9012-00 for example. This is compatible with jacks like # FXP10W0301. Your other option is to ditch the welded plate if it doesn't match up and use a mount like that found on the Fulton Bolt-Thru Swivel Marine Jack - Bolt On - Sidewind...
    view full answer...
