Timbren Axle-Less Trailer Suspension System - 4" Lift Spindle w/ Brake Flange - 5,200 lbs

Timbren Axle-Less Trailer Suspension System - 4" Lift Spindle w/ Brake Flange - 5,200 lbs

Item # TASR5200S03

lowest price pledge

Our Price: $750.25

Trailer Axles

This item qualifies for Free Shipping

Shipping Weight: 153 lbs

Arrives before Christmas with Ground or 3 Day Shipping.
Quantity:
In Stock, Ships Today
Timbren Spindles Only Trailer Axles - TASR5200S03
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.
Please enter a valid email address.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

pop out icon replay 360 icon
horizontal rotate icon

Product Images

3d view icon
Timbren Spindles Only Trailer Axles - TASR5200S03
Timbren Rubber Spring Suspension - TASR5200S03
Timbren Rubber Spring Suspension - TASR5200S03
Trailer Axles TASR5200S03 - Universal Fit - Timbren
Timbren Trailer Axles - TASR5200S03
Timbren Rubber Spring Suspension - TASR5200S03

  • 5200 lbs
  • Universal Fit
  • Rubber Spring Suspension
  • Timbren
  • No Hubs
  • Brake Flange
  • Spindles Only
  • EZ-Lube Spindles
The Axle-Less system provides a smooth, quiet, safe ride and can eliminate the need for an axle. Suspension units replace your existing axle and operate independently. 4" Lift spindle allows for maximum ground clearance. Fits any frame width. Lowest Prices for the best trailer axles from Timbren. Timbren Axle-Less Trailer Suspension System - 4" Lift Spindle w/ Brake Flange - 5,200 lbs part number TASR5200S03 can be ordered online at etrailer.com or call 800-298-8924 for expert service.


  • All Info
  • Reviews (94)
  • Q & A (29)
  • Videos (2)
  • Photos
  • Why etrailer?

Timbren Trailer Axles - TASR5200S03

The Axle-Less system provides a smooth, quiet, safe ride and can eliminate the need for an axle. Suspension units replace your existing axle and operate independently. 4" Lift spindle allows for maximum ground clearance. Fits any frame width.


Features:

  • Suspension system provides a safe, smooth, quiet ride for your trailer
    • 2 Separate units replace your existing axle
  • AEON progressive-rate main springs absorb road shock and support trailer's load
    • Deliver a smooth, stable ride, regardless of load size
    • Compress and become stiffer as load increases, boosting spring strength
  • Rebound springs act as return devices to minimize rattle and bottoming out
    • Create constant pressure on the arm, so the suspension is never completely relaxed
  • 2 Independent units can eliminate the need for a thru axle
    • Increase ground clearance
    • Lower deck height for easier loading and unloading
    • Reduce roll during cornering
    • Fit any trailer width
  • Built-in camber and toe-in help your trailer to track straight, reducing wear on the tires
  • 4" Lift, EZ Lube spindles accept trailer hubs (sold separately)
    • 4" Lift provides maximum ground clearance
    • Spindles can be easily removed from units for simple replacement if damaged
  • Heavy-duty steel construction with black powder coat finish resists wear and corrosion
  • Easy to install and align
    • Bolt or weld to your trailer's frame


Specs:

  • Fits: 1-axle and 2-axle trailers that use regular tires
    • Not recommended for triple-axle applications
  • Weight capacity: 5,200 lbs
  • Quantity: 2 suspension units without hubs
    • Works with Dexter 2,600-lb hubs (8-201-5UC3-EZ and 8-213-5UC1-EZ - sold separately)
  • Spindle/Hub compatibility:
    • Bearings: 25580 inner/15123 or LM67048 outer
    • Seal inner diameter: 2.250"
  • 3-Year limited warranty


Note: The Timbren Axle-Less suspension system may require additional support on your trailer. If your trailer does not have a crossmember above the spot where you want to install the Timbren system, you may need to reinforce the frame. You can accomplish this three ways. First, you can retrofit the trailer with a crossmember. Second, you can build out the trailer frame. Third, you can use 2" x 3" steel tubing to connect the 2 Timbren suspensions together using the built-in hole on each unit.


Ground Clearance

Ride on rubber with Timbren's Axle-Less trailer suspension system. This one-of-a-kind suspension consists of two separate units, each containing rugged steel arms and two strong, hollow rubber springs. Overall, the system safely and effectively absorbs road shock, minimizes trailer bounce and rattle - regardless of load size - and helps to protect your trailer's components and cargo. Built-in camber and toe-in keep your trailer tracking straight to minimize tire wear. Integrated hangers attach to your trailer's frame. And 2" x 3" holes make it easy to reinforce your trailer's frame by adding steel tubing (if needed).


The Axle-Less independent suspension system replaces your trailer's existing leaf spring suspension and can eliminate the need for an axle. The independent action of the suspension reduces roll when your trailer is cornering and allows you to maximize ground clearance and minimize deck height. Your trailer can have the same side-to-side clearance as your tow vehicle.


Because you're riding on rubber, your trailer will ride smoothly and comfortably, whether you're navigating rocky terrain or highway asphalt.


Timbren Axle-Less Suspension Parts

Components

  1. The AEON progressive-rate main spring supports the weight of your trailer and cargo and easily absorbs road shock. It is constructed of heavy-duty, hollow rubber.
  2. The rebound spring minimizes trailer bounce, rattle and bottoming out. It keeps the suspension under constant tension and ensures that the main spring compresses and expands in a controlled fashion. And it delivers a smooth, stable ride - regardless of how much cargo is on the trailer.
  3. The trailing arm and integrated hanger attach the suspension to the side and bottom of the trailer frame.
  4. The control arm carries the spindle and the hub. It pivots on strong, long-lasting urethane bushings that never require lubrication.
  5. The EZ lube, 4" lift spindle (straight model shown) is simple to grease. If damaged, it can be removed and replaced, saving you both time and money.
  6. The hub is not included with this model.
  7. The built-in hole accepts 2" x 3" tubing. If there is no crossmember above the suspension, you can easily add support to your trailer's frame by inserting 2" x 3" steel tubing through the hole on each suspension unit and then bolting the tubing into place.

Timbren Axle-Less Suspension versus Leaf Springs

Leaf Spring Example

The Axle-Less suspension's progressive spring is a definitive upgrade over leaf springs. Although leaf springs deliver a stable ride when supporting a load, a trailer with leaf springs will bounce and rattle when it's empty or supporting a light or off-center load. On the other hand, your trailer can bottom out on bumpy roads if the load is too heavy. The AEON progressive-rate springs of the Axle-Less suspension always deliver the same reliable performance, no matter the load size. As more weight is added to the trailer, the springs compress and become stiffer, offering more support for heavy loads. And because they rebound more slowly than leaf springs, the AEON springs do a better job of absorbing road shock, thereby keeping your trailer from bouncing and rattling when you're carrying a light load. So with this versatile system you will enjoy a smooth ride whether you're towing an empty trailer or a hefty load.


Unlike leaf springs, Timbren's Axle-Less suspension units operate independently of one another. Each spring activates only when needed. This reduces roll and delivers top-notch performance, even when you're hauling off-center loads. When your trailer with leaf springs takes a turn, one side of the suspension compresses and takes on more weight, and the other side becomes looser and bounces. This causes rattle and can make the trailer lean to one side. But when your trailer with the Axle-Less suspension takes a turn, one side compresses and becomes more rigid to absorb the weight, and the other side expands to normal height to help steady the load and minimize bounce and rattle. The load stays better balanced, even if it is off-center.


Timbren Axle-Less Suspension versus Torsion Axles

Torsion Axle Example

Timbren's Axle-Less trailer suspension system is a great alternative to torsion axles. While both systems allow either side of the trailer's suspension to operate independently, only Axle-Less suspensions are actually separate units. Torsion axles still require a bar that spans the bottom of your trailer, whereas Timbren's system can eliminate the need for a thru axle - giving you the same amount of ground clearance from the front of your trailer to the rear. It also allows Axle-Less suspensions to fit any trailer width - unlike torsion axles, which have to be fitted to an exact frame width.


Axle-Less suspensions operate in a smoother, less stressful manner than torsion axles. Torsion axles use a twisting motion, where the bar inside the axle tube rolls against rubber cords or a rubber wall to create compression and resistance. The up-and-down motion of the main spring and the side-to-side motion of the rebound spring in Timbren's Axle-Less suspension work together to provide smooth, consistent compression - with no twisting - that results in a better ride and less stress on the suspension's components.


Installing the Timbren Axle-Less Suspension

Whether you are building a trailer or retrofitting your existing trailer with the Axle-Less system, you must make certain that the trailer's frame is both perfectly square and sturdy enough to support a heavy load without the aid of a thru axle.


Install Option 1

There are three ways to install the Axle-Less suspension. The easiest method, which is recommended if you are replacing axles on your trailer, is to install a piece of 2-inch x 3-inch rectangular tubing (sold separately - available at most weld shops) through the integrated hole in the Axle-Less suspension. Then all you need to do is bolt the suspension to the side of the trailer's frame with three bolts (not included).


Install Option 2

The second option for installation is to fabricate an inboard extension plate that attaches the trailer's frame to the Axle-Less suspension.


Install Option 3

The third method of installation is to bolt the Axle-Less suspension's hanger to the trailer's frame and to an existing crossmember that is in the area where you want to install the suspension.


With both the second and third options, you must use three bolts to attach the suspension to the side of the frame. And you also have to use two or three bolts to attach the suspension to the bottom of the frame extension, or crossmember. Both the second and third methods of installation will eliminate the need for a thru axle and provide the most clearance.


Measuring Diagram

Timbren's Axle-Less suspension units should be installed directly across from one another. Before mounting the units, measure back from the coupler and mark the frame to make sure that the two distance measurements (A and B) are within 1/8 inch of each other. Then you can drill holes through the frame and attach the hangers with Grade-5, half-inch bolts (not included).


Dimensions of the Timbren Axle-Less Suspension

The following diagrams show measurements that were taken with electric drum brakes installed on the Timbren Axle-less suspension system.


Dimensions 1

Dimensions 2

Dimensions 3

Dimensions 4



ASR5200S03 Axleless Trailer Suspension System by Timbren - 4" Lift Spindle - Without Hubs - Regular Tires - 5,200 lbs



TASR5200S03 Installation InstructionsInstallation Details TASR5200S03 Installation instructionsTASR5200S03 Installation InstructionsAlternate Instructions TASR5200S03 Installation instructions

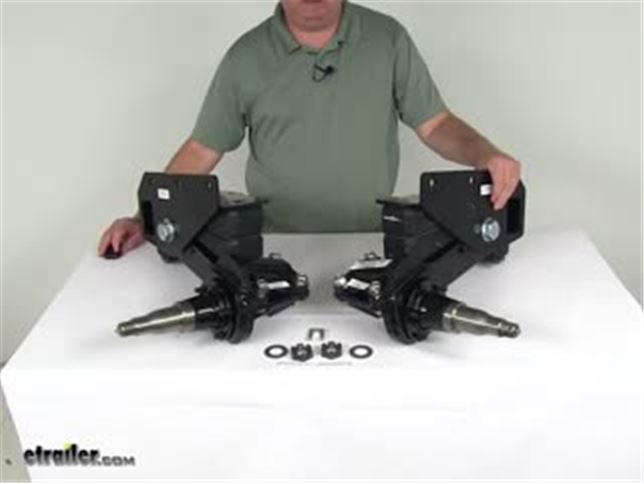

Video of Timbren Axle-Less Trailer Suspension System - 4" Lift Spindle w/ Brake Flange - 5,200 lbs


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Timbren Trailer Axles TASR5200S03 Review

Speaker 1: Today, we're gonna take a look at the Timbren axle-less trailer suspension system with the 4" lift easy lube spindles, no hubs, and a 5200 pound weight capacity. Now this suspension system will provide a nice safe, smooth, quiet ride for your trailer. It's two separate units that will replace your existing axle. If you notice on these, they use the Aeon progressive rate mainsprings right here to help absorb road shock, support your trailer's load, delivers a nice smooth, stable ride, regardless of the load size. They will compress and become stiffer as the load increases, boosting your spring's strength. The rebound springs, which are right back here, will act as a return device to minimize rattle and bottoming out.

They'll create constant pressure on the arm so the suspension is never completely relaxed. These are two independent units. They can eliminate the need for a through axle. They will increase ground clearance, gives you a lower deck height for easy loading and unloading, helps reduce roll during cornering, and it'll fit any trailer width. It has built in camber and tow-in to help your trailer to track straight, reducing wear on your tires.If you notice on the spindles, it's a 4" lift easy lube spindle, which will accept trailer hubs that we do sell separately.

It will work with the Dexter 2600 pound hubs, part number A-201-5UC3-EZ or the 8-213-5UC1-EZ. Both of those hubs will work on this and we do list those on our website and they are sold separately. The 4" lift on this will provide maximum ground clearance and the spindles can be easily removed from the units for simple replacement if they are damaged and if you notice, they also have the 5 bolt brake mounting flange on them. These are a heavy duty steel construction. They have a nice black powder coat finish on them to help resist wear and corrosion.

They are very easy to install on a line. They can be bolted on or welded to your trailer's frame. Again, the specs on this, these are designed to fit one axle and two axle trailers that use regular tires. They are not recommended for triple axle trailers. The weight capacity on these is 5200 pounds.Now on the spindle and the hub, the compatibility, the bearings they use, the inner would be part number 25580 and the outer would be either 515123 or LM67048 and the seal that's used on these has a diameter of 2.25" and it does include, if you notice right here, the spindle nuts, washers, and the cotter pins.

But that should do it for the review on the Timbren axle-less trailer suspension system with the 4" lift easy lube axles, no hubs, and a 5200 pound weight capacity.

Customer Reviews

Timbren Axle-Less Trailer Suspension System - 4" Lift Spindle w/ Brake Flange - 5,200 lbs - TASR5200S03

Average Customer Rating:  4.4 out of 5 stars   (94 Customer Reviews)

The Axle-Less system provides a smooth, quiet, safe ride and can eliminate the need for an axle. Suspension units replace your existing axle and operate independently. 4" Lift spindle allows for maximum ground clearance. Fits any frame width.

- TASR5200S03

by:


havn't got it installed yet but looks like a great product 510743



- ASR1THDS03

by:

Review from a similar Timbren Axle-Less in Trailer Axles


I installed these on a small jeep style camping trailer that I built. I plated my frame and also used the suggested two inch square tubing to tie them together. It rides very well, looks like it should be very durable, it's a simple design, simple to install, more economical than other independent systems, has less parts to go bad than other systems, I would highly recommend to any body using a trailer on rough roads! 582196



- A20RS440

by:

Review from a similar Timbren Axle-Less in Trailer Axles


Everything was as advertised! Fast shipping and well packaged! And good quality. And the best part, they respond very fast to my emails!! very nice! Don't think all be using my local retailers anymore. 556069



- A20RS545

by:

Review from a similar Timbren Axle-Less in Trailer Axles


I wanted to give a lot star, but I spent three months because you missed parts of me a few times. Anyway it is very good for the product. 563720



- ASR2KHDS03

by:

Review from a similar Timbren Axle-Less in Trailer Axles


Havent had them on the road yet but install was pretty easy and they came out of the box more beefy than i was expecting ???? 564422



- ASR35HDS02

by:

Review from a similar Timbren Axle-Less in Trailer Axles


Great service. So far so good. Highly r ecommend 259020



- A35RS545

by:

Review from a similar Timbren Axle-Less in Trailer Axles


I was amazed at the attention given to me and my order. I was kept up to date untill my order arrived, it also arrived a few days before the expected time. The axle less system looks to be so much easier to install and more functional than the regular spring suspension. If compared by cost and labor to the other spring system, I find that this is considerably less. I have yet to install it, but will send photo of finished product as soon as possible. 178367



- ASR35HDS02

by:

Review from a similar Timbren Axle-Less in Trailer Axles


I live in California and I'm building a custom off-road camping trailer for overlanding/camping, mainly for the Sierra Nevada backroads, but possibly for longer trips in a variety of terrain. I had read about the axle-less suspension from Timbren and found that it's a popular choice for these types of trailers. In my searches, etrailer.com came up frequently. So I posted a few questions on their web site, and got a prompt response with tons of great information and a complete parts list for what I needed. Much appreciated! The order handling and shipping was very prompt, and all my parts were shipped in one shipment which I definitely appreciate since I don't get packages delivered to my door. I received all the packages today. Great customer support, prompt handling, and quality products. I gave 4/5 stars because the packaging could have been a little better. One of the boxes was a little banged up in the corners, but the content was unharmed as far as I can tell. I've also received follow-up emails to ensure that I received everything and that it was in good shape. Overall, I'd highly recommend the company, and I won't hesitate to buy from etrailer again! My trailer build will probably take a few months to complete with all the bells and whistles, but I'll be sure to post pictures from the process. 546087



- A12WS545

by:

Review from a similar Timbren Axle-Less in Trailer Axles


This review is limited to eTrailer customer service since I have not yet installed the suspension. The part I ordered was out of stock when my order was placed. An eTrailer representative notified me both by email and by phone informing me of the situation and offering direct shipment from the manufacturer in the event time was an issue. While time was not an issue for me, I was impressed eTrailer took such a proactive approach in dealing with the stock out. Additionally, despite the item being out of stock, i did still receive it in a timely matter (~2 weeks). 235933



- ASR1THDS03

by:

Review from a similar Timbren Axle-Less in Trailer Axles


Everything came really fast, quicker than we had anticipated and in one piece. The email notifications on shipping were great and accurate as well. The only thing I would point out, if you order AKHD-655-35-EZ-K Trailer Hub and Drum Assembly - 3,500-lb E-Z Lube Axles - 10" Diameter - 6 on 5-1/2 it is not a set, it just one drum assembly. 473672



- A35RD545

by:

Review from a similar Timbren Axle-Less in Trailer Axles


enclosed are pics of trailer and spindle units. I was very happy with the end result, lowering ez loader trailer 8 inches for hovercraft. the spindle units were well made, very strong but had some weld repairs as pictures show.i could not set the needed adjustments till I cleaned up the units with a stone and file. also please improve the packaging . these heavy units need something better than cardboard for shipping. they were dislodged from Styrofoam and partially poked holes thru cardboard. but fortunately no damage there. again im happy with the installation.thank you!!! 506119



- ASR3500S05

by:

Review from a similar Timbren Axle-Less in Trailer Axles


Great product.. My company manufactures trailers with our own axle-less suspension, however we have abandoned our own design in favor of the Timbren system. It is far superior and more cost effective to use the Timbren. Also, the Timbren can be adjusted for camber, a nice feature on a trailer. Just be sure to order the correct spindle for your application. Exchanging the spindles with etrailer became a nightmare. I eventually kept the original spindles and bought new ones from Timbren directly. 182264



- A12WS545

by:

Review from a similar Timbren Axle-Less in Trailer Axles


The product got here in great time delivered on time as said. But I had problems with the square hole in two of the suspension brackets -- the had one side of the inside tube that had a large radius that won't fit the square tubing you are going to slide through it. I spent a lot of time trimming the bracket and rounding off the tubing I need to install. I live in a residential neighbor hood and working early in the morning. Fitting the tubing in the hole it gets wedged in and I had to pound it in to get the fit needed. Too noisy and it should fit to start with. If a person knows he is going to use this square hole in assembly then the seller needs to send the brackets that fit properly. I have to build a sub frame for this small trailer because the shelving tubing I am using for the deck is too light of gauge to put the suspension system directly too. And I had to chase the threads on one of the spindles because I couldn't turn the nut with channel locks to adjust the bearing to fit. Hope the rest of the assembly goes easier. Still got lots work to do but too hot in after noon. 209085



- ASR2KHDS05

by:

Review from a similar Timbren Axle-Less in Trailer Axles


I was looking for a low profile axle system for my motorcycle trailer. The primary requirement was to be able to load my motorcycle by myself which required a low-profile trailer. With the 4" drop provided by Timbren, this setup turned out great. I originally intended on using ramps but after I swapped the leaf spring axle out with the Timbren, I found I was able to ride my motorcycle on/off without the need for the ramps. Originally, I was going to go axle-less but I found when torquing down the assembly to my frame it started to compress the aluminum rail. To take the pressure off the frame I added the 2" bar from axle to axle. Pulls smooth and effortlessly. I've had several people comment on the trailer height with one wanting to buy the trailer from me. This person worked at the local Honda Dealership. He thought it was a great design and I would imagine he's seen a variety of trailers come through his lot. The other option I considered was a torsion axle but I was looking for the lowest profile I could get. Therefore, cost was not a key factor. I also like the soft ride the Timbren system provides. Not sure if the torsion design would have been as smooth over bumpy roads. Regardless, I'm pleased with how this project came out. 352952


Comments

Its been a year since Ive installed the new axles on my trailer my comments above still hold true. Im very pleased with the ride quality of the system after a year. The trailer tracks true and has hauled many things other than my motorcycle. Even empty it doesnt hop around like the original stock straight axle did. No regrets on the purchase.

Pat A - 03/15/2018

35909

- ASR2KHDS03

by:

Review from a similar Timbren Axle-Less in Trailer Axles


Used this on a camping trailer behind our Jeep. The suspension handled 1000 miles of washboard gravel roads and mild rocky offroading with ease. We don't drive gently and had the trailer airborne at one point. The brackets that we opted to fabricate for them were straightforward and simple to install. I especially like the ground clearance under the trailer that you gain due to the lack of a solid traditional axle. The ride quality overall was excellent, especially given where we took it. In hindsight we should have gotten the 4" travel version as it may have been able to soak up deep ruts at 40mph a bit better. Only mild complaint is that the powdercoating on the leading edges had already begun to flake off when we received the suspension. I hit it with a can of spray paint, but I would have hoped it would be more durable. Overall, I will definitely be purchasing this axle-less suspension again for my next trailer build. 230177


Comments

Ashley, the 4 version doesnt actually give it more travel. Its the same was the standard or the system as far as suspension travel. What the 4 system does it lift the height of the trailer from the ground, depending on what youre doing with the trailer. For an off road trailer I personally would do the 4raise for added ground clearance, just gotta make sure the trailer doesnt get top heavy. The standard system is good for pretty much all uses and the system is for when you need a really low deck height for a lawn mower or go kart for example. I appreciate your review as I am going to be building a small off road campingbug-out trailer to tow behind my lifted FJ cruiser. I havent decided if I am going to go with the standard height or the 4 lift as I am going to be running the same off road tires toyo RT that I have on my FJ on the trailer and I want the trailer to sit around the same height. Did you add brakes to yours? Im planning on either running electric brakes or if available in am going to run surge brakes.

-- comment by: Michael - 01/15/2016

16444
Comments

Michael, My trailer was so light even fully loaded that I didnt see the need for brakes and never missed having them.I stand corrected: We did get the 4 lift, but the non-HD instead of the HD because the specs said that it had a bit more travel. and we didnt need the weight capacity. That being said, Im still happy with how this suspension performs. My trailer is on 31s on a stock Cherokee.

-- comment by: Ashley - 01/18/2016

16471

- A12WS545

by:

Review from a similar Timbren Axle-Less in Trailer Axles


First off let me say these axles are EXCELLENT mainly because of their very good design. From what i can tell Timbren is a 9/10 manufacturer. Welds are fantastic(im a professional welder) and this thing is HEAVY DUTY THICK STEEL. Only defect was some paint scratched and one of my grease fittings came right out when i was done greaseing the joint.I welded these up to my custom fabricated trailer and they are just amazing. I would urge anyone to get Timbren suspensions over leaf spring/torsion ANY DAY.. 231681



- ASR2KHDS04

by:

Review from a similar Timbren Axle-Less in Trailer Axles


I think their axle-less design is very clever. The build quality of the suspension part looks good. I have heartburn over the spindle build quality. The spindle is mounted to the suspension and then the trailer wheel mounts on the spindle. The spindles I received are warped from welding. The plate that bolts onto the suspension does not mount flat due to this warping. I called Timbren. The gentleman that helped me was very pleasant. I described the problems and he said he would check his inventory and call me back. He did call me back and said they are all like that. He said get out the grinder and fix what you can and just tighten the bolts super tight, maybe the gap will go away. Really? Wow. The other problems are a LOT of weld spatter where the bolts are supposed to fit and they made a bend in the plate too close to the bolt holes so two bolt heads hit the bend and dont fit flat against the part they are supposed to hold together. Yikes! I am taking the spindles to a machine shop to fix them but I would not have ordered this Timbren stuff had I been warned before hand. So, fair warning. 100490


Comments

Your comments regarding the Axle-Less Suspension are greatly appreciated. To address the issues you have pointed out, we have carefully reviewed our assembly. While we did not come across any major issues, we did however discover a few areas where the quality could be improved, specifically in the areas you brought to our attention. The following improvements have been made to improve the manufacturing process: - Robotic welder gun re-programmed so that it stops from getting too close to the areas adjacent to the mounting holes of the outboard arm and control arm. This will minimize weld spatter. - The distortion of the flat plates is due to the high degree of heat generated during welding. We conducted experiments, changing the sequence of welding operations until we were successful in minimizing the distortion. We apologize if our customer service in addressing your concerns was insufficient at the time of your phone call. Timbren is an ISO 9001:2008 company with an excellent reputation for providing customers with quality products that are well-performing and easy to install.

-- comment by: Quality A - 09/26/2013

2108

- A4WS440

by:

Review from a similar Timbren Axle-Less in Trailer Axles


Pleased with ETRAILER, will order here again. Not as happy with the torsion axle setup. 2 inch square opening for tying both axles together with your own 2" square tubing are not shaped to match 2x2x1/8 tubing. Grinding and welding of tubing required to make it fit. Also found the overslung stub axle left the end of the pivot arm without much ground clearance though the unit was intended and spec'd for atv tire off road use. A pivot arm with mounting pads top and bottom would be better and allow the user to choose high or low clearance use. I found the units were perfectly suited to offroad use once I fabricated new mounting pads and welded them to the bottom of the arms. 263841


Comments

After a year of off road use, I couldnt be happier. My trailer rides smooth loaded or unloaded. No of that bunny hopp with leaf springs or rigid mount axles. The small rebound control snubber works perfectly! I modified my components for high clearance but the concept is sound, they work well. Great job Timbren!

Doug F - 06/22/2017

25288

- A20RS545

by:

Review from a similar Timbren Axle-Less in Trailer Axles


This suspension system did EXACTLY what I wanted. I replaced the leaf springs, axle/hubs on my small trailer. The new suspension improved the capacity, lowered the bed 4+inches, improved ground clearance and allowed me to rebalance the trailer all WITHOUT having to have any welding done. Everything needs to be measured very exactly and the alignment technique is fairly cumbersome and takes a bit of time. In the end, I have a quiet, steady, strong, low riding trailer. What more could you ask for 517553



- A20RS545

by:

Review from a similar Timbren Axle-Less in Trailer Axles


not happy with one lug nut missing threads!!! but I think they also could supply the wedge plate! the horizontal holes never change and the lower vertical should be slots. for the money I shouldn't have to make a plate. 202996



- ASR2KHDS03

by:

Review from a similar Timbren Axle-Less in Trailer Axles


Excellent, helpful customer service sold me this product, and trust me when I say it's worth the price tag. Pulled the old axle and leaf spring off a 60's era Bantam and swapped out for this with a support bar in between. Bumped up tires to 315/75r16 BFG TA/KO's to match my rig and am amazed at how much better this trailer now pulls. Empty it wad bouncing all over the place with the old axle and leaf spring setup. Now I hardly even know it's there. Was very easy to install, took a couple hours but I am happy with how it turned out. A+++ product and customer service! 172019


Comments

HI Matt,WHat size wheel did you use and which hub did you get to match?Appreciate the info

-- comment by: Conrad S - 04/01/2015

10523
Comments

They are GREAT! I put them on a small offroad trailer that has followed me all over some really rough roads in remote Oregon, Washington, and Idaho. They have performed flawlessly, helped the trailer tow extremely well, and were the single best upgrade I did to that trailer. Very much looking forward to another summer of exploring! Massive upgrade to the stock axle leaf spring combo, and I have had the opportunity to show it off to alot of fellow overlanders. I cant speak high enough of them. I also purchased a set of airbags for my vehicle which unfortunately have not held up terribly well. I have had to field repair one once already, and neither holds air terribly well. Truth be told they seem very underdesigned for the job they perform. From my super secret high tech pocket internet window.

Matt N - 02/06/2016

16696

- A35RD545

by:

Review from a similar Timbren Axle-Less in Trailer Axles


Good heavy duty product 219360


Comments

Axles work great

Jason m - 08/13/2016

20207

- A20RS545

by:

Review from a similar Timbren Axle-Less in Trailer Axles


This is my favorite suspension system in all the world! Rides like an absolute dream. Easy to set up and install. Works on any trailer frame size. One thing to know: You don't get the ride height you get with a standard leaf spring suspension. Even with 15-inch wheels, the ride height is pretty low - maybe 10-12 inches of ground clearance to the bottom of the main trailer frame. If you need more ride height, get the lifted version. A few areas of possible improvement? It's difficult to bolt the suspension unit to a crossmember using the middle bolted hole, which uses a tacked-on weld nut. You have zero room for error when drilling the hole through your cross member, and you can't really use the suspension as a template. Hmmm ... also, the hanger plate mounting holes are positioned 1-inch from the bottom of the trailer frame. That makes it very difficult, since I use channel side rails, to use standard 1/2-inch USS or SAE washers on the backside. There isn't room. Just an extra 1/4 of a inch would allow me to use standard washers underneath the nuts on a channel frame. Nitpicking aside, it's amazing. 410020



- A35RS545

by:

Review from a similar Timbren Axle-Less in Trailer Axles


Had a broken torsion axle on dual axle boat trailer. Manufacter six to eight weeks to replace. Got this product in week. Installed same day. Very happy .cancelled new Axel order. 263087



- A20RS545

by:

Review from a similar Timbren Axle-Less in Trailer Axles


These units install easily, are well made, and perform great! The trailer doesn't bounce around like you see a lot of trailers do while traveling down a bumpy road. I traveled some unpaved roads with no issues. I am certainly glad I went axleless. I installed with 15" tires. Problem is I didn't go big enough. I intended to install on an existing trailer that I had. Changed my mind and built a new trailer. The new trailer came in heavier than I had planned. 2k pound capacity is now too small. I have to watch what I load the trailer with so I don't over load the suspension. I intend on buying the 3500 pound units when I have the money. 289894



- A35RS545E

by:

Review from a similar Timbren Axle-Less in Trailer Axles


These axles were a perfect retrofit for a vintage tralier rebuild/mod. Service at etrailer was excellent. The parts were easy to fit with a little care. I would recommend this product and this supplier to anyone looking for trailer parts. 256727



- A20RS440

by:

Review from a similar Timbren Axle-Less in Trailer Axles


I used these parts to build a motorcycle trailer. (See attached pictures) It pulls and handles like a dream. The Atwood coupler and the Timbren axle-less suspension are both very well designed and of high quality manufacture. I would recommend these parts to anyone. 343046


Comments

I love this suspension. Even empty, the trailer huggs the road and doesnt bounce around. Its smooth as silk when loaded.

Redbone - 02/11/2018

34553

- ASR2KHDS03

by:

Review from a similar Timbren Axle-Less in Trailer Axles


I love these. 30k miles and still going. Almost 1k offroad and they're still holding up. Fully loaded my overlanding trailer weighs 2k lbs, empty 1360 lbs. They did settle a little, but I just raised my fenders a little. 345454



- ASR2KHDS02

by:

Review from a similar Timbren Axle-Less in Trailer Axles


Great looking parts, robust design, professional looking welds....Nothing missing... I contacted Timbren prior to my purchase and received a prompt, helpful reply... The supplied instructions are complete and straight forward, i'm confident should i have any issues, contacting them will get them resolved... 286117



- ASR2KHDS01

by:

Review from a similar Timbren Axle-Less in Trailer Axles


Ordering went well.. Rene made sure by calling the manufacturer. Didn't expect Xmas season to have the shipping without a hitch... The link to UPS was not working but eTrailer called and got thru to find out the delivery was there! Brown Santa and eTrailer--Happy Peace Out Day. 166840



- A4RS440

by:

Review from a similar Timbren Axle-Less in Trailer Axles


Nice units, I put them on the trailer I am building for the back of the goldwing, they don't make any noise like leaf springs do, and without a axel going from one side to the other it leaves room to mount a spare underneath, and that makes it easy to balance the trail. Very well built and easy to mount. 322081



- A12WS545

by:

Review from a similar Timbren Axle-Less in Trailer Axles


I am pleased with the Timbren Axle-Less Trailer Suspension System with Hubs - 5 on 4-1/2 - Off-Road Tires - 1,200 lbs. I had a project and it worked out just fine. 254872



- A20RS545

by:

Review from a similar Timbren Axle-Less in Trailer Axles


How can I discourage you from buying this product? Almost a $500 item, yet they can't supply you the 6 bolts to attach it to the frame. Get to the hub assembly, and another simple, but hard to find item a "tang washer" is not supplied. The 4 bolts to attach the square tubing is also not supplied, but expected that because they were very clear the tubing was not included. Of course, I expect this review will never be seen. 454785



- ASR3500S06

by:

Review from a similar Timbren Axle-Less in Trailer Axles


works great, only had one discrepancy, on a long trip part of the rubber on one side of the trailer worked its way out, it was repaired and hasn't given us any other problems. 310812



- ASR1THDS03

by:

Review from a similar Timbren Axle-Less in Trailer Axles


Very well-made very impressed I’ve made many trailers the first time I’ve tried the system My choice for good off-road trailers . as far as there professional ability to get what you need and if something wrong they cracked it faster than you can think about it . 576030



- ASR2KHDS09

by:

Review from a similar Timbren Axle-Less in Trailer Axles


building a ground loading motorcycle trailer the bed drops down flat threw the frame resting on the surface under the trailer allowing the motorcycle to be driven on without ramps or tilting the trailer bed the axle less trailer suspension is the only way to go and it rides better . 301200


Comments

WORKING GREAT MUCH BETTER RIDE STILL 5 STARS

larry d - 09/28/2017

28538

- ASR3500S06

by:

Review from a similar Timbren Axle-Less in Trailer Axles


Only been driving around on the axle-less system for about a week now and it has far exceeded expectations. I get better gas mileage, my trailer now sits like it was intended to, my trailer doesn't bounce like it used to, I wouldn't trade this axle system for any other. Just wish I would have known which outboard assembly arm my trailer needed with the axle-less system before I placed my order. Still not a problem though, plan on using the wrong outboard arm to build a different trailer. So far, a great product! 208571



- ASR3500S04

by:

Review from a similar Timbren Axle-Less in Trailer Axles


My trailer is an enclosed race car carrier originally built with dual axles and leaf springs. The maximum weight of the trailer and load would be about 5,000lb. This Timbren product is well engineered, well constructed and does what it is designed to do. Much better system than the dual axle, leaf spring set up. Installation may me a bit more complicated than the videos or supplied directions indicate. Look at the videos and directions and your trailer and plan ahead. Take measurements, decide on how to reinforce the frame and buy high quality hardware if you plan on bolting everything together. This Timbren product would be a great choice if you were building a trailer from scratch. Choosing to convert an existing trailer suspension is a more complicated choice. For me it was worth the effort. 440878



- A20RS545

by:

Review from a similar Timbren Axle-Less in Trailer Axles


etrailer does not provide sufficient information for a customer to correctly choose wheels / tires for this item, so while the suspension looks great and I'm looking forward to using it, I ended up with the wrong wheels/tires: specifically, this will NOT work with 14" zero offset rims (which is almost all of them). I got an RA on the wheels which guess what I can't use it because the only reason I know they don't work is I mounted them so I've wasted DAYS of my time with no progress on my trailer and STILL do not have a confirmed answer that if I buy X rim it will work with these despite writing to the person who helped me place the order days ago and no answer. This is really not what I expected I'm pretty wildly unhappy at being ignored. 524906



- ASR5200S04

by:

Review from a similar Timbren Axle-Less in Trailer Axles


I ordered two sets of these and one set was missing all of the hardware. The other set had all the hardware scattered in a box. 517652



- A20RS440

by:

Review from a similar Timbren Axle-Less in Trailer Axles


Very nice product and fast shipping, good price 516651



- ASR5200S01

by:

Review from a similar Timbren Axle-Less in Trailer Axles


Used these to replace half torsion axles on drop down ice shack. Hesitant to spend the $$$ but glad I did. Well built, less space and smooth ride. Replaceable spindles a plus. 512341



- ASR3500S04

by:

Review from a similar Timbren Axle-Less in Trailer Axles


Product looks great. I had to some leg work to get shipping moved along but otherwise satisfied. 589790



- ASR2KHDS09

by:

Review from a similar Timbren Axle-Less in Trailer Axles


Just receiving my parts, to start with box's got beat up (have no suggestion), Packed very well good tape (use more around center will add strength), the lay out will begin in a week or so, thank you, p.s. shipping time was Awesome 586066



- A35RD545E

by:

Review from a similar Timbren Axle-Less in Trailer Axles


Exactly what I was looking for. And the shipping was amazingly fast. Ordered on a Sunday I received it Wednesday!!! Tracking was easy your site is user friendly, easy to order and track orders. Best prices anywhere 584519



- ASR5200S01

by:

Review from a similar Timbren Axle-Less in Trailer Axles


Timbren Axle-Less Suspension - Spindle Only - Regular Tires - 5200 lbs Item # ASR5200S01 Looks great on empty trailer, idea is good, bad execution. When loaded tires "splay out" severely, excessive tire wear, obviously too much play in system somewhere. 584361


Comments

Excessive camber which causes wear on the portion of the tire tread closest to the trailer can be caused by a few different things. 1 The axle-less suspension system has a 5200 lb per set capacity, so youll want to be sure this amount is not being exceeded. 2 The surface of the trailer that the suspension member is added to needs to be an integral part of the trailer that should have NO give in it whatsoever. Any flexing of the side member there will throw off the camber of the tires. I have seen what you describe occur when the suspension system has been mounted to tubular steel that made up the edge of the trailer frame. In that instance, some angle iron was added to stiffen things up. 3 Its not required, but a piece of 2x3 inch tube steel of the appropriate length can be used as a beam connecting the two sides, utilizing the existing hole in the axle-less suspension member. This will help stiffen things up. 4 The suspension system should have included some shims that can be used where the spindle attaches to the suspension portion of the assembly. Using these shims can decrease the camber, but only if the points mentioned above are taken care of. Ive checked with Timbren regarding the above, and they concur.

-- Mike L - 11/21/2018

45920

- A12WS545

by:

Review from a similar Timbren Axle-Less in Trailer Axles


Purchased 2 sets of the Timbren 1200 Axle-less systems for upgrading the suspension on an older 30' ft glider trailer. Single axle with small (13") tires made towing tough due to porpoising, dragging on drive entrances do to poor flotation; also German made and metric, no repair parts. GVW 2000 lbs equated to bouncy ride. Dual sets now allow the trailer to ride over bumps and sharp inclines easily, smoothly, little bounce on country roads; porpoising is history. My glider now rides securely, safely, quietly. Install time 4 1/2 hours (includes head-scratching). Results are outstanding, units are totally solid. Recommend the square tube interconnect, easy and quick - trailer frame was on the light side, so a precautionary fix. Clean look underneath. Ordered 5 wheels w/tires, very nice. Helpful neighbor so impressed he ordered a HD single set for his new DIY snowmobile trailer. Customer satisfaction 100%, from phone order, online support, product information, immediate shipping, install instructions, followup... HIGHLY RECOMMENDED! 580744



- ASR2KHDS04

by:

Review from a similar Timbren Axle-Less in Trailer Axles


After a fair number of miles including a lot of off road driving, I have nothing but good things to say about Timbren suspension. I have had a few questions and concerns and the support from Timbren has also been stellar. I would suggest you use the 2" crossmember no matter how solid you think your trailer is as it seems to really help in making everything perform well. 579327



- A20RS440

by:

Review from a similar Timbren Axle-Less in Trailer Axles


great customer support and help, wonderful advice. fast shipping and the best - great value for the dollar 505478



- A4WS440

by:

Review from a similar Timbren Axle-Less in Trailer Axles


Quality built, easy to install and excellent customer support from etrailer. 504224


90
134
Show More Reviews

Ask the Experts about this Timbren Trailer Axles
Do you have a question about this Trailer Axle?


  • Recommended Axle Replacement For 5200 lb Dexter Axles With Electric Brakes
  • The only axles we carry that are that 5200 lb capacity are the Timbren Axle-less Suspension System. For your application, I recommend the Timbren Axle-Less Trailer Suspension System - 4" Lift Spindle w/ Brake Flange - 5,200 lbs # TASR5200S03. This will replace your leaf springs and your axle. It has a brake flange and is compatible with standard hubs and drums. If there isn't a crossmember where you install your axle, you will need to use a 2 inch by 3 inch steel tubing to connect the...
    view full answer...

  • How to Increase the Weight Carrying Capacity of a 2016 Coachmen Viking 17BHS
  • The weight capacity of a trailer will always be limited by its weakest component. You can in turn increase the weight capacity of the trailer by upgrading these components. Based on what you provided, the tires rated at 3,420 lbs for the pair are the weakest component and will be what you want to look at first when upgrading. The axle rated at 3,500 lbs is the next weakest component. In order to upgrade the weight capacity of the tires on your trailer you will need to switch to a larger...
    view full answer...

  • Recommended Axle-Less Suspension And Surge Brakes With Parking Brakes
  • The Timbren axle-less system I recommend is part # TASR5200S03. This system has a 4-inch lift spindle and includes the brake flange. The hub and drum assembly you can use is part # 8-201-5UC3-EZ. This is a 6 on 5-1/2 hub and it has the E-Z Lube feature that makes it easy to keep the bearings lubed. This system includes the bearings, races, seal, lug nuts and grease cap. The brakes I recommend are part # T4203000 for the right hand and part # T4203100-000 for the left hand. These...
    view full answer...

  • How to Use Jeep Wheels with a Timbren Axle-Less Trailer Suspension System
  • I do have an option for you but we do not offer a trailer hub with 5 on 5" bolt pattern that will fit the Timbren Heavy-Duty Axle-Less Trailer Suspension part # ASR35HDS02 or part # TASR5200S03. Instead, you will want to use the Timbren Axle-Less Trailer Suspension System part # ASR3500S06 with the Trailer Idler Hub Assembly part # AKIHUB-550-35-EZ-K as this will allow for the 4" lift with 5 on 5" bolt pattern. I have attached a photo of the tire clearance dimensions for the Timbren...
    view full answer...

  • Parts Needed to Convert Trailer to Timbren Axle-Less Suspension System
  • The Timbren Axle-less System, part # TASR5200S03, you've picked out works great with the wheel, part # AM20535, and brake assemblies, part # 23-458-459, that youv'e also selected. In addition to those you also need 12 inch hub and drum assemblies, part # AKHD-655-6-EZ-K, that fit the Timbrens. You also may want to get new hardware for the brakes using part # BRKH12. Other than that all you may need is a support beam to go across the trailer between the Timbrens. This depends if...
    view full answer...

  • Recommended Hubs And Drums That Work With Timbren Axle-Less Suspension System
  • I can help you out with everything you need to work with the Timbren Axle-Less Trailer Suspension System # TASR5200S03 for your trailer. The # TASR5200S03 has EZ-Lube spindles so the hub and drum I recommend is part # 8-201-5UC3-EZ. This is a 6 on 5-1/2 hub and drum and includes the bearings, races, seal, grease cap, wheel bolts and lug nuts. This hub and drum assembly will work with hydraulic or electric brakes. The hydraulic brakes I recommend for this system is part # 23-324...
    view full answer...

  • Timbren Axle-Less Suspension System Compatibility With Office Trailer Or Modular Trailer
  • Yes, the Timbren Axle-Less Suspension system can be used on office trailers or modular trailers. There are large capacity models like the Timbren Axle-Less Trailer Suspension System - 4" Lift Spindle w/ Brake Flange - 5,200 lbs # TASR5200S03 or the Timbren Axle-Less Trailer Suspension System - Spindle w/ Brake Flange - Regular Tires - 7K # TASR7KS01. These axles are to be mounted to a crossmember or use a 2 inch by 3 inch steel tube to run between them in the allocated spot. They...
    view full answer...

  • Wheel/Tire, Hub and Drum, and Brake Assembly Recommendation for Timbren Axle Less Kit TASR5200S03
  • For a brake drum to fit the Timbren kit part # TASR5200S03 that you referenced you would want the part # 8-201-5UC3-EZ. Then for a matching assemblies you would need # AKEBRK-7R-SA and # AKEBRK-7L-SA for either side. The part # AC225R6SM would be a great fitting wheel and tire combo that has a 2,540-lb max load at 65 psi for each wheel/tire.
    view full answer...

  • Timbren 5,200 Axle-less Trailer Suspension System with 4 Inch Lift
  • Yes, we do carry the Timbren Axle-Less System with the 4 inch Lift. It's the same as our part # TASR5200S03. It will include the brake flange.
    view full answer...

  • Recommended Ways To Lift 2008 StarCraft Centennial Trailer
  • Since you have a torsion axle you can use spacer blocks to get more ground clearance. There are lift kits available if you have Dexter axles. Normally, people use 2 inch by 3 inch, or 2 inch by 4 inch steel tubing with 3/16 or 1/4 inch wall thickness. Raising the trailer will change the geometry of your trailer making it more top heavy and you may have more trailer sway. If you have leaf springs on your trailer you can add longer hangers. You would need to cut off the old ones and have...
    view full answer...

  • Should 3,500 lb or 5,200 lb Timbren Axle-Less System be Used for over 3,600 lbs of Loaded Trailer
  • Since your axle will ultimately be under the weight of your trailer and it's contents you definitely need to make sure that it is rated for more than what you will be carrying. You need to go with the 5,200 lb weight capacity. For this we have the Straight Spindle # ASR5200S01, 4" Lift Spindle # TASR5200S03, and 4" Drop Spindle # ASR5200S04. This is compatible with the idler hub # 8-213-5UC1-EZ or the hub and drum assembly # 8-201-5UC3-EZ. I recommend going with the hub and drum assembly...
    view full answer...

  • Axle-Less Trailer Suspension System Rated for 5,200 lbs
  • We do have a solution that can work for you although we do not offer any custom width trailer axles. Instead I highly recommend checking out the Timbren Axle-Less Trailer Suspension System and we have two options available rated for 5,200 lbs, Timbren 4" Lift Spindle w/ Brake Flange # TASR5200S03 and Timbren 4" Drop Spindle w/ Brake Flange # ASR5200S04. The Timbren axle-less suspension systems are simply bolted or welded so you do not have to worry about finding an axle that meets...
    view full answer...

  • Recommendation for Converting Fleetwood Neon Pop-Up to Axle-Less Suspension System with Jeep Tires
  • To convert your offroad trailer to the Timbren Axle-Less Trailer Suspension System - 4" Lift Spindle w/ Brake Flange - 5,200 lbs # TASR5200S03 you will either use a crossbrace for your trailer frame at the axle location or you will add a 2 inch square tube between the assemblies (not included) into the integrated holes of the assemblies. This will give you much more ground clearance than a standard axle and will also include the suspension needed. Unfortunately that 5,200 lb Timbren...
    view full answer...
