Electric Trailer Brake Kit - Self-Adjusting - 10" - Left and Right Hand Assemblies - 3,500 lbs

Electric Trailer Brake Kit - Self-Adjusting - 10" - Left and Right Hand Assemblies - 3,500 lbs

Item # AKEBRK-35-SA

lowest price pledge

Our Price: $80.49

Trailer Brakes

Orders above $99 qualify for Free Shipping

Shipping Weight: 21 lbs

Quantity:
In Stock
Electric Trailer Brake Kit - Self-Adjusting - 10" - Left and Right Hand Assemblies - 3,500 lbs 3500 lbs Axle AKEBRK-35-SA
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.
Please enter a valid email address.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

pop out icon replay 360 icon
horizontal rotate icon

Product Images

In Use/Installed

Customer Photos


  • Electric Drum Brakes
  • 3500 lbs Axle
  • 10 x 2-1/4 Inch Drum
  • 13 Inch Wheel
  • 14 Inch Wheel
  • 14-1/2 Inch Wheel
  • 15 Inch Wheel
  • etrailer
  • Self Adjust
  • Brake Set
Self-adjusting driver's-side and passenger's-side electric brakes are 10" x 2-1/4". Brake pads are made of friction material for improved braking and longevity. E-coated backing plates resist rust. Fit 13" to 15" wheels. Lowest Prices for the best trailer brakes from etrailer. Electric Trailer Brake Kit - Self-Adjusting - 10" - Left and Right Hand Assemblies - 3,500 lbs part number AKEBRK-35-SA can be ordered online at etrailer.com or call 800-298-8924 for expert service.


  • All Info
  • Reviews (712)
  • Q & A (335)
  • Videos (2)
  • Photos
  • Why etrailer?

etrailer by AxleTek Trailer Brakes - AKEBRK-35-SA

Self-adjusting driver's-side and passenger's-side electric brakes are 10" x 2-1/4". Brake pads are made of friction material for improved braking and longevity. E-coated backing plates resist rust. Fit 13" to 15" wheels.


Features:

  • Electric brakes are easier to install and offer more user control than hydraulic brakes
    • Require only an electric brake controller (sold separately) - no actuator or hydraulic lines necessary
  • Automotive-grade friction material is molded to brake shoes
    • Pads are fully bonded - not riveted - to shoes for long life and more braking torque
    • Less chance of cracking and crumbling that can lead to mechanical lockup, thanks to tapered edge and circular grinding
  • Self-adjusting brakes do not require periodic manual adjustment like standard brakes
    • Fine-tooth brake adjustment gears allow for a more precise setting
  • E-coated backing plates resist wear and corrosion
  • Adjuster plugs (included) cover access holes to keep dirt and grime out of the assemblies and off of the shoes
  • Left-hand (driver's-side) brake assembly, right-hand (passenger's-side) brake assembly, and mounting bolts included
    • Nuts and lock washers (BRKH10B) sold separately
  • QAI and CSA certified


Specs:

  • Application: most standard hub-and-drum assemblies, including Dexter, Lippert (LCI), and AL-KO
  • Dimensions: 10" diameter x 2-1/4" wide
  • Mounting flange bolt pattern: 4 bolt
  • Wheel size: 13", 14", and 15"
  • Axle rating: 3,500 lbs
  • Limited 1-year warranty


Self-Adjusting Brakes Don't Require Routine Adjustment

Standard electric brake assemblies require manual adjustment of the brake shoes over time to provide longer-lasting and more efficient braking performance. With self-adjusting brakes, the brake shoes are always properly aligned, so there's no need to manually adjust the brakes after the initial adjustment. As a result, you get optimum performance without having to take the time to continually perform this type of maintenance.


Thoroughly Tested for Safety

These brake assemblies meet the requirements for certification by the Canadian Standards Association (CSA). The CSA creates standards, which when complied with ensure a safe and quality product. These brake assemblies underwent extensive testing to measure stopping distances when braking. These brakes have also been tested by QAI for braking performance in a complete automotive setup and under real-world conditions to provide the most realistic scenario for the everyday driver.


Automotive-Grade Friction Material

Each shoe on these brake assemblies is lined with automotive-grade friction material for improved stopping performance and longevity. The friction material is fully bonded onto the surface of the brake shoe. This lining is custom-molded for a perfect fit. The edges are tapered to ensure long-lasting performance. This taper, along with the circular grinding that the lining undergoes, helps to prevent cracking and crumbling. This durability helps to prevent mechanical lockup, which can occur when brake shoes are excessively worn or broken.


The friction material is also SAE-N certified, which means that it is an environmentally safe product that complies with California and Washington regulations regarding the composition of brake pads. As a result, this material not only provides high-performance braking that can endure the test of time, but it is also environmentally friendly and safe for use throughout the United States and Canada.



B10EA-21 AxleTek 10" x 2 1/4" LH Self-Adjusting Electric Brake Assembly - Drivers Side - 3.5K Axles

B10EA-22 AxleTek 10" x 2 1/4" RH Self-Adjusting Electric Brake Assembly - Passengers Side - 3.5K Axles






Video of Electric Trailer Brake Kit - Self-Adjusting - 10" - Left and Right Hand Assemblies - 3,500 lbs


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for etrailer Electric Trailer Brake Kit Review

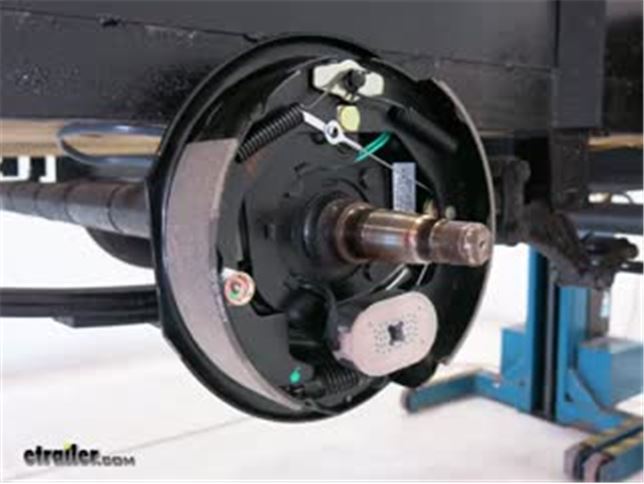

Speaker 1: Today we're going to be taking a look at the E-Trailer 10-Inch Self-Adjusting Electric Trailer Brake kit offering the left, and right hand brake assemblies designed for use on 3500 pound axles. The part number is AKEBRK-35-SA. Now, these are available in just the left or right as well. Part number for the left is AKEBRK-35L-SA, and for the right part number is AKEBRK-35R-SA. Now, the E-Trailer brake assembly is going to be the perfect solution for either added or replacing brakes on your trailer. This is an electric type assembly.

We've got a magnet here when energized it sticks to the hub. Causes this arm.To separate you can see that moves. We get a separation here, which expands our shoes onto our drone giving us this stopping force. Now, there are a couple of reasons I like the complete assembly idea rather than just buying shoes, and hardware, and stuff like that. One, changing a complete brake assembly is much quicker than trying to change the shoes, and also if you just buy a set of shoes to put on here, everything else in this system is still old.

It still has corrosion on it, it still has issues. With a complete assembly we're getting a brand new magnet that has no wear on it, our shoe keepers, our springs, our adjustment cable, the adjuster that we have down here, everything is brand new so we know it's going to work properly.Something else you'll find that's an advantage to this style of assembly with the self-adjustment in it versus the older traditional style is that these are meant to adjust themselves. As your drums wear. On our shoes here, that distance is going to get smaller, so we need these to expand out slightly to help keep good contact on that drum. Our star adjuster is going to rotate clicking into position on the tab we have here on the back allowing to again just self-adjust.

It's going to be the correct position each time. I like this type of star adjuster. It has minor increments of adjustments, so this is going to be more fine-tuned. We're not going to be stuck for an extended period of time with poor performing breaks because it can't quite get to that next adjustment point.With the finer adjustments we have here our brakes can stay more fine tuned to the size they need to. That's going to help to eliminate some of that brake fade when your shoes wear down, and you can't quite get to that next adjustment.

It's something you kind of had with the older traditional style adjusters, but now that they're making them more fine tuned we can get better performance out of the assemblies.Now, the shoes themselves are very high quality. We've got automotive grade friction material. The friction material has been bonded to the shoe itself, so we're not going to have to worry about the rivets that used to be in there. Those can kind of cause us premature life because the rivet head would be stuck up, and we'd start to get some wear. This is also going to help to reduce the risk of it cracking, or maybe crumbling, getting locked up, and causing our tire to lock, and not spin freely. Something else that I like about the assembly, all of the components are corrosion resistant, so even with the higher corrosion properties that we typically get out of friction material they're not going to have to worry about crazy amounts of rust, or anything like that forming in our assembly causing it not to work as good as it could.Now, when you get your assemblies if you do decide to get left and right, there's a pretty easy way to tell them apart. The left assembly, our magnet will be on the bottom, and our larger shoe is going to be on the back. That's our primary shoe. You see here on the front Our shoe is going to be a little bit shorter. That's our secondary shoe. That's always going to be towards the front of our trailer. These are going to be the 10-inch assembly, so we get 10 inches there, and then we've got a 2 and a quarter inch pad widths. You want to make sure that's what your trailer has for that's what's going to work with the hubs that you've purchased. If you're adding brakes, it's designed to work with your 13, 14, and 15 inch tires, and on 3500 pound axles with the 4 bolt rake flange.Now, to begin your installation we need to get our tire, and our old hub off. Now, that doesn't matter if you already have existing brakes, and you want to change those, or like use you're going to be adding new brakes to a trailer. Now, you want to use a hammer. I typically like to use a dead blow hammer. You just want to start tapping on this cap. You can see how it's going to create a little bit of a gap there. Kind of tap back towards you, and you'll be able to pop that off. Now, once that's off you want to clean your spindle here, you want to find your cotter pin. Ours has a cotter pin anyway. Yours may have a what they call more like a nut keeper, which should be something that slides over, but regardless we want to get that pulled out.Since we have our cotter pin we're just going to straighten that out. If you have your other style you'll just pop that off. I like to use side cutters because you can kind of get a hold of them, then just kind of pull it out. Now, you can try to save your cotter pin if you want, or get a replacement. You can see this is a pretty fresh cotter pin. If we straighten that out we should be able to just put it back in there. If you damage it though just get a new one to replace it.Now, we'll take our nut off. Not a lot of tension on this, you probably not going to need a wrench or anything. Just some pliers, we're going to hang on to this, and also the washer that's in behind it. The bushing that's in behind it. You can see if we wiggle this a little bit, pull that off there. A little flat side on it. That's always going to go to the flat side of your spindle. Now, we'll just gently pull outward on that, then we can take our assembly off. Now, if you have a drum assembly already, this is going to be pretty much the same process. The process on removing it. You're just going to have your brake assembly behind it. Now, if you don't have brakes, and you're going to be adding them to your trailer, you want to be sure you have your 4-bolt flange. That's going to ensure that these brakes are going to work for you.Now, we'll clean our spindle up really well. Since this did have . You can see that discoloration, that rusting in there that means moisture has been in here. We really need to check for any pinning, or any issues like that, that we might encounter on our spindle. You want it to be nice and smooth. Now, since we're going to be adding brakes to the trailer, we of course aren't going to have any assemblies to remove. But take a look here on the backside of the assembly, and it would give you an idea of what you'll need to do if you are removing brakes. You'll have four studs that stick through the backing plate. They're going to go through that mounting flange. On the back of that you should have a nut, and a lock washer. You want to remove all those, but hang on to them because you're going to reuse them.Once that's off and out of the way we can take our new assembly, slide it right into that flange, we want the magnet to be here at the bottom. Now, if you're adding new brakes if you don't already have existing brakes, we do have a brake hardware kit. The part number is BIK-00. That's going to give you your lock washer, and your nut. You're going to need one kit for each assembly, so if you're doing two like we're doing you're going to need two. If you're doing four to four, six to six. Now, we'll take that, we're going to thread it right onto those studs, we'll place your lock washer on first, and then our hex nut. You'll do that at all four locations.Now, you'll use an 11/16th socket. We need to snug down all four of our bolts, then we'll torque them. Alright. Now, let's head over to the opposite side, and we'll do the same thing there. We're ready to connect our wires. We got two green wires that are coming out of the back of the assembly. It doesn't matter which one you use for what. One needs to go to ground, and the other needs to go to the brake controller signal, which will come through your seven way. Now, since our trailer did not have a seven pull on it, it started with a four pull like a non-brake setup. We used part number ET7WK, which is going to give you a seven pull round for the front. It gives you a junction box, and the wire that you'll need to run back here, and make your connection.Once we get back here in that kit, we've got heat shrink butt connectors. You can pick these up as part number DW05745. We're just going to get those crimped on, and then with or without the brakes you'll either have your new wire that you've ran back here, or your existing brake wire that was on your trailer. Those will connect to those wires. We'll just use a heat source. It could be a heat gun, we can use a mini torch. We're using a lighter here as you can see. We're just going to apply a little bit of heat at a time to these. You'll see them start to shrink down. When it finally does shrink down fully it looks like the wire magnifies a little bit. It kind of looks like it gets a little bit bigger. You can kind of see there. Then on this far end there will be a little bit of clear gel that comes out of it.Once we have these shrunk down properly as you can see, you want to make sure there's enough slack here for movement because the suspension is going to go up and down a little bit. Then you're ready if you're just replacing an old brake assembly to get your hub back on after you repack the bearing. If you're adding brakes like what we're doing today then we'll take our new hub, and we'll put it on. Hi guys. We brought in Dave now to get kind of a second set of eyes on the assembly, and see if there's anything I missed that he might be able to pick up, and give you some more information. This is the new 10-inch, 2 and a quarter inch wide brake assembly. It looks like it's nice. Is there anything you see that kind of stands out on this that we don't see on a lot of the other type assemblies we get through here. Dave: Well, I did notice it's got the bonded pads, which will prevent rivet gouging when the pads start to get low to save your drum. Speaker 1: Mm-hmm (affirmative). Dave: I did also notice that on the adjuster here it's got this nice roller style to allow for easier free movement for better adjustment. Speaker 1: It is nice. That's something we don't often see. That just allows that a little bit freer movement so that it'll adjust more readily. There's something else that I just kind of noticed looking at that. There's a couple of plugs here on the back side. Even if you did for some reason need to manually adjust it, at least you'd be able to get to them. Some don't really offer that access point to get in there. Dave: Yeah, that's a nice feature too. Other than that it's got all the standards that you would see in a typical system. It looks like it'll hold up fine. Speaker 1: It all looks of the same quality we see on anything else. Dave: Mm-hmm (affirmative). Speaker 1: Alright. Perfect. Thanks man. Dave: Alright. No problem. Speaker 1: That's going to complete our installation of the E-Trailer Self-Adjusting 10-Inch Electric Trailer Brake Kit.


Customer Reviews

Electric Trailer Brake Kit - Self-Adjusting - 10" - Left and Right Hand Assemblies - 3,500 lbs - AKEBRK-35-SA

Average Customer Rating:  4.8 out of 5 stars   (712 Customer Reviews)

Self-adjusting driver's-side and passenger's-side electric brakes are 10" x 2-1/4". Brake pads are made of friction material for improved braking and longevity. E-coated backing plates resist rust. Fit 13" to 15" wheels.

- AKEBRK-35-SA

by:


Good quality items, fast delivery and exceptional customer service 569071



- AKEBRK-35-SA

by:


Easy install(after I worked two days getting the old ones off!) These look like the same breaks the dealers are selling for $64.00 each. I had to replace the four on my 16 year old horse trailer, took it for a drive and keep applying the breaks till they adjusted there self. Very happy with the product and the price and I had free 2 day shipping! 444676



- AKEBRK-35-SA

by:


Brakes came in 2 days, everything looks good. 4 stars because I think the new nuts should be included. 7/16 ths 20 are not that easy to find and my old ones were in bad shape so I wasted an hour. 575818



- AKEBRK-35-SA

by:


Excellent Brakes - Much easier and less than just replacing the brake pads. Make sure you order the Mounting Hardware for 10" Brake Assemblies - (Part #BRKH10B) if your brakes are very old and rusty. EZ Lube Axles are the best!! 541167



- AKEBRK-35-SA

by:


Maybe it's my stupidity, but when I saw brake "kit" it I thought it would have been the whole assembly. However I received the brake pads assembly but not the brake drums. So I'm going to order the drums now. Maybe an either pads, drums, or both option. Still is a really good price for everything and shipping was fast. 394488



- AKEBRK-35-SA

by:


The brakes came in and looked great. It was like plug a play. I took them out of the package bolted the up to the axle put my hubs on and I was ready to go. The only poor review was that they did not come with nuts so I had to go to 2 different hard ware store to find enough 7/16 20 nuts. That is why I only gave this a 4 instead of a 5. 571129


Comments

We sell the mounting hardware, nuts and lock washers as part # BRKH10B
Mounting Hardware for 10" Brake Assemblies
$5.32
. Each kit includes enough hardware to mount two brake assemblies.

-- Mike L - 10/03/2018

44282

- AKEBRK-35-SA

by:


The brake assemblies from etrailer are great, they fit and function like the original units. Product turn around is quick. Christie is the best, there was a problem with something I had ordered, she contacted me right away and she solved the problem right on the phone. Plus my order was shipped that day. Can’t say enough about the customer service. 471557



- AKEBRK-35-SA

by:


I was impressed with the product & thrilled that the brakes came fully assembled. I just had to mount them. There is a procedure to follow to self adjust them. Call etrailer to find out. You have to drive & stop several times according to the procedure. Also 2 wires have to be connected. I copied the original brakes regarding the connection. I think I got it right. I will definitely be a repeat customer of etrailer. 384202



- AKEBRK-35-SA

by:


First time working on electric trailer brakes and this brake kit made it a breeze. Four bolt removal and install. The videos gave me the confidence to do the job. The only downside I experienced was the lack of retaining bolts for the assembly. The description clearly states that they are not provided and I could not find them to purchase on the website so a trip to the hardware store was required. The hub and drum assembly seems durable and I like that the races were already pressed in. Time will tell on the durability of the products but first impessions are great. Side note: the website offered free shipping and I received the product in two days. Can't beat that! 554139


Comments

We do indeed offer the nuts and lock washers needed to mount the brake assemblies as part # BRKH10B
Mounting Hardware for 10" Brake Assemblies
$5.32
.

-- Mike L - 08/16/2018

42431

- AKEBRK-35-SA

by:


Replaced the brakes on all four wheels because one of them was locking up occasionally. Someone had been messing with the existing brakes so I decided to replace everything. The new brake assemblies arrived promptly. A few things were dislodged in the assemblies probably due to shipping. Corrected that and installed them. Easy installation and probably no more costly than replacing brake pads and actuators alone. Four bolts and two wires and done. 570553



- AKEBRK-35-SA

by:


Easy to install. I have a 26ft travel trailer I'm happy with the way they work. 575522



- AKEBRK-35-SA

by:


I am giving this review only three stars because of how these were packaged. The price is fair for them but I think this is a case of getting what you pay for. You would expect each brake unit to come in it's own box or at least somewhat protected from the other brake unit in the box, but that was not the case. Instead they were placed in one large box with paper wadded between them along with 3 other smaller items I had purchased just thrown into the box which allowed everything in the box to basically rattle around during shipment. This careless packaging I assume is a way to cut costs and resulted in one of the brake units being what I thought at first to be very damaged from what I can assume was the from the box they were both poorly packaged into being dropped or something during the shipping process. After 10 minutes of wrestling with the screwed up brake unit I was able to get all the parts back in line like they should be. As far as the review of the actual parts themselves I can not comment as of yet as I have not installed them yet and that is partly because I am reluctant to based on the fact that I now question the integrity of the brake unit that came all bent out of shape. 543301



- AKEBRK-35-SA

by:


I bought this kit last year to replaced the existing brakes on our 2010 Jayco 23B. We went on eight different camping trips this year and they work great! We noticed a huge improvement when applying the brakes to slow down or stopping the camper altogether. I highly recommend this kit because they were easy to install and the noticed stopping power.Please feel free to ask me any questions regarding this kit. 565940



- AKEBRK-35-SA

by:


Fast delivery - Ordered on 9/29/17 - Received on 10/4/17 Nice to have a drum kit already assembled. Cost is very reasonable too. Easy to mount and install. Haven't yet been out on the road with them to see how the operational functionality is so I can't comment on that aspect. Only draw back I see is the two wires could stand to be 6"-8" longer. At the current length, you can't easily, if at all ground one wire to the frame without first extending the wire. 440378


Comments

Fantastic! I have been out on the road many times in the last year, hauling cattle, hay, etc... WOW! WOW! what a difference trailer breaks make! Hands down, all of my trailers will have working brakes. Thank you E-Trailer!

Ron - - 10/07/2018

44386

- AKEBRK-35-SA

by:


Ready for next year season 458788



- AKEBRK-35-SA

by:


Very easy installation. Went just as advertised and demonstrated in there video. Seemed like a good quality item, and easy to install. In the pictures you will see wires everywhere as I was rewiring the electric brakes from front back. 544438



- AKEBRK-35-SA

by:


The only reason I didn't give it 5 stars is that they didn't come with the mounting hardware. Other than that I am greatly impressed with your products and would recommend etrailer to my friends. 540867



- AKEBRK-35-SA

by:


These brakes work awesome. I converted my surge brakes over on my 25 ft checkmate boat trailer. It stops like a dream. I put brakes on both axles and made sure all my connections are water proof. I also unhook them each time i dunk it. Not sure if it helps. Hauled my boat all the state of michigan last summer with no problems. When I was running surge brakes I was constantly working on them. I would change the complete backer each time and with the 2 year mark something would go wrong. These so far so good. The self adjusting feature works well too. I did the initial adjustment as required and they just keep getting better the more I haul it. 496620



- AKEBRK-35-SA

by:


Fast shipping - had an issue at check out with pay pal - not sure they resolved it yet - but I used a CC instead - Items came as advertised - whats in their photos is what you get. Great email communication - always knew where my shipment was at and when to expect it....... so for now - I give etrailer.com a Thumbs up . Haven't installed the items purchased yet but they a appear to be well made (although there made in china - not the US unfortunately - so we'll see - there are video's out there will walk you thru it if need be for installation - but.....it's pretty straight forward I think - and getting both sides in a kit is a good way to sell these - as your sure to get what you need the first time - takes the guessing outta things! 353135


Comments

Been a year - still working as expected. Id buy them again and from etrailer!

Don B - 03/15/2018

35912

- AKEBRK-35-SA

by:


The brakes work just like they're supposed to. Can't ask for more than that. Much easier and faster than trying to identify worn out unreadable part numbers and spend hours to rebuild a hub. Probably cheaper too. Would definitely buy again, years from now, if they wear out. Inspected then this spring and they still look like new. 508105



- AKEBRK-35-SA

by:


New self-adjusting brake assemblies, all the associated parts and new drums are half the cost of just having the brakes relined at the RV dealer. I can do the labor myself and save big. Products and quality exactly right. When I had a question about the install, customer service answered it over the phone and kept me rolling on my project. This is my second order with E-trailer and it will not be my last! 524674



- AKEBRK-35-SA

by:


They were easy to order. With standard shipping they arrived very quickly. I had watched the review videos and so I knew to order the mounting hardware kit. I had to call for torque specs for mounting studs and lug nuts. Easy. Very happy and will definately order from them again. 511221



- AKEBRK-35-SA

by:


The etrailer brake assemblies seem to be identical to original ones from Dexter, but at a significant savings, so I'm generally satisfied. However, during shipment, they apparently banged together and I had to readjust the shoes and mechanism to get them into position. Also, one of the covers for the adjustment slots in the backing plate had been broken and fallen out. Fortunately, I had some extra covers from a previous set of brakes, so I did not have to wait to have etrailer send me a new one. Also, these brake assemblies do not come with nuts, and I don't recall seeing that in the description. This makes no sense. Naturally, the nuts from the original brakes were corroded beyond usability, so I had to run to town to buy some nuts before I could mount these. Very annoying! Please include the nuts in the package and charge an extra couple of bucks. Anyone who buys the assembly are going to need nuts to mount it. 451448



- AKEBRK-35-SA

by:


My trailer brakes were weak, so I checked them out... 3 of the 4 sets had linings that had come of the shoes. I started checking prices on replacement parts, but found the price of an entire assembly cheaper than a few parts. Called etrailer and spoke with Ashley to confirm part numbers and availability. Ordered a set of 4 complete brake assemblies for my trailer. The parts arrived within a few days. I replaced all 4 sets in about an hour and 15 minutes! Completely straight forward process! An impact wrench will help remove the 4 nuts from old assembly. My trailer now has brakes again!! Thanks to Ashley and etrailer for good prices, good information, quick shipping, and great replacement parts! Pictures show a lining off my original brakes; one new assembly; one new assembly installed; and finally both assemblies installed on one side of my trailer. 431265



- AKEBRK-35-SA

by:


When I called to order, the salesman was extremely helpful. I got the right parts ordered and delivered. However, one of the outer bearings was delivered bent. I called to have the bearings replaced and to ask about other aspects of the install. I was never able to connect to my original salesman (4 attempts) and my request to have their expert installers call me to answer questions was ignored. I never heard back from them. Furthermore, the replacement bearings would take 4-5 business days to deliver. So, I asked about 2nd day delivery. I was quoted $32 for second day air for the bearings! I protested and they split the cost ($16). Everyone I spoke with was extremely nice and professional. But, I suspect that communications within the company need to be improved. They ship out of the St. Louis area so consider the shipping time to your locale. Everything I ordered had a China stamp. But, everything fit without much fuss; we'll see how it goes once I start moving stock with this thing. I'll order from them again. But, I won't start a rebuild until I've closely inspected what they send me. 494258



- AKEBRK-35-SA

by:


I ordered the set of two brake back plate assemblies, and two sets of wheel bearings for my Casita travel trailer. Initially I intended to simply replace the brake shoes. But when I searched on line for the shoes, I found they would cost me nearly as much as the entire backing plate (shoes and all). Of course, replacing the entire plate is much easier. Removing the old ones was the only challenge. Installing the new was easy. I'll test them out tomorrow. For now, I can say that the product looks fine, and it was packaged and shipped very well. Furthermore, the instructional videos on the web site are great, and the products are organized well for finding what I want. I congratulate eTrailer for their organization, and customer contact. Thanks. 485354



- AKEBRK-35-SA

by:


I would give this product a much better review but I ordered two sets for my double axle trailer and one of the four brake assemblies were wrong. I was in a time crunch and needed the right part ASAP and customer service said I had to pay for expedited shipping even though it was their fault for the wrong item. Therefore, I had to pay a much higher price at a local dealership for the right part. After looking at other customer reviews this is not the first and only incident on receiving wrong parts. etrailer.com was willing to exchange the part for the right one but not fast enough for my needs, so they were willing to fix their mistake but not make the situation right. 413467



- AKEBRK-35-SA

by:


The parts were shipped very fast with a great tracking system. The brake were easy to install with the great u-tube tutorial. I had to adjust one side just a little to get the drum on. The tutorial showed the correct initial adjustment to be a fair amount of drag. I think that is too tight and adjusted until I could hear just a little rubbing. The brakes work great. I have attached a before and after picture. 469004



- AKEBRK-35-SA

by:


They fit, they work, they self-adjust. I'd suggest that anyone who is going to use these buy a brake adjustment tool, as a screwdriver is a hit/miss proposition. An alternative is to manually adjust before the hub is installed. After the hub spins freely with some drag, then pack the bearings and install the wheel. Final adjustment is made with the screwdriver (difficult) or brake adjustment tool (a bit easier). 566058


Comments

We do offer a brake adjustment spoon part W80630. I have attached a link below.

-- Heather A - 09/18/2018

43709

- AKEBRK-35-SA

by:


Customer Service was Excellent. Received shipment in 2 days, just in time for getting the job done over the weekend. One minor problem with product. One of the Brake assemblies had minor damage. The hold down pin and spring were missing from assembly. Found the Pin and Spring in the box, but the pin was bent. Simple solution, I used a pin off the old brake assembly. May want to do a closer inspection on packaging. One issue with UPS. Delivery person set the package on step in front of my 90 year old mothers storm door. She couldn't get the door open and had to call for assistance for someone to move the package. Doesn't really surprise me from UPS. But again thanks for the GREAT CUSTOMER SERVICE. 374626



- AKEBRK-35-SA

by:


Situation: This was an upgrade to my 2015 Suretrac 5x8 square tube single axle utility trailer. The trailer was not equipped with them when I purchased it. I quickly realized after two trips with a full load that they would easily improve safety. My tow vehicle came equipped with an integrated brake controller as well as a 7 way rv plug. I performed this installation with the trailer raised up an only a inch or two, resting on safety stands. !! Of course, a lift would make this operation go much easier. !! Installation: THE etrailer parts were easy to assemble. All fit perfectly together. Obviously I did have to adjust the brakes a small amount to get them within the activation reach. Consideration: 1) To insure correct wiring it required extra patience and planning. I found the information regarding what wire activated what to be a bit confusing online. Using an inexpensive test light proved extremely helpful. For me it helped to determine from the start each connection point and color code that were meant for each other (in my situation changes in coding took place). To make it go smoothly I drew our a schematic before getting settled underneath. Note: that I have included images of the old flat plug wiring along with the coding. 2) If I were to do this again, I WOULD HAVE spliced the wiring to both L & R brakes before hand. Lying flat on my stomach underneath the trailer and trying to both properly strip and crimp the short pieces of wire from each brake to the 12 gauge lengths of wire was a little tedious. *Parts list from etrailer: (QTY) (1) ET7WK Trailer Wiring 7-Way Upgrade Kit (2) AKHD-545-35-K Trailer Hub and Drum Assembly - 3,500-lb Axles - 10" Diameter - 5 on 4-1/2 (1) AKEBRK-35-SA Electric Trailer Brake Kit - Self-Adjusting - 10" - Left and Right Hand Assemblies - 3,500 lbs (1) BRKH10B Mounting Hardware for 10" Brake Assemblies *Additional wiring (below), ties, a few screws, electrical tape, extra crimps and stud crimps, etc. were locally sourced for connecting from the box upgrade kit to both L&R brakes. (1) 12ft section of white 12 gauge (1) 12ft section of black 12 gauge *Additional grease, both tube and tub type were purchased along with large rubber gloves for greasing and hub installation. NOTE: at this date I have NOT yet driven the trailer with the brakes. I had only tested them by hand spinning each wheel while having someone actuate the [trailer brakes only] from the vehicle. 483647



- AKEBRK-35-SA

by:


Ordered replacement self adjusting brake assemblies for a customer's 5th wheel camper. Parts ID was simple thanks to pictures and descriptions, ordering was easy, parts arrived on time, and were installed with no issues. Also repacked the wheel bearings with parts ordered from here. I have attached a couple pictures. 490353



- AKEBRK-35-SA

by:


I normally don't write reviews, but in this case I feel that I should. I worked with Donna who was most helpful. She was careful to ensure that I ordered the right parts. She was patient with me as I had a bunch of questions and did not order right away. I received the parts rather quickly and they were completely easy to install. SHIPPING WAS FREE FOR MY ORDER. I would most defiantly do business with etrailer again. Not to mention the prices are very reasonable. Send etrailer your business. 471921



- AKEBRK-35-SA

by:


Need to include set up instructions. On the web site it says to manually adjust the brakes you can not do this due to a bracket blocking the star wheel. The person on the phone that took my order said to do 10 to 15 stops at 20mph in a open parking lot. I found in the q and a it stated to drive and brake and they will adjust. I have gain on my truck where do I start. They do not come with mounting nuts or lock washers 7/16x20. Regards, Bob K 406700



- AKEBRK-35-SA

by:


I replaced the hydraulic hitch system with this. We have to replace the hydraulic brake drums with self adjusting electric brake drums which we feel will be a better system based on our load. We are hauling a couple of RZR'S so the weight distribution was a concern. All the parts have been good to work with. The attachment nUt sav and lock washers were not with our package. A phone call later and etrailer had them on their way. The sad part is the Postal service has lost them at the delivery point. The videos have been helpful in getting us prepared for the upgrade of our trailer. 373711



- AKEBRK-35-SA

by:


These "3500#" brake assemblies fit my "4400#" AL-KO axles. Apparently AL-KO uses the square flange on both their 3500# and 4400# axles. Ten-inch is ten-inch, I guess. These are also cheaper than the listed 4400# brake assemblies, win-win. The parts quality appears excellent, and the etrailer packaging is superb. I did need to back off three of the four adjustments to 9 15/16 inch prior to assembling the drum. Tip, its much easier to do so before you install the assembly onto the axle since you can get a tape measure across the shoes when the brake is sitting on the bench. I also test fit the drum before installing the bearings, just to assure myself it would clear the shoes. I'm anxious to get on the road with these self-adjusting electric brakes. I've never used them before. 410237



- AKEBRK-35-SA

by:


Ordered both the self adjusting brake kit and new drums for both axles on my Jayco fifth wheel trailer to replace some seriously overheated brakes from the previous owner. I ordered them on Monday and they very quickly arrived on the following Thursday. Not bad considering they were shipped all the way from MO to CA in 4 days instead of the 6-8 I expected. The brakes and backing plates were well packaged and appear to be good quality for a reasonable price. I installed all 4 in less than 4 hours and everything went according to plan. Adam at Etrailer sales helped me verify the correct product as well as being very courteous and knowledgeable. I will definitely recommend and use Etrailer again. 478745



- AKEBRK-35-SA

by:


These are my second set of brakes that I have purchased from etrailer. They are great quality at a price that can't be touched. Super customer service and tutorials that answer your installation questions. 478091



- AKEBRK-35-SA

by:


Great kit except it has a couple of flaws. 1 - The nuts for bolting it to the mounting plate on the axle are not included. Why the 7/16"-20 nuts and washers are not included is a mystery. Needless to say, this cost me an extra trip to the hardware store. 2 - The wire pigtails are pretty short. A few more inches would have made the install much easier. 3 - etrailer does not give a product suggestion to buy the brake wiring when buying these kits. If they gave a heads up that I need to buy wire, that would have saved a 2nd trip to the hardware store. 442695



- AKEBRK-35-SA

by:


The trailer brakes arrived within two days of ordering. I ordered the recommended nuts and split washers which made installation easier. The brakes fit and functioned exactly as described. I had both sides installed in about two hours. 486128



- AKEBRK-35-SA

by:


I bought the brakes, and I have enjoyed them so far. Very good brakes to install and definitely safe for the road for me and everybody on the road. 571883



- AKEBRK-35-SA

by:


Appears to be high quality . 572859



- AKEBRK-35-SA

by:


Perfect replacement parts for my trailer, was a easy fix for worn out parts. 572329



- AKEBRK-35-SA

by:


Very well-made come nicely shipped no scratches very good packing I expect will do the job perfectly 576033



- AKEBRK-35-SA

by:


Great quality, great price 569658



- AKEBRK-35-SA

by:


Although not used yet, impressed with the totally assembled brake package. Just remove old with four bolts, install the new assembly, hook up wiring. Cut and dried. 569523



- AKEBRK-35-SA

by:


Order came when promised and in good condition. Have not installed any of the parts but I know from past experience everything will fix and work perfectly. This is a great company to work with. 569006



- AKEBRK-35-SA

by:


Thanks for following up thats golden! The parts o ordred are working great ! Was very impressed with the buying process and you were all very helpfull! Thanks 568933



- AKEBRK-35-SA

by:


Products arrived and well packaged, no damages! All items ordered as specified, exact replacement and better quality than OEM! The tapered edges of the brake lining actually performs better than OEM. 568599



- AKEBRK-35-SA

by:


I bought 4 brakes and hubs for my trailer to replace ones that were 4 years old. These brakes work fantastic and it's been a year and I have had no issues with these brakes and in fact do feel very confident and safe having these brakes on my trailer. I would recommend these brakes. I would also recommend buying the hubs and doing a full replacement. 567973


69
740
Show More Reviews

Ask the Experts about this etrailer Trailer Brakes
Do you have a question about this Trailer Brake?


  • Replacement Hub and Brake Assembly for AL-KO 8490
  • Based on what information I could find about AL-KO 8490 hub and drums, it is rated for 3,500 pound axles, has a 5 on 4-1/2 bolt pattern, and is a 10 by 2-1/4 inch drum. If this is the case, we have several options for you. I have attached a link to all of our 10 by 2-1/4 inch, 5 on 4-1/2 hub and drum assemblies for 3,500 pound axles. I recommend the etrailer.com Hub and Drum Assembly # AKHD-545-35-K. This hub and drum uses # L68149 inner bearing and # L44649 outer bearings. If you can...
    view full answer...

  • Comparing The etrailer.com Self-Adjusting To The Dexter Nev-R-Adjust Brake Assemblies
  • The only difference between the Electric Trailer Brake Kit - Self-Adjusting - 10" - Left and Right Hand Assemblies - 3,500 lbs # AKEBRK-35-SA and the Dexter Nev-R-Adjust Electric Trailer Brake Kit - 10" - Left and Right Hand Assemblies - 3.5K # 23-468-469 other than brand name are that the etrailer.com brake assemblies have brake shoe material that is cut during production versus scored and snapped off. This actually makes it a better brake shoes because the brake material lasts longer...
    view full answer...

  • 10 x 2-1/4 Inch Trailer Brakes to Replace Dexter Electric Brakes
  • The brakes you have now are 10 x 2-1/4 inch brakes with a 4-bolt pattern. For a left and right replacement I recommend our house brand # AKEBRK-35-SA. These are also self-adjusting brakes so after the initial manual adjustment they will not have to be adjusted again. I have included a link to a video review of these brakes for you. The Dexter version for the set is # 23-468-469. For manually adjusted brakes the etrailer set is # AKEBRK-35 and the Dexter set is # 23-26-27. One of...
    view full answer...

  • What Is The Difference Between Dexter And etrailer Self-Adjusting Brake Assemblies
  • There are a couple of differences between the etrailer # AKEBRK-35-SA and the Dexter # 23-468-469 brake assemblies. The pad on the etrailer brake is a little thick so that means the etrailer brakes will last a bit longer. Also, the etrailer brakes are cut so the edges are a bit smoother than the Dexter brakes which are snapped off of a long strip.
    view full answer...

  • Replacement Hubs for BD-545-17 Drum Brakes and Braking Assemblies
  • The exact replacement hub assemblies you need are the AxleTek Trailer Hub and Drum Assembly - 3,500-lb Axles - 10" Diameter - 5 on 4-1/2 # AKHD-545-35-K. These assemblies come with the bearings, races, seal, grease cap and even the lug nuts needed. You can absolutely use the Dexter Nev-R-Adjust Electric Trailer Brake Kit # 23-468-469 with these hubs and they will work great. If you don't want the Dexter name brand, you can use the Electric Trailer Brake Kit - Self-Adjusting - 10" - Left...
    view full answer...

  • Adding Trailer Brakes to a Timbren Axle-Less Trailer Suspension System
  • Yes, it is possible to add brakes Timren Axel-Less Trailer Suspension System. The Timbren Axle-Less Trailer Suspension System - 4" Lift Spindle w/Flange - Off-Road Tires - 2.2K, # ASR1THDS03, that you were looking at has the brake flange mounted, so it is ready to add brake assembly and hubs to. I'd recommend getting the Electric Trailer Brake Kit - Self-Adjusting - 10" - Left and Right Hand Assemblies - 3,500 lbs # AKEBRK-35-SA . You would then pair these with the Trailer Hub...
    view full answer...

  • Replacement Parts for 1970s Camper Frame with Dayton Fayette Axles
  • The Lippert Components Heavy-Duty Replacement Shock - Yellow # LC283280 is 8.625 inches compressed and 13.5 inches fully extended. Your current suspension may extend and retract slightly further but the shocks will be a good replacement based on the actual shock absorbing as long as they will fit your brackets. Unfortunately we don't have any info on your axle or hubs, so to help, I will need to get the bearing numbers printed on the face of your inner and outer bearing of one hub....
    view full answer...

  • Parts Needed to Add Electric Drum Brakes to Trailer with 3500-lb Axle
  • Starting with your Cherokee, the Prodigy P3 trailer brake controller # 90195 is an excellent choice. This is a superb controller both for performance and reliability. In your 4-pole equipped Jeep vehicle you will hard wire the P3 using the # ETBC7 installation kit. These two items will provide a complete 7-way wiring setup that will generate and deliver trailer brake power to the 7-way socket included in the kit along with all of the required trailer lighting signals. I linked both a...
    view full answer...

  • Bolt Hole Pattern of Mounting Studs on Electric Trailer Brake Kit AKEBRK-35-SA
  • The mounting flange bolts of the # AKEBRK-35-SA use the standard 4 bolt pattern seen on axles rated for 3,500 lbs. The picture I attached shows the distance between all of the studs.
    view full answer...

  • Replacement Drum Assemblies for AL-KO 8490 Hubs
  • According to my research, AL-KO 8490 references an AL-KO hub for 3,500 lb axles with a 10 x 2-1/4" drum and a 5 on 4-1/2" bolt pattern. For a drum assembly that will work with these hubs I recommend taking a look at the Electric Trailer Brake Kit part # AKEBRK-35-SA for self-adjust or part # AKEBRK-35 for manual adjust. If you would also like to replace the hub then as long as your existing AL-KO hub uses an L68149 inner bearing and an L44649 outer bearing, the Trailer Hub and Drum Assembly...
    view full answer...

  • Recommended Replacement Brake Assembly for Hadco Drum Brake Hub
  • Based on the bearings you gave, it looks like you have 3500 lb axles. That would mean you have 10 inch brake assemblies, so I recommend the Electric Trailer Brake Kit - Self-Adjusting - 10" - Left and Right Hand Assemblies - 3,500 lbs # AKEBRK-35-SA. These assemblies will adjust as needed after the initial manual adjustment at install. These brake assemblies are labeled for which side of the trailer to install on, and the brake shoes have great quality material. I've attached a video...
    view full answer...

  • Replacement Parts For A Dexter 3,500 Lbs Axle Part # 35545E-ST-EZ-89
  • According to the manufacturer, the Homestead Challenger Trailers are equipped from the factory with 3,500 lb axles with electric brakes. For these axles you will need the following: 2 Dexter Electric Trailer Brake Kit part # 23-26-27 (Manual-Adjust) Or 2 Electric Trailer Brake Kit part # AKEBRK-35-SA (Self-Adjusting) And 4 Bearing Kits for #84 Spindles part # BK2-100 I have attached a few articles for your consideration in addition to a review of the products I have recommended.
    view full answer...

  • Replacement Self Adjusting Brake Assemblies for 2013 Crossroads Sunset Reserve 28BH
  • We have just what you are looking for. For a pair of auto adjusting brake assemblies that match what your trailer needs you'd want the Electric Trailer Brake Kit # AKEBRK-35-SA. These assemblies mount with a 4 bolt mount pattern, and are for 3,500 lb axles like you have. Since you need a total of 4 assemblies you'd need to order a quantity of two of these kits.
    view full answer...

  • Brake Assembly and Hub/Drum Recommendation to Fit Dexter Axle # 7359765
  • Yes, the 3,500 lb brake assemblies part # AKEBRK-35-SA that you referenced will fit the 3,500 lb Dexter axle part # 7359765 that you mentioned. They will bolt right up. If you need hub/drums too the part # 84546UC3-EZ would fit and work well.
    view full answer...

  • Comparing Cost of Replacement Brake Parts vs. Complete New Drum Brake Assemblies
  • Thank you for giving us a chance to help you out with the brakes on your travel trailer, and thanks also to your friend who steered you our way. We do sell all sorts of individual brake replacement parts such as shoes, magnets, springs, etc but most often our customers prefer to replace their complete electric drum brake assemblies. The cost of a complete new electric drum brake is often not much more than the cost of even just a few individual parts. Replacing the complete brake is...
    view full answer...

  • Availability of the Kit # T4843200 with the Titan Zinc-Plated Brake Actuator # T4747220
  • I do have a way for you to get the Titan Zinc-Plated Brake Actuator # T4747220 with the rest of the items included in the Kit # T4843200 that you referenced, but unfortunately we do not have a way just to swap out the actuators. Along with the actuator # T4747220 that you asked about you will just need the following kits in the following quantities: Titan Disc Brake End Kit - # T10HREKITBB (4) Titan Tandem Torsion Axle Tubing Kit - # T4830000 (1)
    view full answer...

  • What is Needed to Add Electric Brakes to Utility Trailer?
  • In order to add electric brakes to your trailer you are going to need to switch to a hub and drum assembly. For 3,500 lb axles with 15 inch wheels you may be able to use # AKHD-545-35-K but you are going to need to make sure you have a brake mounting flange. I've added a link to our page with flanges so you can find the correct one. The hub and drum assembly I've mentioned uses inner bearing L68149 and outer bearing L44649 and is compatible with # 84 spindles. Your current hub will need...
    view full answer...

  • Recommended Self-Adjusting Brake Assemblies for Lippert 3500 lb Axles
  • For your Lippert LCI35T axles, you will only need to replace the brake assemblies. The hub/drum assemblies will work fine with the new brake assemblies. I recommend the Electric Trailer Brake Kit - Self-Adjusting - 10" - Left and Right Hand Assemblies - 3,500 lbs # AKEBRK-35-SA. These assemblies need manual adjustment at install and then will automatically adjust based on the brake shoe thickness to continue to give you the best braking on your trailer. The assemblies have fine-toothed...
    view full answer...

  • Recommended Trailer Hubs and Brakes for Lippert 4,400 Pound Axle
  • I spoke with my contact at Lippert and for your trailer axle, you will want to use the etrailer.com Trailer Hub and Drum Assembly # AKHD-655-35-K. This will serve as a perfect replacement for your existing assemblies, with the same inner/outer bearings and listed weight capacity. They have a 6 on 5-1/2 inch bolt pattern and all of the bearings, races and seals are included. One thing to note on your particular axle is that while it is listed on the axle as having a 4,400 pound capacity,...
    view full answer...

  • Replacement Hub/Drums and Brake Assemblies for Hubs Marked 8-247
  • The hub you would need is the Trailer Hub part # 8-247-50UC3-EZ as it is an exact replacement. Then for new assemblies you'd want the kit part # AKEBRK-35-SA which comes with both sides of the trailer's brake assemblies. These are self-adjusting assemblies as well.
    view full answer...

  • Upgrading Electric Trailer Brakes to Self-Adjusting Assemblies One Axle at a Time
  • You can absolutely upgrade your manual electric trailer brake assemblies on your tandem axle trailer to self-adjusting brakes like the 10 inch # AKEBRK-35-SA or the 12 inch # AKEBRK-7-SA. As long as the assemblies on each axle match you can update your assemblies over time. There is no problem with having manual brake assemblies on one axle and self-adjusting brake assemblies on another axle. You simply need to remember to adjust the manual brake assemblies until you change them to the...
    view full answer...

  • Parts Needed to Add Brakes to Lippert 3500lb Axle on an Utility Trailer
  • We have the parts that you will need to add brakes to you Lippert 3,500lbs axles. For the brake assemblies, I recommend the Electric Trailer Brake Kit, # AKEBRK-35-SA. This kit includes both the left and right brake assemblies and will bolt right to your 4 hole brake flange that is already on your axle. The brakes are self-adjustable and will only need an initial set-up at installation. The drums that you will most likely need will be # AKHD-545-35-K. This drum will include bearings,...
    view full answer...


Do you have a question about this Trailer Brake?




  • Why etrailer.com?

    At etrailer.com we guarantee:

  • Highest quality trailer brakes for the best price.

    Our Lowest Price Pledge ensures you will never overpay for the parts you need.
  • Real product know-how.

    We make sure that the products we sell are what we say they are, and that they work the way they are supposed to work. Get real advice from a real person who has the knowledge and expertise needed to solve your problem.
  • Most detailed, accurate trailer brake information available.

    Because we take providing accurate product information seriously, we take our own detailed product photos, demo videos and installation videos, as well as verify measurements, instructions, and vehicle fit information.
  • Installations, made easy.

    We love helping people and have the most highly-trained customer service, hands-on experience, step by step videos and installation instructions.
  • Fast shipping.

    Your order is automatically routed to get out of our warehouse and to your door as quickly as possible. Receive free shipping on orders over $99.
  • Personalized service for life.

    We provide one-on-one, personalized service from the ordering process through the life of your product.
  • Trusted since 1946.

    We've been serving customers since our parts store first opened in 1946 and continue to be recognized by our customers, our vendors and third parties for exceptional service.
  • Returns Policy

    Satisfaction Guarantee
    Need to return an item? No problem. Please read our Returns Policy for more information.

Info for this part was:

Edited by:
Lindsey S
Expert Research:
Michael H
Expert Research:
Jameson C
Expert Research:
John H
Expert Research:
Adam R
Installed by:
Cole B
Expert Research:
Jeffrey L
Installed by:
Randy B
Video Edited:
Chris R
Updated by:
Sarah W
Written by:
Alexander C
Video by:
Zach D
Photos by:
Stacy F

At etrailer.com we provide the best information available about the products we sell. We take the quality of our information seriously so that you can get the right part the first time. Let us know if anything is missing or if you have any questions.



Product Experts Available Now!

Call 800-298-8924


^
About Us
photos and videos
1,056,204 Original Photos & Videos

Produced to make sure you know what you are getting and you get exactly what you need.

installations
35,570 Installations Completed

To make sure products work and fit the way they are supposed to.

etrailer call center
2,476,511 Phone Calls & Emails Answered

1,125,924 phone calls and 1,350,587 emails to help find the right solution.

etrailer training
400+ Average Hours of Product Training

We get to know our products firsthand so experts can better help you.

etrailer service
73 Years of Quality Customer Service

Assisting our neighbors and customers, face to face at the counter.

etrailer experts
193,357 Pages of Expert Information

Created to make sure you have all the answers to your questions, from real experts.
