Curt Tow Bar with Adjustable-Width Arms - Car Mount - 2" Ball - 5,000 lbs

Curt Tow Bar with Adjustable-Width Arms - Car Mount - 2" Ball - 5,000 lbs

Item # C19745

lowest price pledge

Retail:$185.33

Our Price: $111.87

You Save: $73.46
Tow Bars

This item qualifies for Free Shipping

Shipping Weight: 31 lbs

Quantity:
In Stock
C19745 - Fixed Curt Coupler Style
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.
Please enter a valid email address.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

pop out icon replay 360 icon
horizontal rotate icon

Product Images

Customer Photos

Videos


  • Coupler Style
  • Fixed
  • Curt
  • 5000 lbs
  • Stores Separately
  • Standard
  • Steel
Durable tow bar makes it simple to pull the family vehicle behind your RV. Universal mounting brackets attach to your vehicle's bumper - no base plates required! Arms adjust in width to fit most applications. Couples to a 2" hitch ball. Lowest Prices for the best tow bars from Curt. Curt Tow Bar with Adjustable-Width Arms - Car Mount - 2" Ball - 5,000 lbs part number C19745 can be ordered online at etrailer.com or call 800-298-8924 for expert service.


  • All Info
  • Reviews (40)
  • Q & A (51)
  • Videos (1)
  • Photos
  • Used (2)
  • Why etrailer?

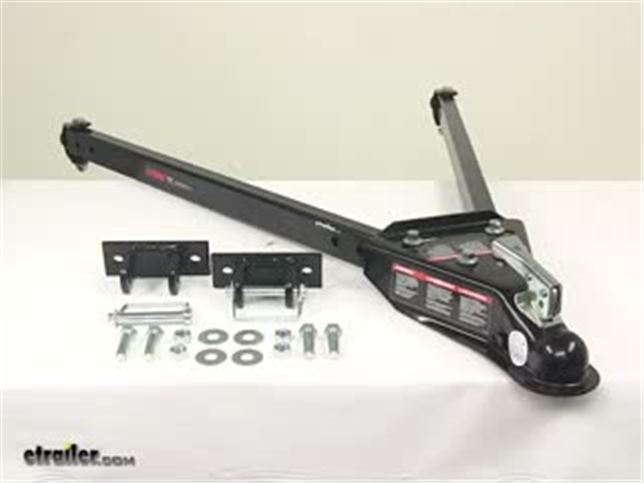

Curt Tow Bars - C19745

Durable tow bar makes it simple to pull the family vehicle behind your RV. Universal mounting brackets attach to your vehicle's bumper - no base plates required! Arms adjust in width to fit most applications. Couples to a 2" hitch ball.


Features:

  • Coupler-style tow bar lets you tow your vehicle behind your motor home
    • Integrated coupler attaches to trailer hitch ball on RV
  • Universal bumper brackets let you attach tow bar to almost any vehicle
    • Mounts to flat, metal section of your vehicle's bumper (modification will be required)
    • Eliminates the need for vehicle-specific base plates
  • Adjustable-width arms fit the span of most applications
  • Each arm attaches and detaches from bumper brackets with 2 easy-to-access pins
    • Must be removed from vehicle for storage
    • Arms fold together to save space when not in use
  • Trigger-style coupler latch ensures simple, secure hookup and disconnect
  • Powder coated steel resists corrosion
  • Safety cables and coupler lock sold separately


Specs:

  • Capacity: 5,000 lbs
  • Ball diameter: 2"
  • Adjustable arm width: 26" to 41"
  • Coupler lock pin hole diameter: 1/4"
  • Bumper bracket dimensions: 5-1/2" long x 2" tall
    • Distance between mounting holes center to center: 4"
    • Distance between tabs: 2"
  • Weight: 31 lbs
  • 1-Year limited warranty


Dimension

19745 Curt Adjustable Tow Bar with Universal Bumper Brackets



C19745 Installation InstructionsInstallation Details C19745 Installation instructions



Video of Curt Tow Bar with Adjustable-Width Arms - Car Mount - 2" Ball - 5,000 lbs


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Curt Tow Bars - Coupler Style - C19745 Review

Today we're going to be taking a look at a Curt tow bar. This is a coupler style tow bar that let's you tow your vehicle behind your motor home. It's going to feature the integrated coupler that attaches to the hitch ball on the RV. This is designed for two inch hitch balls. It's also going to come with these universal bumper brackets that let you attach the tow bar to almost any vehicle. These bumper brackets attache to a flat, metal section of your vehicle's bumper. If that's not present, then just keep in mind that modification and fabrication maybe required.

Basically what these do is they eliminate the need for vehicle specific base plates. Hardware to get the bumper brackets installed is included. The adjustable arms of the unit fit the span of most applications. That's another great feature of this system. The arms attach and detach from bumper brackets with these easy to access pins. Basically the bumper bracket.

I'm going to rotate this around, make it a little bit easier to see. This bumper bracket right here would be attached to the vehicle. The arm has this swivel connector on there. It lines up with the holes right here on the bumper bracket. Then attaches and detaches with this easy to use clip system right here.

It's very quick, very easy to attach and detach the arms of the tow bar from the bumper brackets installed on the vehicle. Again, the adjustable arm design is a great feature to have. I do want to mention that the adjustable arms can adjust anywhere from 26 inches wide to 41 inches wide. In the instructions it is recommended that the spacing is right around 33 inches. Again, can be set from 26 to 41 inches. It's going to use a trigger style coupler latch that insures simple, secure hook up and disconnect that's very easy to use.

Again, the unit is designed for a two inch hitch ball. It's going to be constructed of a steel construction with a powder coated finish. It's going to do a great job of resisting rusting, corrosion making sure that the unit looks good and lasts for a long time. Safety cables are going to be sold separately as well as a coupler pinning clip or a coupler lock. If you need any of that stuff you can find it all right here at etrailer.com. The capacity for this unit is 5,000 pounds. Again, it is designed to fit a two inch hitch ball. Adjustable arms spacing, 26 to 41 inches with a recommended spacing of 33 inches. The coupler lock pin hole, or the pin hole for a coupler pin is going to be quarter inch diameter. The unit itself weighs around 31 pounds. Please note that according to the instructions, do not back up while the vehicle is attached. That's going to do it for today's look at the Curt tow bar with a 5,000 pound capacity.


Customer Reviews

Curt Tow Bar with Adjustable-Width Arms - Car Mount - 2" Ball - 5,000 lbs - C19745

Average Customer Rating:  4.5 out of 5 stars   (40 Customer Reviews)

Durable tow bar makes it simple to pull the family vehicle behind your RV. Universal mounting brackets attach to your vehicle's bumper - no base plates required! Arms adjust in width to fit most applications. Couples to a 2" hitch ball.

- C19745
by:

Very nice, i have used it 4 times flat towing my 89 Jeep Wrangler YJ over 1000 miles. Very happy and tows like there is nothing behind me, thanks for a fine product!! 487538


Comments

AWESOME

Mike H - 03/21/2019

50825

- C19745
by:

Have not towed with it yet but appears to be well made. 542099



- C19745
by:

Fast shipping looks like it should work like it's supposed to, only concerns is the three eights bolts on the receiver 569833



- C19745
by:

Works good for my project . THANKS 588902



- C19745
by:

Disappointed. I purchased this equipment to allow me to tow home a jeep I bought. The hardware provided was incompatible. The bolts and nuts had different machine threads. I had to drive 15 miles away to find a hardware store that had the right nuts to match the bolts. When I contacted e-trailer they were only willing to credit me $15. Hardly appropriate for the inconvenience to the seller and myself. I would strongly recommend test fitting all parts provided before installation. Sincerely, PJ 592610



- C19745
by:

Besides great products and great prices, customer service is exactly that. Thanks guys for actually caring about your customers. 5 stars is not enough of a rating! 435181


Comments

Absolutely fantastic. I have toad my smart car thousands of miles since purchase. Light weight and sturdy, and at a great price! Who wouldnt be ecstatic. Thanks again guys.

Joe M - 09/22/2018

43887

- C19745
by:

Solid product worked out well and easily installed to tow vehicle. 463801



- C19745
by:

Installed easy breezy on my 89 YJ. Had to make a small adjustment on the ball clasp, but other than that everything went as expected. 596591



- C19745
by:

For what the tow bar cost it is the best value I could find. I was disappointed that it did not include safety chains, so be prepared to spend more. It was easy to install on the Jeep. It is light weight and easy to install and remove. 558540



- C19745
by:

The tow Hitch is made of super quality The price is better than I could find in local stores Power coated simple to put together Craig 369401



- C19745
by:

The two bar mounted to the existing brackets and was very easy to install took about 10 minutes!! 435708



- C19745
by:

Have not towed with it yet but appears to be well made. 542098



- C19745
by:

Great tow bar for my 1995 Wrangler, only reason I’m not giving it 5 Stars is bc I couldn’t use the predrilled holes on the bumper....but that’s a minor complaint in my book, I ended up using the 2 inside predrilled holes on my bumper as the outside holes for the brackets.....this made it hard to get the tow bar wide enough to fit, but it did fit. Once I got it together, I tightened everything down. Tows like a champ 528526



- C19745
by:

I purchased this tow bar for my 2002 Chevy S10. I did so thinking that it needed no adapter plate per the website. It will not work without an adapter plate of some sort. Do you know of anything I can purchase to complete this tow bar? 583294


Comments

The bumper brackets that come with the tow bar part C19745 attach to a flat, metal section of your vehicles bumper. If a flat metal surface is not available then modification and fabrication maybe required. The coupler on the other end of the tow bar attaches to the 2 inch ball on your motorhome.

-- Heather A - 11/17/2018

45805

- C19745
by:

Great looking tow bar to my pickup behind my motir home. Looked at other suppliers products and the could not compare, this one made from rectangular steel tube, others made from open steel channel. 450794



- C19745
by:

This is a great deal for an item that is very well made. Very heavy duty and a great value. Easy to assemble and you wont get a better tow bar for the money. I have also always been impressed with the excellent customer service that etrailer provides. 460371



- C19745
by:

Sturdy item and works as it should. Easy assembly. 635920



- C19745
by:

Extremely satisfied 634036



- C19745
by:

Tow bar wasn’t a match for the road master base plate I was installing. Mostly my fault since I should have read more into it. Overall wish it did work and is extremely simple to put together and store. 630973



- C19745
by:

Received on time. The manufacturing is done with material that seems to me of very good quality. However, I did not have time to assemble or use it. 628929



- C19745
by:

Bought this to tow my jeep behind my f350 works great, very pleased with it 617117



- C19745
by:

Product is as advertised, and arrived at my door in two days. 614362



- C19745
by:

I ordered a towbar from etrailer. You guys never let me down. The towbar is great and the instructions were very complete. I got it all installed very easily and I am now ready to tow my Jeep to Big Bend National Park. If you need to tow a Jeep or any vehicle that weighs less than 5,000lbs you can't go wrong for the price. 613364



- C19745
by:

This is a great product. Strong and very basic, therefore very easy to use. Ensure that the bolt holes match your base plate or you will be visiting a local welder. 612769



- C19745
by:

Great value and tows mj Jeep tj great! 612054



- C19745
by:

Easy installation, well put together, happy with product and delivery service. 602854



- C19745
by:

Easy to install and utilize. Great prod uct! 592584



- C19745
by:

always a good experience with etrailer. 583213



- C19745
by:

everything arrived on time and looks good! we hope it does the job promised after installation! thank you 548837



- C19745
by:

Great 543244



- C19745
by:

Very happy with the products and time of delivery. 538841



- C19745
by:

A+ all around 505849



- C19745
by:

I could not have had a better experience with the whole process painless and fast. Art 497340



- C19745
by:

I've towed my Jeep Wrangler, 4 times and it performed great. You do need help hocking it up. Not for a single person. Great price. Would buy again. 496005



- C19745
by:

Can as described super fast. Great serv ice. 487896



- C19745
by:

This is an excellent product! I towed my Jeep, fully loaded with stuff, 1,500 miles, and had an absolutely smooth trip. Thank you! 471915



- C19745
by:

This product was exactly as described, very pleased with quality, and the shipping was extremely fast, and no shipping charges. Great quaility for the price! 469319



- C19745
by:

Works great and was very easy to instal l! 458484


Comments

Perfect Well made product!!

Edward - 12/08/2018

46506

- C19745
by:

very happy with the tow bar , and thrilled with the speed in which the product was delivered to me .I will deffinetly reccomend your coempany to my friends 302789


Comments

very happy with the service I received and the tow bar ,its an excellant product , I look forward to doing bussiness with your company in the future.

Michael M - 10/12/2017

29143

- C19745
by:

Very inexpensive and it gets the job do ne 292649


41
41

Ask the Experts about this Curt Tow Bars
Do you have a question about this Tow Bar?


  • Parts Needed to Flat Tow a 2011 Jeep Wrangler with Roadmaster Base Plates and Curt Tow Bar
  • In order to use the Curt tow bar # C19745 with Roadmaster EZ4 base plates # RM-521448-4 you would need to add adapter # RM-025 and also quick disconnects # RM-201 (to make the base plate arms easily removable). In addition to the base plates and tow bar you will also need safety cables, lighting, and supplemental braking to flat tow your 2011 Jeep Wrangler. For cables you can use # RM-643. The coiled design helps keep the cables off of the ground. For lighting the diode kit # RM-154...
    view full answer...

  • Recommendation For Safety Cables To Flat Tow 2005 Jeep Wrangler
  • The Curt Tow Bar, Item # C19745, is a basic but durable tow bar that should serve you well. For safety cables, I recommend the Roadmaster Coiled Safety Cables, Item # RM-643, because they are 68 inches long so plenty of length, are heavy-duty, and have a vinyl coating that keeps the cables from scratching and chipping your tow bar or anything else. Besides a tow bar and safety cables, you will need tow bar wiring and a supplemental braking system for flat towing your 2005 Jeep Wrangler....
    view full answer...

  • Is There a Speed Limit for the Curt Tow Bar with Adjustable-Width Arms C19745
  • If you will be doing a one time only move from California to Texas then I suggest a cost effective tow bar like the Curt Tow Bar with Adjustable-Width Arms part # C19745. In order to install this towbar you will need to remove the bumper and attach it to the vehicle's core support somewhere. There are no speed restrictions for tow bars like the above. If a speed restriction is present, it will be from the owner's manual to protect the vehicle. The Curt Tow Bar will maintain its warranty...
    view full answer...

  • Can Front Bumper be Removed to Install the Curt # C19745 on a 2000 Ford F-150
  • The Curt Tow Bar with Adjustable-Width Arms # C19745 is a universal tow bar system and the instructions basically say to make sure to attach the clevis mounts to the frame of the vehicle. You can mount it to the bumper or you can remove the bumper to avoid drilling holes into the bumper as well. I have attached a link to the instructions for you to reference and a helpful article on making sure your tow bar is at the correct operating height. For a complete flat towing setup you will...
    view full answer...

  • Will Roadmaster Base Plate Kit Fit with Curt Tow Bar for a 2017 Chevy Spark
  • If you already have the Curt Tow Bar # C19745 then you will need to use the Blue Ox Base Plate Kit # BX1725 with the Adapter Kit # BX8833 for your 2017 Chevy Spark. If you already have the Roadmaster Base Plate Kit # RM-523185-5 then you will need to use a Roadmaster tow bar that slides into the hitch receiver like the Falcon 2 # RM-520. Unfortunately there are no adapters from a Roadmaster base plate kit to a Curt tow bar. For a complete flat towing setup you will need a base plate...
    view full answer...

  • Parts Needed to Flat Tow a 2000 Jeep Cherokee Behind an RV
  • There isn't an attachment to fit the Curt Tow Bar with Adjustable-Width Arms # C19745 to the tow hooks on your 2000 Jeep Cherokee. What you can do is use Roadmaster base plates # 1418-1 or # 1418-3 with adapter # RM-025 but it is not the best fit and the parts haven't been tested together by the manufacturers. But instead of doing all of that I would just go ahead and use either of those base plates listed above with the Roadmaster Tracker tow bar # RM-020. Fewer adapter pieces means a...
    view full answer...

  • What is Distance Between Tabs on Curt Universal Bumper Brackets # C19748
  • The Curt Universal Bumper Brackets # C19748 referenced in your question feature a distance of 2 inches between the tabs. These universal mounting brackets will install on your vehicle's bumper to provide the attachment points for the Curt Tow Bar with Adjustable-Width Arms # C19745. I have attached a couple of short video demonstrations on these products that you can also take a look at.
    view full answer...

  • Could Curt Tow Bar # C19745 Attach to 1995 Jeep Wrangler YJ
  • We had a customer send us a picture of the Curt Tow Bar part # C19745 attached to the front bumper of a YJ just like your 1995 Wrangler that I attached to this page for you to check out.
    view full answer...

  • Tow Bar Recommended to Tow a 2016 Ford F-250 Behind Farm Equipment
  • With a truck that heavy you're kind of limited on your options. The easiest to connect each time is the Blue Ox # BX7302P but you need a pintle hitch on the vehicle that's towing the truck. If you prefer not to use the lunette ring it can be changed out for a standard couple # BX88248, receiver adapter # BX88249, or clevis hitch # BX88250. You also need a base plate kit for the F-250, part # BX2618. Once you have the base plates installed and connect the tow bar to the base plates...
    view full answer...


Do you have a question about this Tow Bar?


Used Items Available
RU-19-C5-00204811

Condition: Missing Parts

Notes: Item is missing all of the hardware. Otherwise new and unused.

Our Price: $115.29

Secure Checkout
RU-19-C5-00704733

Condition: Missing Parts

Notes: Item is missing 2 hex head bolats and 2 hex nuts.

Our Price: $121.77

Secure Checkout
