7-Pole and 4-Pole Trailer Connector Sockets w/ Mounting Bracket and Wiring - Vehicle End

7-Pole and 4-Pole Trailer Connector Sockets w/ Mounting Bracket and Wiring - Vehicle End

Item # HM40975-11998

lowest price pledge

Retail:$64.40

Our Price: $50.54

You Save: 22%
Custom Fit Vehicle Wiring

Will this fit?

To see if this custom-fit item will work for you please tell us what vehicle you'll use it with.

This item qualifies for Free Shipping

Shipping Weight: 1.72 lbs

Arrives before Christmas with Ground or Free Shipping.
Quantity:
In Stock, Ships Today
HM40975-11998 - Custom Fit Hopkins Custom Fit Vehicle Wiring
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.
Please enter a valid email address.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

pop out icon replay 360 icon
horizontal rotate icon

Product Images

In Use/Installed

Customer Photos

Tow a trailer with either a 7-way or 4-way plug with this dual vehicle-end connector. Included pigtail harness hardwires into your vehicle and the connector end mates with the 7-pole socket to form a weathertight seal. Call 800-298-8924 to order Hopkins custom fit vehicle wiring part number HM40975-11998 or order online at etrailer.com. Free expert support on all Hopkins products. Guaranteed Lowest Price and Fastest Shipping for 7-Pole and 4-Pole Trailer Connector Sockets w/ Mounting Bracket and Wiring - Vehicle End. Custom Fit Vehicle Wiring reviews from real customers.
  • All Info
  • Reviews (257)
  • Q & A (205)
  • Videos (6)
  • Photos
  • Why etrailer?

Hopkins Custom Fit Vehicle Wiring - HM40975-11998

  • Custom Fit
  • Trailer Hitch Wiring
  • Hopkins
  • 4 Flat
  • 7 Blade
  • No Converter

Tow a trailer with either a 7-way or 4-way plug with this dual vehicle-end connector. Included pigtail harness hardwires into your vehicle and the connector end mates with the 7-pole socket to form a weathertight seal.


Features:

  • Dual connector lets you hook up to a trailer with either a 7-pole, RV-style plug or a 4-way flat plug
  • Pigtail harness hardwires into your vehicle and connects to 7-way socket
    • Includes color-coded 7-wire leads and 1/2" convoluted tubing
    • Forms weathertight seal on back of socket to keep out moisture and prevent corrosion
  • Rubber gasket provides excellent weather protection
  • Integrated stainless steel spring lets you easily open and close socket covers
  • High-impact ABS plastic construction is extra durable
  • Sturdy steel mounting bracket installs on bumper with included screws
    • Black epoxy coating resists rust


Specs:

  • Bracket dimensions: 4-3/4" long x 3-1/16" tall x 1-3/4" deep
  • Distance between mounting holes (center to center): 2-3/8"
  • 1-Year warranty


Dimensions of bracket

Wiring Configuration


Wire ColorCircuitWire Gauge
RedLeft turn and stop14 Gauge
WhiteGround10 Gauge
BlueElectric brakes12 Gauge
GreenRight turn and stop14 Gauge
BlackBattery12 Gauge
BrownRunning lights14 Gauge
YellowReverse lights14 Gauge

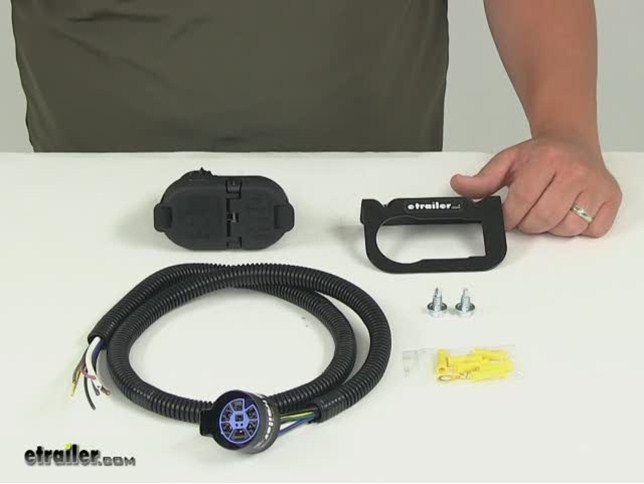

40975 Hopkins 7- and 4-Way Trailer Connector Socket with Mounting Bracket - Vehicle End

11998 Pollak Pigtail Wiring Harness for 7-Way RV Socket



HM40975-11998 Installation InstructionsInstallation Details HM40975-11998 Installation instructionsHM40975-11998 Installation InstructionsAlternate Instructions HM40975-11998 Installation instructions

This Product Fits The Following Vehicles

2015 - 2020 GMC Canyon without factory 7-Way

2015 - 2020 Chevrolet Colorado without factory 7-Way




Video of 7-Pole and 4-Pole Trailer Connector Sockets w/ Mounting Bracket and Wiring - Vehicle End


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Trailer Wiring Harness Installation - 2018 Chevrolet Colorado

Speaker 1: Today in this 2018 Chevrolet Colorado, we'll be having a look at and showing you how to install the Hopkins 7-pole and 4-pole trailer connector sockets and wiring, part number HM40975-11998.Here's what a wiring harness looks like installed. Now the reason you're going to want this wiring harness over other options is because this gives us a 7-way here, which gives us the ability to tow a trailer with electric brakes, provided you have brake controller installed in your vehicle and it also gives us a 4-pole flat. So if we're towing just a small trailer and only need lighting functions, this will be a great way for us to be able to tow both trailers without needing any adapters. The most common connectors you see on trailers are either a 7-pole, like the hard top one, or a 4-pole, like our bottom.Another great feature about this, is that this gives us a very factory-like appearance on our Colorado. Matter of fact, this exact piece right here is actually used by several manufacturers during the manufacturing process on the vehicle.Our doors are spring-loaded and as you see, we have a nice rubber seal around them to help keep elements out of the inside of our connector, which could cause corrosion over time. This will make sure we have a nice solid electrical connection with any of our trailers so we don't have to worry about short circuits or poor performance from brakes or lighting.And now that we've gone over some features, we'll show you how to get it installed.To begin our install, we went head and removed our spare tire.

We have a look up on our driver's side frame rail, we'll see this bundle of wire here. We're going to unclip it from the frame using a trim panel tool. You could also use a flathead screwdriver. Now we have it where you can work with it. Now on our bumper area, right where our license plate is, on the driver's side, we have this dummy plug.

We're going to press on the tabs on the side and pull it out of the vehicle. These are the tabs that we're pressing on, on the side. If they've come unclipped when you're pulling it out, don't worry about it. We don't need them anymore. We're going to be throwing this away anyway.And now we have our new 7-pole, with our 4-pole on the bottom.

We're going to insert this through the back side of our bumper. The flat part here will face down, so it'll go in this notch. We'll simply just take it and push it in till it clicks into place.We went ahead and removed the electrical tape that covered up our bare wire leads here. You can see that they're sealed with a little bit of heat shrink. We need to remove this heat shrink and expose some of the wire, so I'm going to strip back some insulation from it.

And we'll do this on all of the wires.And with all of our wires stripped back, we can start attaching our Butt connectors. Our kit comes with standard Butt connectors, which are okay in most applications, but since we're underneath the vehicle, in an area that is exposed to the elements, we're replacing these with 10 - 12 gauge heat shrink Butt connectors, which we have available on our website. So we'll start with our thicker wire here first. Cut off the excess part that was stripped back. Take your Butt connector, stick it over the wire, and we'll crimp it into place.Now our thinner ones are a little bit different. These we'll fold back upon themselves a couple of times to make them thicker, stick them inside of our Butt connector and we'll crimp it down. And we'll repeat the same process for all the wires.Now we'll take our wiring harness that our kit comes with and we'll strip back insulation from each wire. Now we'll start making our connections. Our blue wire on our wiring harness will go to the blue wire on the vehicle. And this will be for our electric trailer brakes if we ever decide to put a brake controller in this vehicle. The white wire here will go to our black wire, this is our ground. Now we'll do our 12-volt power wire. There's this black wire. That'll go this orange wire on the vehicle. Our brown wire will go to the brown wire. Our green wire will go to our green wire on the vehicle. Now we'll take our yellow wire form our harness and then I'll go to the gray wire on the vehicle. And that leaves us with our red wire. Our red wire will go to the yellow wire on the vehicle.Now we use a heat gun to shrink down our Butt connectors.We went ahead and wrapped up our colored wires and Butt connector with some electrical tape just to help even better protect it and to give it more factory-like appearance. Now we'll clip our wiring harness back into the frame. We'll take our end here, our 7-pole already had pre-installed dielectric grease on it, but if you want to pick up some additional dielectric grease, we do have some available on our website. So we'll just match up the slot, push it till it clicks into place, then slide this lock tab towards the connector and that'll secure it.We went ahead and secured up our excess wire with a couple of zip ties behind our bumper here, so it's not going to be in the way of our spare tire or dangle below the vehicle. Now we do have zip ties available on our website if you do want to purchase some.Now we have a 7-pole tester here and we'll test all of our functions that we can. We won't be able to test our brake controller function because we don't have a brake controller installed. We'll flip the switch here and see we have constant 12-volt power going to our 7-way connector, so that's good. Now I'll hop in the truck and I'll run through all of our functions here, just to make sure they're working.Okay, I turned our headlights on and as you can see, our clearance light and tail light function's working. Step on our brake pedal now. Our brake lights are working. Turn our key on here and I'll run through our turn signals. We have a left turn signal, a right turn signal, and with out foot on the brake, we'll run through the turn signals again to make sure they both work properly. Now I'll start the engine and put it in reverse to make sure our reverse light function will work.Perfect. All of our functions are working properly.And that completes our look at and installation of the Hopkins 7-pole and 4-pole trailer connector sockets and wiring, part number HM40975-11998 on this 2018 Chevrolet Colorado.
