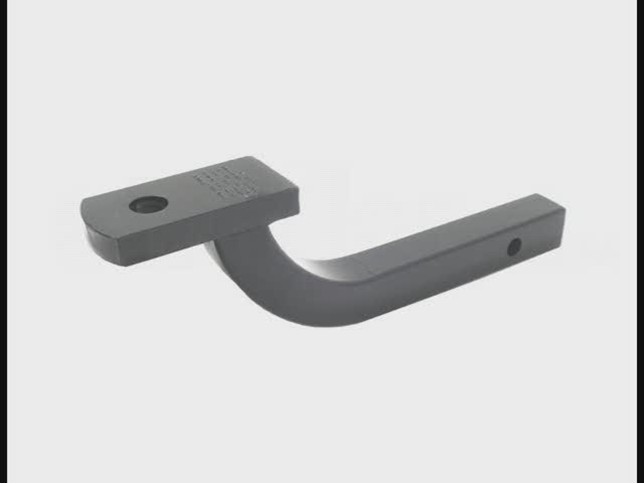

Draw-Tite Drawbar for 1-1/4" Hitches - 3-1/8" Rise - 9-3/4" Long - 3,500 lbs

Ask the Experts about this Draw-Tite Ball Mounts

• How to Choose the Right Ball Mount to Tow a Trailer Level with a 2003 Toyota Camry
  To choose a ball mount with the correct rise and drop, you'll first need to take two measurements: your hitch height and trailer coupler height. The difference between them will be your rise or drop. To take the first measurement make sure the vehicle is on level ground and measure from the ground to the top of the receiver opening. On hitch # 36336 for your 2003 Toyota Camry that measurement is approximately 12 inches. To take the second measurement make sure the trailer is on level...
  view full answer...
• What is the Correct trailer Ball Size to Work With the Draw-Tite # 36061 Drawbar
  Yes, the # 19256 Hitch Ball has a 3/4 of an inch thread shank. This ball will work with the Draw-Tite Class II Drawbar, # 36061.
  view full answer...
• Trailer Hitch for a 1999 Oldsmobile Delta Eighty-Eight
  Yes, we do! We have a Draw-Tite Class II hitch, with 3,500-lb towing capacity and a 1-1/4 inch receiver opening. It is part number 36211. We also carry wiring, ball mounts, hitch balls, cargo carriers, bike racks, and products for all your towing needs.
  view full answer...
• Which Drawbar Should be Used with a Draw-Tite Hitch on a 1993 Cadillac DeVille
  The hitch manufacturers recommend drawbars for their hitches based on vehicle height and the most common trailer heights. The recommended drawbar for the 1993 Cadillac DeVille hitch is part # 36071 with a 2-5/8 inch rise or a 3-1/4 inch depending on orientation. Please refer to instructions for installing the hitch as which way the draw bar should be oriented. I will include a link to those instructions below. The hitch for your DeVille is Draw-Tite part # 36173. A lot of times if...
  view full answer...
• Which Ball Mount Should be Used on a Hitch for a 2009 Dodge Caliber
  With the Draw-Tite hitch, part # 24769, for your 2009 Dodge Caliber you should use part # 3591. I have added a link to the instructions for the hitch so that you can see the hitch profile and how the draw bar is positioned. Draw bar part # 36061 is for a Class II hitch and the hitches available for your Caliber are Class I, except for the Valley, so that ball mount would not fit in the hitch. I have included a link to all the ball mounts we carry for Class I hitches. You want the...
  view full answer...
• Ball Mount Recommendation for a 2014 Jeep Patriot Latitude with Factory Hitch
  When you pick out a ball mount for a vehicle you want to pick out one with the correct amount of rise or drop so that when you are towing your trailer it tows as level as possible. Check out the FAQ article I attached that shows how to do this. From the research I did it looks like the factory hitch for your 2014 Jeep Patriot has a 1-1/4 inch opening. The recommended 1-1/4 inch ball mount for the aftermarket hitches for your vehicle is the Class II Drawbar # 36061 that you referenced....
  view full answer...
• Recommended Trailer Hitch For 2004 Chevrolet Malibu Classic
  The trailer hitch I recommend for your 2004 Malibu is the Draw-Tite Trailer Hitch, part # 36233. This is a Class ll trailer hitch and it has a 1-1/4 inch receiver opening. Since you said you will be hauling a riding lawnmower and the weight is about 1,200-lbs it will need to be on a trailer. For a hitch ball mount I recommend part # 36061. This ball mount includes the hitch pin and clip. You will also need a trailer hitch ball. If you need a 1-7/8 inch ball I recommend part # 19256,...
  view full answer...
• Dimensions From Pin Hole to Platform for Clearance on Draw-Tite Drawbar for 1-1/4" Hitch Receiver
  From the center of the hitch pin hole to the back of the platform for the Draw-Tite Drawbar # 36061 measures about 7" (see attached).
  view full answer...
• Correct Ball Mount for a 1995 Buick Riviera
  I am not sure which draw bar you have, but the recommended draw bar for your vehicle and trailer hitch is the Class II Draw bar 3-1/8 inch Rise, part # 36061. None of the hitches or draw bars we carry have tapered receivers or shanks, so the only thing I can think of is that you have a Class 1 hitch and a Class 2 draw bar which are not compatible with each other even though they have the same 1-1/4 inch by 1-1/4 inch shank. . The Class 2 shank will not fit in a Class 1 hitch, but a class...
  view full answer...
• Do Trailer Hitch Receivers for 2017 Chevrolet Trax Include a Wiring Harness
  We do have two trailer hitch receivers to fit your 2017 Chevrolet Trax: a Curt # C11527 and a Draw-Tite # 36554. Neither of them include a wiring harness. As of right now we only carry one wiring harness for your Trax, the Tekonsha # 118751. It plugs into a factory connector that's in your rear cargo area under the floor cover and some interior paneling. Then you'll need to run a wire to the Trax's battery through the included fuse holder. The fuse is included as well. This harness...
  view full answer...
• Towing Capacity and Trailer Hitch Recommendation for 2017 Chevy Impala
  From what I found online it looks like your 2017 Chevy Impala has a towing capacity of 1,000 lbs. If the weight of your trailer loaded is less than 1,000 lbs then yes you could tow it. For a hitch then we have the Draw Tite part # 36538 which is a confirmed fit for your vehicle and would work well. For a ball mount you'd then want the # 36061 which is the recommended ball mount by Draw Tite. For a hitch ball part # 19257. For trailer wiring you'd then want the Tekonsha kit part # 118590...
  view full answer...
• How to Carry a Mobility Scooter with a 1999 Toyota Camry
  I do have an option for you but the highest rated trailer hitch receiver they make for a 1999 Toyota Camry is a Class II, to my knowledge. I would be very skeptical that a Class III or IV exists due to the size of the vehicle. For a Class II trailer hitch with a 1-1/4" receiver tube opening I recommend the Draw-Tite Trailer Hitch Receiver part # 36336. This trailer hitch has a 300 lb tongue weight (TW) rating however, the vehicle is likely lower and if that is the case then this will need...
  view full answer...
• Recommended Trailer Hitch and Wiring Harness for a 2014 Chevrolet Malibu
  The best trailer hitch receiver we have for your 2014 Chevrolet Malibu LS is the Draw-Tite Trailer Hitch Receiver part # 36538. It is a custom fit that will install using pre drilled holes. It has a class I rating with a 1-1/4" receiver tube opening. As you can see from the attached video, it is fairly simple to install taking most around 50 minutes. The best trailer wiring harness we have for you is the T-One Vehicle Wiring Harness with 4-Pole Flat Trailer Connector part # 118576....
  view full answer...
• Trailer Hitch Recommendation and Towing Capacity for 2003 Toyota Camry
  I'd recommend confirming this with the owners manual of your 2003 Toyota Camry, but I was able to find a 2,000 lb towing capacity for your vehicle which should be adequate for a motorcycle trailer like you plan on towing. Now we have Class II hitches available for your vehicle like the Draw Tite part # 36336 which are rated higher than that at 3,500 lbs trailer weight, but you have to go with the lowest rated component in your tow setup as the overall capacity as you're only as strong...
  view full answer...
• Best Trailer Hitch Receiver for a 1999 Buick LeSabre
  We currently only have one trailer hitch receiver for your 1999 Buick LeSabre which is the Draw-Tite Trailer Hitch Receiver part # 36216. This option will give you a Class II hitch with a 1-1/4" receiver tube opening. I have attached an installation video on a similar 1997 Buick LeSabre for you as well. If you can tell me what you will be using the hitch for I would be glad to offer some additional recommendations for you as well.
  view full answer...
• Height of Draw-Tite Trailer Hitch 36554 on a 2015 Chevy Trax
  The height from the ground to the inside top edge of the receiver tube opening of part # 36554 on a 2015 Chevrolet Trax is 11-1/2 inches. I've linked a video of when we installed this hitch on a 2015 Chevrolet Trax that shows the measurement. If you are trying to find out the rise or drop of the ball mount you need, the next step is to measure from level ground to the bottom of the coupler of your trailer. There is a recommended Class II ball mount for this hitch part # 36061. It looks...
  view full answer...
• Trailer Hitch Recommendation for 2006 Buick Lacrosse
  For your 2006 Buick LaCrosse we have the Draw Tite hitch part # 36374 which is a confirmed fit and will work well for you. It has a 3,500 lb trailer towing capacity but you'll also need to check the owners manual of your vehicle for it's towing capacity and be sure not to exceed the lower of the two figures. For trailer wiring you'd then want the # 118479 which is also a confirmed fit. For a ball mount you'd want the # 36061 and then for hitch balls # 19258 for a 2 inch ball and part...
  view full answer...
• How to Determine the Rise/Drop of Class I Ball Mounts
  There's some specific measurements to take to determine the rise/drop of ball mount you need. Measure from the inside top of the receiver tube to the ground. Then, with the trailer jacked so that it's level, measure the distance from the underside of the coupler to the ground. The difference between the two measurements is the rise/drop needed. If the coupler height is taller than that of the receiver, you'll need a ball mount with a rise. If the coupler height is smaller than that of the...
  view full answer...
• Recommended 4-Way Flat Connector for a 1999 Subaru Legacy Outback Wagon
  If your 1999 Subaru Legacy Outback Wagon came with the factory tow package then you will need the Tekonsha T-One # 118461 which simply plugs into the plug that you found at the rear of your Outback Wagon. I have attached a sample installation video you can reference. If you will be using this for towing but you do not have a trailer hitch yet then I recommend going with the Draw-Tite Trailer Hitch Receiver # 36234. This is a Class II receiver with a 1-1/4 inch hitch receiver opening...
  view full answer...
• Trailer Hitch and Wiring for a 2015 Chevy Impala LTZ
  Your assessment of the trailer hitches for the 2015 Chevy Impala LTZ are correct. Curt trailer hitch # C12115, Draw-Tite hitch # 36538, and Hidden Hitch # 90242 (no longer available) all install in a similar fashion at the same places. the Draw-Tite and Hidden Hitch models even share the same instructions. Quality wise all of the hitches meet or exceed industry standards. Some people tend to like the finish on the Curt hitches better. All three of these hitches fit both LT and LTZ...
  view full answer...
• Appearance and Trimming Involved when Installing a Draw-Tite Trailer Hitch on a 2008 Volvo S80
  When installed on a 2008 Volvo S80, the cross tubing of Draw-Tite Trailer hitch # 36466, will be visible beneath the bottom most part of the rear fascia. I have included a link to the installation instructions that include a drawing that should give you a good idea of where the hitch will be position once installed. The rear bumper or fascia does not have to be trimmed. There is a heat shield underneath that may have to be trimmed a little in order for the hitch to fit properly. If...
  view full answer...
• Recommended Trailer Hitch for 2007 Buick LaCrosse
  Yes, the Draw-Tite Trailer Hitch, # 36374 is a confirmed fit for all models of the 2007 Buick LaCrosse. This is a Class II trailer hitch with a gross trailer weight capacity of 3,500 pounds, and a tongue weight capacity of 350 pounds. I have included a link to the installation details and a video showing a typical installation for you to view. If you plan to do some towing the recommended ball mount is # 36061. For a ball, use # 19256 (1-7/8 inch diameter) or # 19258 (2 inch diameter)....
  view full answer...
• Recommended Trailer Hitch for 2015 Dodge Charger Hellcat
  I called my contact at Curt and asked about the Trailer Hitch Receiver, part # C12064. They said they could not guarantee it would fit your Hellcat. It is a Class ll hitch and has a 1-1/4 inch receiver opening. I also called Draw-Tite and asked about the fit of the # 36548 Class ll hitch. They said this hitch will work with your Charger Hellcat. This hitch has a 1-1/4 inch opening. If you are going to tow with the hitch I recommend part # 36061 for a drawbar. This has a 3-1/8 inch...
  view full answer...
• Trailer Hitch Recommendation for a 2004 Volvo XC70
  All of the available trailer hitches for a 2004 Volvo XC70 are class II hitches with a gross trailer weight capacity of 3,500 pounds and a tongue weight capacity of 300 pounds. If the combined weight of your horse and trailer (loaded and ready to tow) is less than these limits you could certainly tow with your Volvo. If that ends up being the case, I recommend the Draw-Tite Class III Trailer Hitch # 36297 because it will well for both towing a bike racks. The Curt trailer hitch for...
  view full answer...
• Availability of a Plug and Play Wiring Harness Kit for a 2016 Chevy Trax
  The plug and play wiring harness that's available for your 2016 Chevrolet Trax is the Tekonsha # 118659. I've attached an install video for you to take a look at. If you don't have a trailer hitch already I recommend the Draw-Tite # 36554. This is a Class II hitch with a 1-1/4 inch receiver opening. The recommended ball mount for you is # 36061 which includes a pin and clip. Then for a hitch ball use either # 19258 for a 2 inch ball or # 19257 for a 1-7/8 inch.
  view full answer...
• Recommended Trailer Hitch Receiver for 2017 Chevy Impala Premier
  The Impala Premier models do have a similar fit to the other models. I recommend the Draw-Tite Trailer Hitch Receiver # 36538 for your 2017 Impala Premier which is a confirmed fit. It is a Class II hitch receiver that will give you the support needed and allow for the dual exhaust pipes. If you will be towing, I recommend the T-One Vehicle Wiring Harness with 4-Pole Flat Trailer Connector # 118590 which installs behind your tail lights. You will then run a wire to your battery to...
  view full answer...
• Trailer Hitch and Wiring for a 2004 Mercury Sable to Tow a Boat Trailer
  All of the trailer hitches for the 2004 Mercury Sable are Class II hitches with 1-1/4 inch receivers. They are all rated for 3,500 pounds gross trailer weight and 300 pounds tongue weight. But you will need to check the Sable owner's manual to determine its towing capacity. Whichever is lower, the hitch or the vehicle, is the capacity you need to go by. For a hitch I recommend Draw-Tite trailer hitch # 36313. For a ball mount use # 36061. For a 1-7/8 inch ball you can use # 19256 and...
  view full answer...
• Recommended Hitch to Pull 2003 Taurus Pulling 20-Foot Trailer
  According to my research the maximum trailer towing capacity for a 2003 Ford Taurus is 1,750 lbs. I recommend checking the owner's manual to make sure you do not exceed the towing capacity for your Taurus. You will also want to check the total weight of your trailer. It should be weighed fully loaded. The trailer hitches we offer for your Taurus are either Class l or Class ll hitches with a 1-1/4 inch receiver opening. I recommend the Draw-Tite Trailer Hitch, # 36313. This is a Class...
  view full answer...
• Trailer Hitch Fit by Draw Tite for 1992 Toyota Camry
  For a Draw Tite hitch confirmed as a fit for your 1992 Toyota Camry you would want the part # 36336. The part number 36514 has been discontinued and the part # 36336 is basically the latest version of this hitch. You will also want the # 19256 for 1-7/8 in diameter or # 19258 for 2 inch diameter hitch ball. I also recommend ball mount part # 119179KIT and T-One Vehicle Wiring Harness with 4 Pole Trailer Connector, # 118308.
  view full answer...
• Can a 2008 Chevrolet Impala LTZ Tow a Snowmobile
  Your owners manual is the best resource to use when determining towing capacities of your vehicle, see section 4. I found a copy of the owners manual for a 2008 Chevrolet Impala and Chevy states that an Impala can tow a trailer, but the gross trailer weight must not exceed 1,000 lbs. Keep in mind, Chevy gives the Impala a maximum towing capacity of 1,000 lbs assuming the driver is the only additional weight in the vehicle. If there will be additional passengers and cargo in the vehicle,...
  view full answer...
