Equal-i-zer Weight Distribution System w/ 4-Point Sway Control - 6,000 lbs GTW, 600 lbs TW

Equal-i-zer Weight Distribution System w/ 4-Point Sway Control - 6,000 lbs GTW, 600 lbs TW

Item # EQ37060ET

lowest price pledge

Retail:$774.95

Our Price: $657.95

You Save: $117.00
Weight Distribution

This item qualifies for Free Shipping

Shipping Weight: 98 lbs

Quantity:
In Stock
Equal-i-zer Weight Distribution System w/ 4-Point Sway Control - 6,000 lbs GTW, 600 lbs TW Includes Shank EQ37060ET
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.
Please enter a valid email address.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

pop out icon replay 360 icon
horizontal rotate icon

Product Images

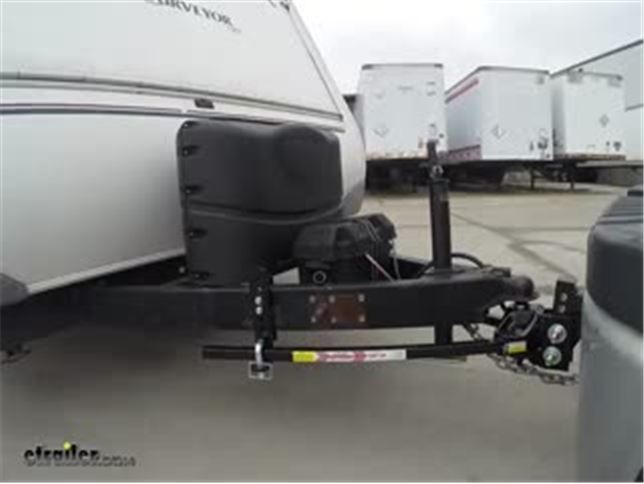

In Use/Installed

Customer Photos


  • WD With Sway Control
  • 300 lbs
  • 400 lbs
  • 500 lbs
  • Equal-i-zer
  • Fits 2 Inch Hitch
  • Allows Backing Up
  • Includes Shank
  • Prevents Sway
  • Electric Brake Compatible
  • Surge Brake Compatible
  • Light Duty
Steel-on-steel friction works to prevent and correct trailer sway in this unique weight distribution system. Sway control brackets ensure that your trailer stays in line with your tow vehicle. 2" Hitch ball and adjustable shank included. Lowest Prices for the best weight distribution from Equal-i-zer. Equal-i-zer Weight Distribution System w/ 4-Point Sway Control - 6,000 lbs GTW, 600 lbs TW part number EQ37060ET can be ordered online at etrailer.com or call 800-298-8924 for expert service.


  • All Info
  • Reviews (357)
  • Q & A (250)
  • Videos (2)
  • Photos
  • Why etrailer?

Equal-i-zer Weight Distribution - EQ37060ET

Steel-on-steel friction works to prevent and correct trailer sway in this unique weight distribution system. Sway control brackets ensure that your trailer stays in line with your tow vehicle. 2" Hitch ball and adjustable shank included.


Features:

  • Evenly distributes weight over axles of tow vehicle and trailer for stability and control
    • Creates a level ride for both tow vehicle and trailer
  • Integrated 4-Point Sway Control limits side-to-side movement
    • Brackets keep spring bars in place for a rigid system that holds trailer in line
    • No lift chains - eliminate unwanted movement
    • Steel-on-steel friction helps to minimize sway caused by winds or sudden maneuvers
  • Unique design makes system compatible with surge-type brake actuators
  • Spring bars flex for a controlled, even ride
    • Constructed of chromoly steel for superior dexterity and spring
  • No-drill, clamp-on brackets can be adjusted along the trailer frame
    • Accommodates frame-mounted items such as gas tanks, battery boxes, toolboxes, or generators
  • Desired tilt is achieved with traditional washer design
    • Add or remove washers from spacer rivet to tilt head up or down
  • Dipped steel construction is durable and corrosion resistant
  • Snap-up lever eases installation by reducing lifting required by trailer jack
  • System includes head assembly, adjustable shank, spring bars, sway control brackets, lift handle, hitch ball, pin and clip, and all necessary hardware
    • 1-7/8" Thin walled socket (EQ70-00-4800 - sold separately) recommended for hitch ball installation
  • Made in the USA


Specs:

  • Tongue weight: 200 lbs - 600 lbs
  • Gross towing weight: 6,000 lbs
  • Ball size: 2"
  • Fits: 2" x 2" trailer hitch receivers rated for use with weight distribution systems
  • Sway control bracket positioning: 27" - 32" back from center of coupler
  • Maximum trailer frame height: 6"
  • Shank length:
    • 8" From center of hitch pin hole to center of adjustment holes
    • 9" From center of hitch pin hole to front of shank
    • 7" From center of hitch pin hole to back of shank
    • 12" Overall
  • Total height adjustment along shank: 7-1/2"
    • Maximum rise: 7"
    • Maximum drop: 3"
    • Overall height: 9-1/2"
    • Holes are spaced 1-1/4" apart on center
  • Spring bar dimensions: 36" long x 1-1/4" wide
  • Limited lifetime warranty


Dimensions

Included w/ SystemRequired - Sold SeparatelyOptional Add-Ons

90-00-0600 Equal-i-zer Weight Distribution Hitch

  • Weight Distribution Shank
  • Weight Distribution Head
  • 2" Chrome Hitch Ball
  • 2 Sway Control Brackets
  • 2 Spring Bars
  • Snap-up Lever
  • Spacer Rivet and Washers
  • Hitch Pin and Clip
  • Necessary Installation Hardware
n/a
  • Thin Walled Socket for Installation of Hitch Ball

Weight Distribution Diagram

Create a more stable ride for your tow vehicle and trailer with a weight distribution hitch. Adding spring bars to your towing system applies leverage, which transfers the load that is pushing down on the rear of your vehicle to all the axles on both your tow vehicle and your trailer, resulting in an even distribution of weight throughout. The result is a smooth, level ride, as well as the ability to tow the maximum capacity of your hitch.



Selecting a Weight Distribution System

The tongue weight rating is the most important factor in determining which size weight distribution system you should use. If the bars of the system you choose are rated too high for your setup, they will create a rigid ride, which can result in a bouncing trailer. If, on the other hand, the bars are not rated high enough, the system will be unable to properly distribute the weight, rendering it virtually useless.


To determine the proper weight rating for a weight distribution system, you must first determine your trailer's tongue weight. Then add to that the weight of the cargo behind the rear axle of your tow vehicle. These two measurements make up the tongue weight rating for a weight distribution system.


Features of the Equal-i-zer

Head Tilt Adjustment

Controlling head tilt with traditional washer method

The Equal-i-zer weight distribution system uses the traditional washer-style adjustment method to achieve the perfect tilt. Controlling the head tilt helps you to fine-tune the leverage on your entire system, making it easier to install and hook up the spring bars. To adjust the tilt, simply slide washers onto the spacer rivet and insert the rivet into the head assembly. To increase the angle, add a washer. To reduce the angle, remove a washer. Most setups take four to six washers to achieve the proper height. Once you get the desired tilt, insert the shank bolts to secure the head to the shank and then tighten it in place.



Construction of Spring Arms

The Equal-i-zer spring bars are not made of traditional spring steel. Rather, they are constructed of a chromium-molybdenum alloy steel. Chromoly steel has a high tensile strength for extreme durability. It also features excellent dexterity, which allows it to give as required and then return softly back to its original form. This pliability is important in minimizing trailer bounce while still ensuring that the weight of your rig is adequately distributed.


Fixed Sway Control Brackets

Installation of Sway-Control Brackets

The unique sway control brackets of the Equal-i-zer are easy to install and simple to use. They clamp onto your trailer frame and conveniently adjust to a position anywhere between 27 inches and 32 inches back from the coupler. These brackets provide the attachment points for the weight distribution spring bars. To position the spring bars during hookup, simply use the included snap-up lever to lift each bar into place on the L-shaped brackets. Then secure the bars in place with the included L-pins and clips.


Equal-i-zer Hitch 4-Point Sway Control

The Equal-i-zer weight distribution system works to stop trailer sway before it begins. This is achieved through the rotational friction that is present in the weight distribution hitch itself. Within the system head, the downward pressure that is placed on the hitch ball by the trailer is combatted by the upward pressure exerted by the spring bars that are mounted in the sockets. This upward force is placed on the spring bars on either side of the system, creating the rotational friction that, essentially, forces your trailer in line. This type of friction is responsible for two points - one on either side of the trailer - of the 4-Point Sway Control. To ensure that enough tension is present, make certain that the socket bolts in the head assembly are torqued to at least 45 foot-pounds.


Points within the Equal-i-zer system where upward and downward forces interact to create rotational friction

The other two points of sway control are created by the steel-on-steel friction that occurs when the spring bars slide within the L-brackets that are mounted on the trailer tongue. Most traditional weight distribution systems have spring bars that are suspended by chains. Although this ensures that the system is not so rigid as to create bounce in the trailer, it also allows a good deal of side-to-side play in the system. Letting the spring bars hang freely minimizes the rotational friction described earlier. It also eliminates your system's ability to create the type of direct friction that has been shown to be so effective in limiting trailer sway.


This direct friction that is applied to the spring bars in the Equal-i-zer system helps to stop sway once it has begun. The concept is similar to the way in which an add-on friction sway control device functions. When each spring bar moves forward or backward, or side to side, it rubs along the bracket, creating friction. The resistance created by this action limits the movement of the spring bar, thus preventing further side-to-side movement of the trailer.


Most add-on units feature some sort of friction material similar to that used in automotive brakes. But the Equal-i-zer uses direct steel-on-steel contact to create resistance. This is the same sort of friction that is used with locomotives that pull loaded railcars weighing tons. No additional materials are needed. The steel will outlast any of those other materials, providing an extremely durable, functional sway control system.



EQ37060ET Equalizer Weight Distribution Hitch with Adjustable Shank and Hitch Ball - 6K



EQ37060ET Installation InstructionsInstallation Details EQ37060ET Installation instructions

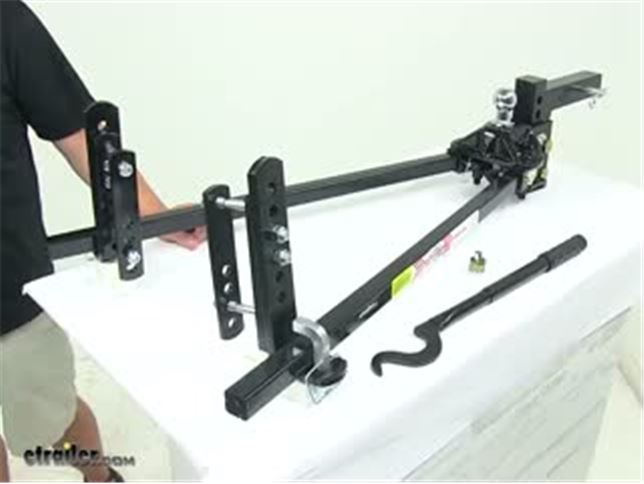

Video of Equal-i-zer Weight Distribution System w/ 4-Point Sway Control - 6,000 lbs GTW, 600 lbs TW


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Equal-i-zer Weight Distribution - WD With Sway Control - EQ37060ET Review

Speaker 1: Today we're taking a look at the equalizer weight distribution system with four point sway control. A weight distribution system creates a more stable ride for your tow vehicle and your trailer. This unit features a two inch hitch ball, which is included. It has a gross towing weight capacity of up to 6,000 pounds, and it is designed for trailers that have a ton of weight between 200 and 600 pounds.It fits inside of a two inch by two inch trailer hitch receiver secures in place with the included pin and clip, and again it fits inside a two inch by two inch trailer hitch, but you need to make sure that your hitch is rated for use with a weight distribution system.Now adding spring bars or weight distribution system to your towing setup really helps apply leverage, and the reason why that's important is because leverage transfers the load that is pushing down on the rear of your vehicle to all the axles on both your tow vehicle and your trailer. What that does is it results in an even distribution of weight throughout your towing setup. Which results in a smooth ride, a more level ride, and it has the ability to tow the maximum capacity of your hitch.Now this unit does feature integrated four point sway control, which works to stop trailer sway before it begins, and it's integrated.

Like I said, there's no additional sway control systems that need to be added onto correct trailer sway. It's all integrated, so the head right here, this is the weight distribution head. This creates two points of sway control using what's known as rotational friction. Downward pressure placed on the hitch ball fights the upward pressure created by the spring bars. The upward force is placed on the spring bars on both sides of the system, which creates the rotational friction that forces to keep your trailer in line all the time.The other two points of sway control are created by the steel on steel friction that occurs when the spring bars slide within the L brackets that are mounted on the trailer tongue.

Now, the unique design makes the system compatible with surge type brake actuators. The spring bars are designed to flex for a controlled even ride. One of my favorite features about this system is that this is not just standard steel when it comes to the spring bars. These are made of a specialized steel to offer superior dexterity and spring and the playability is important because that really helps drastically minimized trailer bounce. Also, it has the no drill clamp on brackets.

These can be adjusted along your trailer frame, which was really nice. They're a nice basically low profile design. They don't take up much space to the side or above your trailer frame, so that really helps accommodate frame mounted items such as gas tanks, battery boxes, tool boxes, generators and so on.Then another thing when you're comparing weight distribution systems is really how the head assembly tilts. This one uses the traditional washer and spacer rivet design, so you can add or remove washers from the spacer rivet to tilt the head up or down, and fine tune the leverage on your entire system. That spacer Rivet installs between the shank right here and the slot right here of the head assembly.

Also, on the bottom we have a set bolt that we can tighten to help take out any play from the head assembly attachment to the adjustable shank right here.When it comes to protecting the unit from the elements and rusting corrosion, you don't have to worry about what that system. This unit uses a dipped steel, so that's very durable. It's also rust and corrosion resistant. Comes with the snap up lever. This eases installation of the spring bars by reducing the amount of lifting required by the trailer jack. The product's made in the USA. Your sway control brackets need to be positioned 27 to 32 inches back from the center of your coupler. The maximum trailer frame heights and this will accommodate or fit on is six inches tall. As you can see, we have multiple holes on the bracket, so it is designed to set most trailer frames out there on the market, but again, maximum trailer frame height is six inches.Last thing I want to mention is the shank length. We took some measurements on that and we measure from the center of the hitch pin hole on that shank to the center of the adjustment holes and got a measurement of around eight inches. So to the front we get nine inches to the back of that upright bar, we get like seven inches, and the overall length of that shank is 12 inches. This unit offers a total height adjustment along the shank of seven and a half inches. You can use this in the drop or rise positions with it in the maximum, or excuse me with it in the rise position at the highest setting.You're going to get a maximum rise of around seven inches. That's from the inside top edge of the receiver tube of your hitch to the top of the ball platform. With it in the drop position at the lowest setting, you're going to get a maximum drop of three inches, and then your holes are spaced apart on center by an inch and a quarter. So that's your incremental height adjustment. Again, the product's made in the USA and it's covered with a limited lifetime warranty. That's gonna do it for today's look at the equalizer weight distribution system with the integrated four point sway control.


Customer Reviews

Equal-i-zer Weight Distribution System w/ 4-Point Sway Control - 6,000 lbs GTW, 600 lbs TW - EQ37060ET

Average Customer Rating:  4.9 out of 5 stars   (357 Customer Reviews)

Steel-on-steel friction works to prevent and correct trailer sway in this unique weight distribution system. Sway control brackets ensure that your trailer stays in line with your tow vehicle. 2" Hitch ball and adjustable shank included.

- EQ37060ET

by:


Etrailer is awesome! I called Monday evening and they answered my questions about the weight distribution hitches. I knew I wanted an Equalizer hitch but was unsure on the model. Etrailer recommended the 600/6000 model so I ordered it over the phone. They said it would take five days to ship to CA, but it was delivered today, on Thursday, and only took three days! Etrailer rocks!!! 525151



- EQ37060ET

by:


Truck: 2015 F150 crew 4x4 2.7L eco Trailer: Jayco Jayflight 4100 lbs dry Great product. Sway and bounce are eliminated. 427328


Comments

After 1 year and many trips, no problems with the Equalizer hitch.

Craig - 08/31/2018

43042

- EQ37060ET

by:


I purchased the EQ37060ET (6000 GTW-600 TW) last year and cannot say enough good things about it. It has performed flawlessly on my 2014 Toyoda Highlander, pulling our 21', 4000 lb Winnebago Mico Minnie. As the expression goes, "If I can hook it up, anyone can !" I've recommended to anyone who's in the market for a great weight distribution system. 334439



- EQ37060ET

by:


Entire order went very well except that I put the wrong address on my credit card information. Donna, from customer service, called and got everything cleared up and my order was shipped within hours. I havent used the hitch yet but it was all in excellent condition. 375528


Comments

Installation went well and we have been towing our rv since with no problems at all. I have had no sway at all with the hitch.

Ed - 05/10/2018

38370

- EQ37060ET

by:


The new hitch allowed us to get our camper almost exactly level. It barely feels like we have something hooked to the truck. We get no wind pushing us around when trucks pass us on the interstate. It was easy to attach to our camper. Your shipment came in exactly when you said it would. Thank you very much for your good service and for the good hitch. 355315


Comments

I have loved your hitches since 1995. We pulled a camper for 10 years without one and basically started avoiding the interstate highways because of what happened when trucks passed us. The guy at the place we stored our camper had a used Equilizer that we bought and used for 12 years. We got a new tow vehicle with a higher hitch and the old Equilizer was welded and could not be adjusted. Thats when we bought the new one. I watch people at the campgrounds wrestling with other hitches and I just calmly hook mine up and go. I hardly feel the camper behind us. You have a great product and I will use it till I cant camp any more.

James L - 03/18/2018

36060

- EQ37060ET

by:


Excellent product. Very well built and stout! Instructions are well written and easy to follow. If you take your time during set up, it works very well. I am pleased with the weight distribution effectiveness, and the sway control makes a huge difference in the winds of west Texas! 474426



- EQ37060ET

by:


Great customer service. Plan on dealing with them in the future 567966



- EQ37060ET

by:


Perfect fit and function and easy to install. The ordering process was very simple and the item arrived in perfect condition and within about three days of ordering. The thin wall socket issue was solved simply by going to Harbor Freight and picking up a 3/4” drive SAE socket set that went up to a 2” socket for less than the price of the socket alone and it came with the ratchet necessary to tighten it. My tent camper and tow vehicle are perfectly level. Haven’t taken it out on a trip yet but I know it will ride much better than before as the front end was at least 3” higher than the back prior to putting on Equilizer Weight Distribution System. Thanks for carrying suck a great product. 565553



- EQ37060ET

by:


Would have been 5star. The hitch it well built and strong. I was told by the E-Trailer operator that it came with a 2in ball already installed. Come to find out it doesn’t. This is frustrating now our trip is going to be postponed or canceled. Apparently you need a special sockoand short thread 2in ball. Bummer 547922


Comments

The ball is included, but not installed. We offer the 1-78 inch thin-wall socket as part # EQ70-00-4800
Thin Walled Socket for Equal-i-zer Hitches
$58.76
.

-- Mike L - 08/01/2018

41775

- EQ37060ET

by:


I have been using my Equalizer weight distribution hitch for a year now. It truly is the best hitch I have ever used. Towing through high winds in eastern Oregon, Idaho and Wyoming our trailer (a 21 foot Escape) tracked perfect with no sway what-so-ever. Also there was one occasion that I had to make a very sudden stop to avoid a deer running in front of me. The trailer was rock solid, with no sway. Thank you Equalizer. It took a little time to set up the system properly, but, with a little help from a few friends it was easy. I found it important to have a local tire shop assist in torquing everything to the recommended specs. Great product and lots of good support from eTrailer. 596391



- EQ37060ET

by:


Love It Put over 5000 miles towing not one bit of trouble 4000 LB 21 RBS Livin Lite Pulled by 2015 Toyota Tacoma 592225



- EQ37060ET

by:


Just installed this weight distribution system. It took me approx 3 hrs to set it up on my 2016 Jeep Grand Cherokee. It may warrent a 5 rating, but I have only towed my trailer on local roads. Even on local roads it drives smooth. Have not yet taken it on the highway. For the install, I purchased a Powerbuilt 643216 3/4-Inch Drive 12 Point 1-7/8-Inch Socket to install the ball. Worked fine. 590918



- EQ37060ET

by:


Excellent product. This is my 2nd Equalizer hitch. First one was a 10,000lb I used on my 29ft Keystone Camper that was around 8500lbs loaded towing with an 04 F250. I now have a 6,000lb I am using on my 6x12 V-nose around 3500lbs with a 600lb tounge weight towing with a 2016 Tacoma. These hitches make a world of difference when towing & are pretty easy to setup. Especially after doing it once lol. 579828



- EQ37060ET

by:


ETrailers reviews and info videos helped me to decide on what & where in purchasing my EQ37060ET. It came professionally packed and arrived VERY quickly. The product is made in the USA, and is a very high quality unit. Very well designed, excellent fitment and factory welds, extremely satisfied with this 6000 lb. GTW 600 lb. TW wt. dist 4 point sway control hitch. We are ready for that small Airstream! Vince P. 578395



- EQ37060ET

by:


I am so happy with my purchase. I would highly recommend this hitch for your travel trailer. The more I look at this style of hitch, with built in sway control, the more I realize, that this was a new and modern style hitch. Now, that I have assembled the parts, I am excited to try this beautiful built hitch out on my trailer. 578380



- EQ37060ET

by:


I just drove from VT to PA to SC to MD to CT and back to VT, close to 3K miles and this weight distribution/sway control worked great ( I think it did, my first sway bar). Not sure on the effectiveness of the weight distribution as I was pulling with 2018 Jeep G.C. and that SUV does not sag under 500 lbs tongue weight. You can feel that you are pulling a trailer when a semi passes you going over 80 miles an hour, or when you get hit with a side wind on a bridge, but all other conditions are fine (e.g. passing semi truck or normal side wind). Easy to back up into any place. On advice to everybody, keep it lubricated, if you don't, enjoy screeching noise with every turn :). Happy towing. 543094



- EQ37060ET

by:


The people at etrailer are great to work with and the orders are shipped fast. The equalizer hitch worked great and Leeza was very helpful. I have told my friends about etrailer. 498220



- EQ37060ET

by:


Excellent! This has been a great product for me. As a first time travel trailer owner I was concerned with the safety of towing a trailer and concerned with controlling swaying of the trailer and tow vehicle. I had towed a rental trailer once and got a good scare when it started swaying when I tried to pass a transport truck. I set this up using the provided instructions and all worked great. Tow vehicle is level and no swaying in traffic or in very windy conditions. I even had to change tow vehicles in the middle of an extended trip and the conversion to the new vehicle was very easy even though I was "on the road". I just followed the instructions again and all worked very well. I highly recommend this unit. 488881



- EQ37060ET

by:


Has been trouble free and easy to hook up. I especially like the ease in connecting all the clips and pins - we’ll sized and good quality so no fumbling or jiggling required. 487609



- EQ37060ET

by:


Great made in the USA equalizer system! 472148



- EQ37060ET

by:


I don't have any previous experience towing travel trailers to compare to, but I could definitely sense it's value and worth. On the first trip after installing the stabilizer, we encountered sustained winds and a large amount of truck traffic. The trailer was stable and tracked well. The installation is straightforward and took about 2 1/2 hours which included making a couple of adjustments and testing. 431546



- EQ37060ET

by:


Product was delivered on time. It was what I expected. The hitch works better than I thought it would!! I installed it myself. It took a few hours. Making adjustments was a little time consuming, but not difficult. I highly recommend this product. 423210



- EQ37060ET

by:


Very best way to connect to and level a trailer. Trailer sway control is unbelievably good. If one needs to back a trailer (and we all do at one point or another) then this system is the best way to go! 403951



- EQ37060ET

by:


Installation pretty simple to understand. Components quite heavy. 378896


Comments

Works great. Easy to set up. A bit heavy to carry.

Richard - 05/11/2018

38431

- EQ37060ET

by:


Good quality product,very easy to understand manual! As always etrailer is excellent in the shipping department. 373360



- EQ37060ET

by:


This is a great item and arrived on time . 324955



- EQ37060ET

by:


The part arrived as promised. Haven't had an opportunity to use it yet but looking forward to spring of next year! 307896



- EQ37060ET

by:


Easy to install, Works good. 227314



- EQ37140ET

by:

Review from a similar Equal-i-zer 4-Point Sway Control in Weight Distribution


Packages received last night. Have not yet opened them as I will have dealer open and assemble when my new trailer is delivered, probably next week. Great service from etrailer and Crystal. 456044


Comments

Great! Best hitch I’ve used.

Charles K - 11/30/2018

46215

- EQ37140ET

by:

Review from a similar Equal-i-zer 4-Point Sway Control in Weight Distribution


I had been using a less expensive competitor sway hitch with chains on a 27 ft. camper. I didn't think the performance of the hitch was too bad but I didn't know what I was missing. We recently purchased a 32 ft. toy hauler and I tried using the old hitch. The performance was horrible. After a recommendation on the correct hitch from etrailer and reading the reviews, I purchased the Equalizer 14,000 pound hitch. Man what a difference! The toy hauler pulls straight as an arrow. In addition, the semi trucks don't suck and push the rig all over the road when they pass. Lastly, the wife doesn't have a death grip on the door arm rest. She actually reads a book during the trip which says it all. The only complaint is that it is noisy when pulling through the campgrounds. But who really cares when it performs flawlessly on the road. Thanks so much etrailer! Walt 442118


Comments

I It’s working out great! I bought the plastic clips for the L brackets to reduce the hitch noise when entering and leaving in the campground but didn’t help. Nonetheless, still a wonderful hitch and would buy again.

Walt - 11/21/2018

45894

The jackets reduce the sound by a very small degree, but remember that metal on metal friction that creates the noise is what's providing your sway control so eliminating the noise would eliminate the performance of that function as well.

-- Mike L - 11/21/2018


- EQ37121ET

by:

Review from a similar Equal-i-zer 4-Point Sway Control in Weight Distribution


Installed and tried out the Equal-i-zer, it performed great, no sway at all. 371424



- EQ37140ET

by:

Review from a similar Equal-i-zer 4-Point Sway Control in Weight Distribution


Good product at a great price. Shipping was free and quick. As always with etrailer it was an excellent experience, I highly recommend them! 541572



- EQ37140ET

by:

Review from a similar Equal-i-zer 4-Point Sway Control in Weight Distribution


product was delivered quickly with regular shipping. The hitch was easily installed using the simple instructions that came with it. overall and wonderful experience with ordering and installation. Thanks, James 302965



- EQ37140ET

by:

Review from a similar Equal-i-zer 4-Point Sway Control in Weight Distribution


I'm towing a 35' windjammer and this hitch work wonders. I had purchase another brand and had control problems since day one. the equalizer makes this travel trailer behave. Should have bought it first. 565798



- EQ37140ET

by:

Review from a similar Equal-i-zer 4-Point Sway Control in Weight Distribution


I bought this hitch because the dealer I purchased my new trailer from undersized the new Equal-i-zer hitch I purchased along with the trailer. Even though I used the hitch for the last year I finally decided I had to upgrade it because the spring bars were just not quite adequate keeping the trailer level and transferring the weight. My experience with the Equal-I-zer hitch has been satisfactory because of ease of hooking up and unhooking. The integrated friction control has worked very well and the 4 point design makes backing up without having to unhook a friction control device is convenient. You can leave the spring bars on when backing up. I am quite happy with the Equal-i-zer brand and would recommend this hitch to anyone in the market for a new hitch. 575202



- EQ37121ET

by:

Review from a similar Equal-i-zer 4-Point Sway Control in Weight Distribution


This is one strong hitch. Assembly and adjustment instructions are well written and easy to follow but you'd better have the right tools and a level, smooth parking lot to do the work. The instructions do not mention how stiff the arm sockets will be when the hitch is being assembled and do not cover lubrication until later in maintenance. Be sure to get the correct height/drop shank. I used the Equal-i-zer "Find the right shank" wizard on their website and came up short (literally) so had to order a second, longer one. etrailer was great about taking the short shank back as long as it hadn't been used (installed and adjusted on vehicle was OK, just not having actually towed anything). etrailer also wasted NO time in getting my parts to me--three days via Big Brown to a small town in Idaho. USPS can't get a letter delivered that far away any quicker (not bashing USPS by any means). 564812



- EQ37140ET

by:

Review from a similar Equal-i-zer 4-Point Sway Control in Weight Distribution


Ashley was very knowledgeable and helpful with my purchase, Products arrived Sooner than expected and as promised, I have used etrailer in the past and will continue to use them. 302573



- EQ37140ET

by:

Review from a similar Equal-i-zer 4-Point Sway Control in Weight Distribution


A LITTLE OVER A YEAR LATER THIS HITCH SYSTEM IS STILL PERFORMING WELL. THE BRACKETS THAT BOLT TO THE FRAME OF THE CAMPER ARE SHOWING SMALL SIGNS OF WEAR BUT NOTHING TO BE CONCERNED ABOUT. I WOULD BUY THIS HITCH SYSTEM AGAIN IF I NEEDED TO ITS A GOOD SYSTEM. 516816



- EQ37140ET

by:

Review from a similar Equal-i-zer 4-Point Sway Control in Weight Distribution


From my limited experience with the hitch, it appears to be very high quality. Have not had it out on a long trip yet, but did do a 20 mile road test with speeds up to 70mph and it was very stable. It is on a Toyota Tundra 5.7 and is pulling a 23.5 foot toyhauler that probably weighed around 6500 lbs. at the time of my short road test. 427958



- EQ37100ET

by:

Review from a similar Equal-i-zer 4-Point Sway Control in Weight Distribution


The Equal-i-zer hitch arrived in 3 days with free shipping. It was fairly easy to install with the proper tools. I had to find someone to tighten the ball to the hitch because it requires a 1-7/8 inch socket and needs to be torqued to about 300 lbs. Followed the directions to properly adjust the hitch for the trailer and tow vehicle and everything worked well. 277923



- EQ37140ET

by:

Review from a similar Equal-i-zer 4-Point Sway Control in Weight Distribution


The weight distribution hitch is what I expected. The only problem was some of the parts were missing. I called the manufacturer and they agreed with me that they had been unintentionally left out. They're sending me those parts. 440192



- EQ37140ET

by:

Review from a similar Equal-i-zer 4-Point Sway Control in Weight Distribution


Cuts down sway considerably. Noisy on turns because it uses friction on bars to control the sway. Definatly worth the price but not as good as a Hensley. Would I buy again, yes. Hook up is a little more physical getting the friction bars onto the L brackets but easier once you learn not to put full weight of trailer on the ball until you position the friction side bars on the brackets. Own several trailers and this purchase allows me to move to trailer needed by just buying an extra set of L brackets for each trailer. Seems to be well built and no problems after a year of use. Glad I paired my purchase with power post. This helps find the sweet spot when hooking up. 558212


Comments

If you hitch up the trailer, and use the trailer jack to raise both the front of the trailer and the rear of the tow vehicle by a few inches, youll find that enough of the tension is taken out of the system so the spring bars are easier to put in place.

-- Mike L - 08/27/2018

42871

- EQ37140ET

by:

Review from a similar Equal-i-zer 4-Point Sway Control in Weight Distribution


Product works as advertised. We pull a 10,000 lb 24' catering trailer that the weight distribution is far from even with convection oven, 2 door commercial refrigerator and more. We were having severe swaying problems on the highways. Bought this sway control and it stopped all swaying. Before I couldn't hit 55mph without uncontrollable sway and now there is no speed limit that causes sway. Very easy to hook up, follow directions and its a no brainer. After 1 year I still use it every time and seems to work just as well. Re-adjusted for a new truck in minutes. Doesn't interfere with any wire or chains and we have 3 camera system along with custom frame platform on front of trailer to support 2- 100 lb propane tanks and a generator and was still easy to fit on and works great. 517465



- EQ37120ET

by:

Review from a similar Equal-i-zer 4-Point Sway Control in Weight Distribution


We made a trip to the Pacific Northwest from Arkansas and I have to say, the hitch performed perfectly. Even in a high wind, which is common in Wyoming and the plain states there was no problem keeping a straight line going down the road. One time, when I wasn't paying attention and ran off onto the shoulder of the road, the trailer didn't sway at all but kept straight and allowed me to return to the road without incident. I would recommend this hitch to anyone pulling a trailer of any significant weight behind them. I have a 33 foot RV and pulling it with a 2015 Chevy Silverado 1500. 474796


Comments

Its been over a year since I purchased my Equalizer hitch system and I am completely satisfied with it. Occasionally I have to spray some lubricant on the pivot points on the receiver end to keep the noise down but other than that It works as advertised and I would again rate it 5 stars.

Ronald - 02/11/2019

49388

- EQ37140ET

by:

Review from a similar Equal-i-zer 4-Point Sway Control in Weight Distribution


I must say that this isn't my first equal-i-zer hitch. Ive been a owner since 2008. I just needed to go up to a bigger size due to a bigger trailer, So there were no surprises. I knew exactly what I was buying. Just as expected, like my previous smaller 1000/10000 lb version, Excellent quality, simple set-up, and works great. As always, etrailer customer service is top notch. 351054



- EQ37100ET

by:

Review from a similar Equal-i-zer 4-Point Sway Control in Weight Distribution


First let me say that Katherine B was very helpful and answered all my questions. I received my equalizer 4 point WD/antisway hitch in 2 days. I have it installed will do a test run this weekend and update my review. 557321



- EQ37140ET

by:

Review from a similar Equal-i-zer 4-Point Sway Control in Weight Distribution


Pics of my sway setup 436811



- EQ37140ET

by:

Review from a similar Equal-i-zer 4-Point Sway Control in Weight Distribution


From my limited experience with the hitch, it appears to be very high quality. Have not had it out on a long trip yet, but did do a 20 mile road test with speeds up to 70mph and it was very stable. It is on a Toyota Tundra 5.7 and is pulling a 23.5 foot toyhauler that probably weighed around 6500 lbs. at the time of my short road test. 427957



- EQ37141ET

by:

Review from a similar Equal-i-zer 4-Point Sway Control in Weight Distribution


We have a 28' toy hauler.. with this hitch sway was almost gone even with side wind. This thing is heavy. No more white knuckle towing. 388136



- EQ37100ET

by:

Review from a similar Equal-i-zer 4-Point Sway Control in Weight Distribution


Honestly a great purchase. Read a ton of reviews before buying. Had the traditional style weight distribution hitch with sway bar attachment before, and I'll definitely say that I have no intentions of going back! The sway control is absolutely great. Hauled a 30' travel trailer from Atlanta, GA to upstate New York and back with absolutely no sway issues whatsoever. If set up correctly, it should do the trick. I will say, however, that it can be slightly loud at low speeds, but is just something to get used to. Would recommend this hitch to anyone. Worth the investment. 338779


54
378
Show More Reviews

Ask the Experts about this Equal-i-zer Weight Distribution
Do you have a question about this Weight Distribution?


  • What is the Difference Between Max Carrying Capacity and Weight Distribution Capacity
  • Absolutely, I am here to help! The max carrying weight of a hitch is how much the hitch can pull if you were to just hook your trailer up to the hitch and not use a weight distribution system. The Gross Trailer Weight or GTW of this hitch is 5,000 lbs. and the Tongue Weight or TW of this hitch is 500 lbs. The GTW is how much weight the hitch can pull behind it and the tongue weight is the downward force that the tongue of the trailer applies to the hitch of the tow vehicle. So the hitch...
    view full answer...

  • Difference Between Fastway E2 and Equalizer Weight Distribution System
  • The benefits of an Equal-I-zer hitch over the e2 is primarily the improved 4-point sway control of the Equal-I-zer. The 4-point sway control utilizes steel on steel friction at the arms as well as in the hitch head to stop sway. The e2's 2-point sway control uses the same steel on steel friction at the arms to fight sway. Another difference in these systems is that the Equal-I-zer system includes a hitch ball, but the e2 does not. For the e2 system, you will want a hitch ball with a...
    view full answer...

  • How to Decrease Sag on 2016 Ram 1500 When Towing
  • A Timbren Rear Suspension Enhancement System is a great way to reduce sag on your 2016 Ram 1500. They're easy to install without any drilling by replacing the factory bump stop. If your Ram is a Regular Cab, you will need # TDR1500DS. If you have the Crew or Quad cab, then you'll need # TDR1500DQ. I've included an installation video on a 2014 Ram which is a very similar process to yours. The best way to reduce sag is with a weight distribution system. A weight distribution system...
    view full answer...

  • Comparing Fastway e2 Round and Trunnion and Equal-i-zer Trunnion Weight Distribution Systems
  • Between round bar systems like # FA94-00-0600 and trunnion systems like # FA92-00-0600, I recommend going with a trunnion system because it will provide you better ground clearance than the round bar system. The trunnion bars come straight out from the hitch head, while the round bars come down from the head before moving out. For the Fastway and Equalizer systems, the manufacturer has already factored the hitch weight into the calculation. With these systems, you will only need to...
    view full answer...

  • Friction Sway Control vs. Weight Distribution and Integrated Sway Control for 20-Foot Trailer
  • When a trailer weighs more than half the weight of the tow vehicle, quite likely in the case of your 4000-lb trailer, there will typically be a need for sway control. There are two types of sway control, the stand-alone friction bar style like # 83660 and those shown on the linked page, all of which use controlled friction to help stop trailer sway, and the integrated type of sway prevention that comes with weight distribution systems (WD/SC). These systems both equalize the load on...
    view full answer...

  • Recommended Weight Distribution System for Rpod 179 Travel Trailer
  • To choose a weight distribution system, you'll need to first determine the fully loaded and ready to tow tongue weight of your trailer. To that figure, add the weight of any gear stowed in the cargo area of your Grand Cherokee behind the rear axle. I've linked to an FAQ article that explains how to do this. These combined figures represent the Total Tongue Weight (TTW) of your set-up. The TTW of your trailer should fall as close as possible to the middle of the effective range of the weight...
    view full answer...

  • How to Install a Brake Controller on a 2015 Jeep Wrangler Unlimited with Factory Tow Package
  • I have exactly what you will need for your 2015 Jeep Wrangler Unlimited to tow your Vintage Airstream with brakes. The first thing you will want is a 7-way trailer connector at the rear of the vehicle and for this I recommend the Hopkins Endurance Quick-Install 7-Way Trailer Connector part # HM42190 which is a direct plug and play option that will not require you to cut or splice any wires/circuits. The square plug on the end of this connector will plug into and replace the 4-way trailer...
    view full answer...

  • Recommended Weight Distribution/Sway Control System for 3500-lb Camper Trailer
  • Apart from the white-knuckle sway effects from sudden wind gusts and air blasts from passing semi trucks, there are some other basic considerations to help you decide if and when you need a sway control system for your trailer set-up. The linked article on weight distribution/sway control (WD/SC) systems may help you on this point. Although we do offer basic friction style sway control devices like # 83660 and # 17200 that can help counteract trailer sway these are not going to be able...
    view full answer...

  • Comparing Equalizer, Fastway e2, Reese Steadi-Flex and Reese SC Weight Distribution Systems
  • The Equalizer system part # EQ37060ET of the four that you mentioned would be the nicest/best setup to use. The Equalizer systems are regarded by many as the nicest around and are a favorite among RVers. It has 4 points of friction sway control which work very well. 2 in the head and 2 at the hangers. The e2 # FA94-00-0600 system is basically an entry level version of the Equalizer and wouldn't have as effective of a sway control system. It has two points of sway control at the hangers. The...
    view full answer...

  • Towing Capacity of a 2011 Chevrolet Avalanche with HD Towing Package
  • According to the owner's manual for your 2011 Chevrolet Avalanche, if you have the HD towing package and it is 2WD than your maximum towing capacity is 8,100 lbs but if you have the HD towing package and it is 4WD than your maximum towing capacity is 7,900 lbs. Regardless of if you have 2WD or 4WD, the gross combined weight rating (GCWR) which is the maximum weight allowed for the vehicle with cargo and a trailer is 14,000 lbs. With that being said as long as your trailer and cargo...
    view full answer...

  • Which Weight Distribution System is Best Between Reese Steadi-Flex, Blue Ox and Equalizer
  • Between the three you mentioned the Equalizer setup will be the best option. We haven't had the best luck with the Blue Ox systems, and the Steadi Flex by Reese isn't their top of the line system, whereas the Equalizer setups are considered by many as the best so it would be the obvious choice. The system you would want then is the Equalizer part # EQ37060ET which has a tongue weight range of 200 lbs - 600 lbs. I attached a review video for this system for you to check out as well. You'll...
    view full answer...

  • Can a Unibody Vehicle Use Weight Distribution or Sway Control?
  • This is a great question. I called my contact at Progress Manufacturing (creator of Equalizer and FastWay Weight Distribution products) to pick his brain on this topic. He explained that weight distribution (WD) and sway control products rely on leverage to work properly, which requires the body of the vehicle to be rigid enough to withstand the force. Unibody vehicles are typically not as strong or rigid and therefore cannot typically handle the same loads and stresses of a body-on-frame...
    view full answer...

  • Best Weight Distribution System for a Jayco Hummingbird 17 RK
  • In order to choose the correct weight distribution system, you will need to find the total tongue weight (TTW) of your towing setup by adding the tongue weight (TW) of both your loaded ready to tow trailer and any cargo stored behind the rear axle of the tow vehicle. An easy way to find this would involve using a tongue weight scale like the Sherline Trailer Tongue Weight Scale part # 5780. When choosing a weight distribution system, you will want your total tongue weight to fall in...
    view full answer...

  • Complete Towing Package For A 2005 Dodge Grand Caravan
  • Although not always necessary, it is always a good idea to upgrade the vehicle for towing a heavy load for an extending period of time. In order to tow a 16' camper that weighs roughly 2,500 lbs. when dry, with a 2005 Dodge Grand Caravan, I recommend using suspension enhancements, upgraded transmission cooler, Class III hitch receiver, sway control, brake controller, and weight distribution if the gross trailer weight (GTW) is more than 50% of the gross vehicle weight rating (GVWR). I will...
    view full answer...

  • Towing Capacity of 2016 GMC Acadia with Tow Package and Determining if WD System is Needed
  • I took a look at the online owner's manual for your 2016 GMC Acadia and found that models with the factory tow package can pull a trailer that weighs up to 5,200 pounds. I do highly recommend also verifying this in your copy of the owner's manual or by visiting a local GMC dealer with your VIN. With this in mind, your vehicle can certainly handle the 3,500 pound trailer (with a hitch/tongue weight of around 300 pounds) you are looking at. Your vehicle and hitch can handle the weight...
    view full answer...

  • Will Backing a Trailer Up an Incline Create Too Much Stress for a Weight Distribution Hitch
  • Weight distribution hitches are designed to be able to move up and down because you are going to run into situations like this everywhere you go. So no worries about it stressing the system. The back of the trailer is less likely to make contact with the ground if you come in at an angle. You can also mount some skid wheels, see link, and the rear, bottom of the trailer to avoid scraping anything on the underside of the trailer.
    view full answer...

  • Can a 2-5/16 Inch Ball be Used on Equal-I-Zer Weight Distribution that has a 2 Inch Ball
  • First, if the total tongue weight of the trailer is 400 pounds then you would need to use the next size up and not the 400 pound Equal-I-zer system. The 400 pound system is # EQ37040ET and the next step up is the 600 pound system, # EQ37060ET. When selecting weight distribution tongue weight is calculated a little differently. It is the tongue weight of the trailer when loaded and ready to tow plus the weight of any cargo carried behind the rear axle of the tow vehicle. You can use...
    view full answer...

  • Maximum Towing Capacity of a 1989 Ford E350 Van
  • To determine the maximum trailer weight you can tow with your 1989 Ford E350 you will need to find both the Gross Combined Weight Rating (GCWR) and the Gross Vehicle Weight (GVW) of your van. This can all be found on the information tag located inside the driver door jamb. If you subtract the Gross Vehicle Weight (GVW) of your van from the (GCWR) that will give you the maximum Gross Trailer Weight (GTW) you can safely tow. Generally speaking, the best transmission cooler to use would...
    view full answer...

  • Is Weight Distribution Needed for a 2018 Forest River Cherokee Wolf Pup 16BHS
  • The general rule of thumb is that if the gross vehicle weight rating (GVWR) of the trailer is more than 50% of the GVWR of the vehicle, a weight distribution system is recommended. Since the 3877 GVWR of your trailer will in fact be more than 50% of the GVWR for both your 2017 Chevrolet Silverado and 2005 GMC Yukon, I would recommend you use a weight distribution system. In order to choose the correct weight distribution system, you will need to find the total tongue weight (TTW) of...
    view full answer...

  • Can a 2011 Chevy Silverado 1500 4.8L V8 2wd Tow a 3,500 lb Travel Trailer
  • Assuming your towing capacity is 4,700 lbs, you can safely tow a 3,500 lb trailer. In fact, 2wd trucks typically have a higher towing capacity than 4wd trucks and long bed trucks, or trucks with longer wheel bases, hold up better to towing issues such as trailer sway and traction control. I checked the owners manual for your truck and it only discusses the towing capacity for the 6.0L engines, but according to Trailer Life Magazine's towing guides, your truck should have a 4,700 lb...
    view full answer...

  • Availability of 2 inch Hitch Ball for Equal-I-Zer Weight Distribution System
  • Yes, Equal-I-Zer actually makes a 2 inch hitch ball for use with their weight distribution systems which is part # EQ91-00-6080. This would work well with the part # EQ37060ET if that is the kit you have.
    view full answer...

  • Recommended Weight Distribution System for Flagstaff ePro Trailer with 3,890 Pound GVW
  • When picking out a weight distribution system, the most important factor to consider is the total tongue weight of your towing setup. This number includes both the loaded tongue weight of the trailer (as if loaded and ready for a trip), along with any added cargo weight coming from behind the rear axle of your F-150. Ideally, this number will fall somewhere near the middle of the operating range for the weight distribution system you choose. Using a scale like the Sherline # 5780 is...
    view full answer...


Do you have a question about this Weight Distribution?




  • Why etrailer.com?

    At etrailer.com we guarantee:

  • Highest quality weight distribution for the best price.

    Our Lowest Price Pledge ensures you will never overpay for the parts you need.
  • Real product know-how.

    We make sure that the products we sell are what we say they are, and that they work the way they are supposed to work. Get real advice from a real person who has the knowledge and expertise needed to solve your problem.
  • Most detailed, accurate weight distribution information available.

    Because we take providing accurate product information seriously, we take our own detailed product photos, demo videos and installation videos, as well as verify measurements, instructions, and vehicle fit information.
  • Installations, made easy.

    We love helping people and have the most highly-trained customer service, hands-on experience, step by step videos and installation instructions.
  • Fast shipping.

    Your order is automatically routed to get out of our warehouse and to your door as quickly as possible. Receive free shipping on orders over $99.
  • Personalized service for life.

    We provide one-on-one, personalized service from the ordering process through the life of your product.
  • Trusted since 1946.

    We've been serving customers since our parts store first opened in 1946 and continue to be recognized by our customers, our vendors and third parties for exceptional service.
  • Returns Policy

    Satisfaction Guarantee
    Need to return an item? No problem. Please read our Returns Policy for more information.

Info for this part was:

Updated by:
Dan D
Expert Research:
Michael L
Written by:
Lindsey S
Expert Research:
Michael H
Expert Research:
Jameson C
Video Edited:
Jacob T
Updated by:
Adele M
Expert Research:
Adam R
Video by:
Dustin K
Installed by:
Cole B
Photos by:
Amber A
Expert Research:
Jeffrey L
Installed by:
Hayden R
Updated by:
Jim S
Updated by:
Shelly K
Updated by:
Sarah W
Updated by:
Amanda M

At etrailer.com we provide the best information available about the products we sell. We take the quality of our information seriously so that you can get the right part the first time. Let us know if anything is missing or if you have any questions.




^
About Us
photos and videos
1,056,204 Original Photos & Videos

Produced to make sure you know what you are getting and you get exactly what you need.

installations
35,570 Installations Completed

To make sure products work and fit the way they are supposed to.

etrailer call center
2,476,511 Phone Calls & Emails Answered

1,125,924 phone calls and 1,350,587 emails to help find the right solution.

etrailer training
400+ Average Hours of Product Training

We get to know our products firsthand so experts can better help you.

etrailer service
73 Years of Quality Customer Service

Assisting our neighbors and customers, face to face at the counter.

etrailer experts
193,357 Pages of Expert Information

Created to make sure you have all the answers to your questions, from real experts.
