Corner HingeItem # PLR2216
Orders above $99 qualify for Free Shipping
Square corner hinge with reverse bracket allows 270 degree door swing.

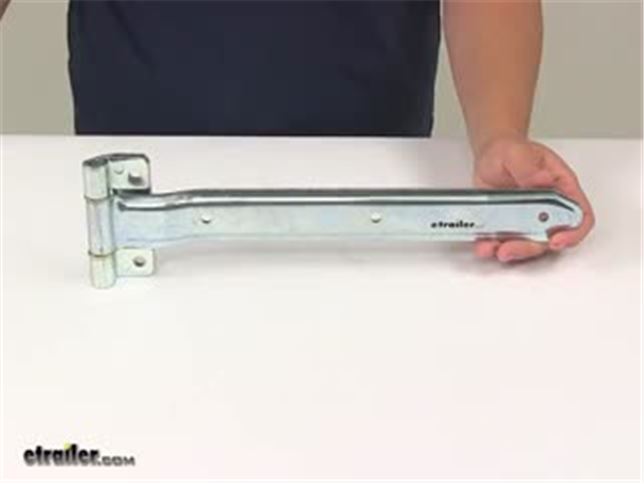

Video of Square Corner Hinge with Reverse Bracket - Zinc Plated Steel - 16"
Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.
Today we're going to be taking a look at the square corner hinge with reverse bracket for trailers. This is going to allow for 270 degree door swing. It's made from a very sturdy steel construction. It's going to have a zinc plating on it so it's very strong and durable. It's going to be rust and corrosion resistant. You'll want to mount this on the corner of the trailer to allow for full door swing. It's going to feature a non-removable pin for maximum security right here in the hing. If we take a measurement of the strap width, going this direction edge to edge we're looking at a measurement of around two inches.
If we take a measurement of the strap length, what I'm doing to get this measurement is I'm measuring from the back of the flat side here of the hinge to the end of the strap. You can see that's where we're going to get our 16 inch mark. It's also very close to the center of that non-removable pin out to the end of the strap around 16 inches. Overall length, if I go to the back of the hinge to the end of the strap, we're looking at a measurement a little bit closer to 16 and 1/2, 16 and 5/8, right in that area. Right here on the hinge there's going to be 2 mount holes. These mount holes are going to be separated apart from one another on center, looks to be 3 and 1/4 inches.
The hinge edge to edge that's going to give us a measurement of 4 and 1/2 inches. If we measure this direction, we're looking at a measurement of, from this point here to the back we're looking at about 2 and 1/8 of an inch. The holes on the hinge, those are going to have a diameter of 3/8 of an inch. Then you can see how that allows the unit to swing, so it's got a rotating design. If we take a measurement of the holes here on the strap, these are actually going to be separated on center, so there a hole right here, so center of that hole to center of this hole is 5 and 5/8.
Center of this hole to center to center of this hole is also 5 and 5.8. Then those are going to have a diameter of 5.16 of an inch. That's going to do it for today's look at the square corner hinge with a reverse bracket.
Average Customer Rating: 4.9 out of 5 stars (8 Customer Reviews)
by: Andrew12/20/2018
The order has arrived, thank you. 592151
by: Jim07/25/2018
Parts arrived a day sooner than expected. And the y were exactly what I wanted. 546234
by: Mike12/20/2017
Worked well and good price 461726
by: Mark11/14/2017
Product all I expected. Customer response far exceeded expectations. 451949
by: rj legare07/15/2017
Well-made product promptly delivered no problems 406118
by: Robert A.04/27/2017
Very fast shipping! 373083
by: RAY V.12/21/2016
Great looking hinge at a great price 327159
by: mitch.g10/06/2016
awesome service!! Awesome products!!! 5 stars are not enough. Ordered and it was here before expected, packed well and exactly as advertised. 304009
