T-Strap Hinge for Enclosed Trailers - 16" Long - 180 Degree Rotation - Zinc Plated

T-Strap Hinge for Enclosed Trailers - 16" Long - 180 Degree Rotation - Zinc Plated

Item # PLR3416
lowest price pledge
Our Price: $26.00
Trailer Door Hinges
Orders above $99 qualify for Free Shipping
Shipping Weight: 2 lbs
Quantity:
zoom in icon
slider vertical icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

Customer Photos

Videos

Need help with installation?
Locate installers near me
This extra-long T-strap hinge with a 1/2" pin helps keep your side or rear trailer door from dragging or sagging. Non-removable pin ensures maximum security to keep your cargo safe. Zinc-plated steel construction is corrosion resistant. Lowest Prices for the best trailer door hinges from Polar Hardware. T-Strap Hinge for Enclosed Trailers - 16" Long - 180 Degree Rotation - Zinc Plated part number PLR3416 can be ordered online at etrailer.com or call 1-800-940-8924 for expert service.
  • All Info
  • Reviews (8)
  • Q & A (0)
  • Videos (1)
  • Photos
  • Why etrailer?

Polar Hardware Trailer Door Hinges - PLR3416

  • Strap Hinge
  • T-Strap
  • Steel
  • 16 Inch Long
  • 2 Inch Wide
  • Bolt On - Pre-Drilled Holes
  • Polar Hardware

This extra-long T-strap hinge with a 1/2" pin helps keep your side or rear trailer door from dragging or sagging. Non-removable pin ensures maximum security to keep your cargo safe. Zinc-plated steel construction is corrosion resistant.


Features:

  • T-strap hinge replaces a worn-out or damaged hinge on your side or rear trailer door or barn door
  • Long strap provides more contact area with the door for excellent support
    • Helps keep the door in position and prevents sagging and dragging
  • Hinge lets door swing open 180 degrees
  • Non-removable pin ensures maximum security to keep your cargo safe
    • Prevents road vibration from knocking pin out of place
    • Helps prevent tampering and removal of door
  • Zinc-plated steel construction is durable and corrosion resistant
    • Seam-welded bracket and leaf offer extra strength and support
  • Made in the USA


Specs:

  • Overall hinge length: 17-5/8"
  • Bracket dimensions: 4-1/2" tall x 1-5/8" wide
    • Distance between mounting holes (center to center): 3-1/4"
    • Mounting hole diameter: 13/32"
  • Strap dimensions: 16" long x 2" wide
    • Distance between mounting holes (center to center): 6-7/16"
    • Mounting hole diameter: 11/32"
  • Pin diameter: 1/2"


3416 Polar Hardware T Strap Hinge for Enclosed Cargo Trailer Doors - 180 Degree





Video of T-Strap Hinge for Enclosed Trailers - 16" Long - 180 Degree Rotation - Zinc Plated

Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Polar Hardware Enclosed Trailer Parts - Doors - PLR3416 Review

Today we're going to be taking a look at the Polar Hardware T-strap hinge for side and rear trailer doors. Now this strap hinge lets your side or rear trailer door swing open 180 degrees. You can see how easily the hinge on the unit operates. It's going to allow for easy opening and closing. Now this is a long strap that provides more contact area with the door to excellent support. It's going to feature a non-removable pin for extra security.

That pin diameter is about a half inch. It's a nice heavy-duty design, very strong and durable. It's going to be a zinc-plated steel construction that provides durability and corrosion resistance. A few measurements to go over with you real quick, starting with the overall length. Measuring from the back of the hinge to the end of the strap, it's about 17 and 5/8 of an inch. When it comes to the dimensions of just the hinge, that's going to give us a length measurement of about 4 and 1/2 inches.

Going this direction from the end of the hinge to about the center of the pin, maybe a little bit forward, is about 1 and 5/8 of an inch. The mount holes on the hinge are separated on center by 3 and 1/4 inches. Then the strap length, take a measurement of that as well. It's going to be about 16 inches long. The width of the strap, it's going to be about 2 inches wide. You'll notice that there's three mount holes on that strap.

You can see those there. If we take a measurement, the distance that we have between each hole, center on center, so from this one to this one, is 6 and 7/16 of an inch. From the center one to the furthest out one is also 6 and 7/16 of an inch. Now these holes on the strap will accept 5/16 inch-diameter hardware. The holes on the hinge will accept 3/8 inch-diameter hardware. That's going to do it for today's look at the Polar Hardware T-strap hinge..


Customer Reviews

T-Strap Hinge for Enclosed Trailers - 16" Long - 180 Degree Rotation - Zinc Plated - PLR3416

Average Customer Rating:  5.0 out of 5 stars   (8 Customer Reviews)

This extra-long T-strap hinge with a 1/2" pin helps keep your side or rear trailer door from dragging or sagging. Non-removable pin ensures maximum security to keep your cargo safe. Zinc-plated steel construction is corrosion resistant.

by:

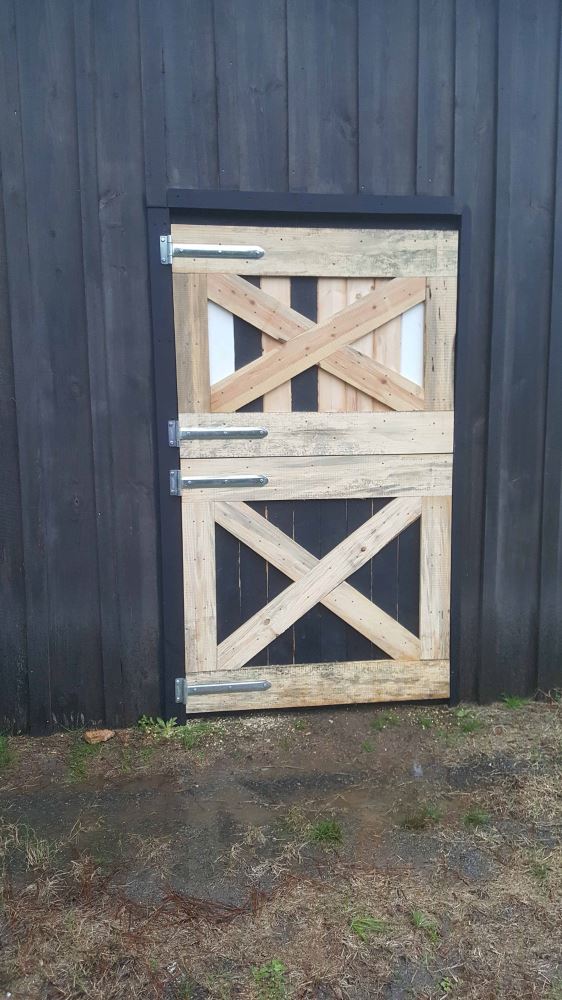

The hinges are very heavy duty, I searched for months for the perfect hinges to support my barn doors. The hinges are the perfect addition to provide the support required for the doors. Upon opening the doors, there is no sag, the hinges are very smooth during operation. This is a great product and I wouldn't hesitate to purchase more. Karen is awesome to work with, she went out of her way to make sure the product shipped in a timely manner and the order was filled properly.



by:

these t-strap hinges were a fantastic buy for the money....already installed them and are holding up great....good quality and price



by:

Nice product



by:

my order was delivered 1 day early and all of the parts that I ordered appear to be of a high quality.



by:



by:



by:



by:


8
8

Ask the Experts about this Polar Hardware Trailer Door Hinges

  • Stainless Steel T-Strap Hinge for Side and Rear Trailer Doors
    Polar T-Strap Hinge for Side and Rear Trailer Doors # PLR3416 is galvanized (zinc-plated) steel but not stainless steel. The zinc coating helps resist corrosion. For a similar hinge that is stainless steel we offer Polar part # PLR3416-SS.
    view full answer...
  • Recommended 16 Inch Strap Hinge for Enclosed Cargo Trailer
    I cannot give you the manufacturer of your hinge as the trailer manufacturers don't keep lists of parts to that degree of detail. We do have 16 inch strap hinges available like the Stainless Steep T-Strap Hinge # PLR3416-SS. All of our 16 inch strap hinges have 3 holes for greater support. I've linked the page to all your options and the measurements of the mounting holes are listed on each product page. Due to the 3 hole design, we won't have an identical match to your current trailer...
    view full answer...
  • Will T-Strap Hinge for Trailer Door Work on 70 lb Doors and What Material is Pin Made of
    Yes, the T-Strap Hinge for Side and Rear Trailer Doors - 16" Long # PLR3416-PS will absolutely work for your doors that are made about 70 lbs each. I confirmed with the manufacturer that the pin is made of steel and is 1/2 inch diameter. I have added a link to a video review of this part for you to check out as well.
    view full answer...
  • Recommended Hardware for Converting Ramp Door Trailer to Side Opening
    On your 5x10 enclosed trailer, the side swing door using T-Strap Hinge for Side and Rear Trailer Doors - 16" Long - Stainless Steel # PLR3416-SS is not rated for any specific size or weight. It is a great option as the length will help and then you will just need to determine how many are needed to support the weight. On the other end I recommend using a the Cam-Action Lockable Door Latch Kit for Large Enclosed Trailers - 2 Point - Zinc-Plated Steel # PLR458-018.
    view full answer...
  • Replacement Stainless Steel T-Strap Hinges For Enclosed Trailer
    The closest thing we have to what you are asking for is the T-Strap Hinge for Side and Rear Trailer Doors - 16" Long - Stainless Steel # PLR3416-SS. We don't have any 14 inch hinges, but we do have this stainless steel option in 16 inch or the Square Corner Hinge with Reverse Bracket - Polished Stainless Steel - 16" # PLR2216-SSP. Your other option is to go to a 12 inch hinge like the Over the Seal Hinge - Narrow Bracket - Polished Stainless Steel - 12" # PLR2512-SSP or Square Corner...
