The launch was tricky, but getting back on the trailer is worse. The keel won't center and you're tired from a day on the water. This bracket fixes the angle, steadies the roller, and helps guide your boat home without the struggle.
You're lining up to load, the current is pulling, the wind is picking up, and that roller's not where it needs to be. One inch off turns into ten minutes of frustration. This offset bracket shifts your roller 5" out from the frame so your keel finds its path and the boat comes home smooth.
A roller is only as good as what holds it in place. When you're backing down a slick ramp or loading in a crosswind, you want to know every piece of your trailers pulling its weight.This bracket steps in with a firm grip, keeping your 5" roller steady under pressure as you guide your boat on and off the trailer.
California residents: click here
Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.

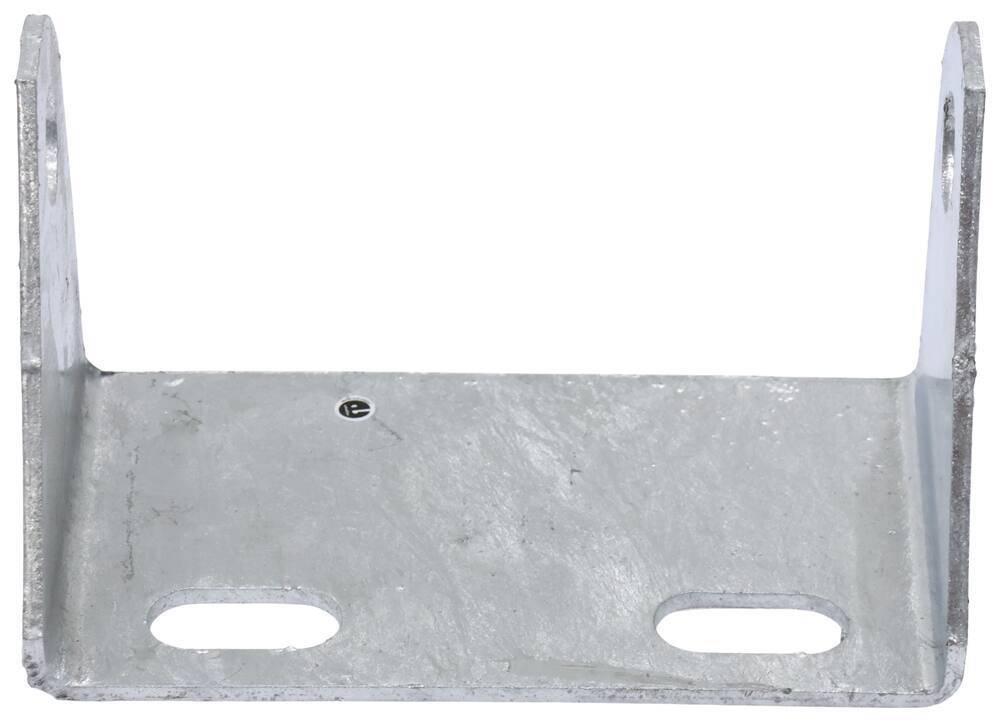

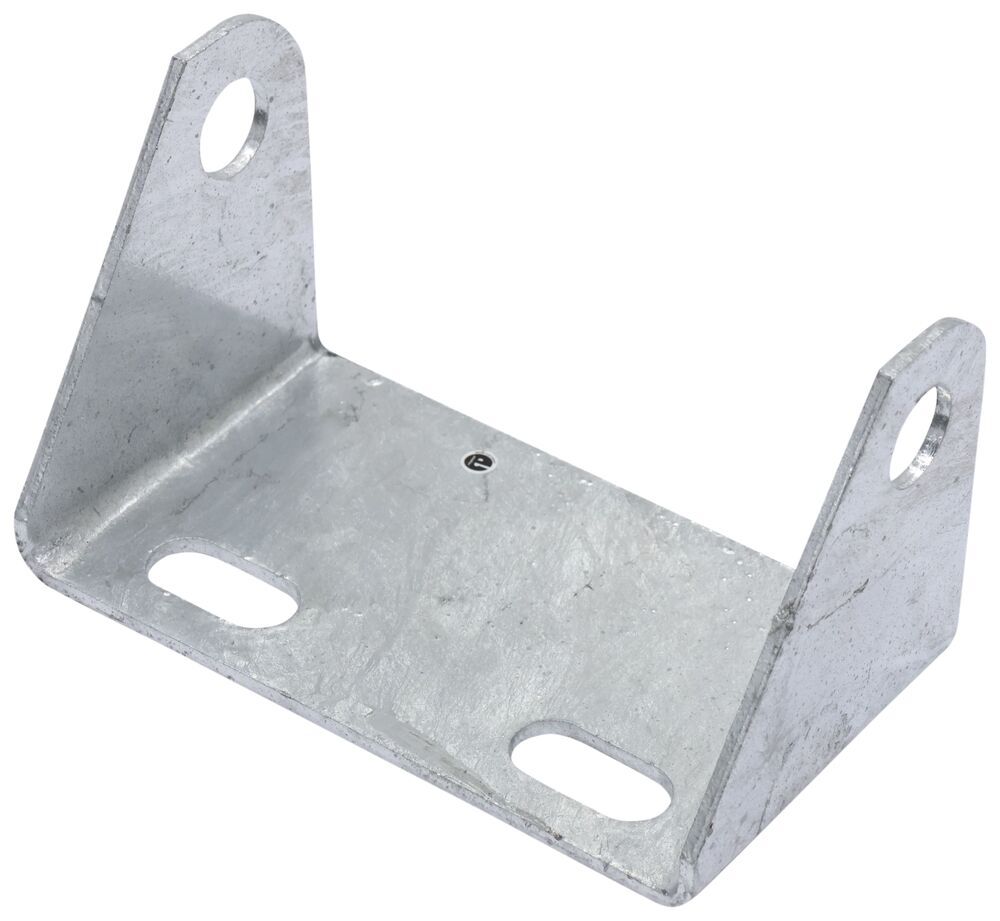

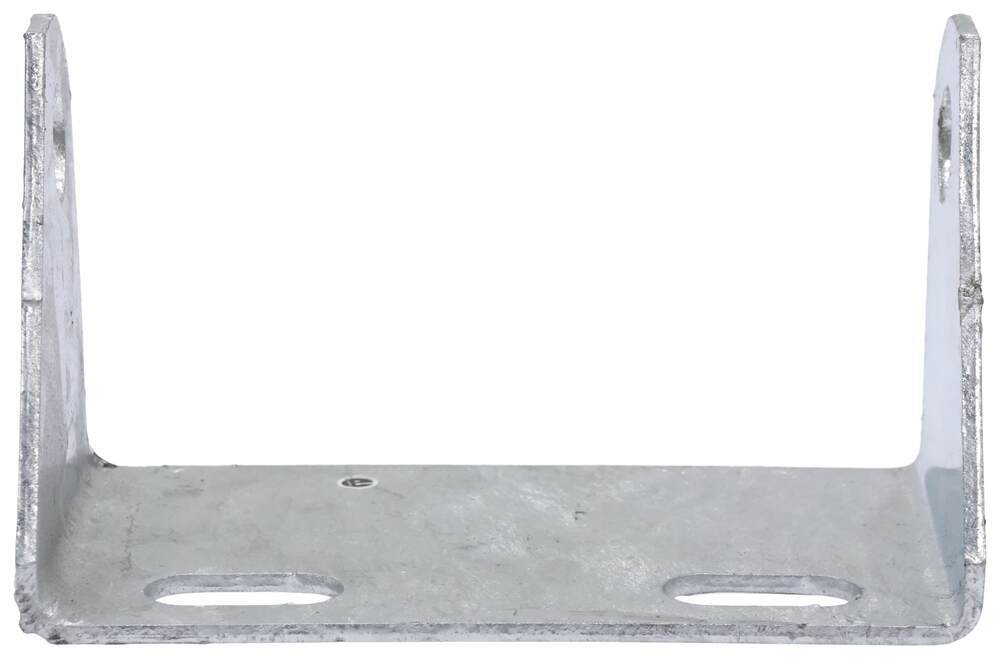

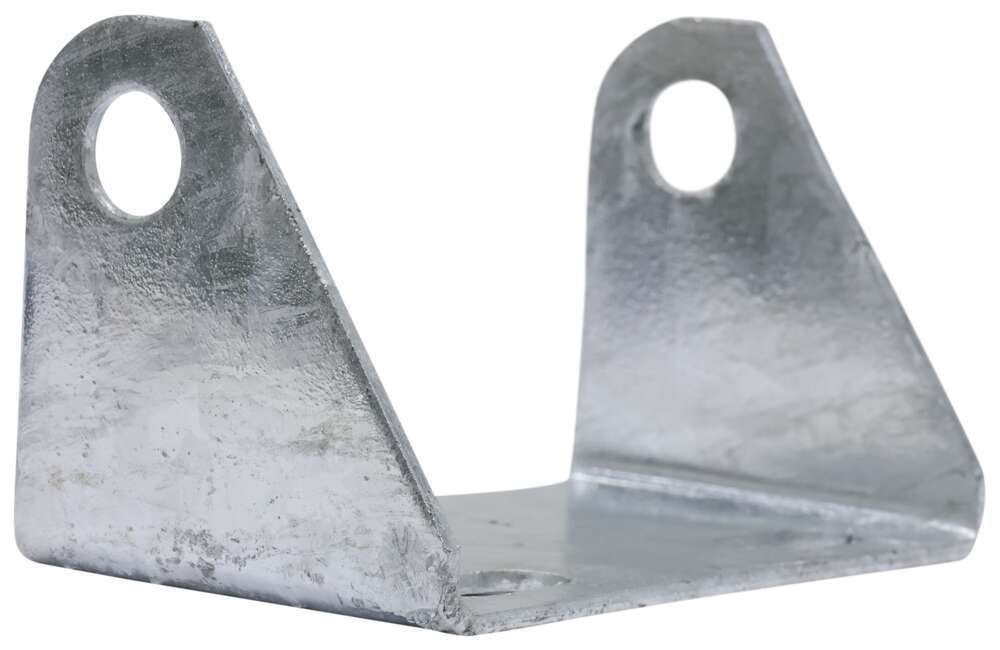

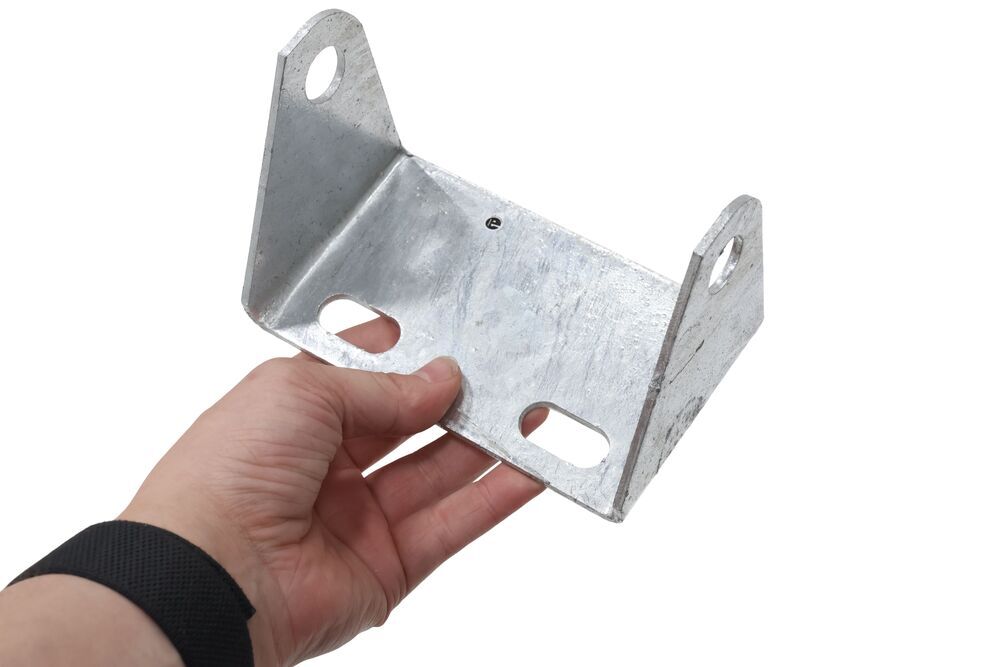

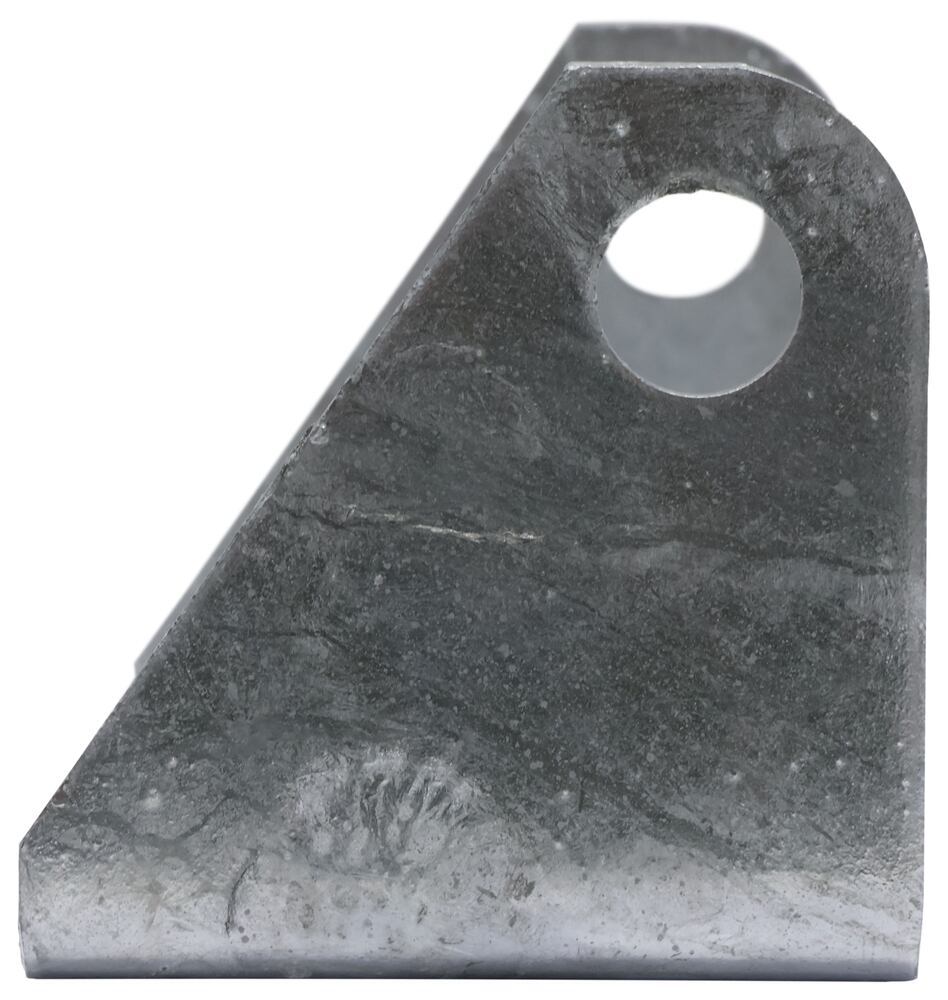

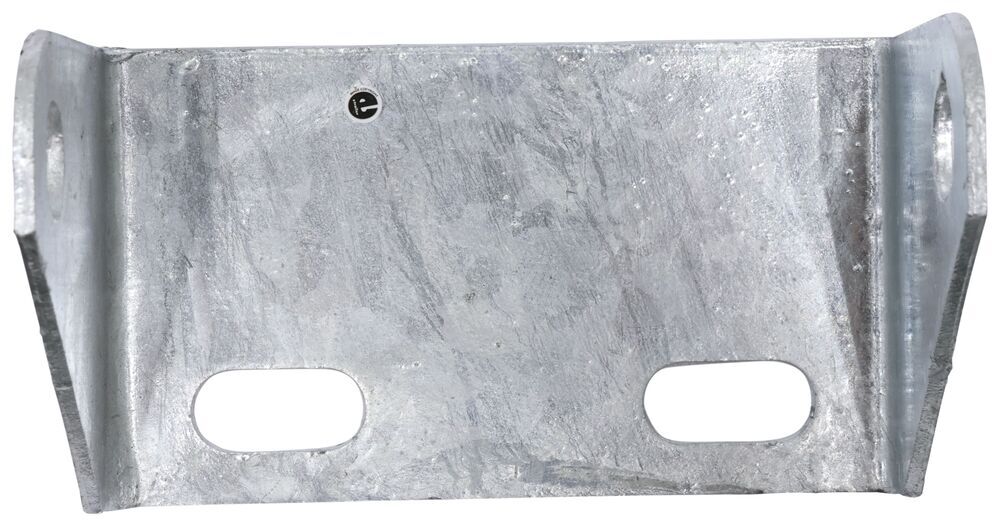

Hi everybody, Andy here with etrailer.com. Let's take a real quick look at the CE Smith galvanized steel five inch offset bracket for spool roller assemblies. Now this galvanized steel bracket is going to attach to your trailer's tongue to attach a five inch black rubber spool roller using a roller shaft and cap nuts to support your boat's keel for easy loading and safe transport on your trailer. This offset base is going to give you extra support, so for the five inch roller and the 6 1/4 inch by 5/8 of an inch roller shaft and cap nuts. We do have those parts listed on this product page. Some of them we have part numbers on because we do carry those.
So take a good look at this product page for those parts that you would need if you don't have them to complete this assembly. This does require 7/16 of an inch bolts, not included with this. This is sturdy, 1/8 of an inch galvanized steel that's gonna resist corrosion. The diameter of the mounting holes on center is a half inch and the spacing of the mounting holes are gonna be three inches apart on center. But I think that's gonna wrap up our real quick look today.
I do hope that it was helpful for you. Again, my name is Andy. Thank you for joining me.
Info for this part was:
At etrailer.com we provide the best information available about the products we sell. We take the quality of our information seriously so that you can get the right part the first time. Let us know if anything is missing or if you have any questions.
