These carpeted bunk boards replace your boat trailer's worn-out bunk boards. Each 6-foot-long 2x4 is covered with durable, marine-grade carpet that helps protect the finish on your boat's hull and is easy to clean.
Features:
Specs:
These carpeted bunk boards provide hull support for your boat during transport and storage. Each 6-foot-long board is wrapped in weather-resistant, marine-grade black carpet. You can run the bunk boards front to back for traditionally shaped hulls or side to side for flat-bottom boats, kayaks and inflatables.
To attach the bunk boards to the front and rear crossmembers of your trailer frame, use existing brackets or a four-pack of swivel mounting brackets (CE10000G-4, CE10001G-4 or C10002G-4 - sold separately). These brackets allow you to install the bunk boards at different heights. In addition, they enable the bunk boards to tilt to accommodate and support boat hulls of different sizes.
Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.

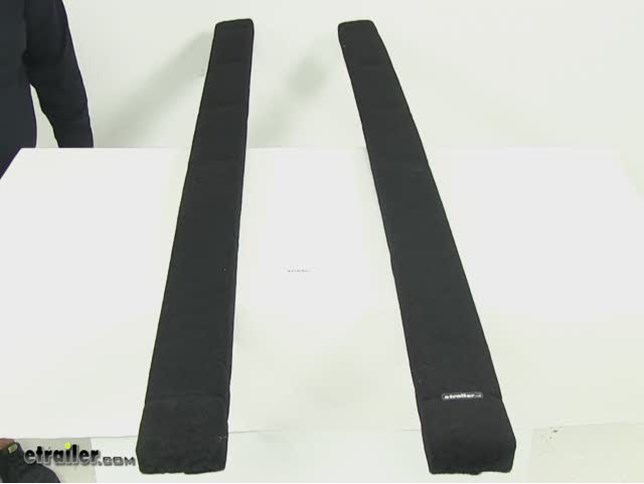

Kevin Bross: Today we're gonna be taking a look at the CE Smith carpeted bunk boards for boat trailers. Available in three, four, five and six foot lengths. Here you can see our bunk board's in place. Now, these are designed to support the whole of your boat as you're heading down the road. They're wrapped, as you can see, in marine grade black carpeting. This is gonna be strong, soft and very weather resistant.It's designed to not scratch your hull as you're coming on and off.
It dries out very rapidly. So we don't have to worry about water sitting on it for a long time. And it's mildew resistant. They also have complete copper-free manufacturing. So, even with steel or aluminum hulls, they're gonna be just fine.Now, as we said, there are different lengths available.
The three, four, five and six foot lengths. All of them are gonna be about an inch and three quarters thick, and they're gonna be about three and three quarters inch wide. Now, you can install your bunk boards in a couple different ways. If you already have brackets mounted to your trailer then just use the hardware here to attach it.If you don't have these, also from CE Smith, we hae the adjustable, not only with the pitch in which our board will sit, but the height. So we really customize it to our trailer.
And it'll be a four pack. So just get as many as you need. Now, we're gonna reuse the in bolts that we're existing previously. Just replacing our brackets here.If you need the U-bolts, the part number is CE15502A. And you'll need one for each bracket.
You can see the dots here on the face. I like to use those as kind of a reference point so I can get them on here nice and level. Now, you'll want to use three eighths washers and lock nuts if you're gonna be using the U-bolt that we recommended. Gonna place those on. And I'm gonna take most of the slack out of these.Then you'll just get those set where you need them. Now, with each boat, that's gonna be a little big different. You might them a little bit farther out or a little bit closer in. Just look at the hull design and determine where you're gonna need them at. Once you've got your width set and you get your height where you want it then we'll just tighten it down. Always a good idea just to double check after you've tightened it down. Make sure it hasn't moved. And you'll be ready to set the pitch on the top here.Now, our application is a flat bottom jon boat. So these are gonna be set flat. But it's nice that you have the adjustability so you can angle these at the direction you need. Now we're gonna place our bunk right on top. Once we have these centered left and right, we have them in the position we want, I'm gonna use a marker and I'm gonna mark the carpet right there. We'll mark it at all four of our hull locations.Now, as we put our screws through to secure the bunks to our brackets, whether you're using this style, or your own, the screws have a tendency to grab that carpet and want to twist it a little bit. Use a small piece of brake on, or in this case we're gonna use a little union. We get it heated up really well using a little torch. And we'll go right down over that hole. And see it's gonna create an opening there. And it also seals the carpet's edge to make sure it won't rip or tear from there. But that'll allow us a great area to get our bolts in there without tearing or pulling that carpet.Next I'm gonna use an eighth inch drill bit and get a little pilot hole going. This'll allow the screws to go in without splitting the bunk. Once we have our pilot hole started we'll enlarge it to a quarter inch. Just, of course, want to be sure you don't screw all the way through the bunk. All right. We'll do the same thing for the other end.Now we're ready to flip our bunk back over. We'll just line those holes up with our brackets. And we're place in stainless steel lag bolts and washers. Get it started. And then secured down using a 14 millimeter wrench. Now we can head to the front and do the same thing there. That's gonna complete our look at the CE Smith carpeted bunk boards.
Average Customer Rating: 4.8 out of 5 stars (299 Customer Reviews)
These carpeted bunk boards replace your boat trailer's worn-out bunk boards. Each 6-foot-long 2x4 is covered with durable, marine-grade carpet that helps protect the finish on your boat's hull and is easy to clean.
I received exactly what I ordered and the items arrived on schedule. Thank You Geno 359816
Was putting off purchasing these to replace an old pair, take my advise and never wait. The ones I had didn’t look too bad but one gave out and the ski was resting in the trailer frame. The new bunks are a lot better quality than my old ones and we’re really easy to install. They arrived quickly too. 669491
I ordered my products on Sunday morning the 19th of March and received them Tuesday 21 March at 5 pm great service will upload pics after everything is installed thank you very much for the quick delivery service. 359967
Joseph S - 03/22/2018Arrived as advertised. On the trailer now and functioning well. One concern: no carpet glue was used so carpet is only secured by the staples. It slides a little on the board, but does not appear to present a problem in normal use. Another concern: the wood underneath does not appear to be treated lumber. These are meant to be used in and out of the water, so hopefully they will last. Time will tell. Working well now. 422841
Perfect - Do not waste your time as I did trying to DIY. 218309
OldSchool - 08/09/2016First off, I want to say that the products that I ordered from etrailer.com were of high quality and were easy to install, and lets not forget about the fast shipping and my favorite - the personal touch added to the email communications where each one is signed by a human (rather than something generic). My project itself entailed replacing the two (original) vertical mount 4' bunks on my boat trailer (see the attached pictures). These were set-up to hold a 15' sailboat. I recently purchased a 12' (plastic) jon boat, and I felt that the jon boat needed better support on the trailer so that it didn't warp or dent. After doing a lot of research, I decided to go with two horizontal mount 6' bunks. They were pre-finished at a cost less than if I were to purchase the individual components (wood, glue, carpet, staples, etc.) and do the assembly work myself. Attaching the hardware and mounting them to the trailer was a snap - see the attached pictures for the finished setup. 126128
Bought these for simplicity even though in my opinion they are overpriced for what they are. A pressure treated 2x4 and some exterior carpet or old fire hose (likely for free from fire station) will get it done cheaper. My complaint about these is etrailer's recommended brackets, which BARELY fit onto thexe 2x4 bunks. The mounting holes are very close to the outside edge of the bunks, and you are mounting them with very large lag screws (not included with these or the brackets). 328131
Great product. This is the way to go. Easy to install, perfect. 708098
Arrived quickly in excellent shape 705457
Always great products. Great people too talk to before ordering parts, making sure it will work on project. Customer service is top notch. 697019
Always on time an exactly what you order keep up the great work, etrailer for all you trailer needs 673796
These trailer bunks are just what I needed to refurbish a used trailer. Installation was easy. Looking forward to using the trailer. 660226
Items arrived quickly and in excellent condition. 636394
Very fast great looking worked great looks good 629807
Excellent customer service! Quick and timely response in return and original order. Product is as advertised high quality! 614193
Comparable prices. Fast shipping. Good quality materials. Would recommend to others. Great overall experience 607444
Comparable prices. Fast shipping. Good quality materials. Would recommend to others. Great overall experience 607443
The carpetted bunks look great, the price was fantastic, and the shipping was unbeatably fast. Best of all shipping was free while all the other retailers charge extra for the large size items. Thank you E trailer! 595970
Exactly what I needed 564430
Michael - 09/13/2019They worked great and are holding up we ll! 557649
Your product is great.i ordered the wrong length and called Noah and he sent me the right ones in two days.great service Noah.thank you 545965
The carpeted bunk boards arrived a day early--which was nice, and appreciated. But, when I cut the plastic bands that held the two together, one was perfect and the other one was warped. It was not so bad that I could not use it, but none the less, it was (is) warped. With a slight modification to the support bracket I made it work----but it still would have been nice if they both would have been straight! 525987
I replaced my old rotted boat trailer bunks with these a year ago and they work great. Easy installation. 523442
I like them 493461
Product as described and fast delivery. 492200
