Automatically level and stabilize your fifth-wheel RV with this electronic leveling system. 6 Precise, motorized jacks can be operated by either the included touchpad or a Bluetooth compatible app on your smartphone.
Features:
Specs:
Note: Determine where these jacks will be mounted on your trailer. Use this system if there will be 20' or more between the center of the landing gear footpad and the center of the rear jack footpad. If your setup requires less than 20' between the jacks, use the 4-point Ground Control system (LC358590) instead.
Leveling your fifth-wheel RV has never been easier thanks to the Ground Control 3.0 electric leveling system. The motorized leveling legs eliminate the need for labor-intensive, manual scissor jacks. And the auto-level feature takes out the guesswork by automatically and precisely leveling your RV. Whether you use the easy-to-use touchpad or the touchscreen remote, all you have to do is step back and watch as Ground Control 3.0 levels your rig right before your eyes.
Automatic Leveling for Your 5th-Wheel RV
The auto-level feature provides the easiest, most efficient way to level your rig. With automatic leveling, you don't need to go through the trial and error of referencing levels and manipulating jacks one at a time. Just set the level position (zero-point) once, and the Ground Control 3.0 will bring your RV to that same preset point each time.
When first setting up the Ground Control 3.0 you will need to manually level your RV. With some leveling systems, manipulating the jacks individually can result in damage to your trailer's frame. Ground Control has built-in twist prevention so that you won't have to worry about twisting and damaging your frame.
In addition to automatically leveling your RV, the Ground Control 3.0 can also correctly position your trailer for hookup with the hitch recognition feature. This time-saving function stores your RV's position when you unhook from your tow vehicle so that it can automatically return the RV to that position when you're ready to hitch back up again.

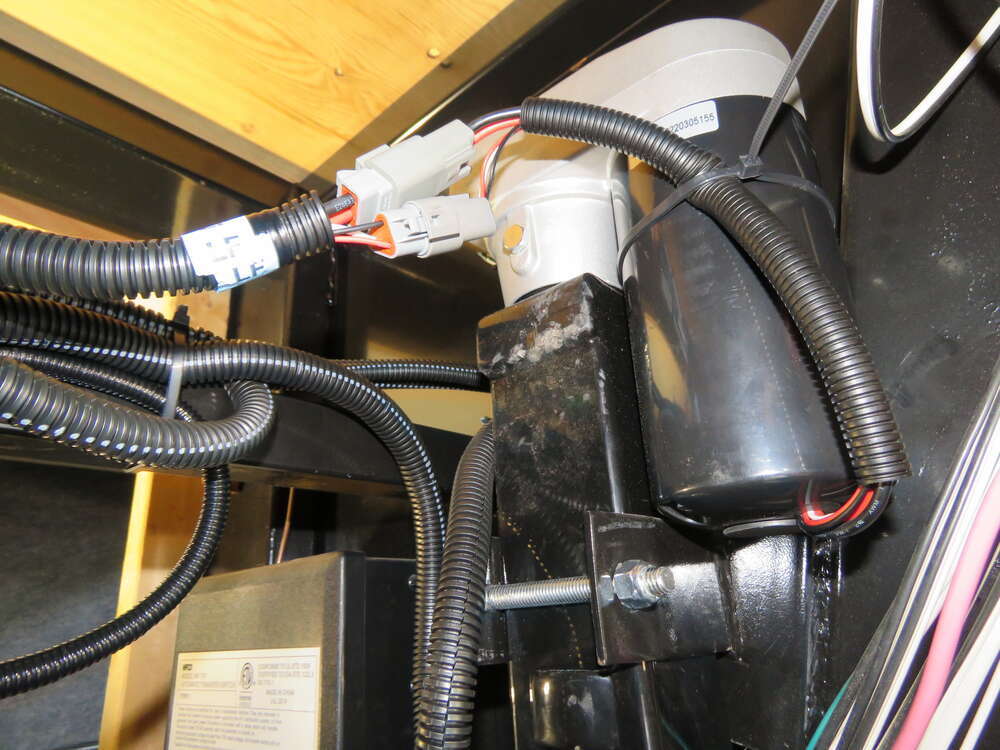

Motorized Jacks with Hall Effect Technology
The 6 motorized jacks included with the Ground Control system employ Hall effect technology to precisely and quickly raise and lower your RV. These jacks use sensors to measure the number of motor revolutions per minute instead of amp draw. This allows for more precise control over the motor than you'd have with conventional motorized jacks, which results in more accurate leveling of your trailer.
Convenient Operation
Ground Control 3.0 offers 2 convenient ways to level your rig. Whether you use the touchpad or Bluetooth compatible app on your smartphone, setting up camp is at your fingertips.
Touchpad with Lighted LCD Screen
The included, easy-to-use touchpad makes leveling your RV as simple as pressing a few buttons. The lighted LCD screen provides helpful prompts and alerts you to the status of the system. There are also indicator lights that let you know what functions are being performed.
Installation

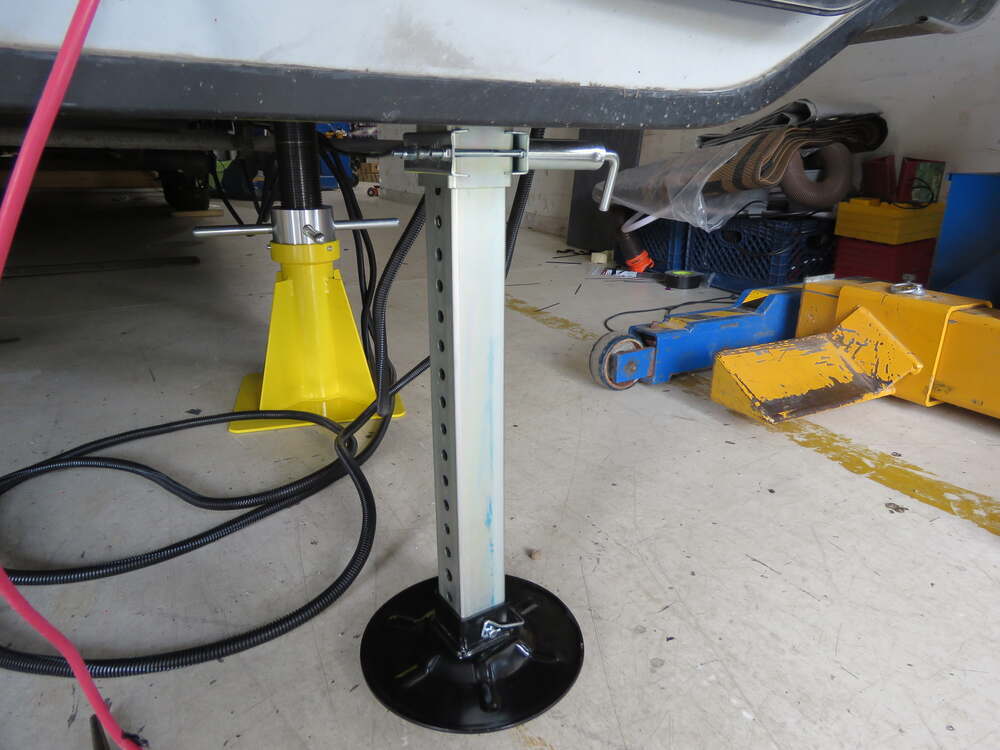

Upgrading your rig with the Ground Control 3.0 system is simple. The 2 landing gear jacks mount to existing points on your RV and secure with included hardware. The 4 rear jacks come with mounting brackets that bolt onto 8", 10", or 12" I-beam frames with included hardware. Mounting the rear jacks does require drilling. A sensor is also included for the rear jacks. This will be mounted on a crossmember near the rear jacks.

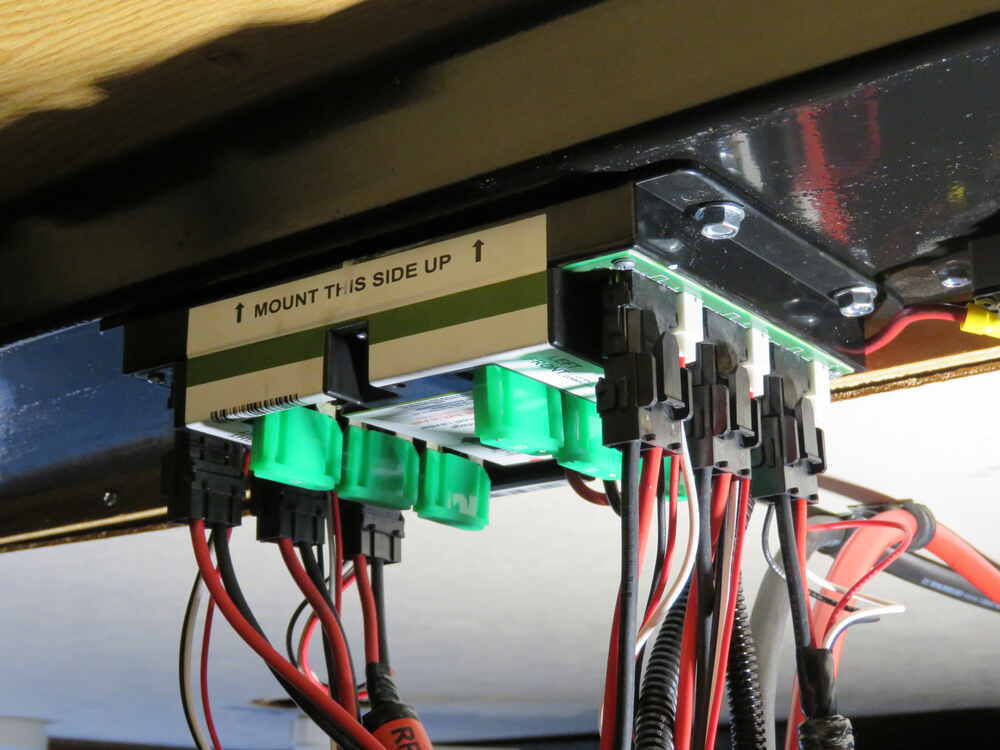

The control module for the system mounts in a compartment under the coach with included hardware. This module has a wiring harness that connects directly to your 12-volt battery. Wiring harnesses are also included that connect the jack motors, rear sensor, and the touchpad to the control module.
Alternate Instructions
California residents: click here
I have ordered from this company before. Always top notch. Would highly recommend. Accurate and super fast delivery.
Haven't installed it yet.
Not as difficult to install as I anticipated. It's pretty cut and dry. Works great.
Everything is working as advertised, love the system, makes life easy.
The product was easy to install with normal tools and some mechanical abilities. It operates well and faster than the 2.0 system that was on the RV. The display has additional info. and functions.
working very good
setup works great and I'm totally happy with it
this system works just as promised. I would definitely get it again as it is a definite time saver. easy to install.
So far so good but still working on the installation. I had to fabricate a couple of brackets due to my 5th wheel configuration to get a rear sensor and front controller mounted but not a big deal. Over very pleased with quality of jacks. I did receive extra brackets (see picture) that weren’t listed in the material list and I don’t see where they would even mount. I will need to make a phone call about those
Excellent but I installed the tab was broke off of LCD Touch pad when box it
Great addition to our 5th wheel, much easier setting up and taking down
I haven't used it at the campground yet, but it seemed to work as expected in my shop. Installation was fairly straight forward. I'm 72 years old, and was able to do it by myself.
