Price: $12.52

Pollak Replacement 7-Pole, RV-Style Trailer Connector Socket - Vehicle End

Item # PK11893

lowest price pledge

Retail:$19.42

Our Price: $12.52

Orders above $99 qualify for Free Shipping

Quantity:

In Stock
zoom in icon
zoom out icon
pop out icon replay 360 icon
horizontal rotate icon

Product Images

spin image icon
pollak wiring 7 blade replacement 7-pole rv-style trailer connector socket - vehicle end
pollak wiring vehicle end connector 7 blade
pollak wiring vehicle end connector 7 blade
pollak wiring trailer connectors 7 blade replacement 7-pole rv-style connector socket - vehicle end
pollak wiring vehicle end connector 7 blade pk11893
pollak wiring trailer connectors
pollak wiring vehicle end connector pk11893
pollak wiring trailer connectors
pollak wiring trailer connectors 7 blade replacement 7-pole rv-style connector socket - vehicle end

In Use/Installed

wiring pollak trailer connectors 7 blade replacement 7-pole rv-style connector socket - vehicle end
2000 ford expedition wiring pollak vehicle end connector 7 blade pk11893
wiring pollak vehicle end connector in use
2000 ford expedition wiring pollak trailer connectors 7 blade replacement 7-pole rv-style connector socket - vehicle end
2000 ford expedition wiring pollak trailer connectors 7 blade pk11893

Customer Photos

pollak wiring trailer connectors 7 blade pk11893
pollak wiring trailer connectors 7 blade pk11893
pollak wiring trailer connectors 7 blade pk11893
pollak wiring trailer connectors 7 blade replacement 7-pole rv-style connector socket - vehicle end
pollak wiring trailer connectors 7 blade pk11893

  • Trailer Connectors
  • Vehicle End Connector
  • 7 Blade
  • Plug Only
  • Pollak
This 7-pole, sealed, RV-style trailer connector plugs into the factory socket on your truck or SUV. Connector is an exact OE replacement on Chevy, Ford, GMC and Nissan. Lowest Prices for the best wiring from Pollak. Pollak Replacement 7-Pole, RV-Style Trailer Connector Socket - Vehicle End part number PK11893 can be ordered online at etrailer.com or call 800-298-8924 for expert service.



Pollak Wiring - PK11893

This 7-pole, sealed, RV-style trailer connector plugs into the factory socket on your truck or SUV. Connector is an exact OE replacement on Chevy, Ford, GMC and Nissan.


Features:

  • Replacement 7-pole, sealed socket, RV-style trailer connector
  • High-impact nylon construction
    • Resists corrosion
  • Spring-loaded lid with stainless steel spring and runner gasket
    • Prevents leaks when closed
    • Drain slot has angled design for drainage
    • Secures trailer-end connector in socket
  • Copper-plated terminal pins
    • High conductivity and low resistance
    • Sealed with silicone at the back of the socket
      • Prevents moisture from contacting mating connector
  • Mounting bracket and hardware available to secure connector (sold separately)


Specs:

  • Application: Ford, Chevy, GMC and Nissan OEM sockets
  • Current rating: 30 amps
  • Volt rating: 12 volts
  • 1-Year limited warranty


back up 7-way connector

Back side of the replacement 7-way connector.

location of OEM connector

Pictured is the OEM connector of a Chevy truck. The connector is located above the spare tire and plugs into the replacement 7-way connector (PK11893).

plug installed on vehicle

Replacement 7-way plug installed on vehicle OEM connector.





11-893 Pollak Replacement 7-Way, RV-Style Trailer Connector Socket - Vehicle End
Replaces 11775





Related Products



Customers compare PK11893 to these similar products





Customers Who Purchased This Wiring Also Bought...



Replacement parts available for this product

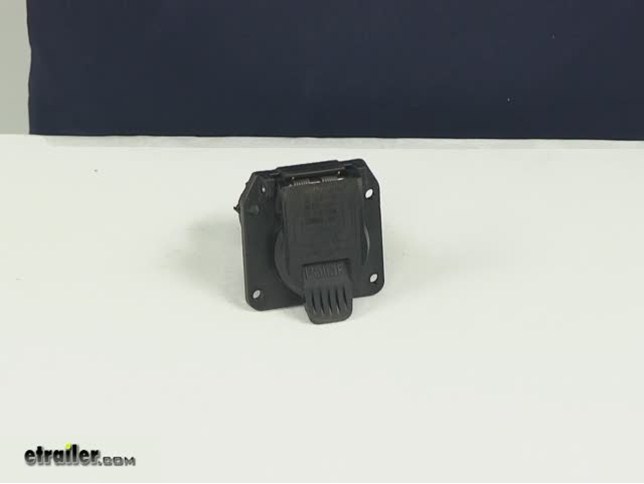

Video of Pollak Replacement 7-Pole, RV-Style Trailer Connector Socket - Vehicle End


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Pollak Wiring PK11893 Review

Today we'll be reviewing part number PK 11893. This is the Pollack replacement 7-pole RV style trailer connector. The replacement 7-pole sealed socket RV style trailer connector is made from a high impact nylon construction, so it's going to resist rust and corrosion. It's also going to feature this spring-loaded lid with a stainless steel spring and runner gasket. That's going to prevent leaks when closed. It also features a drain slot that has an angled design for drainage if moisture was to get in there close to your connections points. It's also going to secure the trailer end connector inside the socket. Here on the inside we have the copper-plated terminals producing high conductivity and low resistance.

It's going to be sealed with silicone at the back of the socket, that's going to prevent moisture from contacting the mating connectors. Knotting bracket and hardware are available here at inaudible 00:51 .com, but they are sold separately. This is designed for Ford, Chevy and GMC and Nissan ODM sockets. It's going to give us a current rating of 30 amps with a volt rating of 12 amps. See here that is has the four mounting slots or four mounting holes. The distance from center to center going this way is going to measure one and three quarters of an inch. Center on center going this way is going to give us a measurement of two and a half inches. Back here at the rear of the socket it's going to give us a diameter of one and three quarters of an inch.

Then the larger piece of housing that the socket goes into is going to give us a whole diameter or it's going to give us a diameter of two inches. That's going to do it for today's review of part number PK 11893. This is the Pollack replacement 7-pole RV style trailer connector. .


Customer Reviews

Pollak Replacement 7-Pole, RV-Style Trailer Connector Socket - Vehicle End - PK11893

Average Customer Rating:  4.9 out of 5 stars   (187 Customer Reviews)

This 7-pole, sealed, RV-style trailer connector plugs into the factory socket on your truck or SUV. Connector is an exact OE replacement on Chevy, Ford, GMC and Nissan.

- PK11893

by: fred M.07/16/2016


The 3 star rating is because this is not a direct replacement for a Nissan Armada. I bought this to replace the original socket on a 2004 Nissan armada. The hitch on the car says it is a Nissan hitch. I did not notice that the original socket mounted as a twist lock type and the bracket had no mounting screws when I ordered this socket. In defense of the manufacture and distributor of this socket the description did not say it was a direct replacement for an armada the assumption would be that the hitch would be the same as a titan. This was no big deal for me since I had a drill and bits to drill mounting holes and used # 8 sheet metal screws. Just have to be careful to drill the holes the right size so they self thread properly. I have been looking to see if there is a direct replacement for the original socket but can't seem to find one not even on Nissan's parts web site so I guess you just have to do what I did. I didn't think to take a video of the installation but I have included a picture of the finished install. 272596



- PK11893

by: Larry H09/22/2014


Thank you etrailer the oem trailer socket for my pickup arrived and I installed it and solved my connection problem. However the tracking information was useless, the first tracking # failed completely and the second one close to the same it showed my part was setting in Pontiac mi. For two days 18 miles from my house, estimated delivery was on sat, I received on friday obviously the post office had no idea where it was. To anyone purchasing products from etrailer or any one else - DON'T USE ECONOMY SHIPPING ! When usps and ups are both involved the usps will always screw up thanks again 152513


Comments

Product has preformed as stated.

Larry H - 09/22/2015

15141

- PK11893

by: Kirk09/26/2014


Used this on a 2014 Touareg since VW doesnt supply this with the towing pkg. Remove blank plate (4 screws), remove white lock clip from plug, squeeze lock tab on plug and pull to remove from blank plate. Reverse procedure and use 4 screws to install this item. Works great! etrailer has the best service around! 153303


Comments

Still working fine!

Kirk - 09/26/2015

15234

- PK11893

by: RedRightReturning07/03/2013


fits a 2004 Chevy Silverado just as adv ertised. 87524


Comments

This connector has been working fine. The only comment I would make is that the attachment hardware screws are rusting, so I intend to replace them with stainless steel replacements, but that does not effect the excellent functionality.

RedRightReturning - 07/03/2014

5282

- PK11893

by: K OBrien05/05/2014


Product's pretty basic and what I expected. I was replacing a Pollack connector. Your service, however; especially your communication, was far above and beyond any on-line transaction experience to date. You guys are great. 128927


Comments

Just fine

K O - 05/05/2015

11425

- PK11893

by: Gunfighter07/09/2013


Thank You The Pollak product I purchased worked fine and Im back in buisness so let me thank you again Doing Buisness with You was a pleasure...... GUNFIGHTER 88567


Comments

All is good still works fine once again Thank You. Gunfighter

Gunfighter - 07/09/2014

5452

- PK11893

by: Warren04/09/2017


I needed to replace the 7-pole RV trailer connector socket on my F-250 Ford because of a broken cap. The Pollak was an exact replacement that fit perfectly into the previous factory-installed location. No re-wiring was required because the wiring assembly was within a cartridge that easily slid out and into the new socket (as shown in an installation video on the etrailer website). The construction of the Pollak is solid and the spring loaded cap with locking tab holds the 5th wheel trailer plug firmly into the socket while traveling. This is a good quality product for a reasonable price. 366951



- PK11893

by: Jim F03/28/2014


product was delivered quickly, and works great! 122684


Comments

Works fine, arrived right on schedule

Jim F - 03/28/2015

10419

- PK11893

by: Ron S06/24/2014


Perfect fit, only had to drill mounting holes 137417


Comments

Still satisfied

Ron S - 06/29/2015

12887

- PK11893

by: John J.06/12/2017


Everything I order from etrailer has been exactly what was described and I have never had anything but good experience doing business with etrailer. I will always buy from etrailer because they have quality merchandise at a fair price. I gave etrailer 5 star rating because they ship exactly when they say an item will ship and it is always at my door sooner than estimated, always. In the world of today it is refreshing to do business with a company that does things the old fashioned way, they earn peoples business through courtesy and professionalism. 396090



- PK11893

by: Bill s Auto Works09/13/2015


Fast delivery of a quality product 225350


Comments

Working good!

Bill S - 09/12/2016

20911

- PK11893

by: Wesley01/19/2013


I replaced the hitch receiver on my Express van and needed a new bracket and socket for the wiring. This plugged perfectly into the existing wiring and looks like a factory finished product. Neither the mounting bracket nor this socket came with the mounting hardware, and the extra trip to HD is why it got 4 stars. I bought a bag of four 10/32 x 3/4" stainless steel bolts and a bag of 4 stainless steel nylon locking nuts for under two and a half bucks and good to go. Stainless hardware costs a few pennies more but it won't rust out. 63529



- PK11893

by: Kevin G08/04/2016


This is the original plug and play. For VW SUV's this does the trick. I recommend using some anti-seize on the bolts that secure this into the mount. I have this on both an Audi and a Porsche both work great. The picture shows what the car some with so you simply plug this unit into the factory socket and secure with 4 machine screws. 279645



- PK11893

by: John12/01/2016


Great product. Quality material and easy installation on my 2016 Porsche Cauenne. 321408



- PK11893

by: roland g.01/31/2012


i bought this product for my f150 trailer tow package and received it today 1/3/11. it works and it works well. i am 100% satisfied. i had search the web and finally i located the item @etrailer.com and found it. i even searched ford.com where they wanted 145.00 for it and the harness ( they don't sell connector by itself) my brother has shopped etrailer for a brake controller and he is stisfied. thank you etrialer.com for being there. roland 30742



- PK11893

by: Victor G.05/01/2014


The front flip cover of the OEM trailer connector on my Chevy Suburban was damaged and would not hold the trailer cable plug. I searched the web and found Pollak Item PK11893 at e-trailer.com. It was an exact replacement. All I had to do was drill 4 holes in the OEM mounting plate and bolt the replacement connector in place. The Chevy wiring harness connector plugged into the back of the PK11893. It was an easy fix that took 15 minutes. 128492



- PK11893

by: DW06/19/2017


My vehicle was pre-wired for trailering, but the plug was hidden behind a solid plate. It was not so easy to get to the wiring, to plug-in anything. This item solved the problem perfectly! It was exactly the right size, the holes for the bolts were perfect. It was a snap to install, just pulled off the old plate, plugged in the set of wires from the vehicle, then fastened it with the screws. Couldn't have been easier! 396228



- PK11893

by: PK1189305/21/2013


Product is advertised to be an exact OE replacement on Chevy, Ford, GMC and Nissan. It is not; at least on my 2001 Chevy Silverado. The OE receptacle has a twist-lock connection to the vehicle's frame; this part does not have that. It required 1 - 4 screws to secure to frame. All the connections matched the OE connector, and the receptacle worked fine with the matching plug. 81415



- PK11893

by: Randy07/30/2017


The right adapter, fits Audi q7 factory tow package. 1/3 the price of Audi part. Fast shipping, etrailer is the place for reasonably priced trailer parts. Thanks George 412653



- PK11893

by: Tim02/21/2013


As always. Exactly as I ordered and the service is fantastic. Very fast shipping. Thank you! 67296


Comments

I will still say you guys have the best service and fastest shipping around!And I probably need to order again. I need to take time to see which the problem is in my lights not all working properly.Thanks again for being a great company!

-- comment by: Tim - 02/28/2014

2977

- PK11893

by: Joe V.10/16/2016


This product fit my pickup perfect. This was a pollak replacement 7 pole RV-style trailer connector socket. Just like the one that came on my pickup. It saved me from having to splice my wiring. None of the local stores had one you didn't have to splice wires. I would buy from you again and tell my friends. 307655



- PK11893

by: MIke S04/13/2017


Worked as expected. Our mounting plate on the hitch was slightly deformed so I didn't tighten our screws down all the way (afraid I would break this plastic part). It is fairly sturdy. This part replaced the exact same brand/part that had lost a battle backing into something we should have backed into. 366870



- PK11893

by: George B.06/16/2017


I received the exact part I needed to replace one I broke on my Ford F-150.It installed in minutes. Shipping was very quick, packaging was well done and I am very satisfied. This is the third item I have ordered from your company and I will continue to do so in the future on my trailer needs. 395101



- PK11893

by: Jim W.11/26/2014


I'm sure this is a well-made product, Unfortunately, it does not match up with the wiring input plug on my pickup. I probably need to get the input that will fit into this product. I boogied up an emergency repair to get us through the Thanksgiving trip with our fifth wheel, though. 162525



- PK11893

by: John W06/09/2015


I'm very pleased with the connecter that I purchased from this company. It fits just as I hoped for without any problems. I would recommend this product from this company any time. Also the delivery of the product from time ordered to being received was very timely without any delays. 201903



- PK11893

by: Jeff09/01/2015


Fit my 2002 Ford F-250 perfectly as a replacement to the old (I assume original) trailer connector socket. The spring-loaded protective cover broke on the original one so it would no longer hold the trailer plug in place. Installation took less than 5 minutes and it works great. 223212



- PK11893

by: Richie10/31/2012


This is a perfect replacement for my 1999 Ford Expedition factory towing package connector plug. Plugs right in to the factory wiring adaptor plug. Took about five minutes to swap out. First Pollak connector lasted a decade. Hopefully this one will last as long too. 58503



- PK11893

by: Barry11/19/2014


Needed this item as a replacement for the broken unit on my motor home. Ordered by site and hoped for the best. Item arrived promptly and was just what I needed and the price was right. Thank you Etrailer for the quick service/shipping and the ease of ordering. 161883



- PK11893

by: Curtis10/21/2014


Product fits great, bolt right into existing bracket. 7 to 4 way adaptor I bought from etrailer fits right into unit. The "check lights" warning still comes on, but I think that's an issue with the SUV. The parts are working fine, and delivered quickly. 157276



- PK11893

by: Greg B08/14/2017


Product is as advertised and arrived in a timely manner. Less than 5 min install on my 2014 F-350 and was an exact match to the factory installed connector. Hopefully I'll remember to disconnect the cord to the 5th wheel before driving off from now on! 420004



- PK11893

by: Tim Sparks02/16/2013


These are great plugs. Fit just right. And the service from etrailer is the absolute best I have ever run into! Thank you for shipping so fast. I ordered Friday evening at 8:45 and they shipped Friday evening at 10:00! Can't beat that! Thank you! 66542



- PK11893

by: Javier D.10/17/2013


product worked excellent plugged right into my 2013 Chevy Siverado real easy to install your self. And shipping was great they told me 7 to 10 business days got here in 3 would definitely recommend this company to all friends and family. 104168



- PK11893

by: Phillip03/04/2013


Great quality Dana was very helpful and knowledgeable she helped me find the best solution for my problem. etrailer will be my main and only source of supplies from now on. Please thank Dana again for all of her help. Phil Rumsey 68564



- PK11893

by: Doug H.05/20/2011


Great Product! Easy to plug direct to G.M. OEM harness. The only problem I have is the 4 attach hole pattern does not fit the predrilled tow bumper on my G.M. flatbed built by ABC. But a little rework will fix the problem. 14942



- PK11893

by: Scott Young09/19/2017


Great product. Replaced a broken factory plug. After looking at multiple plugs this was the only one that I found that was plug and play. All the other ones I found required modification to the original connector. 434107



- PK11893

by: Jennifer05/19/2016


Fits perfectly on my 2005 Excursion. Just remove the factory connector and plug this one in. 10 minute job. No rewiring! This is the same as the factory plug at a fraction of the price the dealer charges. 250840



- PK11893

by: Zach B07/30/2016


Does its job, wasn't a perfect fit so had to put some screws in it to mount it to the existing bracket on my 2005 Silverado. Ordered one afternoon and had it the next morning by 9, can't beat that. 277698



- PK11893

by: Paul Wisuri04/13/2012


Best selection and price on the web. Was exactly what I was looking for. Web site very helpful. The pictures and videos available gave me the confidence I was getting the right part I wanted. 37121



- PK11893

by: Capt Larry D Jones04/29/2014


Excellent O.E.M. replacement 7-pole rv connector socket,super fast shipping and easy instalation.I highly recommend etrailer and will purchase all my rv needs from them in the future! 127978



- PK11893

by: Robert10/30/2017


I had to wait 2 weeks for arrival of my part. There were no tracking emails or at least any that worked. I guess I am spoiled by other sites 't 2 day shipping, but 2 weeks? Come on! 447428



- PK11893

by: Randy R08/22/2017


The connector was an exact replacement for my previous connector. The fix was seamless. My only negative comment was the part was 1 day late and almost affected my camping trip. 423656



- PK11893

by: Levi10/11/2013


Fast delivery, product exactly as described. Replaces previous plug that wat damaged in an accident. Much cheaper than the $80 plug they wanted to sell me at the GM dealer. 103521



- PK11893

by: John M05/02/2014


Didn't use it, because it's a replacement for my truck, that doesn't need replacing yet. Wanted a connector for the MH and this woundn't work, will save for later use. 128605



- PK11893

by: Mike K09/01/2017


Exact match to Ford Explorer factory original. Great service, prompt delivery and a 2 minute install to replace original connector. Always easy dealing with etrailer! 427736



- PK11893

by: Bruce B06/14/2011


Fits as described and easy install for pre-wired Tahoe. For those not familiar with machine screw sizes, a suggestion to size and length of screw could be helpful. 16961



- PK11893

by: Paul B.09/29/2015


Exactly what I needed. Told the girl car model and year. Pulled up the correct one and had it in a couple of days. Great to work with her. She knows there products. 228357



- PK11893

by: Mark R.03/30/2015


Good factory quality. Fair price. Quick shipping. Matched my 2003 Ford F-250 OEM plug. Plugged into my factory wiring like it should when changing a identical part. 181352



- PK11893

by: Thomas C10/18/2017


Dealing with Etrailer was a pleasant experience. They know their products and were very helpful in guiding me to purchase what I needed. Will recommended to others 444891



- PK11893

by: James Miller02/18/2014


Order was easy to place, everything matched great. I wish it had 1/4" holes for standard easy to get hardware. but I drilled it and everything is great thanks 116876



- PK11893

by: Chad M10/16/2014


I order this product to replace the one that was on my F250 currently. The item shipped very quickly and it was very easy to install. Thanks etrailer.com 156243


51
188
Show More Reviews

Ask the Experts about this Pollak Wiring
Do you have a question about this Wiring?


  • 7-Way, Vehicle End, Trailer Connector Wiring Diagram
  • See the picture to the right for a wiring diagram of seven-way vehicle end trailer connector. If you click on it you can enlarge it. I have also included a trailer wiring FAQ page for you to check out.
    view full answer...

  • What is the Factory Wiring Harness Color Code for a 2007 Chevy Silverado
  • The colors that GM typically uses for their factory trailer wiring are as follows - Dark Green - Right Turn/Brake Lights Yellow - Left Turn/Brake Lights Brown - Tail Lights White - Ground Light Green - Backup Lights Blue - Electric Brakes Red/Black - 12 Volt Power We had a 2007 Chevy Silverado with the factory trailer wiring on our lot, so I went out and verified that it had the same color code. I also noticed a white tag on the wiring harness that listed the functions of...
    view full answer...

  • Installing Third Brake Light and Dome Light into Truck Bed Cap
  • If you will take a look at the wiring harness up above the spare tire, you should find the connector that the 7-way plugs into. If you trace the loom back just a bit, you will find a light blue wire that is used for the 3rd brake light for your truck cap. If you will follow the provided link, see Step 3 figure B. This photo will show you the location of this wiring harness above the spare tire. For the interior dome light, there are two common methods both of which will require a switch,...
    view full answer...

  • Using a 6-Way to 7-Way Adapter for a RV with 6-Way Round Socket and Trailer with a 7-way Connector
  • The Hopkins 6 Pole to 7 Pole Adapter, # 47435, does have a pin for the brake output for a brake controller. This adapter will work for your set up as long as the center pin of the 6-way plug on your RV is for 12v power and the pin in the 10 o clock position is for the brakes. You can verify this using a circuit tester like part # 3808. If the center pin on your 6-way plug is wired for brakes and the pin in the 10 o clock position is for 12v power, then you can still make an adapter using...
    view full answer...

  • Troubleshooting Right Side Trailer Lights Not Working, Left Side Working Correctly
  • Most trailer wiring problems are the result of a bad ground. What I would do is start with the connectors. Maker sure the connectors on both the trailer side and vehicle side are free of dirt and corrosion and that they are properly grounded. Next, I would move on to testing the vehicle side connector using a circuit tester like # 3808. Since the right side is not working, you will want to test the pins of the connector for right turn and brake. If looking at the face of the connector,...
    view full answer...

  • Wiring Pattern for a 7-Way RV Trailer Connector on a 2001 Chevrolet Silverado Without Factory Wiring
  • To install a 7-Way wiring connector at the rear of your 2001 Chevrolet Silverado without a factory 7-Way or a factory 4-Way connector, I recommend using the 7-Pole and 4-Pole Trailer Connector Socket and wiring harness, # HM40975-11998. You can the wire most of the circuits needed to the wiring harness that is located above the spare tire along the driver side frame rail. The wiring above the spare has a yellow wire for the left turn and brakes, dark green wire for the right turn and...
    view full answer...

  • Chevy Silverado Third Brake Light Wiring Source for Camper Shell
  • The main trailer wiring harness is located under the truck bed, usually above the spare tire. There is usually a socket for your trailer connector to plug into, but if you peel back the wire loom you will find a light blue wire further up in the wiring harness that is intended for use for a third brake lamp on a camper shell. I attached a couple pics to help you see where the wire is at.
    view full answer...

  • Troubleshooting Tow Package Wiring of 2004 Chevy Suburban
  • Your Suburban has a fuse box under the hood, under the dash, and on the drivers side edge of the instrument panel. Each fuse box has fuses that relate to the towing circuits, see page 5-110 of your owners manual for a listing of the fuse locations. If the vehicle has never been used for towing before, it is unlikely that all the fuses that protect the tow package circuits have been blown. From what you describe, no power is reaching the plug under the vehicle that your 7-way trailer...
    view full answer...

  • 7-Way Trailer Wiring Connector for a 2002 Chevy Silverado 1500 with Factory Tow Package
  • First I would need to know how your 7-Way connector is different than newer models. Is if pinned out differently (the pin functions are in different locations between the years) or is it that it connects to the vehicle differently? If it is the latter, you can use the Pigtail Wiring Harness, # PK11998, with Hopkins Wiring, # HM4097 or # PK11893 You would just need to wire in the bare wire ends of the pigtail to the truck wiring by function. The pigtail uses the following color codes...
    view full answer...

  • Turn Signals but No Brake Lights on Trailer tail Lights
  • Any time a trailer has turn signals that work but not the brake lights it can be an interesting situation. This is because the brake lights and turn signals on trailer tail lights are on the same circuit. In this situation it is almost always a bad ground connection. Ground problems normally show up when there is more draw on a system such as when you have the running lights on and then use another function like a turn signal or brake light. Make sure that the vehicle side and trailer...
    view full answer...

  • Trailer and Vehicle Side 7-Way Wiring Diagrams
  • The 7-way on your trailer could be wired correctly as-is. Not all 7-ways will have wires run to every one of the pins. Typically, if there are only 5 wires you will be missing the circuits will be the 12-volt accessory and the reverse light circuit. I attached a couple pictures that show how trailer side and vehicle side 7-ways wire as well as an FAQ article on trailer wiring
    view full answer...

  • 7-Way Wiring Diagram Availability
  • Check out the picture I attached plus the FAQ article to the right to see a 7-way diagram you could use to wire up your trailer.
    view full answer...

  • How to Wire a 7-Way Trailer Connector on a 1994 Chevrolet C/K Pickup
  • To wire a 7-Way trailer connector at the rear of your 1994 Chevy pickup, you will need to start with a working 4-way connector, item # 118315, if your truck is not already equipped with one. You would then use the 4 Pole to 7 Pole and 4 Pole Adapter, item # 37185, and plug in the 4-Way on the truck to provide the stop turn and tail light functions in the adapter. If you do not need the brake control feed wire, 12 volt power wire or backup wire for your trailer you can tie one or all...
    view full answer...

  • How to Wire a Camper Shell Third Brake Light and Interior Lights on a 2011 Chevy Silverado
  • You are going to want to find the Center High Mount Stop Light wire for the brake light on the truck cap on your 2011 Chevy Silverado. This wire is bundled with the brake controller wiring located under the dash, and held together with tape and a tag that lists the wiring functions. The wire you are looking for is orange and will have a tag on it labeled CHMSL. For the interior lights, if they are on a switch, you can run a wire from 12 volt hot lead behind the factory 7-Way to the switch...
    view full answer...

  • When Truck is Put in Reverse the Trailer Brakes Lock Up
  • Are you certain that you have the 6-way connector, like part # PK12720 with the 6 round pins? Or do you have the 7-way connector like part # PK11893 that features 6 blade-type pins with one connector in the center? The two can sometimes be confused. There are two possible reasons why the brakes are locking up on the trailer. If you have a surge or hydraulic coupler on the trailer, such as those typically found on boat trailers, the hydraulic brakes will lock up when the vehicle reverses...
    view full answer...

  • Adding a 7-Way Trailer Connector to a 2010 Ford F-150 with Factory Installed 4-Way Flat Connector
  • To convert the factory 4-Way flat trailer connector on the back of your 2010 Ford F-150, you will need Adapter 4 Pole to 7 Pole and 4 Pole, # 37185. You will plug the factory 4-Way into the back of the adapter and hardwire the remaining 4 wires. The white wire gets grounded to the vehicle frame. The blue wire on the adapter carries the brake controller output voltage, and the black adapter wire carries the 12-volt accessory voltage for any trailer mounted accessories that might need...
    view full answer...

  • Recommended Hitch Trailer Wiring and Brake Controller to Tow Pop-Up Camper with a 2012 Jeep Compass
  • You son's Compass can be equipped to tow that pop-up camper, as long as its fully loaded and ready to tow weight does not exceed the towing capacity of the Compass, which is 2,000 lbs according to my research. For a hitch, I would recommend the Draw-Tite Class III, part # 75712. You would also need a ball mount, part # 2753 and the appropriately-sized trailer ball, # 19261 for a 1-7/8 inch ball or # 63845 for a 2 inch ball. The coupler on the pop-up should say which size is needed. For...
    view full answer...

  • How to Wire up a 7-Way Connector on a 1997 Dodge Ram 3/4 ton Cummins
  • I can help you wire up your OEM 7-way on your 1997 Dodge Ram HD, but you are going to have to do it by function and not by color. There is no industry standard for wire colors so your best best would be to use a circuit tester like part # 3808 and test the wires and run them accordingly to your 7-way. You would want a buddy to apply the different tail light functions of your truck while you test the wires with the circuit tester. There should only one wire that has 12 volts all the...
    view full answer...

  • Trailer Running Lights Not Working When Using a 7-Way to 4-Way Adapter
  • It sounds like you have a 7-Way and are using a 7 to 4-Way adapter because the trailer has a 4-Way flat. If the running lights are not working with this set up, the first thing you will want to do is use a circuit tester, like # 3808 if needed, and test the vehicle side connector with no adapter installed in it. If the running light circuit is not working at the connector you know there is a problem on the vehicle side and you will need to trace the wiring from the trailer connector...
    view full answer...

  • Replacement 7-Way Trailer Connector for a 2003 Chevy Silverado 2500HD
  • I actually recommend that you use the Hopkins connector, # HM40975, because it comes with a 7-Way and a 4-Way and also comes with a bracket. The connection at the back is made to fit the factory harness on a 2003 Chevy Silverado that came with a factory 7-Way. I have included a link to a video that shows a typical installation for you. If you want to go with a regular 7-Way use # PK11893 and bracket # PK12711U.
    view full answer...

  • Adding a 7-Way Trailer Connector on a 1995 Ford F-250 with No Existing Trailer Wiring
  • For a 1995 Ford F-250 that never had trailer wiring you will first need to install # 118316. Then you can install the 4 and 7 way installation kit # ETBC7. The other option is to use a circuit tester like # 3808 if needed to determine the functions of the wires you have found and hardwire them to the ETBC7 by cutting off the 4-Way end and splicing on the truck wires. On the ETBC7 4-Way, brown is running lights, green is right turn and brake lights and yellow is left turn and brake lights....
    view full answer...

  • Replacement 7-Way Trailer Plug Needed for a 2007 Chevrolet Silverado Pickup
  • If you have the 2007 Chevrolet Pickup, Silverado New Body style, like the one in the video link below, then the Twist-in, 7-Pole, RV-Style Trailer Connector for Chevy and GMC Vehicles, item # PK11916, is the correct replacement. If you have the 2007 Chevrolet Pickup, Silverado Classic body style then the Pollak Replacement 7-Pole, RV-Style Trailer Connector Socket, item # PK11893, is the correct replacement for your vehicle. The Pollak 7- and 4-Pole Trailer Connector Socket w/ Mounting...
    view full answer...

  • 2005 Chevy Silverado 12 Volt Trailer Battery Wire for a 7-Way RV Connector
  • In the under hood accessory fuse block there are two power posts on the engine side of the block. The post closest to the front of the truck should have a wire connected to it that runs back to the factory trailer connector and provides 12 volt power at the 1:00 position as you have stated. If there is not a wire present at this location, you may need to run a 10 gauge wire and splice it into the black wire at the back of the vehicle to provide power. If the wire is there, you should...
    view full answer...

  • Installing a 7-Way Trailer Connector on a 1993 Ford F-150
  • If your 1993 Ford F-150 already has 4-Way trailer connector, all you will need is the 4 and 7 way installation kit # ETBC7 to add a functioning 7-Way to your truck. This also provides the wiring for a brake controller. I have included some links that explain the ETBC7 installation. If you already have the 7-Way connector that you want to install, then you will need to hardwire it in. Use a circuit tester like # 3808 if needed to determine the functions of those 5 wires that you found....
    view full answer...

  • Finding the Third Brake Light Wire on a 2013 GMC Sierra 2500HD for a Camper Shell
  • There may be a wire loom under the truck, above the spare tire with some tow package wires in it. If you cut back the loom often times there will be 2 additional wires. The Light Blue wire provides a lead for a camper shell brake light. The other, a Light Green wire, is for the reverse lights. To make sure you have found the correct wires, use a circuit tester like # 3808 to test the wires. If this wiring is not present, to add a third bake lamp you would need to tap into the turn...
    view full answer...

  • Left Turn Signal On 7-Way Trailer Connector is Not Working
  • It is possible that there is a blown fuse or relay related to the tow package wiring that is causing the problem. Use the vehicle owners manual to find the locations. It is also possible that there is a break in the wire somewhere. You will need to use a circuit tester like # 3808 if needed to test the wire as you work your way forward on the truck. If the right side stop light also does not work it could be a blown stop light or CHMSL fuse. If the turn signal function works on that...
    view full answer...

  • How to Determine if a 2002 Chevy Silverado 2500 HD has Factory Installed 7-Way Wiring
  • On your 2002 Chevy Silverado 2500 HD, you will need to look above the spare tire for a round plug with a cap on it. I have included a picture below that shows what the plug looks like. If your truck has this plug, then it has the wiring for a 7-Way. To add a 7-Way trailer connector at the rear of the truck, you can use Pollak Replacement 7-Pole, RV-Style Trailer Connector Socket - Vehicle End, # PK11893. The factory harness from under the spare tire will plug into the back of this connector....
    view full answer...

  • Installing a 7-Way Trailer Connector on a 2009 Ford F-250
  • If you are looking for a replacement 7-way trailer connector for your 2009 Ford F-250, you can use either the Tow Ready Replacement Multi-Tow 7-Way and 4-Way Connector, # 74682, or the Pollack Replacement 7-way Socket, # PK11893. Keep in mind, these will only work if your truck came with a factory 7-way connector and you are simply looking for a replacement connector. If your truck only has a 4-way flat connector and you are looking to upgrade to a 7-way way connector, then I recommend...
    view full answer...


Do you have a question about this Wiring?




  • Why etrailer.com?

    At etrailer.com we guarantee:

  • Highest quality wiring for the best price.

    Our Lowest Price Pledge ensures you will never overpay for the parts you need.
  • Real product know-how.

    We make sure that the products we sell are what we say they are, and that they work the way they are supposed to work. Get real advice from a real person who has the knowledge and expertise needed to solve your problem.
  • Most detailed, accurate wiring information available.

    Because we take providing accurate product information seriously, we take our own detailed product photos, demo videos and installation videos, as well as verify measurements, instructions, and vehicle fit information.
  • Installations, made easy.

    We love helping people and have the most highly-trained customer service, hands-on experience, step by step videos and installation instructions.
  • Fast shipping.

    Your order is automatically routed to get out of our warehouse and to your door as quickly as possible. Receive free shipping on orders over $99.
  • Personalized service for life.

    We provide one-on-one, personalized service from the ordering process through the life of your product.
  • Trusted since 1946.

    We've been serving customers since our parts store first opened in 1946 and continue to be recognized by our customers, our vendors and third parties for exceptional service.
  • Returns Policy

    Satisfaction Guarantee
    Need to return an item? No problem. Please read our Returns Policy for more information.

Info for this part was:

Expert Research:
Michael L
Expert Research:
Sarah L
Video by:
Andrew K
Written by:
Tyler C
Expert Research:
Robert G
Expert Research:
Michael H
Expert Research:
Jeff D
Expert Research:
Jameson C
Test Fit:
Nicholas E
Video Edited:
Jacob T
Expert Research:
John H
Expert Research:
Adam R
Installed by:
Cole B
Expert Research:
Lori W
Expert Research:
Jeffrey L
Video Edited:
Chris R
Video by:
Zach D
Test Fit:
Brent H

At etrailer.com we provide the best information available about the products we sell. We take the quality of our information seriously so that you can get the right part the first time. Let us know if anything is missing or if you have any questions.




^
About Us
photos and videos
1,056,204

Original Photos & Videos

Produced to make sure you know what you are getting and you get exactly what you need.

installations
35,570

Installations Completed

To make sure products work and fit the way they are supposed to.

etrailer call center
2,476,511

Phone Calls & Emails Answered

1,125,924 phone calls and 1,350,587 emails to help find the right solution.

etrailer training
400+

Average Hours of Product Training

We get to know our products firsthand so experts can better help you.

etrailer service
71

Years of Quality Customer Service

Assisting our neighbors and customers, face to face at the counter.

etrailer experts
193,357

Pages of Expert Information

Created to make sure you have all the answers to your questions, from real experts.
