Fulton Boat Trailer Jack w/ 2 Wheels - Sidewind - Swivel - 12" Lift - Zinc - 1.5K
Fulton

Fulton Boat Trailer Jack w/ 2 Wheels - Sidewind - Swivel - 12" Lift - Zinc - 1.5K

Part Number: FXPD15L
In Stock
ChristmasTree SantaHat Arrives before Christmas SantaHat ChristmasTree
$156.15
Retail:$226.90
You Save: $70.75
Trailer Jack
zoom in icon
slider vertical icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

In Use/Installed

Customer Photos

Need help with installation?
Locate installers near me
Two wheels are more stable than one. Dual 6" diameter casters offer firm support on soft ground, and the wheelbase swivels 360 degrees. Zinc finish has a 600-hour salt spray rating for excellent rust and corrosion resistance. Great Prices for the best trailer jack from Fulton. Fulton Boat Trailer Jack w/ 2 Wheels - Sidewind - Swivel - 12" Lift - Zinc - 1.5K part number FXPD15L can be ordered online at etrailer.com or call 1-800-940-8924 for expert service.
  • All Info
  • Reviews (1730)
  • Q & A (0)
  • Photos

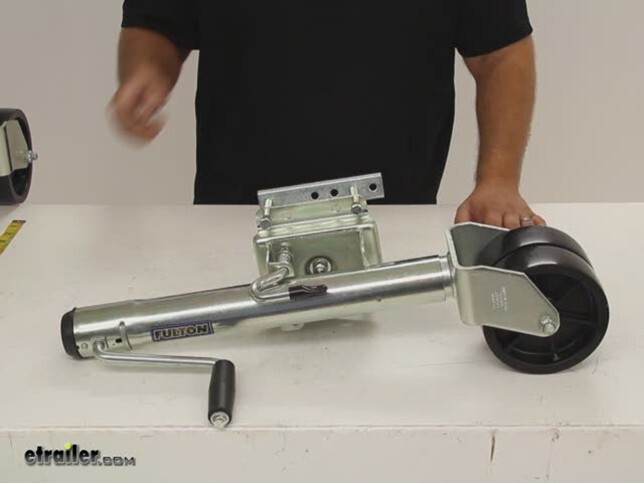

Fulton Trailer Jack - FXPD15L

  • Boat Trailer
  • Utility Trailer
  • 1001 - 2000 lbs
  • Manual Jack
  • Bolt-On
  • Side-Mount Jacks
  • Swivel Jacks
  • With Wheel
  • 12 Inch Lift
  • Fulton
  • Marine Grade

Two wheels are more stable than one. Dual 6" diameter casters offer firm support on soft ground, and the wheelbase swivels 360 degrees. Zinc finish has a 600-hour salt spray rating for excellent rust and corrosion resistance.


Features:

  • Supports, lifts, and lowers your boat or recreational trailer
  • Swings up and down smoothly
    • J-bolt handle lets you position jack quickly
  • Offers twice the stability of single-wheel jacks
    • Wheelbase turns a full 360 degrees
  • Resists rust and corrosion, even in areas with salt
    • Premium Z-Max zinc coating has a 600-hour salt spray rating
  • Lasts for years thanks to durable steel construction
  • Avoids winch posts, tool boxes or other accessories mounted on your trailer
    • Sidewind handle lets you crank jack without your hand getting smashed
  • Incorporates a grease zerk for easy maintenance
    • No need to remove and re-lubricate gears
  • Bolts around trailer frame
    • Includes mounting bracket and hardware


Specs:

  • Application: trailers frames up to 3" wide x 5" tall
  • Lift capacity: 1,500 lbs
  • Bracket height:
    • Retracted: 12-3/4"
    • Extended: 24-3/4"
  • Screw travel : 12"
  • Clearance: 12-1/2" from mounting bracket to top of jack
  • Inner tube diameter: 2"
  • Outer tube diameter: 2-1/4"
  • Pull pin diameter: 1/2"
  • Wheel diameter: 6"
  • Limited 5-year warranty


Excellent Corrosion Resistance

The simple truth is that salt can be highly corrosive to metal when exposure lasts for an extended period of time. So, the more you tow around it, the more you need to protect your trailer from it.


The Z-Max zinc finish on this jack offers great corrosion protection, even with occasional use around saltwater, to ensure that it doesn't end up looking like the one pictured above. Rust-resistant coatings are graded according to a salt spray rating. Basically, this rating shows the amount of time it takes for a material to show signs of corrosion when exposed to pure, continuous salt spray. Traditional zinc plating typically begins to deteriorate after about 100 hours. Dacromet usually lasts for around 300 to 400 hours. Fulton's Z-Max finish lasts for 600 hours in the salt spray test - 30% longer than a standard powder coat finish.


The environment this test creates is much harsher than anything you'll ever experience in your journeys, but it provides a testament to how well this jack resists rust and corrosion.


How to Determine the Lift Capacity You Need in a Jack

A trailer jack lifts your trailer high enough at the tongue to allow you to couple it with your vehicle. Usually, your tongue weight is about 10-15% of your gross trailer weight (GTW). For example, a 10,000-lb trailer has a tongue weight of 1,000 lbs to 1,500 lbs. To raise the tongue of a trailer this size, you'd need a jack that can handle a static load of no less than 1,500 lbs. And, yes, it's okay to have a jack with a weight rating that is higher than your trailer's tongue weight. In fact, a jack with a higher capacity should operate more efficiently, allowing you to spend less time cranking and more time fishing.



XPD15L 0101 Fulton Trailer Jack - Swivel - Sidewind - 12" Travel - 1,500 lbs




California residents: click here


Customer Satisfaction Score:

Ratings & Reviews

4.8

1726 reviews
5 Stars
(1492)
4 Stars
(160)
3 Stars
(33)
2 Stars
(14)
1 Star
(27)
Two wheels are more stable than one. Dual 6" diameter casters offer firm support on soft ground, and the wheelbase swivels 360 degrees. Zinc finish has a 600-hour salt spray rating for excellent rust and corrosion resistance.

by:

Good product



by:

Product was exactly what i needed.



by:



by:



by:



by:



by:



by:



by:



by:



by:



by:



by:



by:



by:



by:



by:



by:



by:



by:



by:



by:



by:



by:



by:


25
1726
Show More Reviews

See what our Experts say about this Fulton Trailer Jack

  • Dimensions for Fulton Bolt-Thru Swivel Marine Jack # FXPD15L
    I wasn't able to get a CAD drawing for the Fulton Bolt-Thru Swivel Marine Jack # FXPD15L that you referenced (manufacturer's don't typically make those available), however I did go out to our warehouse to take a few measurements on the jack. This swivel jack features an overall retracted height of right at 26 inches. From the bottom of the wheels to the center of the mounting bracket there is a length of 12 inches. It has an outer tube diameter of 2-1/4 inches and the bracket itself measures...
    view full answer...
    Image 1 for Image 2 for
  • Correct Replacement Fulton Jack and Winch Strap for Essex Vortex Boat Trailer
    I can see you have a Fulton Bolt-Thru Trailer Jack so you can replace this with the Fulton Bolt-Thru Swivel Marine Jack part # FXP10W0301 which is a direct bolt-on fit and has a 1,200 lb weight capacity. Then for the Fulton XLT1401 Winch, I recommend the Fulton Heavy-Duty Winch Strap with Hook part # FWS20HD0200 which will work great as a direct replacement strap.
    view full answer...
    Image 1 for Image 2 for
  • Jack Recommendation for Trailer Frame that is 3.5 inch by 3.5 inch
    The jack won't fit unfortunately since the max frame width it can fit is 3 inches but you could pretty easily go with a weld on jack like the Fulton # FXP10W0301.
    view full answer...
    Image 1 for
  • Trailer Jack to Avoid Tailgate Clearance Issues
    There are a few solutions for your tailgate to clear the jack on your trailer. I recommend to use a longer ball mount like # D-26, that would move the trailer back further away from the truck and give you clearance you need. If you know what size the hitch on your vehicle is, the rise or drop of the ball mount for your trailer, if you're using weight distribution or not, and the measurement from the center of the hitch pin hole to the center of the ball hole I can make the best recommendation...
    view full answer...
    Image 1 for Image 2 for
  • Mounting plate Dimensions for the Pro Series Jack # PSEJ10000101 to Mount on a LAK Sailplane Trailer
    I went out to the warehouse and pulled one of the Pro Series Snap-Ring Swivel Jacks, # PSEJ10000101, to measure for you. I added dimensions to a photo I took of the mounting plate for you to use to see if the mounting pattern will match up to your mounting plate on your LAK sailplane trailer model T-5. The overall dimensions of the mounting plate are 6-3/8 inches by 5-1/2 inches, and the bolt hole pattern is 4-3/8 inches on center for the outer most holes, 3-3/8 inches on center for the...
    view full answer...
  • A-Frame Trailer Jack with Most Ground Clearance when Retracted
    One option is to use a rack and gear jack for A-frame trailers, # BD165412. But in order to get a retracted height under 6 inches the wheel would have to come off. This is because the retracted height is 7-1/2 inches. There are other A-frame jacks to which you could add a wheel but in doing so it would extend the jack beyond the 6 inches you are looking for. The alternative is to use a swivel jack that mounts to the side of the frame such as # FXPD15L.
    view full answer...
    Image 1 for
  • Replacement Jack For Shelby 5856A Boat Trailer With 12 Inch Travel And 1500 lb Capacity
    For your Shelby 5856A boat trailer, I recommend the Fulton Bolt-Thru Swivel Marine Jack with Dual Wheels - Sidewind - 12" Lift - 1,500 lbs # FXPD15L. This jack has zinc plating for corrosion resistance and durable poly wheels. For the single wheel option, you can use the Fulton Bolt-Thru Swivel Marine Jack - Bolt On - Sidewind - 12" Lift - 1,500 lbs # FXP15L.
    view full answer...
  • Recommended Swivel Jack For Boat Trailer With 5,000 Pound Boat
    Your tongue weight is going to be 10-15% of your trailer weight. With a 5,000 lb boat and assuming a tandem axle trailer weighing an average of 1,000 lbs that puts you at 600-900 lbs of tongue weight. This would allow you to use the Fulton Bolt-Thru Swivel Marine Jack # FXP10 you were looking at. It has a lift capacity of 1,200 lbs which will be more than enough. It has a bracket height of 14-1/2" retracted, 24-1/2" extended, and a 10" lift. However, my personal recommendation would be...
    view full answer...
  • Replacement Parts for Shelby 5854A Trailer Jack
    I do have a solution for you, however replacement parts for your Shelby 5854A Trailer Jack are no longer available. I recommend simply replacing your Shelby jack with a similar unit like the Fulton Bolt-Thru Swivel Trailer Jack # FXPD15L. This zinc plated marine jack has a lift capacity of 1,500 pounds and a total lift of 12 inches. It is a bolt-on installation and the hardware is included. I have attached a short video demonstration on this product so you can get a better look at its...
    view full answer...
  • Replacement For Shelby Trailer Jack 5764A Missing Handle
    Since Shelby is no longer in business, and jack handles are not universal, what that means is there isn't a replacement handle available, so your only option is to get a brand new jack. Since the Shelby is a weld-on jack, the best option we have for a replacement is the Fulton Bolt-Thru Swivel Marine Jack - Weld On - Sidewind - 10" Lift - 1,200 lbs # FXP10W0301. You will also need Jack Mounting Bracket for Fulton Marine Jack - Weld-On # P9012-00. Of, if you have room on your trailer...
    view full answer...
  • Recommended Best Trailer Tongue Jack for Maneuvering in Tight Areas and on Gravel or Soft Terrain
    The best swivel trailer jack for gravel and soft ground is the Trailer Valet # STC-V211. The Trailer Valet jack will have dual rubber wheels unlike the Fulton Jack # FXPD15L, which has plastic wheels, thus giving it better grip and support through the rougher and softer terrain. The # STC-V211 will also allow you to maneuver more precisely than the Fulton jack, because it has an integrated drive function that makes maneuvering effortless in tight spaces. Another really neat feature the...
    view full answer...
  • Can Side Mount Jack Install on A-Frame Trailer to Replace A-Frame Jack for Better Ground Clearance
    A side mounted jack that you could pivot up and out of the way for better ground clearance would work just fine. The A-frame location is convenient but in a situation like yours you certainly could go with the side mounted style. For that something like the bolt on Fulton part # FXPD15L would work great. I attached an install video for this for you to check out as well.
    view full answer...
  • Trailer Jack for Log Splitter that is Easier to Roll Around
    A dual wheel trailer jack like the Fulton part # FXPD15L would be your best option as it has the capacity you need and since it has two wheels it would roll a little easier.
    view full answer...
  • Mounting Hole Pattern of Electric A-Frame Trailer Jack
    The 3-bolt mounting flange on the Lippert Electric A-Frame Trailer Jack # LC285318 has a standardized hole pattern. This jack is intended to mount so that the included LED light faces forward toward the tow vehicle to illuminate the coupler and hitch ball. In the specs for this jack I saw nothing mentioned about rotating it. Similar electric A-frame jacks like # JET-3755 that also has an LED light built-in use a round mounting flange that has a similar mounting hole pattern. You are correct...
    view full answer...
  • Bolt-On Side-Mount Dual Wheel Trailer Jack Recommendation for Utility Trailer
    Since you want a side-mount jack that will work on dirt/grass surfaces I suggest a dual-wheel type such as the Fulton # FXPD15L. Dual wheel will spread the weight over a larger area and help the jack function on such softer surfaces. The jack offers bolt-on installation, a hefty 1500-lb tongue weight rating, plunger-pin swivel operation and 12-inches of lift. If the surfaces are very soft or rutted you may instead prefer the Trailer Valet 5X Swivel Jack and Trailer Mover # STC-V211. This...
    view full answer...
    Image 1 for
  • Replacement Side-Frame-Mount Wheeled Jack for Triton Boat Trailer
    Triton boat trailers are usually equipped with a side-frame-mounted swivel jack like the 1500-lb-rated Fulton jack # FXPD15L, which is a bolt-on design with dual wheels. The highest-rated wheeled jacks of this type have a 1600-lb rating, like the Fulton F2 bolt-on swivel jack # F1413040134. All jacks of this type are shown on the linked page. There are also jacks like # FTJ120W0301 which install using a snap ring that connects the jack to the mounting plate welded on the trailer frame....
    view full answer...
  • Weight Capacity of 1-3/4 Inch Square Tube Axle
    We don't offer any axles or hubs that are compatible with that wheel bearing set, but a 1-3/4 inch square axle would typically carry a 1000-2000 lb capacity. If you were needing a replacement axle, I'd be happy to look through our offerings of off-the-shelf axle sizes and check if we have anything that would be compatible. I'd need to know the hub face to hub face distance and the center to center spacing of the spring seats. I'd also need to know the wheel bolt pattern.
    view full answer...
    Image 1 for
  • Replacement Crank Handle for Atwood Trailer Jack to Provide Better Tailgate Clearance
    Sometimes a substitute part like a jack handle will fit on another brand of jack but we do not test items in this way since there are so many possible combinations. I did check the dimensions of an alternate handle, part # BD500171, and found that the shaft diameter on both is 3/8-inch. This handle does have a larger radius, 9-1/2-inches instead of 6-1/2 for the # AT25526. Odds are good it will fit the jack. But if you want the sure thing just replace the A-frame jack with a side-frame-mount...
    view full answer...
  • Recommended Replacement Jack For A Shelby 5854a Jack
    When it comes to replacing your Shelby 5854a trailer jack I recommend switching to The Fulton Bolt-Thru Swivel Marine Jack with Dual Wheels - Sidewind - 12 inch Lift - 1,500 pounds # FXPD15L. This jack has a lift capacity of 1,500 pounds, and has a heavy-gauge steel construction. It has a 600-hour salt spray rating, and has a 12 inch lift. I attached a review video link below.
    view full answer...
  • Trailer Jack with Wheels to Make it Easier to Move Around a Trailer by Hand
    Standard trailer jack wheels are either plastic or metal so there isn't a rubber tire available. But we do have the Trailer Valet # STC-V211 which is both a jack and a trailer mover rated up to 500 pounds tongue. You may also be able to use mount # DL22144 which holds a spare tire but can also use that spare tire to make it a dolly. The only problem would be turning since this is a fixed position carrier. Another option is to use a different jack that has dual wheels. That would make...
    view full answer...
  • Replacement for Dutton Lainson Jack on 2008 Ranger 621 Boat Trailer
    For a replacement jack I recommend the Fulton Bolt-Thru Swivel Marine Jack # FXPD15L. This has a 1,500 lb lift capacity and the dual wheels you're looking for. The jack has a bolt-on installation and fits frames up to 3" x 5". The Z-Max 600 zinc finish gives you a 600 hour salt spray rating and it comes with a limited 5-year warranty. It also comes in black # F27CR but with a powder coat finish instead of the zinc.
    view full answer...
  • What is Best Trailer Jack to Get Around in Gravel
    A dual wheel trailer jack like the part # FXPD15L might be able to be pushed around in gravel but it's going to be challenging still as it will want to get hung up on the rocks etc. The best solution would be a Trailer Valet Jack part # STC-V211 which has rubber tires and a crank handle that can be moved on smoother gravel like what you have as we have tested it here.
    view full answer...
  • Replacement Trailer Jack With Caster for Zeiman Jet Ski Trailer
    The wheel you described was for an Atwood jack and the replacement is no longer available. With this odd size jack, we don't have any compatible replacement, so I recommend replacing your jack. If you have an A-frame trailer then I recommend the Round A-Frame Trailer Jack - Topwind - 14-3/4" Travel - 2,000 lbs # TJA-2002-B with wheel # JC-102. If you have a swivel jack, then I recommend the Fulton Bolt-Thru Swivel Trailer Jack # FXPD15L. This dual wheel jack will work well for you.
    view full answer...
  • Using Weight Distribution Hitch on Trailer with Side-Frame-Mount Jack
    In order to use a weight distribution/sway control (WD/SC) system it is necessary to have room on the trailer A-frame to mount the spring bar lift brackets and the hitch on the tow vehicle must specifically be rated for use with WD/SC systems. The hitch safety sticker will indicate if it is indeed rated for use with WD. As for the jack, it sounds like you have a side-frame-mount jack like # FXPD15L or one of the similar jacks of this type shown on the linked page. Some of these, like...
    view full answer...
