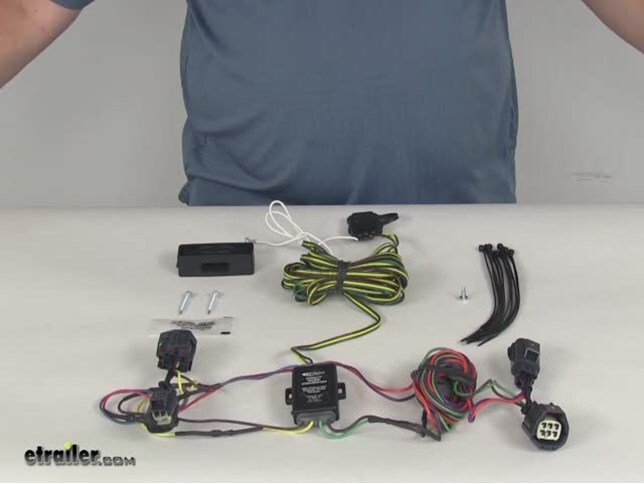

Hopkins Custom Tail Light Wiring Kit for Towed Vehicles

Hopkins Custom Tail Light Wiring Kit for Towed Vehicles

Item # HM56204
lowest price pledge
Retail:$83.94
Our Price: $56.65
You Save: 33%
Tow Bar Wiring

Will this fit?

To see if this custom-fit item will work for you please tell us what vehicle you'll use it with.

Orders above $99 qualify for Free Shipping
Shipping Weight: 1.56 lbs
Quantity:
In Stock, Ships Today
Tow Bar Wiring HM56204 - Custom - Hopkins
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

In Use/Installed

Wire your vehicle and get the signal lights required for flat towing without having to splice into your wiring with this custom, plug-in harness. Integrated diodes prevent feedback from RV for safe operation. Wires as combined lighting system. Lowest Prices for the best tow bar wiring from Hopkins. Hopkins Custom Tail Light Wiring Kit for Towed Vehicles part number HM56204 can be ordered online at etrailer.com or call 800-298-8924 for expert service.
  • All Info
  • Reviews (7)
  • Q & A (15)
  • Videos (3)
  • Photos
  • Why etrailer?

Hopkins Tow Bar Wiring - HM56204

  • Wiring Harness
  • Plugs into Vehicle Wiring
  • Hopkins
  • Custom
  • Tail Light Mount

Wire your vehicle and get the signal lights required for flat towing without having to splice into your wiring with this custom, plug-in harness. Integrated diodes prevent feedback from RV for safe operation. Wires as combined lighting system.


Features:

  • Lets you wire your vehicle to accept your RV's tail, brake, and turn signal lights for flat towing
    • Wires towed car as combined system so that brake and turn signals travel along same wire
    • Provides 4-way flat plug at front of towed car to connect to motor home
  • Plugs in quickly and easily - no cutting or splicing of wires
    • Connection points are located behind your vehicle's tail lights
  • Prevents electrical feedback to safeguard towed car's electrical system
    • Weatherproof box keeps built-in diodes protected
  • Won't interfere with electrical system when towed car is not hooked up to RV
  • Custom designed for your vehicle
  • Includes wiring harness, mounting bracket, and installation hardware
    • Extension loop for connecting towed car to RV is sold separately
    • Brake light relay (RM-88400 - sold separately) may be required if used with supplemental braking system
  • 90-Day warranty


Wiring Your Towed Car with Hopkins

Wiring your car for flat towing has never been easier. No more testing wires or splicing into your electrical system. No need to painstakingly position multiple diodes beneath your vehicle. No worries about voiding your warranty. With this custom-fit towed vehicle wiring kit from Hopkins, all you have to do is plug the harness into your vehicle's existing wiring, which is located behind your car's tail light assemblies. No cutting, tapping, or splicing is required.


After plugging in the wiring harness, use the included bracket to mount the 4-way flat connector at the front of your towed car. An extension loop (sold separately) is required to connect your towed car to your RV.


Changing from a Separate to a Combined Lighting System

Your vehicle ordinarily operates on a 3-wire system, wherein the brake signal and the turn signals travel along different wires to illuminate different lights. (Typically, this means that your vehicle will have amber turn signals.) This is referred to as a "separate lighting system." When you hook up for flat towing using this harness, however, your towed car's lighting system will operate in a combined fashion. This means that the brake and turn signals sent by your RV to your towed car will be carried on a single wire. As a result, your car's brake lights will do the flashing for the turn signals. Your vehicle will still function as designed - with separate lighting - when not hooked up to your RV.


Do You Need a Brake Light Relay?

Because this harness wires your vehicle as a combined system, a brake light relay (RM-88400 - sold separately) may be required if you use a supplemental braking system with your towing setup. A supplemental braking system depresses the brake pedal in your towed car every time you apply the brakes in your RV. So, if your towed car's brake lights illuminate when the brake pedal is pressed and the engine is off - as is the case when towing - then you need to install a relay to ensure that the lights on your towed car always act in accordance with the signals sent by your RV via the wiring harness. Without a relay, the brake signal from your towed car will override the turn signal sent by your RV when you slow down to make turns, creating a potential hazard.
