Dexstar Steel Mini Mod Trailer Wheel - 15" x 6" Rim - 5 on 4-1/2 - Black
Dexstar

Dexstar Steel Mini Mod Trailer Wheel - 15" x 6" Rim - 5 on 4-1/2 - Black

Part Number: AM20545
In Stock
$62.98
Retail:$69.86
You Save: 10%
Trailer Tires and Wheels
zoom in icon
slider vertical icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.
By submitting this form, you understand and agree to our Terms of Sale, Website Terms of Use and Privacy Policy.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

Customer Photos

This 15" x 6" steel trailer wheel has a 5 on 4-1/2 bolt pattern and a 3.19" pilot diameter. Rust resistant black powder coat finish. Great Prices for the best trailer tires and wheels from Dexstar. Dexstar Steel Mini Mod Trailer Wheel - 15" x 6" Rim - 5 on 4-1/2 - Black part number AM20545 can be ordered online at etrailer.com or call 1-800-940-8924 for expert service.
  • All Info
  • Reviews (3252)
  • Q & A (0)
  • Photos

Dexstar Trailer Tires and Wheels - AM20545

Highlights

  • Solid Load Handling: Rated for 2,200 lbs with 0 offset for steady towing under heavy loads.
  • Rust Protection That Lasts: E-coat primer and black powder coat finish resist corrosion over time.
  • Reliable Fit: 5 on 4-1/2" bolt pattern and 3.19" pilot diameter ensure secure mounting and balance.
  • Smooth Tracking: Steel modular design keeps the wheel stable and true on long hauls.
  • Easy Match-Up: Works with common trailer tire sizes like 205/75-15 and 225/75-15 for simple pairing.
  • Quick Bolt-On Confidence: Uses standard 1/2"-20 lug nuts and fits lug-centric trailer hubs effortlessly.
Made in USA

Features to know about

Built for Heavy Loads and Confident Towing: 2,200-lb Capacity with 15" x 6" Steel Construction

When you’re hauling serious weight, strength matters. The Dexstar Steel Mini Mod Trailer Wheel is rated for 2,200 lbs and built from durable steel with a sturdy modular design. Its 15" diameter and 6" width give it solid load-handling capability for a wide range of towing setups. It’s built to meet DOT standards, so you can count on dependable performance when the trailer’s loaded up and rolling down the highway.

Fights Off Corrosion for the Long Haul: Black Powder Coat with E-Coat Primer

Salt, water, and grime are no match for this wheel’s finish. Dexstar uses a 2-step coating process—an e-coat primer followed by a black powder coat—to keep rust at bay and the surface smooth over time. Even after repeated trips through wet conditions or long stretches on the road, the wheel keeps its deep black look and resists corrosion where lesser finishes would start to fail.

Straightforward, Balanced Fit: 5 on 4-1/2" Bolt Pattern with 3.19" Pilot Diameter

Getting the right fit shouldn’t take guesswork. This wheel uses the common 5 on 4-1/2" bolt pattern and a precise 3.19" pilot diameter for easy alignment on most hubs that match those specs. The zero offset helps keep load distribution even across the axle, and it’s designed for standard 1/2"-20 wheel bolts so installation is simple and consistent.

Pairs Cleanly with Popular Tire Sizes: Works with ST205/75R15, 215/75R15, and 225/75R15

The 6" wide rim accommodates several common trailer tire sizes including ST205/75R15, 215/75R15, and 225/75R15, giving you flexibility when matching new tires or spares. Whether you’re setting it up for light-duty runs or heavier cargo hauls, this makes it easy to choose reliable tires that fit snugly and perform well with the wheel’s zero-offset design.

Specs

Dimensions

  • Rim dimensions: 15" diameter x 6" wide
  • Pilot diameter: 3.19"

Bolt Pattern and Size

  • Bolt pattern: 5 on 4-1/2"
  • Wheel bolt size: 1/2"-20

Weight and Capacity

  • Capacity: 2,200 lbs

Offset

  • Offset: 0

Warranty

  • Warranty: 2-Year limited warranty
Determining Bolt Pattern

1. Count the lug holes

Look at the wheel hub or the back of the wheel and count how many lug holes there are(also called bolt holes).

Common configurations include: 4-lug, 5-lug, 6-lug and 8 lug

2a. For even lug counts (4-lug, 6-lug, 8-lug)

Measure from the center of one lug hole directly across to the center of the hole opposite it.

Center to Center
Common configurations: 4 on 4", 6 on 5.5", 8 on 6.5"

2b. For odd lug counts (5-lug)

Measure from the center of one lug hole to the outer edge of the hole directly across (not center-to-center since there's no directly opposite hole).

Center to Outside Edge
Common configurations: 5 on 4.5" (most popular), 5 on 5", 5 on 4.75", 5 on 5.5"

20545 Dexstar 15x6 Steel Modular Rim - 5 on 4.5 - Black

017-232-1T

Replaces Americana 20545DX





Customer Satisfaction Score:

Ratings & Reviews

4.8

3252 reviews
5 Stars
(2824)
4 Stars
(267)
3 Stars
(62)
2 Stars
(34)
1 Star
(65)
Review sort icon
This 15" x 6" steel trailer wheel has a 5 on 4-1/2 bolt pattern and a 3.19" pilot diameter. Rust resistant black powder coat finish.

by:

Very easy to use website!! Fast shipping. Thank You I will use you again!



by:

This is a basic trailer wheel, but, for me, the difference with etrailer is the service. Price is great on these wheels, as they are powder coated. Only complaint it the packaging. Two wheels were packed in one box each with a layer of cardboard stapled to the box. That doesn’t work. The wheels had banged against each other in both boxes. Fortunately, no damage resulted.

Paul B. profile picture

Paul B.

10/21/2022

Great wheeels. Still look good!



by:

Replaced my travel trailer wheels that bent on a pothole. These are made in the USA like my Goodyear Endurance I put on them.
Fast delivery, great service. They have a great paint finish as well. Still look nice on the camper.
I'll be ordering suspension next. Quality all the way.

Josh N. profile picture

Josh N.

4/13/2020

So I have about 2000 towing miles on this set up. This was the end of my problems. I am currently on an 1800 mile road trip from NY to NM. No issues. It is such a difference to upgrade tire, rims, and suspension. I can tow at 70mph in calm winds and not worry about it anymore. Highly recommend



by:

Great value.



by:

Exactly what I ordered. Supper fast shipping. Thanks,
y'all...

Jarell profile picture

Jarell

2/15/2025

Great Product! Great Company!

Robin H. profile picture
Etrailer Expert

Robin H.

2/16/2025

@Jarell glad to hear it. We think you're great too!


by:

I'll let the photos tell the story. Grand Design Imagine 2800bh with 4000lb leaf springs to replace the 3500lb. Goodyear Endurance E-rated tires and Moryde CRE 3000, new steel wheels. Suspension solved. You folks deliver again. Correct order within 2 days always.Thank you.



by:

Fantastic product. Finish is glossy, smooth, and durable. Was happy to find a quality, US-made product at a great price price.



by:

Etrailer came through in my search for rims! I raised my flat deck ATV trailer from 13" to 15" tires and searched for basic rims.

Etrailer was the only affordable rims I could find. I had to finagle shipping to Alaska to cut costs.

I'm not adding pictures as they are just basic black rims, but I couldn't be more pleased. Having 15" wheels & tires over those 13" wheels is a relief!

Lee B. profile picture

Lee B.

1/6/2018

Ive been very pleased with the purchase. While these were the basic black rim that went on a flatbed utility trailer, the ability to move from a 13 tire to 15 tire was why I needed. No more undependable small tires! Thank you!



by:

They worked out perfectly. They look very nice on the trailer.



by:

I really liked these wheels because they are 6” wide. Plus they look hood on my black trailer



by:

Great product great prompt delivery



by:

Exactly what we wanted for our camper. Super quick delivery! Highly recommend etrailer.com.



by:

the exact same wheel I needed for my RV trailer spare - excellent quality and fast shipping



by:

Wanted to upgrade our camper wheels by adding 1" of width over the factory 5" wheels. These wheels have perform beyond my expectations.

Daniel profile picture

Daniel

4/7/2025

Adding the extra 1” width makes the camper pull like a dream. Glad I made the decision to make this upgrade



by:

Good packing , nice rims for what we ne eded



by:

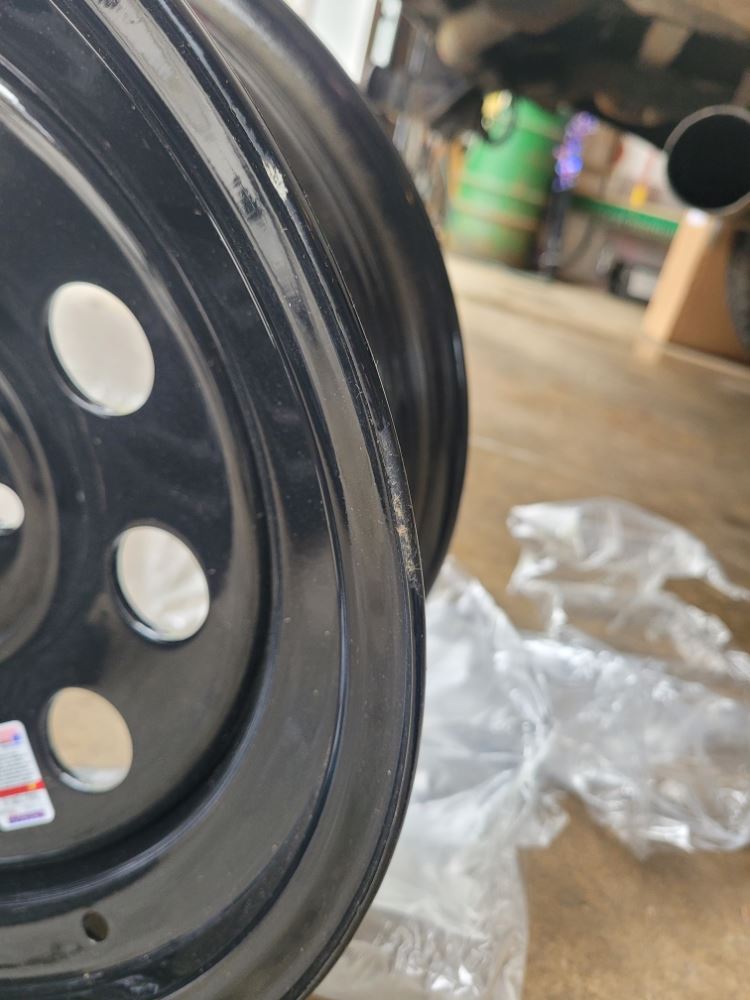

Overall they are great, however a couple of the wheels are scratched. Not a big deal for a trailer wheel. Don’t know if it was from shipping or prior to, however the boxes didn’t appear to be damaged.
