TorkLift RV Steps - TLA8106

8" Deep x 19" wide aluminum RV steps have an easy-to-use lever that lets you change between 3 height settings for proper elevation. Fine-tune height and level stairs with built-in landing gear legs. Glow tape creates a lighted step surface.

Features:

• Pull-out steps make it easy to get into or out of your trailer or RV

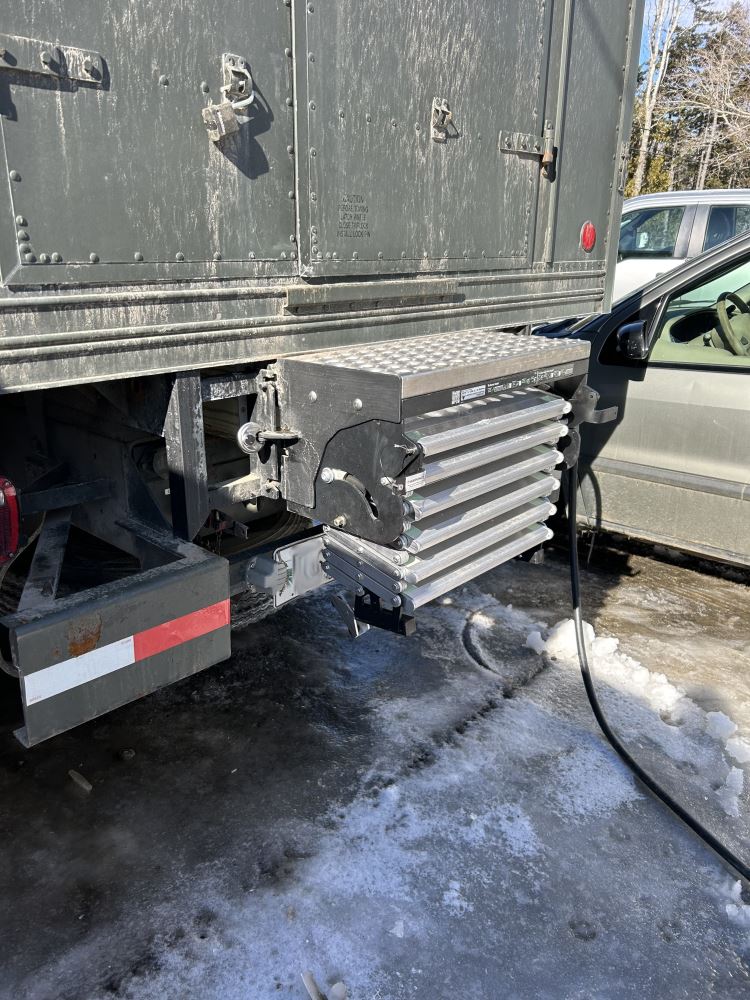

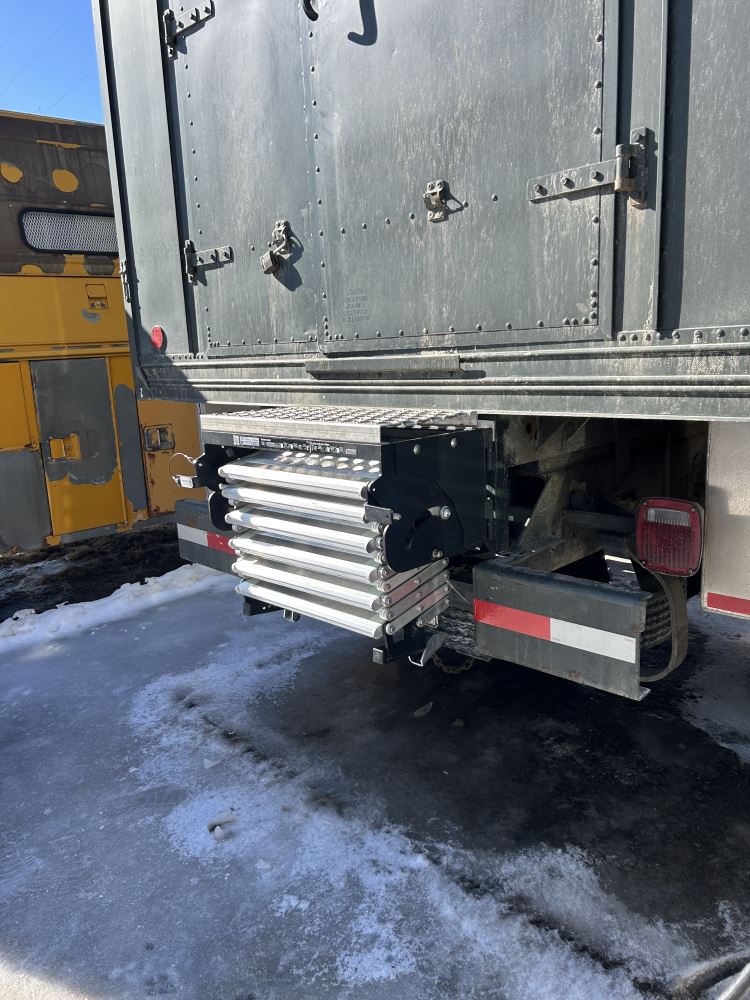

• Scissor design lets you manually collapse steps and fold them up for travel

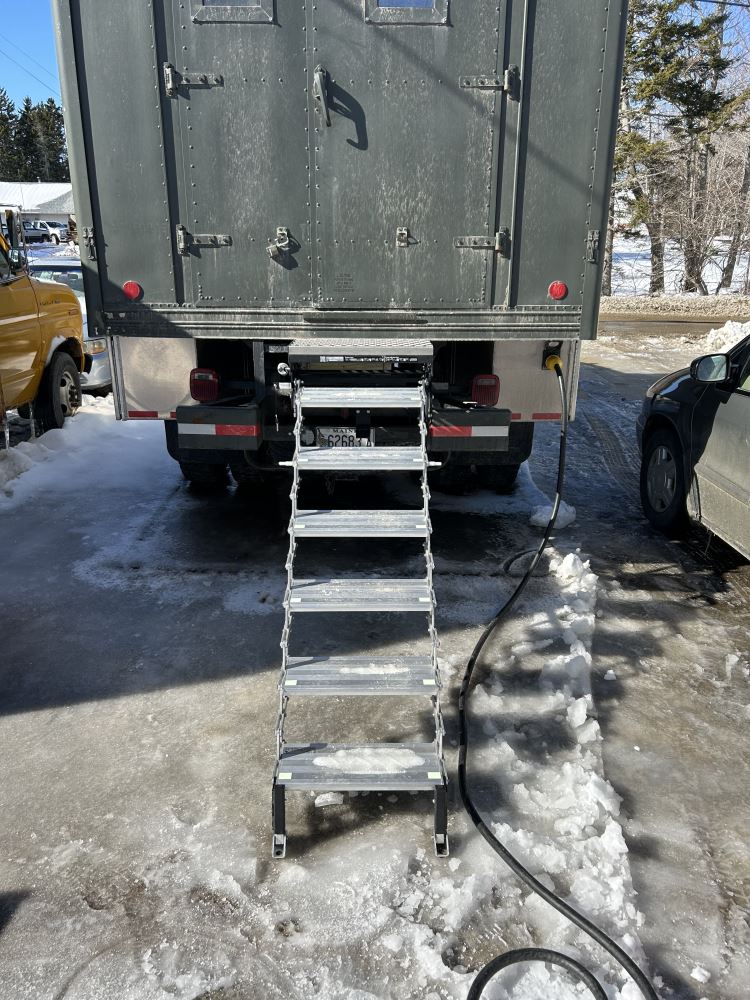

• Landing gear creates a stable connection from the bottom step to the ground
  • Adjustable legs help to stabilize stairs on uneven terrain
  • Large rectangular footplates provide level support and help prevent sinking into ground
  • No assembly required - landing gear comes pre-installed on the bottom step
• Release lever lets you quickly and easily deploy steps
  • Simply lift the lever and pull out the steps
  • Lever secures with included bail pin
• Adjustable base lets you raise or lower the steps
  • Use release lever to secure steps at high, medium, or low elevation

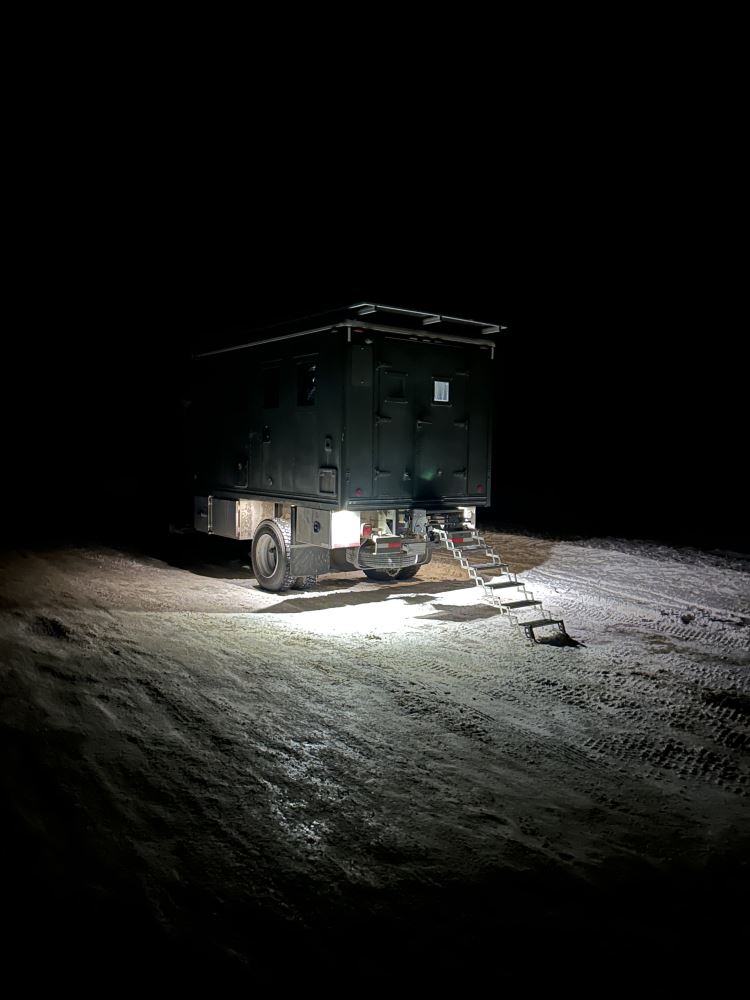

• Glow tape creates lighted step surface for safely climbing into and out of your camper at night
  • Adheres to sides of step platforms
  • Glows in the dark for up to 10 hours with only 5 minutes of light exposure
• Aircraft-grade aluminum and stainless steel construction is durable and rustproof
• Built-in SureGrip tread on step surface provides excellent footing
• Stainless steel hinges are bolted together for easy add on, removal, or replacement of individual steps
  • Bushing bearings offer smooth action and are longer-lasting that standard riveted connections
• Sturdy mounting base bolts onto your RV with included hardware
• Made in the USA

Specs:

• Entry height: 46-1/2" - 60"
• Step dimensions: 19" wide x 8" deep
• Mounting bracket dimensions: 25-1/2" wide x 13-7/8" deep
• Drop/Rise: 7-1/2"
• Weight capacity: 325 lbs
• Lifetime limited warranty

Revolutionary Stability

TorkLift's GlowStep Revolution RV steps offer the ultimate in stability and adjustability. You can adjust the stairs' height to account for any type of terrain using the easy-to-use release lever. The built-in landing gear legs let you fine-tune the height. And they can be adjusted independently of one another to stabilize the steps on uneven terrain, eliminating any wobble.

Will Torklift GlowStep Revolution Scissor Steps Work for You?

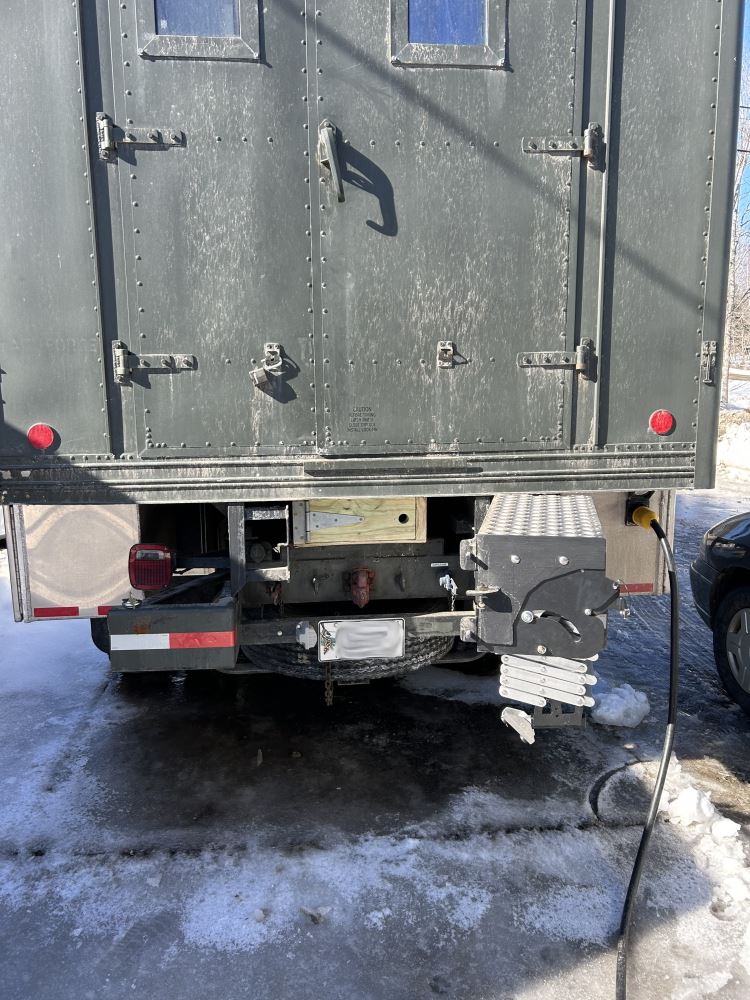

Pull-out steps are typically installed on travel trailers. The GlowStep Revolution pull-out steps from Torklift are easy to install and fold up underneath the camper for simple storage. To ensure you choose the correct size for your application, there are a few measurements you will need to take.

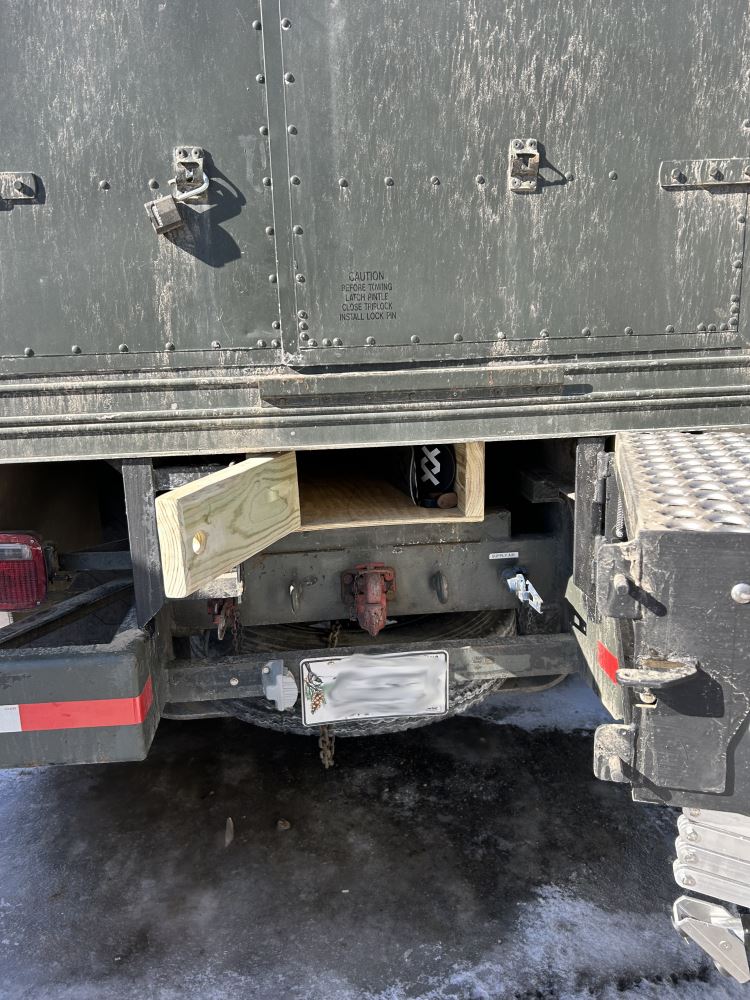

The GlowStep Revolution pull-out scissor steps attach to the underside of the camper chassis, directly beneath the doorway. To decide which size you'll need, locate the space available underneath your camper that lines up with the doorframe, and measure the width and depth. You will need a mounting space that is at least 25-1/2" wide and 13-7/8" deep.

If it turns out you have more space beneath your doorway, there are larger step assemblies available with 27-1/2" wide brackets. A full list of the available steps is below.

Outriggers - metal brackets that act as an extension (LC301704 - sold separately) - may be needed for installation depending on the model of your original stairs. These provide extra length if the old steps are longer or wider than the new.

Once you know where the mounting bracket will go and what size mounting bracket you need, that spot will be used as the "mounting point" to determine how many steps you will need.

How Many Steps Do You Need?

To determine how many steps you'll need, measure from the mounting point to the ground. This is called the entry height. The entry height should roughly match the height of the steps when they're fully extended, and it will tell you how many steps you need.

The chart below displays entry height measurement ranges in the first column. If you determined you need a 25-1/2" mounting bracket, the step part numbers with that width are in the second column. If you determined you need a 27-1/2" mounting bracket, the step part numbers with that width are in the third column. Choose the bracket size that is closest to your measurements without going over.

This page's step assembly is in bold text.

Entry Height	25-1/2" Mounting Bracket Width	27-1/2" Mounting Bracket Width
18-1/2" - 28"	TLA8102	TLA8002
25-1/2" - 36"	TLA8103	TLA8003
32-1/2" - 44"	TLA8104	TLA8004
39-1/2" - 52"	TLA8105	TLA8005
46-1/2" - 60"	TLA8106	TLA8006

How Do You Install the Steps?

To install the steps:

1. Make sure the camper is level on flat ground
2. Lift the steps into the mounting space and prop into place

   -Fully extend steps until feet touch the ground

3. If needed, mark the mounting holes on the camper and drill

   -Set aside steps before drilling

4. If needed, install the outriggers
5. Align step mounting holes and secure in place with carriage bolts and flange lock nuts

   -Make sure the bracket is backed up fully against the I-beam on the chassis

   -Hardware not included

6. Tighten hardware until snug
7. Make sure assembly is sitting square and level
8. Torque the hardware tight

GlowStep Accessories

Add any of these accessories to your Revolution scissor steps for stability, eliminating gaps, and keeping your steps and RV interior clean. The GlowGuide handrail (TLA7621 - sold separately) attaches to the outside of your RV and a bracket on the bottom of the steps. This helps to steady the assembly and adds 25 lbs to the weight capacity of the stairs. The SafeStep vinyl barrier (TLA7602 - sold separately) easily fastens with Velcro strips in between any 2 steps. This prevents you or your pets from accidentally slipping between steps. The DirtDestroyer boot brush (TLA7603 - sold separately) affixes to the bottom of the steps so you can scrape your shoes before climbing into your RV.

A8106 Tork Lift Glow Step Revolution Scissor Steps for Campers, RV, and Trailers with 25-1/2" Mounting Space - 6 Stairs w/ Landing Gear
