Replacement LED Light Module for Lippert Electric Trailer Jack

Replacement LED Light Module for Lippert Electric Trailer Jack

Item # LC226027
lowest price pledge
Our Price: $65.62
You Save: 25%
Accessories and Parts
Orders above $99 qualify for Free Shipping
Shipping Weight: 0.14 lbs
In Stock
zoom in icon
slider vertical icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

Need help with installation?
Locate installers near me
Replaces the LED light module for your Lippert electric trailer jack (LC285318). 1-833-496-1390 to order Lippert accessories and parts part number LC226027 or order online at Free expert support on all Lippert products. Guaranteed Lowest Price and Fastest Shipping for Replacement LED Light Module for Lippert Electric Trailer Jack. Accessories and Parts reviews from real customers.
  • All Info
  • Reviews (5)
  • Q & A (0)
  • Videos (1)
  • Photos
  • Why etrailer?

Lippert Accessories and Parts - LC226027

  • Camper Jacks
  • Trailer Jack
  • Lights
  • Light Module
  • Lippert

Replaces the LED light module for your Lippert electric trailer jack (LC285318).


  • Replaces the LED light module for your Lippert electric trailer jack (LC285318)
  • Quantity: 1 LED light module

226027 Replacement LED Light Module for Lippert Electric Trailer Jack

Video of Replacement LED Light Module for Lippert Electric Trailer Jack

Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.

Video Transcript for Review of Lippert Components Trailer Jack Parts - Replacement LED Light Module - LC226027

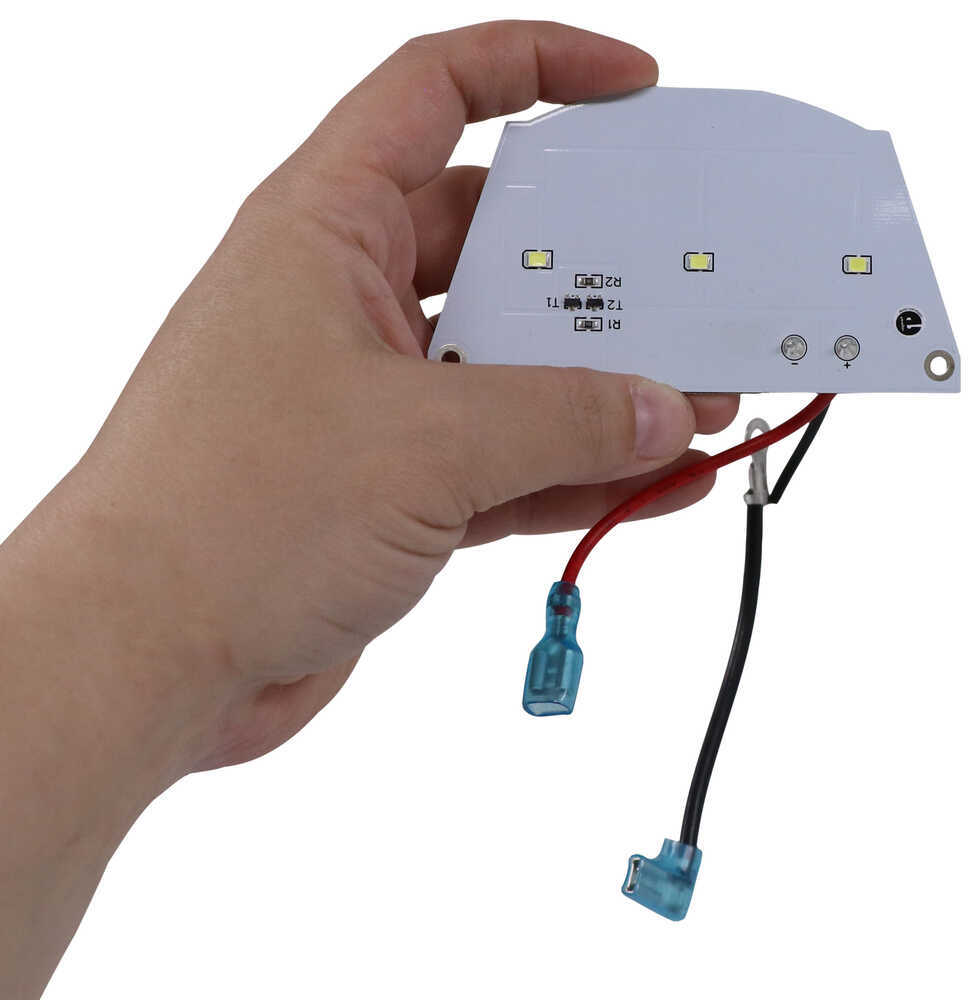

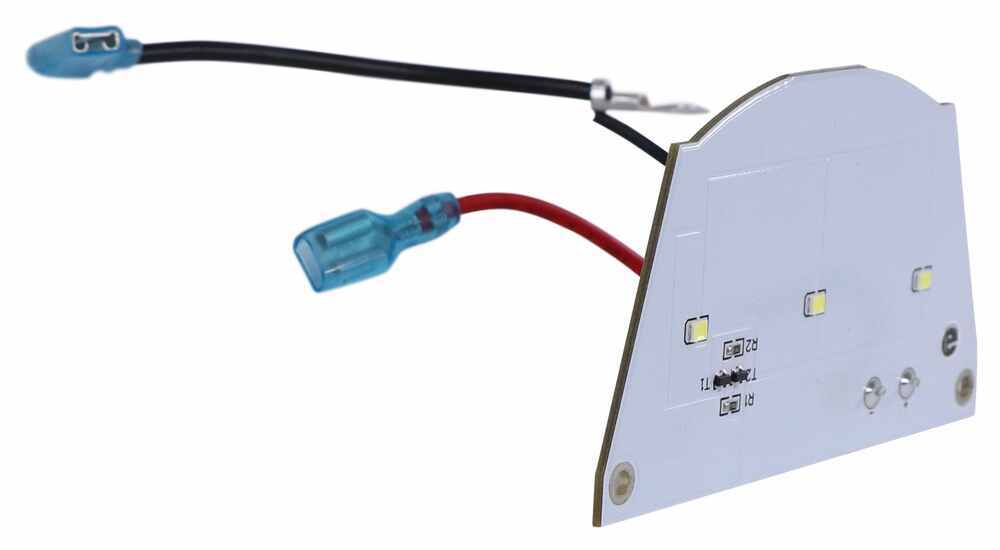

Ellen: Hey, everyone. I'm Ellen here at, and we're going to be taking a look at the replacement LED light module for your Lippert electric trailer jack. This is that light that comes out of the bottom or the underside of the head of your jack to illuminate what's going on, so whenever you're hooking up or disconnecting at night, you can still see what's going on around you. Something happened with that internal LED or maybe it's finally given up the ghost after so many years of service, this is going to be that replacement LED light board so you can still have that light to see what you're doing without getting a whole new jack system.So if everything else is working properly on your jack, it's just the light that's out, this is a good option to go with. It's going to have all the same features as your original light panel. It should fit right into that housing for the jack, and we'll have our electrical connections that should plug right into the original, so we'll have our ground connection here.

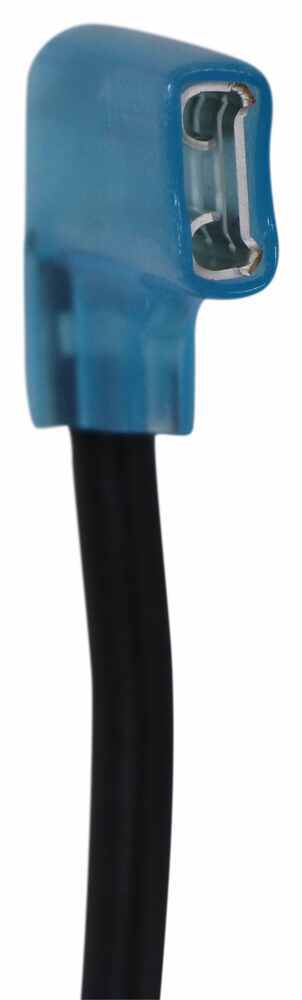

You'll have the wiring to plug in with the wiring and then a ring terminal to find a good ground stud and then our power connection. I'm going to power this guy up and take a little look at how bright the light is. So I've get my power going to the red wire and then my ground going here to the stud or to that ring terminal. And this is a little bit precarious just because I'm using these alligator clamps to power it on.But now that it's illuminated we can turn out the light in the studio to get a better idea of how bright it is. So not going to illuminate the night sky, but definitely gives you enough of a light to work off of and see what's going on in the dark.

It does not come with any hardware, so you will have to reuse the original hardware to mount it in place. There's two little holes in that panel to attach with a couple of screws, so should fit in there pretty well and get you back out and rolling. See what you're doing while you're disconnecting, you're hooking up. I hope this video has been helpful in deciding if this is the right part for you. We do have a lot of replacement parts for all kinds of stuff here at as well as a lot of other things for your towing or RV needs.

So check us out here at etrailer and thanks for watching.

Customer Reviews

Replacement LED Light Module for Lippert Electric Trailer Jack - LC226027

Average Customer Rating:  4.6 out of 5 stars   (5 Customer Reviews)

Replaces the LED light module for your Lippert electric trailer jack (LC285318).


As promised!


just what i orderd


Fast delivery and replacement LED light module is identical to original.


Was exactly as advertised, fit great and worked great, back in business!



See what our Experts say about this Lippert Accessories and Parts

  • How to Install Replacement LED Light on Lippert Electric Tongue Jack LC285318
    If the original LED courtesy light on your Lippert Electric Trailer Jack # LC285318 is damaged or defective, you can replace it with the Replacement LED Light Module # LC226027. To replace it, you would basically remove the fuse, remove the top cover, disconnect the black wire, disconnect both switch wires, replace the LED light plate (module) and reassemble. I have included all the detailed steps in the attached photo, directly from the Lippert Service Manual.
    view full answer...
    Image 1 for Image 2 for
  • Lippert Power Tongue Jack Will Not Retract & Light Doesnt Work
    If your Lippert Electric Trailer Jack # LC285318 won't retract, there are a couple issues, and you are on point with the ground being a potential problem, so that's definitely where I would start. It is also not likely the switch since you mentioned the motor is good and it is getting power but you can remove it and try to clean the contacts. As for the light, since it is not working, you can open the jack and see if there is any loose wiring or connections, which is the most likely scenario...
    view full answer...
  • Troubleshooting Light And Motor Of Lipper Trailer Jack LC285318 Not Working After Tailgate Hit Jack
    First things first I would remove the top cover of your Lippert Electric Trailer Jack with Footplate - A-Frame - 18" Lift - 3,500 lbs - Black # LC285318 by removing 4 screws and verifying that when the tailgate hit the jack it did not loosen the connections to the switches and light. While the cover is off go ahead and check for any damaged components or loose wiring that needs to be reattached. I would closely examine the on/off switch and its wiring as that would explain why you have...
    view full answer...
  • Troubleshooting LED Light on Lippert Power Tongue Jack LC285318
    I have to agree with you that it sounds like something is wrong with your Lippert powered tongue jack since the courtesy light should go off completely when the switch is in the off position. I suspect that there is trapped water inside the switch that is both maintaining a connection even when the switch is off and also preventing full power from reaching the light when it is switched on. You can try removing the cover/switch panel to allow that moisture to dissipate. This will best...
    view full answer...
    Image 1 for
  • Will Replacement Light Module for Lippert Electric Trailer Jack Work With Darker Lens
    At one point there was a replacement lens for the light on the Lippert Electric Trailer Jack # LC285318, but that part was discontinued by the manufacturer and is no longer available. If possible, try cleaning it as best you can, and unless it is completely dark, the Replacement LED Light Module for Lippert Electric Trailer Jack # LC226027 will still be effective for you. Otherwise, you do have the option of replacing your Lippert Jack # LC285318 or going to a new A-frame jack with a...
    view full answer...
