Curt MV Weight Distribution System - Round Bar - 14,000 lbs GTW, 1,400 lbs TW

Curt MV Weight Distribution System - Round Bar - 14,000 lbs GTW, 1,400 lbs TW

Item # C17057

lowest price pledge

Retail:$371.75

Our Price: $225.95

You Save: $145.80
Weight Distribution

This item qualifies for Free Shipping

Shipping Weight: 84 lbs

Quantity:
In Stock, Ships Today
C17057 - Includes Shank Curt WD Only
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.
Please enter a valid email address.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

pop out icon replay 360 icon
horizontal rotate icon

Product Images

spin image icon
C17057 - Includes Shank Curt WD Only
Curt Weight Distribution - C17057
C17057 - Electric Brake Compatible,Surge Brake Compatible Curt Weight Distribution
Curt Weight Distribution - C17057
Curt MV Weight Distribution System - Round Bar - 14,000 lbs GTW, 1,400 lbs TW 1100 lbs,1200 lbs,1300 lbs C17057
C17057 - Heavy Duty Curt Weight Distribution
Curt MV Weight Distribution System - Round Bar - 14,000 lbs GTW, 1,400 lbs TW Heavy Duty C17057
Curt WD Only - C17057

Videos


  • WD Only
  • 1100 lbs
  • 1200 lbs
  • 1300 lbs
  • Curt
  • Fits 2 Inch Hitch
  • Includes Shank
  • Electric Brake Compatible
  • Surge Brake Compatible
  • Heavy Duty
This weight distribution system will help to evenly distribute the load over the axles of both your tow vehicle and trailer for a smooth, controlled ride. Includes round, forged steel spring bars and an adjustable shank. Hitch ball sold separately. Lowest Prices for the best weight distribution from Curt. Curt MV Weight Distribution System - Round Bar - 14,000 lbs GTW, 1,400 lbs TW part number C17057 can be ordered online at etrailer.com or call 800-298-8924 for expert service.


  • All Info
  • Reviews (30)
  • Q & A (23)
  • Videos (1)
  • Photos
  • Why etrailer?

Curt Weight Distribution - C17057

This weight distribution system will help to evenly distribute the load over the axles of both your tow vehicle and trailer for a smooth, controlled ride. Includes round, forged steel spring bars and an adjustable shank. Hitch ball sold separately.


Features:

  • Evenly distributes weight over axles of tow vehicle and trailer for improved stability and control
    • Creates a more level ride for both tow vehicle and trailer
  • Round spring bars are constructed of solid, forged steel for strength and durability
  • Adjustable spring bar tension - just switch links in lift chains to fine-tune
  • Desired tilt is achieved with traditional washer design
    • Add or remove washers from spacer rivet to tilt head up or down
  • Grease zerks in the head assembly make for simple maintenance
  • Powder coated steel resists corrosion
  • Snap-up lever eases hookup by reducing lifting required by trailer jack
  • System includes head assembly, adjustable shank, spring bars, lift brackets and chains, snap-up handle, pin and clip, and all necessary hardware
    • Hitch ball sold separately - requires 1-1/4" diameter shank


Specs:

  • Tongue weight: 1,000 lbs - 1,400 lbs
  • Maximum gross towing weight: 14,000 lbs
  • Application: 2" x 2" trailer hitch receivers rated for use with weight distribution systems
  • Maximum rise: 7"
  • Maximum drop: 2-1/2"
  • 1-Year limited warranty


Included w/ SystemRequired - Sold SeparatelyOptional Add-Ons
  • Adjustable Shank
  • System Head
  • Lift Brackets
  • Spring Bars
  • Lift Bar
  • Hitch Pin and Clip
  • Hitch Ball w/ 1-1/4" Diameter Shank
  • Bar-Style Friction Sway Control

Weight Distribution Diagram

Create a more stable ride for your tow vehicle and trailer with a weight distribution hitch. Adding spring bars to your towing system applies leverage, which transfers the load that is pushing down on the rear of your vehicle to all the axles on both your tow vehicle and your trailer, resulting in an even distribution of weight throughout. The result is a smooth, level ride, as well as the ability to tow the maximum capacity of your hitch.


Selecting a Weight Distribution System

The tongue weight rating is the most important factor in determining which size weight distribution system you should use. If the bars of the system you choose are rated too high for your setup, they will create a rigid ride, which can result in a bouncing trailer. If, on the other hand, the bars are not rated high enough, the system will be unable to properly distribute the weight, rendering it virtually useless.


To determine the proper weight rating for a weight distribution system, you must first determine your trailer's tongue weight. Then add to that the weight of the cargo behind the rear axle of your tow vehicle. These two measurements make up the tongue weight rating for a weight distribution system.


Forged Steel Spring Bars

The round spring bars are made from forged steel, giving them a distinct advantage over typical cast steel bars. Forging is a process where thermal and mechanical energy are applied to the steel, resulting in a finished product that is more resilient to impacts and is stronger in terms of shear strength. Simply put, these spring bars do a superior job of helping to hold your trailer in line because of their added strength and durability.


Built-In Grease Zerks

Built-in grease zerk on the Curt weight distribution system head assembly

The system's head features 2 built-in grease zerks so that you can easily lubricate the spring bars without having to remove them from the head assembly. The grease zerks are located on each of the shafts that encase the spring bars. Simply use a grease gun (sold separately) to inject grease into each of the zerks.



17057 Curt MV Round Bar Weight Distribution Hitch

Alternate 17007



C17057 Installation InstructionsInstallation Details C17057 Installation instructions

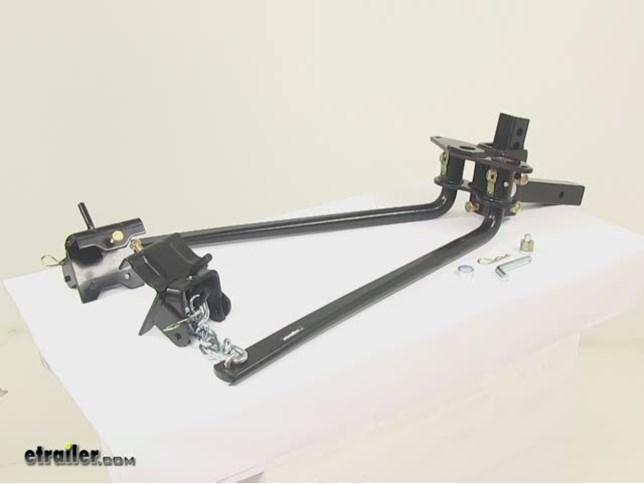

Video of Curt MV Weight Distribution System - Round Bar - 14,000 lbs GTW, 1,400 lbs TW


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Curt Weight Distribution - WD Only - C17057 Review

Today we're going to be taking a look at the Curt Roundbar Weight Distribution System. This system's going to help evenly distribute weight over the axles of the tow vehicle and the trailer. Which ultimately is going to help improve stability and control. It's going to create a more leveled ride for both the tow vehicle and the trailer. This particular unit's going to feature that round spring bars, these are constructed of solid forge steel for strength and durability. Which is going to help them do a great job at keeping the trailer in-line behind the vehicle.

When it comes to the spring bar tension that is adjustable, this is a chain system so all you have to do is switch the lengths in the lift chains. It's a fine tune detention, and then the head of the unit is this portion right here. This can be tilted to achieve proper tilt for you application. When it comes to tilting the unit, there's going to be small hole under here. What you can do is you can install this spacer rivet. Then it's got a washer design, so if you need more tilt, or less tilt you just add or remove the included washers to get the tilt that you need for your particular setup.

Also, on the unit, here at the head, the spring bars, they go up into the head and they snap into place. They're going to be held in there pretty tight, but it does allow them to move. Now when it comes to maintenance, you're going to notice that there's a grease zerk fitting on each tube. That's simply going to allow you to attach a grease gun and pump in grease to lubricate to make sure that that's moving in there very smoothly. Maintenance is very easy with the unit with the included and pre-installed grease zerk's in the head assembly. The entire unit's made from a steel construction, it's going to have a really nice black powdered coated finish on it.

Which is going to do a great job in resisting rust and corrosion. The other thing I want to point out that it comes with, when installing these, you're going to need to get the lift brackets in place on the trailer frame. Sometimes when tension is applied, that can be difficult to do, so they include this right here. This is a snap up lever, it's going to ease hookup by reducing lifting that would be required by the trailer jack. It goes over this portion here, and that's going to help you get the unit fully in place with the tension applied to the chains.

Then also, when you're disconnecting, that can come in handy as well. That is included, that's just a snap up lever to help gain some leverage. This system are going to come with everything that you see here on table as well as some included instructions that are pretty detailed as well as owner responsibilities that are detailed in those instructions as well. It's going to include your head assembly, it does come with the adjustable shank. It can be used neither the drop or rise position. You're going to get the spring bars, the lift brackets, the chains, the snap up handle. You're going to get the pin and clip to secure it inside your hitch. You're going to get the space to rivet and the washers and you're going to get the reducer sleeve for this area right here. Now, the only thing that you'll need that's sold separately is going to be your hitch ball. This does require 1 1/4" diameter shank, unless you use the reducer sleeve. That can go in there and it reduces that down to a 1" diameter shank on the hitch ball that would be needed. That's included as well. Also I want to point out that here on the head assembly, it's got a small hole located on each side. That's for if you want to add a sway control system, so you can install it on either side of the head assembly which would allow you to install on either side of your trailer. When it comes to the tongue weight capacity for the unit, the maximum tongue weight is 14,000 pounds, but it's rated from anywhere from a 1,000 to 1,400. The maximum gross towing weight is 14,000 pounds. The unit is designed for a 2" by 2" trailer hitch receiver that is rated for use with weight distribution systems. When using this in the rise position, if you adjust the unit at the highest setting. The head assembly is going to be held on here with two large bolts, and then you're also going to have a set bolt down here that you can tightened. If you move this to the maximum rise position, all the way up, that's going to give us a maximum rise of 7". That's measuring from the top of the shank to the top of the ball platform. With the shank in the drop position at the lowest setting, it's going to give us a maximum drop of 2 1/2" doing that same measurement. A few other measurements I want to mention, right here on the left brackets, these attach to the trailer frame, its got the set bolts on here to tightened everything up. I just want you to know how much space this is going to take up along the trailer frame. These are going to give us a width of pretty close to 5". Then the opening right here, that's going to measure about 3" wide. It's also going to come with the clips right here to hold those on the up position as well. That's going to do it for today's look at the Curt Roundbar Weight Distribution System.


Customer Reviews

Curt MV Weight Distribution System - Round Bar - 14,000 lbs GTW, 1,400 lbs TW - C17057

Average Customer Rating:  5.0 out of 5 stars   (30 Customer Reviews)

This weight distribution system will help to evenly distribute the load over the axles of both your tow vehicle and trailer for a smooth, controlled ride. Includes round, forged steel spring bars and an adjustable shank. Hitch ball sold separately.

- C17057

by:


Very good quality, Great delivery time, I would recommend this product. C17057 is cheaper and the review said there was no difference. 187664



- C17057

by:


Staff was helpful in helping me select product and accessories I needed for my Installation. My trailer has a tool box where the load hangers needed to be. A different mount solved the problem. Both etrailer and load equalizer get 5 stars. I’m on their mailing list and they carry an extensive line of products, many that I was totally unaware of. This opens new possibilities for future purchases. I use my truck to tow a 14,000 GVWR trailer and needed an equalizer hitch for towing heavy loads. I pulled the trailer heavily loaded for over 2000 miles while bucking 20 to 30 mph headwinds and crosswinds. It tracked like it was on rails and strong wind gusts were hardly noticeable. etrailer also has great articles regarding towing and other products they carry. 475547



- C17057

by:


I've waited to write his review until I could comment on both etrailer's service and the hitch's performance. First the service: I couldn't believe how quickly this 100 lb. box arrived--two days! Everything was intact and nothing was missing. The customer support of these folks is just incredible. Their prices were as low as I found anywhere, and with their quality service I bought everything I needed here. Now the hitch. I bought the Curt C17057 WD hitch which has 1400# round bars, plus a pair of Husky friction sway bars for my 25 foot Airstream towed with a 2013 F-150 CrewCab. It's a really nice hitch/TT/TV combination. It controls sway really well, is virtually noise free and transfers weight appropriately, plus isn't nearly as heavy as the ProPride/Hensley hitches. I selected the Curt, in part, because it has grease zerks on the head, while some other candidates didn't. I couldn't be more satisfied! 237091


Comments

One year later, the Curt weight distribution hitch is performing perfectly.It does a good job of transferring weight to the tow vehicle, is quiet and was relatively easy to dial in exactly for my vehicle trailer combination.I coupled it with two Husky anti-sway friction bars, although I have only installed one of them because that has proven enough for my 25 foot trailer. An Eaz-Lift Husky anti-sway bar combination was suggested for me by AndyThomson of CanAm RV, but I substituted the Curt because I liked the greasezerks on the Curt. The Curt is a really well-made unit. Id buy it again,as well as the Huskys, which Ive found to be quiet and effective.

Biplaner - 03/12/2017

22804

- C17057

by:


Fast Service at a great price. Box arrived is great shape. Heavy duty parts for sure, almost 90 lbs. Did not install it yet, still building shelving in the new trailer so we have not got the final load in it to adjust the spring bars. Will get back when we get the trailer loaded. 221593


Comments

It has been a Year since putting this hitch in service, all is working perfectly. It did take an hour to set it up properly the first time for the height of my truck. You have the height and the tilt to get the spring bars the proper tension. All is good. Great Product at a great price.

Frank R - 08/24/2016

20547

- C17057

by:


I bought this to use on my Chevy 2500 HD for towing a 11,000 lbs. travel trailer with a 1300 lbs. tongue weight (dry weights). You always want to buy one rated a little higher than what you should need. I used it once so far, towing the trailer roughly 200 miles. It works perfectly keeping the trailer and truck level, just as it should. I found it very easy to assemble and use, with very clear instructions. (Hint: read completely through the instructions before you begin assembly. Bolts will not be tightened until later to allow for adjustments). 449214



- C17057

by:


For the money its a great hitch. 539985



- C17057

by:


Best hitch I've ever owned! I previously bought and used extensively a Curt 5th wheel hitch which was perfect. Both have been great performers...I tow without hitch problems or worries. 597095



- C17057

by:


Easy to assemble, complete, just add Ball. Very happy. 584486



- C17057

by:


Since we bought a new travel trailer that weighs twice as much as our old one, it occurred to me that our old weight distribution hitch might be too light. I ordered this 14,000 lb rated hitch and it truly is stout. It arrived in a couple of days, securely packed with great instructions on its use. This hitch is similar in design to our old one, except that its much heavier steel and this hitch has a height adjustment for different height trucks/trailers. The price was awesome. I really couldn't be happier. 581316



- C17057

by:


Great quality, delivered ahead of schedule and at a great price. The powder coating is done really well. Happy. 517078



- C17057

by:


Everything is as described. Fast delivery and packaged well.Will use etrailer again. Thanks 490665



- C17057

by:


Fast Delivery and Exactly as discribed, works great Thank you so much! 483237



- C17057

by:


Product looks great!!! Exactly what I needed. Unbelievably fast shipping. 479864



- C17057

by:


works awesome, use it for my 35 foot boat trailer. pulled it on a 1200 mile trip the first use and it was a world of difference when i hooked it up! Thanks! 474035



- C17057

by:


The product I received was everything I was expecting and hoping for. Amazingly I received my Curt hitch and torsion bar leveling system within 36 hours of placing the order. Very pleased with my experience. 463096



- C17057

by:


Product was packaged nicely with high quality foam used. When not in use I plan on storing in the original box. Product is exactly as pictured, good quality powder coating and nice welds. Great price and very fast shipping. 431785



- C17057

by:


Great service, quick delivery. Just what I ordered. Thought it came with a 2-5/16 ball but it didn't. Will change it from my 800lb hitch and go on with what I needed the new hitch for. 420395



- C17057

by:


Great product, fast shipping, great price... What more could you ask for? They got my business 407307



- C17057

by:


Product worked as advertised. It was easy to install and very heavy duty. I'm very pleased with the purchase. 368842



- C17057

by:


Great easy to use product. Etrailer was very helpful, i had some issues with my credit card and they jumped through hoops to help me. Shawn. B followed up with me extensively on phone and through email. Great support staff. 340652



- C17057

by:


Purchasing this product from e-trailer was very professional and pleasant. The product was shipped out in a very timely manner at a very minimal expense and arrived at my door as stated it would. The price was unbeatable for the product and is a very good quality weight distribution hitch. All parts were there with instructions how to install. I would recommend anyone looking for trailer parts to go to e-trailer for their next purchase. 287921



- C17057

by:


Great product and great price 286031



- C17057

by:


FIT AND WORK'S GREAT. 265597


Comments

Still working fine good quality for the price etrailer is about the best place to buy trailer needs

RANDAL S - 06/27/2017

25492

- C17057

by:


can not get any better than this excellent valve, fast shipment down right GREAT 264803



- C17057

by:


A good product and a good price 258537



- C17057

by:


The hitch was exactly what I needed to even out my suspension sag and help my van ride and control better 218048



- C17057

by:


All I can write about right now is the shipping, Fast and Furious at the house in no time. AAA on shipping. I have not seen it yet when I get home I will inspect everything and submit a proper review. 182791



- C17057

by:


great hitch and even better price 179789



- C17057

by:


this was the exact product I was looking for and at a reasonable price. this will distribute the load the way it should be. 175855



- C17057

by:


I'm a new user of WD hitches. So, I was a little apprehensive that I would not be able to install and set it all up. But, the instructions were clear and it ended up being no problem. 150640


30
30

Ask the Experts about this Curt Weight Distribution
Do you have a question about this Weight Distribution?


  • Distance from Hitch Ball to Chain Hanger Bracket When Installing Curt Weight Distribution
  • The inside width of the frame channels of the Curt Hangers part # C17057 that you referenced are 3-3/16 inches. The distance from the center of the hitch ball to the center of the frame hanger will be 31 inches. If either of the two dimensions I listed would pose a problem for installing the # C17057 on your trailer you have the option of using the bolt on brackets part # C17005 which will bolt to the side of the trailer frame. This will get around the problem of a trailer frame...
    view full answer...

  • Backing Trailer When Using Curt C17057 Weight Distribution System
  • The primary weight distribution scenario where you'll need to be very careful about backing the trailer is if you were using a friction sway control unit like part # 83660. Because jackknifing the trailer would damage the unit, it's recommended that a frictions sway control unit be disabled or better yet removed from the trailer while backing. Any W/D system can be damaged if you should jackknife, but the friction unit is the most susceptible. If you're not using a friction sway control...
    view full answer...

  • Difference Between the Curt Weight Distribution Systems C17007 and C17057
  • I checked with Curt and there isn't a difference between the Curt Weight Distribution systems part # C17007 and # C17057 that you referenced. Either part number will be for the same system. It's hard to say exactly what angle will cause problems for a WD when backing up, so the best recommendation I can make would be that if the trailer is being backed up mainly in a straight line you would be fine. But otherwise, I would recommend removing the spring bars.
    view full answer...

  • Best Weight Distribution System for C-Channel Trailer Frames
  • The Curt MV Weight Distribution System part # C17057 is not ideal for c-channel trailer frames. You could still use this system on your trailer but you would want to weld steel places on the frame rails where the frame brackets of the Curt MV sit. A better option for you would be to use a system that clamps around both sides of the frame like the Equal-i-zer Weight Distribution System part # EQ37140ET. The Equal-i-zer system works with trailers that have a total tongue weight (TTW)...
    view full answer...

  • Are There Grease Zerk Fittings in the Husky Towing Replacement Head for Round Bar Systems
  • My contact at Husky confirmed that there are not grease zerk fittings on the # HT31516 Husky weight distribution head. Between the two system you referenced, I recommend the Curt Weight Distribution System # C17057. The grease zerk fittings will easily allow for lubrication of the round bars to maintain the system. This weight distribution system will require a hitch ball with a 1-1/4 inch shank, like # 40038. What you've heard about using a heavier-duty system is partially true....
    view full answer...

  • Recommended Weight Distribution For 2016 Passport Trailer With 1,200-lbs Tongue Weight
  • When selecting a weight distribution system, you will want your total tongue weight to fall close to the middle of the operating range for the system you choose. The total tongue weight is the tongue weight of your trailer in its fully-loaded ready-to-tow condition added to the weight of any cargo you have behind the rear axle of your towing vehicle. When dealing with a tongue weight about 1,200 lbs I recommend using a weight distribution system along with sway control. Sway control...
    view full answer...

  • Recommended 2 Inch Ball for Curt 1,400 Pound Weight Distribution System
  • The Curt weight distribution system # C17057 includes a bushing to use a ball with a 1 inch shank. The bushing reduces the ball hole diameter down to a 1 inch opening for ball # 40038. You don't have to use the bushing though. For a 2 inch ball that does have a 1-1/4 inch shank I recommend # A-90. I have linked videos for both balls for you. Please note that the A-90 2 inch ball has a maximum capacity of 10,000 pounds gross trailer weight. And ball 40038 has a 12,000 pound capacity....
    view full answer...

  • Weight Distribution System Recommendation for Jayco Eagle with 1,290 lbs Unloaded Tongue Weight
  • The best way to pick out a weight distribution system is to base it off of the loaded tongue weight of the setup when it is loaded and ready to tow. This figure also includes the weight of any cargo behind the rear axle of the tow vehicle. I attached a help article on determining tongue weight for you to check out as well. You will want the loaded tongue weight of your setup to fall right in the middle of the tongue weight range of the system you use. Since your tongue weight unloaded...
    view full answer...

  • Weight Distribution Recommendation for Tow Hauler with Tongue Weights from 500 to 1,500 Pounds
  • Since the tongue weight of your trailer will vary from around 500 pounds up to 1,500 pounds I recommend getting one system and an additional set of spring bars so that you can cover that whole range. There isn't a system that covers that whole range with just one set of spring bars. I recommend starting with Reese Strait-Line system # RP66083 rated for 400 to 800 pounds tongue weight for when the trailer is empty and your tongue weight is around 500 pounds. Then, when the tongue weight...
    view full answer...

  • Can Curt Weight Distribution Brackets be Used with Equal-I-Zer Weight Distribution Systems
  • The Curt weight distribution brackets # C17208 are chain hanging brackets like in system # C17057. The Equal-I-zer systems do not use chains. So if additional brackets are needed you would need to use the Equal-I-zer brackets # EQ95-01-5600. If you are talking about the similar bracket set # C17508 then I cannot say that they and the Equal-I-Zer spring bars are compatible because they are not tested together making compatibility and capacity unknown. The other issue is that on the Curt...
    view full answer...

  • Comparing the Curt MV # C17057 and # C17063 WD Systems
  • The Curt MV # C17057 system and the Curt MV # C17063 system that you referenced are actually the same WD system. The only difference is that the part # C17063 comes with a 2-5/16" hitch ball and a friction sway control whereas the part # C17057 doesn't come with either option. I recommend going with part # C17063 because you will need a hitch ball anyways and the sway control will help to reduce sway that you would experience from wind and passing vehicles. Please note that the sway control...
    view full answer...

  • Rear End of 2011 Ford F-150 Still Sags Even with Weight Distribution
  • The problem that you are experiencing is a common issue with 1/2 ton trucks like your 2011 Ford F-150. The rear suspension on 1/2 ton trucks will still allow some sag even when using weight distribution. While making some adjustments to the set up of the weight distribution system might help ultimately you will likely need some rear helper springs to eliminate the sag. The helper springs don't have to be air bags. You could use Timbren Rear Suspension Enhancement System Item # TFR1504D...
    view full answer...

  • Spring Bar Length of Curt MV Weight Distribution System # C17057
  • The spring bars of the Curt MV Weight Distribution System # C17057 that you referenced are 31.67 inches in length. The lift brackets on this system should be located a minimum of 33 inches from the center of the hitch ball.
    view full answer...

  • Weight Capacity of Replacement Lift Bracket for Curt Weight Distribution Systems.
  • The replacement lift bracket, part # C17008, isn't specifically rated for a weight capacity. It's a direct replacement for Curt weight distribution systems, like the MV # C17057 which is rated for 14,000 pounds so it'll handle over 12,000 pounds. As long as you have a Curt system that uses this type of bracket it'll handle the weight capacity. If you have a different system that this isn't designed for then I don't recommend using it. Let me know which system you have and I'll see...
    view full answer...

  • Tongue Weight Capacity of Curt # C17057 Round Bar Weight Distribution System
  • The spring bars used in weight distribution systems will work over a range of tongue weights. The Curt # C17057 round bar weight distribution system has a maximum capacity of 14,000 gross trailer weight/1400 lbs tongue weight. That's the maximum, but the system is effective on trailers with tongue weights ranging from 1000 to 1400 lbs. In order to choose the correct system, you'll need to find the fully loaded and ready to tow tongue weight of your trailer. You'll also need to include...
    view full answer...

  • Curt WD Hitch Head Compatibility with Curt Spring Bars With Lesser Capacity for Different Trailer
  • The Curt MV Weight Distribution System # C17057 uses the Replacement Head for Curt MV Weight Distribution Systems # C17075. That head is compatible with the Replacement Spring Bar for Curt MV Weight Distribution System - 800 lbs TW # C17072 you referenced, so you can simply change out the spring bars for your lighter trailer.
    view full answer...

  • Can a Weigh Safe Ball with Scale be Used in a Curt Weight Distribution System
  • No, you would have to use a regular ball with Curt weight distribution system # C17057. There isn't enough space for the scale part of the Weigh Safe ball to fit in the lower part of a weight distribution system head and also the ball is not designed for use with weight distribution. You could instead get a separate tongue weight scale, # 5780. For a ball that will fit the Curt system you can use # 40038 for a 2 inch or # C40030 for a 2-5/16 inch.
    view full answer...

  • Curt Weight Distribution System Recommendation for 2005 Chevy Colorado Towing Enclosed Trailer
  • The best way to pick out a weight distribution system is to base it off of the loaded tongue weight of the setup when it is loaded and ready to tow. This figure also includes the weight of any cargo behind the rear axle of the tow vehicle. I attached a help article on determining tongue weight for you to check out as well. You will want the loaded tongue weight of your setup to fall right in the middle of the tongue weight range of the system you use. The Curt part # C17057 that you...
    view full answer...


Do you have a question about this Weight Distribution?




  • Why etrailer.com?

    At etrailer.com we guarantee:

  • Highest quality weight distribution for the best price.

    Our Lowest Price Pledge ensures you will never overpay for the parts you need.
  • Real product know-how.

    We make sure that the products we sell are what we say they are, and that they work the way they are supposed to work. Get real advice from a real person who has the knowledge and expertise needed to solve your problem.
  • Most detailed, accurate weight distribution information available.

    Because we take providing accurate product information seriously, we take our own detailed product photos, demo videos and installation videos, as well as verify measurements, instructions, and vehicle fit information.
  • Installations, made easy.

    We love helping people and have the most highly-trained customer service, hands-on experience, step by step videos and installation instructions.
  • Fast shipping.

    Your order is automatically routed to get out of our warehouse and to your door as quickly as possible. Receive free shipping on orders over $99.
  • Personalized service for life.

    We provide one-on-one, personalized service from the ordering process through the life of your product.
  • Trusted since 1946.

    We've been serving customers since our parts store first opened in 1946 and continue to be recognized by our customers, our vendors and third parties for exceptional service.
  • Returns Policy

    Satisfaction Guarantee
    Need to return an item? No problem. Please read our Returns Policy for more information.

Info for this part was:

Expert Research:
Michael L
Edited by:
Lindsey S
Expert Research:
Michael H
Expert Research:
Jameson C
Installed by:
Cole B
Expert Research:
Jeffrey L
Written by:
Chelsea B
Updated by:
Sarah W

At etrailer.com we provide the best information available about the products we sell. We take the quality of our information seriously so that you can get the right part the first time. Let us know if anything is missing or if you have any questions.



Product Experts Available Now!

Call 800-298-8924


^
About Us
photos and videos
1,056,204

Original Photos & Videos

Produced to make sure you know what you are getting and you get exactly what you need.

installations
35,570

Installations Completed

To make sure products work and fit the way they are supposed to.

etrailer call center
2,476,511

Phone Calls & Emails Answered

1,125,924 phone calls and 1,350,587 emails to help find the right solution.

etrailer training
400+

Average Hours of Product Training

We get to know our products firsthand so experts can better help you.

etrailer service
73

Years of Quality Customer Service

Assisting our neighbors and customers, face to face at the counter.

etrailer experts
193,357

Pages of Expert Information

Created to make sure you have all the answers to your questions, from real experts.
