Valterra Lockable RV Gravity Fill Water Inlet

Valterra Lockable RV Gravity Fill Water Inlet

Item # A01-2002BKVP
Retail:$41.99
Our Price: $29.93
You Save: 29%
RV Water Inlets
Add to cart
In Stock
zoom in icon
slider vertical icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

Customer Photos

Videos

Need help with installation?
Locate installers near me
Gravity fill inlet lets you fill your fresh water tank. Lockable door keeps your water supply safe from tampering and protected from the elements. Includes 2 keys and an optional thumb latch for keyless closure. Great Prices for the best rv water inlets from Valterra. Valterra Lockable RV Gravity Fill Water Inlet part number A01-2002BKVP can be ordered online at etrailer.com or call 1-800-940-8924 for expert service.
  • All Info
  • Reviews (6)
  • Q & A (0)
  • Videos (1)
  • Photos

Valterra RV Water Inlets - A01-2002BKVP

  • Gravity Fill Inlet
  • 6 Inch Diameter Flange
  • Plastic
  • Black
  • Plastic
  • 4 Inch Diameter Cutout
  • 4-1/2 Inch Diameter Cutout
  • Surface Mount
  • Valterra
  • 1/2 Inch Deep

Gravity fill inlet lets you fill your fresh water tank. Lockable door keeps your water supply safe from tampering and protected from the elements. Includes 2 keys and an optional thumb latch for keyless closure.


Features:

  • Gravity fill fresh-water inlet replaces the worn out inlet on your RV
    • Opening lets you fill your fresh-water tank
  • Barbed connection works with 1-1/8" and 1-1/4" hose
  • Air vent attaches 1/2" tubing to tank so water flows out smoothly
    • Allows air to escape as you fill the fresh-water tank
  • Bayonet style cap provides a quick reliable seal
  • Lockable hatch door includes 2 keys and a keyless thumb lock
  • Black UV-stabilized plastic construction
  • Easy installation with included putty and hardware
    • Mounts flush against exterior wall


Specs:

  • Overall dimensions: 6" wide x 6-1/2" high
  • Cutout dimensions: 4" wide x 3" high
  • Interior connections:
    • Gravity fill: 1-1/8" and 1-1/4" barbed
    • Air vent: 1/2" barbed
  • 1-Year warranty


A01-2002BKVP Valterra Universal Inlet and Lockable Hatch for RVs - Black - Gravity Fill




California residents: click here


Video of Valterra Lockable RV Gravity Fill Water Inlet

Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Valterra RV Fresh Water - Water Inlets - A01-2002BKVP Review

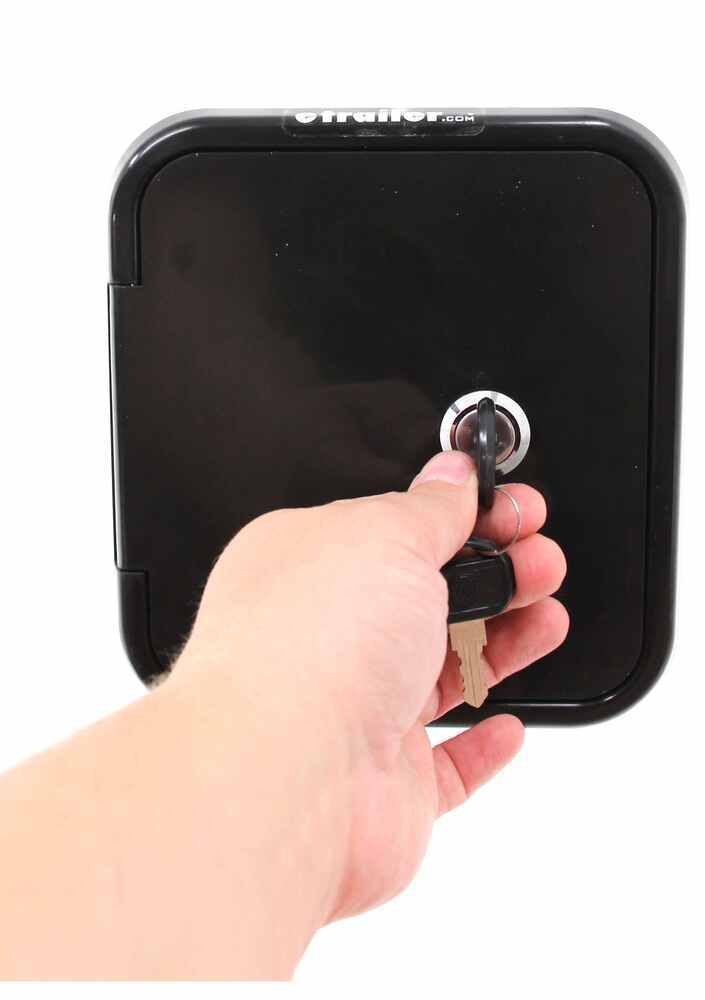

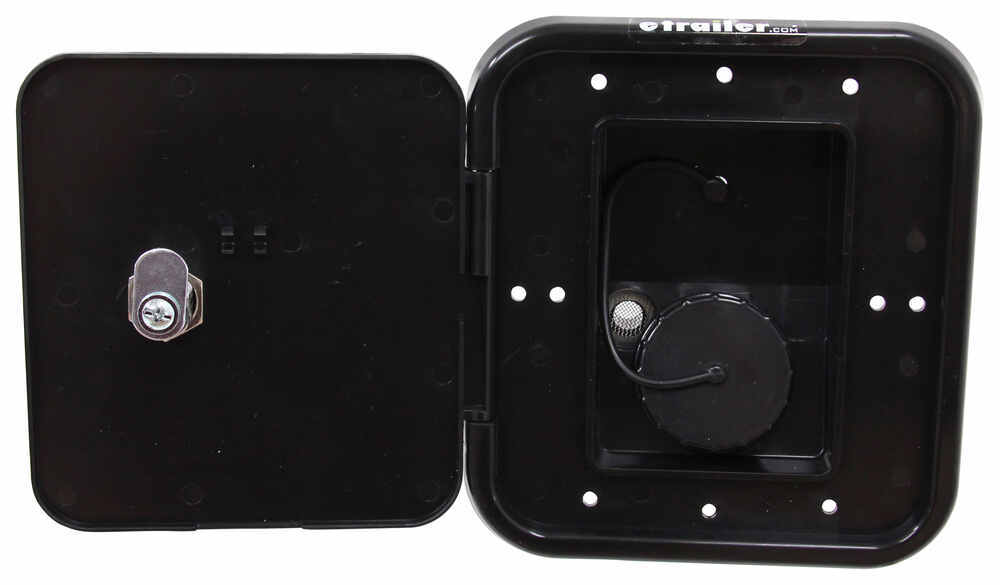

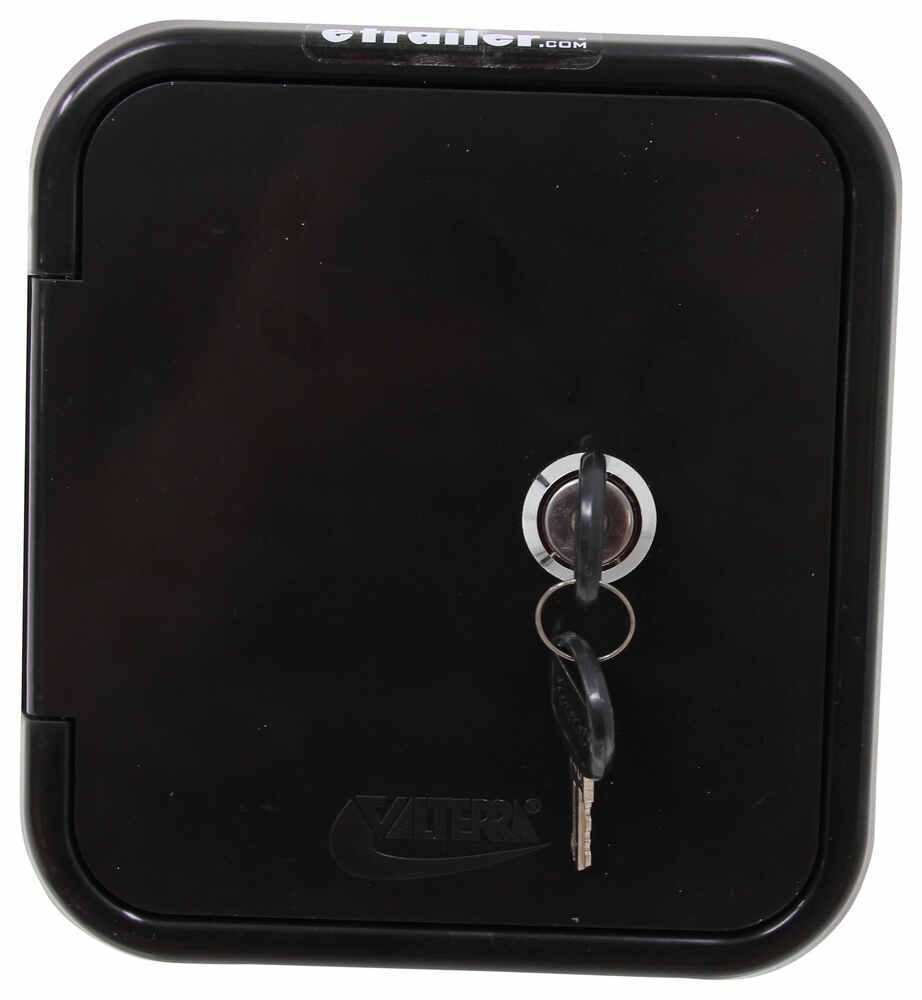

Today we're going to be taking a look at the Valterra Universal Gravity Fill Inlet and Lockable Hatch for RVs. This unit is going to allow you to add or replace the hatch for the gravity fill inlet on your RV. It is lockable. Has a lock core. It's going to come with two keyed alike keys. It's also going to come with a thumb latch mechanism that can replace the lock core if you'd rather have that option. We open it up, you'll see that on the inside this is going to be the gravity fill connection.

It's got the nice threaded caplet with a tether on there. The unit is also going to feature a small air vent. That's going to allow air to escape, which is going to keep pressure from building up inside the fresh water tank. That's going to have a wire mesh screen on there to keep unwanted items out. Taking a look at the overall dimensions real quick, measuring the width first, that's going to give us a measurement of about 6" wide. Measuring the height, we're looking at about 6-1/2" tall. Now a cutout is needed for installation.

To see if this will work for your applications, we can go over a few measurements. I'm going to go ahead and measure the actual dimensions of that raised portion. Going this direction, the exact measurement of that area is going to measure 4-5/16" tall with the width of right at 3" wide. Then we can also take a measurement, the distance that we have between our mount holes. Going up and down, we're going to measure from the closest edge of this hole to the closest edge of this mount hole.

That measurement is going to measure 4-13/16". That's going to be the same for the outer holes up and down. Now the center holes are set a little bit higher than the outer holes. The closest edge to closest edge of the center holes is 5". If we go side to side measuring between closest edge of this outer hole to this outer hole, that gave us a measurement of 4-1/2".

Closest edge of the inner hole to the same point on the other side is 3-1/2". Distance between these holes, closest edge to closest edge, that looks to be about 2-11/16". That would be the same here on top. If that's going to work for you or not, you can compare those measurements with what you have. If you're adding it, then you know what at least you'll need as far as the cutout goes. That's where it gets the universal fit from. It has a lot of different mount holes here on the back here. You can use a combination of the holes to get this installed on your particular application. We've got the fittings here on the back. We're going to have the plastic 1-1/4" barbed connection that connects to the RV plumbing for the gravity fill. We're going to have 1/2" air vent connection. The unit does come with your installation putty tape, and it's going to come with your mounting screws. The screw heads are painted to match the color of the hatch. It's going to come with two keyed alike keys and, again, that thumb latch mechanism. The mount holes are all going to be hidden by that main hatch door. They just go around the perimeter here of that mounting flange. The housing itself is constructed of a durable UV stabilized plastic construction. That's going to be black in color. That's going to do it for today's look at the Valterra Universal Gravity Fill Inlet and Lockable Hatch for RVs.

Customer Satisfaction Score:


Customer Reviews

Valterra Lockable RV Gravity Fill Water Inlet - A01-2002BKVP

Average Customer Rating:  4.8 out of 5 stars   (6 Customer Reviews)

Gravity fill inlet lets you fill your fresh water tank. Lockable door keeps your water supply safe from tampering and protected from the elements. Includes 2 keys and an optional thumb latch for keyless closure.

by:

Finally got it installed, had to make a few minor adjustments, the air hose was larger than the old one, the unit is a bit larger than the last so a bit of enlargement necessary. Looks great.

Laurie C.

9/2/2018

Had to install it sideways to fit the existing hole. The connections worked fine but the lock was a pain. The plastic part that holds the cap on kept getting in the way of the lock slot. Had to resort to prying off breaking the cover to fill the tank.



by:

I’m installing a water wash down system in my enclosed car trailer so I can wash my atv after a day on the trail. This is the water fill door for the system.



by:

Product arrived quickly and in good condition. It is being used on a custom project so I am not sure how it fits on applications where it is normally used, but it works great for what it is!



by:

Easy to install, works great for securing our trailer's onboard water supply.



by:

Really excited about how easy and quick ordering was and the free delivery was even fast too!
Thanks so much again for all of your help guys!!



by:


6
6

See what our Experts say about this Valterra RV Water Inlets

  • Recommended RV Water Inlets For A 2005 Exiss Horse Trailer
    Hey Lagina, If you're just looking for a water inlet then we have single (city water or potable water) or dual inlet options available. For a gravity fill water tank inlet you can use # A01-2003VP (white) or # A01-2003BKVP (black). We also offer lockable versions so others can't mess with your water inlets # A01-2002VP (white) or # A01-2002BKVP (black). For city water inlets we offer the # A01-0170LFVP (white) and # A01-0169LFVP (black) with surface mount flanges. For recessed flanges...
    view full answer...
  • Recessed and Lockable Gravity Water Fill Ports For a Camper
    We actually have a selection of recessed gravity fill ports that you can use on your camper that are lockable. I will list them for you below. Slide-Out RV Gravity Fill Inlet with Lockable Latch - Polar White # 37237525 Valterra Lockable RV Gravity Fill Water Inlet - White # A01-2002VP Valterra Lockable RV Gravity Fill Water Inlet - Black # A01-2002BKVP Valterra Lockable Dual RV Water Inlets - City Water and Gravity Fill - Plastic Valve - White # A01-2004VP Valterra Lockable Dual RV Water...
    view full answer...
  • Installed Depth of the Valterra Universal Inlet and Lockable Hatch A01-2002BKVP
    From the mounting surface all the way out the input barb of the # A01-2002BKVP measures 2-1/2 inches.
    view full answer...
