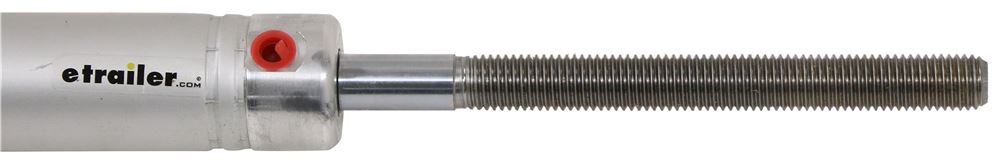

Lippert Replacement Hydraulic Cylinder for RV Slide-Out

Lippert Replacement Hydraulic Cylinder for RV Slide-Out

Item # LC339031
Retail:$327.67
Our Price: $315.32
You Save: $12.35
RV Slide Out Parts
Shipping Weight: 8 lbs
Add to cart
In Stock
zoom in icon
slider vertical icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

Need help with installation?
Locate installers near me
Replaces the hydraulic cylinder for LCI hydraulic RV slide systems. Provides force to move slide-out system. Great Prices for the best rv slide out parts from Lippert. Lippert Replacement Hydraulic Cylinder for RV Slide-Out part number LC339031 can be ordered online at etrailer.com or call 1-800-940-8924 for expert service.
  • All Info
  • Reviews (25)
  • Q & A (0)
  • Videos (1)
  • Photos

Lippert RV Slide Out Parts - LC339031

  • Cylinder
  • Cylinder Parts
  • Lippert Hydraulic Slide-Out Systems
  • Lippert

Replaces the hydraulic cylinder for LCI hydraulic RV slide systems. Provides force to move slide-out system.


Specs:

  • 39" Long
  • 24" Stroke
  • 1-1/2" Bore


Features:

  • Replaces the hydraulic cylinder for LCI hydraulic RV slide systems
  • Provides force to move slide-out system
  • Includes 1 hydraulic cylinder
  • Black color
  • Made in the USA


339031 Lippert Replacement Hydraulic Cylinder for RV Slide-Out





Video of Lippert Replacement Hydraulic Cylinder for RV Slide-Out

Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Review of Lippert Components RV Exterior - Replacement Slide-Out Hydraulic Cylinder - LC339031

Jeff: Hello, everybody. This is Jeff at etrailer.com. Today, we're going to take a look at this Lippert Replacement Hydraulic Cylinder for the RV slide outs. Now this part will replace the hydraulic cylinder on your Lippert hydraulic RV slide system. The cylinder provides the force to move your slide-out system. It is faster than electric slide out systems.

It'll cut down on the time it takes to set up your campsite and it gives you smoother room movement. It is less wiring needed to operate all the slides and this part will include this one hydraulic cylinder. You can see it is silver color and it is made in the USA.A few specs on this if we put a tape measure on it from one end to the other end. That's going to be right at 39 inches long. The amount of stroke on it is 24 inches and the bore is one and a half inches.

But that should do it for the review on the Lippert Replacement Hydraulic Cylinder for the RV slide out.

Customer Satisfaction Score:


Customer Reviews

Lippert Replacement Hydraulic Cylinder for RV Slide-Out - LC339031

Average Customer Rating:  4.8 out of 5 stars   (25 Customer Reviews)

Replaces the hydraulic cylinder for LCI hydraulic RV slide systems. Provides force to move slide-out system.

by:

The hydraulic cylinder is a direct replacement for my part. Installation was straight forward and fairly simple. Delivery to south Alabama only took three days. My only complaint is how the cylinder was packaged. It has a threaded rod on each end. One, about 3 inches long, is attached to the trailer frame and the other end is about 8 inches long and attaches to the slide out. The slide out end had heavy cardboard sleeve protecting the threads. The other end had no protection other than some loosely fitting bubble wrap stuffed in the cardboard carton. These threads were damaged and required filing before I could get a nut started. It wasn't a big deal but the shipping carton was ripped into and taped in several places. The carton end closure was destroyed by the 9 pound cylinder sliding back and forth. I was luck only having to fix a few threads.



by:

so far so good



by:

Got it installed! Works great Thanks et railer



by:

Great product. Easy install. Gave my camper new life.



by:

The e-trailer ram appears to be identical to my OEM Lippert ram and after the install the ram appears to work as designed. I would recommend this ram if you were looking for an inexpensive replacement at good quality.



by:

Exact replacement for the old cylinder which was leaking internally. Etrailer gives excellent customer service and fast shipping.

Bernie

9/3/2021

Still working great.



by:

Part was poorly packed but seems ok. I wont get a chance to install it till next weekend but assume it will work. Fast service. Was only disappointed with flimsy packing. Thank you.



by:

As a parts manager in an RV dealer some parts are not normally stocked. Normal supply channels may not be able to get the part here for 7-10 days. When this happens etrailer becomes my go to people so I can expedite getting the job completed and my customers back on the road. Always a great experience and no delay in game.



by:

my original part that was sent from a different vendor was the wrong one and I need one the next day. etrailer was awesome a little on the pricey side for the part but their shipping cost offset the price. great company to work with and I would use them again.



by:

Product looks and performs as expected. Item was shipped quickly and etrailer kept me informed about shipping status. Very happy with all around service.



by:

My part arrived this morning, three working days delivery. The part it perfectly and was easily installed following e-trailer online video. Great customer service and quick delivery. Couldn't ask for more.



by:

Perfect fit!



by:

Marcia

4/6/2022

no problems since install



by:

Jimmy G.

4/14/2022

I dont know



by:

Item arrived early and in perfect condition. Was originally going to have a mobile mechanic install but decided to do it myself. Took about an hour or so. Product fit perfect and works perfect.



by:

It was delievered on the day they said it would be. Great job!!
Thanks



by:

very good product shipped in a very speedy fashion



by:



by:

Perfect fit, easy to install. Thank you



by:



by:



by:



by:



by:



by:


25
25

See what our Experts say about this Lippert RV Slide Out Parts

  • Correct Replacement 63" Lippert Hydraulic Cylinder for RV Bed Slide-Out
    The best match we have for your hydraulic bed cradle slide-out system is the Lippert Replacement Hydraulic Cylinder for RV Slide-Out part # LC339031 which has an extended length of 63" and a retracted length of 39" which you can see from the photo below. I recommend remeasuring as this one is very close to the dimensions you provided and should be a match.
    view full answer...
    Image 1 for Image 2 for
  • How To Determine the Correct Replacement Hydraulic Cylinder On an RV Slide-Out
    In order to determine the correct Lippert Replacement Hydraulic Cylinder like part # LC339031 you need to measure the distance between your hydraulic fitting ports and note the color of the cylinder. The above Lippert Replacement Hydraulic Cylinder is designed to replace a black cylinder with hydraulic fitting ports spaced about 25-1/2" apart. If you have a different color or spacing then let me know what that is but I cannot confirm based solely on the year, make, and model of the trailer...
    view full answer...
  • Troubleshooting A Slide-Out That Creeps Out While Travelling
    I spoke with a Lippert technician and he said you'll need to do a hydraulic cylinder test to ensure you're not losing pressure. You may have a crack in one of the valves in the manifold causing this. In the attached pictures you'll see how to perform this test. If you find there is a leak you'll need to replace the defective part, if not please reply back so we can continue troubleshooting this issue. We don't currently carry any but there are slide-out lock bars that will keep the slide...
    view full answer...
    Image 1 for Image 2 for
  • How To Determine the Correct Replacement Hydraulic Cylinder On an RV Slide-Out For Any Trailer
    In order to determine if the Lippert Replacement Hydraulic Cylinder part # LC339031 is correct for your 2003 Montana Mountaineer I would need you to measure the distance between your hydraulic fitting ports and note the color of the cylinder. The above Lippert Replacement Hydraulic Cylinder is designed to replace a black cylinder with hydraulic fitting ports spaced about 25-1/2" apart. If you have a different color or spacing then let me know what that is but I cannot confirm based solely...
    view full answer...
  • How To Determine the Correct Replacement Hydraulic Cylinder On an RV Slide-Out
    In order to determine if the correct Lippert Replacement Hydraulic Cylinder like part # LC339031 you would need to measure the distance between your hydraulic fitting ports and note the color of the cylinder. The above Lippert Replacement Hydraulic Cylinder is designed to replace a black cylinder with hydraulic fitting ports spaced about 25-1/2" apart. If you have a different color or spacing then let me know what that is but I cannot confirm based solely on the year, make, and model of...
    view full answer...
  • How to Pick Out Replacement Slide Out Cylinder for Keystone RV
    In order to determine the correct Lippert Replacement Hydraulic Cylinder like part # LC339031 you need to measure the distance between your hydraulic fitting ports and note the color of the cylinder. The above Lippert Replacement Hydraulic Cylinder is designed to replace a black cylinder with hydraulic fitting ports spaced about 25-1/2" apart. If you have a different color or spacing then let me know what that is but I cannot confirm based solely on the year, make, and model of the trailer...
    view full answer...
  • Slide Out Hydraulic Cylinder for 1993 Komfort 30FS 5th wheel
    Thank you so much for all the information, it definitely helps when doing research. The correct cylinder for the slide out for your 1993 Komfort 5th wheel is Lippert Replacement Hydraulic Cylinder for RV Slide-Out # LC342328. Based off of all the measurements you gave me, this is the exact replacement part and will work great. The cylinder is sold individually, but since your other cylinder is in good shape and serviceable you can just replace the broken one. The hydraulic cylinder does...
    view full answer...
  • Which is the Correct Hydraulic Cylinder Replacement for My 2009 Keystone Challenger Fifth Wheel
    I spoke to my contact at Lippert and he told me the correct hydraulic cylinder replacement for your 2009 Keystone Challenger Fifth Wheel is the Lippert Replacement Hydraulic Cylinder for RV Slide-Out - 53" Long # LC342328.
    view full answer...
  • Replacement Cylinder for LCI Slide Out that is 39 inches In Length
    For a 39 inch replacement LCI slide out cylinder we have the part # LC339031 which is 39 inches overall, has a 24 inch stroke, and has a 1-1/2 inch bore.
    view full answer...
  • Replacement For Lippert Replacement Hydraulic Cylinder 354176
    We do have the Lippert part number 354176 for you to replace your leaking hydraulic cylinder, which is the following: - Lippert Replacement Hydraulic Cylinder for RV Slide-Out # LC354176
    view full answer...
  • Replacement Hydraulic Slide Out Cylinder For A 2005 Nu-Wa Hitchhiker II
    I spoke with Lippert and based on the dimensions you gave me the correct fit is going to be the Lippert Replacement Hydraulic Cylinder for RV Slide-Out # LC342328. The dimensions of this cylinder are slightly different than your current cylinder but Lippert stated that this is still within tolerance and that this is the most common cylinder used is typically for a living room slide. Since it's a few inches off you'll want measure the distance for your jam nuts to make sure you set this...
    view full answer...
  • Determining The Correct Hydraulic Slide-Out Cylinder For A 2017 Forest River XLR Thunderbolt
    To find the correct replacement Hydraulic Cylinder for the slide out of the 2017 Forest River XLR Thunderbolt you'll need to measure the distance from the center of the port to the center of the other port. Since you measured 32" I'm assuming you'll need the Lippert Replacement Hydraulic Cylinder for RV Slide-Out # LC42FR which has a port to port length of 31-1/2", but I highly recommend remeasuring the find the correct fit.
    view full answer...
    Image 1 for
  • Cargo Carrier for 2012 Phoenix Cruiser
    While we do not have a 64" cargo carrier, We have a really great option in a 24x60 carrier for your 2012 Phoenix Cruiser. I suggest the etrailer Cargo Carrier for 2" Hitches, # e98874. This is a hitch-mounted, basket-style cargo carrier lets you carry gear on the back of your vehicle using your 2" x 2" trailer hitch receiver.
    view full answer...
  • Replacement Slide-Out Hydraulic Cylinders for 2010 Montana Mountaineer 5th Wheel
    We do indeed offer the replacement hydraulic actuating RV slide-out cylinders you're needing. For the cylinder measuring 39.5 between the ports, use # LC342328. For the cylinder measuring 31.5 between the ports, use # LC42FR. The # LC42FR is white in color, as silver wasn't available but the cylinder can be painted if necessary.
    view full answer...
