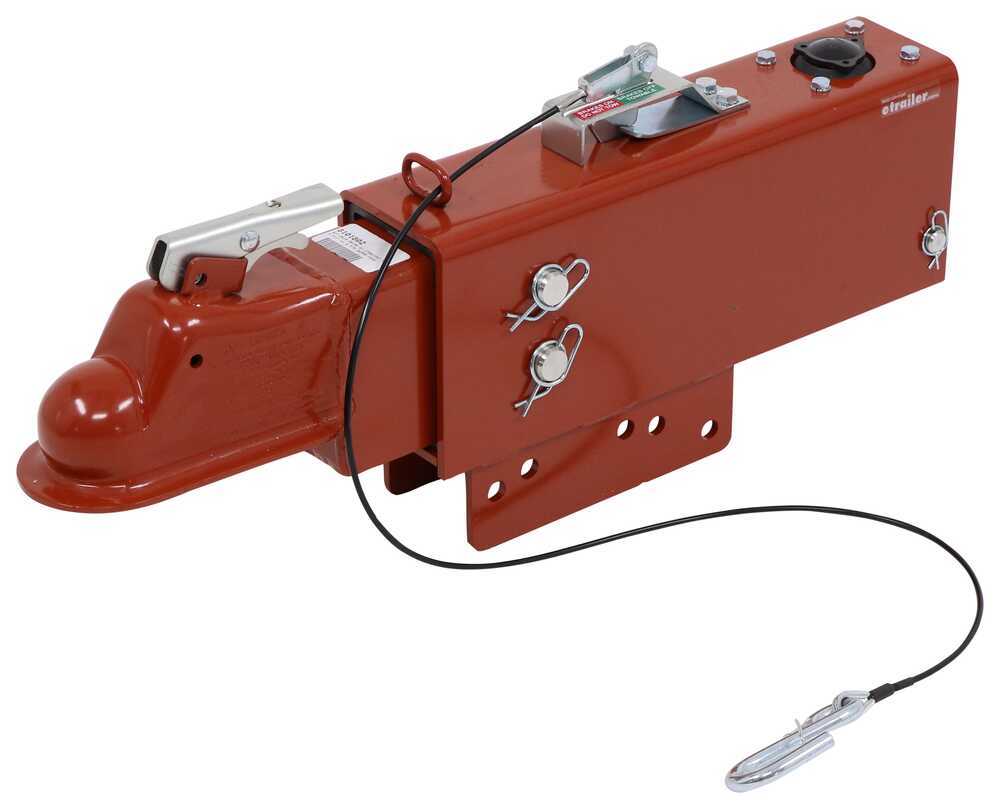

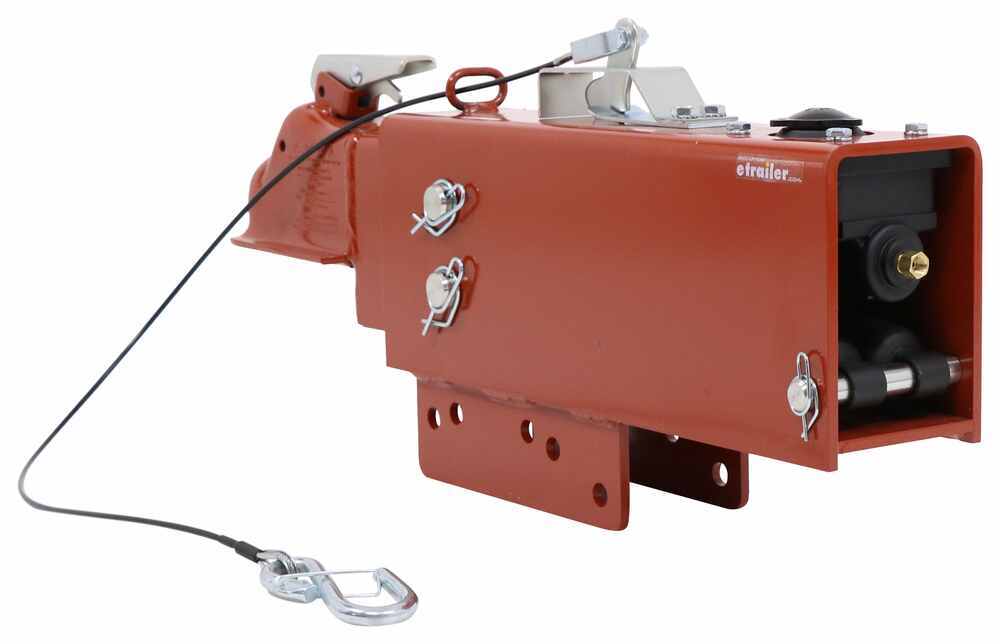

Demco Hydraulic Brake Actuator - Drum - Primed - 2-5/16" Ball - 12,500 lbs

Demco Hydraulic Brake Actuator - Drum - Primed - 2-5/16" Ball - 12,500 lbs

Item # DM8101802
Our Price: $457.34
Brake Actuator
Shipping Weight: 50 lbs
Add to cart
In Stock
zoom in icon
slider vertical icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

Need help with installation?
Locate installers near me
Surge-type actuator features a corrosion-resistant composite master cylinder and a primed finish. eZ-Latch coupler mechanism makes hookup a snap. Bolt-on or weld-on application. 1-800-940-8924 to order Demco brake actuator part number DM8101802 or order online at etrailer.com. Free expert support on all Demco products. Great prices and Fastest Shipping for Demco Hydraulic Brake Actuator - Drum - Primed - 2-5/16" Ball - 12,500 lbs. Brake Actuator reviews from real customers.
  • All Info
  • Reviews (1)
  • Q & A (0)
  • Videos (1)
  • Photos

Demco Brake Actuator - DM8101802

  • Surge Brake Actuator
  • Drum Brakes
  • 2-5/16 Inch Ball Coupler
  • 12500 lbs GTW
  • Bolt-On
  • Weld-On
  • No Lockout
  • Straight Tongue Coupler
  • Demco

Surge-type actuator features a corrosion-resistant composite master cylinder and a primed finish. eZ-Latch coupler mechanism makes hookup a snap. Bolt-on or weld-on application.


Features:

  • Hydraulic actuator activates trailer's brakes when tow vehicle slows or stops
  • eZ-Latch coupler mechanism for simple, secure hookup and disconnect
    • Lets you hook up when latch is in closed position - just drop coupler over hitch ball and latch will snap into place
  • Composite master cylinder is durable and efficient
    • Glass-reinforced nylon construction resists rust and corrosion
    • Large reservoir provides increased capacity for brake fluid
    • Automotive-style diaphragm cap creates completely enclosed system to help prevent contamination of fluid
  • Acetal copolymer lining provides smooth operation as actuator telescopes in and out
  • Breakaway included
    • Snap hook on safety cable ensures secure connection to breakaway lever
  • Heavy-duty steel construction
  • Primed finish
  • Bolt-on or weld-on installation
    • Requires 1/2" x 4-1/2" Grade-5 bolts (not included) for bolt-on mounting
  • Made in the USA


Specs:

  • Application: trailers with hydraulic drum brakes
  • Ball size: 2-5/16"
  • Gross towing weight: 12,500 lbs
  • Maximum tongue weight: 1,250 lbs
  • Mounting: straight, 3" wide trailer tongue
  • Model number: DA10
  • 1-Year warranty


Note: Because this actuator does not include a reverse lockout, it is recommended that you equip your trailer with free-backing brakes so that you can drive in reverse without the actuator triggering your trailer's brakes.


When you apply the brakes in your tow vehicle, deceleration occurs and momentum pushes your trailer toward the rear of your vehicle. With surge brake systems, the hydraulic actuator is triggered as your trailer moves forward, once your tow vehicle starts to slow down. When this happens, the actuator contracts, applying force to its master cylinder. This in turn supplies the necessary hydraulic pressure to engage your trailer's brakes.

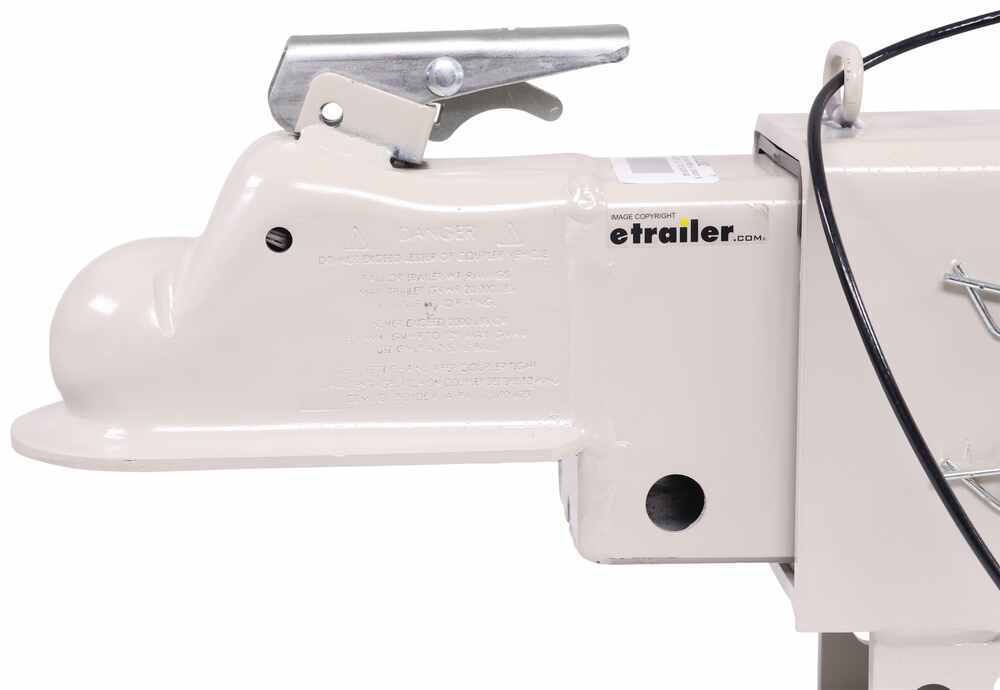

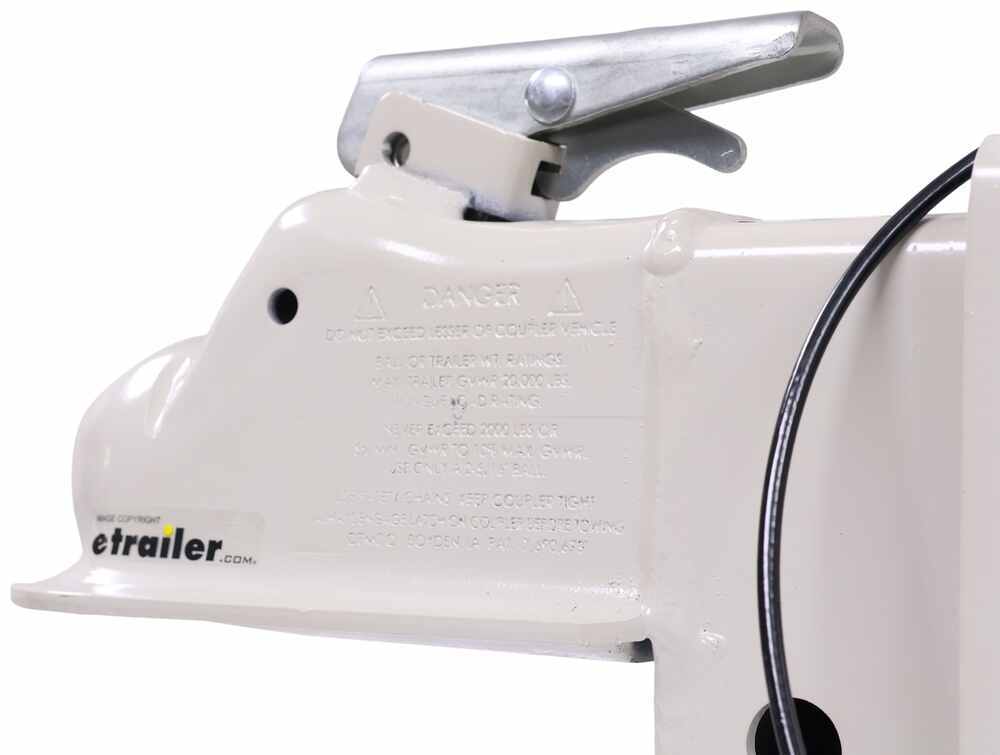

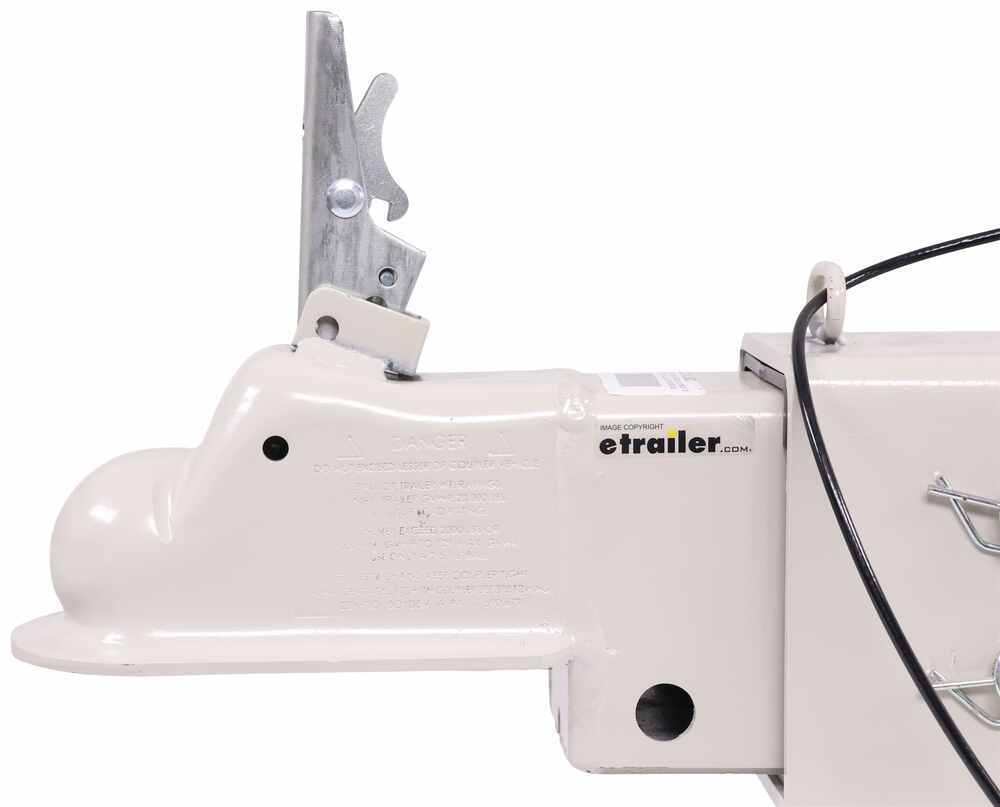

eZ-Latch Coupler

The coupler portion of this trailer brake actuator features a simple-to-use latching mechanism known as the eZ-Latch. With this mechanism, hooking up is as easy as dropping the coupler over your trailer hitch ball. The latch does not need to be tugged or manually activated to allow the ball into the coupler socket, nor does it have to be secured in place. Just make sure that the coupler is properly lined up with the ball when you lower it, and the rest is automatic.

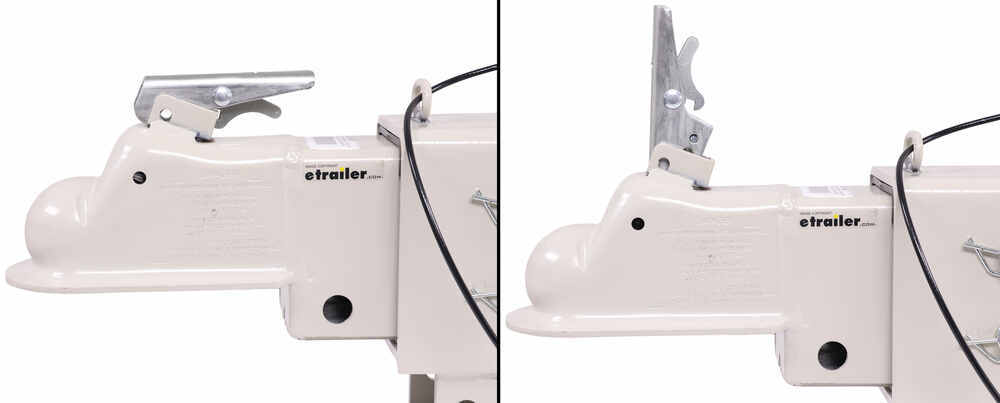

Demco eZ-Latch in Use


8101802 Demco DA10 Hydraulic Trailer Brake Actuator for Drum Brakes - 2-5/16" Ball Easy Latch Coupler - 12,500 lbs

Installation Details DM8101802 Installation instructions



Video of Demco Hydraulic Brake Actuator - Drum - Primed - 2-5/16" Ball - 12,500 lbs

Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Review of Demco Brake Actuator - Hydraulic Drum Brake Actuator 3 Inch Tongue - DM8101802

Hi everybody, Andy here with etrailer.com. And today we're gonna take a look at this Demco Hydraulic Drum Brake Actuator. Now this is a DA10 hydraulic actuator that will activate your trailer's brakes when your tow vehicle slows or stops. And as you probably know, when you apply the brakes in your tow vehicle, deceleration occurs and momentum pushes your trailer towards the rear of your vehicle. With surge brake systems, the hydraulic actuator is triggered as your trailer moves forward once your tow vehicle starts to slow down. When this happens, this actuator contracts applying force to its master cylinder.

This in turn is going to supply the necessary hydraulic pressure to engage the brakes on your trailer. Now this is a bolt-on or weld-on insulation onto your straight three-inch wide trailer tongue. And I wanted to mention that if you're bolting this on, this does require 1/2 inch by 4 1/2 inch grade five bolts for bolt-on mounting. This is made here in the USA of a heavy duty steel construction with a prime finish and a gross towing weight capacity of 12,500 pounds and a maximum tongue weight of 1,250 pounds. Now this does feature the easy latch coupler mechanism for simple secure hookup and disconnect.

You're going to be able to hook up to your 2 5/16-inch hitch ball when this latch is in the closed position. And I want to give you a brief demonstration of that. So I have my 2 5/12-inch hitch ball here. And as you can see, I have my latch in the closed position. And so, as you can see, that's going to allow you to easily latch onto your hitch ball.

So you're just going to drop the coupler over that hitch ball and it's going to snap right in place. And then to disconnect, I'm just gonna lift this latch up and that's gonna allow for easy disconnection. Now this does feature a composite master cylinder and this is durable and efficient. It's glass reinforced nylon construction is going to resist rust and corrosion. And the large reservoir is going to provide increased capacity for brake fluid.

The large automotive style diaphragm cap creates a completely enclosed system that's going to help prevent the contamination of your brake fluid. Now this has an aceto liner here, copolymer lining that's going to give you that smooth operation as this actuator telescopes in and out. And this also features a breakaway cable. And this has a snap hook to ensure a secure connection to your breakaway lever, which is right here. And this is going to hook to your tow vehicle and prevent a trailer runaway situation. So if your trailer unhooks from your tow vehicle, this cable is going to pull that that lever and activate the master cylinder to apply the brakes to keep it from a runaway situation. Now I do wanna mention that because this actuator does not include a reverse lockout, it is recommended that you equip your trailer with free backing brakes so that you can drive in reverse without this actuator triggering your trailer brakes. Well, that's gonna conclude our look today. I do hope that it was helpful for you. Again, my name is Andy. Thank you for joining me.

Customer Satisfaction Score:


Customer Reviews

Demco Hydraulic Brake Actuator - Drum - Primed - 2-5/16" Ball - 12,500 lbs - DM8101802

Average Customer Rating:  5.0 out of 5 stars   (1 Customer Reviews)

Surge-type actuator features a corrosion-resistant composite master cylinder and a primed finish. eZ-Latch coupler mechanism makes hookup a snap. Bolt-on or weld-on application.

by:


1
1

See what our Experts say about this Demco Brake Actuator

  • Demco DA10 Brake Actuator for 4" Square Trailer Tongue
    I do have a solution for you, but the Demco Hydraulic Brake Actuator # DM8101802 is made to fit the more common 3" wide trailer tongues, so the mounting bracket won't work with your 4" trailer tongue. Instead, I recommend the Demco # DM8103102. This is the same actuator you were looking at but doesn't include the mounting bracket. You will be able to weld this to your trailer frame no problem.
