Hydraulic Trailer Brake Kit - Uni-Servo - 10" - Left and Right Hand Assemblies - 3,500 lbs

Hydraulic Trailer Brake Kit - Uni-Servo - 10" - Left and Right Hand Assemblies - 3,500 lbs

Item # AKUBRK-35
lowest price pledge
Our Price: $70.18
Trailer Brakes
Orders above $99 qualify for Free Shipping
Shipping Weight: 18 lbs
Quantity:
In Stock
etrailer Trailer Brakes - AKUBRK-35
zoom in icon
slider vertical icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

Customer Photos

Need help with installation?
Locate installers near me

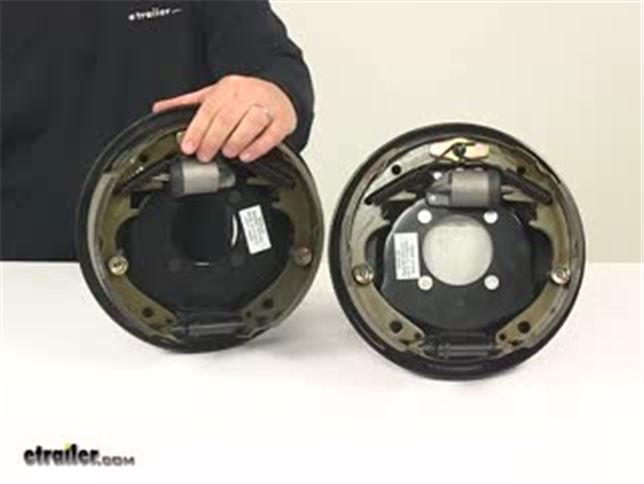

Driver's-side and passenger's-side hydraulic drum brakes feature a single-plunger design. Automotive-grade friction pads and e-coated backing plates are long-lasting. Fit 14", 14", and 15" wheels. Lowest Prices for the best trailer brakes from etrailer. Hydraulic Trailer Brake Kit - Uni-Servo - 10" - Left and Right Hand Assemblies - 3,500 lbs part number AKUBRK-35 can be ordered online at etrailer.com or call 800-298-1624 for expert service.
  • All Info
  • Reviews (109)
  • Q & A (21)
  • Photos
  • Why etrailer?

etrailer by AxleTek Trailer Brakes - AKUBRK-35

  • Hydraulic Drum Brakes
  • 3500 lbs Axle
  • 10 x 2-1/4 Inch Drum
  • 14 Inch Wheel
  • 14-1/2 Inch Wheel
  • 15 Inch Wheel
  • Single Servo
  • Brake Set
  • etrailer

Driver's-side and passenger's-side hydraulic drum brakes feature a single-plunger design. Automotive-grade friction pads and e-coated backing plates are long-lasting. Fit 14", 14", and 15" wheels.


Features:

  • Hydraulic drum brake assemblies are designed for use with a surge-type trailer brake actuator
  • Automotive-grade friction material is molded to brake shoes
    • Pads are fully bonded - not riveted - to shoes for long life and more braking torque
    • Less chance of cracking and crumbling that can lead to mechanical lockup, thanks to tapered edge and circular grinding
  • Periodic manual adjustment required
    • Fine-tooth brake adjustment gears allow for a more precise setting
  • E-coated backing plates resist wear and corrosion
  • Single plunger design
  • Adjuster plugs (included) cover access holes to keep dirt and grime out of the assemblies and off of the shoes
  • Left-hand (driver's-side) brake assembly, right-hand (passenger's-side) brake assembly, and mounting bolts included
    • Nuts and lock washers (BRKH10B) sold separately
  • QAI and CSA certified


Specs:

  • Application: most standard hub-and-drum assemblies, including Dexter, Lippert (LCI), and AL-KO
  • Dimensions: 10" diameter x 2-1/4" wide
  • Mounting flange bolt pattern: 4 bolt
  • Wheel size: 14" and 15"
  • Axle rating: 3,500 lbs
  • Limited 1-year warranty


These trailer brake assemblies act as part of your trailer's hydraulic braking system. A hydraulic trailer brake actuator is required for these brakes to function.


Thoroughly Tested for Safety

These brake assemblies meet the requirements for certification by the Canadian Standards Association (CSA). The CSA creates standards, which when complied with ensure a safe and quality product. These brake assemblies underwent extensive testing to measure stopping distances when braking. These brakes have also been tested by QAI for braking performance in a complete automotive setup and under real-world conditions to provide the most realistic scenario for the everyday driver.


Automotive-Grade Friction Material

Each shoe on these brake assemblies is lined with automotive-grade friction material for improved stopping performance and longevity. The friction material is fully bonded onto the surface of the brake shoe. This lining is custom-molded for a perfect fit. The edges are tapered to ensure long-lasting performance. This taper, along with the circular grinding that the lining undergoes, helps to prevent cracking and crumbling. This durability helps to prevent mechanical lockup, which can occur when brake shoes are excessively worn or broken.


The friction material is also SAE-N certified, which means that it is an environmentally safe product that complies with California and Washington regulations regarding the composition of brake pads. As a result, this material not only provides high-performance braking that can endure the test of time, but it is also environmentally friendly and safe for use throughout the United States and Canada.



B10H-41 AxleTek 10" X 2-1/4" LH Hydraulic Brake Assembly - Drivers Side - 3.5K Axles - E-Coat

B10H-42 AxleTek 10" X 2-1/4" RH Hydraulic Brake Assembly - Passengers Side - 3.5K Axles - E-Coat






Customer Reviews

Hydraulic Trailer Brake Kit - Uni-Servo - 10" - Left and Right Hand Assemblies - 3,500 lbs - AKUBRK-35

Average Customer Rating:  4.8 out of 5 stars   (108 Customer Reviews)

Driver's-side and passenger's-side hydraulic drum brakes feature a single-plunger design. Automotive-grade friction pads and e-coated backing plates are long-lasting. Fit 14", 14", and 15" wheels.

- AKUBRK-35
by:

Very grateful these were available, as I couldn’t locate locally. The only problem was the backing plate hardware didn’t match my Eagle boat trailer, ( my original backing plates had captivated nuts ) but very glad to have trailer brakes again Thank you, Ray Wolfbrandt Boyne city, Michigan



- AKUBRK-35
by:

This product made a huge difference on my boat trailer. The pressed studs are good and "bad" on my opinion. The set I replaced had a standard nut and bolt to attached the assembly. The studs are great, but forced me to use a wrench instead of impact to tighten the nuts on because there isnt enough clearance on my application for a socket. Installed fairly easy and there is a noticable difference in stopping ability. To be fair, the set a relaxed had no braking material and was simply metal to metal. I would def purchase again if needed. Great customer service as well. I got an email to let me know the product shipped, and something I havent experienced before, I also received an email from someone to let me know the parts were delivered!


Comments
A year later and everything is still working together very well. Thanks again for a great product!
Mike O - 07/05/2020


- AKUBRK-35
by:

The brakes I ordered and put on my 98 Nitro trailer a year ago work perfect, have no problem going off the mountain at all, would recommend them to anyone for trailer brakes.



- AKUBRK-35
by:

Speed of delivery and tracking was excellent. The product looks good. I will purchase parts through your company again.



- AKUBRK-35
by:

These brake assemblies came to Me looking great, They fit great, work Great, and best of all was the Great Price and the free shipping! 5 STAR's for this Product. Also I want to give a 5 STAR Rating for Your Customer Support, The Fast Shipping Notifications, and the After the Sale Follow up. Keep up the Great Work. Brian K.



- AKUBRK-35
by:

Was not sure if these brakes would fit my trailer so I called etrailer and told them what trailer I had and they confirmed fitment. Product arrived in a timely manner and fitment was excellent! Love that they are assembled and ready to bolt on. Great product and even great company. Thanks again!



- AKUBRK-35
by:

Received the hubs, drums bearings and bearing buddies and installed. The parts were exactly what I needed. A big thanks to Adam for all his help. Will definitely use etrailer again. Many thanks.



- AKUBRK-35
by:

I haven't had a chance to put them on yet they look ok


Comments
Awesome thanks
Samuel - 07/19/2021


- AKUBRK-35
by:

Good price. Easy to install. Works perfect. I paid for 3-day shipping, and in 3 days, it was sitting in my driveway. Thanks etrailer!



- AKUBRK-35
by:

These are the way to go easier and cheaper to install then the individual components . Pictire of old and new



- AKUBRK-35
by:

I am super happy with my replacement of the electric brakes on my camping trailer with this Electric Over Hydraulic Actuator and Hydraulic Brakes. It works SO much better than electric brakes ever did. I feel much safer towing the trailer now.



- AKUBRK-35
by:

Customer was happy



- AKUBRK-35
by:

Well all in all! Good products.



- AKUBRK-35
by:

Ordered a 10”brake kit and bearings for my boat trailer, it all came in quick and bolted right up. Paula was a big help in getting my order straight for me! Thanks



- AKUBRK-35
by:

Received everything a day before it was due. The trailer is 38 years old and due to your excellent web site I was able to correctly identify the correct part numbers for my trailer. This is the second time I've used etrailer for parts and both times my experience was excellent.



- AKUBRK-35
by:

It is just as described and went on perfectly!! I always like getting things that fit right the first time and look to be quality made. The two that were on my trailer were in very bad condition (JUNK), and these solved my problem very easily. Also, they are at a reasonable price. +++++ all the way!! The staff that helped me are fantastic in knowledge of there product and SERVICE! One of the best parts is the Fast shipping! A PLUS Thanks all the way to everyone!



- AKUBRK-35
by:

These brake kits are a great solution instead of trying to piece together an old, rusty set up. I did R & R the new brake shoes just so I can lubricate the backing plate where the shoes ride and I did have to drill a 3/8" hole in each backing plate for the water flush fitting. That's just me. Other than that these were a breeze to install and could very well be installed as-is right out of the box.



- AKUBRK-35
by:

These are reasonably priced and they were easy to install. they work well even when wet. The only thing that would have made them 5 star would have been to have stainless springs like most marine brakes.



- AKUBRK-35
by:

OUTSTANDING price to value ratio. Perfect match for my 2005 Dorsey Dual Axel trailer for my boat. Great parts for the drum and brake kit and could not be happier with shipping time and speed.



- AKUBRK-35
by:

Order this for a boat trailer and fit exactly as original.



- AKUBRK-35
by:

Easy to find, Reasonably priced, nicely packed, and fast shipment.etrailers is my go to place for trailer and towing needs. Thanks.



- AKUBRK-35
by:

Great price, perfect fit, just what I needed to replace my rusty and frozen originals...installed but not on the road yet...they got here quick. You will need your original nuts.


Comments
The nuts and lock washers are available as part # BRKH10B
Mounting Hardware for 10" Brake Assemblies
$3.69
. Each set includes 8 nuts and 8 lock washers, enough fasteners to mount 2 brake assemblies.
-- Etrailer Expert Mike L - 09/29/2018


- AKUBRK-35
by:

Haven't had a chance to compare the new units to the current sets, but they look the same. Lori B. was a tremendous help with my order. I had not dealt with Etrailer before, but I was impressed. I'll be back! Thanks.



- AKUBRK-35
by:

My recent purchase of the pre assembled backing plates with cylinders and shoes were a success. They were fast and easy to install. Thank you.



- AKUBRK-35
by:

Only down side is when used on drop axel they are hard to adjust due to a 8 small notches in the manual adjuster.


26
109
Show More Reviews

Ask the Experts about this etrailer Trailer Brakes

  • Difference Between 3,500 lb 10-Inch Hydraulic Trailer Brakes for Boat Trailer
    There is a difference between the two 3,500 lb 10-inch hydraulic brake assemblies you referenced, which is that one has a dacromet coating for better resistance to corrosion. Dacromet is an adhesive coating that gives added protection against corrosion so they are optimal for a boat trailer. - Dacromet Coating: Hydraulic Trailer Brake Kit - Uni-Servo - Dacromet # AKUBRK-35-D - Non-Dacromet: Hydraulic Trailer Brake Kit - Uni-Servo # AKUBRK-35 These are otherwise the same hydraulic...
    view full answer...
  • Determining Which Replacement Electric Trailer Brake Assemblies Fit 2000 Jayco Eagle 14SO
    I would be happy to help you identify the correct replacement brake assemblies for your 2000 Jayco Eagle 14SO, but unfortunately we do not have a break down of the specific components your trailer uses. What you will need to do is remove one of the hub and drum assemblies from your trailer and measure the inside diameter of the drum, and the inside depth of the drum as shown in the included diagram. For example if your drum measures 10" x 2-1/4" then the Dexter Nev-R-Adjust Electric...
    view full answer...
    Image 1 for
  • What Size Brake Line Fittings Does The Hydraulic Trailer Brake Kit Use
    The wheel cylinder on the Hydraulic Trailer Brake Kit # AKUBRK-35 you were looking at uses the standard 3/8" x 24 Threads Per Inch brake line fittings. I included a video of the Kit # AKUBRK-35 for you to take a look at.
    view full answer...
  • Replacement Hydraulic Brakes for a 2000 Jayco Eagle UDST Pop-Up Camper
    The correct braking assembly for your 2000 Jayco Eagle UDST Pop-Up Camper is most likely the Hydraulic Trailer Brake Kit part # AKUBRK-35 which is 10" x 2-1/4" but if you take a quick measurement of the contact surface inside your drum you should be able to confirm this. The correct hub/drum assembly for your 2000 Jayco Eagle UDST Pop-Up Camper will be a bit more difficult to find because there are a few different options depending on axle capacity. In order to confirm this I would...
    view full answer...
    Image 1 for
  • What Replacement Brakes do I Need for my Shore Lander Trailer with 10 Drums
    While I am unable to confirm this 100 percent most Shoerlander trailers with brakes use a surge coupler thus hydraulic brakes. For this application the Hydraulic Trailer Brake Kit - Uni-Servo - 10" part # AKUBRK-35 is a great replacement. If for some reason the trailer has electric brakes use the Electric Trailer Brake Kit - Self-Adjusting - 10" - Left and Right Hand Assemblies part # AKEBRK-35-SA
    view full answer...
  • Torque Figure for Installing 10 inch Trailer Brake Assemblies
    The nuts to secure brake assembly # AKUBRK-35 should be torqued to between 45-70 foot lbs. If you don't have a torque wrench close at hand we have # ALL944001. We offer 4 nuts and lock washers as part # BIK-00.
    view full answer...
  • Free Backing Hydraulic Brakes for a 3,500 Lb. Axle
    The Hydraulic Trailer Brake Kit part # AKUBRK-35 (part # AKUBRK-35R + part # AKUBRK-35L) does not have a free backing design. They have a single servo design which means you would need a reverse lockout on your trailer coupler in order to reverse the trailer. Instead, you will want to use the Hydraulic Trailer Brake Kit part # AKFBBRK-35 which does have a free backing design and will allow you to reverse without a reverse lockout.
    view full answer...
  • Mounting Flange Bolt Pattern of Etrailer.com Hydraulic Trailer Brake Kit AKUBRK-35
    The etrailer.com Hydraulic Trailer Brake Kit # AKUBRK-35 referenced in your question has a 4 bolt mounting flange pattern, as you mentioned. The mounting hole dimensions are 4 inches diagonally across and 2-7/8 inches left to right. This is the standard 4 bolt pattern for trailer spindles. This hydraulic brake kit is designed for 3,500 pound axles and will fit wheel sizes of 13-15 inches. Both the left hand and right hand assemblies are included. I have attached a short video demonstration...
    view full answer...
    Image 1 for
  • Recommended Brake Replacements For 2000 Jayco Eagle 12SO
    When replacing brakes on a trailer it is often more cost effective to get the entire assembly than to get the parts piece by piece. I recommend the Hydraulic Trailer Brake Kit - Uni-Servo - 10" - Left and Right Hand Assemblies - 3,500 lbs # AKUBRK-35 for your 2000 Jayco Eagle 12SO. However, if you just want the brake cylinder, I recommend the Replacement Wheel Cylinder for 10" and 12" Hydraulic Brakes - Uni-Servo - Right Hand # AKBRKR-H7-R and left hand # AKBRKR-H7-L. For the shoes,...
    view full answer...
  • Recommended Replacement Hydraulic Surge Brake Actuator For Drum Brakes on 2020 Jayco 12 tent trailer
    I recommend replacing your entire brake actuator on your 2000 Jayco 12 tent trailer. The Demco Hydraulic Brake Actuator # DM72VR is a bolt on actuator that will mount to your 3" channel like the Atwood 85830. This is the best route to go as it is nearly impossible to find any parts for the Atwood actuator since it has been out of production for so long. The etrailer Hydraulic Trailer Brake Kit # AKUBRK-35 is compatible with the Demco actuator I recommended.
    view full answer...
  • Replacement Trailer Brakes Compatible with 10" x 1-1/2" Drums
    We do have one option available for you, but the # AKUBRK-35 are not the correct solution for this. You're looking for the Dexter Electric Trailer Brake Kit - 10" - Left and Right Hand Assemblies - 3,000 lbs # K23-472-473-00, which are an electric brake assembly designed for 10-1/2" brake drums. These are sold in pairs of a left and right assembly, so you would need two of these for a tandem axle trailer. Since these brakes do not come with mounting hardware, so you'll want to use the...
    view full answer...
  • Adding Replacement Hydraulic Drum Brakes to Sundowner Horse Trailer With Dexter P-15 SLR Axle
    The correct replacement brakes are going to depend on what axle capacity your Dexter P-15 SLR is and what type of brakes you need. For example, if your axle is rated for 3,500 lbs, you have a 4-bolt mounting flange and wheels that are 13", 14" or 15" then Hydraulic Trailer Brake Kit # AKUBRK-35 would be a good choice for 10" drums. I've added a link to a video review of these brakes as well as a link to our selection of brakes for you to take a look at. If you let me know what your...
    view full answer...
  • Parts Needed to Swap Hydraulic Brakes to Electric Brakes on a 1998 Jayco Eagle 12 UDK
    We can definitely get you the parts needed to swap over to electric brakes, but the 2,500 pound hydraulic brakes will end up being a different size than their electric counterparts. With that being said, the etrailer.com Electric Trailer Brake Kit - 7" - Left and Right Hand Assemblies # AKEBRK-2 will technically only be rated to 2,000 pounds, but the 4 bolt pattern on the backing plate will bolt directly to your axle. From what I could find, your 1998 Jayco Eagle 12 UDK came from the...
    view full answer...
  • Replacement Hydraulic Brakes for 3500-lb Axle on Boat Trailer
    It sounds like you're looking for replacement drum brakes for your boat trailer that has 14-inch rims and tires in size ST205/75R14 on its 3500-lb axle. We have both electric and hydraulic drums brake kits for 3500-lb axles and since you referenced a surge coupler # T4339720 I will be happy to recommend appropriate hydraulic brakes. For a cost-effective set of left/right brakes you can use part # AKUBRK-35. You'll need one kit for each axle on the trailer. These 10-inch brakes will work...
    view full answer...
    Image 1 for
  • For Dual Axle Trailers Does it Matter Which Assembly Goes on Front Axle or Rear Axle?
    No. There won't be a difference in the # AKUBRK-35R from front to back, but there is a difference between the Left and Right Hand assemblies. This particular brake is for the right hand side (passenger) of the trailer. The corresponding brake for the driver's side would be # AKUBRK-35L or you can buy the complete set with # AKUBRK-35. For dual axle trailers you'll need 2 of each assembly as well as 2 sets of mounting hardware (lock washers and nuts) # BRKH10B since these brakes do not come...
    view full answer...
  • Replacement Hydraulic Surge Brake Brake Assembly
    You do have 2 options for the replacement brake assemblies. The Brake Assemblies # AKFBBRK-35 that you linked to is a free backing style that will not allow the brakes to be used when in reverse even when the actuator is activated. The Brake Assemblies # AKUBRK-35 will allow the brakes to be activated when going in reverse. These are the ones that you want if your Surge Brake has a manual or electric reverse lockout feature.
    view full answer...
  • Hydraulic Drum Trailer Brakes for 2,000 lb Timbren Axle-Less System
    There are hydraulic drum brakes you can use with the 2,000 lb Timbren Axle-Less Trailer Suspension System # ASR2000S02, you'll just need to get a hub and drum that fits (there are no electric disc brakes available). The correct hub and drum for this Timbren system is the Trailer Hub and Drum Assembly # AKHD-545-35-EZ-K. You will then be able to use the Hydraulic Trailer Brake Kit # AKUBRK-35 with Mounting Hardware # BRKH10B. With this you are also going to need a hydraulic drum...
    view full answer...
  • Hydraulic Brake Assembly Recommendation for Trailer with 10 inch Diameter Drums
    Yes, the hydraulic brake assembly part # AKUBRK-35L is the correct assembly you need for the left side of the trailer. For a set that includes both sides of the axle what you need is the part # AKUBRK-35. These assemblies are for the standard 10 inch brake assemblies that are found on 3,500 lb axles.
    view full answer...
  • Parts Needed To Install Brakes On Haulmark 8 Foot V Nose Trailer
    I did some research and it looks like most Haulmark trailers like yours have a 3,500-lb single axle. If you have different axles then let me know and I can make the correct recommendation.  Your axle must have brake mounting flanges attached behind the existing hub assembly on each side for brakes. If there are no brake mounting flanges then you will either have to replace your axle or purchase brake mounting flanges that can be welded to your axle by a qualified welder.  A common...
    view full answer...
    Image 1 for
  • Compatibility of Hydraulic Brake Assemblies on UPF Axles
    The Hydraulic Trailer Brake Kit - Uni-Servo - 10" - Left and Right Hand Assemblies - 3,500 lbs # AKUBRK-35 will work the same as the Dexter Hydraulic Trailer Brake Kit - Uni-Servo - 10" - Left and Right Hand Assemblies - 3.5K # 23-312-313. The difference is mainly in the name brand. Either assembly will work fine on your tandem UPF axles.
    view full answer...
  • Parts Needed to Convert Roadmaster Tow Dolly From Electric Brakes to Surge Brakes
    The electric brakes on the Roadmaster Tow Dolly # RM-2050-1 can be converted to surge brakes if you'd like. You'll need the brake assemblies, actuator, and brake lines. For the brakes I suggest # AKUBRK-35. This includes both the left and right hand side which are specific. The brakes are labeled so you know which is which. Our most popular brake actuator is the Demco # 8605001. This fits a 2 inch hitch ball and has a capacity of 6,000 pounds. For a brake line kit I would...
    view full answer...
