1. Ball Mounts
  2. Draw-Tite
  3. Fixed Ball Mount
  4. Fits 1-1/4 Inch Hitch
  5. Class I
  6. 2000 lbs GTW
Draw-Tite Drawbar for 1-1/4" Hitch - 2-1/8" Rise, 2-3/4" Drop - 6-5/8" Long - 2K

Draw-Tite Drawbar for 1-1/4" Hitch - 2-1/8" Rise, 2-3/4" Drop - 6-5/8" Long - 2K

Item # 3593
lowest price pledge
Retail:$37.46
Our Price: $23.98
You Save: 36%
Ball Mounts
Orders above $99 qualify for Free Shipping
Shipping Weight: 5 lbs
Quantity:
In Stock
3593 - Fits 1-1/4 Inch Hitch Draw-Tite Fixed Ball Mount
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

Customer Photos

Videos

Sturdy steel ball mount with solid shank measures 6-5/8" from center of hitch pin hole to center of ball hole. Drawbar is Class I and Class II compatible. Powder coat finish over a-coat base provides excellent rust protection. Call 800-298-8924 to order Draw-Tite ball mounts part number 3593 or order online at etrailer.com. Free expert support on all Draw-Tite products. Guaranteed Lowest Price and Fastest Shipping for Draw-Tite Drawbar for 1-1/4" Hitch - 2-1/8" Rise, 2-3/4" Drop - 6-5/8" Long - 2K. Ball Mounts reviews from real customers.
  • All Info
  • Reviews (278)
  • Q & A (562)
  • Videos (1)
  • Photos
  • Why etrailer?

Draw-Tite Ball Mounts - 3593

  • Fixed Ball Mount
  • Fits 1-1/4 Inch Hitch
  • Class I
  • 2000 lbs GTW
  • Drop - 3 Inch
  • Rise - 2 Inch
  • Draw-Tite
  • No Ball
  • Steel Shank

Sturdy steel ball mount with solid shank measures 6-5/8" from center of hitch pin hole to center of ball hole. Drawbar is Class I and Class II compatible. Powder coat finish over a-coat base provides excellent rust protection.


Features:

  • Ball mount lets you hook up your trailer to your tow vehicle
    • Shank slides into your vehicle's hitch receiver
    • Ball platform provides mounting point for hitch ball (sold separately)
  • Both drop and rise positions available to ensure level towing
  • Sturdy steel construction with a solid shank
  • Black powder coat finish covers a-coat base for superior rust protection
  • Hitch pin and clip included - hitch lock sold separately


Specs:

  • Application: 1-1/4" x 1-1/4" trailer hitch receivers
    • Class I and Class II compatible
  • Gross towing weight: 2,000 lbs
  • Tongue weight: 200 lbs
  • Length: 6-5/8" From center of hitch pin hole to center of ball hole
  • Rise: 2-1/8" from top of inside of hitch opening
  • Drop: 2-3/4" from top of inside of hitch opening
  • Ball hole diameter: 3/4"
  • Pin hole diameter: 1/2"
  • Limited lifetime warranty


3593_3


3593 Draw-Tite Ball Mount 2-1/8" Rise or 2-3/4" Drop - 2,000 lbs

Replaces 6803




California residents: click here

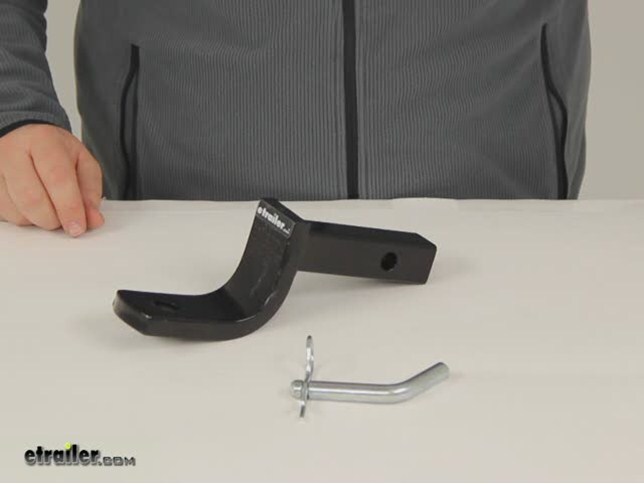

Video of Draw-Tite Drawbar for 1-1/4" Hitch - 2-1/8" Rise, 2-3/4" Drop - 6-5/8" Long - 2K

Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Draw-Tite Ball Mounts - Fixed Ball Mount - 3593 Review

Today we're going to look at the Draw-Tite Sportframe Drawbar, number 3593. This drawbar fits a 1 1/4 inch Class 1 sports frame receiver style trailer hitch. It uses a ball with a 3/4 inch shank diameter. From the center of the pin hole here to the center of the ball hole right here, it measures 6 5/8ths of an inch. It provides a 2 1/8 of an inch rise from here to the top of the ball platform, and a 2 3/4 inch drop from here to here. It is rated for up to 2,000 pounds of gross trailer weight and up to 200 pounds of ton weight and it includes the pin and clip, which is also available here at etrailer.com separately, part number PC2.

You would just put this in your 1 1/4 inch trailer hitch receiver, put the pin through there, and then just clip that off and you would be good to go. That should about do it for our Draw-Tite Sportframe Drawbar, part number 3593.


Customer Reviews

Draw-Tite Drawbar for 1-1/4" Hitch - 2-1/8" Rise, 2-3/4" Drop - 6-5/8" Long - 2K - 3593

Average Customer Rating:  4.8 out of 5 stars   (278 Customer Reviews)

Sturdy steel ball mount with solid shank measures 6-5/8" from center of hitch pin hole to center of ball hole. Drawbar is Class I and Class II compatible. Powder coat finish over a-coat base provides excellent rust protection.

- 3593
by:

This part came with the trailer hitch I purchased. It was very easy to transfer the ball from my 2" hitch and voila I am now ready to haul my trailer. 138664


Comments
am extremely satisfied with the products I purchased. I use theTow Hitch almost daily for my bicycle rack and a trailer I have to tow. The installation was a quick and easy. I have recommended your website to about 20-25 people over the past year. Hopefully you received some business from my recommendations. Thanks for following up. Not all companies take the time.
Jim F - 07/01/2015

12970

- 3593
by:

A well made product, and perfect fit. 95943


Comments
I may be ordering a hitch for a 2014 Chevy Cruze RS. The lower part of the bumper has a different shape than a 2013 Cruze. Wondering if I need to order a 3593 or a 3594 because of the difference in shape at the lower portion. In advance, thanks for the help!
-- comment by: Allan P - 07/30/2014

5980

Since the hitches that are confirmed to fit your 2014 Cruze are Class I trailer the manufacturer-recommended drawbar or ball mount should be used for each specific hitch. The hitch manufacturers test the two together. So which ever drawbar is recommended according to the fit guide page, that is the one you should be using. I have included a link to those for your reference below.

-- Rachael H - 7/31/2014

Comments
It does everything it is supposed to do, and still looks as good as the day I installed it.
JDW - 08/20/2014

6399

- 3593
by:

I needed a hitch receiver for a 2016 kia soul i am using for the time being to pull a small trailer and for my bike rack. My 15 year old son helped me install it no problem and it works great. Saved me a bunch of money! 733371



- 3593
by:

Product just like expected ! Nothing bad to say 600772



- 3593
by:

Not very happy with getting a used or returned ball mount from etrailer.com, should not have any rust or dents when I buy a new one. Sending a mail to customer service for a RA#, hopefully they will correct this problem. The wiring harness I order was the other item I ordered and it was in good shape. My experience with them has been up to this point excellent. 432664



- 3593
by:

Good Product. I am a guy that likes a challenge although this wasen't much of one.. easy instructions, straight forward application and tools this was a fun project. my best advice would be if you're putting together a project of sorts make sure you speak to a rep before you order, that way all the parts you order work well together.. 657130



- 3593
by:

Purchased this drawbar with my hitch and installed the whole works in 30 minutes. It works great! 11972



- 3593
by:

I was completely satisfied and very impressed thoughout my first experience with etrailer.com. The website provided exactly the educational material I need to correctly order the products. My order was unexpectedly upgraded for faster shipment, at no cost. The only glitch was the pin and clip were missing. After calling customer service they gave me several options. I bought the pin locally and etrailer.com promptly credit my account for my cost. I'm glad I found etrailer.com and heartily recommend them! 98797



- 3593
by:

The products arrived very quickly and fit my vehicle perfectly! 756151



- 3593
by:

The draw bar is solidly made and will easily handle my small trailer. 748890



- 3593
by:

No issues, fit like a glove 738869



- 3593
by:

fit well 738199



- 3593
by:

Works flawlessly after towing a dozen times with it. 738128



- 3593
by:

GREAT. 736937



- 3593
by:

Worked with other parts ordered. 736055



- 3593
by:

U get what you see works great 731039



- 3593
by:

I am amazed at how fast it arrived, and i didn't pay for expedited shipping. Very happy thanks 732509



- 3593
by:

Great hitch 721276



- 3593
by:

Great Vendor 710567



- 3593
by:

I am very pleased with my transaction. etrailer provided the best service and communication I have had. I recommend etrailer to anyone. 707857



- 3593
by:

simple to install works as described very satisfied as usual with etrailer 711558



- 3593
by:

I have bought several items from this company and have been very happy with the pricing, shipping and quality of the items . 700422



- 3593
by:

Great price. Good quality. No issues 697973



- 3593
by:

They solve my request immediately, thank you. 697828



- 3593
by:

Everything was great 691843


29
283
Show More Reviews

Ask the Experts about this Draw-Tite Ball Mounts

  • Hitch Ball Options Compatible with the Draw-Tite Drawbar # 3593
    We do have hitch balls that are compatible with the Draw-Tite Drawbar # 3593 that you are looking at. The 3/4" ball hole diameter on the drawbar needs to match the shank diameter of the hitch ball that you choose. The 2-5/16" Curt Hitch Ball # A-6 that you referenced is for heavier towing applications and has a shank diameter of 1-1/4" so the shank is too large for the Draw-Tite drawbar. We recommend going with the 1-7/8" Hitch Ball # 19256 or with the part # 19258 which is a 2"...
    view full answer...
  • Trailer Hitch and Wiring Recommendation for a 2011 Ford Fiesta
    That depends on which model of Ford Fiesta you have. If you have a sedan you would want the part # 24856 and if you have a hatchback you would want the part # 24961. For trailer wiring you would want part # 118471 for if you have a hatchback and part # 118422 for if you have a sedan. For a ball mount you would want the part # 3593 that you referenced. For a 2 inch ball you would want part # 19258 or # 19256 for a 1-7/8 inch ball.
    view full answer...
  • Best Trailer Hitch for Towing with a 2010 Toyota Yaris
    Hitch ball # 19256 with the short shank, 1-9/16 inches, is the ball you need. I suggest the Draw-Tite Sportframe Class I # 24819 for a trailer hitch recommendation.
    view full answer...
  • Choosing the Correct Class I Ball Mount to Pull a Small Boat Trailer with a 2014 Kia Soul
    To choose the correct ball mount you will want to make sure that you do check the weight capacity of it, but it is also equally important to make sure that you know what kind of Rise or Drop you need or if it is even needed at all. Keep in mind that you will need to check your owner's manual for any special instructions about towing. In an online manual it states not to use your 2014 Kia Soul for towing so if you do so you will be operating outside of the parameters of the manufacturer. What...
    view full answer...
  • Ball Mount that Fits 1-1/4 inch Hitch with 2 inch Hitch Ball
    We offer ball mounts that fit 1-1/4 inch hitches that are compatible with 2 inch hitch balls. For example we have the # 3593 which fits that hitch size and then for a 2 inch hitch ball we have the # 19258.
    view full answer...
  • What is the Correct Ball Mount for a 2003 Toyota Corolla with Class I Trailer Hitch
    Yes, the ball mount # 3593 is correct for the 2003 Toyota Corolla. It must be used in the rise position only according to hitch manufacturers. The ball mount does come with a hitch pin and clip. For a 1-7/8 inch ball that fits use # 19256. And for a 2 inch ball that fits use # 19258.
    view full answer...
  • What is the Correct 1-7/8 Inch Diameter Ball for Draw-Tite Ball Mount # 3593
    We have many different 1-7/8 inch diameter balls. The recommended 1-7/8 inch ball for ball mount # 3593 is # 19256. Any ball that has a 3/4 inch diameter shank will fit.
    view full answer...
  • Ball Mount and 2 Inch Ball for Class I Trailer Hitch on a 2008 Honda Civic Hybrid
    Since your 2008 Honda Civic already has the hitch you just need the ball mount and a compatible 2 inch ball. The recommended ball mount is # 3593. And for a 2 inch ball you can use # 19258. There would be no adapter needed you just need the right ball mount and ball for the hitch!
    view full answer...
  • How to Pick Out the Correct Ball Mount for 2015 Honda Civic
    The best way to determine which amount of rise or drop you need from a ball mount (in order to keep your hitched trailer level for the best handling) is to measure as outlined in the linked article. Since the same wheel size could have more than one tire size on it that does not give you the best method for choosing a ball mount. For the Class I hitch on your 2015 Honda Civic you can refer to the linked page to see all ball mounts.
    view full answer...
  • Recommended Ball Mount and Wiring Harness for 2014 Honda Civic
    Since the trailer hitch on your 2014 Honda Civic is most likely a Class I receiver, you will need a ball mount that is compatible with Class I trailer hitches. First, for a hitch ball I recommend the Tow Ready 1-7/8" Diameter and Short Shank # 19256. This hitch ball has a gross towing weight capacity of 2,000 pounds. Choosing the correct ball mount will depend on what is needed to keep your vehicle and trailer as level as possible. For example, the Sportframe Draw Bar # 3593 is compatible...
    view full answer...
  • Why Can't Class II Accessories Be Used with Class I Trailer Hitch Receiver
    Both Class I and Class II trailer hitches have the same 1-1/4 inch receiever opening, however a Class II hitch will have higher towing and tongue weight capacities. The primary issue with using a Class II accessory in a Class I hitch is that many Class I hitch receivers actually have a built-in tab/stopper inside the receiver that physically prevent a Class II accessory from fitting. Trailer hitch manufacturers do this in order to keep a Class I hitch from being overloaded, since a Class...
    view full answer...
  • How to Measure the Rise of a Ball Mount for a Chrysler PT Cruiser
    The rise is the distance from the top of the shank to the top of the ball platform, with the ball mount in the position (rise) it will be used in. I am including a link to a FAQ page that will describe how to measure and choose the correct ball mount. The 2004 Chrysler PT Cruiser uses a Class I 1-1/4 inch hitch. All Class I hitches have to use the ball mount that is recommended from the manufacturer. The Draw-Tite Ball Mount, part # 3593, is the ball mount that is recommended for...
    view full answer...
  • Dimensions of the Shank of the Draw-Tite Drawbar for 1-1/4" Hitch # 3593
    The shank of the Draw-Tite Drawbar for 1-1/4" Hitch # 3593 measures 1-1/4 inches tall by 1-1/4 inches wide.
    view full answer...
  • Interchangeable Ball Set Recommendation for a 1-1/4 inch Hitch Ball Mount
    Sounds like you are looking for a interchangeable ball set like the part # 802b for a 1-1/4 inch ball mount like the part # 3593. You should note that this option is only for Class II hitches. There are no Class I options.
    view full answer...
  • Which Drawbar and Ball Should be used on a 2006 Honda CR-V for a 2,000 Gross Trailer Weight
    Distance from hitch pin hole to clear the spare tire usually only applies to bike carriers. It does not matter in the case of a draw bar or ball mount. The recommended ball mount for your vehicle is part # 3593 that you have referenced. It has a 2000 pound gross trailer weight capacity and a 200 tongue weight capacity and uses a ball with a 3/4 diameter shank. You could use part # 19258, which has a 3500 pound gross trailer weight capacity. Double check the owner manual for your...
    view full answer...
  • Towing a Trailer that Fits a 2 Inch Hitch Ball with ATV that has a 1-1/4 Inch Trailer Hitch Receiver
    Unfortunately, we do not have any hitch expanders from a 1-1/4 inch hitch receiver to a 2 inch receiver that are able to be used for towing. Although, I'm a little confused. Your ATV has a 1-1/4 inch receiver and the trailer fits a 2 inch hitch ball. With this being the case you can use a Class I ball mount like # 3593 with a 2 inch hitch ball like # 19258 to tow the trailer with your ATV.
    view full answer...
  • Is There a Standard Required Clearance for Ball Mount to Vehicle Bumper
    There really isn't a specific range for what you are asking about. You basically want the trailer to be able to move as you turn without interfering with the vehicle bumper. Normally that's not an issue and what people end up more concerned with is the correct rise drop. Having the hitch opening recessed 3 inches is pretty standard for towing applications. Ball mounts typically stick out around 9 inches or so which gives the trailer plenty of clearance to pivot around.
    view full answer...
  • How to Pick Out the Correct Ball Mount
    I attached an FAQ that details how to pick out the correct ball mount. Picking out the correct ball mount will allow your trailer to sit as level as possible. Basically you will first measure the height from the ground to the top of the receiver opening on the hitch while on level ground. Next, you will measure the coupler height from the ground to the bottom of the trailer coupler when the trailer is on level ground. Next, you will need to compute the difference. If the hitch height...
    view full answer...
  • Recommendation for Transporting Street Bikes with a Jeep Patriot and a Class I Trailer Hitch
    If your Jeep Patriot has a trailer towing capacity of 2,000 lbs then it will most likely have a tongue weight (TW) rating of 200 lbs as most vehicle manufacturers recommend a 10% max trailer tongue weight. I recommend verifying this with your owner's manual as the vehicle weight ratings can differ from that of your trailer hitch. You will be limited to the lower of the 2 ratings. Even if your max TW is higher than 200 lbs it won't be much more than that so to transport your heavier street...
    view full answer...
  • Are Ball Mounts Sold Separately from Trailer Hitches
    Sounds like you are looking for a ball mount. We carry quite a few of them actually. But when you buy one you want to go with one that allows the trailer to be towed as level as possible. I attached an FAQ that details how to pick out the correct ball mount. Picking out the correct ball mount will allow your trailer to sit as level as possible. Basically you will first measure the height from the ground to the top of the receiver opening on the hitch while on level ground. Next, you...
    view full answer...
  • How to Determine the Correct Size Ball to Use For Towing with a 2005 Toyota Matrix and # 24812 Hitch
    Selecting the proper hitch ball has more to do with the trailer coupler and gross weight of the trailer than the trailer hitch installed on your vehicle. The coupler ball size will be stamped into the coupler somewhere, usually on the top. With the 3593 draw bar a short shank ball with a 3/4 inch diameter shank is recommended. We have an article detailing ball selection and information for you to review (see link). If your trailer has a 2 inch coupler and is no heavier than 3,500 pounds...
    view full answer...
  • Trailer Hitch for 2005 Toyota Corolla
    The trailer hitches that fit your 2005 Toyota Corolla are all Class I hitches, and with that class of hitch, the manufacturers have a specific ball mount which is required, and it must be in a particular position. For example, I recommend the Draw-Tite Trailer Hitch Receiver # 24913 for your 2005 Corolla, and the required ball mount is the Draw-Tite Drawbar # 3593, which must be in the rise position only, as you can see by the cut out of the linked installation instructions I added....
    view full answer...
  • 2 inch Hitch Ball Recommendation to Use with Ball Mounts 3593 and C45025
    For a 2 inch ball to use with the draw bar part # 3593 you would want the part # 19258. For the part # C45025 you would then want the part # C40018. Both balls have 3/4 inch diameter shanks.
    view full answer...
  • Ball Mount Dimensions for a Class I Hitch on a 2003 Toyota Rav 4
    The distance from the center of the hitch pin hole on the Draw-Tite Sportframe Ball Mount, item # 3593, to the back of the shank is 1-1/2 inches, so it will fit fine in your Class I hitch. I have added the dimension to the photo at the right, click on the photo to enlarge it for better viewing. You may also need a hitch ball to complete your towing setup. If your trailer coupler takes a 1-7/8 inch ball you can use the # 19256 ball or if your coupler takes a 2 inch ball you can use the...
    view full answer...
  • Recommended 2 Inch Hitch Ball for Class II Trailer Hitch Receiver
    First of all, thanks for coming back. You didn't state needing a ball mount, but you will definitely need one. I recommend the Draw-Tite Drawbar # 3593 along with the 2" Hitch Ball # 19258. This will work very well for your Class II trailer hitch. Let me know if you need anything else for your towing needs.
    view full answer...
  • Does the Draw-Tite Class II Ball Mount # 3593 Use a 5/8 Inch Diameter Hitch Pin
    Class I and II accessories like the Draw-Tite Class I Ball Mount you referenced all use a 1/2 inch hitch pin or lock. Class III, IV and V hitches use the thicker 5/8 inch diameter hitch pin or lock. For your Class I accessory, I typically recommend a stainless locking hitch pin, like part # 40106.
    view full answer...
  • Install 3593 draw bar in the up or down position on a 2005 Honda Element
    The orientation your Class I Drawbar, part 3593 will depend on the height of the trailer coupler. With the trailer level, measure from the coupler down to the ground. This is the approximate height you'll need the trailer ball to be. You'll want to install the drawbar so that the trailer ball is as close to this height as possible. Due to the fairly low bumper height of the Element, you'll probably need to install it in the 'up' position.
    view full answer...
  • Correct Wiring Kit for a 2019 Hyundai Santa Fe with the Trailer Tow Prep Package
    If your 2019 Hyundai Santa Fe has the tow package then you want to use the Tekonsha T-One # 118784 which has the 4-Way Flat connector that you asked about and plugs into the factory connector which is located under the vehicle, behind the rear bumper, on the driver’s side. You said that you already have the trailer hitch for towing but you didn't mention a ball mount kit. If your trailer hitch has a 2" receiver like the Curt # C13195 which fits a 2019 Santa Fe then I recommend the Curt...
    view full answer...
  • What is Needed to Install Trailer Hitch Receiver in 2020 Kia Soul
    The tools needed to install the Draw-Tite Trailer Hitch Receiver # 24985 on your 2020 Kia Soul is actually more daunting than the installation. I am very confident that a moderate DIYer can accomplish the installation of this hitch on a 2020 Soul. I have added a cut out from the linked installation instructions which show the tools you'll need. The tools are all standard and as you can see by the instructions I added, the install is very straightforward. There isn't any part of the install...
    view full answer...
